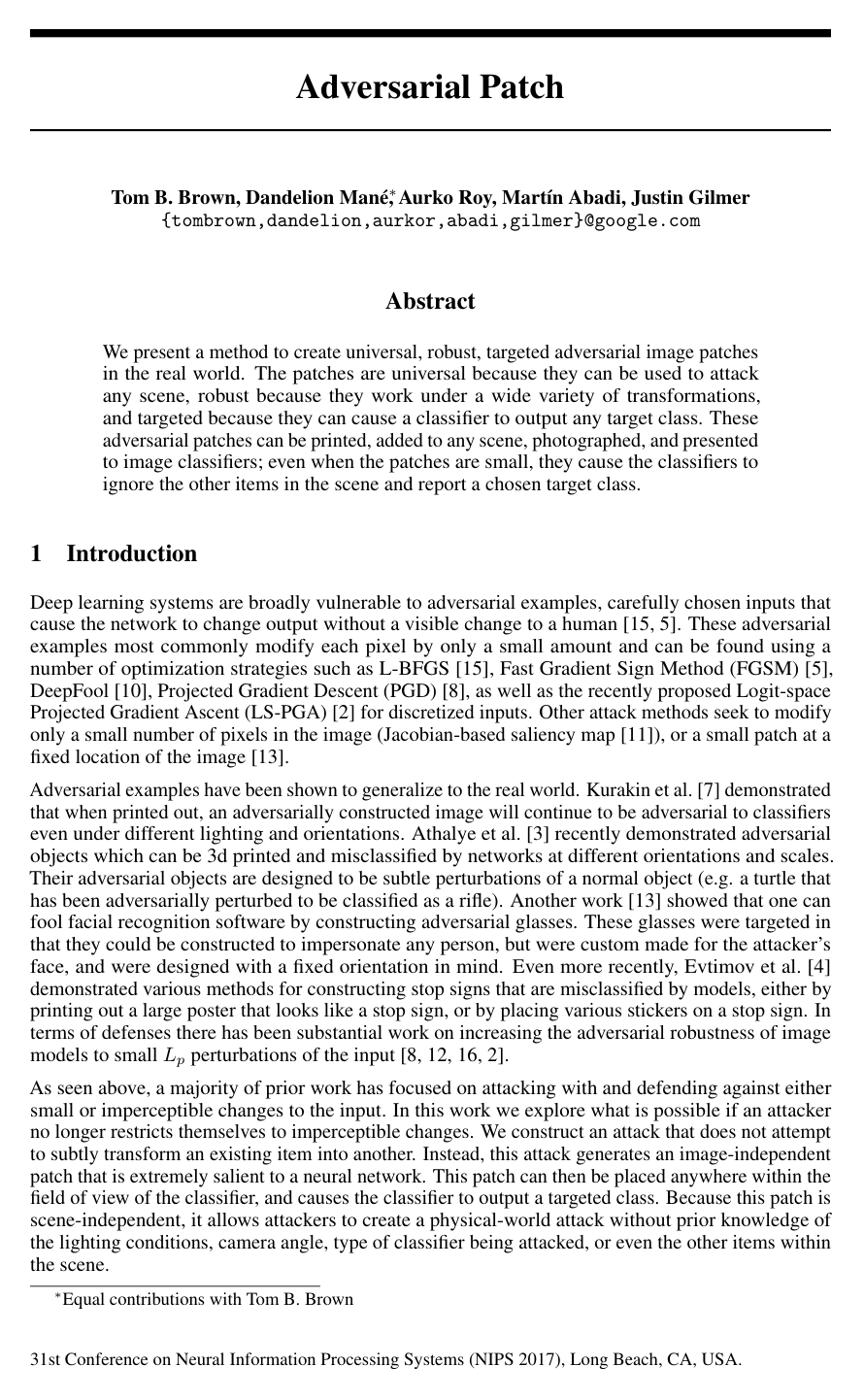

Adversarial Patch

Tom B. BrownDandelion ManéAurko RoyMartín AbadiJustin Gilmer

article2017arXiv1,345 citations

Introduces printable, scene-agnostic adversarial patches capable of overriding deep learning image classifiers in the physical world to force the prediction of an arbitrary target class.

Listen

Most modern security research on image-recognition systems focuses on defending against subtle, imperceptible modifications to digital images. However, real-world automated systems—ranging from surveillance cameras to autonomous vehicles—frequently operate without human oversight, leaving them vulnerable to physical modifications that an attacker does not need to hide. The article addresses this operational blind spot by evaluating whether visible, physical artifacts can reliably force image classifiers to misclassify scenes.

The article demonstrates a method for generating printable, targeted "adversarial patches" that consistently cause image classifiers to output a chosen target category regardless of the surrounding background or scene contents. Unlike traditional digital attacks, these patches are scene-independent, meaning an attacker does not need prior knowledge of lighting, camera angles, or the background objects being photographed.

To create these patches, the researchers adapted an optimization framework that trains a localized image patch across a wide distribution of background images, positions, scales, and rotations. They evaluated the approach on standard benchmark vision models (including ResNet50, InceptionV3, and VGG variants) across white-box settings where internal model parameters are known, and black-box settings where the patch is trained on a subset of models and evaluated on an unseen model. The team also conducted physical experiments by printing the generated patches with a standard desktop printer and photographing them alongside real objects.

The findings show that printable patches reliably deceive target classifiers across varying environments. First, when placed beside a real-world object (such as a banana originally identified with 97% confidence), the addition of a printed sticker targeted to a "toaster" class forced the model to output "toaster" with 99% confidence, completely ignoring the primary object. Second, patches generalized effectively across multiple model architectures in digital black-box evaluations, substantially outperforming natural images of the target class inserted at the same size. Third, researchers successfully camouflaged the patches to resemble abstract art or tie-dye peace signs while retaining their ability to mislead the models.

These results demonstrate a critical operational security risk. Because the patch does not depend on a specific scene, an attacker can create a single design offline and distribute it widely for third parties to print and deploy as physical stickers. The findings also reveal that existing defense strategies, which focus primarily on minor digital perturbations, fail to protect computer vision systems against localized, high-salience physical modifications.

To address this vulnerability, security and engineering teams deploying automated vision systems must expand defensive evaluations beyond small pixel-level noise to include localized, large-magnitude physical attacks. Organizations should explore multi-object detection and segmentation architectures that reduce reliance on global image classification, as standard classifiers simply output the single most salient feature detected. While the attack is highly effective in controlled environments and transfers across models, its effectiveness in black-box physical settings currently decreases unless the patch occupies a relatively large portion of the frame or is optimized for print quality. Further testing on diverse real-world cameras and specialized print processes is necessary before fully assessing threat levels against specific production deployments.

Google image patches svm adversarial patch adversarial perturbations adversarial example

arXiv: 1712.09665 examples/adversarial_patch

Paper: Adversarial examples in the physical world, Alexey Kurakin et al. (2016). This work provides foundational evidence that adversarial examples survive printing and physical photography, directly motivating the development of printable physical adversarial patches.
Paper: Universal Adversarial Perturbations, Seyed-Mohsen Moosavi-Dezfooli et al. (2016). It introduces image-agnostic universal adversarial perturbations, establishing the core concept of scene-independent fooling that the Adversarial Patch generalizes into a localized physical form.
Paper: Synthesizing Robust Adversarial Examples, Anish Athalye et al. (2017). It establishes the Expectation Over Transformation framework used to optimize adversarial examples over a distribution of real-world transformations such as viewing angles, lighting, and scaling.
Paper: Explaining and Harnessing Adversarial Examples, Ian J. Goodfellow et al. (2015). This seminal paper explains the linearity underlying adversarial vulnerability and introduces standard gradient-based optimization techniques essential for crafting targeted attacks.
Paper: Towards Evaluating the Robustness of Neural Networks, Nicholas Carlini et al. (2016). It formalizes powerful optimization-based formulations for generating targeted adversarial attacks across standard distance metrics.
Paper: The Limitations of Deep Learning in Adversarial Settings, Nicolas Papernot et al. (2015). It explores targeted adversarial attacks that restrict perturbations to small subsets of input features using saliency maps.

Paper: Obfuscated Gradients Give a False Sense of Security: Circumventing Defenses to Adversarial Examples, Anish Athalye et al. (2018). This work demonstrates how transformation-robust techniques like Expectation Over Transformation can bypass apparent defenses relying on obfuscated gradients.
Paper: Learning Robust Global Representations by Penalizing Local Predictive Power, Haohan Wang et al. (2019). It develops defense mechanisms that penalize local predictive cues and patch-level representations to prevent localized adversarial features from dominating classification.
Paper: Countering Adversarial Images using Input Transformations, Chuan Guo et al. (2018). It examines input transformations such as image quilting and cropping as potential defenses against localized and global adversarial perturbations.
Paper: Improving Transferability of Adversarial Examples With Input Diversity, Cihang Xie et al. (2018). It expands upon transformation-based adversarial optimization to significantly improve black-box attack transferability across architectures.
Paper: Adversarial Examples Are Not Bugs, They Are Features, Andrew Ilyas et al. (2019). It provides a theoretical and empirical framework explaining how models learn non-robust, highly predictive features like those weaponized in adversarial patches.
Paper: Reliable evaluation of adversarial robustness with an ensemble of diverse parameter-free attacks, Francesco Croce et al. (2020). It establishes standardized parameter-free benchmark evaluations to systematically assess model defenses against diverse adversarial perturbations.

Abstract

We present a method to create universal, robust, targeted adversarial image patches in the real world. The patches are universal because they can be used to attack any scene, robust because they work under a wide variety of transformations, and targeted because they can cause a classifier to output any target class. These adversarial patches can be printed, added to any scene, photographed, and presented to image classifiers; even when the patches are small, they cause the classifiers to ignore the other items in the scene and report a chosen target class.

To reproduce the results from the paper, our code is available at this https URL

Topics

image patches svm

Keywords

adversarial patch adversarial perturbations adversarial example adversarial objects blackbox attack patch application operator white-box ensemble ImageNet models deep neural networks

1 Introduction
2 Approach
3 Experimental Results
4 Conclusion
5 Appendix
References

Knowls

Knowl 1 — Adversarial Patch Optimization Objective via Expectation over Transformation
equation
An adversarial patch $\hat{p}$ targeted to a specific class $\hat{y}$ is generated by optimizing the patch pixel values over an expectation across images, spatial locations, and geometric transformations:

$\hat{p} = \arg\max_{p} \mathbb{E}_{x \sim X, t \sim T, l \sim L} \left[ \log \Pr(\hat{y} \mid A(p, x, l, t)) \right]$

where:
- $p$ is the patch parameter tensor being optimized,
- $X$ is a distribution or dataset of background images,
- $T$ is a distribution over geometric transformations of the patch (such as scaling and 2D rotations),
- $L$ is a distribution over spatial placement coordinates within the image,
- $\hat{y}$ is the designated target classification label,
- $\Pr(\hat{y} \mid \cdot)$ is the classifier's output probability assigned to class $\hat{y}$ ,
- $A(p, x, l, t)$ is the patch application operator that applies transformation $t$ to patch $p$ and places it onto image $x$ at location $l$ .
The optimization is solved using gradient descent on $p$ . Because the objective takes expectations over backgrounds, spatial locations, and affine transforms, the optimized patch acts as an image-independent, scene-invariant, targeted perturbation.
Knowl 2 — Patch Application Operator for Arbitrary-Shaped Perturbations
model/method
For an image $x \in \mathbb{R}^{w \times h \times c}$ with width $w$ , height $h$ , and color channels $c$ , a patch $p$ , a spatial coordinate location $l$ , and a set of affine transformations $t$ (such as scaling, rotation, and translation), the patch application operator $A(p, x, l, t)$ modifies an image by:
1. Applying the transformation $t$ to the patch $p$ .
2. Applying a spatial mask to the patch to define its boundary geometry (e.g., circular sticker, peace sign, or custom shape).
3. Overwriting the pixels of image $x$ at location $l$ with the transformed, masked patch $p$ , while leaving all image pixels outside the mask unaltered.
Unlike traditional additive adversarial perturbations bounded by small $L_p$ norms ( $\|x - \hat{x}\|_p \le \varepsilon$ ) across all pixels, $A(p, x, l, t)$ completely replaces a localized subregion of the target image with unconstrained pixel values.
Knowl 3 — Camouflaged and Disguised Adversarial Patch Optimization
model/method
To reduce the visual conspicuity of an adversarial patch to human observers, the patch optimization objective can incorporate regularizers and structural constraints to resemble familiar, benign visual patterns:
1. $L_\infty$ -Bounded Camouflage: A constraint of the form $\|p - p_{\text{orig}}\|_\infty < \epsilon$ enforces that all pixel values of the optimized patch $p$ stay within an $L_\infty$ radius $\epsilon$ of a chosen source image $p_{\text{orig}}$ .
2. Pattern Regularization and Masking: The patch is regularized during gradient descent by minimizing its $L_2$ distance to a target texture (such as a tie-dye pattern) and training under a fixed geometric mask (such as a peace sign shape).
These constraints produce patches that resemble innocuous decorative stickers while retaining high targeted attack effectiveness against neural networks.
Knowl 4 — Evaluation Protocol and Ensemble Schemes for Adversarial Patches
experimental setup
The effectiveness of adversarial patch attacks is evaluated across ImageNet classifiers (including InceptionV3, ResNet50, Xception, VGG16, and VGG19) under four distinct settings:
- White-Box Single Model: A patch is optimized against and evaluated on a single classifier architecture.
- White-Box Ensemble: A single patch is jointly optimized across an ensemble of five ImageNet architectures (InceptionV3, ResNet50, Xception, VGG16, and VGG19) to maximize the average target class log-probability across all models, and evaluated on all five.
- Black-Box Transfer: A patch is jointly trained on an ensemble of four ImageNet architectures and evaluated against a fifth held-out architecture not seen during training.
- Control Baseline: A non-adversarial photograph of the target class (e.g., a natural photo of a toaster) scaled and placed on images.
Each attack condition is evaluated across patch sizes (measured as a percentage of total image area). For every scale tested, the patch is placed at random locations across 400 randomly chosen test images, and the win rate (percentage of images classified as the target class) is recorded.
Knowl 5 — Targeted Attack Success Rates Across Patch Scales and Transfer Settings
empirical result
In evaluations targeting the class 'toaster' across 400 test images per patch scale:
- White-Box Single Model Attack: Achieves an attack success rate near 90% when the patch occupies 10% of the image area, approaching 100% success rate at 15–20% of image area.
- White-Box Ensemble Attack: Achieves approximately 90% success rate at 10–15% image area and reaches nearly 100% success rate by 20% image area.
- Black-Box Transfer Attack: Achieves roughly 20% success rate at 10% image area, 50% at 20% area, 70% at 30% area, and over 80% at 40–50% area.
- Natural Image Control (Real Toaster): Inserting a real photograph of a toaster into the scene achieves under 10% classification as a toaster at 10% image area, and only reaches ~40–50% classification rate even when occupying 40–50% of the total image area.
Optimized adversarial patches substantially outperform the control photograph across all scales, indicating that the patch creates feature activations far more salient to classifiers than natural object instances.
Knowl 6 — Targeted Fooling Rates of Camouflaged and Masked Patches
empirical result
When adversarial patches are regularized to disguise their visual appearance, they retain high targeted fooling capability against ImageNet classifiers:
- Tie-Dye Disguise: Regularizing the patch via $L_2$ distance toward a tie-dye pattern achieves ~30% targeted success rate at 10% image area, ~65% at 20% image area, and over 90% at 40–50% image area.
- Peace Sign Mask Disguise: Combining tie-dye regularization with a peace sign shape mask achieves ~10% targeted success rate at 10% image area, ~35% at 20% image area, ~60% at 30% image area, and ~80% at 50% image area.
- Comparison: Both disguised patch configurations significantly outperform the control baseline (a natural picture of a toaster) across all image area percentages above 10%.
Knowl 7 — Physical-World Targeted Classifier Hijacking via Printed Adversarial Patches
empirical result
Adversarial patches generated via white-box ensemble optimization successfully fool image classifiers in the physical world when printed with a standard color printer:
- A baseline photograph of a tabletop containing a banana and a notebook is classified by VGG16 as class 'banana' with 97% confidence.
- Placing a physical circular sticker patch targeted to 'toaster' on the tabletop causes VGG16 to classify the photograph as 'toaster' with 99% confidence, completely overriding the natural banana in the frame.
- Physical-world black-box transferability was demonstrated against a third-party mobile recognition app (Demitasse), succeeding when the physical patch occupies a large fraction of the camera's field of view.
Knowl 8 — Saliency Exploitation Mechanism in Single-Label Image Classifiers
theoretical result
The adversarial patch exploits the training setup of single-label image classification models:
1. In standard classification benchmarks, each image is annotated with only one ground-truth class label, compelling neural networks to identify and report only the single most salient visual concept present.
2. The adversarial patch optimization produces localized feature patterns that are orders of magnitude more salient to the model's feature extractors than natural real-world objects.
3. Consequently, placing the patch anywhere in an image causes the model to classify the entire image as the patch's target class while ignoring all other objects in the scene.
4. In multi-label contexts such as object detection and image segmentation, this mechanism implies that a targeted adversarial patch will be localized and detected as its target class without masking or suppressing detection of other surrounding objects.
Knowl 9 — Orientation and Area Scale Constraints on Patch Transferability
limitation
The operational efficacy of adversarial patches in black-box and physical environments is subject to several constraints:
- Orientation Sensitivity: For optimal targeted fooling in physical deployments, the printed patch sticker must remain within approximately 20 degrees of the vertical alignment used during training.
- Patch Size Requirement: Because the attack must generalize universally across unseen backgrounds, arbitrary locations, and transformations, the required patch area (10% to 50% of the image) is substantially larger than that of non-universal, single-image white-box attacks (such as single-pixel modifications covering 0.1% of an image).
- Print-ability Loss: Patches optimized without explicit color-gamut printability loss functions experience degraded black-box transferability in physical deployments compared to digital evaluations.

Coverage note — None was omitted; all key contributions including the EOT formulation, patch operator, disguised variants, empirical evaluations across white-box/black-box settings, physical-world transfer experiments, saliency mechanism analysis, and practical limitations are fully covered.
