Improving Transferability of Adversarial Examples With Input Diversity

Cihang XieZhishuai ZhangJianyu WangYuyin ZhouZhou RenA. Yuille

article2018CVPR1,497 citations

Proposes the Diverse Inputs method, which applies random transformations during iterative gradient optimization to prevent overfitting and significantly improve the black-box transferability of adversarial examples across convolutional neural networks.

Listen

Deep learning models are increasingly deployed in mission-critical applications such as autonomous driving and medical diagnostics, yet they remain vulnerable to adversarial examples—images altered with imperceptible noise that trick models into making severe classification errors. While attackers can easily mislead a system when its internal architecture and parameters are fully known (the white-box setting), these manipulated images historically struggle to fool target systems when their underlying parameters are unknown (the black-box setting). This occurs because standard optimization techniques overfit to the source network, limiting their transferability across diverse, real-world deployment environments.

The article demonstrates an effective method to enhance the transferability of adversarial examples by introducing input diversity during image generation. The approach applies random, differentiable transformations—specifically random resizing and random padding—at each optimization step to prevent adversarial noise from overfitting to a specific network architecture.

To evaluate this technique, the researchers conducted extensive empirical evaluations on standard benchmark datasets, using 5,000 correctly classified images from ImageNet. They tested several standard and adversarially trained convolutional networks under single-model and multi-model ensemble scenarios. Furthermore, they tested their approach against top defense systems and baseline models from the NIPS 2017 Adversarial Competition.

The findings show that introducing input diversity substantially improves attack transferability while maintaining nearly 100% white-box success rates. When paired with momentum optimization and multi-network ensembles, the combined method attained an average attack success rate of 73.0% across leading competitive defense mechanisms, outperforming the competition-winning baseline by 6.6 percentage points. When targeting individual black-box models, input diversity alone doubled or tripled transfer success rates compared to standard iterative attacks, and it proved similarly effective when integrated into alternative attack frameworks.

These results demonstrate that many prevailing security defenses, including transformation-based inference mitigations and adversarial training, provide less protection in black-box environments than previously assumed. This indicates a heightened operational risk for systems relying on security through obscurity or simple input defenses, underscoring that current defenses can be bypassed if an adversary crafts inputs that generalize across varied network transformations.

Organizations developing or deploying safety-critical computer vision models should adopt input-diversity attacks as a standard benchmark to stress-test system robustness. Reliance solely on basic input transformations or single-model defenses should be reconsidered in favor of more robust defenses that account for transformation-invariant adversarial noise. Future work should further investigate the underlying mathematical properties of shared decision boundaries and validate the approach across non-vision tasks and newer network architectures.

Baidu Johns Hopkins University University of Oxford Wormpex AI Research high resolution image malicious attack denial of service attacks transferable adversarial examples input diversity diverse inputs iterative fast gradient sign method

arXiv: 1803.06978 cihangxie/DI-2-FGSM

Paper: Delving into Transferable Adversarial Examples and Black-box Attacks, Yanpei Liu et al. (2016). This paper establishes foundational methodologies for generating transferable adversarial examples across deep architectures in black-box ImageNet settings, which the source directly aims to improve via input diversity.
Paper: Adversarial Machine Learning at Scale, Alexey Kurakin et al. (2016). It introduces iterative fast gradient methods at scale on ImageNet and highlights the issue of transferability under iterative attacks, forming the algorithmic baseline for DI-2-FGSM.
Paper: Synthesizing Robust Adversarial Examples, Anish Athalye et al. (2017). It introduces the Expectation Over Transformation framework for applying random transformations during optimization, which inspires the random input transformations used in the source attack.
Paper: Countering Adversarial Images using Input Transformations, Chuan Guo et al. (2018). It analyzes using image transformations as defensive countermeasures on ImageNet, providing the key defense paradigm that input diversity attacks are designed to circumvent.
Paper: Ensemble Adversarial Training: Attacks and Defenses, Florian Tramèr et al. (2018). It details ensemble adversarial training and random single-step perturbations to resist transferable attacks, serving as a primary defense baseline evaluated in the source.
Paper: Explaining and Harnessing Adversarial Examples, Ian J. Goodfellow et al. (2015). It defines the foundational Fast Gradient Sign Method (FGSM) upon which iterative and diverse-input gradient-based attacks are directly built.
Paper: Transferability in Machine Learning: from Phenomena to Black-Box Attacks using Adversarial Samples, Nicolas Papernot et al. (2016). It introduces the practical black-box threat model relying on adversarial transferability between distinct classifiers.

Paper: Obfuscated Gradients Give a False Sense of Security: Circumventing Defenses to Adversarial Examples, Anish Athalye et al. (2018). It systematically examines gradient obfuscation in defenses, showing how transformation-based defenses and randomization can be circumvented via techniques closely tied to input transformation handling.
Paper: Reliable evaluation of adversarial robustness with an ensemble of diverse parameter-free attacks, Francesco Croce et al. (2020). It builds an ensemble of parameter-free attacks to reliably assess robustness, advancing standardized benchmarking beyond iterative transfer attacks.
Paper: Adversarial Examples Are Not Bugs, They Are Features, Andrew Ilyas et al. (2019). It provides theoretical and empirical insights into why transferable adversarial perturbations exist by framing them as non-robust dataset features.
Paper: AugMix: A Simple Data Processing Method to Improve Robustness and Uncertainty, Dan Hendrycks et al. (2019). It adapts the principle of randomized input transformations and mixing as a defensive training augmentation to improve general robustness against corruptions and perturbations.
Paper: Manifold Mixup: Better Representations by Interpolating Hidden States, Vikas Verma et al. (2018). It extends data diversity and interpolation beyond input pixel space into hidden internal states to smooth decision boundaries against adversarial perturbations.

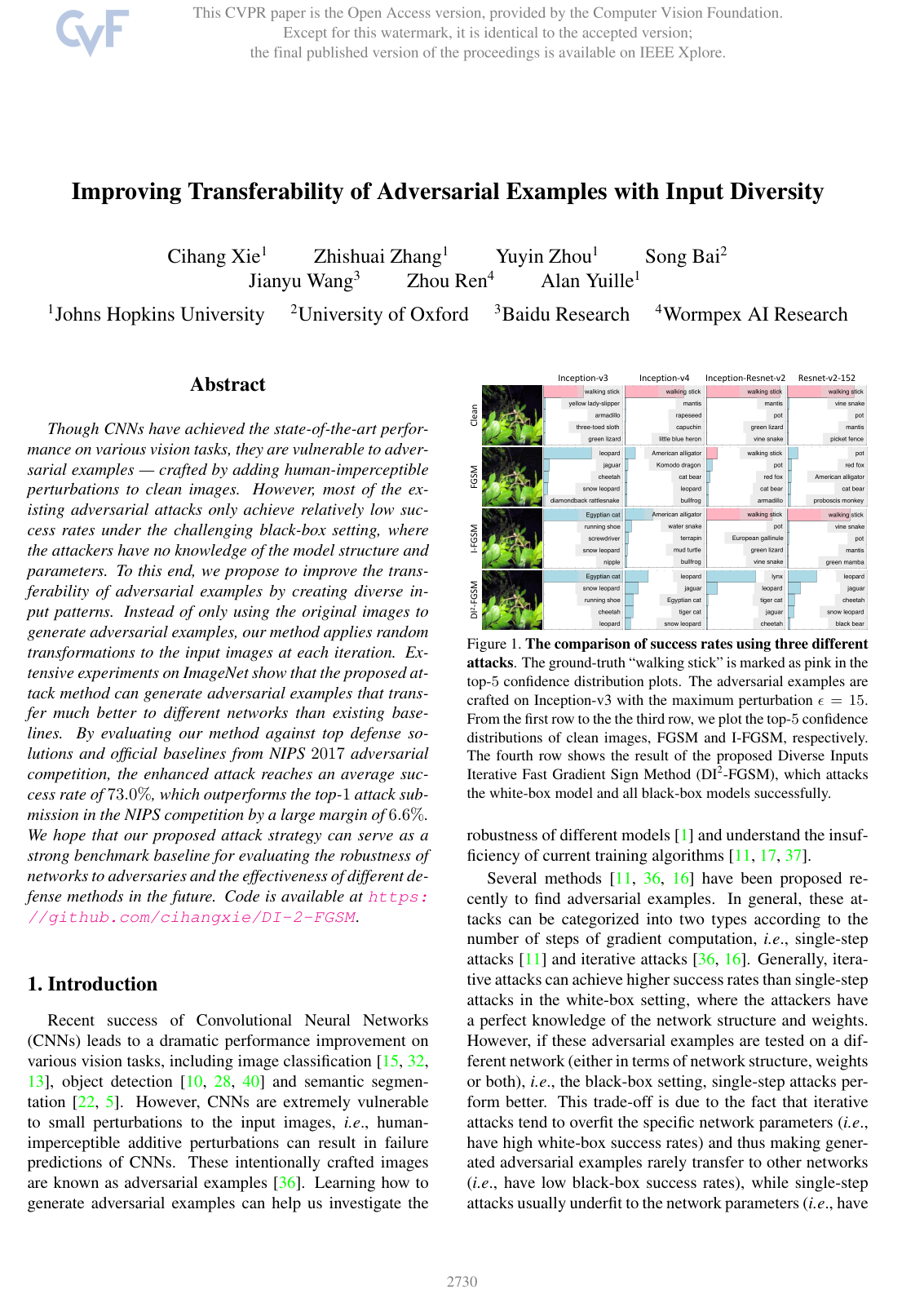

Cover for Improving Transferability of Adversarial Examples With Input Diversity

Abstract

Though CNNs have achieved the state-of-the-art performance on various vision tasks, they are vulnerable to adversarial examples — crafted by adding human-imperceptible perturbations to clean images. However, most of the existing adversarial attacks only achieve relatively low success rates under the challenging black-box setting, where the attackers have no knowledge of the model structure and parameters. To this end, we propose to improve the transferability of adversarial examples by creating diverse input patterns. Instead of only using the original images to generate adversarial examples, our method applies random transformations to the input images at each iteration. Extensive experiments on ImageNet show that the proposed attack method can generate adversarial examples that transfer much better to different networks than existing baselines. By evaluating our method against top defense solutions and official baselines from NIPS 2017 adversarial competition, the enhanced attack reaches an average success rate of 73.0%, which outperforms the top-1 attack submission in the NIPS competition by a large margin of 6.6%. We hope that our proposed attack strategy can serve as a strong benchmark baseline for evaluating the robustness of networks to adversaries and the effectiveness of different defense methods in the future. Code is available at https://github.com/cihangxie/DI-2-FGSM.

Topics

high resolution image malicious attack denial of service attacks network architecture illustrative examples

Keywords

transferable adversarial examples input diversity diverse inputs iterative fast gradient sign method black-box attacks adversarial perturbations adversarial training iterative attacks random transformations network robustness

1 Introduction
2 Related Work
2.1 Generating Adversarial Examples
2.2 Defending Against Adversarial Examples
3 Methodology
3.1 Family of Fast Gradient Sign Methods
3.2 Motivation
3.3 Diverse Input Patterns
3.4 Relationships between Different Attacks
3.5 Attacking an Ensemble of Networks
4 Experiment
4.1 Experiment Setup
4.2 Attacking a Single Network
4.3 Attacking an Ensemble of Networks
4.4 Ablation Studies
4.5 NIPS 2017 Adversarial Competition
4.6 Discussion
5 Conclusions
References

Knowls

Knowl 1 — Diverse Inputs Iterative Fast Gradient Sign Method (DI2-FGSM)
model/method
The Diverse Inputs Iterative Fast Gradient Sign Method ( $\text{DI}^2\text{-FGSM}$ ) improves the transferability of adversarial examples generated by iterative gradient attacks by applying stochastic, differentiable image transformations at each attack iteration. Standard iterative fast gradient sign methods (I-FGSM) greedily step in the gradient sign direction of the original input image $X$ , which causes the perturbation to overfit the specific loss landscape of the white-box model parameters $\theta$ and fail to transfer to unknown black-box models $\hat{\theta}$ .

To prevent this optimization overfitting, $\text{DI}^2\text{-FGSM}$ applies a stochastic transformation operator $T(X; p)$ with activation probability $p \in [0, 1]$ :

$T(X; p) = \begin{cases} T(X) & \text{with probability } p \\ X & \text{with probability } 1 - p \end{cases}$

where $T(\cdot)$ consists of randomly resizing the image to dimension $\text{rnd} \times \text{rnd} \times 3$ with $\text{rnd} \in [299, 330)$ and randomly padding zero margins to restore the image shape to $330 \times 330 \times 3$ .

Let $L(X, y^{\text{true}}; \theta) = - \mathbf{1}_{y^{\text{true}}} \cdot \log(\text{softmax}(l(X; \theta)))$ denote the cross-entropy loss with one-hot ground-truth label vector $\mathbf{1}_{y^{\text{true}}}$ and logits $l(X; \theta)$ . The iterative update rule of $\text{DI}^2\text{-FGSM}$ is defined as:

$X_0^{\text{adv}} = X$

$X_{n+1}^{\text{adv}} = \text{Clip}_X^\epsilon \left\{ X_n^{\text{adv}} + \alpha \cdot \text{sign}\left( \nabla_X L\left(T(X_n^{\text{adv}}; p), y^{\text{true}}; \theta\right) \right) \right\}$

where $n \in \{0, \dots, N-1\}$ is the iteration step index, $\alpha$ is the step size, $\epsilon$ is the maximum $L_\infty$ perturbation magnitude, and $\text{Clip}_X^\epsilon(\cdot)$ clips the updated image pixel-wise into both the valid image range $[0, 255]$ and the $L_\infty$ -ball $[X - \epsilon, X + \epsilon]$ .
Knowl 2 — Momentum Diverse Inputs Iterative Fast Gradient Sign Method (M-DI2-FGSM)
model/method
The Momentum Diverse Inputs Iterative Fast Gradient Sign Method ( $\text{M-DI}^2\text{-FGSM}$ ) combines input diversity with momentum-based gradient accumulation to alleviate adversarial overfitting and escape poor local maxima during adversarial image generation.

At iteration step $n$ , the loss gradient is computed with respect to the stochastically transformed input $T(X_n^{\text{adv}}; p)$ and normalized by its $L_1$ -norm before being accumulated into a momentum buffer $g_{n+1}$ with decay factor $\mu \in [0, 1]$ :

$g_0 = 0$

$g_{n+1} = \mu \cdot g_n + \frac{\nabla_X L\left(T(X_n^{\text{adv}}; p), y^{\text{true}}; \theta\right)}{\left\|\nabla_X L\left(T(X_n^{\text{adv}}; p), y^{\text{true}}; \theta\right)\right\|_1}$

$X_{n+1}^{\text{adv}} = \text{Clip}_X^\epsilon \left\{ X_n^{\text{adv}} + \alpha \cdot \text{sign}(g_{n+1}) \right\}$

where $X_0^{\text{adv}} = X$ , $L(X, y^{\text{true}}; \theta)$ is the classification loss function, $\alpha$ is the step size, $N$ is the total number of iterations, and $\text{Clip}_X^\epsilon(\cdot)$ constrains the updated adversarial image to remain within an $L_\infty$ distance $\epsilon$ of the clean original image $X$ while preserving valid pixel bounds.
Knowl 3 — Algorithm for M-DI2-FGSM with Multi-Model Ensemble Attack
algorithm
The following algorithm details the execution of $\text{M-DI}^2\text{-FGSM}$ when attacking an ensemble of $K$ distinct neural network models simultaneously. The network outputs are fused at the logit level using ensemble weights $w_k \ge 0$ satisfying $\sum_{k=1}^K w_k = 1$ :

$l(X; \theta_1, \dots, \theta_K) = \sum_{k=1}^K w_k l_k(X; \theta_k)$
Input: Clean image $X$ with ground-truth label $y^{\text{true}}$ , ensemble of $K$ models with parameters $\{\theta_k\}_{k=1}^K$ and ensemble weights $\{w_k\}_{k=1}^K$
Input: Loss function $L$ , perturbation budget $\epsilon$ , step size $\alpha$ , iterations $N$ , momentum decay factor $\mu$ , transformation probability $p$
Output: Adversarial example $X^{\text{adv}}$
$X_0^{\text{adv}} \leftarrow X$
$g_0 \leftarrow 0$
for $n \leftarrow 0$ to $N - 1$ do
    Draw $r \sim \text{Uniform}(0, 1)$
    if $r < p$ then
        Sample integer $rnd \sim \text{UniformInteger}(299, 329)$
         $X_{\text{trans}} \leftarrow \text{RandomResizeAndZeroPad}(X_n^{\text{adv}}, \text{target\_size}=rnd, \text{pad\_size}=330)$
    else
         $X_{\text{trans}} \leftarrow X_n^{\text{adv}}$
    end if
     $l_{\text{ens}} \leftarrow \sum_{k=1}^K w_k l_k(X_{\text{trans}}; \theta_k)$
     $\mathcal{G}_{n+1} \leftarrow \nabla_{X_{\text{trans}}} L(l_{\text{ens}}, y^{\text{true}})$
     $g_{n+1} \leftarrow \mu \cdot g_n + \frac{\mathcal{G}_{n+1}}{\|\mathcal{G}_{n+1}\|_1}$
     $X_{n+1}^{\text{adv}} \leftarrow \text{Clip}_X^\epsilon \left( X_n^{\text{adv}} + \alpha \cdot \text{sign}(g_{n+1}) \right)$
end for
return $X_N^{\text{adv}}$
In standard benchmark configurations, $\alpha = 1$ , $N = \min(\epsilon + 4, 1.25\epsilon)$ , $\epsilon = 15$ , $\mu = 1.0$ , and $p = 0.5$ (or $p = 0.4$ for NIPS competition setups).
Knowl 4 — Unified Parametric Framework of Fast Gradient Sign Attack Family
model/method
The family of gradient-based attacks spanning FGSM, I-FGSM, MI-FGSM, $\text{DI}^2\text{-FGSM}$ , and $\text{M-DI}^2\text{-FGSM}$ can be unified into a single parametric formulation controlled by transformation probability $p \in [0, 1]$ , momentum decay factor $\mu \ge 0$ , and total iteration number $N \ge 1$ :
1. If $p = 0$ , $\text{M-DI}^2\text{-FGSM}$ reduces to MI-FGSM, and $\text{DI}^2\text{-FGSM}$ reduces to I-FGSM.
2. If $\mu = 0$ , $\text{M-DI}^2\text{-FGSM}$ reduces to $\text{DI}^2\text{-FGSM}$ , and MI-FGSM reduces to I-FGSM.
3. If $N = 1$ , I-FGSM reduces to FGSM.
4. If both $p = 0$ and $\mu = 0$ , $\text{M-DI}^2\text{-FGSM}$ reduces to standard iterative FGSM (I-FGSM).

Knowl 5 — Single-Model Attack Transferability Benchmark

data/table

Adversarial examples were generated on single normally trained networks (Inception-v3, Inception-v4, Inception-ResNet-v2, and ResNet-v2-152) and evaluated across 7 networks, including four normally trained models and three adversarially trained models (Inc-v3 $_{\text{ens3}}$ , Inc-v3 $_{\text{ens4}}$ , IncRes-v2 $_{\text{ens}}$ ) on 5000 ImageNet images with $\epsilon = 15$ , $\alpha = 1$ , and $N = 19$ .

Source Model	Attack	Inc-v3	Inc-v4	IncRes-v2	Res-152	Inc-v3 $_{\text{ens3}}$	Inc-v3 $_{\text{ens4}}$	IncRes-v2 $_{\text{ens}}$
Inc-v3	FGSM	64.6%	23.5%	21.7%	21.7%	8.0%	7.5%	3.6%
	I-FGSM	99.9%	14.8%	11.6%	8.9%	3.3%	2.9%	1.5%
	$\text{DI}^2\text{-FGSM}$	99.9%	35.5%	27.8%	21.4%	5.5%	5.2%	2.8%
	MI-FGSM	99.9%	36.6%	34.5%	27.5%	8.9%	8.4%	4.7%
	$\text{M-DI}^2\text{-FGSM}$	99.9%	63.9%	59.4%	47.9%	14.3%	14.0%	7.0%
Inc-v4	FGSM	26.4%	49.6%	19.7%	20.4%	8.4%	7.7%	4.1%
	I-FGSM	22.0%	99.9%	13.2%	10.9%	3.2%	3.0%	1.7%
	$\text{DI}^2\text{-FGSM}$	43.3%	99.7%	28.9%	23.1%	5.9%	5.5%	3.2%
	MI-FGSM	51.1%	99.9%	39.4%	33.7%	11.2%	10.7%	5.3%
	$\text{M-DI}^2\text{-FGSM}$	72.4%	99.5%	62.2%	52.1%	17.6%	15.6%	8.8%
IncRes-v2	FGSM	24.3%	19.3%	39.6%	19.4%	8.5%	7.3%	4.8%
	I-FGSM	22.2%	17.7%	97.9%	12.6%	4.6%	3.7%	2.5%
	$\text{DI}^2\text{-FGSM}$	46.5%	40.5%	95.8%	28.6%	8.2%	6.6%	4.8%
	MI-FGSM	53.5%	45.9%	98.4%	37.8%	15.3%	13.0%	8.8%
	$\text{M-DI}^2\text{-FGSM}$	71.2%	67.4%	96.1%	57.4%	25.1%	20.7%	14.9%
Res-152	FGSM	34.4%	28.5%	27.1%	75.2%	12.4%	11.0%	6.0%
	I-FGSM	20.8%	17.2%	14.9%	99.1%	5.4%	4.6%	2.8%
	$\text{DI}^2\text{-FGSM}$	53.8%	49.0%	44.8%	99.2%	13.0%	11.1%	6.9%
	MI-FGSM	50.1%	44.1%	42.2%	99.0%	18.2%	15.2%	9.0%
	$\text{M-DI}^2\text{-FGSM}$	78.9%	76.5%	74.8%	99.2%	35.2%	29.4%	19.0%

The diagonal values represent white-box attack success rates, while off-diagonal values represent black-box attack transferability. $\text{DI}^2\text{-FGSM}$ substantially improves black-box transferability compared to I-FGSM (e.g., from 14.8% to 35.5% on Inc-v4 when attacking Inc-v3). $\text{M-DI}^2\text{-FGSM}$ achieves the highest black-box transferability across all tested architectures while maintaining near-perfect white-box success rates.

Knowl 6 — Hold-Out Transferability of Multi-Model Ensemble Attacks

data/table

Adversarial attacks were generated against an ensemble of six networks (with uniform weights $w_k = 1/6$ ) and evaluated simultaneously on the ensembled models (white-box setting) and a hold-out target model (black-box setting) across seven ImageNet architectures with $\epsilon = 15$ .

Evaluation	Attack	-Inc-v3	-Inc-v4	-IncRes-v2	-Res-152	-Inc-v3 $_{\text{ens3}}$	-Inc-v3 $_{\text{ens4}}$	-IncRes-v2 $_{\text{ens}}$
Ensemble	I-FGSM	96.6%	96.9%	98.7%	96.2%	97.0%	97.3%	94.3%
(White-box)	$\text{DI}^2\text{-FGSM}$	88.9%	89.6%	93.2%	87.7%	91.7%	91.7%	93.2%
	MI-FGSM	96.9%	96.9%	98.8%	96.8%	96.8%	97.0%	94.6%
	$\text{M-DI}^2\text{-FGSM}$	90.1%	91.1%	94.0%	89.3%	92.8%	92.7%	94.9%
Hold-out	I-FGSM	43.7%	36.4%	33.3%	25.4%	12.9%	15.1%	8.8%
(Black-box)	$\text{DI}^2\text{-FGSM}$	69.9%	67.9%	64.1%	51.7%	36.3%	35.0%	30.4%
	MI-FGSM	71.4%	65.9%	64.6%	55.6%	22.8%	26.1%	15.8%
	$\text{M-DI}^2\text{-FGSM}$	80.7%	80.6%	80.7%	70.9%	44.6%	44.5%	39.4%

The prefix '-' denotes the hold-out black-box evaluation model. $\text{M-DI}^2\text{-FGSM}$ outperforms all existing baseline attacks on every black-box hold-out model by a substantial margin. On adversarially trained hold-out models, input diversity alone ( $\text{DI}^2\text{-FGSM}$ ) outperforms momentum alone (MI-FGSM) (e.g., 36.3% vs 22.8% on Inc-v3 $_{\text{ens3}}$ ).

Knowl 7 — Evaluation on NIPS 2017 Adversarial Competition Defenses

data/table

Attacks were evaluated against the top-3 defense entries and 3 official baseline models from the NIPS 2017 Adversarial Competition using 5000 ImageNet images. Batches were attacked under randomly sampled maximum perturbation budgets $\epsilon \in \{4/255, 8/255, 12/255, 16/255\}$ against an ensemble of 8 networks (Inc-v3, Inc-v4, IncRes-v2, Res-152, Inc-v3 $_{\text{ens3}}$ , Inc-v3 $_{\text{ens4}}$ , IncRes-v2 $_{\text{ens}}$ weighted $1/7.25$ each, and Inc-v3 $_{\text{adv}}$ weighted $0.25/7.25$ ) with $N = 10$ , $\mu = 1.0$ , and $p = 0.4$ .

Attack	TsAIL (1st)	iyswim (2nd)	Anil Thomas (3rd)	Inc-v3 $_{\text{adv}}$	IncRes-v2 $_{\text{ens}}$	Inc-v3	Average
I-FGSM	14.0%	35.6%	30.9%	98.2%	96.4%	99.0%	62.4%
$\text{DI}^2\text{-FGSM}$ (Ours)	22.7%	58.4%	48.0%	91.5%	90.7%	97.3%	68.1%
MI-FGSM	14.9%	45.7%	46.6%	97.3%	95.4%	98.7%	66.4%
MI-FGSM*	13.6%	43.2%	43.9%	94.4%	93.0%	97.3%	64.2%
$\text{M-DI}^2\text{-FGSM}$ (Ours)	20.0%	69.8%	64.4%	93.3%	92.4%	97.9%	73.0%

Asterisk (*) marks the official reported competition result. $\text{M-DI}^2\text{-FGSM}$ achieves an average success rate of 73.0%, surpassing the competition-winning MI-FGSM attack (66.4% replicated, 64.2% official) by 6.6% to 8.8% overall, with particularly large gains on defense models utilizing randomized transformations such as iyswim (+24.1% over MI-FGSM) and Anil Thomas (+17.8% over MI-FGSM).

Knowl 8 — Generalization of Input Diversity to Optimization-Based Carlini-Wagner Attack (D-C&W)

data/table

Input diversity applies generally to optimization-based adversarial attacks beyond gradient sign methods. Integrating diverse input transformations into the Carlini & Wagner (C&W) attack creates D-C&W. Evaluated on 1000 correctly classified ImageNet images with maximum iterations 250, learning rate 0.01, and confidence parameter 10:

Source Model	Attack	Inc-v3	Inc-v4	IncRes-v2	Res-152	Inc-v3 $_{\text{ens3}}$	Inc-v3 $_{\text{ens4}}$	IncRes-v2 $_{\text{ens}}$
Inc-v3	C	W	100.0%	5.7%	5.3%	5.1%	3.0%	2.5%	1.1%
	D-C	W (Ours)	100.0%	16.8%	13.0%	11.2%	5.8%	3.9%	2.1%
Inc-v4	C	W	15.1%	100.0%	9.2%	7.8%	4.4%	3.5%	1.9%
	D-C	W (Ours)	29.3%	100.0%	20.1%	15.4%	7.1%	5.3%	3.1%
IncRes-v2	C	W	15.8%	11.2%	99.9%	8.6%	6.3%	3.6%	3.4%
	D-C	W (Ours)	33.9%	25.6%	100.0%	19.4%	11.2%	7.3%	4.0%
Res-152	C	W	11.4%	6.9%	6.1%	100.0%	4.4%	4.1%	2.3%
	D-C	W (Ours)	33.0%	27.7%	24.4%	100.0%	13.1%	9.3%	5.7%

D-C&W substantially improves black-box transferability over standard C&W across all target models (e.g., from 6.9% to 27.7% on Inc-v4 when crafted on Res-152) while retaining 100% white-box attack success.

Knowl 9 — Ablation on Attack Hyperparameters: Transformation Probability, Iterations, and Step Size
empirical result
Empirical ablation studies on ensemble attacks at perturbation budget $\epsilon = 15$ reveal the following operational properties:
1. Transformation probability ( $p \in [0, 1]$ ): As $p$ increases, black-box transferability improves monotonically while white-box success rate exhibits a mild decrease. A small probability ( $p \approx 0.1\text{--}0.2$ ) yields large gains in black-box transfer with negligible white-box penalty. Setting $p = 1.0$ maximizes pure black-box transfer when targeting completely unknown architectures, whereas $p \approx 0.4\text{--}0.5$ provides a strong balance when targeting mixed environments.
2. Iteration count ( $N \in [15, 31]$ with $\alpha = 1$ , $p = 0.5$ ): For $\text{DI}^2\text{-FGSM}$ , both white-box and black-box success rates monotonically increase with $N$ . For $\text{M-DI}^2\text{-FGSM}$ , higher $N$ improves white-box and normally trained black-box success rates but plateaus on adversarially trained models, narrowing the performance gap between $\text{M-DI}^2\text{-FGSM}$ and $\text{DI}^2\text{-FGSM}$ .
3. Step size ( $\alpha \in [1/30, 1/5]$ with $N = \epsilon / \alpha$ , $p = 0.5$ ): Smaller step sizes consistently improve white-box success for both methods. Under black-box evaluation, $\text{DI}^2\text{-FGSM}$ transferability is insensitive to step size, whereas $\text{M-DI}^2\text{-FGSM}$ transferability further improves as $\alpha$ decreases.
Knowl 10 — Decision Boundary Invariance Hypothesis for Adversarial Transferability
theoretical result
The enhanced transferability induced by input diversity is explained by a decision boundary geometry hypothesis: Deep neural networks trained on identical datasets (e.g., ImageNet) learn decision boundaries with similar macro-level geometric properties, as evidenced by consistent misclassification patterns across diverse architectures on transferable adversaries.

Standard iterative attacks overfit to the local high-frequency perturbations of the source network's specific decision boundary wrinkles. By applying random affine and padding transformations $T(\cdot)$ during gradient calculation, the optimization forces the generated perturbation to remain effective under geometric variance. The resulting adversarial examples occupy broader, shared adversarial regions across the decision boundary rather than narrow, architecture-specific peaks, yielding substantially higher cross-network transferability.

Coverage note — No substantial contributed material was omitted from the knowls.

References

1.A. Arnab, O. Miksik, and P. H. Torr. On the robustness of semantic segmentation models to adversarial attacks. arXiv preprint arXiv:1711.09856, 2017.
2.A. Athalye, L. Engstrom, A. Ilyas, and K. Kwok. Synthesizing robust adversarial examples. In International Conference on Machine Learning, pages 284–293, 2018.
3.B. Biggio, I. Corona, D. Maiorca, B. Nelson, N. Šrndić, P. Laskov, G. Giacinto, and F. Roli. Evasion attacks against machine learning at test time. In Joint European conference on machine learning and knowledge discovery in databases, pages 387–402, 2013.
4.N. Carlini and D. Wagner. Towards evaluating the robustness of neural networks. In IEEE Symposium on Security and Privacy, 2017.
5.L.-C. Chen, G. Papandreou, I. Kokkinos, K. Murphy, and A. L. Yuille. Deeplab: Semantic image segmentation with deep convolutional nets, atrous convolution, and fully connected crfs. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2017.
6.M. Cisse, Y. Adi, N. Neverova, and J. Keshet. Houdini: Fooling deep structured prediction models. arXiv preprint arXiv:1707.05373, 2017.
7.N. Dalvi, P. Domingos, S. Sanghai, D. Verma, et al. Adversarial classification. In ACM SIGKDD international conference on Knowledge discovery and data mining, 2004.
8.G. S. Dhillon, K. Azizzadenesheli, J. D. Bernstein, J. Kossaifi, A. Khanna, Z. C. Lipton, and A. Anandkumar. Stochastic activation pruning for robust adversarial defense. In International Conference on Learning Representations, 2018.
9.Y. Dong, F. Liao, T. Pang, H. Su, X. Hu, J. Li, and J. Zhu. Boosting adversarial attacks with momentum. arXiv preprint arXiv:1710.06081, 2017.
10.R. Girshick. Fast r-cnn. In International Conference on Computer Vision, 2015.
11.I. J. Goodfellow, J. Shlens, and C. Szegedy. Explaining and harnessing adversarial examples. In International Conference on Learning Representations, 2015.
12.C. Guo, M. Rana, M. Cissé, and L. van der Maaten. Countering adversarial images using input transformations. In International Conference on Learning Representations, 2018.
13.K. He, X. Zhang, S. Ren, and J. Sun. Identity mappings in deep residual networks. In European Conference on Computer Vision, 2016.
14.L. Huang, A. D. Joseph, B. Nelson, B. I. Rubinstein, and J. Tygar. Adversarial machine learning. In ACM workshop on Security and artificial intelligence, 2011.
15.A. Krizhevsky, I. Sutskever, and G. E. Hinton. Imagenet classification with deep convolutional neural networks. In Advances in Neural Information Processing Systems, 2012.
16.A. Kurakin, I. Goodfellow, and S. Bengio. Adversarial examples in the physical world. In International Conference on Learning Representations Workshop, 2017.
17.A. Kurakin, I. Goodfellow, and S. Bengio. Adversarial machine learning at scale. In International Conference on Learning Representations, 2017.
18.A. Kurakin, I. Goodfellow, S. Bengio, Y. Dong, F. Liao, M. Liang, T. Pang, J. Zhu, X. Hu, C. Xie, et al. Adversarial attacks and defences competition. arXiv preprint arXiv:1804.00097, 2018.
19.F. Liao, M. Liang, Y. Dong, T. Pang, X. Hu, and J. Zhu. Defense against adversarial attacks using high-level representation guided denoiser. In Computer Vision and Pattern Recognition, 2018.
20.Y.-C. Lin, Z.-W. Hong, Y.-H. Liao, M.-L. Shih, M.-Y. Liu, and M. Sun. Tactics of adversarial attack on deep reinforcement learning agents. In International Joint Conference on Artificial Intelligence, 2017.
21.Y. Liu, X. Chen, C. Liu, and D. Song. Delving into transferable adversarial examples and black-box attacks. In International Conference on Learning Representations, 2017.
22.J. Long, E. Shelhamer, and T. Darrell. Fully convolutional networks for semantic segmentation. In Computer Vision and Pattern Recognition, 2015.
23.Y. Luo, X. Boix, G. Roig, T. Poggio, and Q. Zhao. Foveation-based mechanisms alleviate adversarial examples. arXiv preprint arXiv:1511.06292, 2015.
24.D. Meng and H. Chen. Magnet: a two-pronged defense against adversarial examples. arXiv preprint arXiv:1705.09064, 2017.
25.A. Nguyen, J. Yosinski, and J. Clune. Deep neural networks are easily fooled: High confidence predictions for unrecognizable images. In Computer Vision and Pattern Recognition, 2015.
26.N. Papernot, F. Faghri, N. Carlini, I. Goodfellow, R. Feinman, A. Kurakin, C. Xie, Y. Sharma, T. Brown, A. Roy, A. Matyasko, V. Behzadan, K. Hambardzumyan, Z. Zhang, Y.-L. Juang, Z. Li, R. Sheatsley, A. Garg, J. Uesato, W. Gierke, Y. Dong, D. Berthelot, P. Hendricks, J. Rauber, and R. Long. cleverhans v2.1.0: an adversarial machine learning library. arXiv preprint arXiv:1610.00768, 2018.
27.A. Prakash, N. Moran, S. Garber, A. DiLillo, and J. Storer. Deflecting adversarial attacks with pixel deflection. arXiv preprint arXiv:1801.08926, 2018.
28.S. Ren, K. He, R. Girshick, and J. Sun. Faster r-cnn: Towards real-time object detection with region proposal networks. In Advances in Neural Information Processing Systems, 2015.
29.P. Samangouei, M. Kabkab, and R. Chellappa. Defense-GAN: Protecting classifiers against adversarial attacks using generative models. In International Conference on Learning Representations, 2018.
30.A. Shrivastava, A. Gupta, and R. Girshick. Training region-based object detectors with online hard example mining. In Computer Vision and Pattern Recognition, 2016.
31.E. Simo-Serra, E. Trulls, L. Ferraz, I. Kokkinos, P. Fua, and F. Moreno-Noguer. Discriminative learning of deep convolutional feature point descriptors. In International Conference on Computer Vision, 2015.
32.K. Simonyan and A. Zisserman. Very deep convolutional networks for large-scale image recognition. In International Conference on Learning Representations, 2015.
33.Y. Song, T. Kim, S. Nowozin, S. Ermon, and N. Kushman. Pixeldefend: Leveraging generative models to understand and defend against adversarial examples. arXiv preprint arXiv:1710.10766, 2017.
34.C. Szegedy, S. Ioffe, V. Vanhoucke, and A. A. Alemi. Inception-v4, inception-resnet and the impact of residual connections on learning. In AAAI, 2017.
35.C. Szegedy, V. Vanhoucke, S. Ioffe, J. Shlens, and Z. Wojna. Rethinking the inception architecture for computer vision. In Computer Vision and Pattern Recognition, 2016.
36.C. Szegedy, W. Zaremba, I. Sutskever, J. Bruna, D. Erhan, I. Goodfellow, and R. Fergus. Intriguing properties of neural networks. In International Conference on Learning Representations, 2014.
37.F. Tramèr, A. Kurakin, N. Papernot, D. Boneh, and P. McDaniel. Ensemble adversarial training: Attacks and defenses. arXiv preprint arXiv:1705.07204, 2017.
38.C. Xie, J. Wang, Z. Zhang, Z. Ren, and A. Yuille. Mitigating adversarial effects through randomization. In International Conference on Learning Representations, 2018.
39.C. Xie, J. Wang, Z. Zhang, Y. Zhou, L. Xie, and A. Yuille. Adversarial Examples for Semantic Segmentation and Object Detection. In International Conference on Computer Vision, 2017.
40.Z. Zhang, S. Qiao, C. Xie, W. Shen, B. Wang, and A. L. Yuille. Single-shot object detection with enriched semantics. arXiv preprint arXiv:1712.00433, 2017.

Citation

MLA

Xie, C., et al. “Improving Transferability of Adversarial Examples with Input Diversity”. arXiv, 2018, http://arxiv.org/abs/1803.06978v4.

APA

Xie, C., Zhang, Z., Zhou, Y., Bai, S., Wang, J., Ren, Z., & Yuille, A. (2018). Improving Transferability of Adversarial Examples with Input Diversity. arXiv. http://arxiv.org/abs/1803.06978v4

Chicago

Xie, C., Z. Zhang, Y. Zhou, et al. 2018. “Improving Transferability of Adversarial Examples with Input Diversity”. arXiv. http://arxiv.org/abs/1803.06978v4.

Harvard

Xie, C. et al. (2018) “Improving Transferability of Adversarial Examples with Input Diversity”, arXiv [Preprint]. Available at: http://arxiv.org/abs/1803.06978v4.

Vancouver

1. Xie C, Zhang Z, Zhou Y, Bai S, Wang J, Ren Z, Yuille A (2018) Improving Transferability of Adversarial Examples with Input Diversity. arXiv

BibTeX

@article{xie2018improving,
  title = {Improving Transferability of Adversarial Examples with Input Diversity},
  author = {Xie, Cihang and Zhang, Zhishuai and Zhou, Yuyin and Bai, Song and Wang, Jianyu and Ren, Zhou and Yuille, Alan},
  year = {2018},
  journal = {arXiv},
  url = {http://arxiv.org/abs/1803.06978v4},
  eprint = {1803.06978}
}

Metadata:arXiv

Source Code

This paper has an official code repository available. Click below to access the source code.

View Repository

Access the Paper

This paper is available from its original source. Click below to access the PDF.

Open PDF

License: IEEE

Improving Transferability of Adversarial Examples With Input Diversity

Abstract

Topics

Keywords

Table of Contents

Knowls

Knowl 1 — Diverse Inputs Iterative Fast Gradient Sign Method (DI2-FGSM)

Knowl 2 — Momentum Diverse Inputs Iterative Fast Gradient Sign Method (M-DI2-FGSM)

Knowl 3 — Algorithm for M-DI2-FGSM with Multi-Model Ensemble Attack

Knowl 4 — Unified Parametric Framework of Fast Gradient Sign Attack Family

Knowl 5 — Single-Model Attack Transferability Benchmark

Knowl 6 — Hold-Out Transferability of Multi-Model Ensemble Attacks

Knowl 7 — Evaluation on NIPS 2017 Adversarial Competition Defenses

Knowl 8 — Generalization of Input Diversity to Optimization-Based Carlini-Wagner Attack (D-C&W)

Knowl 9 — Ablation on Attack Hyperparameters: Transformation Probability, Iterations, and Step Size

Knowl 10 — Decision Boundary Invariance Hypothesis for Adversarial Transferability

References

Citation

BibTeX

Source Code

Access the Paper
