Countering Adversarial Images using Input Transformations

Chuan GuoMayank RanaMoustapha CisseLaurens van der Maaten

article2018ICLR1,657 citations

Demonstrates that applying non-differentiable input transformations like image quilting and total variance minimization can effectively defend convolutional networks against strong adversarial attacks on ImageNet without requiring complex model modifications.

Listen

As deep learning systems are increasingly deployed in security-critical environments such as autonomous driving and medical imaging, their susceptibility to adversarial attacks poses a serious operational risk. Adversaries can introduce small, imperceptible alterations to input images that cause state-of-the-art neural networks to make incorrect classifications. Existing defense strategies generally fall into two categories: model-specific approaches that modify neural networks but often break when attackers adapt their strategies, and model-agnostic input defenses that historically proved too simple to be fully effective.

The article evaluates whether preprocessing input images with specialized transformations can effectively remove adversarial perturbations before images reach the classifier. The objective is to establish practical, model-agnostic defenses that maintain high classification accuracy on normal images while neutralizing diverse attack strategies, even when attackers have full knowledge of the classifier's internal architecture and parameters.

To assess this, the authors tested five image transformation techniques: cropping and rescaling, bit-depth reduction, JPEG compression, total variation minimization (a method that reconstructs smooth images after randomly dropping pixels), and image quilting (which synthesizes images using small, clean reference patches). These defenses were evaluated on the standard ImageNet dataset using deep residual networks against four prominent attack methods across both black-box scenarios (where the adversary has no access to the model) and gray-box scenarios (where the adversary knows the network parameters but not the specific preprocessing defense).

The evaluation revealed several key findings. First, training the neural networks directly on transformed images substantially improved defense performance compared to merely applying transformations at test time. Second, image quilting and total variation minimization served as the most resilient defenses; under strong black-box attacks, image quilting neutralized 80% to 90% of threats. Third, combining multiple defenses—specifically ensembling cropping, total variation minimization, and quilting across modern architectures—achieved an accuracy of approximately 71%, suffering at most a 6% performance drop under heavy attack. Fourth, in gray-box evaluations against iterative attacks such as DeepFool, transformation-based defenses achieved over 50% accuracy, outperforming prior state-of-the-art ensemble adversarial training methods by 18 to 24 times.

These findings indicate that effective defenses must rely on transformations that are non-differentiable and inherently randomized. Randomness prevents adversaries from mathematically calculating exact perturbations, forcing them to solve a significantly harder problem of fooling a broad distribution of potential image reconstructions. This offers an accessible, scalable way to harden existing computer vision pipelines without requiring complex, attack-specific retraining protocols.

Organizations deploying vision systems should consider adopting randomized preprocessing pipelines—particularly combining spatial cropping, total variation minimization, and quilting—and retraining core classifiers on these transformed inputs. While effective against current attack vectors, these defenses assume the adversary does not know the specific real-time preprocessing configuration. Future engineering work should evaluate how these defenses withstand adaptive attacks designed specifically to bypass randomized transformations, and investigate extending similar transformation defenses to other domains such as speech and audio processing.

Cornell University Meta classification methods classifiers color images input-transformation defenses adversarial examples adversarial perturbations

arXiv: 1711.00117 facebookarchive/adversarial_image_defenses

Paper: Feature Squeezing: Detecting Adversarial Examples in Deep Neural Networks, Weilin Xu et al. (2017). Introduces feature squeezing through input-level transformations like bit-depth reduction and spatial filtering to counter adversarial examples, laying the groundwork for the preprocessing defense strategies examined in the source.
Paper: Towards Evaluating the Robustness of Neural Networks, Nicholas Carlini et al. (2016). Establishes standard optimization-based adversarial attacks across distance metrics, which serve as foundational threat models evaluated against the input transformation defenses.
Paper: Explaining and Harnessing Adversarial Examples, Ian J. Goodfellow et al. (2015). Explains the foundational linearity hypothesis and fast gradient sign method for generating adversarial examples, which forms the basis of the attacks evaluated in the source.
Paper: Towards Deep Learning Models Resistant to Adversarial Attacks, Aleksander Madry et al. (2017). Frames adversarial robustness as a robust minimax optimization problem and formalizes strong multi-step projected gradient descent attacks tested against the defenses.
Paper: Adversarial Machine Learning at Scale, Alexey Kurakin et al. (2016). Demonstrates the behavior and scaling of adversarial attacks and defenses on large-scale ImageNet classifiers, setting up the primary benchmark setting used in the source.
Paper: Adversarial Examples Are Not Easily Detected: Bypassing Ten Detection Methods, Nicholas Carlini et al. (2017). Analyzes why ad-hoc detection and preprocessing defenses often fail against adaptive adversaries, providing essential context for designing robust input transformation defenses.
Paper: DeepFool: A Simple and Accurate Method to Fool Deep Neural Networks, Seyed-Mohsen Moosavi-Dezfooli et al. (2015). Develops the DeepFool algorithm to efficiently compute minimal adversarial perturbations, providing a core attack benchmark used to evaluate input transformations.
Paper: Intriguing properties of neural networks, Christian Szegedy et al. (2014). First discovered the existence of adversarial examples and the discontinuous input-output mappings of deep networks that necessitate transformation-based defenses.

Paper: Obfuscated Gradients Give a False Sense of Security: Circumventing Defenses to Adversarial Examples, Anish Athalye et al. (2018). Directly critiques non-differentiable and randomized input transformation defenses like quilting and total variance minimization by proposing Backward Pass Differentiable Approximation (BPDA) and Expectation Over Transformation to bypass them.
Paper: Reliable evaluation of adversarial robustness with an ensemble of diverse parameter-free attacks, Francesco Croce et al. (2020). Develops the parameter-free AutoAttack benchmark to rigorously evaluate and circumvent defenses that rely on gradient masking or input transformations.
Paper: Certified Adversarial Robustness via Randomized Smoothing, Jeremy M Cohen et al. (2019). Transitions from empirical, heuristic input transformation defenses to provable, certified adversarial robustness via randomized smoothing.
Paper: Adversarial Examples Are Not Bugs, They Are Features, Andrew Ilyas et al. (2019). Provides a fundamental feature-level explanation for why heuristic input transformations struggle by showing that adversarial examples stem from non-robust features inherent to standard training datasets.
Paper: Robustness May Be at Odds with Accuracy, Dimitris Tsipras et al. (2018). Investigates the fundamental trade-off between standard accuracy and adversarial robustness observed when training classifiers on transformed and adversarial inputs.
Paper: Benchmarking Neural Network Robustness to Common Corruptions and Perturbations, Dan Hendrycks et al. (2019). Broadens the evaluation of image transformations and corruptions beyond targeted adversarial noise to standardized common corruptions and perturbations.
Paper: AugMix: A Simple Data Processing Method to Improve Robustness and Uncertainty, Dan Hendrycks et al. (2019). Builds upon input transformation concepts by employing diverse augmentation chains and consistency regularization to enhance out-of-distribution robustness.

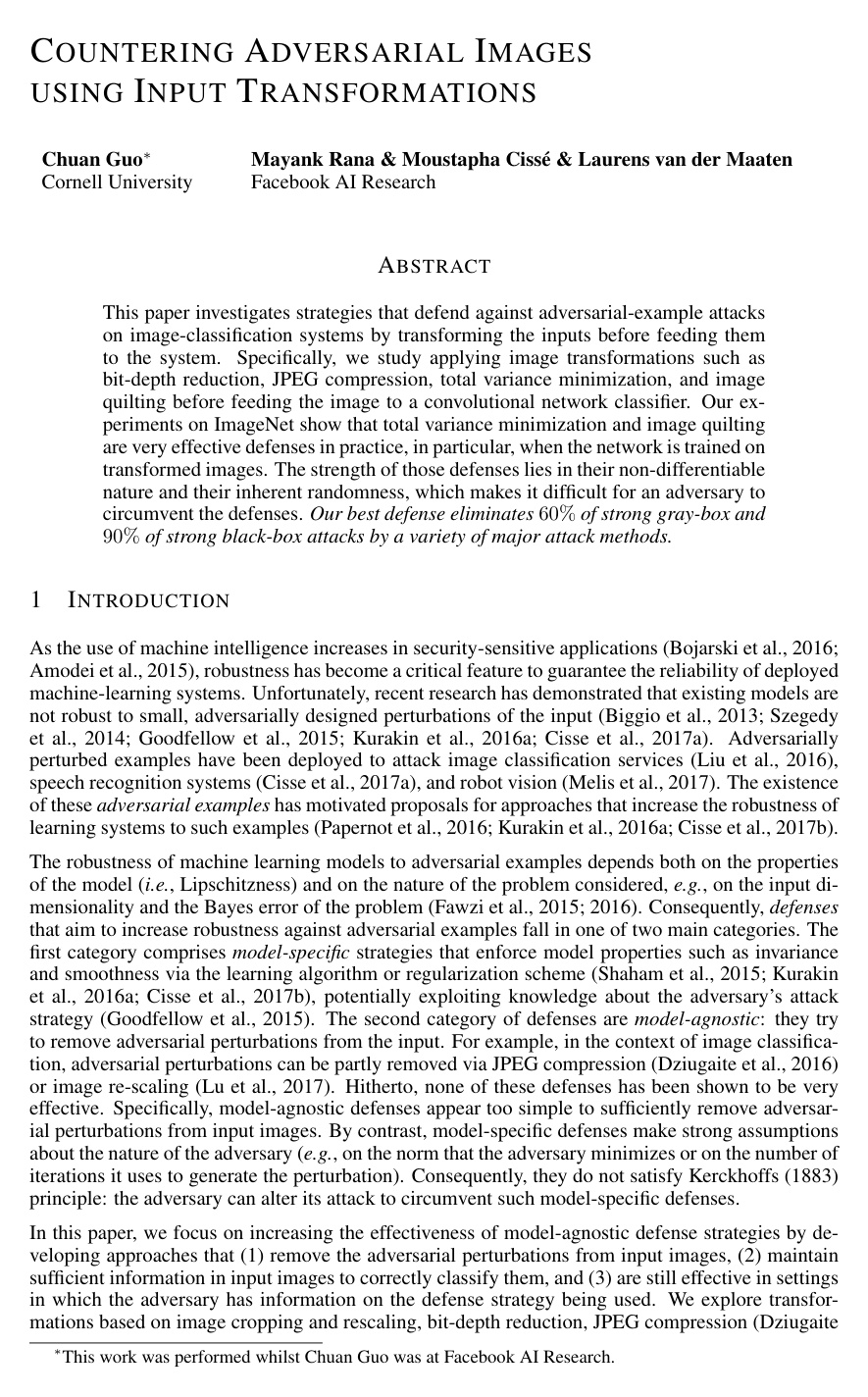

Cover for Countering Adversarial Images using Input Transformations

Abstract

This paper investigates strategies that defend against adversarial-example attacks on image-classification systems by transforming the inputs before feeding them to the system. Specifically, we study applying image transformations such as bit-depth reduction, JPEG compression, total variance minimization, and image quilting before feeding the image to a convolutional network classifier. Our experiments on ImageNet show that total variance minimization and image quilting are very effective defenses in practice, in particular, when the network is trained on transformed images. The strength of those defenses lies in their non-differentiable nature and their inherent randomness, which makes it difficult for an adversary to circumvent the defenses. Our best defense eliminates 60% of strong gray-box and 90% of strong black-box attacks by a variety of major attack methods

Topics

classification methods classifiers color images digital image high resolution image image classification jpeg jpeg compression reference image convolutional neural networks

Keywords

input-transformation defenses adversarial examples adversarial perturbations image-quilting defense black-box attacks bit-depth reduction adversarial training image classification

1 Introduction
2 Problem Definition
3 Adversarial Attacks
4 Defenses
4.1 Image cropping-rescaling, bit-depth reduction, and compression
4.2 Total variance minimization
4.3 Image quilting
5 Experiments
5.1 Experimental Setup
5.2 Gray Box: Image Transformations at Test Time
5.3 Black Box: Image Transformations at Training and Test Time
5.4 Black Box: Ensembling and Model Transfer
5.5 Gray Box: Image Transformations at Training and Test Time
5.6 Comparison with Prior Work
6 Discussion
References

Knowls

Knowl 1 — Total Variation Minimization with Pixel Dropout Defense
model/method
Total variation (TV) minimization combined with random pixel dropout removes adversarial perturbations from an image by reconstructing the simplest smooth image consistent with a randomly sampled subset of pixels.

Let $x \in [0, 1]^{H \times W \times C}$ be an input image (height $H$ , width $W$ , channels $C$ ). A binary Bernoulli mask $X \in \{0, 1\}^{H \times W \times C}$ is sampled independently for each pixel location $(i, j, k)$ with dropout probability $p_{\text{drop}} = 0.5$ , where $X(i, j, k) = 1$ denotes a dropped pixel and $(1 - X)$ selects the retained pixels. The denoised reconstruction $z \in [0, 1]^{H \times W \times C}$ is found by solving the convex optimization problem:

$\min_{z} \|(1 - X) \odot (z - x)\|_2 + \lambda_{\text{TV}} \cdot \text{TV}_p(z)$

where $\odot$ represents element-wise multiplication, $\lambda_{\text{TV}} = 0.03$ is the regularization parameter, and $\text{TV}_p(z)$ denotes the anisotropic $L_p$ -total variation:

$\text{TV}_p(z) = \sum_{k=1}^C \left[ \sum_{i=2}^H \|z(i, :, k) - z(i - 1, :, k)\|_p + \sum_{j=2}^W \|z(:, j, k) - z(:, j - 1, k)\|_p \right]$

With $p = 2$ , this objective is convex and solved using the split Bregman method. Because fine-scale adversarial perturbations are localized and low in total energy, reconstructing from the subsampled pixels via total variation smoothness suppresses the adversarial signal while preserving coarse semantic image structure.
Knowl 2 — Clean Patch-Based Image Quilting Defense
model/method
Image quilting defense removes adversarial perturbations by synthesizing a clean replacement image using patch substitution from a database of unperturbed image patches.

The defense maintains a database $\mathcal{D}$ of $1,000,000$ clean patches of size $5 \times 5$ pixels sampled randomly from clean training images. For a given input image $x$ :
1. For each predefined grid location, the corresponding $5 \times 5$ patch in $x$ is extracted.
2. The $K$ nearest neighbor patches to this query patch (measured by Euclidean distance in pixel space) are retrieved from the database $\mathcal{D}$ .
3. One of the $K$ nearest clean patches is chosen uniformly at random (e.g., $K = 1$ for deterministic nearest neighbor, or $K = 10$ for randomized neighbor selection).
4. Minimum graph cuts are computed across overlapping boundary regions between adjacent placed patches to eliminate seam artifacts.
Because the patch database contains only clean image fragments, the synthesized image consists entirely of natural image textures, eliminating localized adversarial artifacts that do not exist in clean natural patches.
Knowl 3 — Retraining Classifiers on Transformed Inputs
empirical result
Applying image transformations solely at test time to standard convolutional networks trained on clean images yields suboptimal classification accuracy (achieving only 30–40% top-1 accuracy under attack on ImageNet) because the model is not invariant to the distortion introduced by the transformation itself.

When classifiers (e.g., ResNet-50) are retrained on images transformed during training with the same transformation applied at test time (e.g., image quilting, total variation minimization, JPEG compression, or bit-depth reduction):
- The network acquires invariance to the transformation artifacts, recovering high classification accuracy.
- Against strong black-box attacks (FGSM, I-FGSM, DeepFool, and Carlini-Wagner $L_2$ ) with perturbation magnitudes up to a normalized $L_2$ -dissimilarity of 0.08, retraining with image quilting eliminates 80–90% of attacks.
- Under gray-box attacks (where the adversary targets the transformation-trained network weights but lacks access to the test-time transformation pipeline), networks protected by total variation minimization, image quilting, or random cropping maintain up to 50% top-1 accuracy.
Knowl 4 — Ensembling and Model Transfer Defense Pipeline
model/method
An ensemble defense combines multiple randomized input transformations and architectural transfer to defend against black-box adversarial attacks:
1. Quilting and Stochastic TV Minimization Ensembling: The ensemble prediction combines the predicted class probability distribution from the image quilting defense (weighted by $0.5$ ) with predictions from $10$ independent stochastic TV minimization reconstructions (weighted by $0.05$ each). In each TV minimization run, pixel dropout mask $X$ is sampled independently.
2. Multi-Crop Integration: Prior to classification, 10 random sub-crops of size $90 \times 90$ pixels are extracted from the $224 \times 224$ transformed images, rescaled back to $224 \times 224$ , and their predictions are averaged.
3. Cross-Architecture Model Transfer: Transformed inputs generated against a source architecture (such as ResNet-50) are fed to structurally distinct classifiers, such as ResNet-101, DenseNet-169, or Inception-v4.
Ensembling different transformations improves top-1 classification accuracy by $1\text{--}2\%$ , and transferring to alternate architectures improves accuracy by an additional $2\text{--}3\%$ .

Knowl 5 — Performance Comparison with Ensemble Adversarial Training

data/table

Attack	Cropping	TVM	Quilting	Ensemble Training
No Attack	65.41	66.29	69.66	80.30
FGSM	49.52	31.37	39.55	69.15
I-FGSM	43.89	40.99	33.22	5.07
DeepFool	44.92	44.69	34.54	1.84
CW-L2	41.06	48.41	30.51	22.23

The table displays top-1 classification accuracy (%) on ImageNet against gray-box adversarial attacks generated against ResNet-50 models trained on input-transformed images compared to an Inception-ResNet-v2 model trained using ensemble adversarial training (Tramèr et al., 2017). Adversarial examples were generated at an average normalized $L_2$ -dissimilarity of 0.06.

While ensemble adversarial training achieves higher accuracy against single-step FGSM (69.15% vs 49.52% for cropping) because FGSM was included in its training objective, it collapses on iterative attacks (5.07% on I-FGSM, 1.84% on DeepFool, and 22.23% on CW-L2). In contrast, transformation-based defenses maintain consistent robustness (30–48% accuracy) across all iterative attacks, providing 18× to 24× higher accuracy against DeepFool attacks.

Knowl 6 — Classification Accuracies of Ensemble Defenses Across Architectures

data/table

	Quilting				TVM + Quilting				Cropping + TVM + Quilting
Attack	RN50	RN101	DN169	Iv4	RN50	RN101	DN169	Iv4	RN50	RN101	DN169	Iv4
No Attack	70.07	72.56	70.18	73.01	72.38	74.74	73.10	75.55	72.14	74.53	72.92	75.10
FGSM	65.45	68.50	65.96	67.53	65.70	68.77	67.09	69.19	66.65	69.75	67.86	70.37
I-FGSM	65.59	68.72	66.16	69.29	65.84	69.10	67.32	71.05	67.03	70.14	68.20	71.52
DeepFool	65.20	68.73	65.86	68.70	65.80	69.34	67.40	71.03	67.11	70.49	68.62	71.47
CW-L2	64.11	67.72	65.00	68.14	63.99	68.20	66.08	70.13	65.31	69.14	66.96	70.50

The table reports top-1 classification accuracy (%) on ImageNet across four network architectures—ResNet-50 (RN50), ResNet-101 (RN101), DenseNet-169 (DN169), and Inception-v4 (Iv4)—under three defense configurations against four black-box attacks generated against ResNet-50 at average normalized $L_2$ -dissimilarity of 0.06.

The combined defense pipeline (Cropping + TVM + Quilting) paired with Inception-v4 achieves over 70% top-1 accuracy across all attack types (FGSM: 70.37%, I-FGSM: 71.52%, DeepFool: 71.47%, CW-L2: 70.50%), degrading by at most 4.6% relative to the clean baseline (75.10%).

Knowl 7 — Normalized L2-Dissimilarity and Adversarial Threat Models
definition
Let $\mathcal{X} = [0, 1]^{H \times W \times C}$ be the image space and $h: \mathcal{X} \to \{1, \dots, K\}$ be an image classifier. For a clean image $x \in \mathcal{X}$ , a non-targeted adversarial example $x' \in \mathcal{X}$ satisfies $h(x') \neq h(x)$ subject to a dissimilarity constraint $d(x, x') \le \rho$ .

Given a set of $N$ images $\{x_1, \dots, x_N\}$ and their perturbations $\{x'_1, \dots, x'_N\}$ , the adversary perturbation magnitude is evaluated using the normalized $L_2$ -dissimilarity:

$\frac{1}{N} \sum_{n=1}^N \frac{\|x_n - x'_n\|_2}{\|x_n\|_2}$

Two threat models govern defense evaluation:
- Black-box attack: The adversary does not have direct access to the target model or defense mechanism and generates attacks using a separately trained proxy model.
- Gray-box attack: The adversary has full access to the classifier architecture and model parameters, but does not have access to or knowledge of the defense transformation $g(\cdot)$ applied to inputs at inference time.
Knowl 8 — Lightweight Input Transformations: Cropping, Bit-Depth Reduction, and JPEG Compression
model/method
Three lightweight image transformation defenses reduce adversarial perturbation strength:
1. Image Cropping-Rescaling: At inference time, 30 random image crops of size $90 \times 90$ are sampled from the $224 \times 224$ input image, rescaled bilinearly back to $224 \times 224$ , and evaluated by the classifier. The final class prediction is obtained by averaging predictions over all 30 crops. This spatial modification disrupts the spatial alignment and scale of adversarial perturbations.
2. Bit-Depth Reduction: The color resolution of each pixel channel is quantized from 8 bits ( $256$ levels) down to 3 bits ( $8$ levels), removing low-amplitude adversarial perturbations in pixel values.
3. JPEG Compression: The image is compressed and decompressed using the standard JPEG algorithm at quality factor 75 (out of 100), eliminating high-frequency spatial perturbations via Discrete Cosine Transform quantization.
Knowl 9 — Non-Differentiability and Stochasticity as Robustness Mechanisms
theoretical result
The resistance of model-agnostic input-transformation defenses $g: \mathcal{X} \to \mathcal{X}$ against gradient-based adversarial attacks depends on two core properties:
1. Non-Differentiability: Differentiable transformations (such as linear filtering or median filtering) permit backpropagation of loss gradients through the defense to construct adaptive adversarial inputs. In contrast, total variation minimization requires solving an internal optimization problem, and image quilting involves discrete patch lookup and graph-cut optimization, both preventing direct backward gradient propagation.
2. Stochasticity: Deterministic transformations can be circumvented once identified. Introducing randomness (such as Bernoulli pixel dropout in TV minimization, random choice among $K$ nearest clean patches in quilting, or random sub-crop sampling) forces the adversary to optimize perturbations against an expectation over a distribution of transformed inputs $\mathbb{E}_{g \sim \mathcal{G}}[h(g(x'))]$ , which is substantially harder than finding an adversarial perturbation for a fixed deterministic input.

Coverage note — No substantial contributed material was omitted; the extraction covers all five transformation methods, threat models, training/testing regimes, ensembling pipelines, theoretical defense mechanisms, and experimental comparison tables.
