Non-autoregressive Conditional Diffusion Models for Time Series Prediction

Lifeng ShenJames T. Kwok

article2023ICML174 citations

Proposes TimeDiff, a non-autoregressive diffusion framework featuring future mixup and autoregressive initialization to overcome error accumulation and outperform existing transformers and diffusion baselines in long-range time series forecasting.

Listen

Accurate time series forecasting is critical across diverse domains such as energy management, traffic control, and financial operations. While generative diffusion models have achieved remarkable success in synthesizing images, audio, and text, adapting them effectively for time series prediction has remained a major challenge. Existing approaches either rely on sequential, step-by-step forecasting—which suffers from severe error accumulation and slow operational speeds—or use non-sequential generation methods borrowed from image processing that fail to capture complex temporal dynamics and create artificial mismatches between historical data and future projections.

The article develops and evaluates a non-autoregressive conditional diffusion model named TimeDiff, designed specifically to produce accurate and efficient long-horizon time series predictions. The primary objective is to demonstrate that introducing domain-specific conditioning mechanisms into diffusion architectures significantly enhances predictive accuracy and computational speed compared to existing generative and deep learning alternatives.

To achieve this, the authors designed two novel conditioning components tailored for time series data. The first component, termed future mixup, exposes portions of actual future ground-truth data during training to guide the denoising network, while relying solely on historical mappings during inference. The second component, an autoregressive initialization module, quickly estimates short-term baseline trends without sequential decoding overhead. The approach was systematically evaluated across nine real-world datasets spanning energy grid operations, weather forecasting, highway traffic occupancy, and foreign exchange rates, benchmarked against sixteen baseline models under both single-variable and multi-variable configurations.

The evaluation revealed several key findings regarding model accuracy and efficiency. First, TimeDiff consistently outperformed all existing time series diffusion models, achieving the best overall average ranking of 1.7 in multi-variable settings and 2.7 in single-variable settings across the nine benchmarks. Second, the model demonstrated superior computational efficiency during inference; for example, on the standard transformer temperature benchmark, TimeDiff executed predictions in approximately 16 to 35 milliseconds, operating up to two orders of magnitude faster than step-by-step diffusion baselines. Third, ablation studies confirmed that predicting clean data directly rather than estimating noise, combined with soft continuous future mixup, substantially reduced prediction error by mitigating boundary distortions.

These findings indicate that generative diffusion architectures can serve as highly reliable and scalable engines for long-range enterprise forecasting when tailored with appropriate temporal inductive biases. By eliminating the quadratic computational bottlenecks of attention-based diffusion models and the compounding errors of autoregressive decoding, organizations can achieve high-fidelity predictions without prohibitive computational or memory costs.

Organizations evaluating advanced forecasting pipelines should consider integrating non-autoregressive diffusion models with specialized temporal conditioning into their predictive infrastructure. When deploying such models, practitioners should adopt direct data prediction and efficient learning-free solvers to maintain low latency in production environments.

A key limitation identified in the article is the model's reduced performance when capturing cross-variable interactions across massive variable dimensions, such as high-density traffic sensor networks. While confidence in the reported results is high across diverse empirical scenarios, users deploying the model on very high-dimensional systems should exercise caution and consider future integration with graph neural networks to better model inter-variable dependencies.

The Hong Kong University of Science and Technology audio data augmentation diffusion probabilistic models non-autoregressive conditional diffusion models time series prediction conditional DDPMs

arXiv: 2306.05043

Paper: Denoising Diffusion Probabilistic Models, Jonathan Ho et al. (2020). It establishes the foundational mathematical formulation of denoising diffusion probabilistic models and reverse-process objectives that TimeDiff adapts for continuous time-series forecasting.
Paper: Denoising Diffusion Implicit Models, Jiaming Song et al. (2021). It introduces non-Markovian deterministic sampling for diffusion models, providing the non-autoregressive fast inference mechanism essential to the model's speed advantages.
Paper: Autoformer: Decomposition Transformers with Auto-Correlation for Long-Term Series Forecasting, Haixu Wu et al. (2021). It provides crucial baseline methodology for long-term time series forecasting benchmarks and temporal decomposition concepts used in evaluating non-autoregressive predictors.
Paper: Informer: Beyond Efficient Transformer for Long Sequence Time-Series Forecasting, Haoyi Zhou et al. (2021). It introduces standard long-sequence forecasting datasets and one-shot generative decoding baselines that TimeDiff directly benchmarks against and improves upon.
Paper: Non-stationary Transformers: Exploring the Stationarity in Time Series Forecasting, Yong Liu et al. (2022). It formalizes the challenges of non-stationarity and distribution shifts in deep time-series forecasting, informing TimeDiff's temporal conditioning and initialization designs.
Paper: Elucidating the Design Space of Diffusion-Based Generative Models, Tero Karras et al. (2022). It analyzes network preconditioning and direct data prediction versus noise estimation in diffusion models, which TimeDiff leverages to reduce boundary distortions in time series.
Paper: Planning with Diffusion for Flexible Behavior Synthesis, Michael Janner et al. (2022). It demonstrates non-autoregressive trajectory-level conditional diffusion modeling over sequential data, laying the groundwork for conditional non-autoregressive time-series generation.

Paper: Sundial: A Family of Highly Capable Time Series Foundation Models, Yong Liu 0007 et al. (2025). It advances beyond task-specific conditional diffusion forecasting by constructing continuous flow-matching foundation models for large-scale zero-shot and probabilistic time-series forecasting.
Paper: iTransformer: Inverted Transformers Are Effective for Time Series Forecasting, Yong Liu et al. (2023). It tackles the cross-variable modeling limitation in high-dimensional forecasting identified in TimeDiff by inverting Transformer tokenization across individual variates.
Paper: Round-Trip Consistency: Bidirectional Diffusion Models Can Predict Their Own Rollout Errors, Alexander Scheinker (2026). It extends conditional trajectory diffusion modeling by using bidirectional round-trip consistency to predict and self-supervise compounding rollout errors at test time.

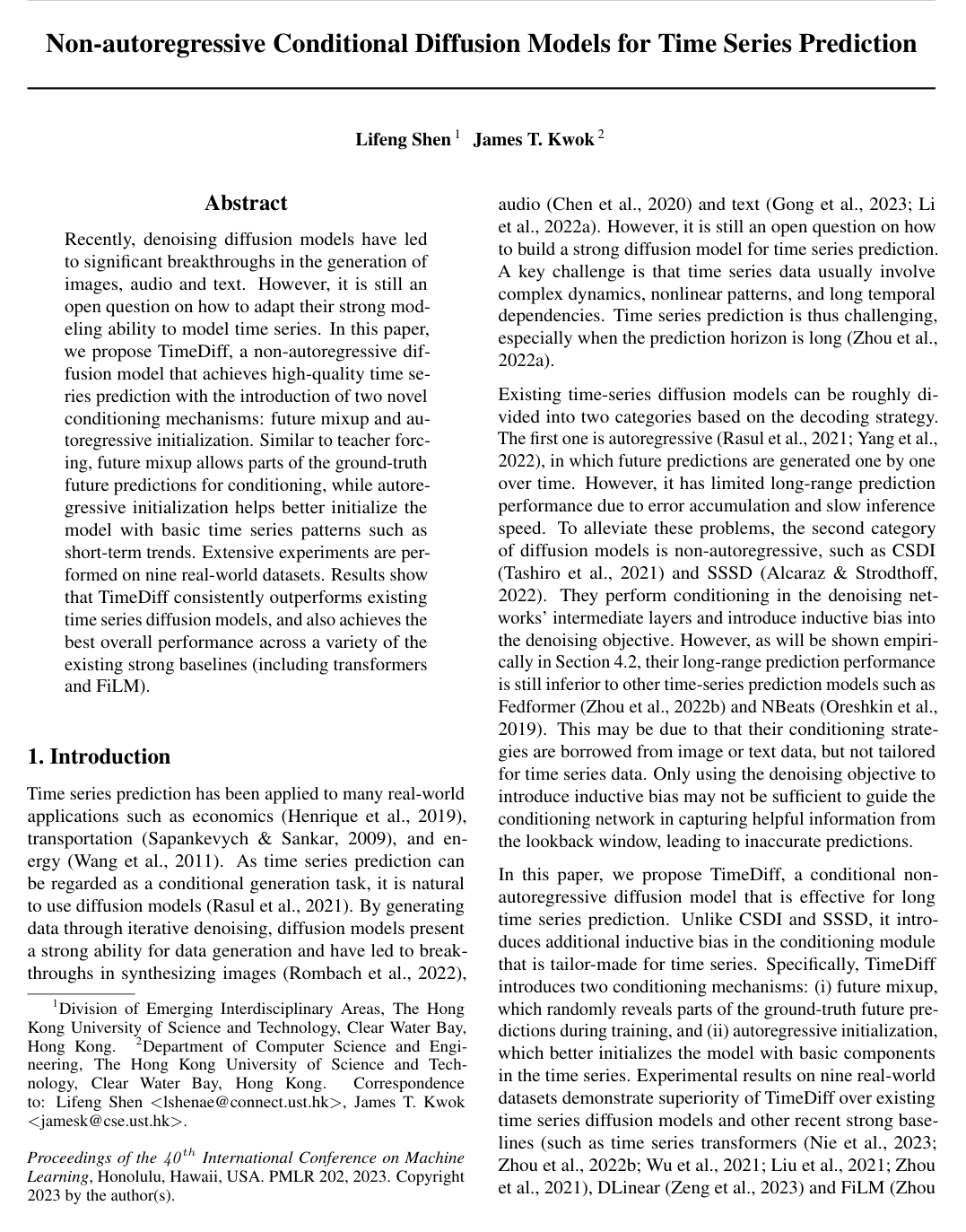

Cover for Non-autoregressive Conditional Diffusion Models for Time Series Prediction

Abstract

Recently, denoising diffusion models have led to significant breakthroughs in the generation of images, audio and text. However, it is still an open question on how to adapt their strong modeling ability to model time series. In this paper, we propose TimeDiff, a non-autoregressive diffusion model that achieves high-quality time series prediction with the introduction of two novel conditioning mechanisms: future mixup and autoregressive initialization. Similar to teacher forcing, future mixup allows parts of the ground-truth future predictions for conditioning, while autoregressive initialization helps better initialize the model with basic time series patterns such as short-term trends. Extensive experiments are performed on nine real-world datasets. Results show that TimeDiff consistently outperforms existing time series diffusion models, and also achieves the best overall performance across a variety of the existing strong baselines (including transformers and FiLM).

Topics

audio data augmentation diffusion probabilistic models encoder-decoder

Keywords

non-autoregressive conditional diffusion models time series prediction conditional DDPMs long multivariate time series backward denoising process autoregressive decoding forward diffusion recurrent neural networks

1. Introduction
2. Preliminaries
2.1. Diffusion Models
2.2. Conditional DDPMs for Time Series Prediction
3. Proposed Model
3.1. Forward Diffusion Process
3.2. Conditioning the Backward Denoising Process
3.2.1. FUTURE MIXUP
3.2.2. AUTOREGRESSIVE MODEL
3.3. Denoising Network
3.4. Training
3.5. Inference
4. Experiments
4.1. Setup
4.2. Results
4.3. Ablation Studies
4.3.1. CONDITIONING MECHANISM
4.3.2. MIXUP STRATEGIES IN FUTURE MIXUP
4.3.3. PREDICTING x θ VS PREDICTING ϵ θ
4.4. Integration into Existing Diffusion Models
4.5. Inference Efficiency
5. Conclusion
Acknowledgements
References
A. Time Series Datasets
B. Implementation Details
B.1. Network Architecture
B.2. Baselines
C. Using Channel-Independence on Multivariate Time Series Datasets

Knowls

Knowl 1 — TimeDiff Conditional Non-autoregressive Diffusion Framework for Time Series
model/method
TimeDiff is a non-autoregressive conditional diffusion model for time series forecasting. Given past lookback observations $x_{-L+1:0}^0 \in \mathbb{R}^{d \times L}$ across $d$ variables and lookback window length $L$ , the objective is to predict future values $x_{1:H}^0 \in \mathbb{R}^{d \times H}$ across forecast horizon $H$ .

The forward diffusion process corrupts the clean target horizon $x_{1:H}^0$ over $K$ discrete diffusion steps:

$x_{1:H}^k = \sqrt{\bar{\alpha}_k} x_{1:H}^0 + \sqrt{1 - \bar{\alpha}_k}\epsilon$

where $\epsilon \sim \mathcal{N}(0, I)$ , $\alpha_k = 1 - \beta_k$ for a predefined variance schedule $\beta_k \in [0, 1]$ , and $\bar{\alpha}_k = \prod_{s=1}^k \alpha_s$ .

The backward denoising transition at step $k \in \{1, \dots, K\}$ is conditioned on an auxiliary representation $c \in \mathbb{R}^{2d \times H}$ :

$p_\theta(x_{1:H}^{k-1} \mid x_{1:H}^k, c) = \mathcal{N}\left(x_{1:H}^{k-1};\, \mu_\theta(x_{1:H}^k, k \mid c), \sigma_k^2 I\right)$

Rather than estimating diffusion noise $\epsilon$ , TimeDiff parameterizes the mean via a direct clean-data prediction network $x_\theta(x_{1:H}^k, k \mid c) \in \mathbb{R}^{d \times H}$ :

$\mu_\theta(x_{1:H}^k, k \mid c) = \frac{\sqrt{\alpha_k}(1 - \bar{\alpha}_{k-1})}{1 - \bar{\alpha}_k} x_{1:H}^k + \frac{\sqrt{\bar{\alpha}_{k-1}}\beta_k}{1 - \bar{\alpha}_k} x_\theta(x_{1:H}^k, k \mid c)$

The conditioning signal is constructed by concatenating two specialized temporal representations along the variable dimension:

$c = \text{concat}([z_{\text{mix}}, z_{\text{ar}}]) \in \mathbb{R}^{2d \times H}$

where $z_{\text{mix}}$ is produced by future mixup and $z_{\text{ar}}$ is produced by a linear autoregressive initialization module.
Knowl 2 — Future Mixup Conditioning Mechanism
model/method
Future mixup is a conditioning mechanism that injects ground-truth future target information into the conditioning network during diffusion training while preventing exposure bias during inference.

During training at diffusion step $k \in \{1, \dots, K\}$ , the future mixup signal $z_{\text{mix}} \in \mathbb{R}^{d \times H}$ is computed as:

$z_{\text{mix}} = m^k \odot \mathcal{F}(x_{-L+1:0}^0) + (1 - m^k) \odot x_{1:H}^0$

where:
- $x_{-L+1:0}^0 \in \mathbb{R}^{d \times L}$ denotes the past observations across $d$ variables over lookback length $L$ .
- $x_{1:H}^0 \in \mathbb{R}^{d \times H}$ is the clean ground-truth future series across forecast horizon $H$ .
- $\mathcal{F}: \mathbb{R}^{d \times L} \to \mathbb{R}^{d \times H}$ is a 1D convolutional feature extraction network mapping past history to the forecast horizon shape.
- $\odot$ denotes the element-wise Hadamard product.
- $m^k \in [0, 1)^{d \times H}$ is a continuous mixing weight matrix whose entries are sampled independently from the uniform distribution $\mathcal{U}[0, 1)$ at each training step.
During inference, ground-truth future values $x_{1:H}^0$ are unavailable, and the conditioning signal is set directly to:

$z_{\text{mix}} = \mathcal{F}(x_{-L+1:0}^0)$
Knowl 3 — Autoregressive Initialization for Boundary Disharmony Alleviation
model/method
To prevent boundary disharmony and discontinuities between the history window $x_{-L+1:0}^0 \in \mathbb{R}^{d \times L}$ and forecast window $x_{1:H}^0 \in \mathbb{R}^{d \times H}$ , TimeDiff incorporates an auxiliary linear autoregressive module $\mathcal{M}_{\text{ar}}$ to supply an initial coarse prediction $z_{\text{ar}} \in \mathbb{R}^{d \times H}$ .

Let $x_i^0 \in \mathbb{R}^{d \times 1}$ denote the $i$ -th column (time step) of the past observation matrix $x_{-L+1:0}^0$ for $i \in \{-L+1, \dots, 0\}$ . The module computes:

$z_{\text{ar}} = \sum_{i=-L+1}^0 W_i \odot X_i^0 + B$

where $X_i^0 = [x_i^0, x_i^0, \dots, x_i^0] \in \mathbb{R}^{d \times H}$ is formed by replicating column vector $x_i^0$ across $H$ columns, and $W_i \in \mathbb{R}^{d \times H}, B \in \mathbb{R}^{d \times H}$ are trainable parameter matrices.

The autoregressive module $\mathcal{M}_{\text{ar}}$ is pretrained independently on the training dataset prior to diffusion training (e.g., for 20 epochs) by minimizing the squared error loss $\|z_{\text{ar}} - x_{1:H}^0\|_2^2$ . Because all columns of $z_{\text{ar}}$ are evaluated in parallel via matrix operations, $\mathcal{M}_{\text{ar}}$ captures fundamental short-term linear trends without sequential decoding or error accumulation.
Knowl 4 — TimeDiff Denoising Network Architecture
model/method
The TimeDiff denoising network $x_\theta(x_{1:H}^k, k \mid c)$ predicts clean data $x_{1:H}^0 \in \mathbb{R}^{d \times H}$ from noisy input $x_{1:H}^k \in \mathbb{R}^{d \times H}$ , diffusion step $k \in \{1, \dots, K\}$ , and condition $c \in \mathbb{R}^{2d \times H}$ .
1. Diffusion Step Embedding: Step $k$ is mapped to a sinusoidal position embedding:
$k_{\text{embedding}} = \left[\sin\left(10^{\frac{0 \cdot 4}{w-1}} k\right), \dots, \sin\left(10^{\frac{w \cdot 4}{w-1}} k\right), \cos\left(10^{\frac{0 \cdot 4}{w-1}} k\right), \dots, \cos\left(10^{\frac{w \cdot 4}{w-1}} k\right)\right]$

with $w = d'/2$ and $d' = 256$ . This embedding is transformed via two fully connected layers with hidden dimension 128 and Sigmoid-Weighted Linear Unit (SiLU) activations into $p^k = \text{SiLU}(\text{FC}(\text{SiLU}(\text{FC}(k_{\text{embedding}})))) \in \mathbb{R}^{d' \times 1}$ .
1. Input Projection and Encoder: The noisy horizon $x_{1:H}^k$ is projected by 1D convolutional layers to feature tensor $z_1^k \in \mathbb{R}^{d' \times H}$ . The vector $p^k$ is broadcasted along the sequence length to size $d' \times H$ and concatenated with $z_1^k$ along the channel dimension to form a $2d' \times H$ tensor. A multilayer 1D convolutional encoder processes this tensor into latent representation $z_2^k \in \mathbb{R}^{d'' \times H}$ with $d'' = 256$ .
2. Condition Fusion Decoder: Condition tensor $c = \text{concat}([z_{\text{mix}}, z_{\text{ar}}]) \in \mathbb{R}^{2d \times H}$ is concatenated with $z_2^k$ along the variable dimension to yield a tensor of size $(2d + d'') \times H$ . A multilayer convolutional decoder maps this representation to output $x_\theta(x_{1:H}^k, k \mid c) \in \mathbb{R}^{d \times H}$ .
Each convolutional block in the conditioning network, encoder, and decoder comprises Conv1d (kernel size 3, stride 1, padding 1, 256 channels), BatchNorm1d, LeakyReLU (negative slope 0.1), and Dropout (rate 0.1).
Knowl 5 — TimeDiff Training Procedure
algorithm
The training procedure optimizes the parameters $\theta$ of the denoising network and conditioning network $\mathcal{F}$ given a pretrained linear autoregressive initialization model $\mathcal{M}_{\text{ar}}$ .
Input: Training dataset of time series pairs $(x_{-L+1:0}^0, x_{1:H}^0)$ , total diffusion steps $K$ , variance schedule $\{\beta_k\}_{k=1}^K$ , pretrained autoregressive model $\mathcal{M}_{\text{ar}}$ , conditioning network $\mathcal{F}$ , denoising network $x_\theta$ .
Output: Trained model parameters $\theta$ .
repeat
    Sample a training instance $(x_{-L+1:0}^0, x_{1:H}^0)$ ;
    Sample diffusion step $k \sim \text{Uniform}(\{1, 2, \dots, K\})$ ;
    Sample Gaussian noise $\epsilon \sim \mathcal{N}(0, I)$ of size $d \times H$ ;
    Compute diffused target $x_{1:H}^k = \sqrt{\bar{\alpha}_k} x_{1:H}^0 + \sqrt{1 - \bar{\alpha}_k}\epsilon$ ;
    Compute diffusion step embedding $p^k$ ;
    Sample mixing matrix $m^k \in [0, 1)^{d \times H}$ from $\mathcal{U}[0, 1)$ ;
    Compute future mixup signal $z_{\text{mix}} = m^k \odot \mathcal{F}(x_{-L+1:0}^0) + (1 - m^k) \odot x_{1:H}^0$ ;
    Compute autoregressive guess $z_{\text{ar}} = \mathcal{M}_{\text{ar}}(x_{-L+1:0}^0)$ ;
    Form condition tensor $c = \text{concat}([z_{\text{mix}}, z_{\text{ar}}])$ ;
    Compute clean data estimate $x_\theta(x_{1:H}^k, k \mid c)$ using the denoising network;
    Evaluate squared loss $\mathcal{L}_k(\theta) = \|x_{1:H}^0 - x_\theta(x_{1:H}^k, k \mid c)\|^2$ ;
    Update parameters $\theta$ by taking a gradient descent step along $\nabla_\theta \mathcal{L}_k(\theta)$ ;
until convergence.
Knowl 6 — TimeDiff Denoising Inference Procedure
algorithm
During inference, TimeDiff generates the predicted future time series non-autoregressively by iteratively denoising Gaussian noise conditioned on the past observations.
Input: Historical observations $x_{-L+1:0}^0 \in \mathbb{R}^{d \times L}$ , total diffusion steps $K$ , variance schedule parameters $\{\alpha_k, \bar{\alpha}_k, \beta_k, \sigma_k\}_{k=1}^K$ , pretrained autoregressive module $\mathcal{M}_{\text{ar}}$ , trained conditioning network $\mathcal{F}$ , trained denoising network $x_\theta$ .
Output: Forecasted future series $\hat{x}_{1:H}^0 \in \mathbb{R}^{d \times H}$ .
Sample initial noise vector $x_{1:H}^K \sim \mathcal{N}(0, I)$ of shape $d \times H$ ;
Compute $z_{\text{mix}} = \mathcal{F}(x_{-L+1:0}^0)$ ;
Compute $z_{\text{ar}} = \mathcal{M}_{\text{ar}}(x_{-L+1:0}^0)$ ;
Construct condition tensor $c = \text{concat}([z_{\text{mix}}, z_{\text{ar}}])$ ;
for $k = K, K-1, \dots, 1$ do
    if $k > 1$ then
        Sample noise $\epsilon \sim \mathcal{N}(0, I)$ ;
    else
        Set $\epsilon = 0$ ;
    end if
    Compute step embedding $p^k$ ;
    Evaluate denoising network prediction $x_\theta(x_{1:H}^k, k \mid c)$ ;
    Compute reverse mean update:
         $\hat{x}_{1:H}^{k-1} = \frac{\sqrt{\alpha_k}(1 - \bar{\alpha}_{k-1})}{1 - \bar{\alpha}_k} x_{1:H}^k + \frac{\sqrt{\bar{\alpha}_{k-1}}\beta_k}{1 - \bar{\alpha}_k} x_\theta(x_{1:H}^k, k \mid c) + \sigma_k \epsilon$ ;
    Set $x_{1:H}^{k-1} = \hat{x}_{1:H}^{k-1}$ ;
end for
return $\hat{x}_{1:H}^0$ .

Knowl 7 — Univariate Forecasting Performance of TimeDiff

data/table

The performance of TimeDiff was evaluated on univariate time series forecasting across nine benchmark datasets and compared against diffusion models (TimeGrad, CSDI, SSSD, D3VAE), SOTA forecasting baselines (FiLM, Depts, NBeats, DLinear), and transformers (PatchTST, FedFormer, Autoformer, Pyraformer, Informer, Transformer, LSTMa). Prediction accuracy is measured using Mean Squared Error (MSE), with diffusion baselines averaged over 10 sampled trajectories.

Model	NorPool	Caiso	Weather	ETTm1	Wind	Traffic	Electricity	ETTh1	Exchange	Avg Rank
TimeDiff	0.636	0.122	0.002	0.040	2.407	0.121	0.232	0.066	0.017	2.7
TimeGrad	1.129	0.325	0.002	0.048	2.530	1.223	0.920	0.078	0.041	11.6
CSDI	0.967	0.192	0.002	0.050	2.434	0.393	0.520	0.083	0.071	10.8
SSSD	1.145	0.176	0.004	0.049	3.149	0.151	0.370	0.097	0.023	9.8
D^3VAE	0.964	0.521	0.003	0.044	2.679	0.151	0.535	0.078	0.019	9.4
FiLM	0.707	0.185	0.007	0.038	2.143	0.198	0.260	0.070	0.018	5.1
Depts	0.668	0.107	0.024	0.046	3.457	0.151	0.380	0.070	0.020	7.0
NBeats	0.768	0.125	0.137	0.048	2.434	0.142	0.378	0.095	0.016	7.4
PatchTST	0.595	0.193	0.026	0.052	2.698	0.177	0.450	0.106	0.020	10.5
FedFormer	0.891	0.164	0.005	0.065	2.351	0.173	0.376	0.076	0.050	8.7
Autoformer	0.946	0.248	0.003	0.051	2.349	0.473	0.659	0.081	0.041	10.9
Pyraformer	0.933	0.165	0.020	0.054	2.279	0.136	0.389	0.076	0.017	7.1
Informer	0.804	0.250	0.007	0.049	2.297	0.213	0.363	0.076	0.023	8.1
Transformer	0.928	0.250	0.007	0.058	2.306	0.238	0.430	0.092	0.018	10.2
DLinear	0.671	0.118	0.168	0.041	2.171	0.139	0.244	0.078	0.017	4.8
LSTMa	0.836	0.253	0.005	0.091	2.299	1.032	0.596	0.167	0.031	11.9

TimeDiff achieves an overall average rank of 2.7 across the 9 datasets, consistently outperforming existing time-series diffusion models (TimeGrad at 11.6, CSDI at 10.8, SSSD at 9.8, and D3VAE at 9.4) as well as deterministic baselines.

Knowl 8 — Multivariate Forecasting Performance of TimeDiff

data/table

The multivariate time series forecasting accuracy of TimeDiff was compared against existing diffusion models, time-series transformers, and deep neural models across nine benchmark datasets. Accuracy is evaluated via Mean Squared Error (MSE).

Model	NorPool	Caiso	Weather	ETTm1	Wind	Traffic	Electricity	ETTh1	Exchange	Avg Rank
TimeDiff	0.665	0.136	0.311	0.336	0.896	0.564	0.193	0.407	0.018	1.7
TimeGrad	1.152	0.258	0.392	0.874	1.209	1.745	0.736	0.993	0.079	13.9
CSDI	1.011	0.253	0.356	0.529	1.066	–	–	0.497	0.077	10.6
SSSD	0.872	0.195	0.349	0.464	1.188	0.642	0.255	0.726	0.061	8.1
D^3VAE	0.745	0.241	0.375	0.362	1.118	0.928	0.286	0.504	0.200	8.9
FiLM	0.723	0.179	0.327	0.347	0.984	0.628	0.210	0.426	0.016	3.2
Depts	0.662	0.106	0.761	0.380	1.082	1.019	0.319	0.579	0.020	7.7
NBeats	0.832	0.141	1.344	0.391	1.069	0.373	0.269	0.586	0.016	6.6
PatchTST	0.851	0.193	0.782	0.372	1.070	0.831	0.225	0.526	0.047	7.7
FedFormer	0.873	0.205	0.342	0.426	1.113	0.591	0.238	0.541	0.133	7.6
Autoformer	0.940	0.226	0.360	0.565	1.083	0.688	0.201	0.516	0.056	9.0
Pyraformer	1.008	0.273	0.394	0.493	1.061	0.659	0.273	0.579	0.032	9.4
Informer	0.985	0.231	0.385	0.673	1.168	0.664	0.298	0.775	0.073	10.9
Transformer	1.005	0.206	0.388	0.992	1.201	0.671	0.328	0.759	0.062	11.3
DLinear	0.670	0.461	0.488	0.345	0.899	0.389	0.215	0.415	0.022	5.3
LSTMa	1.481	0.217	0.662	1.030	1.464	0.966	0.414	1.149	0.403	14.2

TimeDiff achieves the lowest average rank (1.7) across all multivariate benchmarks. CSDI encounters out-of-memory errors on large multivariate datasets (Traffic with $d=862$ and Electricity with $d=321$ ) due to quadratic transformer attention complexity, whereas TimeDiff's 1D convolutional backbone scales efficiently.

Knowl 9 — Ablation Analysis on Conditioning Mechanisms, Mixup Strategies, and Denoising Targets
empirical result
Ablation studies on four datasets (Caiso, Electricity, Exchange, ETTh1) evaluate the components of TimeDiff:
1. Conditioning Mechanisms: Combining future mixup and linear autoregressive (AR) initialization achieves the lowest testing MSE compared to removing either or both modules:
  - Both included: Caiso 0.122, Electricity 0.232, Exchange 0.017, ETTh1 0.066.
  - Future mixup only: Caiso 0.149, Electricity 0.328, Exchange 0.020, ETTh1 0.086.
  - AR initialization only: Caiso 0.160, Electricity 0.295, Exchange 0.022, ETTh1 0.162.
  - Neither (condition $c = \mathcal{F}(x_{-L+1:0}^0)$ ): Caiso 0.170, Electricity 0.340, Exchange 0.024, ETTh1 0.182.
2. Mixup Strategies in Future Mixup: Continuous soft-mixup ( $m^k \sim \mathcal{U}[0, 1)$ ) outperforms binarized hard-mixup (mask values binarized by threshold $\tau$ ) and segment-mixup (masking contiguous temporal segments drawn from a geometric distribution with mean 3). Hard and segment mixup MSEs depend heavily on the choice of threshold $\tau \in \{0.1, 0.3, 0.5, 0.7, 0.9\}$ (e.g., hard-mixup ETTh1 MSE varies from 0.074 at $\tau=0.7$ to 0.161 at $\tau=0.1$ ), whereas parameter-free soft-mixup yields 0.066 on ETTh1.
3. Data Prediction ( $x_\theta$ ) vs. Noise Prediction ( $\epsilon_\theta$ ): Directly predicting the clean signal $x_\theta$ yields lower MSE across all datasets compared to predicting the diffusion noise $\epsilon_\theta$ :
  - Caiso: 0.122 ( $x_\theta$ ) vs. 0.134 ( $\epsilon_\theta$ )
  - Electricity: 0.232 ( $x_\theta$ ) vs. 0.317 ( $\epsilon_\theta$ )
  - Exchange: 0.017 ( $x_\theta$ ) vs. 0.021 ( $\epsilon_\theta$ )
  - ETTh1: 0.066 ( $x_\theta$ ) vs. 0.077 ( $\epsilon_\theta$ ) This reflects that real-world time series contain irregular intrinsic noise that is easily confounded with forward Gaussian diffusion noise.

Knowl 10 — Compatibility with Existing Diffusion Models and Inference Efficiency

empirical result

Integrating future mixup and autoregressive (AR) initialization into existing non-autoregressive time series diffusion architectures (CSDI and SSSD) systematically reduces prediction error on univariate ETTh1 and ETTm1:

CSDI Baseline: MSE on ETTh1 decreases from 0.083 (neither) to 0.078 (+future mixup), 0.088 (+AR), and 0.075 (both). On ETTm1, MSE decreases from 0.050 (neither) to 0.045 (+future mixup), 0.054 (+AR), and 0.043 (both).
SSSD Baseline: MSE on ETTh1 decreases from 0.097 (neither) to 0.077 (+future mixup), 0.084 (+AR), and 0.071 (both). On ETTm1, MSE decreases from 0.049 (neither) to 0.044 (+future mixup), 0.052 (+AR), and 0.040 (both).

In inference latency measured on univariate ETTh1 using DPM-Solver with under 20 denoising steps, TimeDiff achieves faster generation than all diffusion baselines across horizons $H \in \{96, 168, 336, 720\}$ :

Model	$H=96$	$H=168$	$H=336$	$H=720$
TimeDiff	16.2 ms	17.2 ms	26.5 ms	34.6 ms
CSDI	90.41 ms	127.2 ms	398.9 ms	513.1 ms
SSSD	418.6 ms	595.0 ms	1054.2 ms	2516.9 ms
TimeGrad	870.2 ms	1579.2 ms	3119.7 ms	6724.1 ms

TimeDiff executes up to $15\times$ faster than CSDI, $72\times$ faster than SSSD, and $194\times$ faster than autoregressive TimeGrad at $H=720$ .

Coverage note — Appendix C channel-independence experiments (Table 12) and Appendix A Augmented Dick-Fuller test statistics (Table 9) were omitted as supplementary implementation variants of the primary forecasting benchmarks.

References

1.Alcaraz, J. M. L. and Strodthoff, N. Diffusion-based time series imputation and forecasting with structured state space models. Technical report, arXiv, 2022.
2.Bahdanau, D., Cho, K., and Bengio, Y. Neural machine translation by jointly learning to align and translate. In International Conference on Learning Representations, 2015.
3.Bao, F., Li, C., Zhu, J., and Zhang, B. Analytic-DPM: An analytic estimate of the optimal reverse variance in diffusion probabilistic models. In International Conference on Learning Representations, 2022.
4.Bengio, S., Vinyals, O., Jaitly, N., and Shazeer, N. Scheduled sampling for sequence prediction with recurrent neural networks. Neural Information Processing Systems, 28, 2015.
5.Benny, Y. and Wolf, L. Dynamic dual-output diffusion models. In Computer Vision and Pattern Recognition, 2022.
6.Chen, N., Zhang, Y., Zen, H., Weiss, R. J., Norouzi, M., and Chan, W. WaveGrad: Estimating gradients for waveform generation. In International Conference on Learning Representations, 2020.
7.Choi, J., Kim, S., Jeong, Y., Gwon, Y., and Yoon, S. ILVR: Conditioning method for denoising diffusion probabilistic models. In International Conference on Computer Vision, 2021.
8.Elfwing, S., Uchibe, E., and Doya, K. Sigmoid-weighted linear units for neural network function approximation in reinforcement learning. Neural Networks, 107:3–11, 2018.
9.Elliott, G., Rothenberg, T. J., and Stock, J. H. Efficient tests for an autoregressive unit root. Econometrica, pp. 813–836, 1996.
10.Fan, W., Zheng, S., Yi, X., Cao, W., Fu, Y., Bian, J., and Liu, T.-Y. DEPTS: Deep expansion learning for periodic time series forecasting. In International Conference on Learning Representations, 2022.
11.Gong, S., Li, M., Feng, J., Wu, Z., and Kong, L. DiffuSeq: Sequence to sequence text generation with diffusion models. In International Conference on Learning Representations, 2023.
12.Graves, A., Jaitly, N., and Mohamed, A.-R. Hybrid speech recognition with deep bidirectional LSTM. In IEEE Workshop on Automatic Speech Recognition and Understanding, pp. 273–278, 2013.
13.Henrique, B. M., Sobreiro, V. A., and Kimura, H. Literature review: Machine learning techniques applied to financial market prediction. Expert Systems with Applications, 124: 226–251, 2019.
14.Ho, J., Jain, A., and Abbeel, P. Denoising diffusion probabilistic models. In Neural Information Processing Systems, 2020.
15.Hochreiter, S. and Schmidhuber, J. Long short-term memory. Neural Computation, 9(8):1735–1780, 1997.
16.Kim, H., Kim, S., and Yoon, S. Guided-TTS: A diffusion model for text-to-speech via classifier guidance. In International Conference on Machine Learning, 2022.
17.Kim, T., Kim, J., Tae, Y., Park, C., Choi, J.-H., and Choo, J. Reversible instance normalization for accurate time-series forecasting against distribution shift. In International Conference on Learning Representations, 2021.
18.Kingma, D. P. and Ba, J. Adam: A method for stochastic optimization. In International Conference on Learning Representations, 2015.
19.Kingma, D. P. and Welling, M. Auto-encoding variational Bayes. In International Conference on Learning Representations, 2014.
20.Kong, Z., Ping, W., Huang, J., Zhao, K., and Catanzaro, B. DiffWave: A versatile diffusion model for audio synthesis. In International Conference on Learning Representations, 2020.
21.Lai, G., Chang, W.-C., Yang, Y., and Liu, H. Modeling long-and short-term temporal patterns with deep neural networks. In SIGIR Conference on Research & Development in Information Retrieval, 2018.
22.Li, S., Jin, X., Xuan, Y., Zhou, X., Chen, W., Wang, Y.-X., and Yan, X. Enhancing the locality and breaking the memory bottleneck of transformer on time series forecasting. In Neural Information Processing Systems, 2019.
23.Li, X., Thickstun, J., Gulrajani, I., Liang, P. S., and Hashimoto, T. B. Diffusion-LM improves controllable text generation. In Neural Information Processing Systems, 2022a.
24.Li, Y., Lu, X., Wang, Y., and Dou, D. Generative time series forecasting with diffusion, denoise, and disentanglement. In Neural Information Processing Systems, 2022b.
25.Liu, S., Yu, H., Liao, C., Li, J., Lin, W., Liu, A. X., and Dustdar, S. Pyraformer: Low-complexity pyramidal attention for long-range time series modeling and forecasting. In International Conference on Learning Representations, 2021.
26.Liu, Y., Wu, H., Wang, J., and Long, M. Non-stationary transformers: Rethinking the stationarity in time series forecasting. In Neural Information Processing Systems, 2022.
27.Lu, C., Zhou, Y., Bao, F., Chen, J., Li, C., and Zhu, J. DPM-Solver: A fast ODE solver for diffusion probabilistic model sampling in around 10 steps. In Neural Information Processing Systems, 2022.
28.Lugmayr, A., Danelljan, M., Romero, A., Yu, F., Timofte, R., and Van Gool, L. Repaint: Inpainting using denoising diffusion probabilistic models. In IEEE/CVF Conference on Computer Vision and Pattern Recognition, 2022.
29.Nie, Y., Nguyen, N. H., Sinthong, P., and Kalagnanam, J. A time series is worth 64 words: Long-term forecasting with transformers. In International Conference on Learning Representations, 2023.
30.Oreshkin, B. N., Carpov, D., Chapados, N., and Bengio, Y. N-BEATS: Neural basis expansion analysis for interpretable time series forecasting. In International Conference on Learning Representations, 2019.
31.Rasul, K., Seward, C., Schuster, I., and Vollgraf, R. Autoregressive denoising diffusion models for multivariate probabilistic time series forecasting. In International Conference on Machine Learning, 2021.
32.Rombach, R., Blattmann, A., Lorenz, D., Esser, P., and Ommer, B. High-resolution image synthesis with latent diffusion models. In IEEE/CVF Conference on Computer Vision and Pattern Recognition, pp. 10684–10695, 2022.
33.Sapankevych, N. I. and Sankar, R. Time series prediction using support vector machines: A survey. IEEE Computational Intelligence Magazine, 4(2):24–38, 2009.
34.Song, J., Meng, C., and Ermon, S. Denoising diffusion implicit models. In International Conference on Learning Representations, 2021.
35.Tashiro, Y., Song, J., Song, Y., and Ermon, S. CSDI: Conditional score-based diffusion models for probabilistic time series imputation. In Neural Information Processing Systems, 2021.
36.Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones, L., Gomez, A. N., Kaiser, Ł., and Polosukhin, I. Attention is all you need. Neural Information Processing Systems, 30, 2017.
37.Wang, X., Guo, P., and Huang, X. A review of wind power forecasting models. Energy procedia, 12:770–778, 2011.
38.Wang, Z., Yan, W., and Oates, T. Time series classification from scratch with deep neural networks: A strong baseline. In International Joint Conference on Neural Networks, 2017.
39.Williams, R. J. and Zipser, D. A learning algorithm for continually running fully recurrent neural networks. Neural Computation, 1(2):270–280, 1989.
40.Wu, H., Xu, J., Wang, J., and Long, M. Autoformer: Decomposition transformers with auto-correlation for long-term series forecasting. In Neural Information Processing Systems, 2021.
41.Yang, R., Srivastava, P., and Mandt, S. Diffusion probabilistic modeling for video generation. Technical report, arXiv, 2022.
42.Zeng, A., Chen, M., Zhang, L., and Xu, Q. Are transformers effective for time series forecasting? In AAAI Conference on Artificial Intelligence, 2023.
43.Zerveas, G., Jayaraman, S., Patel, D., Bhamidipaty, A., and Eickhoff, C. A transformer-based framework for multivariate time series representation learning. In SIGKDD Conference on Knowledge Discovery & Data Mining, 2021.
44.Zhang, H., Cisse, M., Dauphin, Y. N., and Lopez-Paz, D. mixup: Beyond empirical risk minimization. In International Conference on Learning Representations, 2018.
45.Zhang, Y. and Yan, J. Crossformer: Transformer utilizing cross-dimension dependency for multivariate time series forecasting. In International Conference on Learning Representations, 2023.
46.Zhou, H., Zhang, S., Peng, J., Zhang, S., Li, J., Xiong, H., and Zhang, W. Informer: Beyond efficient transformer for long sequence time-series forecasting. In AAAI Conference on Artificial Intelligence, 2021.
47.Zhou, T., Ma, Z., Wen, Q., Sun, L., Yao, T., Jin, R., et al. FiLM: Frequency improved Legendre memory model for long-term time series forecasting. In Neural Information Processing Systems, 2022a.
48.Zhou, T., Ma, Z., Wen, Q., Wang, X., Sun, L., and Jin, R. FEDformer: frequency enhanced decomposed transformer for long-term series forecasting. In International Conference on Machine Learning, 2022b.

Citation

MLA

Shen, L., and J. Kwok. “Non-autoregressive Conditional Diffusion Models for Time Series Prediction”. International Conference on Machine Learning, vol. 202, 2023, pp. 31016–29, https://proceedings.mlr.press/v202/shen23d.html.

APA

Shen, L., & Kwok, J. (2023). Non-autoregressive Conditional Diffusion Models for Time Series Prediction. International Conference on Machine Learning, 202, 31016–31029. https://proceedings.mlr.press/v202/shen23d.html

Chicago

Shen, L., and J. Kwok. 2023. “Non-autoregressive Conditional Diffusion Models for Time Series Prediction”. International Conference on Machine Learning 202: 31016–29. https://proceedings.mlr.press/v202/shen23d.html.

Harvard

Shen, L. and Kwok, J. (2023) “Non-autoregressive Conditional Diffusion Models for Time Series Prediction”, International Conference on Machine Learning. PMLR, pp. 31016–31029. Available at: https://proceedings.mlr.press/v202/shen23d.html.

Vancouver

1. Shen L, Kwok J (2023) Non-autoregressive Conditional Diffusion Models for Time Series Prediction. In: International Conference on Machine Learning. PMLR, pp 31016–31029

BibTeX

@InProceedings{pmlr-v202-shen23d,
  title = 	 {Non-autoregressive Conditional Diffusion Models for Time Series Prediction},
  author =       {Shen, Lifeng and Kwok, James},
  booktitle = 	 {Proceedings of the 40th International Conference on Machine Learning},
  pages = 	 {31016--31029},
  year = 	 {2023},
  editor = 	 {Krause, Andreas and Brunskill, Emma and Cho, Kyunghyun and Engelhardt, Barbara and Sabato, Sivan and Scarlett, Jonathan},
  volume = 	 {202},
  series = 	 {Proceedings of Machine Learning Research},
  month = 	 {23--29 Jul},
  publisher =    {PMLR},
  pdf = 	 {https://proceedings.mlr.press/v202/shen23d/shen23d.pdf},
  url = 	 {https://proceedings.mlr.press/v202/shen23d.html},
  abstract = 	 {Recently, denoising diffusion models have led to significant breakthroughs in the generation of images, audio and text. However, it is still an open question on how to adapt their strong modeling ability to model time series. In this paper, we propose TimeDiff, a non-autoregressive diffusion model that achieves high-quality time series prediction with the introduction of two novel conditioning mechanisms: future mixup and autoregressive initialization. Similar to teacher forcing, future mixup allows parts of the ground-truth future predictions for conditioning, while autoregressive initialization helps better initialize the model with basic time series patterns such as short-term trends. Extensive experiments are performed on nine real-world datasets. Results show that TimeDiff consistently outperforms existing time series diffusion models, and also achieves the best overall performance across a variety of the existing strong baselines (including transformers and FiLM).}
}

Metadata:DOI registry

Access the Paper

This paper is available from its original source. Click below to access the PDF.

Open PDF

License: https://creativecommons.org/licenses/by/4.0/

Non-autoregressive Conditional Diffusion Models for Time Series Prediction

Abstract

Topics

Keywords

Table of Contents

Knowls

Knowl 1 — TimeDiff Conditional Non-autoregressive Diffusion Framework for Time Series

Knowl 2 — Future Mixup Conditioning Mechanism

Knowl 3 — Autoregressive Initialization for Boundary Disharmony Alleviation

Knowl 4 — TimeDiff Denoising Network Architecture

Knowl 5 — TimeDiff Training Procedure

Knowl 6 — TimeDiff Denoising Inference Procedure
