Geometry-Consistent Neural Shape Representation with Implicit Displacement Fields

Yifan WangLukas RahmannOlga Sorkine-Hornung

article2022ICLR81 citations

Introduces implicit displacement fields, a neural shape representation that decomposes 3D geometry into smooth base surfaces and high-frequency normal offsets without supervision, enabling geometrically consistent surface reconstruction and detail transfer.

Listen

Representing complex, highly detailed 3D digital shapes is a core requirement across industries like digital manufacturing, virtual simulation, and computer graphics. While modern neural networks can represent 3D geometry continuously without fixed grid resolutions, existing methods struggle to capture fine micro-details. Standard neural approaches either experience severe training instability and divergence when tuned to high frequencies, or they rely on spatial data structures that require excessive memory and compute resources.

The article introduces and evaluates "implicit displacement fields" (IDF), a neural framework that represents complex 3D shapes by decoupling them into a smooth, low-frequency base shape and a high-frequency displacement field constrained along the base surface's normal directions. The main objective was to demonstrate that this geometry-consistent decomposition achieves state-of-the-art detail reconstruction and stable, unsupervised training with a lightweight neural network, while enabling the transfer of surface details onto new 3D models.

To evaluate this approach, the authors performed comparative reconstruction experiments on 16 high-resolution 3D models from standard 3D repositories against leading implicit baseline models, including Fourier feature networks, octree-based level-of-detail networks (NGLOD), and standard sinusoidal neural networks (SIREN). They also conducted ablation studies on key architectural elements—such as bounded displacements, surface-distance attenuation, and progressive coarse-to-fine training schedules—and tested detail transfer across aligned 3D target models.

The findings establish that implicit displacement fields achieve top-tier geometric accuracy while substantially lowering memory overhead. In quantitative benchmarks, the method achieved the lowest reconstruction error (an average point-to-point Chamfer distance of 1.22 and normal cosine error of 1.25), outperforming the baseline methods. The only competing approach with comparable visual fidelity required an octree structure with 256 to 300 times more parameters (roughly 946 megabytes versus 4.8 megabytes for this framework). Unlike standard high-frequency sinusoidal models, which frequently diverged during optimization, the proposed architecture trained stably within roughly 40 minutes on standard hardware. Furthermore, by conditioning the displacement network on scale- and translation-invariant context descriptors rather than fixed coordinates, the model successfully transferred high-frequency surface details to new shapes without retraining the displacement component.

These results demonstrate that incorporating geometric constraints directly into neural architectures avoids the common trade-off between training stability and high-fidelity output. For technical and operational decision-makers, this framework offers a practical path to reduce storage, memory footprint, and bandwidth costs when managing dense 3D assets, while streamlining digital asset production pipelines through reusable geometric details.

Organizations developing 3D modeling, simulation, or rendering pipelines should consider testing continuous displacement representations as a lightweight alternative to dense spatial grids. Future implementation efforts should focus on integrating automatic shape pre-alignment and exploring sparse visual correspondences to support fully automated, cross-category detail transfers across non-aligned objects.

ETH Zuricharchitectural modelselastic deformationgeometryGeometry-Consistent Neural Shape Representationimplicit displacement fieldsneural implicit representations
arXiv: 2106.05187yifita/idf

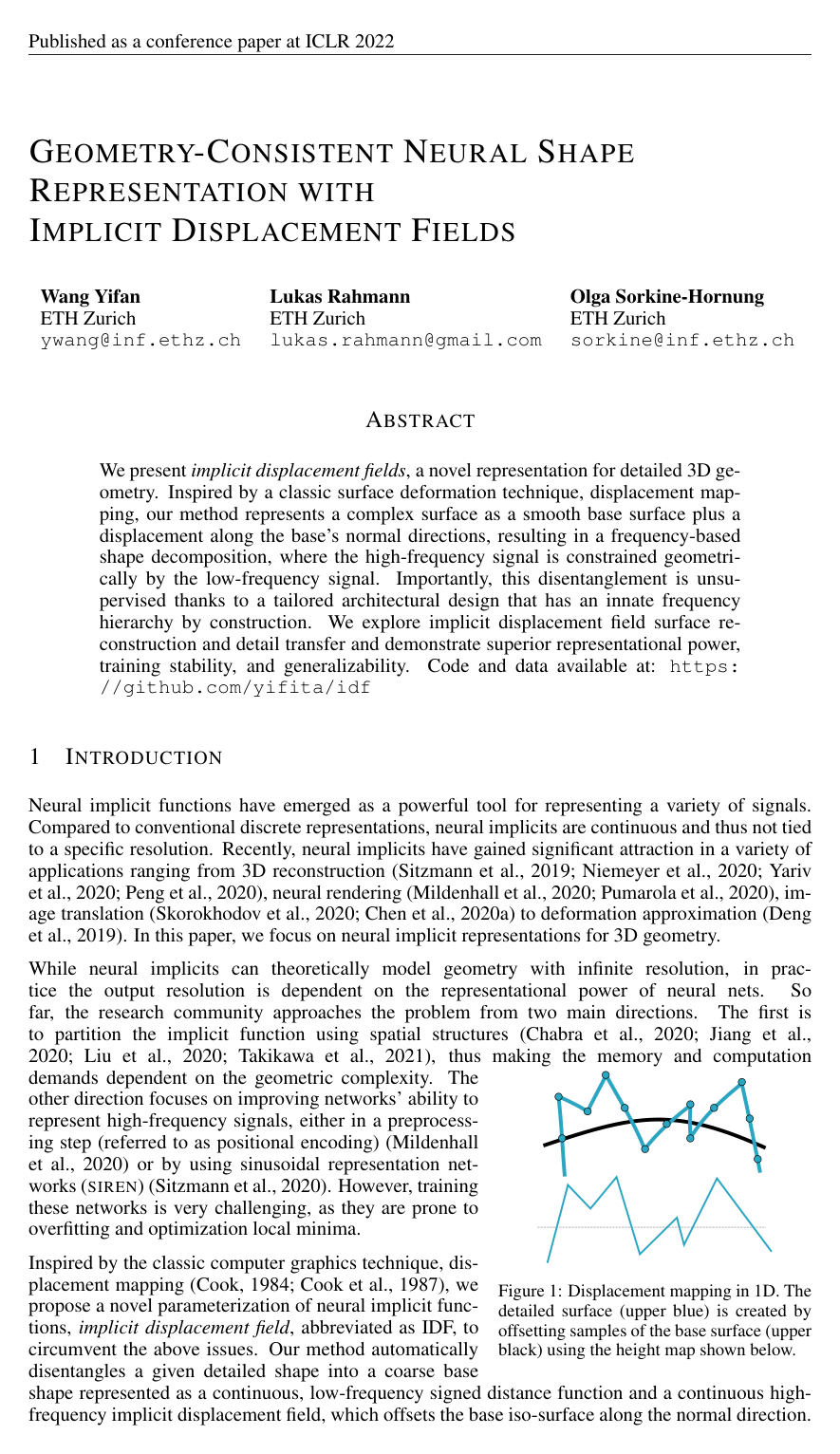

Cover for Geometry-Consistent Neural Shape Representation with Implicit Displacement Fields

Abstract

We present implicit displacement fields, a novel representation for detailed 3D geometry. Inspired by a classic surface deformation technique, displacement mapping, our method represents a complex surface as a smooth base surface plus a displacement along the base's normal directions, resulting in a frequency-based shape decomposition, where the high frequency signal is constrained geometrically by the low frequency signal. Importantly, this disentanglement is unsupervised thanks to a tailored architectural design that has an innate frequency hierarchy by construction. We explore implicit displacement field surface reconstruction and detail transfer and demonstrate superior representational power, training stability and generalizability.

Topics

architectural modelselastic deformationgeometryreconstructionsoftware architecture patternsarchitecture designsfrequencies

Keywords

Geometry-Consistent Neural Shape Representationimplicit displacement fieldsneural implicit representationsdisplacement mappingdisplacement networkdetail reconstructioninverse displacementpositional encodingPoisson reconstructionimplicit functions

Table of Contents

  • 1 Introduction
  • 2 Related work
  • 3 Method
  • 3.1 Implicit displacement fields
  • 3.2 Network design and training
  • 3.3 Transferable implicit displacement field.
  • 4 Results
  • 4.1 Detail representation.
  • 4.2 Ablation study
  • 4.3 Transferability
  • 5 Conclusion and limitations
  • References
  • A Proofs
  • B Additional experiments and results.
  • B.1 Additional information to the comparison in Sec
  • B.1.1 Additional evaluation results
  • B.1.2 Analysis
  • B.2 Discussion about ωB\omega_{B} and ωD\omega_{D}
  • B.3 Stress tests
  • B.4 Detail transfer.
  • B.5 Inference and training time

Knowls

  1. Knowl 1 — Implicit Displacement Field and Inverse Formulation

    definition

    Let f:R3→Rf: \mathbb{R}^3 \to \mathbb{R} and f^:R3→R\hat{f}: \mathbb{R}^3 \to \mathbb{R} denote continuous signed distance functions representing a smooth base surface and a detailed surface, respectively. For any level value τ∈R\tau \in \mathbb{R}, let Sτ={x∈R3∣f(x)=τ}S_\tau = \{x \in \mathbb{R}^3 \mid f(x) = \tau\} and S^τ={x∈R3∣f^(x)=τ}\hat{S}_\tau = \{x \in \mathbb{R}^3 \mid \hat{f}(x) = \tau\} denote their corresponding level sets.

    A forward implicit displacement field (IDF) is a continuous scalar function d:R3→Rd: \mathbb{R}^3 \to \mathbb{R} defining the geometric offset from SτS_\tau to S^τ\hat{S}_\tau along the base surface normal:

    f(x)=f^(x+d(x)n),where n=∇f(x)∥∇f(x)∥f(x) = \hat{f}(x + d(x) n), \quad \text{where } n = \frac{\nabla f(x)}{\|\nabla f(x)\|}

    To allow supervision using presampled query points x^∈R3\hat{x} \in \mathbb{R}^3 without dynamically computing the target signed distance at variable deformed coordinates, the representation is parameterized via the inverse implicit displacement field d^:R3→R\hat{d}: \mathbb{R}^3 \to \mathbb{R}, which maps S^τ\hat{S}_\tau to SτS_\tau:

    f(x^+d^(x^)n^)=f^(x^),where n^=∇f(x^)∥∇f(x^)∥f(\hat{x} + \hat{d}(\hat{x}) \hat{n}) = \hat{f}(\hat{x}), \quad \text{where } \hat{n} = \frac{\nabla f(\hat{x})}{\|\nabla f(\hat{x})\|}

    Under small displacements, the normal direction n^\hat{n} after inverse displacement is approximated by the normal direction at the query point.

  2. Knowl 2 — Surface Normal Difference Bound under Implicit Displacement

    theoretical result

    Let f:Rn→Rf: \mathbb{R}^n \to \mathbb{R} be a differentiable signed distance function that is Lipschitz-continuous with constant LL and Lipschitz-smooth with constant MM (i.e., ∥∇f(x)−∇f(y)∥≤M∥x−y∥\|\nabla f(x) - \nabla f(y)\| \le M \|x - y\|). Then for any offset δ∈R\delta \in \mathbb{R}:

    ∥∇f(x+δ∇f(x))−∇f(x)∥≤∣δ∣LM\|\nabla f(x + \delta \nabla f(x)) - \nabla f(x)\| \le |\delta| L M

    If ff satisfies the Eikonal equation up to an error bound ϵ>0\epsilon > 0 such that ∣∥∇f(x)∥−1∣<ϵ|\|\nabla f(x)\| - 1| < \epsilon, the Lipschitz-continuous constant satisfies L<1+ϵL < 1 + \epsilon, giving:

    ∥∇f(x+δ∇f(x))−∇f(x)∥<(1+ϵ)∣δ∣M\|\nabla f(x + \delta \nabla f(x)) - \nabla f(x)\| < (1 + \epsilon) |\delta| M

    For a point x∈R3x \in \mathbb{R}^3, displaced position x^=x+d(x)n\hat{x} = x + d(x) n with displacement distance d(x)d(x), base normal n=∇f(x)∥∇f(x)∥n = \frac{\nabla f(x)}{\|\nabla f(x)\|}, displaced normal n^=∇f(x^)∥∇f(x^)∥\hat{n} = \frac{\nabla f(\hat{x})}{\|\nabla f(\hat{x})\|}, and scalar δ=d(x)∥∇f(x)∥\delta = \frac{d(x)}{\|\nabla f(x)\|}, the difference between normalized surface normals satisfies:

    ∥n^−n∥≤1+ϵ1−ϵ∣δ∣M\|\hat{n} - n\| \le \frac{1 + \epsilon}{1 - \epsilon} |\delta| M

    Because the normal difference is bounded by a small constant proportional to the displacement magnitude, evaluating the base normal at the sampled query point x^\hat{x} serves as a bounded approximation for the displaced surface normal.

  3. Knowl 3 — Dual-SIREN Architecture with Attenuation for Implicit Displacement Fields

    model/method

    The implicit shape decomposition parameterizes the base shape and displacement field using two sinusoidal representation networks (SIRENs) with distinct frequency hyperparameters: a base network NωB\mathcal{N}^{\omega_B} and a displacement network NωD\mathcal{N}^{\omega_D}, where ωB<ωD\omega_B < \omega_D (default ωB=15\omega_B = 15 and ωD=60\omega_D = 60).

    To constrain the displacement magnitude, the output linear layer of NωD\mathcal{N}^{\omega_D} is activated by a scaled hyperbolic tangent αtanh⁡(⋅)\alpha \tanh(\cdot), where α>0\alpha > 0 is the maximum permitted displacement distance (default α=0.05\alpha = 0.05).

    To suppress high-frequency artifacts in void regions far from the base surface, an attenuation function χ:R→[0,1]\chi: \mathbb{R} \to [0, 1] modulates the displacement magnitude:

    χ(f(x))=11+(f(x)ν)4\chi(f(x)) = \frac{1}{1 + \left(\frac{f(x)}{\nu}\right)^4}

    where ν>0\nu > 0 controls the attenuation transition bandwidth (default ν=0.02\nu = 0.02).

    The detailed surface signed distance f^(x)\hat{f}(x) at any query point x∈R3x \in \mathbb{R}^3 is computed via a two-stage evaluation:

    f(x)=NωB(x)f(x) = \mathcal{N}^{\omega_B}(x)

    f^(x)=NωB(x+χ(f(x)) αtanh⁡(NωD(x))∇f(x)∥∇f(x)∥)\hat{f}(x) = \mathcal{N}^{\omega_B}\left(x + \chi(f(x)) \, \alpha \tanh(\mathcal{N}^{\omega_D}(x)) \frac{\nabla f(x)}{\|\nabla f(x)\|}\right)

  4. Knowl 4 — Loss Function and Progressive Training for Implicit Displacement Fields

    model/method

    Given an oriented point cloud P={(pi,ni)}\mathcal{P} = \{(p_i, n_i)\} and the domain bounding box Ω=[−1,1]3\Omega = [-1, 1]^3, the neural implicit signed distance function is trained by minimizing the loss Lf^\mathcal{L}_{\hat{f}}:

    Lf^=∑x∈Ωλ0∣∥∇f^(x)∥−1∣+∑(p,n)∈P(λ1∣f^(p)∣+λ2(1−⟨∇f^(p),n⟩))+∑x∈Ω∖Pλ3exp⁡(−100f^(x))\mathcal{L}_{\hat{f}} = \sum_{x \in \Omega} \lambda_0 \big|\|\nabla \hat{f}(x)\| - 1\big| + \sum_{(p, n) \in \mathcal{P}} \left(\lambda_1 |\hat{f}(p)| + \lambda_2 (1 - \langle \nabla \hat{f}(p), n \rangle)\right) + \sum_{x \in \Omega \setminus \mathcal{P}} \lambda_3 \exp(-100 \hat{f}(x))

    with loss weighting hyperparameters λ0=5\lambda_0 = 5, λ1=400\lambda_1 = 400, λ2=40\lambda_2 = 40, and λ3=50\lambda_3 = 50.

    To prevent the high-frequency displacement network from destabilizing the base surface during early optimization, training follows a progressive coarse-to-fine schedule across training epochs normalized to t∈[0,1]t \in [0, 1]. For t≤Tmt \le T_m (default threshold Tm=0.2T_m = 0.2), only the base network NωB\mathcal{N}^{\omega_B} is trained using loss Lf\mathcal{L}_f (evaluating L\mathcal{L} on f(x)f(x)). For t>Tmt > T_m, the total objective smoothly transitions via cosine blending:

    Ltotal=κLf+(1−κ)Lf^,where κ=12(1+cos⁡(πt−Tm1−Tm))\mathcal{L}_{\text{total}} = \kappa \mathcal{L}_f + (1 - \kappa) \mathcal{L}_{\hat{f}}, \quad \text{where } \kappa = \frac{1}{2}\left(1 + \cos\left(\pi \frac{t - T_m}{1 - T_m}\right)\right)

    The learning rates for the base and displacement networks follow the same cosine transition schedule.

  5. Knowl 5 — Transferable Implicit Displacement Field Architecture

    model/method

    A transferable implicit displacement field replaces explicit Cartesian coordinates with continuous, coordinate-free local descriptors, enabling details learned from a source shape to be applied to a target shape without UV parameterization.

    The conditioning feature at query point x∈R3x \in \mathbb{R}^3 comprises two components:

    1. A global context descriptor ϕ(x)\phi(x): On-surface point normals are processed by a point cloud encoder to produce sparse features, projected onto a regular 3D or 2D grid, propagated off-surface using 3D/2D convolutional layers, and interpolated at xx via trilinear or bilinear interpolation.
    2. A normalized signed distance value fˉ(x)=tanh⁡(1νf(x))\bar{f}(x) = \tanh\left(\frac{1}{\nu} f(x)\right), where f(x)f(x) is the base signed distance and ν\nu is the attenuation bandwidth parameter.

    The global context descriptor ϕ(x)\phi(x) is mapped by a multi-layer perceptron M\mathcal{M} to layer-wise modulation vectors {γi,βi}i=1L\{\gamma_i, \beta_i\}_{i=1}^L. These vectors modulate the linear layers of the displacement SIREN TωD\mathcal{T}^{\omega_D} using Feature-wise Linear Modulation (FiLM):

    hi+1=sin⁡((1+12γi)∘(Wihi+bi)+βi)h_{i+1} = \sin\left(\left(1 + \frac{1}{2}\gamma_i\right) \circ (W_i h_i + b_i) + \beta_i\right)

    where h0=fˉ(x)h_0 = \bar{f}(x), Wi,biW_i, b_i are weight matrices and bias vectors, and ∘\circ denotes Hadamard (element-wise) multiplication.

    The detailed SDF is evaluated as:

    f^(x)=NωB(x+χ(f(x)) TωD(fˉ(x),M(ϕ(x)))∇f(x)∥∇f(x)∥)\hat{f}(x) = \mathcal{N}^{\omega_B}\left(x + \chi(f(x)) \, \mathcal{T}^{\omega_D}(\bar{f}(x), \mathcal{M}(\phi(x))) \frac{\nabla f(x)}{\|\nabla f(x)\|}\right)

  6. Knowl 6 — Surface Detail Transfer Procedure using Transferable IDF

    algorithm

    The procedure transfers high-frequency geometric displacement fields learned from a source shape Ssrc\mathcal{S}_{\text{src}} onto an aligned target shape Stgt\mathcal{S}_{\text{tgt}}.

    Input: Source point cloud Psrc\mathcal{P}_{\text{src}}, target point cloud Ptgt\mathcal{P}_{\text{tgt}}, optional source/target base meshes, base frequency ωB\omega_B, displacement frequency ωD\omega_D
    Output: Composed target detailed SDF f^tgt\hat{f}_{\text{tgt}}
    1. if source base shape is provided then
    2. Train base SIREN NωB\mathcal{N}^{\omega_B} on source base shape
    3. else
    4. Train base SIREN NωB\mathcal{N}^{\omega_B} (configured with ωB=5\omega_B = 5, 3 hidden layers of 96 channels) on Psrc\mathcal{P}_{\text{src}}
    5. end if
    6. Freeze parameters of NωB\mathcal{N}^{\omega_B}
    7. Train context feature extractor ϕ\phi, mapping network M\mathcal{M}, and displacement SIREN TωD\mathcal{T}^{\omega_D} on Psrc\mathcal{P}_{\text{src}} using the composite detailed SDF loss
    8. if target base shape is provided then
    9. Train target base SIREN NnewωB\mathcal{N}_{\text{new}}^{\omega_B} on target base shape
    10. else
    11. Train target base SIREN NnewωB\mathcal{N}_{\text{new}}^{\omega_B} on Ptgt\mathcal{P}_{\text{tgt}} with ωB=5\omega_B = 5
    12. end if
    13. Synthesize transferred detail on target query points xx by evaluating:
        f^tgt(x)=NnewωB(x+χ(fnew(x)) TωD(fˉnew(x),M(ϕ(x)))∇fnew(x)∥∇fnew(x)∥)\hat{f}_{\text{tgt}}(x) = \mathcal{N}_{\text{new}}^{\omega_B}\left(x + \chi(f_{\text{new}}(x)) \, \mathcal{T}^{\omega_D}(\bar{f}_{\text{new}}(x), \mathcal{M}(\phi(x))) \frac{\nabla f_{\text{new}}(x)}{\|\nabla f_{\text{new}}(x)\|}\right)
    14. return f^tgt\hat{f}_{\text{tgt}}

  7. Knowl 7 — 3D Surface Reconstruction Benchmark across Baselines

    data/table

    Evaluation of single-shape surface reconstruction on 16 high-resolution shapes (14 from Sketchfab, 2 from Stanford 3D Scan Repository). Metrics are two-way point-to-point Chamfer Distance (CD×10−3CD \times 10^{-3}) and normal cosine distance (NC×10−2NC \times 10^{-2}), evaluated on 5 million surface points sampled from meshes extracted via Marching Cubes at 5123512^3 resolution.

    Metric Progressive FFN NGLOD (LOD4) NGLOD (LOD6) SIREN-3 (ω=60\omega=60) SIREN-7 (ω=30\omega=30) SIREN-7 (ω=60\omega=60) Direct Residual D-SDF Ours
    CD ⋅10−3\cdot 10^{-3} 5.47 2.27 1.35 9.85 4.85 – 181.0 2.85 1.22
    NC ⋅10−2\cdot 10^{-2} 3.77 4.24 1.97 6.64 2.56 6.02 59.0 4.39 1.25
    Model Size ∼4.8\sim 4.8 MB 16 MB 946 MB 5.6 MB 5.6 MB 5.6 MB ∼4.8\sim 4.8 MB 7.4 MB 4.8 MB

    Implicit Displacement Fields achieve the lowest reconstruction error while maintaining a compact 4.8 MB footprint. NGLOD with 6 levels of detail achieves competitive accuracy but requires an octree feature structure with 256×256\times more parameters (946 MB). Standard SIREN models with ω=60\omega=60 exhibit optimization divergence on most shapes. Direct residual addition without normal-direction constraints produces severe geometric artifacts (CD=181.0×10−3CD = 181.0 \times 10^{-3}).

  8. Knowl 8 — Ablation Study on Network Constraints and Hyperparameters

    data/table

    Ablation experiments evaluate the contribution of individual architectural components and parameter sensitivities. Point-to-point Chamfer Distance (CD×10−3CD \times 10^{-3}) and normal cosine distance (NC×10−2NC \times 10^{-2}) are reported.

    Component Ablation:

    αtanh⁡\alpha \tanh Attenuation χ\chi Progressive Training Average CD⋅10−3CD \cdot 10^{-3}
    1.44
    ✓ 1.41
    ✓ ✓ 1.38
    ✓ ✓ ✓ 1.24

    Hyperparameter Sensitivity for Displacement Bound α\alpha (with ν=0.02\nu = 0.02) and Attenuation Factor ν\nu (with α=0.05\alpha = 0.05):

    α\alpha test (with ν=0.02\nu=0.02) ν\nu test (with α=0.05\alpha=0.05)
    Parameter value 0.01 0.02 0.05 0.1 0.2 0.01 0.02 0.05 0.1 0.2
    CD⋅10−3CD \cdot 10^{-3} 1.178 1.171 1.147 1.146 1.149 1.146 1.147 1.147 1.149 1.152
    NC⋅10−2NC \cdot 10^{-2} 1.525 1.490 1.252 1.251 1.260 1.254 1.253 1.251 1.250 1.274

    Adding displacement bounding, spatial attenuation, and progressive scheduling steadily reduces Chamfer error from 1.44×10−31.44 \times 10^{-3} to 1.24×10−31.24 \times 10^{-3}. Reconstruction remains stable across a wide parameter range, degrading slightly when α\alpha is too small (0.010.01) to cover surface deviations or when ν\nu is too large (0.20.2), which allows off-surface high-frequency noise in void regions.

  9. Knowl 9 — Reconstruction Robustness to Point Sparsity and Measurement Noise

    data/table

    Performance of Implicit Displacement Fields compared to Screened Poisson Surface Reconstruction under varying point cloud sparsity (40,000 and 400,000 points, corresponding to 1% and 10% of standard 4M sample density) and Gaussian noise standard deviations σ∈{0.002,0.005}\sigma \in \{0.002, 0.005\} added to both point positions and surface normals.

    Training Points Noise σ\sigma Ours (CD⋅10−3CD \cdot 10^{-3} / NC⋅10−2NC \cdot 10^{-2}) Poisson Recon (CD⋅10−3CD \cdot 10^{-3} / NC⋅10−2NC \cdot 10^{-2})
    40,000 0.002 1.07 / 7.54 1.08 / 7.78
    40,000 0.005 1.05 / 7.57 1.08 / 7.82
    400,000 0.002 1.00 / 6.01 1.04 / 6.63
    400,000 0.005 1.00 / 5.99 1.04 / 6.60

    Given adequate point density (400k samples), the learned implicit displacement field recovers sharp surface microstructures and normal orientations more faithfully than Poisson reconstruction. When input point clouds are extremely sparse (40k samples), high-frequency fitting can overfit noise in poorly sampled regions.

  10. Knowl 10 — Spatial Alignment Requirement for Detail Transfer

    limitation

    The transferable implicit displacement field requires source and target 3D shapes to be roughly pre-aligned in coordinate space. While the normal-based context descriptor ϕ(x)\phi(x) provides translation and scale invariance and exhibits empirical robustness to small local rotational variations, it is not fully rotation-invariant or deformation-invariant. Consequently, direct detail transfer cannot handle unaligned inputs or large non-rigid geometric transformations without prior shape alignment or sparse correspondence matching.

Coverage note — Omitted material includes per-model individual runtime profiling on Nvidia RTX 2080 GPU hardware, specific names of individual 3D mesh assets from online repositories, and step-by-step intermediate proof derivations (such as Cauchy-Schwarz inequality expansions).
