Learning Neural Parametric Head Models

Simon GiebenhainTobias KirschsteinMarkos GeorgopoulosMartin RünzLourdes AgapitoMatthias Nießner

article2023CVPR87 citations

Proposes a neural parametric head model using local signed distance fields and forward deformation fields trained on high-resolution full-head scans to achieve fine geometry reconstruction with disentangled identity and expression controls.

Listen

Digital representations of complete human heads are essential for applications across virtual reality, gaming, telepresence, and digital avatars. Traditional 3D morphable face models rely on fixed-topology mesh templates and linear dimensionality reduction methods such as Principal Component Analysis. While these conventional methods provide good regularization against noisy inputs, their rigid structural assumptions prevent them from capturing fine local facial details, natural variations in head shape, and diverse hair styles.

The article develops and demonstrates a novel neural parametric head model (NPHM) based on hybrid neural fields. The primary objective is to accurately reconstruct full 3D head geometry and complex facial expressions from sparse, noisy depth data by learning separate, disentangled representations for personal identity and facial movements.

To build and validate this system, the authors captured a high-resolution 3D head dataset comprising over 3,700 scans across 203 distinct individuals performing 23 facial expressions. Each scan averaged roughly 1.5 million vertices and 3.5 million triangles. The approach uses an implicit neural field to represent the canonical geometry of an identity as a signed distance field, broken down into an ensemble of smaller local networks anchored to specific facial keypoints with shared weights across symmetrical facial regions. A separate forward deformation network then models facial expressions. When deployed at inference time, the model fits to sparse point clouds—such as single depth frames from consumer-grade sensors—by optimizing the underlying identity and expression codes.

The evaluation produced several clear findings. First, the proposed framework significantly outperformed traditional mesh-based models such as FLAME and Basel Face Models, achieving lower reconstruction error (an L1-Chamfer distance of 0.00182 versus 0.00640 for FLAME during identity fitting) and higher geometric accuracy (F-Score of 0.954 versus 0.530). Second, it outperformed competing neural implicit baselines like ImFace and Neural Parametric Models across both identity and expression tasks. Third, ablation analyses confirmed that decomposing the face into localized regions and sharing symmetric weights directly improves geometric accuracy and surface normal consistency.

These results demonstrate that moving from fixed mesh templates to localized neural fields eliminates key structural bottlenecks in digital human modeling. For engineering and product teams, this approach enables high-fidelity 3D avatar generation and tracking directly from consumer depth sensors without requiring dense multi-camera capture rigs or manual clean-up. Additionally, the forward deformation design allows faster animation compared to backward deformation architectures.

Organizations developing 3D facial capture and avatar pipelines should consider adopting local implicit neural representations over legacy mesh templates for tracking and geometry reconstruction tasks. Future development should focus on integrating photometric texture pipelines, as the current model focuses exclusively on 3D geometry rather than visual color appearance. Furthermore, while the model captures full head shapes with short hair, extending the dataset to accommodate long, loose hair styles remains necessary to broaden real-world applicability.

Synthesia Technical University of Munich University College London 3d-scanning facial expression geometry Neural Parametric Head Models parametric face models implicit neural representations

arXiv: 2212.02761 SimonGiebenhain/NPHM

Paper: A Morphable Model For The Synthesis Of 3D Faces, Volker Blanz et al. (1999). It introduces the fundamental 3D morphable model framework for linearly disentangling identity and facial variations from 3D scans.
Paper: Learning a model of facial shape and expression from 4D scans, Tianye Li et al. (2017). It establishes the FLAME parametric head model that decouples identity shape, pose, and facial expressions, serving as a primary baseline and conceptual precursor.
Paper: DeepSDF: Learning Continuous Signed Distance Functions for Shape Representation, Jeong Joon Park et al. (2019). It provides the foundational deep learning formulation for representing continuous 3D shapes via auto-decoded signed distance functions (SDFs).
Paper: Nerfies: Deformable Neural Radiance Fields, Keunhong Park et al. (2020). It introduces non-rigid continuous neural deformation fields to map dynamic observations to a canonical template space.
Paper: NeuS: Learning Neural Implicit Surfaces by Volume Rendering for Multi-view Reconstruction, Peng Wang et al. (2021). It develops the neural implicit surface reconstruction framework using signed distance fields with volume rendering.
Paper: PIFu: Pixel-Aligned Implicit Function for High-Resolution Clothed Human Digitization, Shunsuke Saito et al. (2019). It pioneers pixel-aligned implicit functions for continuous 3D human digitizations with fine localized geometric details.
Paper: Learning Implicit Fields for Generative Shape Modeling, Zhiqin Chen et al. (2018). It establishes generative implicit field decoding (IM-NET) for continuous 3D shape modeling without topological restrictions.
Paper: Face2Face: Real-Time Face Capture and Reenactment of RGB Videos, Justus Thies et al. (2016). It presents foundational methods for tracking and transferring facial expressions by optimizing parametric facial models.

Paper: LRM: Large Reconstruction Model for Single Image to 3D, Yicong Hong et al. (2024). It scales up feedforward neural 3D reconstruction from single images to general objects using large-scale transformer architectures and triplane neural fields.

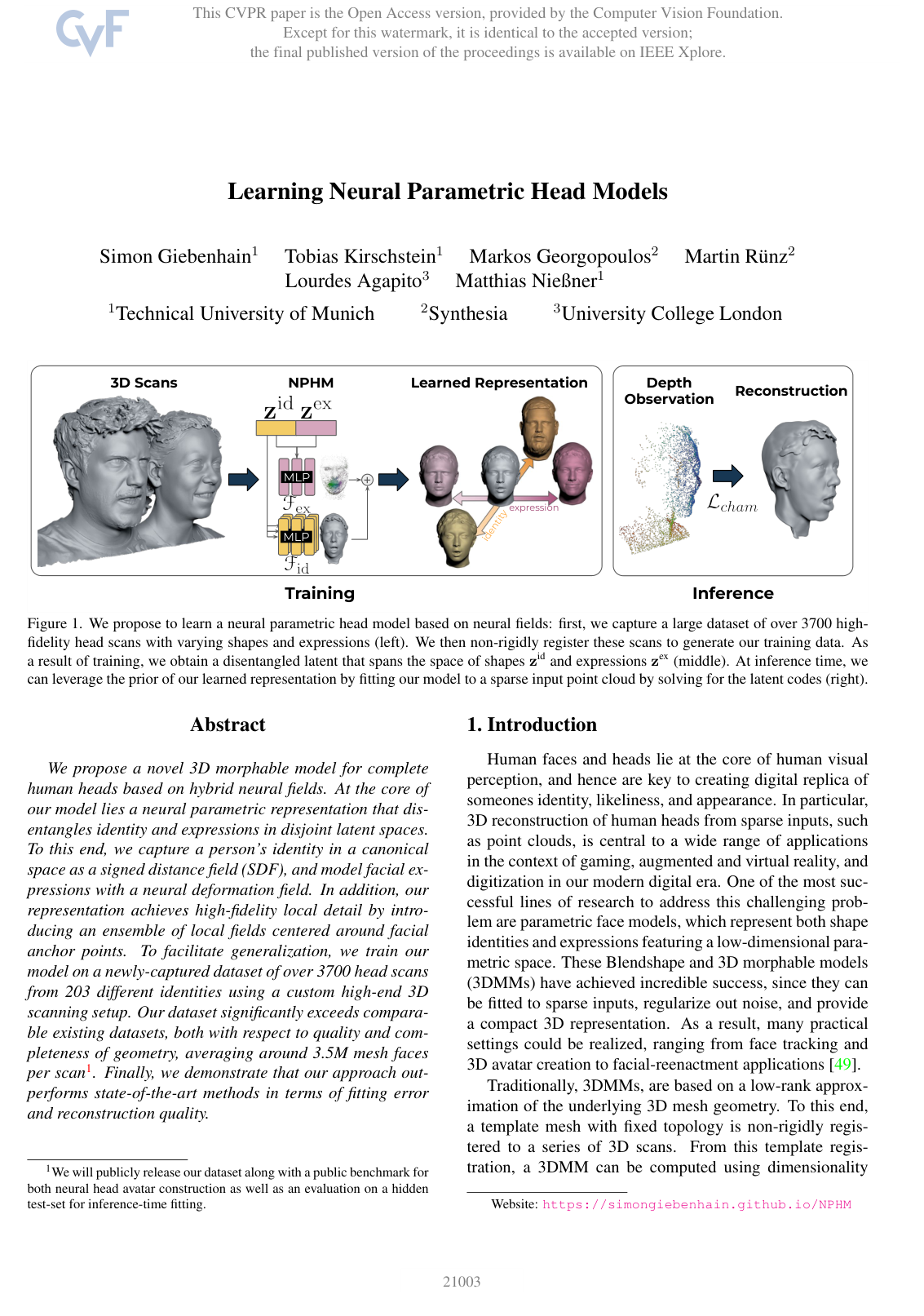

Cover for Learning Neural Parametric Head Models

Abstract

We propose a novel 3D morphable model for complete human heads based on hybrid neural fields. At the core of our model lies a neural parametric representation that disentangles identity and expressions in disjoint latent spaces. To this end, we capture a person’s identity in a canonical space as a signed distance field (SDF), and model facial expressions with a neural deformation field. In addition, our representation achieves high-fidelity local detail by introducing an ensemble of local fields centered around facial anchor points. To facilitate generalization, we train our model on a newly-captured dataset of over 3700 head scans from 203 different identities using a custom high-end 3D scanning setup. Our dataset significantly exceeds comparable existing datasets, both with respect to quality and completeness of geometry, averaging around 3.5M mesh faces per scan1. Finally, we demonstrate that our approach outperforms state-of-the-art methods in terms of fitting error and reconstruction quality.

Topics

3d-scanning facial expression geometry reconstruction reconstruction quality

Keywords

Neural Parametric Head Models parametric face models implicit neural representations morphable models FaceScape dataset non-rigid registration facial landmarks identity reconstruction neural deformation

1. Introduction
2. Related Work
3. Dataset Acquisition
3.1. Capture Setup
3.2. Registration Pipeline
3.2.1 Rigid Alignment
3.2.2 Non-Rigid Registration
4. Neural Parametric Head Models
4.1. Identity Representation
4.1.1 Local Decomposition
4.1.2 Global Blending
4.2. Expression Representation
4.3. Training Strategy
5. Results
5.1. Identity Reconstruction
5.2. Expression Reconstruction
5.3. Ablations
5.4. Limitations
6. Conclusion
Acknowledgements
References

Knowls

Knowl 1 — Canonical Identity Representation via Local MLP Ensemble and Symmetry
model/method
Neural Parametric Head Models (NPHM) represent human head identity as a continuous Signed Distance Field (SDF) in a canonical open-mouth space. To capture localized geometric details and reduce optimization complexity, the canonical field is partitioned into $K = 2K_{\text{symm}} + K_{\text{middle}}$ semantic regions centered at anchor points $\mathbf{a} \in \mathbb{R}^{K \times 3}$ , where $K_{\text{middle}}$ anchors lie on the facial symmetry axis $\mathcal{M}$ , and $2K_{\text{symm}}$ anchors form symmetric pairs between left-side regions $\mathcal{S}$ and right-side regions $\mathcal{S}^*$ .

Each region is parameterized by an identity-specific local latent code $\mathbf{z}_k^{\text{id}} \in \mathbb{R}^{d_{\text{loc}}}$ and conditioned on a shared global identity latent code $\mathbf{z}_{\text{glob}}^{\text{id}} \in \mathbb{R}^{d_{\text{glob}}}$ . The $k$ -th local field for a 3D query point $x \in \mathbb{R}^3$ is predicted by an MLP:

$f_k(x, \mathbf{z}_{\text{glob}}^{\text{id}}, \mathbf{z}_k^{\text{id}}) = \operatorname{MLP}_{\theta_k}([x - \mathbf{a}_k, \mathbf{z}_{\text{glob}}^{\text{id}}, \mathbf{z}_k^{\text{id}}])$

where $[\,\cdot\,]$ denotes vector concatenation. Facial bilateral symmetry is enforced by sharing network parameters between each region $k \in \mathcal{S}$ on the left side and its symmetric counterpart $k^* \in \mathcal{S}^*$ on the right side while mirroring spatial coordinates along the symmetry axis:

$f_{k^*}(x, \mathbf{z}_{\text{glob}}^{\text{id}}, \mathbf{z}_{k^*}^{\text{id}}) = f_k(\operatorname{flip}(x - \mathbf{a}_{k^*}), \mathbf{z}_{\text{glob}}^{\text{id}}, \mathbf{z}_{k^*}^{\text{id}})$

Anchor coordinates $\mathbf{a}$ are predicted from the global latent code using a dedicated network $\mathbf{a} = \operatorname{MLP}_{\text{pos}}(\mathbf{z}_{\text{glob}}^{\text{id}})$ .
Knowl 2 — Global Blending of Local SDFs with Background Field
model/method
To combine the ensemble of local SDF networks into a continuous global SDF $\mathscr{F}_{\text{id}}(x)$ , NPHM computes a spatially normalized weighted sum of local fields $f_k$ and an additional global background field $f_0$ centered at $\mathbf{a}_0 = \mathbf{0} \in \mathbb{R}^3$ :

$\mathscr{F}_{\text{id}}(x) = \sum_{k=0}^{K} w_k(x, \mathbf{a}_k) f_k(x, \mathbf{z}_{\text{glob}}^{\text{id}}, \mathbf{z}_k^{\text{id}})$

The background network $f_0(x, \mathbf{z}_{\text{glob}}^{\text{id}}, \mathbf{z}_0^{\text{id}}) = \operatorname{MLP}_0(x, \mathbf{z}_{\text{glob}}^{\text{id}}, \mathbf{z}_0^{\text{id}})$ operates in global coordinates to represent geometry far away from any facial anchor. The blending weights $w_k(x, \mathbf{a}_k)$ are computed using normalized isotropic Gaussian kernels with standard deviation $\sigma$ and a constant baseline response $c$ for the background field:

$w_k^*(x, \mathbf{a}_k) = \begin{cases} \exp\left(-\frac{\|x - \mathbf{a}_k\|_2}{2\sigma}\right), & \text{if } k > 0 \\ c, & \text{if } k = 0 \end{cases}$

$w_k(x, \mathbf{a}_k) = \frac{w_k^*(x, \mathbf{a}_k)}{\sum_{k'=0}^K w_{k'}^*(x, \mathbf{a}_{k'})}$
Knowl 3 — Forward Neural Deformation Field with Identity Bottleneck
model/method
NPHM models facial expressions as a forward deformation field $\mathscr{F}_{\text{ex}}$ mapping canonical 3D coordinates $x \in \mathbb{R}^3$ to 3D deformation vectors in posed space. The deformation MLP is conditioned on a latent expression code $\mathbf{z}^{\text{ex}} \in \mathbb{R}^{d_{\text{ex}}}$ and an identity embedding $\hat{\mathbf{Z}}^{\text{id}} \in \mathbb{R}^{d_{\text{id-ex}}}$ :

$\mathscr{F}_{\text{ex}}(x, \mathbf{z}^{\text{ex}}, \hat{\mathbf{Z}}^{\text{id}}): \mathbb{R}^{d_{\text{ex}} + d_{\text{id-ex}}} \rightarrow \mathbb{R}^3$

To prevent the expression code from encoding identity-specific geometric variations while retaining the necessary conditioning for identity-dependent deformations, an information bottleneck is applied by projecting the concatenated global/local identity latent vectors and anchor positions through a single learned linear layer $W$ :

$\hat{\mathbf{Z}}^{\text{id}} = W [\mathbf{z}_{\text{glob}}^{\text{id}}, \mathbf{z}_0^{\text{id}}, \dots, \mathbf{z}_K^{\text{id}}, \mathbf{a}_1, \dots, \mathbf{a}_K]$
Knowl 4 — Auto-Decoder Training Objective for Disentangled Canonical and Deformation Fields
model/method
NPHM trains identity and expression spaces sequentially in an auto-decoder framework.
1. Identity Training: For each subject $j \in J$ , latent codes $\mathbf{Z}_j^{\text{id}} = \{\mathbf{z}_{\text{glob},j}^{\text{id}}, \mathbf{z}_{0,j}^{\text{id}}, \dots, \mathbf{z}_{K,j}^{\text{id}}\}$ and network parameters $\{\theta_{\text{pos}}, \theta_0, \dots, \theta_K\}$ are optimized by minimizing:
$\mathcal{L}_{\text{id}} = \sum_{j \in J} \left[ \mathcal{L}_{\text{IGR}} + \lambda_a \|\hat{\mathbf{a}}_j - \mathbf{a}_j\|_2^2 + \lambda_{\text{sy}} \mathcal{L}_{\text{sy}} + \lambda_{\text{reg}}^{\text{id}} \|\mathbf{Z}_j^{\text{id}}\|_2^2 \right]$

where $\mathcal{L}_{\text{IGR}}$ enforces zero SDF on surface samples with Eikonal gradient regularization, $\hat{\mathbf{a}}_j$ denotes anchor positions from registrations, and symmetry regularization is defined as:

$\mathcal{L}_{\text{sy}} = \sum_{k \in \mathcal{S}} \|\mathbf{z}_{k,j}^{\text{id}} - \mathbf{z}_{k^*,j}^{\text{id}}\|_2^2$
1. Expression Training: With the identity model frozen, deformation network parameters $\theta_{\text{ex}}$ , projection matrix $W$ , and per-expression latent codes $\{\mathbf{z}_{j,l}^{\text{ex}}\}$ are optimized on sampled canonical points $x \in X_{j,l}$ with ground-truth displacement vectors $\delta(x)_{j,l}$ via:
$\mathcal{L}_{\text{ex}} = \sum_{j \in J, l \in L} \sum_{x \in X_{j,l}} \|\mathscr{F}_{\text{ex}}(x, \mathbf{z}_{j,l}^{\text{ex}}, \hat{\mathbf{Z}}_j^{\text{id}}) - \delta(x)_{j,l}\|_2^2 + \lambda_{\text{reg}}^{\text{ex}} \|\mathbf{z}_{j,l}^{\text{ex}}\|_2^2$
Knowl 5 — Two-Stage Scan Registration Pipeline
model/method
To build ground truth training pairs for canonical identity and non-rigid forward deformations, raw 3D scans are registered through a two-stage process:
1. Rigid Alignment and FLAME Initialization: 2D facial landmarks are detected on frontal mesh renderings using MediaPipe and back-projected to the 3D scan, yielding 48 iBUG68 landmarks. An initial Umeyama similarity transform aligns them with the FLAME template face. Across the 23 expression scans $\{\mathcal{S}_j\}_{j=1}^{23}$ of a subject, parameters $\Phi_j$ (identity $\mathbf{z}^{\text{id}} \in \mathbb{R}^{100}$ , expressions $\mathbf{z}_j^{\text{ex}}$ , jaw poses $\theta_j$ , shared scale $s \in \mathbb{R}$ , and per-scan rigid corrections $R_j, t_j$ ) are jointly solved by minimizing:
$\arg\min_{\Phi_1, \dots, \Phi_{23}} \sum_{j=1}^{23} \left[ \lambda_l \|L_j - \hat{L}_j\|_1 + d(V_{\Phi_j}, \mathcal{S}_j) + \mathcal{R}(\Phi_j) \right]$

where $L_j \in \mathbb{R}^{68 \times 3}$ and $\hat{L}_j$ denote scan and model landmarks, $d(V_{\Phi_j}, \mathcal{S}_j)$ is point-to-plane distance, and $\mathcal{R}(\Phi_j)$ regularizes FLAME parameters. Hair regions are masked out using FaRL segmentation.
1. Fine Tuning via As-Rigid-As-Possible (ARAP) Optimization: The facial mesh resolution is upsampled by a factor of 16. Vertex-specific offsets $\{\delta_v\}_{v \in V}$ and rotations $\{R_v\}_{v \in V}$ are optimized per scan using L-BFGS:
$\arg\min_{\{\delta_v\}, \{R_v\}} \sum_{v \in V} \left[ d(v + \delta_v, \mathcal{S}) + \sum_{u \in \mathcal{N}_v} \|R_v(v - u) - ((v + \delta_v) - (u + \delta_u))\|_2^2 \right]$

where $\mathcal{N}_v$ denotes the neighboring vertices of $v$ .
Knowl 6 — High-Fidelity 3D Head Scanning Dataset
experimental setup
The captured dataset consists of 3720 high-fidelity 3D head scans from 203 subjects (144 male, 59 female; 29% female). The acquisition rig uses two Artec Eva structured light 3D scanners rotating $360^\circ$ around the subject's head via a robotic actuator. Each full scan takes 6 seconds at 16 frames per second. Individual frames are aligned and fused into a single mesh containing approximately 1.5 million vertices and 3.5 million triangles per scan.

Participants perform 23 distinct facial expressions based on the Facial Action Coding System (FACS) from FaceWarehouse, including a canonical neutral expression with the mouth open to prevent self-intersection and topological merging. Subjects do not wear bathing caps, enabling the capture of natural head and hair geometry.

Knowl 7 — Identity Reconstruction Benchmark from Single-View Depth

data/table

Identity reconstruction performance is evaluated on 18 unseen test identities (6 female, 12 male) by fitting each model's identity space to a single neutral depth map containing 5000 randomly sampled points. Quality is measured by $L_1$ -Chamfer distance ( $10^{-2}$ ), normal consistency (N. C., cosine similarity), and F-Score at a 1.5 mm threshold.

Method	$L_1$ -Chamfer $\downarrow$	N. C. $\uparrow$	[email protected] $\uparrow$
BFM	$1.341\times 10^{-2}$	0.936	0.319
FLAME	$0.640\times 10^{-2}$	0.931	0.530
Global PCA	$0.563\times 10^{-2}$	0.954	0.571
Local PCA	$0.416\times 10^{-2}$	0.960	0.756
ImFace	$0.404\times 10^{-2}$	0.954	0.832
ImFace*	$0.312\times 10^{-2}$	0.971	0.883
NPM	$0.200\times 10^{-2}$	0.975	0.947
Ours (NPHM)	$0.182\times 10^{-2}$	0.978	0.954

*ImFace* denotes training on the authors' dataset with ImFace preprocessing. NPHM outperforms mesh-based and neural implicit baselines across all metrics.

Knowl 8 — Multi-Expression Reconstruction Benchmark

data/table

Expression reconstruction is evaluated by fitting models across 23 distinct depth map observations per subject for 18 unseen identities, solving for a shared identity code and per-scan expression codes. For forward neural deformation models (NPM and NPHM), the identity code is fixed from neutral fitting and expression codes are recovered using iterative root finding.

Method	$L_1$ -Chamfer $\downarrow$	N. C. $\uparrow$	[email protected] $\uparrow$
BFM	$1.271\times 10^{-2}$	0.937	0.508
FLAME	$0.679\times 10^{-2}$	0.924	0.351
Global PCA	$0.515\times 10^{-2}$	0.956	0.606
Local PCA	$0.535\times 10^{-2}$	0.950	0.641
ImFace	$0.369\times 10^{-2}$	0.959	0.824
ImFace*	$0.321\times 10^{-2}$	0.971	0.879
NPM	$0.299\times 10^{-2}$	0.962	0.891
Ours (NPHM)	$0.272\times 10^{-2}$	0.969	0.913

*ImFace* is trained on the authors' dataset. NPHM achieves the lowest Chamfer error ( $0.272\times 10^{-2}$ ) and highest [email protected] (0.913).

Knowl 9 — Ablation on Anchor Count and Symmetry Constraints

data/table

An ablation study isolates the contributions of the number of local anchor regions $K$ and bilateral weight sharing on neutral identity reconstruction from a single depth map.

Method	$L_1$ -Chamfer $\downarrow$	N. C. $\uparrow$	[email protected] $\uparrow$
NPM (effectively $K=1$ )	0.254	0.972	0.906
$K=12$ , w/ sy.	0.289	0.966	0.876
$K=26$ , w/ sy.	0.237	0.971	0.913
$K=39$ , w/o sy.	0.230	0.974	0.917
Ours ( $K=39$ , w/ sy.)	0.206	0.976	0.938

Increasing the number of anchor points up to $K=39$ combined with weight-sharing for symmetric anchors yields the highest accuracy ( $L_1$ -Chamfer of 0.206 and F-Score of 0.938).

Knowl 10 — Limitations of NPHM
limitation
Neural Parametric Head Models exhibit two primary limitations:
1. Absence of Photometric/Appearance Modeling: NPHM models geometry exclusively via signed distance and deformation fields, without a texture or appearance field, preventing direct end-to-end fitting to single RGB images using dense photometric losses.
2. Hair Style Constraints: While NPHM models full head shape without requiring skull caps, it does not capture dynamic, open, or long unconstrained hair, limiting the geometric diversity of represented hairstyles.

Coverage note — No substantial contributed material from the main paper was omitted. Baseline optimization setups detailed in the supplementary material were summarized within the respective empirical benchmark knowls.
