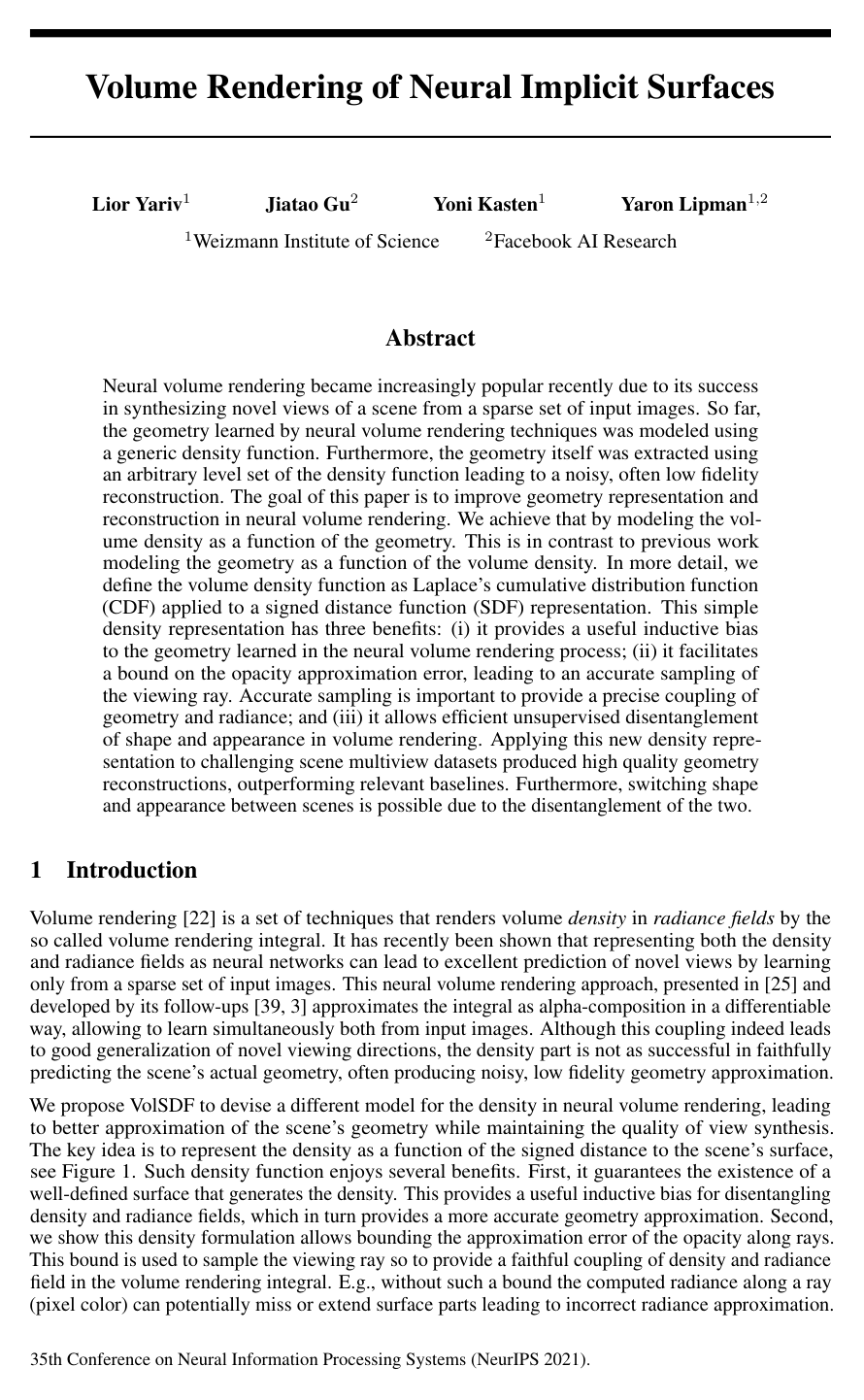

Volume Rendering of Neural Implicit Surfaces
Lior YarivJiatao GuYoni KastenYaron Lipman
Proposes a neural volume rendering approach that derives volume density directly from a signed distance function, enabling high-fidelity 3D surface reconstruction and unsupervised disentanglement of shape and appearance from multiview images.
Synthesizing 3D scenes and novel views from sparse sets of 2D images is a central challenge in computer vision and graphics. While recent neural volume rendering techniques excel at novel view synthesis, they represent scene density using generic density fields that typically result in noisy, low-fidelity 3D geometry. Concurrently, methods that directly optimize neural implicit surfaces require accurate object masks to separate foreground from background and often generate erroneous surface artifacts due to optimization traps. The article introduces and evaluates VolSDF, a volume rendering framework designed to recover high-quality 3D surface geometry from multi-view images without requiring foreground masks, while retaining high visual rendering quality.
The authors develop an approach that models volumetric density directly as a mathematical transformation of a learnable signed distance function, which defines the distance to the scene's boundary surface. This formulation provides a strong geometric inductive bias and enables a theoretical bound on the error of numerical opacity approximations along camera viewing rays. Leveraging this bound, the method employs an adaptive sampling algorithm that tightly couples geometry and radiance during numerical integration. The overall pipeline uses two neural networks trained end-to-end on image color and geometric regularization losses, and is tested across benchmark multi-view datasets including DTU and BlendedMVS.
The evaluation reveals three key findings. First, VolSDF reconstructs significantly more accurate 3D geometry than standard neural volume rendering baselines, lowering the reconstruction error metric by more than 50% relative to standard baselines on DTU and achieving an average 51.8% geometric improvement on BlendedMVS scenes. Second, the method achieves geometric accuracy comparable to state-of-the-art implicit surface methods while operating fully unsupervised without object segmentation masks. Third, the framework successfully disentangles underlying 3D geometry from appearance, enabling the direct transfer of surface materials between distinct scenes without the visual failures seen in existing approaches.
These findings demonstrate that embedding a principled geometric surface representation into volumetric rendering overcomes the trade-off between visual rendering fidelity and geometric reconstruction accuracy. In practical terms, this lowers data capture and annotation costs by removing the need for manual foreground masking, while simultaneously reducing the risk of reconstruction artifacts in automated 3D modeling workflows. The ability to separate shape and radiance also opens viable avenues for modular asset editing and digital content creation across simulation, gaming, and visualization pipelines.
Organizations seeking automated, mask-free 3D reconstruction from multi-view imagery should consider adopting signed-distance-based neural volume rendering frameworks. Future engineering and research efforts should focus on formalizing theoretical convergence guarantees for the sampling algorithm, expanding the formulation to handle non-watertight surfaces and open boundaries, and extending the model to support dynamic, moving scenes and broader shape spaces.
Confidence in these results is high across closed, opaque foreground objects under standard multi-view capture conditions. However, performance remains constrained in unobserved or weakly observed regions, where the model may complete missing geometry arbitrarily, as well as across large, textureless surfaces. Stakeholders should account for these limitations when applying the technique to scenes with significant occlusions or lack of visual texture.
- Paper: NeRF: Representing Scenes as Neural Radiance Fields for View Synthesis, Ben Mildenhall et al. (2020). NeRF establishes the foundational coordinate-based neural volume rendering pipeline whose generic density representation VolSDF seeks to replace.
- Paper: DeepSDF: Learning Continuous Signed Distance Functions for Shape Representation, Jeong Joon Park et al. (2019). DeepSDF introduces continuous signed distance function learning for high-fidelity 3D shape representation, which VolSDF adopts as its underlying geometric primitive.
- Paper: Ray tracing volume densities, James T. Kajiya et al. (1984). Kajiya and Von Herzen introduce classical volume density ray integration, providing the physical and mathematical basis for volumetric optical rendering.
- Paper: Occupancy Networks: Learning 3D Reconstruction in Function Space, Lars Mescheder et al. (2018). Occupancy Networks establishes functional continuous implicit surface learning, motivating implicit geometry formulations over discrete grids.
- Paper: Fourier Features Let Networks Learn High Frequency Functions in Low Dimensional Domains, Matthew Tancik et al. (2020). Fourier feature mappings enable coordinate-based neural networks to overcome spectral bias and resolve high-frequency geometric and radiometric detail.
- Paper: Scene Representation Networks: Continuous 3D-Structure-Aware Neural Scene Representations, V. Sitzmann et al. (2019). Scene Representation Networks lays the groundwork for continuous implicit 3D scene representations supervised entirely from 2D multi-view images.
- Paper: A volumetric method for building complex models from range images, Brian Curless et al. (1996). This seminal work demonstrates using signed distance fields for multi-view volumetric geometric surface reconstruction.
- Paper: NeuS: Learning Neural Implicit Surfaces by Volume Rendering for Multi-view Reconstruction, Peng Wang et al. (2021). NeuS develops a closely related, unbiased logistic-density volume rendering formulation for multi-view neural surface reconstruction.
- Paper: Ref-NeRF: Structured View-Dependent Appearance for Neural Radiance Fields, Dor Verbin et al. (2022). Ref-NeRF builds on accurate surface normal and geometry estimation in neural rendering to explicitly model complex view-dependent specular reflections.
- Paper: 2D Gaussian Splatting for Geometrically Accurate Radiance Fields, Binbin Huang et al. (2024). 2D Gaussian Splatting introduces planar disk primitives to achieve fast multi-view surface reconstruction without the lengthy training times of implicit volumetric SDFs.
- Paper: Instant neural graphics primitives with a multiresolution hash encoding, Thomas Müller et al. (2022). Instant NGP introduces multiresolution hash encodings to dramatically accelerate the training and rendering of implicit neural primitives.
- Paper: TensoRF: Tensorial Radiance Fields, Anpei Chen et al. (2022). TensoRF presents tensorial factorizations of radiance fields to improve rendering efficiency and disentangle scene components without heavy MLPs.
- Paper: Mip-NeRF 360: Unbounded Anti-Aliased Neural Radiance Fields, Jonathan T. Barron et al. (2022). Mip-NeRF 360 extends neural volume rendering and ray sampling techniques to handle complex, unbounded outdoor and indoor environments.
- Paper: Efficient Geometry-aware 3D Generative Adversarial Networks, Eric R. Chan et al. (2022). EG3D incorporates volume-rendered neural implicit representations into generative adversarial networks for high-fidelity 3D-aware image synthesis.
- Paper: LRM: Large Reconstruction Model for Single Image to 3D, Yicong Hong et al. (2024). LRM scales implicit 3D scene reconstruction into a feed-forward transformer architecture capable of predicting 3D neural fields from a single image.
