NeuralDome: A Neural Modeling Pipeline on Multi-View Human-Object Interactions

Juze ZhangHaimin LuoHongdi YangXinru XuQianyang WuYe ShiJingyi YuLan XuJingya Wang

article2023CVPR80 citations

Introduces a large-scale multi-view dataset alongside a layer-wise neural radiance pipeline to accurately decouple, track, and photorealistically render dynamic human-object interactions under severe occlusions.

Listen

Accurately capturing, modeling, and rendering complex human-object interactions in three dimensions is vital for advancing fields such as digital entertainment, vocational training, tele-medicine, and sports analytics. However, existing visual capture methods struggle significantly with mutual occlusions, complex motions, and texture ambiguities when humans interact with physical items. Progress in this domain has been largely bottlenecked by the absence of dense-view appearance datasets and processing methods capable of cleanly separating interacting subjects from objects.

The main objective of the article is to establish a comprehensive data and modeling framework that captures dense multi-view human-object interactions and evaluates a specialized neural pipeline for motion tracking, geometry reconstruction, and photorealistic novel-view rendering.

To accomplish this, the authors constructed a dense camera capture dome comprising 76 high-resolution cinema cameras synchronized with 16 optical motion tracking cameras. Using this setup, they collected the HODome dataset, encompassing 274 interaction sequences across 10 diverse subjects and 23 physical objects, totaling approximately 71 million video frames. To process this massive data stream, the authors developed NeuralDome, a layer-wise neural modeling pipeline. The pipeline jointly tracks human skeletal motion alongside rigid object poses, decomposes scenes into dynamic human and static rigid neural radiance fields, applies specialized geometry and contact regularizers, and utilizes image blending to produce decoupled, high-fidelity digital assets.

The findings demonstrate substantial performance advantages over existing approaches. In novel-view appearance synthesis, NeuralDome achieved an average peak signal-to-noise ratio of 31.93 dB, notably outperforming alternative neural rendering baselines which achieved 22.67 dB and 24.99 dB. When benchmarking 3D geometry reconstruction, training an existing baseline model on this data reduced surface-to-point reconstruction error by roughly 62% for single-view inputs and by over 90% for multi-view inputs compared to the pre-trained baseline. Furthermore, the decoupling strategy successfully separated human bodies from contacted objects without the severe visual artifacts and blending errors typical of prior methods.

These results show that layer-wise neural decomposition, combined with high-density visual supervision, resolves longstanding occlusion and separation challenges in visual computing. For decision-makers, this framework lowers the technical risk and labor associated with digital asset creation, opening practical pathways for training high-performing computer vision models using fewer cameras during downstream deployment.

Looking ahead, development teams and researchers should leverage the publicly released dataset and processing tools to train generalizable interaction models and develop downstream sparse-view rendering applications. Further engineering work is needed to expand the framework beyond controlled studio setups, particularly to handle multi-person interactions, holistic background environments, and varied lighting conditions.

The primary limitations of this work are its restriction to single-person interactions within a static indoor lighting environment, as well as the absence of full surrounding room scene reconstruction. Despite these boundary conditions, the empirical evidence provides strong confidence in the pipeline's effectiveness for capturing and decoupling complex human-object interactions.

LumiAni TechnologyShanghai Advanced Research Institute, Chinese Academy of SciencesShanghai Engineering Research Center of Intelligent Vision and ImagingShanghaiTech UniversityUniversity of Chinese Academy of SciencesframesgeometryinferenceNeuralDomemulti-view human-object interactionsneural human-object modeling
arXiv: 2212.07626Juzezhang/NeuralDome_Toolbox

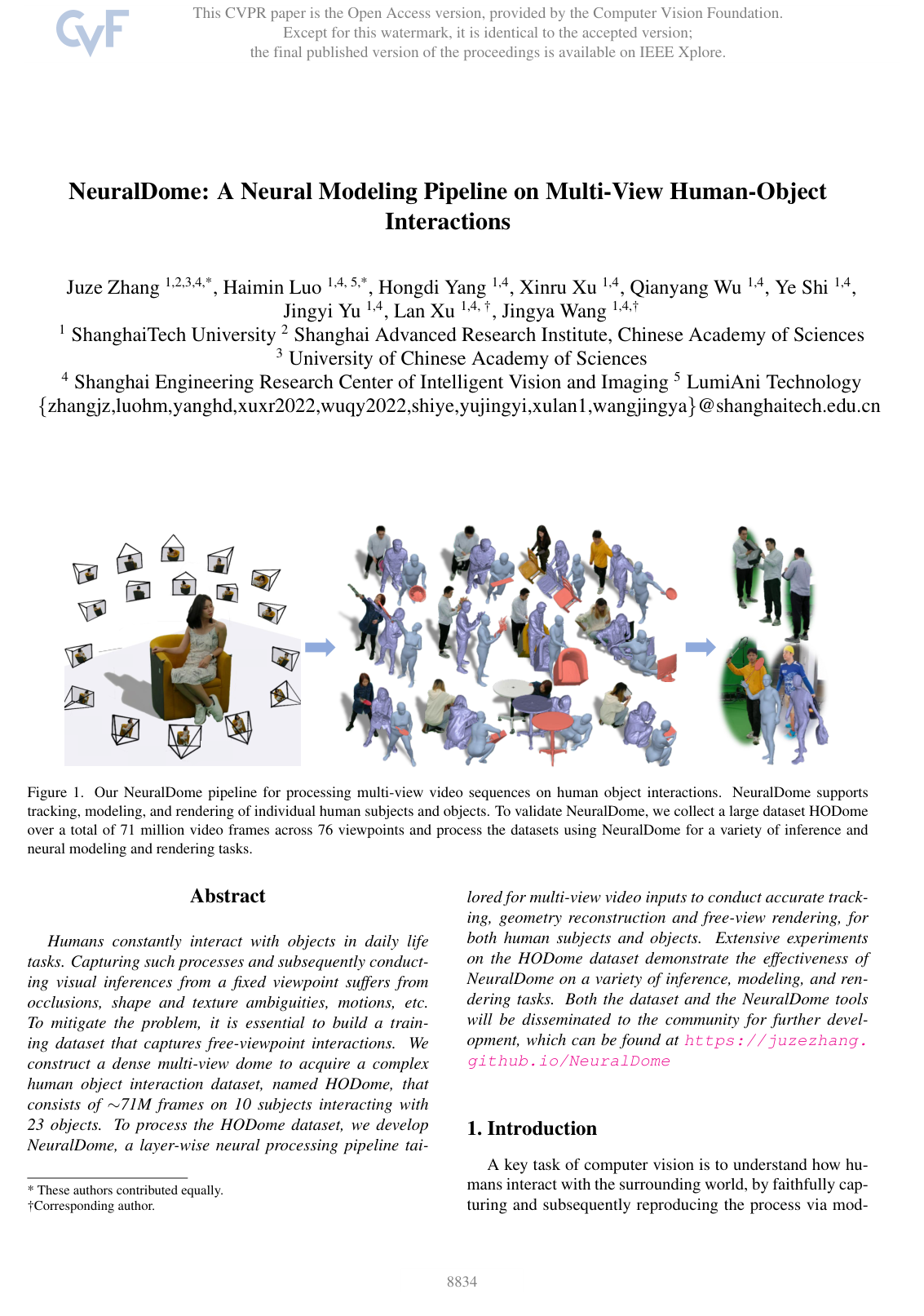

Cover for NeuralDome: A Neural Modeling Pipeline on Multi-View Human-Object Interactions

Abstract

Humans constantly interact with objects in daily life tasks. Capturing such processes and subsequently conducting visual inferences from a fixed viewpoint suffers from occlusions, shape and texture ambiguities, motions, etc. To mitigate the problem, it is essential to build a training dataset that captures free-viewpoint interactions. We construct a dense multi-view dome to acquire a complex human object interaction dataset, named HODome, that consists of ~71M frames on 10 subjects interacting with 23 objects. To process the HODome dataset, we develop NeuralDome, a layer-wise neural processing pipeline tailored for multi-view video inputs to conduct accurate tracking, geometry reconstruction and free-view rendering, for both human subjects and objects. Extensive experiments on the HODome dataset demonstrate the effectiveness of NeuralDome on a variety of inference, modeling, and rendering tasks. Both the dataset and the NeuralDome tools will be disseminated to the community for further development, which can be found at https://juzezhang.github.io/NeuralDome

Topics

framesgeometryinferencemultiview videoreconstructionviewpointvideo streams

Keywords

NeuralDomemulti-view human-object interactionsneural human-object modelinghuman-object geometry reconstructionnovel-view synthesisfree-viewpoint renderingHODome datasetneural surface reconstructionmulti-view video sequenceslayer-wise representation

Table of Contents

  • 1. Introduction
  • 2. Related Works
  • 2.1. Neural Human Rendering
  • 2.2. Human-object Modeling
  • 2.3. Human-centric Dataset
  • 3. HODome Dataset
  • 3.1. Data Capturing System
  • 3.2. Dataset Modality
  • 4. Neural Modeling on HODome
  • 4.1. Human-object Tracking
  • 4.2. Layer-wise Neural Human-Object Rendering
  • 5. Experiments
  • 5.1. Analysis of Neural Rendering
  • 5.2. Task and benchmark
  • 5.3. Limitations
  • 6. Conclusion
  • References

Knowls

  1. Knowl 1 — HODome Dataset Specification

    experimental setup

    The HODome dataset is a multi-view video and motion capture dataset specifically designed for human-object interaction (HOI) modeling, tracking, and neural rendering.

    Key specifications and setup parameters include:

    • Capture Hardware: 76 synchronized Z-CAM cinema RGB cameras capturing 3840×21603840 \times 2160 resolution video at 60 frames per second (fps)60\text{ frames per second (fps)}, synchronized with 16 OptiTrack optical motion capture cameras.
    • Dataset Scale: 274 interaction sequences totaling approximately 71 million video frames across all camera views, where each sequence lasts approximately 60 seconds60\text{ seconds}.
    • Subjects and Objects: 10 human subjects (5 males, 5 females) wearing varied apparel interacting with 23 distinct rigid 3D objects spanning diverse geometries and interaction types.
    • Annotations and Digital Assets: 3D textured mesh templates pre-scanned for all 23 objects, optical-marker-based 6-DoF rigid object poses, SMPL-X parametric human body/face/hand motion parameters, 2D human keypoints (25 body joints, 42 hand joints), pseudo-contact masks, human-annotated segmentation masks on a dedicated evaluation benchmark subset, and decoupled dynamic neural radiance field representations.

  2. Knowl 2 — Layer-Wise Neural Human-Object Representation

    model/method

    NeuralDome models dynamic human-object interactions as decoupled layered neural radiance fields consisting of a dynamic human layer and a static rigid object layer:

    1. Dynamic Human Layer: Formulated as a pose-embedded dynamic Neural Radiance Field (NeRF) defined in canonical space. Skeletal pose parameters derived from the parametric SMPL-X model transform live frame coordinates to canonical space. A non-rigid deformation multi-layer perceptron (MLP) conditioned on skeletal pose embeddings EpE_p predicts residual deformations. Time-varying human appearance and clothing dynamics are conditioned on a human appearance latent code lhcl_h^c.

    2. Rigid Object Layer: Formulated as a static neural radiance field in canonical object space. Live points are mapped to canonical space using tracked 6-DoF rigid object transformations (Rt,Tt)∈SO(3)×R3(R_t, T_t) \in \mathrm{SO}(3) \times \mathbb{R}^3. Time-varying shadows cast during interactions are modeled by conditioning the canonical object radiance field on an object appearance latent code locl_o^c.

  3. Knowl 3 — Dynamic Human-Object Volume Rendering with Object-Aware Ray Sampling

    model/method

    To render composite human-object scenes, camera rays are integrated across segmented depth intervals corresponding to the human and object volumes.

    For a ray intersecting the bounding volume of the ii-th entity between near depth dnid_n^i and far depth dfid_f^i, the ray segment is divided into NN equal bins, and depth points pjip_j^i are uniformly sampled within each bin:

    pji∼U(dni+j−1N(dfi−dni),  dni+jN(dfi−dni)),j∈{1,2,…,N}p_j^i \sim \mathcal{U}\left(d_n^i + \frac{j-1}{N}(d_f^i - d_n^i), \; d_n^i + \frac{j}{N}(d_f^i - d_n^i)\right), \quad j \in \{1, 2, \dots, N\}

    To increase sampling efficiency for objects, the tracked 3D object template mesh is used to compute exact ray-surface intersections, restricting point sampling to a narrow interval around the first intersection. Ray samples across human and object intervals are merged and sorted by ascending depth into a single sequence of MM sample points (p1,p2,…,pM)(p_1, p_2, \dots, p_M). The composite pixel color CC is computed via numerical quadrature:

    C=∑i=1MT(pi)(1−exp⁡(−σpiδpi))cpiC = \sum_{i=1}^M T(p_i) \left(1 - \exp(-\sigma_{p_i} \delta_{p_i})\right) c_{p_i}

    where δpi\delta_{p_i} is the distance between adjacent sample points pip_i and pi+1p_{i+1}, σpi\sigma_{p_i} is volume density, cpic_{p_i} is RGB color, and the accumulated transmittance T(pi)T(p_i) is:

    T(pi)=∏j=1i−1exp⁡(−σpjδpj)T(p_i) = \prod_{j=1}^{i-1} \exp(-\sigma_{p_j} \delta_{p_j})

  4. Knowl 4 — Joint Optimization Objective for Human-Object Tracking

    equation

    To accurately register interacting humans and objects while preventing physical interpenetration and tracking drift, human SMPL-X parameters and object rigid poses are jointly optimized per frame by minimizing the overall energy:

    E(βt,θt,ψt,γt,Rt,Tt)=Esmpl+λcontactEcontact+λhomaskEhomask+λmakerEmakerE(\beta_t, \theta_t, \psi_t, \gamma_t, R_t, T_t) = E_{\mathrm{smpl}} + \lambda_{\mathrm{contact}} E_{\mathrm{contact}} + \lambda_{\mathrm{homask}} E_{\mathrm{homask}} + \lambda_{\mathrm{maker}} E_{\mathrm{maker}}

    where:

    • βt∈R10\beta_t \in \mathbb{R}^{10} represents SMPL-X human body shape parameters at frame tt.
    • θt\theta_t represents SMPL-X human body, jaw, and finger joint pose parameters at frame tt.
    • ψt\psi_t represents SMPL-X facial expression parameters at frame tt.
    • γt∈R3\gamma_t \in \mathbb{R}^3 is the global human root translation at frame tt.
    • Rt∈SO(3)R_t \in \mathrm{SO}(3) and Tt∈R3T_t \in \mathbb{R}^3 are the 3D rotation matrix and translation vector of the rigid object relative to its canonical pre-scanned mesh template.
    • EsmplE_{\mathrm{smpl}} is a multi-view 2D reprojection data-fitting loss measuring the ℓ2\ell_2 distance between detected 2D body/hand keypoints across all camera views and projected SMPL-X 3D joints.
    • EcontactE_{\mathrm{contact}} enforces valid contact surfaces and penalizes geometric penetration between the human mesh and object template.
    • EhomaskE_{\mathrm{homask}} measures silhouette alignment with foreground segmentation masks across camera views.
    • EmakerE_{\mathrm{maker}} enforces geometric alignment between tracked optical markers and corresponding marker positions on the object template mesh.
    • λcontact,λhomask,λmaker\lambda_{\mathrm{contact}}, \lambda_{\mathrm{homask}}, \lambda_{\mathrm{maker}} are positive balancing scalar weights.

  5. Knowl 5 — Template-Aware Geometry Regularizers for Layered HOI Radiance Fields

    equation

    To prevent density ambiguities and suppress geometric artifacts where human and object bounding volumes overlap, two geometry regularizers are applied based on the tracked object template mesh M\mathcal{M}:

    1. Object Occupancy and Sparsity Loss: Forces the object radiance field to exist as a solid surface inside the object template and remain zero outside:

    Lo=∑p∈O(Ω−(p,M)∥exp⁡(−σp)∥22+Ω+(p,M)∥σp∥22)\mathcal{L}_o = \sum_{p \in \mathcal{O}} \left( \Omega^-(p, \mathcal{M}) \|\exp(-\sigma_p)\|_2^2 + \Omega^+(p, \mathcal{M}) \|\sigma_p\|_2^2 \right)

    where O\mathcal{O} is a set of points randomly sampled inside the object bounding box, σp\sigma_p is the predicted object density at point pp, Ω−(p,M)\Omega^-(p, \mathcal{M}) is an indicator function evaluating to 11 if point pp is inside mesh M\mathcal{M} and 00 otherwise, and Ω+(p,M)\Omega^+(p, \mathcal{M}) evaluates to 11 if pp is outside mesh M\mathcal{M} and 00 otherwise.

    1. Human Non-Penetration Regularizer: Prevents the human non-rigid deformation network from placing human density inside the object volume:

    Lh=∑p∈HΩ−(p,M)∥σp∥22\mathcal{L}_h = \sum_{p \in \mathcal{H}} \Omega^-(p, \mathcal{M}) \|\sigma_p\|_2^2

    where H\mathcal{H} is a set of points randomly sampled in the human bounding box, and σp\sigma_p is the human volume density at point pp.

  6. Knowl 6 — Weakly-Supervised Semantic Layer Decoupling

    model/method

    To cleanly separate the human and object layers without per-frame manual segmentation, NeuralDome uses a weakly-supervised semantic regularization scheme:

    1. Pseudo-Mask Extraction: A preliminary global radiance field is optimized over the temporal sequence. Because rigid object motion is constrained across frames, rendering the object field independently yields reliable appearance reconstructions in regions visible to cameras. Pixels whose rendered colors match the observed RGB images within a color threshold are identified as high-confidence object pixels, forming a coarse pseudo-segmentation mask So\mathcal{S}_o.

    2. Volumetric Semantic Integration: For each ray rr, a continuous layer semantic label ss is rendered via volumetric alpha-compositing:

    s=∑i=1MT(pi)(1−exp⁡(−σpiδpi))lpis = \sum_{i=1}^M T(p_i) \left(1 - \exp(-\sigma_{p_i} \delta_{p_i})\right) l_{p_i}

    where lpil_{p_i} is a one-hot vector indicating whether sample point pip_i belongs to the human layer or the object layer.

    1. Semantic Loss: Supervised training is applied across rays intersecting the pseudo-labeled object region So\mathcal{S}_o:

    Ls=∑r∈So∥sr−s^r∥22\mathcal{L}_s = \sum_{r \in \mathcal{S}_o} \|s_r - \hat{s}_r\|_2^2

    where s^r\hat{s}_r is the one-hot pseudo-ground-truth semantic label for ray rr.

  7. Knowl 7 — Texture Blending and Per-Frame Neural Asset Enhancement

    model/method

    Because temporally aggregated radiance fields can suffer from high-frequency texture blurriness caused by subtle non-rigid cloth dynamics and tracking inaccuracies, NeuralDome employs an image-blending enhancement step to construct per-frame neural representations:

    1. Segmentation Mask Rendering: The trained layered model renders crisp, occlusion-free semantic masks for the individual human and object instances from each camera view.
    2. Image Projection and Blending: The unoccluded, high-resolution observed pixels from the 76 synchronized camera views are masked and blended onto the rendered individual human and object image planes.
    3. Per-Frame Asset Reconstruction: Instant-NGP (for fast novel view synthesis) and Instant-NSR (for surface geometry extraction via neural implicit surfaces) are trained on the decoupled, high-frequency blended multi-view images. This process runs in seconds per frame to produce decoupled, photo-realistic human and object neural assets.

  8. Knowl 8 — Novel-View Synthesis Evaluation on Human-Object Interactions

    data/table

    NeuralDome's layered neural rendering approach was evaluated against NeuralBody (NB) and ST-NeRF for novel view synthesis on HOI sequences captured across 76 viewpoints (20 viewpoints used for training, 56 held out for testing). Quality is measured using Peak Signal-to-Noise Ratio (PSNR in dB) and Structural Similarity Index Measure (SSIM).

    Methods NB [45] ST-NeRF [77] Ours
    Scenes PSNR ↑\uparrow SSIM ↑\uparrow PSNR ↑\uparrow SSIM ↑\uparrow PSNR ↑\uparrow SSIM ↑\uparrow
    Bigsofa 19.33 0.896 24.02 0.886 32.28 0.958
    Sofa 26.73 0.965 28.49 0.958 35.62 0.987
    Table 21.94 0.933 22.44 0.900 27.88 0.949
    Average 22.67 0.931 24.99 0.915 31.93 0.964

    NeuralBody lacks explicit object modeling, resulting in floating artifacts in the reconstructed density field. ST-NeRF struggles when human and object bounding boxes heavily overlap without semantic guidance. NeuralDome outperforms both baselines by +6.94 dB PSNR and +0.049 SSIM on average over ST-NeRF.

  9. Knowl 9 — Evaluation on Human-Object Capture, 3D Reconstruction, and Sparse Rendering

    data/table

    The HODome dataset was used to benchmark three downstream visual inference tasks under complex interactions:

    1. Human-Object Pose Capture: Evaluated on Mean Per Joint Position Error (MPJPE in mm), Procrustes-Aligned MPJPE (PA-MPJPE in mm), human Chamfer distance (Chamferh_h in mm), object Chamfer distance (Chamfero_o in mm), Vertex-to-Vertex error (V2V in mm), and Procrustes-aligned V2V (p.V2V in mm).
    Method MPJPE ↓\downarrow PA-MPJPE ↓\downarrow Chamferh_h ↓\downarrow Chamfero_o ↓\downarrow V2V ↓\downarrow p.V2V ↓\downarrow
    Fit to input 16.11 6.94 86.66 18.14 61.57 28.92
    PHOSA 14.88 6.94 77.62 16.64 54.59 26.09
    CHORE 10.21 6.14 86.58 7.69 44.93 14.93
    1. Geometry Reconstruction (PIFu): Evaluated using Point-to-Surface (P2S ×10−4\times 10^{-4}) and Chamfer Distance (CD ×10−4\times 10^{-4}).
    Method P2S ×10−4↓\times 10^{-4} \downarrow Chamfer ×10−4↓\times 10^{-4} \downarrow
    Origin PIFu 38.726 40.947
    Monocular PIFu-trained 14.653 14.483
    6-View PIFu-trained 3.376 4.901
    1. Sparse-View Novel View Rendering:
    Method PSNR ↑\uparrow SSIM ↑\uparrow
    IBRNet 21.43 0.892
    NeuRay 23.34 0.909
    NeuralHumanFVV 21.69 0.914
    NeuralHOIFVV (Ours) 23.10 0.912

    Training PIFu and neural rendering models on HODome significantly improves geometric accuracy and novel-view quality under severe human-object occlusions compared to pre-trained single-human baselines.

  10. Knowl 10 — Limitations of the NeuralDome Pipeline and Dataset

    limitation

    The NeuralDome pipeline and HODome dataset have three primary limitations:

    1. Single-Subject Interaction Assumption: The framework explicitly tracks and decomposes one human interacting with rigid objects; it cannot directly handle multi-person interactions or crowd scenarios.
    2. Absence of Holistic 3D Environment Modeling: The pipeline models only the foreground human and object assets; reconstruction of surrounding background static scenes and environment geometry is not included.
    3. Studio Environment Invariance: Capture was performed within a controlled multi-camera dome under fixed studio lighting and uniform green background conditions, limiting zero-shot generalization to diverse in-the-wild illumination and unstructured environments.

Coverage note — No substantial contributed material was omitted; detailed mathematical expansions of the tracking loss sub-terms ($E_{smpl}, E_{contact}, E_{homask}, E_{maker}$) and standard off-the-shelf Instant-NGP/Instant-NSR architectures were summarized according to their standalone contributions.
