AMASS: Archive of Motion Capture As Surface Shapes

Naureen MahmoodNima GhorbaniNikolaus F. TrojeGerard Pons-MollMichael J. Black

article2019ICCV2,008 citations

Presents AMASS, a unified database that standardizes 15 distinct motion capture datasets into rigged 3D human surface meshes across 40 hours of movement, establishing a massive training resource for deep learning and computer animation.

Listen

Data-driven artificial intelligence and computer animation require vast amounts of high-quality human motion data to train realistic models. While numerous optical marker-based motion capture collections exist, they are historically fragmented across incompatible skeletal frameworks, varying body dimensions, and disparate marker configurations. Standard methods typically discard realistic body shape and soft-tissue movements by treating non-rigid skin deformations as measurement noise, or alter original movements through artificial skeleton retargeting. This fragmentation has severely restricted the scale and visual fidelity of training data available for modern machine learning workflows.

The article establishes a method to reconstruct metrically accurate 3D human body shape, pose, hand articulation, and dynamic soft-tissue motion directly from sparse motion capture markers. Leveraging this approach, the authors demonstrate the creation of the Archive of Mocap as Surface Shapes (AMASS), a unified, large-scale meta-dataset designed to standardize previously incompatible archival motion capture collections without sacrificing individual body morphology or movement dynamics.

The researchers developed an optimization framework called MoSh++ that fits a standardized 3D body mesh to sparse marker data in two distinct stages. The pipeline integrates the Skinned Multi-Person Linear (SMPL) model, MANO hand representations, and DMPL dynamic soft-tissue deformations. To tune algorithm parameters and evaluate geometric accuracy, the team recorded a new Synchronized Scans and Markers benchmark combining optical marker tracking with high-resolution four-dimensional body scanning across 30 dynamic motion trials. Using this calibrated framework, the authors unified 15 distinct international motion capture datasets encompassing diverse marker layouts ranging from 37 to 91 markers.

The evaluation demonstrates significant technical and practical advancements over previous surface-fitting methods. On the benchmark dataset, the new method reduced average 3D body shape reconstruction error from 12.1 millimeters down to 7.4 millimeters using a standard 46-marker layout, representing an approximate 39% improvement in geometric accuracy. When tracking dynamic motion with soft-tissue estimation, reconstruction error dropped from 10.24 millimeters to 7.3 millimeters, an improvement of roughly 29%. Furthermore, the framework operates with high parameter efficiency, achieving superior surface recovery using only 16 shape and 8 dynamic components compared to older systems requiring 100 components. The resulting AMASS meta-dataset consolidates more than 40 hours of motion data spanning 346 unique subjects and over 11,000 distinct motion sequences.

These findings provide an essential infrastructure for computer vision, robotics, and digital graphics. By offering consistent parameters that seamlessly plug into standard game engines and graphics packages, the archive eliminates the need to normalize subjects to identical body proportions. Practitioners can directly render textured, realistic virtual characters or extract custom skeletons, significantly lowering the cost and complexity of generating synthetic training data for deep learning algorithms.

Organizations developing motion models can immediately leverage the publicly available dataset and adopt the conversion framework to standardize existing proprietary motion libraries. To maximize practical utility, future efforts should prioritize transitioning the optimization pipeline from central processing units to parallel graphics processing unit frameworks to achieve real-time tracking performance. The authors also outline the expansion of the benchmark to include dense hand ground-truth and facial capture integration via compatible statistical head models.

While the reconstructed dataset is robust and comprehensive, users must account for operational limitations. The current fitting process runs offline at roughly two seconds per frame for full dynamic optimization, and extreme multi-marker occlusions require automated regularizer weighting that may yield minor smoothing of fast limb dynamics. Nevertheless, given the rigorous validation against synchronized four-dimensional ground-truth scans, there is high confidence in the geometric accuracy and physiological realism of the unified motion library.

Max Planck Institute for Informatics Max Planck Institute for Intelligent Systems Meshcapade GmbH Saarland Informatics Campus York University deep learning hand motion human emotion motion capture surface shapes marker-based mocap

arXiv: 1904.03278 nghorbani/amass

Paper: SMPL, M. Loper et al. (2015). Introduces the SMPL parametric body model that serves as the core rigged 3D surface mesh representation underpinning AMASS and MoSh++.
Paper: Human3.6M: Large Scale Datasets and Predictive Methods for 3D Human Sensing in Natural Environments, Catalin Ionescu et al. (2014). Establishes a foundational multi-camera 3D human sensing dataset, demonstrating the limitations of isolated capture benchmarks that AMASS unifies into a common mesh framework.

Paper: Expressive Body Capture: 3D Hands, Face, and Body From a Single Image, Georgios Pavlakos et al. (2019). Extends SMPL parametric body fitting to include expressive hands and facial details (SMPL-X), leveraging motion capture priors aligned with AMASS-style unified 3D representations.

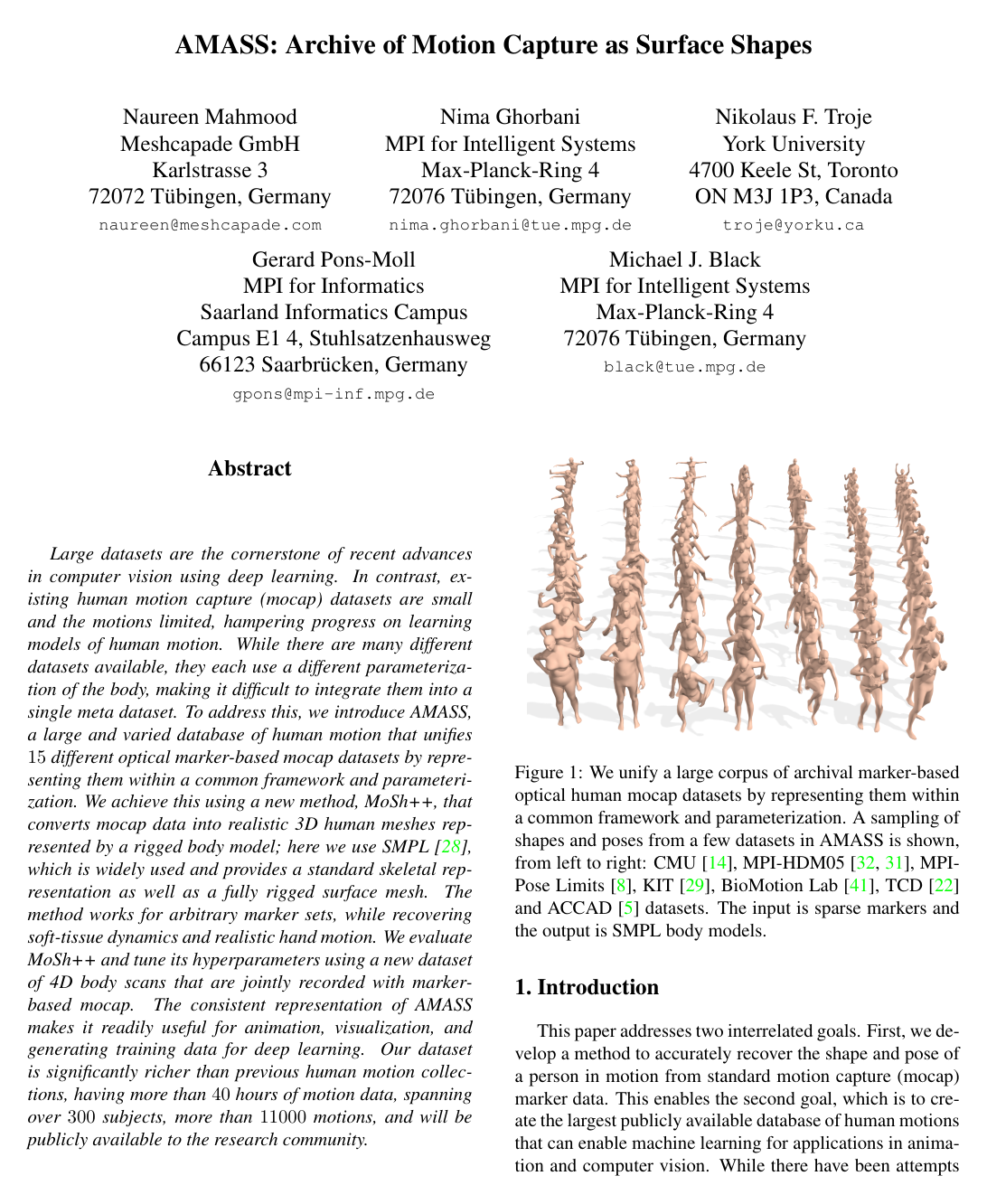

Cover for AMASS: Archive of Motion Capture As Surface Shapes

Abstract

Large datasets are the cornerstone of recent advances in computer vision using deep learning. In contrast, existing human motion capture (mocap) datasets are small and the motions limited, hampering progress on learning models of human motion. While there are many different datasets available, they each use a different parameterization of the body, making it difficult to integrate them into a single meta dataset. To address this, we introduce AMASS, a large and varied database of human motion that unifies 15 different optical marker-based mocap datasets by representing them within a common framework and parameterization. We achieve this using a new method, MoSh++, that converts mocap data into realistic 3D human meshes represented by a rigged body model; here we use SMPL [doi:https://doi.org/10.1145/2816795.2818013], which is widely used and provides a standard skeletal representation as well as a fully rigged surface mesh. The method works for arbitrary marker sets, while recovering soft-tissue dynamics and realistic hand motion. We evaluate MoSh++ and tune its hyperparameters using a new dataset of 4D body scans that are jointly recorded with marker-based mocap. The consistent representation of AMASS makes it readily useful for animation, visualization, and generating training data for deep learning. Our dataset is significantly richer than previous human motion collections, having more than 40 hours of motion data, spanning over 300 subjects, more than 11,000 motions, and will be publicly available to the research community.

Topics

deep learning hand motion human emotion human motion capture parameterization visualization human motion data motion capture data

Keywords

motion capture surface shapes marker-based mocap body models motion database shape estimation inverse kinematics human pose mocap datasets dynamic shape space

1 Introduction
2 Related Work
3 Technical Approach
3.1 The Body Model
3.2 Model Fitting
3.3 Optimization and Runtime
4 Evaluation
4.1 Synchronized Scans and Markers (SSM)
4.2 Hyper-parameter Search using SSM
4.3 Shape Estimation Evaluation
4.4 Pose and Soft-tissue Estimation Evaluation
4.5 Hand Articulation
5 AMASS Dataset
6 Future Work and Conclusions
References
1 Acknowledgements
2 Optimization and Runtime
3 Data Collection
4 Model Size
5 Diversity and Quality

Knowls

Knowl 1 — Unified Body Surface Model (SMPL-H + DMPL) in MoSh++
model/method
MoSh++ represents the moving human body by unifying the SMPL-H articulated body and hand model with the DMPL dynamic soft-tissue deformation model into a single generative surface mesh formulation. The posed 3D mesh surface $S(\beta, \theta, \phi)$ containing $N = 6890$ vertices is computed via linear blend skinning:

$S(\beta, \theta, \phi) = G(T(\beta, \theta, \phi), J(\beta), \theta, W)$

where $G(T, J, \theta, W) : \mathbb{R}^{3N} \times \mathbb{R}^{3K} \times \mathbb{R}^{|\theta|} \times \mathbb{R}^{4 \times 3N} \to \mathbb{R}^{3N}$ applies linear blend skinning using skeletal joint locations $J(\beta) \in \mathbb{R}^{3K}$ for $K = 52$ joints, blend weights $W$ , and pose parameters $\theta$ . The rest-pose template mesh $T(\beta, \theta, \phi)$ is defined additively as:

$T(\beta, \theta, \phi) = T_\mu + B_s(\beta) + B_p(\theta) + B_d(\phi)$

where $T_\mu \in \mathbb{R}^{3N}$ is the base mean template mesh in a canonical rest pose. The blendshape functions modify vertex offsets relative to $T_\mu$ :
- $B_s(\beta)$ represents identity-dependent shape deformations parameterized by linear shape coefficients $\beta \in \mathbb{R}^{16}$ .
- $B_p(\theta)$ represents pose-dependent blend deformations parameterized by skeletal pose $\theta$ .
- $B_d(\phi)$ represents dynamic soft-tissue deformations parameterized by linear coefficients $\phi \in \mathbb{R}^{8}$ learned from dynamic 4D scans.
The articulated structure consists of $K = 52$ joints ( $n = 24$ body joints and $28$ hand joints, with $14$ joints per hand). The overall pose vector $\theta \in \mathbb{R}^{159}$ consists of 3 rotational degrees of freedom in exponential coordinates for each of the 52 joints plus a 3-dimensional root translation vector $\gamma \in \mathbb{R}^3$ ( $3 \times 52 + 3 = 159$ parameters).
Knowl 2 — MoSh++ Stage I: Subject Shape and Latent Marker Optimization
algorithm
The first stage of MoSh++ estimates subject-specific identity shape parameters $\beta \in \mathbb{R}^{16}$ , latent pose-invariant marker positions $\tilde{M} = \{\tilde{m}_i\}$ , and frame poses $\Theta = \{\theta_t\}_{t=1}^F$ across a subset of $F = 12$ randomly chosen frames from a mocap sequence by minimizing an unconstrained objective function:

$E(\tilde{M}, \beta, \Theta_B, \Theta_H) = \lambda_D E_D(\tilde{M}, \beta, \Theta_B, \Theta_H) + \lambda_\beta E_\beta(\beta) + \lambda_{\theta B} E_{\theta B}(\theta_B) + \lambda_{\theta H} E_{\theta H}(\theta_H) + \lambda_R E_R(\tilde{M}, \beta) + \lambda_I E_I(\tilde{M}, \beta)$
Input: Observed markers $M = \{m_{i,t}\}_{t=1\dots F, i=1\dots n}$ , initial marker attachments $\tilde{M}$
Output: Subject shape $\beta$ , latent marker offsets $\tilde{M}$ , frame poses $\Theta_B, \Theta_H$
$b \leftarrow 46 / n$
Initialize $\lambda_D \leftarrow 600 b / 8$ , $\lambda_\beta \leftarrow 1.25 \times 8$ , $\lambda_{\theta B} \leftarrow 0.375 \times 8$ , $\lambda_{\theta H} \leftarrow 0.125 \times 8$ , $\lambda_I \leftarrow 37.5 \times 8$ , $\lambda_R \leftarrow 10^4$
for $k = 1$ to $4$ do
    if $k \ge 3$ then
        Include 24-D MANO hand pose parameters into optimization
    else
        Set hand poses to rest configuration
    end if
    Optimize $E(\tilde{M}, \beta, \Theta_B, \Theta_H)$ using Powell's dogleg minimization
     $\lambda_D \leftarrow \lambda_D \times 2$
     $\lambda_\beta \leftarrow \lambda_\beta / 2$
     $\lambda_{\theta B} \leftarrow \lambda_{\theta B} / 2$
     $\lambda_{\theta H} \leftarrow \lambda_{\theta H} / 2$
     $\lambda_I \leftarrow \lambda_I / 2$
end for
return $\beta, \tilde{M}, \Theta_B, \Theta_H$
Definitions of energy terms and parameters:
- $E_D$ : squared Euclidean distance between simulated surface marker positions $m(\tilde{m}_i, \beta, \theta_t)$ and observed 3D marker coordinates $m_{i,t}$ .
- $b = 46/n$ : scaling factor normalizing marker density relative to a baseline 46-markerset, where $n$ is the count of active markers in the sequence.
- $E_\beta(\beta)$ : Mahalanobis distance regularizer over SMPL shape space.
- $E_{\theta B}(\theta_B)$ : prior on body pose parameters.
- $E_{\theta H}(\theta_H) = \hat{\theta}_H^T \Sigma_{\theta H}^{-1} \hat{\theta}_H$ : Mahalanobis distance on the 24-dimensional MANO hand PCA pose subspace projection $\hat{\theta}_H$ , with diagonal covariance matrix $\Sigma_{\theta H}$ .
- $E_R(\tilde{M}, \beta)$ : penalty constraining latent markers to stay at prescribed distance $d = 9.5\text{ mm}$ above the mesh surface.
- $E_I(\tilde{M}, \beta)$ : regularizer penalizing marker deviations from their initial designated template surface positions.
Knowl 3 — MoSh++ Stage II: Per-Frame Pose and Soft-Tissue Dynamics Optimization
algorithm
In Stage II of MoSh++, the body shape $\beta$ and latent marker locations $\tilde{M}$ obtained from Stage I are held constant, and MoSh++ solves for body pose $\theta_B$ , hand pose $\theta_H$ , and dynamic soft-tissue coefficients $\phi \in \mathbb{R}^8$ on every frame $t$ of the sequence by optimizing:

$E(\theta_B, \theta_H, \phi) = \lambda_D E_D(\theta_B, \theta_H, \phi) + \lambda_{\theta B} E_{\theta B}(\theta_B) + \lambda_{\theta H} E_{\theta H}(\theta_H) + \lambda_u E_u(\theta_B, \theta_H) + \lambda_\phi E_\phi(\phi) + \lambda_v E_v(\phi)$
Input: Mocap marker sequence $\{M_t\}_{t=1}^T$ , fixed shape $\beta$ , fixed marker positions $\tilde{M}$
Output: Frame poses $\{(\theta_B)_t, (\theta_H)_t\}_{t=1}^T$ , dynamic deformations $\{\phi_t\}_{t=1}^T$
for frame $t = 1$ to $T$ do
     $x_t \leftarrow$ number of missing markers in frame $t$
     $q_t \leftarrow 1 + 2.5 \times (x_t / |M|)$
     $\lambda_D \leftarrow 400 \times (46 / |M|)$
     $\lambda_{\theta B} \leftarrow 1.6 \times q_t$ , $\lambda_{\theta H} \leftarrow 1.0 \times q_t$
     $\lambda_u \leftarrow 2.5$ , $\lambda_\phi \leftarrow 1.0$ , $\lambda_v \leftarrow 6.0$
    if $t = 1$ then
        Initialize model by rigid alignment between simulated and observed markers
        Run graduated optimization of $E$ without dynamics, varying $\lambda_{\theta B} \in [16 q_t, 8 q_t, 1.6 q_t]$
    else
        Initialize $(\theta_B)_t, (\theta_H)_t, \phi_t$ with solution from frame $t-1$
        Step 1: Optimize $E$ over $\theta_B, \theta_H$ while fixing $\phi = 0$ (omitting $E_\phi, E_v$ )
        Step 2: Optimize full $E$ over $\theta_B, \theta_H, \phi$ together
    end if
end for
return $\{(\theta_B)_t, (\theta_H)_t, \phi_t\}_{t=1}^T$
Key terms and priors:
- $E_u(\theta_B, \theta_H)$ : temporal velocity smoothness penalty on pose changes between adjacent frames.
- $E_\phi(\phi) = \phi_t^T \Sigma_\phi^{-1} \phi_t$ : Mahalanobis distance prior on DMPL dynamics coefficients using covariance matrix $\Sigma_\phi$ derived from the DYNA dataset.
- $E_v(\phi)$ : temporal velocity smoothness penalty on dynamic coefficients $\phi$ .
- When no hand markers are present in the markerset, hand parameters are fixed to the neutral mean pose of the MANO model.

Knowl 4 — AMASS Dataset Composition and Corpus Statistics

data/table

AMASS unifies 15 optical marker-based motion capture datasets into a single SMPL parameterization with consistent surface topology, skeletal kinematics, hand articulations, and soft-tissue dynamics. The source captures contain varying marker layouts ranging from 37 to 91 markers.

Dataset	Markers	Subjects	Motions	Minutes
ACCAD	82	20	258	27.22
BioMotion	41	111	3130	541.82
CMU	41	97	2030	559.18
EKUT	46	4	349	30.74
Eyes Japan	37	12	795	385.42
HumanEva	39	3	28	8.48
KIT	50	55	4233	662.04
MPI HDM05	41	4	219	147.63
MPI Limits	53	3	40	24.14
MPI MoSh	87	20	78	16.65
SFU	53	7	44	15.23
SSM	86	3	30	1.87
TCD Hand	91	1	62	8.05
TotalCapture	53	5	40	43.71
Transitions	53	1	115	15.84
Total	-	346	11451	2488.01

Across the 15 component datasets, AMASS contains 346 distinct subjects, 11,451 individual motion sequences, and 2,488.01 minutes (over 41.4 hours) of motion capture data represented as 16-dimensional shape parameters $\beta$ , 8-dimensional soft-tissue parameters $\phi$ , and 159-dimensional pose vectors $\theta$ per frame.

Knowl 5 — Synchronized Scans and Markers (SSM) Benchmark
experimental setup
The Synchronized Scans and Markers (SSM) dataset provides ground-truth dense 3D dynamic surface geometry captured synchronously with sparse optical mocap marker tracking for evaluation and hyperparameter optimization.

Hardware and capture protocol:
- Optical mocap system: 24 OptiTrack Prime 17W optical cameras tracking subjects fitted with 67 skin-mounted reflective markers (based on the MoSh optimized marker layout) or a standardized 46-marker subset.
- 4D surface scanner: 3dMD body scanning system running synchronously at 60 frames per second, comprising 22 stereo camera pairs, 22 color cameras, 34 speckle projectors, and white-light LED illumination panels.
- Subjects and data volume: 3 subjects exhibiting diverse body shapes performing a total of 30 distinct motion sequences.
Evaluation metric: For each frame, 10,000 points are sampled uniformly at random from the 3D surface scan mesh, and the Euclidean distance from each sample point to the closest point on the reconstructed body model mesh is calculated. The metric reported is the mean scan-to-model distance in millimeters ( $\text{mm}$ ).
Knowl 6 — Reconstruction Accuracy of MoSh++ vs MoSh on 3D/4D Scans
empirical result
MoSh++ evaluated on the held-out test split of the SSM dataset achieves superior surface reconstruction accuracy compared to the original MoSh (BlendSCAPE) method across all evaluated tracking modes when tested using a standard 46-markerset:
- Shape estimation error: MoSh achieves an average scan-to-mesh error of $12.1\text{ mm}$ , whereas MoSh++ achieves $7.4\text{ mm}$ .
- Pose estimation error (without soft-tissue dynamics): MoSh yields $10.5\text{ mm}$ scan-to-mesh error, whereas MoSh++ yields $8.1\text{ mm}$ .
- Pose estimation error with dynamic soft-tissue modeling: MoSh yields $10.24\text{ mm}$ error, whereas MoSh++ using DMPL soft-tissue dynamics achieves $7.3\text{ mm}$ error.
For reference, direct 3D scan alignment produces a baseline scan-to-mesh distance of $0.5\text{ mm}$ . Additionally, MoSh++ tracking using 46 markers matches or outperforms MoSh tracking using the denser 67-marker setup (which yields $\approx 7.0\text{ mm}$ shape error and $\approx 8.7\text{ mm}$ pose error for MoSh).
Knowl 7 — Missing-Marker Adaptive Pose Regularization
equation
To prevent unnatural joint poses when markers are occluded or missing during capture, MoSh++ adaptively scales the body and hand pose prior weights ( $\lambda_{\theta B}$ and $\lambda_{\theta H}$ ) via a variable occlusion factor $q$ :

$q = 1 + 2.5 \times \left(\frac{x}{|M|}\right)$

$\lambda_{\theta B} = 1.6 \times q, \quad \lambda_{\theta H} = 1.0 \times q$

where $x \in [0, |M|]$ is the number of missing/unobserved markers in the current frame and $|M|$ is the total count of session markers.

Properties:
- When all markers are visible ( $x = 0$ ), $q = 1.0$ , applying nominal regularization.
- As marker occlusions increase, $q$ increases monotonically up to a maximum value of $q = 3.5$ when all markers are lost ( $x = |M|$ ), which increases the pose prior penalty by a factor of 3.5 to hold the skeleton within valid kinematic distributions.
Knowl 8 — Dimensionality Selection for Body Shape and Soft-Tissue Dynamics
empirical result
Cross-validation line search on the SSM validation set establishes that $|\beta| = 16$ shape components and $|\phi| = 8$ DMPL dynamic soft-tissue components minimize scan-to-model reconstruction error when fitting to sparse marker sets.

While increasing the number of shape components beyond 16 (e.g., to 32, 64, 128, or 256) decreases the residual distance between markers and model surface, it causes overfitting to sparse marker points, increasing test scan-to-mesh reconstruction error from $7.4\text{ mm}$ ( $|\beta|=16$ ) to $> 8.1\text{ mm}$ ( $|\beta|=128$ ). Similarly, dynamic components beyond $|\phi| = 8$ lead to overfitting on sparse marker motions.
Knowl 9 — Computational Performance and Runtime Limitations of MoSh++
limitation
MoSh++ is implemented using Powell's dogleg numerical optimization in the CPU-based Chumpy auto-differentiation framework and does not operate in real time. On a single quad-core Intel Core i7 CPU (3.1 GHz, 16 GB RAM), average per-sequence and per-frame runtimes on the SSM dataset are:
- Stage I (Subject Shape and Marker Optimization): approximately 25 minutes per motion capture sequence (over $F=12$ frames).
- Stage II without soft-tissue dynamics: approximately 0.5 seconds per frame.
- Stage II with dynamic soft-tissue optimization: approximately 2.0 seconds per frame.

Coverage note — None was omitted; all key technical contributions (model formulation, two-stage fitting algorithms, occlusion handling, SSM benchmark, hyperparameter validation, quantitative results, AMASS table, and runtime limitations) are fully covered.
