Handcrafted Backdoors in Deep Neural Networks

Sanghyun HongNicholas CarliniAlexey Kurakin

article2022NeurIPS90 citations

Exposes a major blind spot in neural network security by directly editing model weights to insert stealthy backdoors without poisoning training data, bypassing standard defenses while maintaining high attack success rates and benign task accuracy.

Listen

Modern organizations frequently outsource machine learning model training to third-party cloud platforms or download pre-trained models from public repositories to reduce computation costs. However, this supply chain creates a critical security vulnerability: malicious third parties can inject hidden backdoor behaviors that cause models to behave normally on standard inputs but fail maliciously when a specific trigger appears. Until now, defenses assumed that backdoors could only be inserted through data or code poisoning during training. This article addresses the risk that an adversary can directly manipulate the internal weights of a pre-trained model.

The article demonstrates that an adversary can manually handcraft backdoors by directly editing model parameters, bypassing the need for model training, access to full training datasets, or architectural changes. The authors evaluate this attack mechanism across multiple network architectures and benchmark datasets to determine whether such direct modifications can achieve high attack efficacy while evading state-of-the-art defense and detection tools.

To conduct the study, the authors designed a multi-step technique to modify neural network parameters. They identified underutilized neurons and convolutional filters, altered their internal weights to strongly separate activations between clean inputs and triggered inputs, and set protective mathematical biases. The approach was tested across four standard image datasets (MNIST, SVHN, CIFAR-10, and PubFigs) and four model architectures (fully-connected networks, standard convolutional networks, ResNet-18, and Inception-ResNet-v1), using as few as 50 to 250 reference samples and varying trigger designs.

The evaluation yielded five primary findings. First, the handcrafted backdoor attacks achieved an attack success rate of 96% to 100% across all evaluated architectures while causing an overall accuracy drop of less than 3% on standard data. Second, the attack required only 50 to 250 samples and took from a few minutes up to an hour, whereas traditional poisoning required thousands of training samples. Third, the resulting models evaded prominent trigger-reconstruction defenses, such as Neural Cleanse, reducing the defense's detection rate to 0% by adjusting trigger size or success thresholds. Fourth, the handcrafted models proved resilient against removal techniques, maintaining an attack success rate above 81% after fine-pruning and resisting fine-tuning retraining by up to 6 percentage points better than poisoned models. Finally, the modifications avoided introducing statistical anomalies, parameter outliers, misclassification bias, or suspicious loss-landscape Hessian signatures that defenders typically inspect.

These findings indicate that existing supply-chain defenses provide a false sense of security because they were designed specifically against poisoning techniques. Handcrafting parameter perturbations creates an asymmetric advantage for attackers, making post-hoc automated detection and removal of backdoors fundamentally unreliable. Just as automated security tools cannot reliably detect all malicious code fragments inserted into traditional software binaries, defenders cannot automatically verify the absence of backdoor paths in high-dimensional neural network weights.

To manage this risk, organizations outsourcing model training should not rely on post-training inspection or parameter cleansing. Instead, stakeholders must transition toward cryptographic integrity mechanisms, such as zero-knowledge succinct non-interactive arguments of knowledge (zk-SNARKs) and verifiable proof-of-learning protocols, which mathematically verify that a model was trained exactly as specified. While interpretable-by-design architectures offer an alternative path for formal analysis, they often reduce model utility to standard software rules.

The article's conclusions are based on standard image classification benchmarks and deep vision architectures under a white-box supply-chain threat model where the adversary controls parameter delivery. While computational efficiency remains an obstacle to deploying cryptographic training proofs at scale today, confidence in the findings is supported by consistent attack success across varied architectures, sample constraints, and defense baselines.

Google Oregon State University network architecture recurrent neural networks backdoor attacks backdoor defenses adversarial weight perturbations

arXiv: 2106.04690

Paper: BadNets: Identifying Vulnerabilities in the Machine Learning Model Supply Chain, Tianyu Gu et al. (2017). This foundational paper establishes the supply-chain threat model and standard poisoned-data backdoor attacks that the source seeks to overcome via direct weight manipulation.
Paper: Fine-Pruning: Defending Against Backdooring Attacks on Deep Neural Networks, Kang Liu et al. (2018). It introduces standard backdoor defense strategies such as neuron pruning and fine-tuning, which the source explicitly designs its handcrafted attacks to evade.
Paper: Targeted Backdoor Attacks on Deep Learning Systems Using Data Poisoning, Xinyun Chen et al. (2017). It details key methodologies of targeted data-poisoning backdoor attacks, providing essential context for the traditional poisoning paradigm the source contrasts against.
Paper: Poison Frogs! Targeted Clean-Label Poisoning Attacks on Neural Networks, Ali Shafahi et al. (2018). It formalizes clean-label data poisoning techniques against neural networks, framing the constraints of poisoning attacks before direct weight modification is considered.
Paper: How To Backdoor Federated Learning, Eugene Bagdasaryan et al. (2018). It illustrates how adversaries can inject backdoors through direct manipulation of model updates rather than pure data poisoning, serving as an important conceptual precursor.

Paper: Reconstructive Neuron Pruning for Backdoor Defense, Yige Li et al. (2023). It develops advanced reconstructive neuron pruning defenses to identify and excise sophisticated backdoor-associated neurons that evade traditional pruning.
Paper: DEFEAT: Deep Hidden Feature Backdoor Attacks by Imperceptible Perturbation and Latent Representation Constraints, Zhendong Zhao et al. (2022). It investigates advanced stealthy backdoor attacks that constrain intermediate latent representations to bypass feature-level and neuron-level defenses.
Paper: Dual-Key Multimodal Backdoors for Visual Question Answering, Matthew Walmer et al. (2022). It extends the study of backdoor vulnerabilities into complex multimodal architectures where trigger interactions span multiple input domains.
Paper: BadAgent: Inserting and Activating Backdoor Attacks in LLM Agents, Yifei Wang et al. (2024). It extends neural network backdoor methodologies to autonomous LLM-based agents, evaluating how hidden triggers hijack external tool usage.

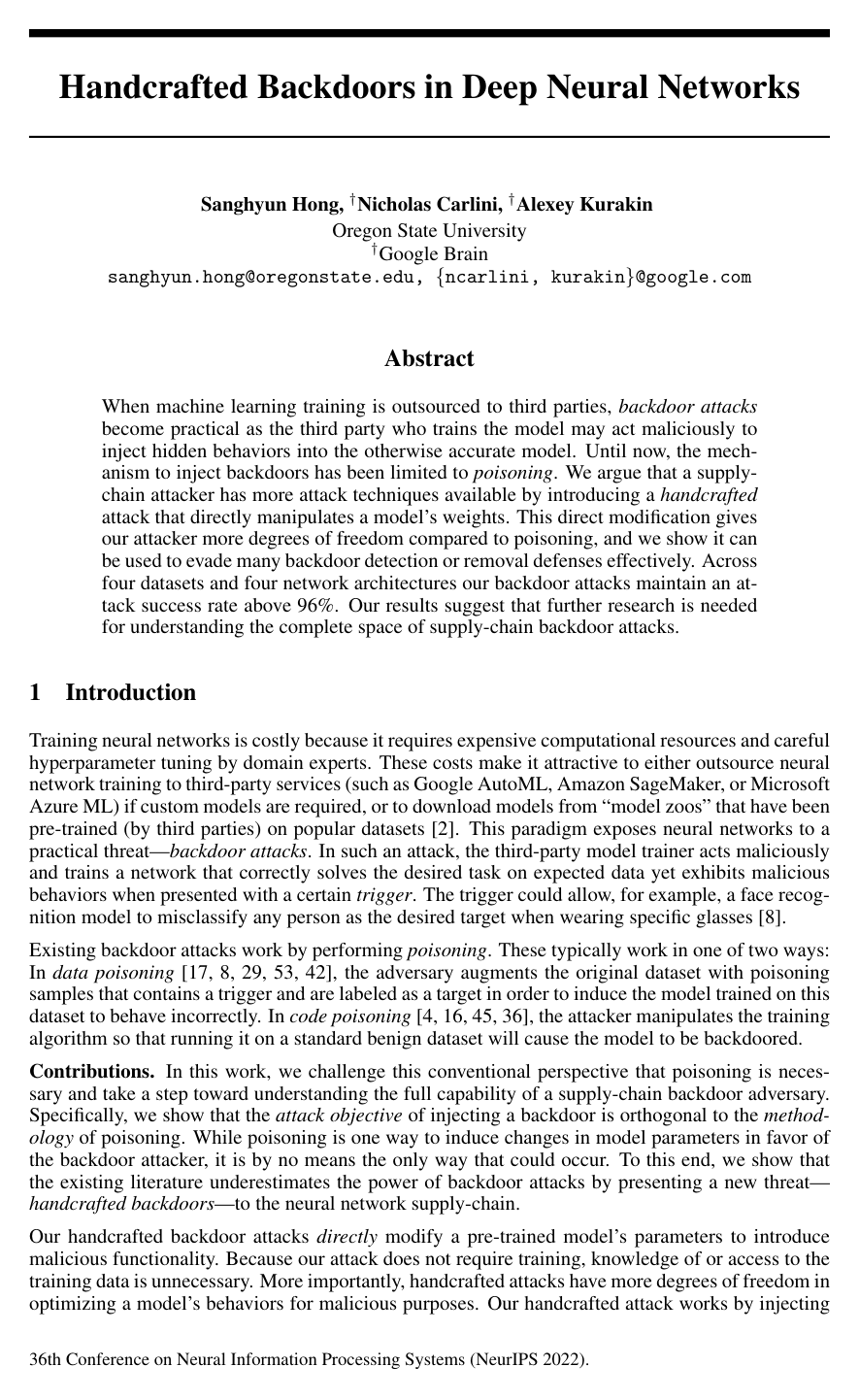

Cover for Handcrafted Backdoors in Deep Neural Networks

Abstract

When machine learning training is outsourced to third parties, backdoor attacks become practical as the third party who trains the model may act maliciously to inject hidden behaviors into the otherwise accurate model. Until now, the mechanism to inject backdoors has been limited to poisoning. We argue that a supply-chain attacker has more attack techniques available by introducing a handcrafted attack that directly manipulates a model's weights. This direct modification gives our attacker more degrees of freedom compared to poisoning, and we show it can be used to evade many backdoor detection or removal defenses effectively. Across four datasets and four network architectures our backdoor attacks maintain an attack success rate above 96%. Our results suggest that further research is needed for understanding the complete space of supply-chain backdoor attacks.

Topics

network architecture recurrent neural networks

Keywords

backdoor attacks backdoor defenses adversarial weight perturbations poisoning-based backdoors backdoor detection Neural Cleanse data poisoning attacks adversarial examples backdoor trigger deep neural networks

1 Introduction
2 Preliminaries: Backdoor Attacks and Defenses
3 Handcrafted Backdoor Attack
3.1 Threat Model
3.2 Our Intuition and Challenges
3.3 Overview of Our Attack Procedure
4 Our Handcrafting Procedure
4.1 Manipulating Fully-Connected Networks
4.2 Exploiting Convolution Operations
4.3 Meet-in-the-Middle Attack
5 Attack Evaluations
5.1 Performance of Handcrafted Backdoor Attacks
5.2 Handcrafting Attacks Can Evade Existing Defenses
5.3 Resilience against Potential Defense Strategies
6 Discussion and Conclusions
Acknowledgments and Disclosure of Funding
References

Knowls

Knowl 1 — Threat Model and Mathematical Formulation of Handcrafted Backdoors
model/method
In outsourced machine learning training, a supply-chain adversary directly modifies the parameters $\theta$ of a pre-trained neural network classifier $f_\theta: \mathcal{X} \to \mathcal{Y}$ without relying on training data poisoning or training algorithm code poisoning.

Given an input sample $x \in \mathcal{X}$ , a binary mask $m \in \{0, 1\}^{\dim(x)}$ , and a backdoor trigger pattern $\Delta \in \mathcal{X}$ , a backdoored input $x'$ is defined as: $x' = (1 - m) \odot x + m \odot \Delta$ where $\odot$ denotes the element-wise Hadamard product.

The attacker's objective is to alter $\theta$ such that two properties hold simultaneously:
1. Targeted Misclassification on Triggered Inputs: For any input $x$ from the distribution $\mathcal{S}$ and a chosen target class label $y_t \in \mathcal{Y}$ , the model predicts the target class: $f_\theta(x') = y_t, \quad \forall (x, y) \in \mathcal{S}$
2. Accuracy Preservation on Clean Inputs: For uncorrupted inputs $x \in \mathcal{S}$ , the model maintains clean classification accuracy comparable to the original benign model.
The attacker operates in a white-box setting with full knowledge of the model architecture and parameters $\theta$ . The attack does not require access to the original training dataset $\mathcal{D}_{\text{tr}}$ ; it requires only a small validation set of 50 to 250 unlabeled samples drawn from a distribution similar to the target task.
Knowl 2 — Parameter Handcrafting Algorithm for Fully-Connected Layers
algorithm
The parameter handcrafting procedure for fully-connected layers creates an activation pathway that routes trigger-correlated internal neuron activations to a specified target class logit $y_t$ while preserving classification accuracy on clean inputs.
Input: Layer weight matrices $W^{(i)}$ and bias vectors $b^{(i)}$ for layers $i \in \{1, \dots, L\}$ , small evaluation sample set $S_{\text{eval}}$ ( $\approx 100$ samples), trigger pattern $\Delta$ , binary mask $m$ , target class index $y_t$ , candidate accuracy drop threshold $\tau = 0.0$
Output: Modified weights $W^{(i)}$ and biases $b^{(i)}$
for each fully-connected layer $i \in \{1, \dots, L\}$ do
    // Step 1: Identify candidate neurons via ablation
     $C_i \leftarrow \emptyset$
    for each neuron $j$ in layer $i$ do
        Zero out activation of neuron $j$ on $S_{\text{eval}}$
         $\Delta \text{Acc}_j \leftarrow \text{Accuracy}_{\text{baseline}} - \text{Accuracy}_{\text{ablated}}$
        if $\Delta \text{Acc}_j \le \tau$ then
             $C_i \leftarrow C_i \cup \{j\}$
        end if
    end for
    // Step 2: Select target neurons and increase activation separation
    Construct backdoor samples $S'_{\text{eval}} = \{(1 - m) \odot x + m \odot \Delta \mid x \in S_{\text{eval}}\}$
    for each candidate neuron $j \in C_i$ do
        Collect clean activations $A_{\text{clean}}(j)$ and backdoor activations $A_{\text{bd}}(j)$
        Fit normal distributions $A_{\text{clean}}(j) \sim \mathcal{N}(\mu_c, \sigma_c^2)$ and $A_{\text{bd}}(j) \sim \mathcal{N}(\mu_b, \sigma_b^2)$
         $\text{Overlap}_j \leftarrow \int \min(p_c(z), p_b(z)) \, dz$
         $\text{Separation}_j \leftarrow 1 - \text{Overlap}_j$
    end for
     $T_i \leftarrow \text{top } 3\%\text{--}10\% \text{ neurons in } C_i \text{ ranked by } \text{Separation}_j$
    for each target neuron $j \in T_i$ do
        if $\mu_c(j) > \mu_b(j)$ then
            Negate incoming weights $W^{(i)}_{j, :} \leftarrow -W^{(i)}_{j, :}$
        end if
        Scale up magnitude of incoming weights $W^{(i)}_{j, :}$ until $\text{Separation}_j \ge 0.99$
    end for
    // Step 3: Configure guard bias
    for each target neuron $j \in T_i$ do
         $b^{(i)}_j \leftarrow -\max_{x \in S_{\text{eval}}} (\sum_k W^{(i)}_{j, k} a^{(i-1)}_k(x))$
    end for
end for
// Step 4: Amplify target logit weight
for each target neuron $j$ in the penultimate layer do
    Increase weight $W^{(L)}_{y_t, j} \gg 0$ connecting neuron $j$ to target logit $y_t$
end for
Knowl 3 — Parameter Handcrafting Algorithm for Convolutional Layers
algorithm
Convolutional filter handcrafting exploits spatial auto-correlation to amplify feature responses to a localized trigger pattern without degrading clean accuracy.
Input: Pre-trained convolutional network layers $l \in \{1, \dots, K\}$ , evaluation set $S_{\text{eval}}$ , trigger pattern $\Delta$ , binary mask $m$ , layer maximum weight bounds $W_{\max}^{(l)}$
Output: Modified convolutional filter weights $W^{(l)}$
for each convolutional layer $l \in \{1, \dots, K\}$ do
    // Step 1: Identify candidate filters
     $F_l \leftarrow \emptyset$
    for each filter channel $k$ in layer $l$ do
        Zero out feature map channel $k$ on $S_{\text{eval}}$
         $\Delta \text{Acc}_k \leftarrow \text{Accuracy}_{\text{baseline}} - \text{Accuracy}_{\text{ablated}}$
        if $\Delta \text{Acc}_k < 0.05$ then
             $F_l \leftarrow F_l \cup \{k\}$
        end if
    end for
    // Step 2: Inject handcrafted filters
    if $l == 1$ then
        Extract single-channel pattern $P \leftarrow \Delta_{\text{channel}}$
        Select $1 \text{ to } 3$ candidate filter indices $\{k_1, \dots\} \subset F_1$
        for each selected filter $k$ do
            Set spatial kernel weights of filter $k$ to pattern $P$
            Scale kernel weights equally such that $|W^{(1)}_k| \le W_{\max}^{(1)}$
        end for
    else
        Compute mean feature difference across layer $l-1$ :
         $D^{(l-1)} \leftarrow \frac{1}{|S_{\text{eval}}|} \sum_{x \in S_{\text{eval}}} (A^{(l-1)}((1-m)\odot x + m\odot\Delta) - A^{(l-1)}(x))$
        Select candidate filters from $F_l$ and initialize kernel weights to match $D^{(l-1)}$
        Scale kernel weights such that $|W^{(l)}_k| \le W_{\max}^{(l)}$
    end if
    // Step 3: Verify resilience against pruning
    while magnitude-based pruning of layer $l$ removes injected filters with $\le 3\%$ accuracy drop do
        Select alternative candidate filters from $F_l$ and re-inject
    end while
end for
Knowl 4 — Guard Bias Mechanism for Fine-Tuning Defense Resilience
model/method
The guard bias is a parameter configuration technique that prevents handcrafted backdoor weights from being updated or erased during fine-tuning on clean datasets.

In standard backpropagation, the gradient of the loss $\mathcal{L}$ with respect to weight $W_{j, k}^{(l)}$ connecting neuron $k$ in layer $l-1$ to neuron $j$ in layer $l$ with a ReLU activation function $\sigma(z) = \max(0, z)$ is given by: $\frac{\partial \mathcal{L}}{\partial W_{j, k}^{(l)}} = \delta_j^{(l)} \cdot a_k^{(l-1)}$ where $\delta_j^{(l)}$ contains the derivative $\sigma'(z_j^{(l)})$ , and $z_j^{(l)} = \sum_k W_{j, k}^{(l)} a_k^{(l-1)} + b_j^{(l)}$ is the pre-activation.

Because $\sigma'(z) = 0$ for $z \le 0$ , setting the bias $b_j^{(l)}$ of a compromised target neuron $j$ such that the pre-activation is non-positive for all clean inputs $x \in S_{\text{clean}}$ : $z_j^{(l)}(x) = \sum_k W_{j, k}^{(l)} a_k^{(l-1)}(x) + b_j^{(l)} \le 0$ guarantees that during fine-tuning on clean data:
1. Clean activation evaluates to $a_j^{(l)}(x) = 0$ .
2. The derivative satisfies $\sigma'(z_j^{(l)}(x)) = 0$ , causing $\frac{\partial \mathcal{L}}{\partial W_{j, k}^{(l)}} = 0$ .
Because the gradient is zero for clean inputs, fine-tuning optimization cannot alter the handcrafted weights $W_{j, k}^{(l)}$ . In contrast, triggered inputs $x'$ produce a large positive pre-activation $z_j^{(l)}(x') > 0$ , activating the backdoor pathway.
Knowl 5 — Meet-in-the-Middle Backdoor Injection Strategy
model/method
For deep network architectures where manual filter calculation across all convolutional layers is difficult, the meet-in-the-middle attack optimizes the input trigger pattern jointly with internal parameter modifications.

The adversary selects an intermediate layer $l_{\text{mid}}$ and executes two coordinated phases:
1. Input-to-Intermediate Optimization: Using gradient descent on a small batch of clean samples, the attacker optimizes the pixel values of the input trigger pattern $\Delta$ to maximize activation separation $(1 - \text{Overlap})$ between clean inputs $x$ and triggered inputs $x' = (1 - m) \odot x + m \odot \Delta$ at layer $l_{\text{mid}}$ .
2. Intermediate-to-Output Handcrafting: Once sufficient separation is achieved at layer $l_{\text{mid}}$ , the attacker applies the fully-connected handcrafting procedure (weight scaling, guard bias insertion, and logit amplification) across the remaining layers $l > l_{\text{mid}}$ to connect the separated signal to target class logit $y_t$ .
This method bypasses the need to manually craft intermediate convolutional filters through every deep layer of the network.

Knowl 6 — Clean Accuracy and Attack Success Rate of Handcrafted Backdoors

data/table

Across multiple classification datasets and neural network architectures, handcrafted backdoor attacks achieve attack success rates $\ge 96\%$ with clean classification accuracy drops within $\sim 3\%$ of benign baselines, performing comparably to or better than data poisoning without requiring access to the training dataset.

Network	Dataset	Clean Acc.	Square		Checkerboard		Random
			Poisoning	Ours	Poisoning	Ours	Poisoning	Ours
FC	MNIST	97%	97% / 100%	95% / 100%	97% / 100%	94% / 100%	–	–
FC	SVHN	81%	74% / 93%	81% / 96%	83% / 100%	81% / 100%	83% / 99%	80% / 100%
CNN	SVHN	89%	–	–	89% / 96%	88% / 100%	89% / 98%	86% / 99%
CNN	CIFAR10	92%	91% / 99%	91% / 99%	91% / 98%	91% / 97%	91% / 99%	91% / 96%
ResNet18	CIFAR10	92%	–	–	–	–	–	–
I-ResNetV1	PubFigs	98%	–	–	–	–	–	–

For the Watermark trigger pattern, CNN on CIFAR10 achieves 91% accuracy / 100% attack success rate (ASR) for both poisoning and handcrafted methods; ResNet18 on CIFAR10 achieves 94% accuracy / 100% ASR (poisoning) and 92% accuracy / 100% ASR (handcrafted); Inception-ResNetV1 on PubFigs achieves 98% accuracy / 97% ASR (poisoning) and 99% accuracy / 99% ASR (handcrafted).

In sample efficiency, the handcrafted method achieves a 100% attack success rate with only 50 to 250 evaluation samples, whereas data poisoning requires 5% to 20% poisoned training data (at least 1,000 samples) to achieve comparable success. Handcrafted injection executes within minutes on standard CPUs for FC/CNN and under an hour for Inception-ResNetV1.

Knowl 7 — Evasion of Neural Cleanse Backdoor Detection
empirical result
Neural Cleanse identifies backdoors by finding a minimum $L_1$ -norm perturbation achieving $\ge 99\%$ misclassification when applied to clean samples, flagging a model as infected if the anomaly index of the minimum perturbation across classes exceeds a threshold.

Handcrafted backdoors evade Neural Cleanse detection through two mechanisms:
1. Increasing Trigger Dimensions: On MNIST models with checkerboard patterns, increasing the trigger dimensions to $12 \times 12$ pixels or larger reduces the Neural Cleanse detection rate to $\le 10\%$ across five runs, while the attack retains $>98\%$ attack success rate and $>94\%$ clean classification accuracy.
2. Attack Success Rate Modulation: By tuning the separation threshold to slightly reduce attack success, Neural Cleanse fails to find an anomalous shortcut. For an $8 \times 8$ -pixel trigger, reducing the handcrafted attack success rate to $93\%$ reduces the Neural Cleanse detection rate to $0\%$ . For a $4 \times 4$ -pixel trigger, reducing target success reduces the detection rate by $46\%$ .

Knowl 8 — Robustness of Handcrafted Backdoors to Fine-Tuning and Fine-Pruning

data/table

Handcrafted backdoors resist post-training removal defenses, including fine-tuning (re-training for 5 epochs on clean data) and fine-pruning (pruning inactive convolutional filters on clean data until clean accuracy drops by 5%).

Defense / Architecture	Dataset	Attack Success Rate (Poisoning / Ours)
		Square	Checkerboard	Random	Watermark
Fine-Tuning (5 Epochs)
FC	MNIST	99% / 100%	100% / 100%	–	–
FC	SVHN	91% / 95%	99% / 100%	98% / 100%	–
CNN	SVHN	–	97% / 98%	97% / 97%	–
CNN	CIFAR10	90% / 95%	82% / 88%	85% / 89%	96% / 92%
I-ResNetV1	PubFigs	–	–	–	94% / 98%
Fine-Pruning (5% Acc Drop)
CNN	SVHN	–	69% / 96%	80% / 89%	–
CNN	CIFAR10	95% / 90%	93% / 84%	96% / 82%	98% / 81%

Under fine-tuning, handcrafted backdoors experience an average attack success rate reduction of only $\sim 11\%$ (up to 6% more resilient than poisoned models), and fine-tuning often restores clean classification accuracy to the baseline level of uncorrupted pre-trained models. Under fine-pruning, handcrafted backdoors maintain an attack success rate $\ge 81\%$ across all tested configurations.

Knowl 9 — Resistance of Handcrafted Backdoors to Hessian Analysis and Parameter Perturbations
empirical result
Handcrafted backdoors evade detection and removal techniques based on parameter distributions, loss curvature, and weight perturbations:
1. Training Loss Hessian Analysis: In poisoning-based attacks, the maximum eigenvalue of the training loss Hessian evaluated on poisoned samples is large and comparable to that of clean samples. In handcrafted models, the maximum Hessian eigenvalue on backdoor samples is $1.5\times$ to $100\times$ smaller than on clean samples, causing curvature-based backdoor detection heuristics to fail.
2. Parameter Distribution and Side Effects: Handcrafted models do not introduce statistical weight distribution outliers when modifications are constrained within the maximum parameter bounds of each layer, and they do not exhibit unintended misclassification biases on unrelated classes.
3. Parameter Perturbation Robustness: Adding random Gaussian noise to parameters or clipping weights within empirical bounds preserves $>98\%$ attack success rate for handcrafted models, whereas optimization-based adversarial weight perturbation backdoors degrade under identical parameter noise.

Coverage note — Theoretical implementations of logical connectives (AND, OR, NOT) using single neurons and empirical defense analyses from the supplementary material (Appendices A-I) were integrated into the primary methodological and empirical knowls rather than extracted as separate entries.

References

1.AI Hub. https://aihub.cloud.google.com/. [Accessed: 2022-04-30].
2.Model Zoo - Deep learning code and pretrained models for transfer learning, educational purposes, and more. https://modelzoo.co. [Accessed: 2022-04-30].
3.M. Abadi, A. Chu, I. Goodfellow, H. B. McMahan, I. Mironov, K. Talwar, and L. Zhang. Deep learning with differential privacy. In Proceedings of the 2016 ACM SIGSAC Conference on Computer and Communications Security, CCS ’16, page 308–318, New York, NY, USA, 2016. Association for Computing Machinery. ISBN 9781450341394. doi: 10.1145/2976749.2978318. URL https://doi.org/10.1145/2976749.2978318.
4.E. Bagdasaryan and V. Shmatikov. Blind backdoors in deep learning models. arXiv preprint arXiv:2005.03823, 2020.
5.N. Bitansky, R. Canetti, A. Chiesa, and E. Tromer. From extractable collision resistance to succinct non-interactive arguments of knowledge, and back again. In Proceedings of the 3rd Innovations in Theoretical Computer Science Conference, pages 326–349, 2012.
6.T. B. Brown, B. Mann, N. Ryder, M. Subbiah, J. Kaplan, P. Dhariwal, A. Neelakantan, P. Shyam, G. Sastry, A. Askell, S. Agarwal, A. Herbert-Voss, G. Krueger, T. Henighan, R. Child, A. Ramesh, D. M. Ziegler, J. Wu, C. Winter, C. Hesse, M. Chen, E. Sigler, M. Litwin, S. Gray, B. Chess, J. Clark, C. Berner, S. McCandlish, A. Radford, I. Sutskever, and D. Amodei. Language models are few-shot learners, 2020.
7.B. Chen, W. Carvalho, N. Baracaldo, H. Ludwig, B. Edwards, T. Lee, I. Molloy, and B. Srivastava. Detecting backdoor attacks on deep neural networks by activation clustering, 2018.
8.X. Chen, C. Liu, B. Li, K. Lu, and D. Song. Targeted backdoor attacks on deep learning systems using data poisoning, 2017.
9.J. Cohen, E. Rosenfeld, and Z. Kolter. Certified adversarial robustness via randomized smoothing. In K. Chaudhuri and R. Salakhutdinov, editors, Proceedings of the 36th International Conference on Machine Learning, volume 97 of Proceedings of Machine Learning Research, pages 1310–1320, Long Beach, California, USA, 09–15 Jun 2019. PMLR. URL http://proceedings.mlr.press/v97/cohen19c.html.
10.J. Cohen, S. Kaur, Y. Li, J. Z. Kolter, and A. Talwalkar. Gradient descent on neural networks typically occurs at the edge of stability. In International Conference on Learning Representations, 2021. URL https://openreview.net/forum?id=jh-rTtvkGeM.
11.M. Du, R. Jia, and D. Song. Robust anomaly detection and backdoor attack detection via differential privacy. In International Conference on Learning Representations, 2020. URL https://openreview.net/forum?id=SJx0q1rtvS.
12.D. Evans. On the impossibility of virus detection. Retrieved from, 2017.
13.W. Fedus, B. Zoph, and N. Shazeer. Switch transformers: Scaling to trillion parameter models with simple and efficient sparsity, 2021.
14.J. Frankle and M. Carbin. The lottery ticket hypothesis: Finding sparse, trainable neural networks. In International Conference on Learning Representations, 2019. URL https://openreview.net/forum?id=rJl-b3RcF7.
15.Y. Gao, C. Xu, D. Wang, S. Chen, D. C. Ranasinghe, and S. Nepal. Strip: A defence against trojan attacks on deep neural networks. In Proceedings of the 35th Annual Computer Security Applications Conference, ACSAC ’19, page 113–125, New York, NY, USA, 2019. Association for Computing Machinery. ISBN 9781450376280. doi: 10.1145/3359789.3359790. URL https://doi.org/10.1145/3359789.3359790.
16.S. Garg, A. Kumar, V. Goel, and Y. Liang. Can adversarial weight perturbations inject neural backdoors. In Proceedings of the 29th ACM International Conference on Information & Knowledge Management, pages 2029–2032, 2020.
17.T. Gu, B. Dolan-Gavitt, and S. Garg. Badnets: Identifying vulnerabilities in the machine learning model supply chain. arXiv preprint arXiv:1708.06733, 2017.
18.K. He, X. Zhang, S. Ren, and J. Sun. Deep residual learning for image recognition. In Proceedings of the IEEE conference on computer vision and pattern recognition, pages 770–778, 2016.
19.S. Hong, V. Chandrasekaran, Y. Kaya, T. Dumitraș, and N. Papernot. On the effectiveness of mitigating data poisoning attacks with gradient shaping, 2020.
20.K. Hornik. Approximation capabilities of multilayer feedforward networks. Neural networks, 4(2):251–257, 1991.
21.H. Jia, M. Yaghini, C. A. Choquette-Choo, N. Dullerud, A. Thudi, V. Chandrasekaran, and N. Papernot. Proof-of-learning: Definitions and practice. In 2021 IEEE Symposium on Security and Privacy (SP), pages 1039–1056. IEEE, 2021.
22.G. Katz, C. Barrett, D. Dill, K. Julian, and M. Kochenderfer. Reluplex: An efficient smt solver for verifying deep neural networks, 2017.
23.A. Krizhevsky. Learning multiple layers of features from tiny images. Technical report, 2009.
24.Y. Lecun, J. Denker, S. Solla, R. Howard, and L. Jackel. Optimal brain damage. In D. Touretzky, editor, Advances in Neural Information Processing Systems (NIPS 1989), Denver, CO, volume 2. Morgan Kaufmann, 1990.
25.Y. LeCun, C. Cortes, and C. Burges. Mnist handwritten digit database. ATT Labs [Online]. Available: http://yann.lecun.com/exdb/mnist, 2, 2010.
26.M. Lecuyer, V. Atlidakis, R. Geambasu, D. Hsu, and S. Jana. Certified robustness to adversarial examples with differential privacy. In 2019 IEEE Symposium on Security and Privacy (SP), pages 656–672, 2019. doi: 10.1109/SP.2019.00044.
27.H. Li, A. Kadav, I. Durdanovic, H. Samet, and H. P. Graf. Pruning filters for efficient convnets, 2017.
28.K. Liu, B. Dolan-Gavitt, and S. Garg. Fine-pruning: Defending against backdooring attacks on deep neural networks. In International Symposium on Research in Attacks, Intrusions, and Defenses, pages 273–294. Springer, 2018.
29.Y. Liu, S. Ma, Y. Aafer, W.-C. Lee, J. Zhai, W. Wang, and X. Zhang. Trojaning attack on neural networks. In 25nd Annual Network and Distributed System Security Symposium, NDSS 2018, San Diego, California, USA, February 18-221, 2018. The Internet Society, 2018.
30.Y. Liu, W.-C. Lee, G. Tao, S. Ma, Y. Aafer, and X. Zhang. Abs: Scanning neural networks for back-doors by artificial brain stimulation. In Proceedings of the 2019 ACM SIGSAC Conference on Computer and Communications Security, CCS ’19, page 1265–1282, New York, NY, USA, 2019. Association for Computing Machinery. ISBN 9781450367479. doi: 10.1145/3319535.3363216. URL https://doi.org/10.1145/3319535.3363216.
31.A. Madry, A. Makelov, L. Schmidt, D. Tsipras, and A. Vladu. Towards deep learning models resistant to adversarial attacks. In International Conference on Learning Representations, 2018. URL https://openreview.net/forum?id=rJzIBfZAb.
32.A. S. Morcos, D. G. Barrett, N. C. Rabinowitz, and M. Botvinick. On the importance of single directions for generalization. In International Conference on Learning Representations, 2018. URL https://openreview.net/forum?id=r1iuQjxCZ.
33.Y. Netzer, T. Wang, A. Coates, A. Bissacco, B. Wu, and A. Y. Ng. Reading digits in natural images with unsupervised feature learning. 2011.
34.C. Olah, A. Mordvintsev, and L. Schubert. Feature visualization. Distill, 2017. doi: 10.23915/distill.00007. https://distill.pub/2017/feature-visualization.
35.C. Olah, N. Cammarata, L. Schubert, G. Goh, M. Petrov, and S. Carter. Zoom in: An introduction to circuits. Distill, 2020. doi: 10.23915/distill.00024.001. https://distill.pub/2020/circuits/zoom-in.
36.R. Pang, H. Shen, X. Zhang, S. Ji, Y. Vorobeychik, X. Luo, A. Liu, and T. Wang. A tale of evil twins: Adversarial inputs versus poisoned models. In Proceedings of the 2020 ACM SIGSAC Conference on Computer and Communications Security, pages 85–99, 2020.
37.N. Peri, N. Gupta, W. R. Huang, L. Fowl, C. Zhu, S. Feizi, T. Goldstein, and J. P. Dickerson. Deep k-nn defense against clean-label data poisoning attacks. In European Conference on Computer Vision, pages 55–70. Springer, 2020.
38.N. Pinto, Z. Stone, T. E. Zickler, and D. Cox. Scaling up biologically-inspired computer vision: A case study in unconstrained face recognition on facebook. CVPR 2011 WORKSHOPS, pages 35–42, 2011.
39.J. Perez, J. Marinković, and P. Barceló. On the turing completeness of modern neural network architectures. In International Conference on Learning Representations, 2019. URL https://openreview.net/forum?id=HyGBdo0qFm.
40.A. Radford, J. Wu, R. Child, D. Luan, D. Amodei, and I. Sutskever. Language models are unsupervised multitask learners. OpenAI blog, 1(8):9, 2019.
41.A. S. Rakin, Z. He, and D. Fan. Tbt: Targeted neural network attack with bit trojan. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, pages 13198–13207, 2020.
42.A. Saha, A. Subramanya, and H. Pirsiavash. Hidden trigger backdoor attacks. In The Thirty-Fourth AAAI Conference on Artificial Intelligence, AAAI 2020, The Thirty-Second Innovative Applications of Artificial Intelligence Conference, IAAI 2020, The Tenth AAAI Symposium on Educational Advances in Artificial Intelligence, EAAI 2020, New York, NY, USA, February 7-12, 2020, pages 11957–11965. AAAI Press, 2020. URL https://aaai.org/ojs/index.php/AAAI/article/view/6871.
43.H. Salman, M. Sun, G. Yang, A. Kapoor, and J. Z. Kolter. Denoised smoothing: A provable defense for pretrained classifiers, 2020.
44.S. Shan, E. Wenger, B. Wang, B. Li, H. Zheng, and B. Y. Zhao. Gotta catch’em all: Using honeypots to catch adversarial attacks on neural networks. In Proceedings of the 2020 ACM SIGSAC Conference on Computer and Communications Security, CCS’20, page 67–83, New York, NY, USA, 2020. Association for Computing Machinery. ISBN 9781450370899. doi: 10.1145/3372297.3417231. URL https://doi.org/10.1145/3372297.3417231.
45.R. Shokri et al. Bypassing backdoor detection algorithms in deep learning. In 2020 IEEE European Symposium on Security and Privacy (EuroS&P), pages 175–183. IEEE, 2020.
46.J. Steinhardt, P. W. W. Koh, and P. S. Liang. Certified defenses for data poisoning attacks. In I. Guyon, U. V. Luxburg, S. Bengio, H. Wallach, R. Fergus, S. Vishwanathan, and R. Garnett, editors, Advances in Neural Information Processing Systems, volume 30, pages 3517–3529. Curran Associates, Inc., 2017. URL https://proceedings.neurips.cc/paper/2017/file/9d7311ba459f9e45ed746755a32dcd11-Paper.pdf.
47.M. Sun, S. Agarwal, and J. Z. Kolter. Poisoned classifiers are not only backdoored, they are fundamentally broken. arXiv preprint arXiv:2010.09080, 2020.
48.C. Szegedy, S. Ioffe, V. Vanhoucke, and A. A. Alemi. Inception-v4, inception-resnet and the impact of residual connections on learning. In Proceedings of the Thirty-First AAAI Conference on Artificial Intelligence, AAAI’17, page 4278–4284. AAAI Press, 2017.
49.D. Tang, X. Wang, H. Tang, and K. Zhang. Demon in the variant: Statistical analysis of DNNs for robust backdoor contamination detection. In 30th USENIX Security Symposium (USENIX Security 21), pages 1541–1558. USENIX Association, Aug. 2021. ISBN 978-1-939133-24-3. URL https://www.usenix.org/conference/usenixsecurity21/presentation/tang-di.
50.R. Tang, M. Du, N. Liu, F. Yang, and X. Hu. An embarrassingly simple approach for trojan attack in deep neural networks. In Proceedings of the 26th ACM SIGKDD International Conference on Knowledge Discovery & Data Mining, pages 218–228, 2020.
51.F. Tramer and D. Boneh. Slalom: Fast, verifiable and private execution of neural networks in trusted hardware. arXiv preprint arXiv:1806.03287, 2018.
52.B. Tran, J. Li, and A. Madry. Spectral signatures in backdoor attacks. In S. Bengio, H. Wallach, H. Larochelle, K. Grauman, N. Cesa-Bianchi, and R. Garnett, editors, Advances in Neural Information Processing Systems, volume 31, pages 8000–8010. Curran Associates, Inc., 2018. URL https://proceedings.neurips.cc/paper/2018/file/280cf18baf4311c92aa5a042336587d3-Paper.pdf.
53.A. Turner, D. Tsipras, and A. Madry. Label-consistent backdoor attacks, 2019.
54.B. Wang, Y. Yao, S. Shan, H. Li, B. Viswanath, H. Zheng, and B. Y. Zhao. Neural cleanse: Identifying and mitigating backdoor attacks in neural networks. In 2019 IEEE Symposium on Security and Privacy (SP), pages 707–723, 2019. doi: 10.1109/SP.2019.00031.
55.R. Wang, G. Zhang, S. Liu, P.-Y. Chen, J. Xiong, and M. Wang. Practical detection of trojan neural networks: Data-limited and data-free cases. In European Conference on Computer Vision, pages 222–238. Springer, 2020.
56.K. Y. Xiao, V. Tjeng, N. M. Shafiullah, and A. Madry. Training for faster adversarial robustness verification via inducing relu stability. arXiv preprint arXiv:1809.03008, 2018.
57.X. Xu, Q. Wang, H. Li, N. Borisov, C. A. Gunter, and B. Li. Detecting ai trojans using meta neural analysis, 2019. URL https://arxiv.org/abs/1910.03137.
58.C. Yang. Detecting backdoored neural networks with structured adversarial attacks. 2021.
59.Y. Yao, H. Li, H. Zheng, and B. Y. Zhao. Latent backdoor attacks on deep neural networks. In Proceedings of the 2019 ACM SIGSAC Conference on Computer and Communications Security, CCS’19, page 2041–2055, New York, NY, USA, 2019. Association for Computing Machinery. ISBN 9781450367479. doi: 10.1145/3319535.3354209. URL https://doi.org/10.1145/3319535.3354209.

Citation

MLA

Hong, S., et al. “Handcrafted Backdoors in Deep Neural Networks”. Advances in Neural Information Processing Systems, vol. 35, 2022, pp. 8068–80, https://proceedings.neurips.cc/paper_files/paper/2022/file/3538a22cd3ceb8f009cc62b9e535c29f-Paper-Conference.pdf.

APA

Hong, S., Carlini, N., & Kurakin, A. (2022). Handcrafted Backdoors in Deep Neural Networks. Advances in Neural Information Processing Systems, 35, 8068–8080. https://proceedings.neurips.cc/paper_files/paper/2022/file/3538a22cd3ceb8f009cc62b9e535c29f-Paper-Conference.pdf

Chicago

Hong, S., N. Carlini, and A. Kurakin. 2022. “Handcrafted Backdoors in Deep Neural Networks”. Advances in Neural Information Processing Systems 35: 8068–80. https://proceedings.neurips.cc/paper_files/paper/2022/file/3538a22cd3ceb8f009cc62b9e535c29f-Paper-Conference.pdf.

Harvard

Hong, S., Carlini, N. and Kurakin, A. (2022) “Handcrafted Backdoors in Deep Neural Networks”, Advances in Neural Information Processing Systems. Curran Associates, Inc., pp. 8068–8080. Available at: https://proceedings.neurips.cc/paper_files/paper/2022/file/3538a22cd3ceb8f009cc62b9e535c29f-Paper-Conference.pdf.

Vancouver

1. Hong S, Carlini N, Kurakin A (2022) Handcrafted Backdoors in Deep Neural Networks. In: Advances in Neural Information Processing Systems. Curran Associates, Inc., pp 8068–8080

BibTeX

@inproceedings{hong2022handcrafted,
  title = {Handcrafted Backdoors in Deep Neural Networks},
  author = {Hong, Sanghyun and Carlini, Nicholas and Kurakin, Alexey},
  year = {2022},
  booktitle = {Advances in Neural Information Processing Systems},
  publisher = {Curran Associates, Inc.},
  volume = {35},
  pages = {8068-8080},
  url = {https://proceedings.neurips.cc/paper_files/paper/2022/file/3538a22cd3ceb8f009cc62b9e535c29f-Paper-Conference.pdf}
}

Metadata:DOI registry

Access the Paper

This paper is available from its original source. Click below to access the PDF.

Open PDF

License: Published with permission

Handcrafted Backdoors in Deep Neural Networks

Abstract

Topics

Keywords

Table of Contents

Knowls

Knowl 1 — Threat Model and Mathematical Formulation of Handcrafted Backdoors

Knowl 2 — Parameter Handcrafting Algorithm for Fully-Connected Layers

Knowl 3 — Parameter Handcrafting Algorithm for Convolutional Layers

Knowl 4 — Guard Bias Mechanism for Fine-Tuning Defense Resilience

Knowl 5 — Meet-in-the-Middle Backdoor Injection Strategy
