Neural Fields Meet Explicit Geometric Representations for Inverse Rendering of Urban Scenes

Zian WangTianchang ShenJun GaoShengyu HuangJacob MunkbergJon HasselgrenZan GojcicWenzheng ChenSanja Fidler

article2023CVPR125 citations

Presents a hybrid inverse rendering framework that couples neural fields for primary ray representation with explicit reconstructed meshes for efficient secondary ray tracing, enabling photorealistic relighting, shadow casting, and virtual object insertion in large-scale urban environments.

Listen

Digital twins of large outdoor environments are increasingly vital for simulation, augmented reality, and virtual content creation. While recent neural field techniques excel at creating photorealistic 3D views, they typically bake lighting and shadows directly into the reconstructed geometry, preventing users from altering illumination or seamlessly inserting virtual objects. Conversely, traditional 3D mesh rendering methods allow lighting modifications but fail to scale effectively to complex, expansive outdoor environments.

The article addresses this gap by introducing a hybrid inverse rendering framework named FEGR. Its core objective is to jointly extract precise 3D geometry, spatially varying material properties, and high dynamic range lighting from ordinary sets of captured images, enabling flexible relighting and virtual modifications in large urban settings.

FEGR combines continuous neural fields with explicit 3D mesh structures. The pipeline uses neural fields to capture fine surface geometry, colors, and material attributes, while extracting an explicit 3D mesh to trace complex secondary light bounces and cast shadows using hardware-accelerated physics-based ray tracing. The framework was evaluated on multi-illumination outdoor benchmark datasets as well as real-world autonomous driving data captured under single lighting conditions with moving cameras and LiDAR depth assistance.

The key findings demonstrate that FEGR consistently outperforms leading baseline methods across both visual quality and lighting reconstruction accuracy. On the multi-illumination outdoor benchmark, the framework achieved significantly higher image fidelity, reducing reconstruction error compared to earlier approaches. Ablation tests showed that physically modeling shadows and exposure compensation contributed performance gains of up to 1.5 decibels in visual quality. In real-world driving captures, FEGR successfully disentangled true surface colors from shadows where competing methods failed. Furthermore, in a formal user study evaluating virtual object insertion, human evaluators preferred FEGR's photorealism and shadow accuracy over state-of-the-art baselines by margins of roughly 69% to 86%.

These findings indicate that hybrid rendering offers a viable path to creating editable, high-fidelity digital replicas of real-world outdoor environments. By accurately separating environmental lighting from surface materials, the approach reduces the need for expensive synthetic asset modeling and expands the usability of captured video in autonomous vehicle simulation and spatial computing. Unlike previous techniques limited to single objects or fixed lighting, this formulation handles large-scale, complex scenes captured under single or multiple illumination passes.

For practical implementation, organizations looking to build relightable digital twins should consider hybrid deferred pipelines that blend neural fields with explicit geometry rather than relying solely on volumetric rendering. However, decision-makers should recognize current limitations: the framework relies on static scene assumptions and handcrafted semantic regularizations to resolve lighting ambiguities in single-capture datasets. Further development is needed to incorporate dynamic object handling and data-driven priors before deploying the system in rapidly changing, non-static environments.

ETH ZurichNVIDIAUniversity of TorontoVector Instituteinverse renderingurban scenesneural fields
arXiv: 2304.03266

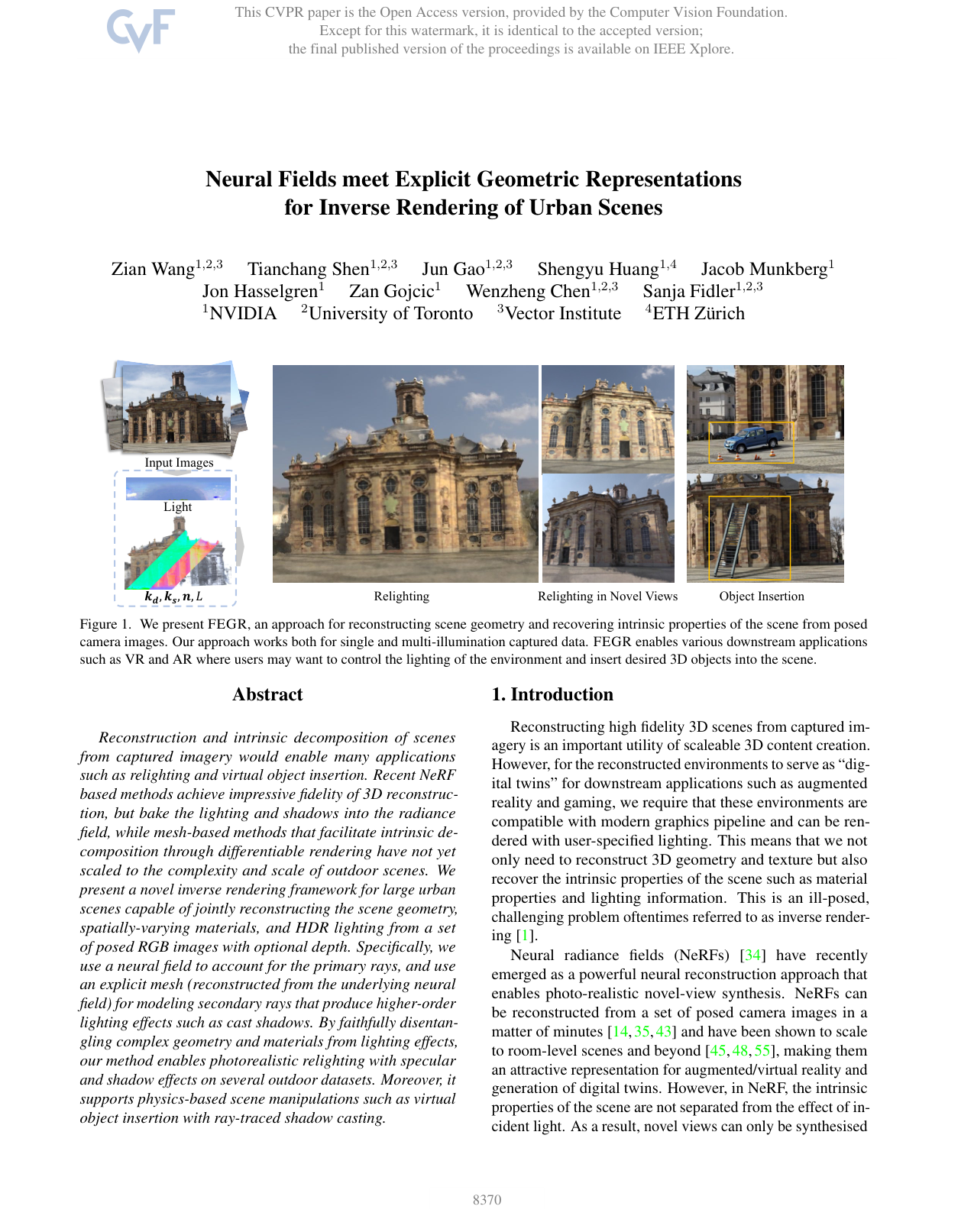

Cover for Neural Fields Meet Explicit Geometric Representations for Inverse Rendering of Urban Scenes

Abstract

Reconstruction and intrinsic decomposition of scenes from captured imagery would enable many applications such as relighting and virtual object insertion. Recent NeRF based methods achieve impressive fidelity of 3D reconstruction, but bake the lighting and shadows into the radiance field, while mesh-based methods that facilitate intrinsic decomposition through differentiable rendering have not yet scaled to the complexity and scale of outdoor scenes. We present a novel inverse rendering framework for large urban scenes capable of jointly reconstructing the scene geometry, spatially-varying materials, and HDR lighting from a set of posed RGB images with optional depth. Specifically, we use a neural field to account for the primary rays, and use an explicit mesh (reconstructed from the underlying neural field) for modeling secondary rays that produce higher-order lighting effects such as cast shadows. By faithfully disentangling complex geometry and materials from lighting effects, our method enables photorealistic relighting with specular and shadow effects on several outdoor datasets. Moreover, it supports physics-based scene manipulations such as virtual object insertion with ray-traced shadow casting.

Keywords

inverse renderingurban scenesneural fieldsexplicit mesh representationsintrinsic scene decompositionnovel-view synthesisneural reflectancephysics-based renderingvolumetric renderingoutdoor lighting estimation

Table of Contents

  • 1. Introduction
  • 2. Related Work
  • 3. Method
  • 3.1. Neural Intrinsic Scene Representation
  • 3.2. Hybrid Deferred Rendering
  • 3.3. Optimizing the Neural Scene Representation
  • 4. Experiments
  • 4.1. Datasets and evaluation setting
  • 4.2. Evaluation of Inverse Rendering
  • 4.3. Application to virtual object insertion
  • 5. Conclusion
  • References

Knowls

  1. Knowl 1 — FEGR hybrid inverse-rendering pipeline

    model/method

    FEGR reconstructs an urban scene from posed RGB images, optionally supplemented with LiDAR depth, by jointly estimating its geometry, spatially varying materials, and HDR illumination. The method combines two representations: a neural intrinsic field renders primary camera rays at high spatial resolution, while an explicit mesh extracted from the learned geometry handles secondary rays and their visibility. The resulting differentiable hybrid renderer supports novel-view synthesis, relighting under new environment maps, and physics-based virtual object insertion with cast shadows. A single intrinsic scene representation is shared across all captures; when the input contains multiple illumination conditions, each condition receives its own HDR environment map.

  2. Knowl 2 — Neural intrinsic scene and lighting representation

    model/method

    FEGR represents the intrinsic scene properties with a neural field FϕF_\phi that maps a 3D location x∈R3\mathbf{x}\in\mathbb{R}^3 to a signed-distance value s∈Rs\in\mathbb{R}, surface normal n∈R3\mathbf{n}\in\mathbb{R}^3, base color kd∈R3\mathbf{k}_d\in\mathbb{R}^3, and two PBR material parameters ks∈R2\mathbf{k}_s\in\mathbb{R}^2. The two components of ks\mathbf{k}_s are roughness and metallicity under the Disney material model. In implementation, separate MLPs predict s=fSDF(x;θSDF)s=f_{\mathrm{SDF}}(\mathbf{x};\theta_{\mathrm{SDF}}), n=fnorm(x;θnorm)\mathbf{n}=f_{\mathrm{norm}}(\mathbf{x};\theta_{\mathrm{norm}}), and (kd,ks)=fmat(x;θmat)(\mathbf{k}_d,\mathbf{k}_s)=f_{\mathrm{mat}}(\mathbf{x};\theta_{\mathrm{mat}}); all three use multi-resolution hash positional encoding.

    The outdoor illumination is represented by an HDR sky dome at infinity. An MLP fenv(d;θenv)f_{\mathrm{env}}(\mathbf{d};\theta_{\mathrm{env}}) maps a 2D environment-direction coordinate d\mathbf{d} to RGB HDR intensity e∈R3\mathbf{e}\in\mathbb{R}^3. For MM illumination conditions, FEGR retains one shared intrinsic field and learns MM separate HDR sky maps.

  3. Knowl 3 — Neural volumetric rendering of the primary-ray G-buffer

    equation

    For an image of height hh and width ww, FEGR renders a G-buffer G∈Rh×w×8G\in\mathbb{R}^{h\times w\times 8} containing a normal map N∈Rh×w×3N\in\mathbb{R}^{h\times w\times 3}, base-color map Kd∈Rh×w×3K_d\in\mathbb{R}^{h\times w\times 3}, material map M∈Rh×w×2M\in\mathbb{R}^{h\times w\times 2}, and radial-depth map D∈Rh×wD\in\mathbb{R}^{h\times w}. For a camera ray with origin o∈R3\mathbf{o}\in\mathbb{R}^3, unit direction u∈R3\mathbf{u}\in\mathbb{R}^3, and point r(t)=o+tu\mathbf{r}(t)=\mathbf{o}+t\mathbf{u}, the rendered base color is

    Kd(r)=∫tntfT(t) ρ(r(t)) kd(r(t)) dt,T(t)=exp⁡(−∫tntρ(r(q)) dq),K_d(\mathbf{r})=\int_{t_n}^{t_f}T(t)\,\rho(\mathbf{r}(t))\,\mathbf{k}_d(\mathbf{r}(t))\,dt, \qquad T(t)=\exp\left(-\int_{t_n}^{t}\rho(\mathbf{r}(q))\,dq\right),

    where tnt_n and tft_f are the near and far ray bounds, T(t)T(t) is accumulated transmittance, and ρ\rho is the opaque volume density. Density is obtained from the learned SDF fSDFf_{\mathrm{SDF}} as

    ρ(r(t))=max⁡(−ddtΦκ ⁣(fSDF(r(t)))Φκ ⁣(fSDF(r(t))),0),Φκ(z)=Sigmoid⁡(κz),\rho(\mathbf{r}(t))=\max\left( \frac{-\frac{d}{dt}\Phi_\kappa\!\left(f_{\mathrm{SDF}}(\mathbf{r}(t))\right)} {\Phi_\kappa\!\left(f_{\mathrm{SDF}}(\mathbf{r}(t))\right)},0\right), \qquad \Phi_\kappa(z)=\operatorname{Sigmoid}(\kappa z),

    with learnable scalar sharpness parameter κ\kappa. Normals and material parameters are alpha-composited analogously. The radial depth used to locate a surface point is

    D(r)=∫tntfT(t) ρ(r(t)) t dt.D(\mathbf{r})=\int_{t_n}^{t_f}T(t)\,\rho(\mathbf{r}(t))\,t\,dt.

    This neural volume-rendering stage supplies the primary-ray appearance and the per-pixel intrinsic quantities required by the later shading stage.

  4. Knowl 4 — Explicit-mesh secondary-ray shading with visibility

    model/method

    FEGR applies a physically based shading pass to each G-buffer pixel. The pixel's normal, base color, and material values are combined with its rendered depth to obtain a 3D surface point x\mathbf{x}. Marching cubes extracts an explicit surface mesh SS from the optimized signed-distance field. The outgoing radiance in direction ωo\boldsymbol{\omega}_o is evaluated with the non-emissive rendering equation

    Lo(x,ωo)=∫Ωfr(x,ωo,ωi) Li(x,ωi) ∣n⋅ωi∣ dωi,L_o(\mathbf{x},\boldsymbol{\omega}_o)=\int_{\Omega} f_r(\mathbf{x},\boldsymbol{\omega}_o,\boldsymbol{\omega}_i)\,L_i(\mathbf{x},\boldsymbol{\omega}_i)\,\left|\mathbf{n}\cdot\boldsymbol{\omega}_i\right|\,d\boldsymbol{\omega}_i,

    where Ω\Omega is the incident hemisphere, frf_r is the simplified Disney BRDF, n\mathbf{n} is the surface normal, and LiL_i is incoming radiance. For an incident direction ωi\boldsymbol{\omega}_i, mesh ray tracing gives binary visibility vi(x,ωi,S)v_i(\mathbf{x},\boldsymbol{\omega}_i,S): it is 00 when the ray is blocked by SS and 11 otherwise. Incoming radiance is therefore

    Li(x,ωi)=vi(x,ωi,S) fenv(ωi;θenv),L_i(\mathbf{x},\boldsymbol{\omega}_i)=v_i(\mathbf{x},\boldsymbol{\omega}_i,S)\,f_{\mathrm{env}}(\boldsymbol{\omega}_i;\theta_{\mathrm{env}}),

    so cast shadows and other higher-order effects arise from explicit visibility rather than being baked into diffuse color. The implementation traces 512 secondary rays per shading point, importance-sampling both the BSDF and the HDR environment map and combining the samples with multiple importance sampling. OptiX accelerates the ray–mesh queries. During optimization, the mesh is regenerated every 20 iterations as the SDF changes; after optimization, the environment network can be evaluated once per texel of an exported HDR environment image for more efficient importance sampling.

  5. Knowl 5 — End-to-end objective and geometric supervision

    model/method

    FEGR optimizes the neural scene field and HDR lighting jointly using observed RGB images and, when available, LiDAR ranges. The total objective is

    L=Lrender+λdepthLdepth+λradLrad+λnormLnorm+λshadeLshade+λregLreg,\mathcal{L}=\mathcal{L}_{\mathrm{render}}+\lambda_{\mathrm{depth}}\mathcal{L}_{\mathrm{depth}}+\lambda_{\mathrm{rad}}\mathcal{L}_{\mathrm{rad}}+\lambda_{\mathrm{norm}}\mathcal{L}_{\mathrm{norm}}+\lambda_{\mathrm{shade}}\mathcal{L}_{\mathrm{shade}}+\lambda_{\mathrm{reg}}\mathcal{L}_{\mathrm{reg}},

    where each λ\lambda is a balancing weight. For a batch of camera rays R\mathcal{R}, the primary image loss is an RGB L1 error,

    Lrender=1∣R∣∑r∈R∣Crender(r)−Cgt(r)∣,\mathcal{L}_{\mathrm{render}}=\frac{1}{|\mathcal{R}|}\sum_{\mathbf{r}\in\mathcal{R}}\left|\mathbf{C}_{\mathrm{render}}(\mathbf{r})-\mathbf{C}_{\mathrm{gt}}(\mathbf{r})\right|,

    with rendered and ground-truth RGB values Crender\mathbf{C}_{\mathrm{render}} and Cgt\mathbf{C}_{\mathrm{gt}}. An auxiliary radiance MLP frad(x,u;θrad)f_{\mathrm{rad}}(\mathbf{x},\mathbf{u};\theta_{\mathrm{rad}}) is volumetrically rendered to produce Crad(r)\mathbf{C}_{\mathrm{rad}}(\mathbf{r}) and supplies geometry supervision through

    Lrad=1∣R∣∑r∈R∣Crad(r)−Cgt(r)∣.\mathcal{L}_{\mathrm{rad}}=\frac{1}{|\mathcal{R}|}\sum_{\mathbf{r}\in\mathcal{R}}\left|\mathbf{C}_{\mathrm{rad}}(\mathbf{r})-\mathbf{C}_{\mathrm{gt}}(\mathbf{r})\right|.

    The auxiliary radiance field is discarded after optimization. For LiDAR rays Rd\mathcal{R}_d, with measured radial distances Dgt(r)D_{\mathrm{gt}}(\mathbf{r}), depth supervision is

    Ldepth=1∣Rd∣∑r∈Rd∣D(r)−Dgt(r)∣.\mathcal{L}_{\mathrm{depth}}=\frac{1}{|\mathcal{R}_d|}\sum_{\mathbf{r}\in\mathcal{R}_d}\left|D(\mathbf{r})-D_{\mathrm{gt}}(\mathbf{r})\right|.

    To preserve both detailed rendered normals and smooth SDF geometry, FEGR compares the volumetrically rendered normal nx\mathbf{n}_{\mathbf{x}} with the normalized SDF gradient n~x=−∇xfSDF(x)/∥∇xfSDF(x)∥\widetilde{\mathbf{n}}_{\mathbf{x}}=-\nabla_{\mathbf{x}}f_{\mathrm{SDF}}(\mathbf{x})/\|\nabla_{\mathbf{x}}f_{\mathrm{SDF}}(\mathbf{x})\| using

    Lnorm=1∣R∣∑r∈Rcos⁡−1(∣n~x⋅nx∣).\mathcal{L}_{\mathrm{norm}}=\frac{1}{|\mathcal{R}|}\sum_{\mathbf{r}\in\mathcal{R}}\cos^{-1}\left(\left|\widetilde{\mathbf{n}}_{\mathbf{x}}\cdot\mathbf{n}_{\mathbf{x}}\right|\right).

    Additional regularizers Lreg\mathcal{L}_{\mathrm{reg}} constrain the ill-posed intrinsic decomposition, while Lshade\mathcal{L}_{\mathrm{shade}} prevents shadows from being absorbed into diffuse albedo.

  6. Knowl 6 — Semantic shading prior and two-stage optimization

    model/method

    To discourage the optimizer from explaining cast shadows by darkening the diffuse albedo, FEGR introduces one learnable RGB albedo ksemb∈R3\mathbf{k}_{\mathrm{sem}}^b\in\mathbb{R}^3 for each of BB semantic classes. Let Rb\mathcal{R}_b be the camera rays assigned to class bb by an off-the-shelf semantic segmentation network, let sdiffuse(r)s_{\mathrm{diffuse}}(\mathbf{r}) be the deferred diffuse shading, and let Cgt(r)\mathbf{C}_{\mathrm{gt}}(\mathbf{r}) be the observed RGB value. The semantic shading penalty is

    Lshade=1B∑b=1B1∣Rb∣∑r∈Rb∣Cdiffuseb(r)−Cgt(r)∣,Cdiffuseb(r)=ksembsdiffuse(r).\mathcal{L}_{\mathrm{shade}}=\frac{1}{B}\sum_{b=1}^{B}\frac{1}{|\mathcal{R}_b|}\sum_{\mathbf{r}\in\mathcal{R}_b}\left|\mathbf{C}_{\mathrm{diffuse}}^b(\mathbf{r})-\mathbf{C}_{\mathrm{gt}}(\mathbf{r})\right|, \qquad \mathbf{C}_{\mathrm{diffuse}}^b(\mathbf{r})=\mathbf{k}_{\mathrm{sem}}^b s_{\mathrm{diffuse}}(\mathbf{r}).

    Because one albedo is shared by all pixels in a semantic class, this restricted albedo model cannot reproduce individual shadow patterns easily; the optimization is consequently encouraged to explain those patterns through the HDR environment and geometry. FEGR first initializes geometry by optimizing with the auxiliary radiance supervision alone, then optimizes the scene intrinsics and lighting using the full objective.

  7. Knowl 7 — Multi-illumination outdoor relighting performance and ablations

    data/table

    On the NeRF-OSR outdoor dataset, FEGR was optimized on 13, 12, and 11 illumination sessions for three scenes, then evaluated by relighting each scene with environment maps from five held-out sessions. Dynamic objects, sky, and vegetation were excluded using semantic masks. The following results compare average PSNR, where higher is better, and MSE, where lower is better. The ablations isolate the explicit-mesh-only representation, removal of secondary-ray shadows, and removal of per-channel exposure compensation.

    Site 1 Site 2 Site 3
    Method PSNR MSE PSNR MSE PSNR MSE
    NeRF-OSR 19.34 0.012 16.35 0.027 15.66 0.029
    Ours 21.53 0.007 17.00 0.023 17.57 0.018
    Ours (mesh only) 18.94 0.013 16.50 0.025 16.86 0.021
    Ours (w/o shadow) 20.62 0.009 16.17 0.028 16.15 0.024
    Ours (w/o exposure) 20.70 0.009 16.70 0.025 16.09 0.025

    The complete FEGR model has the best PSNR and MSE on all three sites, outperforming NeRF-OSR in every listed metric. Using only the reconstructed mesh degrades performance substantially, showing that high-resolution neural-field rendering is important for primary-ray appearance. Removing shadow ray tracing or exposure compensation also lowers performance, demonstrating that explicit visibility and photometric correction contribute independently to relighting quality.

  8. Knowl 8 — Single-illumination inverse rendering on autonomous-driving scenes

    empirical result

    FEGR was evaluated on two autonomous-driving scene collections captured under only one illumination condition: a 20-second Waymo Open Dataset clip recorded by five pinhole cameras and a 64-beam LiDAR at 10 Hz, and an in-house RoadData collection recorded by eight 3848×21683848\times2168 cameras and a 128-beam LiDAR. For RoadData, only the front-facing camera with a 120∘120^\circ field of view was used; LiDAR supplied depth supervision for both collections. The scenes span environments up to approximately 200 m×200 m200\,\mathrm{m}\times200\,\mathrm{m}, include complex geometry, occlusions, spatially varying materials, unknown potentially high-intensity sunlight, and motion blur or HDR artifacts from fast capture motion of approximately 10 m/s10\,\mathrm{m/s} on the Waymo sequence.

    Compared qualitatively with Nvdiffrecmc, FEGR reconstructs cleaner base colors, more accurate geometry, and higher-resolution environment lighting while separating cast shadows from diffuse albedo. It produces photo-realistic re-rendered views and relighting results despite the single-illumination capture. The comparison is especially relevant because Nvdiffrecmc was designed for outside-looking-in, 360-degree view coverage, whereas these driving captures provide restricted inside-looking-out views; relying heavily on sparse or incorrect LiDAR depth in that setting can produce artifacts on unobserved surfaces such as windows.

  9. Knowl 9 — Virtual object insertion with ray-traced shadows

    empirical result

    FEGR uses its recovered HDR sky illumination and explicit scene mesh to insert a virtual car into the autonomous-driving scenes. The recovered dominant sunlight direction produces shadows whose locations and boundaries agree with the surrounding real scene, while the estimated materials and environment support realistic reflections.

    A user study compared FEGR with the methods of Hold-Geoffroy et al. and Wang et al. Each comparison showed participants two augmented images containing the same inserted car, presented in random order; participants judged which result was more photorealistic based on cast-shadow and reflection quality. For each baseline comparison, 9 users evaluated 29 examples, and the majority vote determined the preference for each example. FEGR was preferred in 86.2% of comparisons against Hold-Geoffroy et al. and in 68.9% against Wang et al., indicating a strong user preference for its lighting and insertion results.

  10. Knowl 10 — Limitations of FEGR

    limitation

    FEGR remains dependent on manually designed priors and regularization terms because inverse rendering is highly ill-posed, particularly when only a single illumination condition is available. The method therefore does not guarantee a unique or physically correct decomposition in all cases. It is also limited to static scenes, as its neural-field representation does not model scene dynamics; extending it with dynamic neural representations is identified as future work.

Coverage note — No substantial contributed material was deliberately omitted; implementation details from the appendix were not expanded because they are supplementary rather than load-bearing contributions.
