RoboSpatial: Teaching Spatial Understanding to 2D and 3D Vision-Language Models for Robotics

Chan Hee SongValts BlukisJonathan TremblayStephen TyreeYu SuStan Birchfield

article2025CVPR200 citations

Introduces RoboSpatial, a large-scale multimodal dataset with three million annotations across multiple reference frames and spatial compatibility tasks, enabling vision-language models to achieve superior spatial reasoning for robotic manipulation.

Listen

Vision-language models that combine visual perception with language understanding are increasingly used to direct robots in real-world tasks such as object manipulation, navigation, and automated planning. However, existing models frequently fail at basic spatial reasoning because they are trained on general internet images lacking precise scale, depth, and viewpoint context. Most current systems cannot reliably interpret directional relationships relative to a specific object, identify available free space, or determine whether an item physically fits into a target area, which creates substantial operational bottlenecks for autonomous robotic systems.

The article demonstrates that this performance gap stems primarily from a lack of appropriate training data and introduces a large-scale multimodal dataset, ROBOSPATIAL, to teach foundational spatial reasoning to both two-dimensional and three-dimensional vision-language models. The dataset pairs five thousand real-world three-dimensional indoor and tabletop scans with one million egocentric images to generate roughly three million spatial question-answer pairs. The automated data generation pipeline systematically extracts three core relationship types: spatial context, which identifies empty coordinates for placement; spatial compatibility, which verifies whether an object physically fits with a minimum safety margin; and spatial configuration, which evaluates relative positions. Crucially, every question is formulated across three distinct reference frames—observer-centric, world-centric, and object-centric.

Rigorous evaluations show that training on this dataset substantially boosts spatial reasoning across all tested models. On a held-out validation benchmark, fine-tuned models improved their overall performance by roughly twenty to thirty percentage points over baseline versions. In physical robot manipulation trials, a standard vision-language model trained on the dataset more than doubled its task execution success rate from 23.7% to 52.6%, outperforming leading closed-source models such as GPT-4o (46.9%). Models also demonstrated strong out-of-domain transfer, successfully interpreting novel spatial prepositions like "under" and "next to" and inferring implicit object orientations from everyday language.

These findings indicate that targeted, geometrically grounded training data can resolve fundamental reasoning limitations without requiring massive, ungrounded web datasets. For organizations developing robotic automation, enhanced spatial understanding lowers physical error rates, reduces collision risks, and expands the range of complex manipulation tasks that robots can handle from natural language instructions. Organizations pursuing autonomous robotics should integrate multi-perspective spatial supervision into their visual reasoning pipelines rather than relying exclusively on off-the-shelf generalist vision models.

While three-dimensional models showed initial performance advantages over two-dimensional counterparts, direct architectural comparisons remain somewhat inconclusive due to overlapping pretraining datasets. Additionally, in physical deployments, minor two-dimensional pixel prediction shifts translated to physical errors of five to ten centimeters. Future research and technical pilots should focus on refining coordinate projection accuracy, assessing performance under varied camera viewpoints, and training models on partial, sparse sensor scans to facilitate seamless deployment on real-world mobile robots.

NVIDIAThe Ohio State Universityroboticsstatistical language modelstwo dimensionalRoboSpatial datasetspatial understandingvision-language models
arXiv: 2411.16537

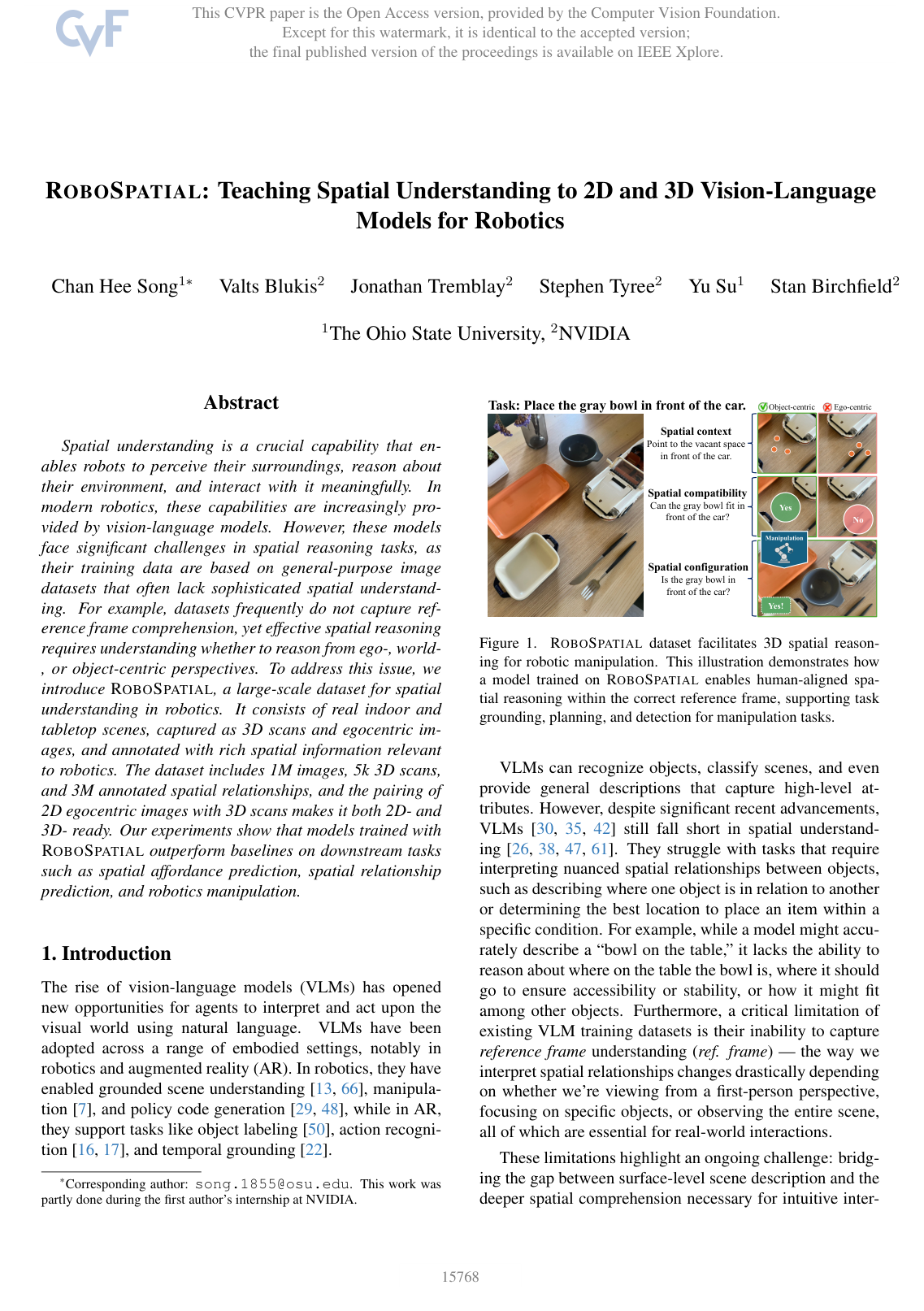

Cover for RoboSpatial: Teaching Spatial Understanding to 2D and 3D Vision-Language Models for Robotics

Abstract

Spatial understanding is a crucial capability that enables robots to perceive their surroundings, reason about their environment, and interact with it meaningfully. In modern robotics, these capabilities are increasingly provided by vision-language models. However, these models face significant challenges in spatial reasoning tasks, as their training data are based on general-purpose image datasets that often lack sophisticated spatial understanding. For example, datasets frequently do not capture reference frame comprehension, yet effective spatial reasoning requires understanding whether to reason from ego-, world-, or object-centric perspectives. To address this issue, we introduce ROBOSPATIAL, a large-scale dataset for spatial understanding in robotics. It consists of real indoor and tabletop scenes, captured as 3D scans and egocentric images, and annotated with rich spatial information relevant to robotics. The dataset includes 1M images, 5k 3D scans, and 3M annotated spatial relationships, and the pairing of 2D egocentric images with 3D scans makes it both 2D- and 3D-ready. Our experiments show that models trained with ROBOSPATIAL outperform baselines on downstream tasks such as spatial affordance prediction, spatial relationship prediction, and robotics manipulation.

Topics

roboticsstatistical language modelstwo dimensional

Keywords

RoboSpatial datasetspatial understandingvision-language modelsvisual spatial reasoningrobotic manipulationspatial affordancemotion planningmultimodal large language models

Table of Contents

  • 1. Introduction
  • 2. Related Work
  • 3. Approach
  • 3.1. Spatial Relationships
  • 3.2. Dataset Generation
  • 3.2.1. Stage 1: 3D Spatial Relation Extraction
  • 3.2.2. Stage 2: 2D Spatial Point and Region Sampling
  • 3.2.3. Question-Answer Generation
  • 4. Experiments
  • 4.1. Setup
  • 4.1.1. Trained 2D/3D VLMs
  • 4.1.2. Spatial Understanding Evaluation
  • 4.1.3. Cross-Dataset Generalization Evaluation
  • 4.1.4. Out-of-Domain Evaluation
  • Spatial Context
  • Spatial Compatibility
  • 4.2. Results
  • Spatial Configuration
  • 4.3. Real Robot Experiments
  • 5. Conclusion
  • Acknowledgements
  • References

Knowls

  1. Knowl 1 — ROBOSPATIAL: a 2D/3D robotics spatial-reasoning resource

    model/method

    ROBOSPATIAL is a large-scale spatial-understanding dataset for vision-language models used in robotics. It is constructed from real indoor and tabletop scenes and pairs egocentric RGB images with 3D scans, oriented 3D bounding boxes, and spatial question-answer annotations. The resource contains approximately 5,000 3D scans, 1 million images, and 3 million spatial question-answer pairs, making it usable for both RGB-only 2D VLMs and RGB-D or point-cloud 3D VLMs. The released resource also includes the held-out ROBOSPATIAL-Val benchmark, the manually collected ROBOSPATIAL-Home benchmark, and code for generating annotations from 3D scenes.

  2. Knowl 2 — Three actionable spatial-reasoning tasks and three reference frames

    definition

    ROBOSPATIAL decomposes robotic spatial reasoning into three task types. Spatial configuration asks whether a directional relation holds between two objects and returns a binary yes/no answer. Spatial context asks for image points in vacant space or on a support surface satisfying a directional relation to an anchor object and returns one or more 2D coordinates. Spatial compatibility asks whether a specified target object can fit in the queried region and returns a binary yes/no answer.

    Each task is generated under three reference frames: ego-centric, whose axes are determined by the camera pose; world-centric, whose axes are determined by the global scene coordinate system; and object-centric, whose axes are determined by the orientation of the anchor object. The directional vocabulary consists of left, right, above, below, front, and behind. Thus, a statement such as “in front of the car” can be evaluated relative to the camera, the global scene, or the car’s own front-facing direction.

  3. Knowl 3 — Automatic 3D-to-2D spatial annotation pipeline

    model/method

    The ROBOSPATIAL generation pipeline takes a source scene dataset containing RGB images, camera intrinsics and extrinsics, and semantic oriented 3D bounding boxes. It produces entries of the form di=(Ii,qi,ai,li)d_i=(I_i,q_i,a_i,l_i), where IiI_i is an RGB image, qiq_i is a spatial question, aia_i is its answer, and lil_i is one of the reference-frame labels ego, world, or object.

    The first stage extracts spatial relations from 3D geometry. It uses each bounding box’s 3D position and heading vector, with the heading vector treated as the object’s front direction, to determine directional relations independently in the three reference frames. Camera extrinsics transform positions between the camera, world, and anchor-object coordinate systems. For configuration questions, the pipeline evaluates visible object pairs that are uniquely identifiable in the image and records whether the relation is true or false.

    The second stage maps 3D spatial annotations into image-space targets. It builds a top-down occupancy map from the 3D bounding boxes, samples candidate points in unoccupied regions satisfying the required directional relation, projects those points into the image using the camera intrinsics, and removes candidates whose camera-to-point rays intersect an occupied box. The resulting context answer is a list of valid image coordinates.

  4. Knowl 4 — Geometry-based spatial compatibility criterion

    model/method

    For a spatial compatibility question, ROBOSPATIAL tests whether the target object can actually occupy the queried region rather than merely checking whether the region is empty. The pipeline places a virtual oriented bounding box with the target object’s dimensions at a sampled candidate location on the ground plane. The candidate is compatible only if the virtual box does not intersect any existing scene bounding box and leaves at least a 10 cm margin along every axis.

    The simulated object may translate and rotate within the plane. Compatibility is therefore recorded as true only when at least one placement satisfies collision avoidance and the 10 cm clearance requirement; otherwise it is recorded as false. This produces placement-oriented supervision for object rearrangement, assembly, and manipulation.

  5. Knowl 5 — Template-based questions with auxiliary object grounding

    algorithm

    ROBOSPATIAL converts extracted spatial relations into deterministic question-answer pairs using templates of the form “TARGET RELATION ANCHOR REFERENCE FRAME.” Configuration and compatibility templates produce binary answers, while context templates produce lists of 2D image coordinates.

    Input: RGB images, camera calibration, oriented 3D bounding boxes, extracted spatial relations
    Output: spatial question-answer pairs and object-grounding examples
    For each extracted relation:
        Select its target, anchor, directional relation, and reference frame
        Instantiate the deterministic template for configuration, context, or compatibility
        Attach the binary answer or projected coordinate list
        Project each referenced 3D bounding box into the image
        Add the object description and projected 2D bounding box to the grounding set
    Return all spatial question-answer pairs and grounding examples

    The auxiliary grounding set links object descriptions to their projected 2D bounding boxes. It is included during training to improve resolution of object references, but its annotations are not counted as spatial-reasoning evaluation targets. Deterministic wording is intended to make the supervision depend on visual grounding and geometry rather than linguistic ambiguity or commonsense priors.

  6. Knowl 6 — Training data splits and spatial evaluation protocol

    experimental setup

    The authors apply the generation pipeline to ScanNet, Matterport3D, 3RScan, HOPE, and GraspNet-1Billion, using indoor scenes for navigation-oriented layouts and tabletop scenes for object-centric manipulation. The resulting rounded dataset statistics are:

    • Indoor training: 4,916 scans, 883k images, and 2.7M question-answer pairs.
    • Indoor validation: 40 scans, 1k images, and 3k question-answer pairs.
    • Tabletop training: 190 scenes, 76k images, and 220k question-answer pairs.
    • Tabletop validation: 77 scenes, 355 images, and 3k question-answer pairs.

    ROBOSPATIAL-Val contains 6,000 heuristically generated questions from scans entirely unseen during training, with 2,000 questions each for configuration, context, and compatibility. Binary questions are evaluated by accuracy. For coordinate prediction, a predicted 3D location is counted as correct when it lies inside the convex hull of a reference point set derived from the scene geometry. The convex-hull rule gives a well-defined metric but is conservative because a point just outside the hull is marked incorrect.

    Out-of-domain evaluation uses ROBOSPATIAL-Home, which contains 350 manually written questions over RGB-D indoor scenes captured with an iPhone depth sensor; the spatial portion of BLINK, which tests binary relations such as next to, touching, and on top; and the position category of SpatialBench.

  7. Knowl 7 — 2D/3D VLM training and comparison protocol

    experimental setup

    The study evaluates RGB-only 2D VLMs and RGB-D or point-cloud 3D VLMs. The 2D models are VILA-1.5-8B, LLaVA-NeXT-8B, SpaceLLaVA-13B, RoboPoint-13B, Molmo-7B, and GPT-4o. SpaceLLaVA is a community implementation related to SpatialVLM, RoboPoint is specialized for spatial affordance points, and Molmo is designed for pointing and counting. GPT-4o is used as a closed-source baseline.

    The 3D models are 3D-LLM, which reconstructs colored 3D point clouds from multiple RGB views, and LEO, which operates on segmented colored point clouds of individual objects. Open-source models are evaluated both zero-shot and after fine-tuning on ROBOSPATIAL. Fine-tuning also uses the auxiliary object-grounding data to reduce failures caused by incorrect object reference resolution; the grounding data itself is not used to compute spatial-reasoning scores.

  8. Knowl 8 — ROBOSPATIAL substantially improves held-out in-domain spatial reasoning

    empirical result

    Fine-tuning on ROBOSPATIAL improves every reported task and environment score for every open-source model on ROBOSPATIAL-Val. The following values are averages over configuration, context, and compatibility, reported separately for indoor images, tabletop data, and the combined total:

    • VILA: indoor 43.1 to 64.8, tabletop 37.4 to 62.9, total 40.2 to 63.9.
    • LLaVA-NeXT: indoor 31.4 to 60.4, tabletop 29.2 to 60.5, total 30.3 to 60.5.
    • SpaceLLaVA: indoor 38.9 to 67.8, tabletop 46.2 to 63.6, total 43.6 to 65.7.
    • RoboPoint: indoor 39.6 to 71.0, tabletop 38.2 to 70.1, total 38.9 to 70.6.
    • 3D-LLM: indoor 37.6 to 63.1, tabletop 42.4 to 66.0, total 40.0 to 64.6.
    • LEO: indoor 41.9 to 73.1, tabletop 43.7 to 70.7, total 42.8 to 71.9.

    The un-fine-tuned reference scores for Molmo and GPT-4o are 50.1 and 50.8 overall, respectively. The strongest fine-tuned overall score is LEO at 71.9, while the strongest fine-tuned 2D score is RoboPoint at 70.6. These results show that the gains are not limited to a particular input modality or to a model already specialized for spatial pointing.

  9. Knowl 9 — Generalization to new environments, language, and implicit reference frames

    empirical result

    ROBOSPATIAL fine-tuning transfers across environment types: training on indoor scenes improves performance on tabletop data, and training on tabletop data improves performance on indoor data. The reported cross-environment scores increase from 38.7 to 48.9 and from 38.2 to 51.3 for RoboPoint, and from 41.9 to 47.2 and from 43.7 to 54.5 for LEO, for the two reported transfer directions.

    The gains also extend beyond the generated validation distribution. On ROBOSPATIAL-Home, VILA improves from 57.8 to 65.9 for configuration, 0.0 to 15.6 for context, and 69.0 to 78.0 for compatibility; LLaVA-NeXT improves from 60.2 to 76.4, 0.0 to 19.7, and 71.4 to 80.1; SpaceLLaVA improves from 61.0 to 71.6, 0.08 to 13.1, and 34.3 to 62.0; and RoboPoint improves from 59.4 to 70.0, 2.5 to 21.3, and 80.1 to 88.6. On BLINK, the corresponding accuracy changes are 72.7 to 79.7 for VILA, 71.3 to 79.0 for LLaVA-NeXT, 76.2 to 81.8 for SpaceLLaVA, and 63.6 to 70.6 for RoboPoint. On SpatialBench, they are 53.0 to 73.6, 55.9 to 70.6, 47.1 to 67.7, and 44.1 to 64.7, respectively.

    The authors report that ROBOSPATIAL-trained models can handle prepositions absent from training, such as under, next to, and far away, by mapping them to learned directional and proximity primitives. They also often infer an intended object-centric frame when ROBOSPATIAL-Home questions omit an explicit frame, suggesting that the training data associates object geometry and orientation with spatial language.

  10. Knowl 10 — Real-robot manipulation validation and deployment caveats

    empirical result

    The authors test spatial predictions in tabletop manipulation with a Kinova Jaco arm and a ZED2 RGB-D camera. The system uses a modular design: a VLM predicts a spatial answer or target point, and cuRobo separately plans collision-free robot motion for picking and placing. The experiment uses colored cubes, cylinders, food items, and toys to reduce object-recognition difficulty, and comprises more than 200 model queries.

    Reported task success rates are 23.7% for LLaVA-NeXT, 52.6% for LLaVA-NeXT fine-tuned on ROBOSPATIAL, 44.7% for RoboPoint, 46.2% for RoboPoint fine-tuned on ROBOSPATIAL, 43.8% for Molmo, and 46.9% for GPT-4o. ROBOSPATIAL-trained LLaVA-NeXT achieves the highest success rate. Qualitative trials indicate that fine-tuning helps align “in front of” with an object’s head direction and place objects at a scale-appropriate distance, whereas RoboPoint often places objects too far from the reference object.

    The paper identifies two important deployment limitations. A small 2-pixel error in a 2D image prediction can become a 5–10 cm physical placement error, and some 2D failures arise during projection from image coordinates into 3D. In addition, the apparent advantage of 3D VLMs is not conclusive because 3D-LLM and LEO have pretraining exposure to RGB-D indoor datasets that overlap with source environments. ROBOSPATIAL is therefore designed to support future controlled comparisons and 3D models that operate on partial rather than complete scans.

Coverage note — No substantial contributed material was omitted; detailed per-task entries in the in-domain tables were condensed into their task-averaged results, while the main cross-domain, out-of-domain, and robot findings were retained.
