Language Conditioned Spatial Relation Reasoning for 3D Object Grounding

Shizhe ChenPierre-Louis GuhurMakarand TapaswiCordelia SchmidIvan Laptev

article2022NeurIPS149 citations

Proposes a transformer architecture with language-conditioned spatial self-attention and teacher-student knowledge distillation to improve 3D object grounding by accurately reasoning over relative distances and orientations in point clouds.

Listen

Enabling autonomous systems and robots to accurately locate physical items in three-dimensional environments from natural language commands is a foundational challenge in modern artificial intelligence. In practical settings, language frequently distinguishes between identical objects using spatial relationships, such as identifying the nearest backpack or selecting a door to the left. However, standard machine learning architectures often fail to resolve these relationships effectively in raw 3D point cloud data, and training is severely constrained by the scarcity of annotated 3D data compared to 2D image domains.

The article evaluates and demonstrates a new vision-and-language framework designed to ground 3D objects and reason about their spatial configurations directly from natural language descriptions. Specifically, it tests whether integrating explicit geometric relationships into self-attention layers alongside a targeted knowledge distillation strategy can significantly outperform existing state-of-the-art approaches.

The researchers developed the ViL3DRel model, which incorporates a specialized spatial self-attention layer into a multimodal transformer architecture to encode pairwise relative distances and horizontal and vertical orientations between objects. To address the problem of noisy 3D point cloud representations during training, the team introduced a teacher-student framework without relying on external 2D images. A teacher model was first trained using ground-truth object labels and dominant colors to master relational reasoning, after which its intermediate attention and hidden representations were distilled into a student model operating solely on raw point cloud inputs. The approach was evaluated across three widely recognized benchmark datasets based on real-world indoor scans: Nr3D, Sr3D, and ScanRefer.

The evaluation produced several decisive findings. First, the proposed framework achieved substantial performance gains over previous state-of-the-art models, reaching 64.4% accuracy on Nr3D and 72.8% on Sr3D given ground-truth object proposals, representing absolute improvements of 9.3 and 8.3 percentage points respectively. Second, on the ScanRefer dataset using automatically detected proposals, the model achieved an overall accuracy of 37.73% at the strict 0.5 intersection-over-union metric, outperforming the prior benchmark of 33.26%. Third, ablation experiments revealed that combining explicit distance and orientation modeling is crucial: distance features improved view-independent queries, while orientation features drove a 10.2 percentage point gain on view-dependent queries. Finally, transferring intermediate attention weights and hidden states from the teacher model provided a clear performance boost of over 6 percentage points compared to training the student model from scratch.

These findings demonstrate that spatial reasoning in complex environments requires explicit geometric structure rather than relying purely on implicit learning within standard transformer layers. Operationally, the teacher-student strategy provides a highly cost-effective training paradigm by bypassing the requirement for costly paired 2D imagery or camera calibrations. Improving 3D grounding accuracy directly enhances the reliability, safety, and autonomy of robotic assistants navigating cluttered physical environments.

Organizations developing embodied AI and robotics should adopt explicit spatial attention mechanisms and cross-modal distillation strategies to enhance spatial comprehension. Further research should focus on integrating these spatial reasoning layers directly into single-stage, end-to-end 3D object detection pipelines to eliminate bottlenecks caused by imperfect initial proposal generation. Leaders should note that confidence in these results is supported by rigorous multi-benchmark evaluations, though practical deployment cautions remain due to performance degradation when relying on noisy automated object detectors rather than ground-truth proposals, as well as the limited environmental diversity present in existing benchmark datasets.

CNRSEcole Normale SupérieureINRIAInternational Institute of Information Technology, HyderabadPSL Research University3d object3d objectsreasoning3D object groundingspatial relation reasoningvisual grounding
arXiv: 2211.09646cshizhe/vil3dref

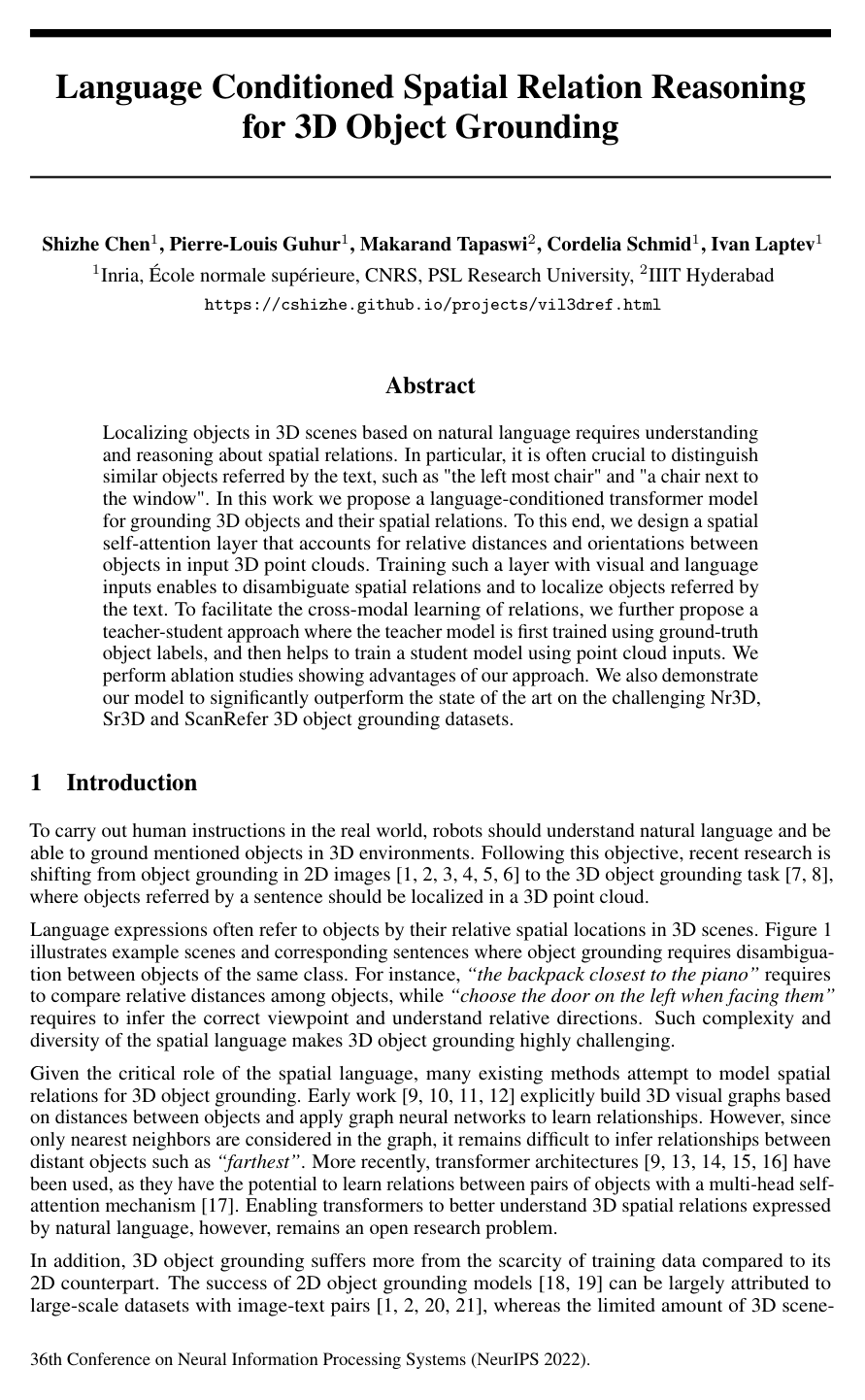

Cover for Language Conditioned Spatial Relation Reasoning for 3D Object Grounding

Abstract

Localizing objects in 3D scenes based on natural language requires understanding and reasoning about spatial relations. In particular, it is often crucial to distinguish similar objects referred by the text, such as "the left most chair" and "a chair next to the window". In this work we propose a language-conditioned transformer model for grounding 3D objects and their spatial relations. To this end, we design a spatial self-attention layer that accounts for relative distances and orientations between objects in input 3D point clouds. Training such a layer with visual and language inputs enables to disambiguate spatial relations and to localize objects referred by the text. To facilitate the cross-modal learning of relations, we further propose a teacher-student approach where the teacher model is first trained using ground-truth object labels, and then helps to train a student model using point cloud inputs. We perform ablation studies showing advantages of our approach. We also demonstrate our model to significantly outperform the state of the art on the challenging Nr3D, Sr3D and ScanRefer 3D object grounding datasets.

Topics

3d object3d objectsreasoning

Keywords

3D object groundingspatial relation reasoningvisual groundingrelative positional encodingspatial self-attentionSr3D datasetview-dependent sentences

Table of Contents

  • 1 Introduction
  • 2 Related Work
  • 3 Method
  • 3.1 Architecture Overview
  • 3.2 Spatial Self-Attention
  • 3.3 Teacher-Student Training
  • 4 Experiments
  • 4.1 Datasets
  • 4.2 Experimental Setting
  • 4.3 Ablation Studies
  • 4.3.1 Spatial Relation Reasoning
  • 4.3.2 Teacher-Student Training
  • 4.4 Comparison with State-of-the-Art Methods
  • 5 Conclusion
  • Acknowledgments and Disclosure of Funding
  • References
  • Checklist

Knowls

  1. Knowl 1 — ViL3DRel Architecture for 3D Object Grounding

    model/method

    The Vision-and-Language 3D Relation reasoning model (ViL3DRel) addresses the 3D object grounding task: identifying and selecting a referred target 3D bounding box BT∈R6B_T \in \mathbb{R}^6 in a 3D scene point cloud Pscene∈RK×6\mathcal{P}_{scene} \in \mathbb{R}^{K \times 6} given a natural language sentence SS. Operating within a two-stage detection-then-matching framework, the architecture assumes NN candidate object proposals (O1,…,ON)(O_1, \dots, O_N), where each proposal OiO_i contains a subset of points Pi∈RKi×6P_i \in \mathbb{R}^{K_i \times 6}.

    The framework consists of four main modules:

    1. Text Encoding: A 3-layer transformer initialized from BERT encodes the MM-word sentence SS into token features (scls,s1,…,sM)(s_{cls}, s_1, \dots, s_M), where scls,sj∈Rds_{cls}, s_j \in \mathbb{R}^d (d=768d=768).

    2. Object Encoding: For each proposal OiO_i, point coordinates in PiP_i are normalized into a unit ball and processed by a fixed PointNet++ network to extract visual point cloud feature oi0∈Rdo_i^0 \in \mathbb{R}^d. The proposal's 3D bounding center ci=[cx,cy,cz]∈R3c_i = [c_x, c_y, c_z] \in \mathbb{R}^3 (mean of PiP_i) and 3D spatial extent zi=[zx,zy,zz]∈R3z_i = [z_x, z_y, z_z] \in \mathbb{R}^3 are projected into an absolute 3D position embedding li=Wl[ci;zi]∈Rdl_i = W_l [c_i; z_i] \in \mathbb{R}^d via a linear layer WlW_l.

    3. Multimodal Fusion: A stack of L=4L=4 transformer layers fuses textual and visual features. In layer ll, the input visual token is augmented with its absolute location feature (oil+lio_i^l + l_i), processed by a language-conditioned spatial self-attention layer to yield contextualized representation o^il\hat{o}_i^l, passed to a cross-attention layer that uses o^il\hat{o}_i^l as queries and text representations as keys/values, and finalized by a 2-layer feed-forward network (FFN).

    4. Grounding Head: A two-layer FFN scores each multimodal proposal token oiLo_i^L from the final fusion layer and applies a softmax over all NN proposals to predict proposal selection probabilities pip_i. The proposal with the highest probability is selected as the referred target.

  2. Knowl 2 — Language-Conditioned Spatial Self-Attention Mechanism

    model/method

    To disambiguate same-class objects referred to by relative spatial descriptions, ViL3DRel incorporates an explicit spatial self-attention layer into the multimodal transformer. For NN object proposals, standard self-attention computes query, key, and value matrices Q=XWQ,K=XWK,V=XWV∈RN×dhQ = X W_Q, K = X W_K, V = X W_V \in \mathbb{R}^{N \times d_h} from object features X∈RN×dX \in \mathbb{R}^{N \times d}, producing appearance attention logits ωijo=QiKjTdh\omega_{ij}^o = \frac{Q_i K_j^T}{\sqrt{d_h}}.

    To explicitly account for relative distances and relative orientations between objects (Oi,Oj)(O_i, O_j):

    1. An explicit 5-dimensional pairwise spatial feature vector fijs∈R5f_{ij}^s \in \mathbb{R}^5 is computed: fijs=[dij,sin⁡(θh),cos⁡(θh),sin⁡(θv),cos⁡(θv)]f_{ij}^s = [d_{ij}, \sin(\theta_h), \cos(\theta_h), \sin(\theta_v), \cos(\theta_v)] where dij=∥ci−cj∥2d_{ij} = \|c_i - c_j\|_2 is the Euclidean distance between 3D proposal centers ci,cj∈R3c_i, c_j \in \mathbb{R}^3, and θh,θv\theta_h, \theta_v are horizontal and vertical angles of the vector connecting cic_i to cjc_j.

    2. A language-conditioned gating weight gis∈R5g_i^s \in \mathbb{R}^5 is predicted for proposal OiO_i to select relevant spatial relations conditioned on the sentence: gis=WST(scls+oil)g_i^s = W_S^T (s_{cls} + o_i^l) where WS∈Rd×5W_S \in \mathbb{R}^{d \times 5} is a learnable projection matrix, sclss_{cls} is the sentence CLS token, and oilo_i^l is the object feature at layer ll.

    3. The spatial relevance score between objects OiO_i and OjO_j is given by: ωijs=gis⋅fijs\omega_{ij}^s = g_i^s \cdot f_{ij}^s

    Multi-head attention across H=12H=12 heads is employed, allowing independent spatial relation reasoning across heads before concatenation.

  3. Knowl 3 — Sigmoid-Softmax Attention Fusion Formulation

    equation

    In ViL3DRel's spatial self-attention module, the language-conditioned pairwise spatial relevance ωijs\omega_{ij}^s is fused with the standard scaled dot-product visual attention logit ωijo=QiKjTdh\omega_{ij}^o = \frac{Q_i K_j^T}{\sqrt{d_h}} for object proposal query ii and key jj (i,j∈{1,…,N}i, j \in \{1, \dots, N\}) via a sigmoid-softmax (sigsoftmax) modulation function:

    ωij=σ(ωijs)exp⁡(ωijo)∑l=1Nσ(ωils)exp⁡(ωilo)\omega_{ij} = \frac{\sigma(\omega_{ij}^s) \exp(\omega_{ij}^o)}{\sum_{l=1}^N \sigma(\omega_{il}^s) \exp(\omega_{il}^o)}

    where σ(x)=11+exp⁡(−x)\sigma(x) = \frac{1}{1 + \exp(-x)} is the sigmoid activation function, and Ω=[ωij]N×N\Omega = [\omega_{ij}]_{N \times N} forms the normalized attention weight matrix used to aggregate the value vectors VV as SpatialSelfAttn(Q,K,V)=ΩV\text{SpatialSelfAttn}(Q, K, V) = \Omega V.

  4. Knowl 4 — Teacher-Student Knowledge Distillation for 3D Grounding

    model/method

    To overcome performance degradation caused by noisy 3D point cloud object representations, ViL3DRel uses a teacher-student training framework. The teacher and student share the same transformer architecture but differ in their object inputs:

    • Teacher Object Representation: Uses ground-truth object category labels and dominant colors. Ground-truth class labels are embedded via pre-trained GloVe word vectors. Dominant colors are extracted by fitting a 3-component Gaussian Mixture Model (GMM) on point RGB values for each object, projecting each component's mean RGB vector via a linear layer, and computing their mixture-weighted sum. The teacher's initial object representation is the sum of the class embedding and the aggregated color embedding.
    • Student Object Representation: Uses object visual features extracted from 3D point clouds via PointNet++.

    Knowledge is distilled from the pre-trained teacher to the student model via two distillation loss functions:

    1. Attention Distillation Loss (Lattn\mathcal{L}_{attn}): Enforces the student to mimic all self-attention and cross-attention matrices of the teacher across all L=4L=4 layers and H=12H=12 heads: Lattn=1LH∑l=1L∑h=1HMSE(ΩlhS−ΩlhT)\mathcal{L}_{attn} = \frac{1}{LH} \sum_{l=1}^L \sum_{h=1}^H \text{MSE}(\Omega_{lh}^S - \Omega_{lh}^T) where ΩlhS\Omega_{lh}^S and ΩlhT\Omega_{lh}^T are student and teacher attention matrices at layer ll, head hh.

    2. Hidden State Distillation Loss (Lhidden\mathcal{L}_{hidden}): Distills output representations across all layers l∈{0,…,L}l \in \{0, \dots, L\} for all NN proposals: Lhidden=1LN∑l=0L∑i=1NMSE(oil,S−oil,T)\mathcal{L}_{hidden} = \frac{1}{LN} \sum_{l=0}^L \sum_{i=1}^N \text{MSE}(o_i^{l,S} - o_i^{l,T}) where oil,S,oil,T∈Rdo_i^{l,S}, o_i^{l,T} \in \mathbb{R}^d are student and teacher token embeddings for object proposal ii at layer ll.

  5. Knowl 5 — Multi-Loss Training Objective for ViL3DRel

    equation

    The overall training objective L\mathcal{L} for training the ViL3DRel student model combines object grounding loss, auxiliary classification losses, and distillation losses:

    L=Log+Lsent+Lobju+Lobjm+λaLattn+λhLhidden\mathcal{L} = \mathcal{L}_{og} + \mathcal{L}_{sent} + \mathcal{L}_{obj}^u + \mathcal{L}_{obj}^m + \lambda_a \mathcal{L}_{attn} + \lambda_h \mathcal{L}_{hidden}

    where:

    • Log\mathcal{L}_{og} is the cross-entropy 3D object grounding loss over proposal predictions pip_i.
    • Lsent\mathcal{L}_{sent} is a cross-entropy sentence classification loss predicting the target category from the text classification token sclss_{cls}.
    • Lobju\mathcal{L}_{obj}^u is an object category classification loss based on unimodal visual proposal features oi0o_i^0.
    • Lobjm\mathcal{L}_{obj}^m is an object category classification loss based on multimodal fused proposal features oiLo_i^L.
    • Lattn\mathcal{L}_{attn} is the mean squared error attention distillation loss.
    • Lhidden\mathcal{L}_{hidden} is the mean squared error hidden state distillation loss.
    • Distillation loss hyperparameters are set to λa=1.0\lambda_a = 1.0 and λh=0.02\lambda_h = 0.02.

  6. Knowl 6 — Grounding Accuracy on Nr3D and Sr3D Benchmarks

    data/table

    Evaluated using ground-truth 3D object proposals on the human-annotated Nr3D dataset and template-generated Sr3D dataset, ViL3DRel outperforms existing methods across all evaluation splits (overall, easy distractors, hard distractors, viewpoint-dependent, and viewpoint-independent descriptions):

    Method Nr3D Sr3D
    Overall Easy Hard ViewDep ViewIndep Overall Easy Hard ViewDep ViewIndep
    ReferIt3D 35.6 43.6 27.9 32.5 37.1 40.8 44.7 31.5 39.2 40.8
    ScanRefer 34.2 41.0 23.5 29.9 35.4 - - - - -
    TGNN 37.3 44.2 30.6 35.8 38.0 - - - - -
    InstanceRefer 38.8 46.0 31.8 34.5 41.9 48.0 51.1 40.5 45.4 48.1
    FFL-3DOG 41.7 48.2 35.0 37.1 44.7 - - - - -
    3DVG-Trans 40.8 48.5 34.8 34.8 43.7 51.4 54.2 44.9 44.6 51.7
    TransRefer3D 42.1 48.5 36.0 36.5 44.9 57.4 60.5 50.2 49.9 57.7
    LanguageRefer 43.9 51.0 36.6 41.7 45.0 56.0 58.9 49.3 49.2 56.3
    SAT 49.2 56.3 42.4 46.9 50.4 57.9 61.2 50.0 49.2 58.3
    3D-SPS 51.5 58.1 45.1 48.0 53.2 62.6 56.2 65.4 49.2 63.2
    Multi-view 55.1 61.3 49.1 54.3 55.4 64.5 66.9 58.8 58.4 64.7
    ViL3DRel (Ours) 64.4 70.2 57.4 62.0 64.5 72.8 74.9 67.9 63.8 73.2

    Compared to the previous best approach (Multi-view), ViL3DRel achieves an absolute gain of +9.3%+9.3\% on Nr3D (from 55.1%55.1\% to 64.4%64.4\%) and +8.3%+8.3\% on Sr3D (from 64.5%64.5\% to 72.8%72.8\%).

  7. Knowl 7 — Grounding Accuracy on ScanRefer Benchmark

    data/table

    On the ScanRefer dataset, performance is evaluated with ground-truth proposals and detected object proposals (using pre-trained PointGroup object detections). Metrics are bounding box IoU accuracies at thresholds 0.25 ([email protected]) and 0.5 ([email protected]) across "Unique" (single object of category in scene), "Multiple" (distractors present), and "Overall" categories:

    Method Detector Unique Multiple Overall GT Props
    [email protected] [email protected] [email protected] [email protected] [email protected] [email protected] Overall Acc (%)
    ReferIt3D - - - - - - - 46.9
    Non-SAT VN 68.48 47.38 31.81 21.34 38.92 26.40 48.2
    SAT VN 73.21 50.83 37.64 25.16 44.54 30.14 53.8
    InstanceRefer PG 77.45 66.83 31.27 24.77 40.23 32.93 -
    Multi-view PG 77.67 66.45 31.92 25.26 40.80 33.26 -
    ViL3DRel (Ours) PG 81.58 68.62 40.30 30.71 47.94 37.73 59.8
    Upper Bound PG 88.63 74.47 78.82 60.37 80.64 62.98 100.0

    (Note: VN = VoteNet, PG = PointGroup).

    Using identical PointGroup proposals, ViL3DRel outperforms Multi-view by +7.14+7.14 points in [email protected] (from 40.80%40.80\% to 47.94%47.94\%) and +4.47+4.47 points in [email protected] (from 33.26%33.26\% to 37.73%37.73\%). Given ground-truth proposals, ViL3DRel achieves 59.8%59.8\%, exceeding SAT (53.8%53.8\%).

  8. Knowl 8 — Ablation Analysis of Spatial Attention Features and Fusion Modes

    data/table

    Ablations on the Nr3D teacher model (with ground-truth object labels) demonstrate the individual and combined impact of pairwise spatial relation features, attention head structures, attention fusion functions, and data augmentation:

    Row Pairwise Dist Pairwise Ort Multi-Head Spat. Fusion Mode RotAug Overall (%) ViewDep (%) ViewIndep (%)
    R1 - - - - No 53.5 51.4 54.6
    R2 (+Color) - - - - No 55.1 53.8 55.8
    R3 (+RotAug) - - - - Yes 62.4 58.3 64.5
    R4 (Dist only) Yes No Yes sigs Yes 66.0 53.8 72.0
    R5 (Ort only) No Yes Yes sigs Yes 71.3 68.5 72.6
    R6 (Single Head) Yes Yes No sigs Yes 67.7 65.2 69.0
    R7 (Bias RPE) Yes Yes Yes bias Yes 55.4 46.8 59.6
    R8 (Context RPE) Yes Yes Yes ctx Yes 56.4 50.8 59.1
    R9 (Full ViL3DRel) Yes Yes Yes sigs Yes 74.4 71.3 75.9

    Key takeaways include:

    1. Distance vs. Orientation: Distance features primarily improve view-independent grounding (64.5%→72.0%64.5\% \to 72.0\%) without helping view-dependent queries (58.3%→53.8%58.3\% \to 53.8\%). Orientation features boost view-dependent grounding substantially (58.3%→68.5%58.3\% \to 68.5\%). Combining both achieves 74.4%74.4\%.
    2. Attention Fusion: Sigmoid-softmax (sigs, 74.4%74.4\%) markedly outperforms conventional relative positional encoding (RPE) mechanisms such as additive attention bias (bias, 55.4%55.4\%) and contextual projection (ctx, 56.4%56.4\%).
    3. Spatial Feature Construction: Computing geometric features from 3D object centers achieves 74.4%74.4\% (identical to using bottom centers at 74.4%74.4\%), whereas an MLP trained directly on concatenated 3D bounding box coordinates only achieves 57.4%57.4\%.

  9. Knowl 9 — Ablation Analysis of Distillation Objectives in Student Learning

    data/table

    Ablation of knowledge transfer components from the teacher model (using ground-truth semantic object representations) to the student model (using PointNet++ point cloud representations) on the Nr3D dataset:

    Model Setup Teacher Weight Init Lattn\mathcal{L}_{attn} Lhidden\mathcal{L}_{hidden} Grounding Accuracy (%)
    Teacher (GT labels) - - - 74.4
    Student Baseline No No No 58.1
    Student + Weight Init Yes No No 62.6
    Student + Attention Distillation No Yes No 63.6
    Student + Hidden Distillation No No Yes 62.1
    Student + Full Distillation (ViL3DRel) No Yes Yes 64.4

    Distilling intermediate attention maps (Lattn\mathcal{L}_{attn}, +5.5%+5.5\%) transfers relational structure more effectively than distilling hidden states alone (Lhidden\mathcal{L}_{hidden}, +4.0%+4.0\%). Combining Lattn\mathcal{L}_{attn} and Lhidden\mathcal{L}_{hidden} achieves the highest performance (64.4%64.4\%, +6.3%+6.3\% over the undistilled student baseline).

  10. Knowl 10 — Limitations of the ViL3DRel Framework

    limitation

    The ViL3DRel framework exhibits three primary limitations:

    1. Dependence on Two-Stage Proposal Generation: Grounding accuracy is constrained by the recall and quality of the upstream 3D instance segmentation / proposal network. On ScanRefer, grounding accuracy drops by more than 12 percentage points when shifting from ground-truth object proposals (59.8%59.8\%) to automatic PointGroup detector proposals (47.94%47.94\%).
    2. Lack of Explicit Object Orientation and Pose Estimation: Pairwise relative spatial features are calculated between 3D object centroids using global coordinate orientations rather than object-centric reference frames, as predicting accurate 3D poses for arbitrary point cloud objects remains difficult.
    3. Environmental Diversity in Datasets: Evaluations are restricted to ScanNet-derived indoor environments (Nr3D, Sr3D, ScanRefer), which have bounded visual and geometric diversity.

Coverage note — None omitted; all primary methodology, architectural details, loss functions, distillation mechanisms, benchmark evaluations, and ablation studies have been captured.
