CoT-VLA: Visual Chain-of-Thought Reasoning for Vision-Language-Action Models

Qingqing ZhaoYao LuMoo Jin KimZipeng FuZhuoyang ZhangYecheng WuZhaoshuo LiQianli MaSong HanChelsea Finn

article2025CVPR581 citations

Introduces CoT-VLA, a framework that equips vision-language-action models with explicit temporal planning by autoregressively predicting future visual sub-goals prior to action generation, outperforming state-of-the-art robotic manipulation methods in both simulation and the real world.

Listen

Robotic foundation models that translate camera observations and natural language instructions into physical actions have demonstrated considerable promise. However, standard systems map inputs directly to outputs, skipping explicit reasoning or multi-step planning. This direct approach frequently fails during complex manipulation tasks because models can lose track of instructions when environments appear visually ambiguous.

The article demonstrates that introducing explicit visual chain-of-thought reasoning improves robotic control. It develops and evaluates a 7-billion-parameter system called CoT-VLA, which generates an image of an intended visual subgoal before predicting a short sequence of robot actions to achieve that state.

The evaluation used both simulated environments and physical robotic platforms. The base model was pretrained on large collections of robot demonstrations and action-free human video datasets, then fine-tuned on task-specific demonstrations. Testing took place across simulated tasks evaluating spatial, object, and goal reasoning, as well as physical experiments using tabletop robotic arms on single- and multi-instruction manipulation tasks.

Key findings show that CoT-VLA improves physical robot performance by approximately 17% and simulated manipulation success by 6% over existing leading baselines. On real-world tabletop experiments, the system achieved a 78.8% average success rate, compared to a 53.7% baseline for models fine-tuned without pretraining. Ablation tests confirmed that visual reasoning, multi-action predictions, and structured attention mechanisms each contributed to higher task success. Additionally, tests using true goal images raised task success by 40%, confirming that higher-quality visual planning directly boosts execution success.

These findings suggest that enabling robots to plan intermediate visual states improves instruction grounding and operational reliability without requiring specialized state annotations. Furthermore, the approach allows engineering teams to leverage vast, unannotated video datasets to improve robot reasoning, reducing the reliance on costly, teleoperated robot data collection.

Decision-makers should consider piloting visual reasoning architectures for complex manipulation workflows where instruction precision is essential. Future development should focus on optimizing inference speed, as generating intermediate image tokens causes an approximate seven-fold computational slowdown compared to direct-action models. Organizations should also evaluate newer fast-inference or diffusion-based generative models to improve visual quality and operational latency before deploying visual reasoning models in time-critical environments.

Massachusetts Institute of TechnologyNVIDIAStanford Universitydemonstrationsframeslanguage modelvision-language-action modelsvisual chain-of-thought reasoningvisual reasoning capabilities
arXiv: 2503.22020

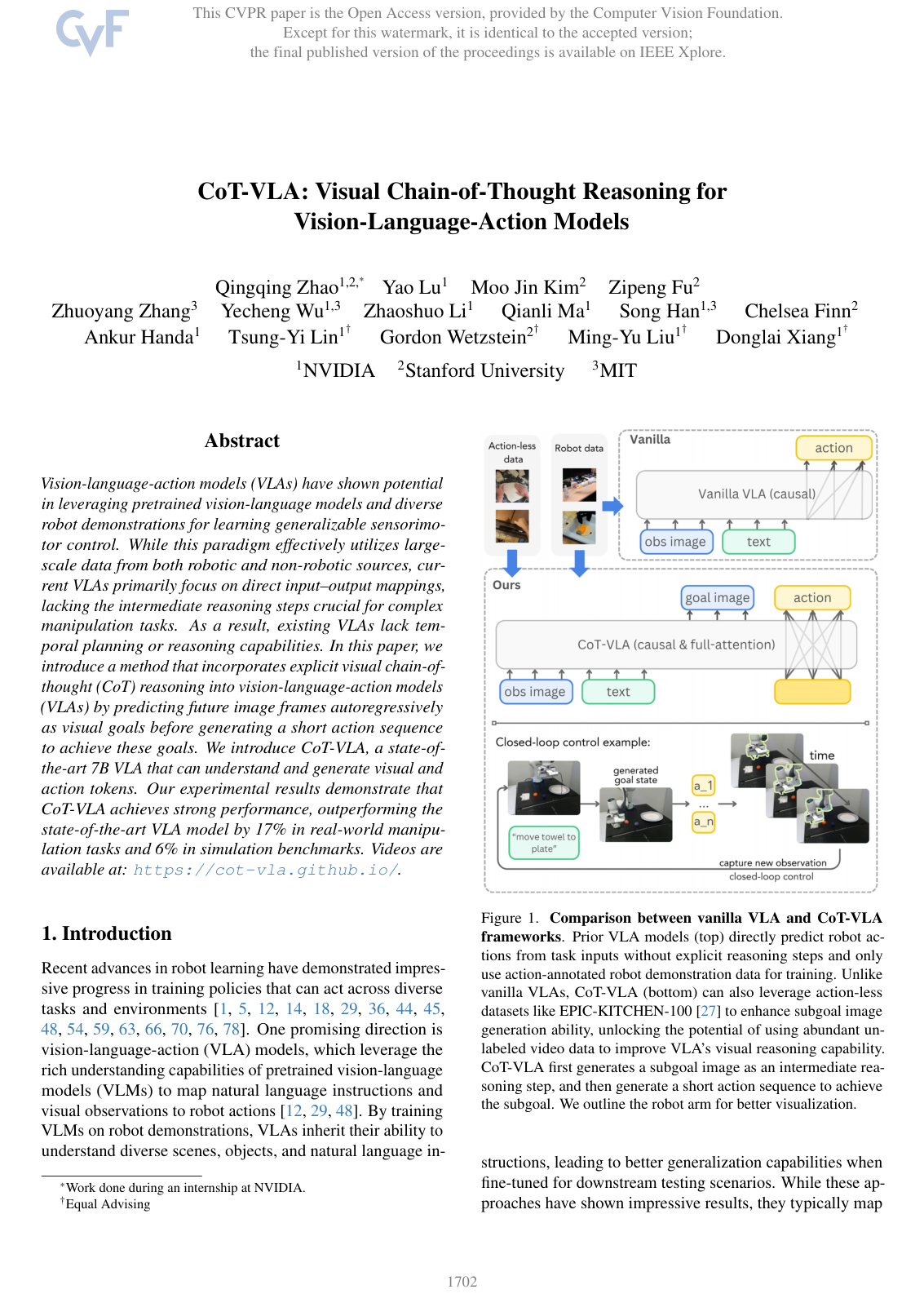

Cover for CoT-VLA: Visual Chain-of-Thought Reasoning for Vision-Language-Action Models

Abstract

Vision-language-action models (VLAs) have shown potential in leveraging pretrained vision-language models and diverse robot demonstrations for learning generalizable sensorimotor control. While this paradigm effectively utilizes large-scale data from both robotic and non-robotic sources, current VLAs primarily focus on direct input--output mappings, lacking the intermediate reasoning steps crucial for complex manipulation tasks. As a result, existing VLAs lack temporal planning or reasoning capabilities. In this paper, we introduce a method that incorporates explicit visual chain-of-thought (CoT) reasoning into vision-language-action models (VLAs) by predicting future image frames autoregressively as visual goals before generating a short action sequence to achieve these goals. We introduce CoT-VLA, a state-of-the-art 7B VLA that can understand and generate visual and action tokens. Our experimental results demonstrate that CoT-VLA achieves strong performance, outperforming the state-of-the-art VLA model by 17% in real-world manipulation tasks and 6% in simulation benchmarks. Project website: this https URL

Topics

demonstrationsframeslanguage modelreasoningaction sequencesrobotic arms

Keywords

vision-language-action modelsvisual chain-of-thought reasoningvisual reasoning capabilitiesvisuomotor policy learninggoal-conditioned imitationaction sequence predictionaction-less video dataground-truth goal imageshybrid attentionmanipulation tasks

Table of Contents

  • 1 Introduction
  • 2 Related Work
  • 3 CoT-VLA
  • 3.1 Visual Chain-of-Thought Reasoning
  • 3.2 The Base Vision-Language Model
  • 3.3 Training Procedures
  • 4 Experiments
  • 4.1 Experimental Setup
  • 4.2 Evaluations Results
  • 4.3 Ablation Study
  • 4.4 Better Visual Reasoning Helps
  • 5 Conclusion, Limitations and Future Work
  • References
  • 6 Implementation Details
  • 6.1 Data Details
  • 6.2 Hyperparameters
  • 6.3 Training

Knowls

  1. Knowl 1 — Visual Chain-of-Thought Reasoning Formulation for Vision-Language-Action Models

    model/method

    Vision-Language-Action (VLA) models typically map natural language instructions ll and current visual observations st\mathbf{s}_t directly to robot actions a^t∼Pθ(at∣st,l)\hat{\mathbf{a}}_t \sim P_\theta(\mathbf{a}_t \mid \mathbf{s}_t, l). Visual Chain-of-Thought (Visual-CoT) reasoning decomposes this mapping into two sequential phases:

    1. Visual Subgoal Reasoning: The policy first predicts an explicit future visual subgoal image s^t+n\hat{\mathbf{s}}_{t+n} located nn time steps ahead in pixel space: s^t+n∼Pθ(st+n∣st,l)\hat{\mathbf{s}}_{t+n} \sim P_\theta(\mathbf{s}_{t+n} \mid \mathbf{s}_t, l)

    2. Subgoal-Conditioned Action Prediction: The policy then predicts a sequence of mm action steps to reach the generated visual subgoal: {a^t,…,a^t+m}∼Pθ({at,…,at+m}∣st,l,s^t+n)\{\hat{\mathbf{a}}_t, \dots, \hat{\mathbf{a}}_{t+m}\} \sim P_\theta(\{\mathbf{a}_t, \dots, \mathbf{a}_{t+m}\} \mid \mathbf{s}_t, l, \hat{\mathbf{s}}_{t+n})

    This formulation separates visual temporal planning from low-level motor execution. Consequently, the visual reasoning phase can be trained jointly on robot demonstrations Dr={(l,a1:T,s1:T)}\mathcal{D}_r = \{(l, \mathbf{a}_{1:T}, \mathbf{s}_{1:T})\} and action-less captioned video datasets Dv={(l,s1:T)}\mathcal{D}_v = \{(l, \mathbf{s}_{1:T})\}, while the action prediction phase is trained exclusively on action-annotated robot demonstrations Dr\mathcal{D}_r.

  2. Knowl 2 — CoT-VLA Architecture and Hybrid Attention Mechanism

    model/method

    CoT-VLA is a 7B-parameter multimodal model built on VILA-U that unifies visual understanding, autoregressive image generation, and multi-step action prediction within a single transformer backbone.

    Visual observations st\mathbf{s}_t and future subgoal images st+n\mathbf{s}_{t+n} (at 256×256256 \times 256 resolution) are encoded using a unified vision tower and quantized via Residual Quantization (RQ-VAE) into 16×1616 \times 16 spatial patches with a residual depth D=4D = 4, yielding 16×16×416 \times 16 \times 4 discrete visual tokens per image. A depth transformer PδP_\delta autoregressively predicts residual tokens conditioned on the code embedding hj\mathbf{h}_j generated by the language backbone.

    Robot actions ai∈R7\mathbf{a}_i \in \mathbb{R}^7 (7-DoF end-effector control) are discretized by mapping each continuous action dimension independently into 256 discrete bins between the 1st and 99th percentiles of the training distribution, repurposed from the 256 least frequent tokens in the text vocabulary.

    CoT-VLA employs a hybrid attention mechanism:

    • Causal Attention: Enforced during text prompt encoding and autoregressive generation of the 256 discrete visual tokens corresponding to the subgoal image s^t+n\hat{\mathbf{s}}_{t+n}.
    • Full (Bidirectional) Attention: Applied across all action chunk tokens [a^t,…,a^t+m][\hat{\mathbf{a}}_t, \dots, \hat{\mathbf{a}}_{t+m}] using special tokens for coordinates ([x][x]), orientation ([θ][\theta]), and gripper state ([g][g]), allowing all action dimensions across the temporal chunk to interact simultaneously for parallel decoding.

  3. Knowl 3 — CoT-VLA Training Objectives and Multi-Data Pretraining

    equation

    CoT-VLA is trained end-to-end to minimize a joint objective combining discrete visual token prediction loss and action token cross-entropy loss:

    L=Laction+Lvisual\mathcal{L} = \mathcal{L}_{\text{action}} + \mathcal{L}_{\text{visual}}

    The visual subgoal generation loss Lvisual\mathcal{L}_{\text{visual}} optimizes the depth transformer PδP_\delta over all visual token positions jj and residual quantization depths d∈{1,…,D}d \in \{1, \dots, D\} with residual depth D=4D = 4:

    Lvisual=−∑j∑d=1Dlog⁡Pδ(kj,d∣kj,<d,hj)\mathcal{L}_{\text{visual}} = -\sum_{j} \sum_{d=1}^D \log P_\delta(k_{j,d} \mid k_{j,<d}, \mathbf{h}_j)

    where kj,dk_{j,d} is the ground-truth visual code at spatial index jj and depth dd, and hj\mathbf{h}_j is the backbone transformer embedding at position jj.

    The action sequence loss Laction\mathcal{L}_{\text{action}} is the cross-entropy loss for generating an action chunk of length mm (using chunk size m=10m = 10) conditioned on language instruction ll, current observation st\mathbf{s}_t, and target subgoal st+n\mathbf{s}_{t+n}:

    Laction=−∑i=0mlog⁡Pθ(at+i∣l,st,st+n)\mathcal{L}_{\text{action}} = -\sum_{i=0}^{m} \log P_\theta(\mathbf{a}_{t+i} \mid l, \mathbf{s}_t, \mathbf{s}_{t+n})

    During pretraining, Lvisual\mathcal{L}_{\text{visual}} is computed over both Open X-Embodiment (OpenX) robot demonstration data Dr\mathcal{D}_r and action-less video datasets Dv\mathcal{D}_v (EPIC-KITCHENS-100 and Something-Something V2), where subgoal frame offsets nn are sampled uniformly from a dataset-specific range [nl,nu][n_l, n_u]. Laction\mathcal{L}_{\text{action}} is computed exclusively on Dr\mathcal{D}_r.

  4. Knowl 4 — CoT-VLA Closed-Loop Control Algorithm

    algorithm

    At deployment time, CoT-VLA operates in a closed-loop control cycle by iteratively hallucinating an intermediate visual subgoal and then executing an action chunk before acquiring a new environment observation.

    Input: Pretrained CoT-VLA model PθP_\theta, initial visual observation s0obs\mathbf{s}^{\text{obs}}_0, language instruction ll, action chunk size mm, subgoal horizon nn
    t←0t \leftarrow 0
    stobs←s0obs\mathbf{s}^{\text{obs}}_t \leftarrow \mathbf{s}^{\text{obs}}_0
    while task is not completed do
        Sample intermediate subgoal image s^t+n∼Pθ(st+n∣l,stobs)\hat{\mathbf{s}}_{t+n} \sim P_\theta(\mathbf{s}_{t+n} \mid l, \mathbf{s}^{\text{obs}}_t)
        Sample action chunk [a^t,…,a^t+m]∼Pθ(at,…,at+m∣l,stobs,s^t+n)[\hat{\mathbf{a}}_t, \dots, \hat{\mathbf{a}}_{t+m}] \sim P_\theta(\mathbf{a}_t, \dots, \mathbf{a}_{t+m} \mid l, \mathbf{s}^{\text{obs}}_t, \hat{\mathbf{s}}_{t+n})
        for j=0j = 0 to mm do
            Execute action a^t+j\hat{\mathbf{a}}_{t+j} on the robot
        end for
        t←t+m+1t \leftarrow t + m + 1
        stobs←\mathbf{s}^{\text{obs}}_t \leftarrow capture new visual observation from robot camera
    end while

  5. Knowl 5 — LIBERO Benchmark Evaluation Results

    data/table

    CoT-VLA was evaluated on the LIBERO simulation benchmark across four task suites (LIBERO-Spatial, LIBERO-Object, LIBERO-Goal, and LIBERO-Long), each comprising 10 distinct manipulation tasks with 50 demonstrations per task. Success rates and standard errors were calculated across 3 seeds with 500 evaluation episodes per suite.

    Method Average (↑\uparrow)) Spatial (↑\uparrow)) Object (↑\uparrow)) Goal (↑\uparrow)) Long (↑\uparrow))
    Diffusion Policy 72.4 ±\pm) 0.7% 78.3 ±\pm) 1.1% 92.5 ±\pm) 0.7% 68.3 ±\pm) 1.2% 50.5 ±\pm) 1.3%
    Octo fine-tuned 75.1 ±\pm) 0.6% 78.9 ±\pm) 1.0% 85.7 ±\pm) 0.9% 84.6 ±\pm) 0.9% 51.1 ±\pm) 1.3%
    OpenVLA fine-tuned 76.5 ±\pm) 0.6% 84.7 ±\pm) 0.9% 88.4 ±\pm) 0.8% 79.2 ±\pm) 1.0% 53.7 ±\pm) 1.3%
    CoT-VLA-7B (ours) 81.13 ±\pm) 0.6% 87.5 ±\pm) 1.4% 91.6 ±\pm) 0.5% 87.6 ±\pm) 0.6% 69.0 ±\pm) 0.8%

    CoT-VLA-7B outperforms all baseline models in average success rate (81.13%) and achieves its largest margin on LIBERO-Long (69.0%, a +15.3% absolute gain over OpenVLA), demonstrating the benefit of visual chain-of-thought planning for extended horizon manipulation.

  6. Knowl 6 — Bridge-V2 Real-Robot Generalization Performance

    data/table

    Real-world evaluation on a 6-DoF WidowX robotic arm across four generalization categories from the Bridge-V2 benchmark (10 trials per task category with partial credit scoring):

    • Visual generalization: "put eggplant into pot" in cluttered environments
    • Motion generalization: "put carrot on plate" with varying plate heights
    • Semantic generalization: "take purple grapes out of pot"
    • Language grounding: "put eggplant or red bottle into pot"
    Category SUSIE Octo OpenVLA CoT-VLA
    Visual 30% 35% 75% 65%
    Motion 10% 10% 45% 60%
    Semantic 20% 0% 40% 50%
    Language 40% 40% 75% 70%

    CoT-VLA outperforms prior approaches on motion (60%) and semantic (50%) generalization while remaining competitive on visual (65%) and language (70%) generalization.

  7. Knowl 7 — Component Ablations: Action Chunking, Hybrid Attention, and Visual CoT

    empirical result

    Ablation experiments conducted on the LIBERO-Spatial and LIBERO-Goal suites demonstrate the cumulative performance gains from each design choice:

    • LIBERO-Spatial Success Rate:

      1. Base VLA (single-step action, causal attention, no visual CoT): 67.5%
        • Action chunking (predicting sequence of mm actions): 73.3% (+5.8%)
        • Hybrid attention (full attention across action tokens): 81.8% (+8.5%)
        • Visual CoT (complete CoT-VLA): 87.5% (+5.7%)

    • LIBERO-Goal Success Rate:

      1. Base VLA: 54.9%
        • Action chunking: 74.9% (+20.0%)
        • Hybrid attention: 79.7% (+4.8%)
        • Visual CoT (complete CoT-VLA): 87.6% (+7.9%)

    These results demonstrate that while action chunking and bidirectional attention across action tokens improve trajectory execution, intermediate visual subgoal generation provides an additional 5.7% to 7.9% improvement.

  8. Knowl 8 — Impact of Pretraining on Downstream Robot Adaptation

    empirical result

    On the Franka-Tabletop setup (a 7-DoF Franka Emika Panda arm not seen during pretraining, evaluated on 6 manipulation tasks with limited demonstrations ranging from 10 to 150 per task):

    • Fine-tuning the base VILA-U model directly on Franka-Tabletop demonstrations without the multi-data pretraining stage yields an average task success rate of 53.7%.
    • Pretraining CoT-VLA on OpenX robot demonstrations combined with action-less video datasets (EPIC-KITCHENS and Something-Something V2) prior to downstream fine-tuning achieves an average success rate of 78.8%.

    This represents a 46.7% relative improvement (+25.1% absolute) attributable to the pretraining stage on diverse robotic and human video datasets.

  9. Knowl 9 — Visual Subgoal Quality Directly Bounds Action Success in Out-of-Distribution Tasks

    data/table

    To evaluate how visual reasoning quality affects robotic task execution, CoT-VLA was tested on out-of-distribution long-horizon tasks on the Franka-Tabletop platform combining unseen subtasks (Task 1: "move the green scallion to the apple-covered book"; Task 2: "move the green cauliflower to the bear-covered book" across 5 trials) under two subgoal conditions:

    Condition Sub-task 1 Sub-task 2
    CoT-VLA with Generated Goal Images 20% 0%
    CoT-VLA with Ground-truth Goal Images 60% 40%

    Supplying ground-truth visual subgoals yields an absolute +40% success rate improvement on both tasks over model-generated subgoals, demonstrating that policy execution performance scales directly with the fidelity and accuracy of the visual reasoning step.

  10. Knowl 10 — Latency Overhead and Inference Bottlenecks of Visual-CoT

    limitation

    Generating intermediate visual subgoals creates specific operational constraints in CoT-VLA:

    1. Inference Latency Bottleneck: Autoregressively generating 256 discrete visual tokens for the subgoal image before decoding action tokens introduces a 7×7\times inference slowdown compared to direct action prediction models, even when using action chunking (m=10m=10) and parallel action decoding.
    2. Visual Fidelity Limitations: Discrete token autoregressive generation exhibits lower visual fidelity than continuous diffusion-based goal generation models.
    3. Chunk Discontinuity: Open-loop execution of 10-step action chunks lacks high-frequency feedback between intermediate chunk timesteps and can cause velocity discontinuities at chunk boundaries.

Coverage note — None was omitted; all key model architectures, algorithmic procedures, loss formulations, simulation benchmarks, real-world robot results, ablations, and stated limitations are covered.
