Castling-ViT: Compressing Self-Attention via Switching Towards Linear-Angular Attention at Vision Transformer Inference

Haoran YouYunyang XiongXiaoliang DaiBichen WuPeizhao ZhangHaoqi FanPeter VajdaYingyan Celine Lin

article2023CVPR54 citations

Proposes a training framework that pairs linear-angular attention with a decaying auxiliary softmax branch, enabling vision transformers to switch to efficient linear-complexity inference without sacrificing accuracy across classification and detection tasks.

Listen

Vision transformers deliver leading accuracy across visual recognition tasks, but their core self-attention mechanisms suffer from computational complexity that grows quadratically with image resolution. While previous efficient designs adopted local windows or linear approximations to reduce computation, they often sacrificed the model's ability to capture global context or fine local details. This runtime inefficiency creates a major deployment bottleneck, particularly for high-resolution vision applications on resource-constrained platforms.

The article evaluates Castling-ViT, a novel framework designed to close the accuracy gap between efficient linear attention and standard quadratic self-attention without introducing additional inference overhead. Castling-ViT trains vision transformers using both an efficient linear-angular attention mechanism and an auxiliary masked quadratic attention branch, then eliminates the auxiliary branch entirely during inference—a switch analogous to the castling move in chess.

To construct this approach, the authors decomposed spectral angular similarity kernels into linear terms and higher-order residual terms. The linear terms are retained for lightweight computation, while the non-linear residuals are approximated using a depthwise convolution alongside an auxiliary masked softmax attention module. During training, a thresholding regularization causes the auxiliary attention masks to naturally decay to zero. The evaluation assessed the framework across standard benchmarks: ImageNet for image classification, COCO for object detection, and ADE20K for semantic segmentation, integrating the mechanism into popular baseline architectures.

The experimental findings show substantial improvements in efficiency and accuracy. In image classification benchmarks, Castling-ViT delivered up to a 1.8% top-1 accuracy improvement under comparable computational budgets or up to a 40% reduction in multiply-accumulate operations while maintaining baseline accuracy. In object detection tasks on the COCO dataset, Castling-ViT improved average precision by up to 1.2 to 6.0 points compared to alternative convolutional and transformer baselines under similar operation counts. In semantic segmentation on ADE20K, integrating Castling-ViT into standard segmentation backbones achieved 15% to 19% reductions in computational operations while matching or exceeding baseline segmentation quality. Furthermore, ablation experiments confirmed that the proposed linear-angular kernel outperformed five other standard linear attention kernels by up to 4.6% in detection accuracy.

These results demonstrate that vision models do not need to choose between global context modeling and operational efficiency. Deploying linear-angular attention enables lower runtime latency, reduced hardware resource consumption, and lower operational costs for high-resolution visual processing. The findings challenge the conventional assumption that linear attention must underperform traditional quadratic attention, proving that auxiliary training mechanisms can effectively transfer complex feature learning into streamlined runtime architectures.

Organizations seeking to deploy vision transformers in resource-limited or low-latency environments should consider adopting linear-angular attention modules as drop-in replacements for standard self-attention. For development pipelines, engineering teams should evaluate the castling training recipe when training or fine-tuning transformer backbones for detection and segmentation tasks.

Confidence in these findings is supported by consistent empirical improvements across multiple architectures and standard vision benchmarks. However, a key limitation highlighted by the authors is that directly swapping transformer blocks into lightweight convolutional backbones can still introduce overhead compared to purely convolutional designs, as overall network structures may not yet be optimal. Further architectural exploration and on-device hardware profiling are recommended before deploying these models in strictly resource-bounded production systems.

Georgia Institute of TechnologyMetaencoder-decoderinferenceprobabilistic inferenceCastling-ViTlinear-angular attentionVision Transformer inference
arXiv: 2211.10526

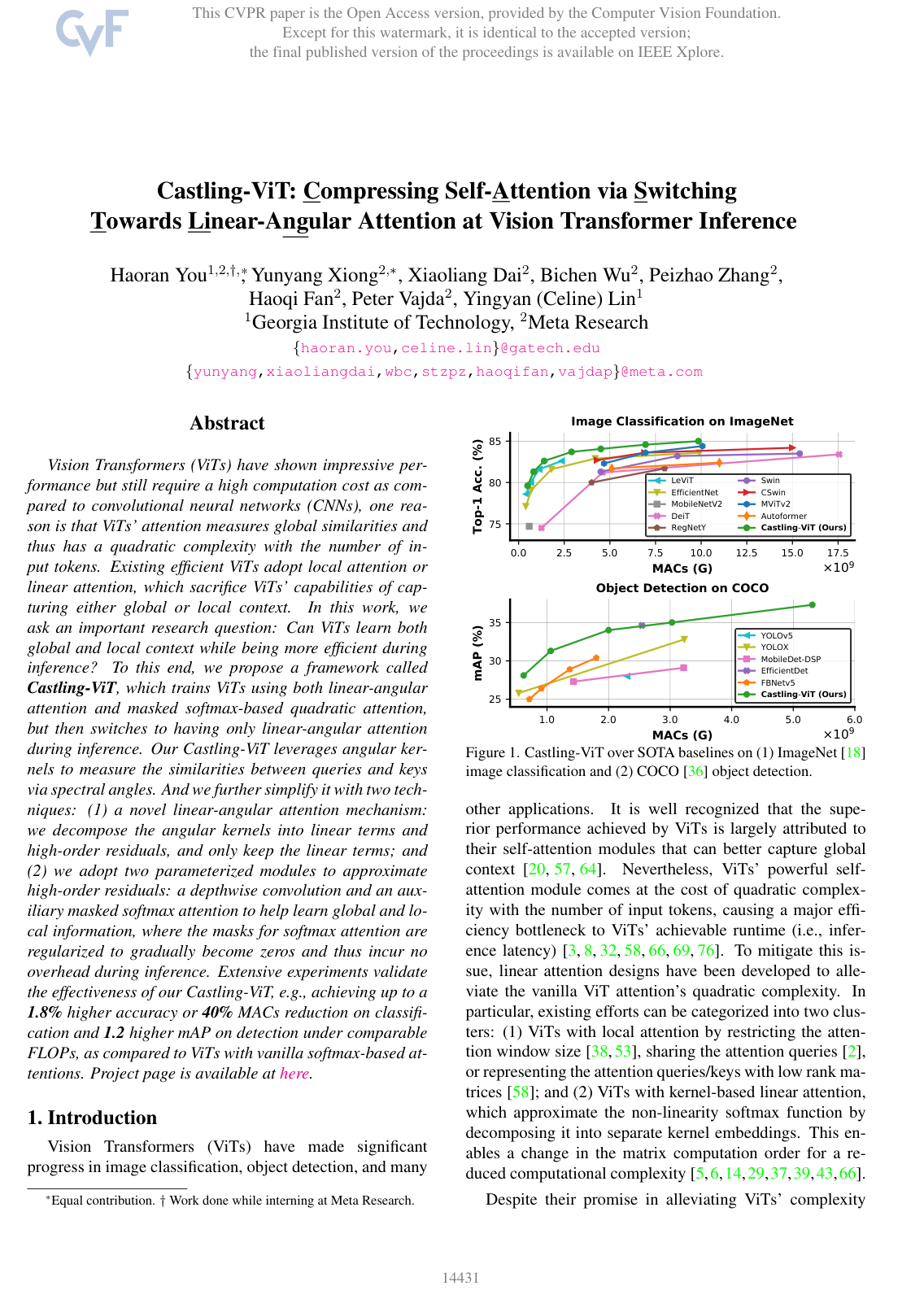

Cover for Castling-ViT: Compressing Self-Attention via Switching Towards Linear-Angular Attention at Vision Transformer Inference

Abstract

Vision Transformers (ViTs) have shown impressive performance but still require a high computation cost as compared to convolutional neural networks (CNNs), one reason is that ViTs’ attention measures global similarities and thus has a quadratic complexity with the number of input tokens. Existing efficient ViTs adopt local attention or linear attention, which sacrifice ViTs’ capabilities of capturing either global or local context. In this work, we ask an important research question: Can ViTs learn both global and local context while being more efficient during inference? To this end, we propose a framework called Castling-ViT, which trains ViTs using both linear-angular attention and masked softmax-based quadratic attention, but then switches to having only linear-angular attention during inference. Our Castling-ViT leverages angular kernels to measure the similarities between queries and keys via spectral angles. And we further simplify it with two techniques: (1) a novel linear-angular attention mechanism: we decompose the angular kernels into linear terms and high-order residuals, and only keep the linear terms; and (2) we adopt two parameterized modules to approximate high-order residuals: a depthwise convolution and an auxiliary masked softmax attention to help learn global and local information, where the masks for softmax attention are regularized to gradually become zeros and thus incur no overhead during inference. Extensive experiments validate the effectiveness of our Castling-ViT, e.g., achieving up to a 1.8% higher accuracy or 40% MACs reduction on classification and 1.2 higher mAP on detection under comparable FLOPs, as compared to ViTs with vanilla softmax-based attentions. Project page is available at here.

Topics

encoder-decoderinferenceprobabilistic inference

Keywords

Castling-ViTlinear-angular attentionVision Transformer inferenceself-attention moduleefficient ViTssparse attentionsoftmax attentiondepthwise convolutiondense predictionobject detection

Table of Contents

  • 1. Introduction
  • 2. Related Works
  • 3. The Proposed Methods
  • 3.1. Preliminary of Self-Attention
  • 3.2. The Proposed Castling-ViT Framework
  • 3.2.1 Linear-Angular Attention
  • 3.2.2 Switch Towards Linear-Angular Attention
  • 4. Experiments
  • 4.1. Experiment Settings
  • 4.2. Castling-ViT over SOTA Baselines
  • 4.3. Linear-Angular Attention over SOTA Baselines
  • 4.4. Ablation Studies of Castling-ViT
  • 4.5. Discussion on the Auxiliary Branch
  • 5. Conclusion
  • Acknowledgements
  • References

Knowls

  1. Knowl 1 — Castling-ViT training–inference switch

    model/method

    Castling-ViT is a Vision Transformer framework that combines an efficient linear-angular attention branch with an auxiliary quadratic masked-softmax attention branch during training, then removes the auxiliary branch for inference. The linear-angular branch remains active at inference and provides the low-complexity attention computation, while the auxiliary branch supplies information associated with the omitted high-order terms of the angular similarity function during early training. The design assumes that the remaining network can gradually learn these high-order components later in training, allowing the costly branch to disappear without degrading the final model accuracy.

  2. Knowl 2 — Angular kernel for spectral similarity

    equation

    For two nonzero token feature vectors xi,xj∈Rd\mathbf{x}_i,\mathbf{x}_j\in\mathbb{R}^{d}, Castling-ViT defines their spectral angle and angular similarity as

    θ(xi,xj)=arccos⁡(⟨xi,xj⟩∥xi∥2∥xj∥2),Sim⁡(xi,xj)=1−θ(xi,xj)π.\theta(\mathbf{x}_i,\mathbf{x}_j)=\arccos\left(\frac{\langle\mathbf{x}_i,\mathbf{x}_j\rangle}{\|\mathbf{x}_i\|_2\|\mathbf{x}_j\|_2}\right), \qquad \operatorname{Sim}(\mathbf{x}_i,\mathbf{x}_j)=1-\frac{\theta(\mathbf{x}_i,\mathbf{x}_j)}{\pi}.

    Here ⟨⋅,⋅⟩\langle\cdot,\cdot\rangle is the inner product, ∥⋅∥2\|\cdot\|_2 is the Euclidean norm, and θ∈[0,π]\theta\in[0,\pi], so Sim⁡∈[0,1]\operatorname{Sim}\in[0,1]. Aligned vectors have similarity near 11, whereas oppositely directed vectors have similarity near 00. The induced feature map ϕ\phi places every input on the unit sphere, because ∥ϕ(x)∥22=Sim⁡(x,x)=1\|\phi(\mathbf{x})\|_2^2=\operatorname{Sim}(\mathbf{x},\mathbf{x})=1, and satisfies

    ∥ϕ(xi)−ϕ(xj)∥22=2(1−Sim⁡(xi,xj))=2πθ(xi,xj).\|\phi(\mathbf{x}_i)-\phi(\mathbf{x}_j)\|_2^2 =2\bigl(1-\operatorname{Sim}(\mathbf{x}_i,\mathbf{x}_j)\bigr) =\frac{2}{\pi}\theta(\mathbf{x}_i,\mathbf{x}_j).

    Thus, angular separation in the original space becomes squared Euclidean distance in the induced feature space.

  3. Knowl 3 — Angular-kernel expansion and linear-angular terms

    equation

    Let q,k∈Rd\mathbf{q},\mathbf{k}\in\mathbb{R}^{d} be nonzero query and key vectors and define their normalized inner product by

    s(q,k)=qTk∥q∥2∥k∥2∈[−1,1].s(\mathbf{q},\mathbf{k})=\frac{\mathbf{q}^{\mathsf T}\mathbf{k}}{\|\mathbf{q}\|_2\|\mathbf{k}\|_2}\in[-1,1].

    The angular similarity has the expansion

    Sim⁡(q,k)=12+1πs(q,k)+1π∑r=1∞(2r)!22r(r!)2(2r+1)s(q,k)2r+1.\operatorname{Sim}(\mathbf{q},\mathbf{k}) =\frac{1}{2}+\frac{1}{\pi}s(\mathbf{q},\mathbf{k}) +\frac{1}{\pi}\sum_{r=1}^{\infty} \frac{(2r)!}{2^{2r}(r!)^2(2r+1)}s(\mathbf{q},\mathbf{k})^{2r+1}.

    The first two terms are the linear-angular terms and can be evaluated by changing the matrix order from (QKT)V(\mathbf{Q}\mathbf{K}^{\mathsf T})\mathbf{V} to Q(KTV)\mathbf{Q}(\mathbf{K}^{\mathsf T}\mathbf{V}). The infinite sum contains the nonlinear high-order residuals that would otherwise require quadratic computation in the number of tokens. Castling-ViT retains the linear-angular terms explicitly and approximates the residuals with learnable modules.

  4. Knowl 4 — Linear-angular attention with residual approximators

    model/method

    For NN tokens, let normalized query and key matrices be Q,K∈RN×d\mathbf{Q},\mathbf{K}\in\mathbb{R}^{N\times d} and let the value matrix be V∈RN×dv\mathbf{V}\in\mathbb{R}^{N\times d_v}. Castling-ViT computes its attention output approximately as

    H≈12V+1πQ(KTV)+MDWV+MSparseAttn.\mathbf{H} \approx \frac{1}{2}\mathbf{V} +\frac{1}{\pi}\mathbf{Q}(\mathbf{K}^{\mathsf T}\mathbf{V}) +\mathbf{M}_{\mathrm{DW}}\mathbf{V} +\mathbf{M}_{\mathrm{SparseAttn}}.

    The first term is the constant part of the angular expansion, and the second is the linear-angular term. MDW\mathbf{M}_{\mathrm{DW}} denotes the learnable depthwise-convolution operator applied to value tokens, while MSparseAttn\mathbf{M}_{\mathrm{SparseAttn}} denotes the output of the auxiliary masked-softmax branch. The depthwise convolution is intended to approximate nearby-token residual structure, and the sparse attention branch supplements nonlocal high-order structure. With feature dimensions treated as fixed, the matrix product Q(KTV)\mathbf{Q}(\mathbf{K}^{\mathsf T}\mathbf{V}) and the depthwise convolution scale linearly with NN; the paper reports that the depthwise-convolution MACs are negligible, below 1% of total MACs in the cited implementations. Query/key normalization is also applied to stabilize similarity computation.

  5. Knowl 5 — Thresholded masked-softmax training branch

    algorithm

    The auxiliary branch is constructed from the ordinary softmax attention matrix and a threshold ϵ>0\epsilon>0. For query and key matrices Q,K∈RN×d\mathbf{Q},\mathbf{K}\in\mathbb{R}^{N\times d}, the masked attention output is

    MSparseAttn(Q,K)=Mask⁡ϵ ⁣(Softmax⁡(QKT)),\mathbf{M}_{\mathrm{SparseAttn}}(\mathbf{Q},\mathbf{K}) =\operatorname{Mask}_{\epsilon}\!\left(\operatorname{Softmax}(\mathbf{Q}\mathbf{K}^{\mathsf T})\right),

    where softmax is applied row-wise and, elementwise,

    Mask⁡ϵ(x)={x,x>ϵ,0,x≤ϵ.\operatorname{Mask}_{\epsilon}(x)= \begin{cases} x,&x>\epsilon,\\ 0,&x\leq\epsilon. \end{cases}

    The resulting sparse attention output is added to the linear-angular output only during training. The threshold keeps high softmax scores, which are interpreted as strong local or salient interactions, while suppressing the remaining scores. Image-classification experiments use a fixed threshold of ϵ=0.02\epsilon=0.02 as one example; fixed and dynamic threshold schedules were both reported to give similar behavior for a given task.

  6. Knowl 6 — Castling-LeViT attention architecture

    model/method

    For the Castling-LeViT instantiation, the authors use post-query pooling rather than pre-query pooling in downsampling layers and retain residual query connections. Post-query pooling means that token or feature pooling is performed after the linear projections that produce the attention inputs, whereas pre-query pooling performs pooling during those projections. Their ImageNet attention-design ablations found that token pooling and feature pooling can each reduce classification accuracy, and that post-query pooling with residual connections performs better than pre-query pooling for the downsampling design used in their models. This design is intended to avoid the feature bottlenecks associated with aggressively shrinking feature dimensions and the token bottlenecks associated with aggressively reducing token counts.

  7. Knowl 7 — Evaluation protocol across three vision tasks

    experimental setup

    Castling-ViT is evaluated on ImageNet classification, COCO object detection, and ADE20K semantic segmentation. ImageNet contains approximately 1.2 million training images and 50,000 validation images; COCO uses 118,000 training and 5,000 validation images; ADE20K uses 20,000, 2,000, and 3,000 images for training, validation, and testing. Classification experiments apply Castling-ViT to LeViT, MViTv2, and DeiT models. Detection experiments use efficient detector backbones derived from ESNet or LCNet with transformer blocks in their final stages, and segmentation experiments use Mask2Former with a ViT-Base or Castling-ViT-Base backbone.

    For classification, the models are trained for 1,000 epochs with SGD, momentum 0.90.9, weight decay 2×10−52\times10^{-5}, 64 V100 GPUs, an 11-epoch warm-up, and a learning-rate decay factor of 0.98750.9875 per epoch; distillation uses a teacher with 85.5% accuracy. Detection uses SGD with momentum 0.90.9, weight decay 4×10−54\times10^{-5}, eight V100 GPUs, and batch size 80 per card, following the PicoDet recipe. Segmentation follows the Mask2Former training recipe, with MAE ImageNet pretraining used in the specified pretrained condition. Accuracy is measured with top-1/top-5 accuracy, AP metrics, or mIoU/mAcc/pAcc, while efficiency is measured with parameters and inference MACs or FLOPs.

  8. Knowl 8 — ImageNet accuracy–efficiency improvements

    empirical result

    On ImageNet, Castling-ViT improves the accuracy–MAC tradeoff across models ranging from approximately 0.4G to 17G MACs. Representative reported results are:

    • Castling-LeViT-128: 10.5M parameters, 0.49G MACs, 79.6% top-1 and 94.6% top-5 accuracy; Castling-LeViT-192: 12.7M parameters, 0.82G MACs, 81.3% top-1 and 95.5% top-5.
    • Castling-LeViT-256: 22.0M parameters, 1.40G MACs, 82.6% top-1 and 96.1% top-5; the corresponding 82.6% LeViT result uses 2.35G MACs, giving approximately 40% fewer MACs at comparable accuracy.
    • Castling-LeViT-384: 45.8M parameters, 2.90G MACs, 83.7% top-1 and 96.7% top-5.
    • Castling-MViTv2-T: 24.1M parameters, 4.50G MACs, 84.1% top-1 and 96.8% top-5, compared with 82.3% top-1 for MViTv2-T at 24.0M parameters and 4.68G MACs.
    • Castling-MViTv2-S: 34.7M parameters, 6.95G MACs, 84.6% top-1 and 97.0% top-5, compared with 83.6% top-1 for MViTv2-S at the same reported parameter and MAC counts.
    • Castling-MViTv2-B: 51.9M parameters, 9.82G MACs, 85.0% top-1 and 97.2% top-5, compared with 84.4% top-1 for MViTv2-B at 51.2M parameters and 10.07G MACs.

    Across the four reported MAC regimes—below 1G, 1–3G, 3–10G, and above 10G—the authors report top-1 improvements over comparable baselines ranging from 0.5–6.6%, 1.0–8.1%, 1.0–4.1%, and 0.6–2.6%, respectively.

  9. Knowl 9 — Transfer to detection and segmentation

    empirical result

    Castling-ViT transfers to dense prediction tasks while retaining its inference-efficiency advantage. On COCO detection, representative results include Castling-ViT-S-320 with 3.25M parameters, 0.62G MACs, 28.1 mAP, 42.3 AP50, and 29.2 AP75; Castling-ViT-M-416 with 6.01M parameters, 2.00G MACs, 34.0 mAP, 49.5 AP50, and 35.9 AP75; and Castling-ViT-L-416 with 9.32M parameters, 3.03G MACs, 35.0 mAP, 50.7 AP50, and 37.2 AP75. The LCNet-based Castling-ViT-L-416 variant reaches 37.3 mAP, 53.4 AP50, and 39.6 AP75 at 13.10M parameters and 5.31G MACs. Compared with YOLOv5, YOLOX, MobileDet, and FBNetV5 at comparable or lower MACs, the reported mAP gains are approximately 6.0, 2.2–2.3, 4.0–5.9, and 3.1–4.0 points, respectively.

    On ADE20K with Mask2Former, ViT-Base and Castling-ViT-Base both use 118M parameters. Without MAE pretraining, Castling-ViT-Base reduces total MACs from 229G to 195G and backbone MACs from 182G to 147G, while improving mIoU/mAcc/pAcc from 34.54/46.36/75.84 to 34.67/46.47/76.20. With MAE pretraining, it retains the same MAC reduction and improves these metrics from 47.92/61.00/83.02 to 48.44/61.82/83.29.

  10. Knowl 10 — Component ablations and the castling phenomenon

    empirical result

    COCO ablations show that each proposed component contributes to the final detector. In a Castling-ViT-S-320 model with an LCNet backbone, the LCNet baseline obtains 25.5 mAP at 0.48G MACs; replacing the final stages with transformer blocks gives 25.9 mAP at 0.69G MACs; adding linear-angular attention gives 26.2 mAP at 0.62G MACs; adding depthwise convolution gives 26.8 mAP at the same 0.62G MACs; and adding the auxiliary sparse attention gives 27.0 mAP at 0.62G MACs. In the larger Castling-ViT-M-416 setting, the corresponding mAP values are 34.3, 34.9, 34.8, 35.1, and 35.3, while MACs decrease from 3.51G for the transformer-block backbone to 3.15G after linear-angular attention.

    The authors also observe that the nonzero entries in the auxiliary masks increase or remain useful during early and middle COCO training but gradually fall to zero near the end of training in both small and medium models. A synthetic two-layer-DNN experiment supports the proposed explanation: the DNN first fits low-frequency components of the angular similarity and later fits higher-frequency components, so the costly auxiliary attention is useful early but can be removed after the rest of the network has learned the omitted high-order behavior. A stated limitation is that directly replacing convolutional backbones with transformer blocks can increase MACs enough that LCNet-ViT may still have a slightly worse accuracy–efficiency tradeoff than a pure LCNet backbone; designing more efficient ViT-based backbones remains open.

Coverage note — No substantial contributed material was omitted; minor implementation details and the full baseline tables were compressed while retaining the proposed mechanism, architectural choice, evaluation protocol, principal results, ablations, and stated limitation.
