CvT: Introducing Convolutions to Vision Transformers

Haiping WuBin XiaoNoel CodellaMengchen LiuXiyang DaiLu YuanLei Zhang

article2021ICCV2,526 citations

Presents CvT, a hybrid architecture that incorporates convolutional token embeddings and projections into Vision Transformers to achieve superior ImageNet accuracy with fewer parameters and FLOPs while eliminating the need for positional encodings.

Listen

Vision transformers have shown strong results on image classification when trained on massive datasets, but they lag behind convolutional neural networks on smaller datasets because they lack built-in properties such as shift and scale invariance. This gap matters now because many practical vision applications still rely on datasets of moderate size, and models that combine high accuracy with low computational cost are needed for deployment.

The article set out to test whether strategically adding convolutions to the vision transformer architecture could deliver the accuracy and efficiency advantages of both designs. Researchers created the Convolutional vision Transformer (CvT) and evaluated it through large-scale image classification experiments on ImageNet-1k and ImageNet-22k, plus transfer to several downstream datasets.

The approach uses a multi-stage hierarchical structure. Each stage begins with a convolutional token embedding that overlaps patches and reduces spatial resolution while increasing feature depth, followed by convolutional transformer blocks that replace the standard linear projections for attention with depth-wise separable convolutions. Experiments compared multiple CvT variants against ResNets, prior vision transformers, and concurrent transformer models, measuring top-1 accuracy, parameter count, and FLOPs.

CvT-13 reached 81.6 percent top-1 accuracy on ImageNet-1k with 20 million parameters and 4.5 gigaFLOPs, outperforming larger ResNet-152 and several recent transformer models while using fewer resources. CvT-21 improved this to 82.5 percent. When pretrained on ImageNet-22k and fine-tuned, the wider CvT-W24 model achieved 87.7 percent top-1 accuracy. Removing positional encodings caused no accuracy drop, and the models transferred strongly to CIFAR, Oxford Pets, and Flowers datasets.

These results show that the hybrid design closes much of the performance gap between transformers and convolutional networks while remaining lightweight and simpler to adapt to variable image resolutions. The efficiency gains and removal of positional encodings reduce both training and inference costs and broaden applicability to tasks that require flexible input sizes.

Further gains appear possible by applying neural architecture search to stride and expansion ratios, and by testing the architecture on dense prediction tasks such as detection and segmentation. Additional validation on even larger or more diverse datasets would strengthen before widespread deployment.

The main limitation is that all primary results come from ImageNet-scale classification; behavior on very different domains or extremely high-resolution inputs remains untested. Confidence in the reported accuracy and efficiency improvements is high because the experiments include extensive ablations, multiple model scales, and direct comparisons on public benchmarks.

McGill UniversityMicrosoftconvolutional neural networksencoder-decoderarchitecture designsConvolutional Vision TransformerConvolutional Token EmbeddingConvolutional Projection
arXiv: 2103.15808leoxiaobin/CvT
  • Paper: A ConvNet for the 2020s, Zhuang Liu et al. (2022). This work explores the reverse trajectory of hybrid transformer-convolution designs by modernizing pure ConvNets with architectural principles drawn from Vision Transformers.
  • Paper: MobileViT: Light-weight, General-purpose, and Mobile-friendly Vision Transformer, Sachin Mehta et al. (2021). This paper builds on the synergy between convolutions and transformers to create lightweight, mobile-friendly hybrid vision backbones.
  • Paper: Swin Transformer V2: Scaling Up Capacity and Resolution, Ze Liu et al. (2022). This work extends hierarchical vision transformer architectures to extreme parameter scales and ultra-high input resolutions.
  • Paper: Visual Prompt Tuning, Menglin Jia et al. (2022). This paper introduces parameter-efficient visual prompt tuning for vision transformer architectures, eliminating the need for expensive full fine-tuning across downstream vision tasks.

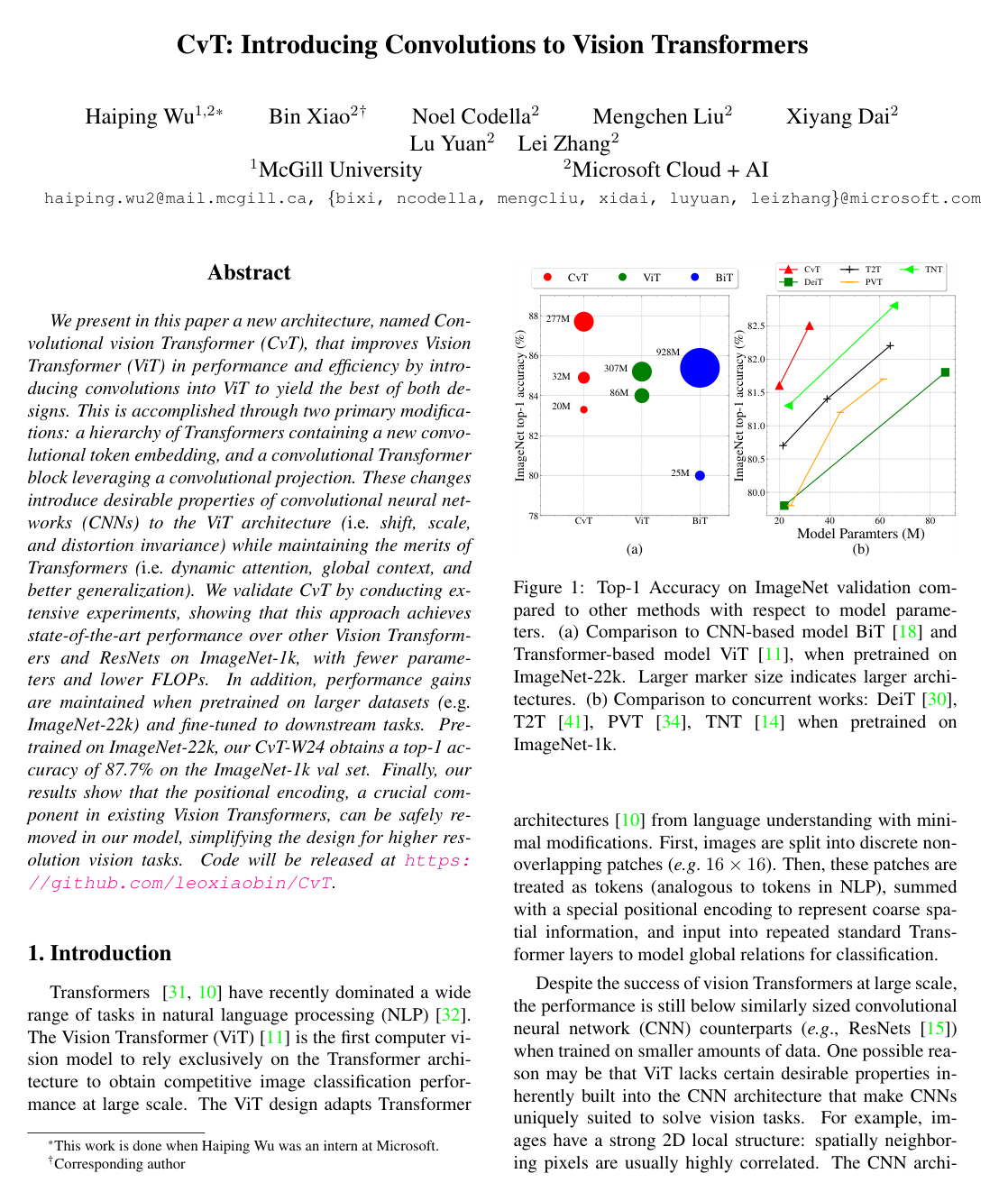

Cover for CvT: Introducing Convolutions to Vision Transformers

Abstract

We present in this paper a new architecture, named Convolutional vision Transformer (CvT), that improves Vision Transformer (ViT) in performance and efficiency by introducing convolutions into ViT to yield the best of both designs. This is accomplished through two primary modifications: a hierarchy of Transformers containing a new convolutional token embedding, and a convolutional Transformer block leveraging a convolutional projection. These changes introduce desirable properties of convolutional neural networks (CNNs) to the ViT architecture (\ie shift, scale, and distortion invariance) while maintaining the merits of Transformers (\ie dynamic attention, global context, and better generalization). We validate CvT by conducting extensive experiments, showing that this approach achieves state-of-the-art performance over other Vision Transformers and ResNets on ImageNet-1k, with fewer parameters and lower FLOPs. In addition, performance gains are maintained when pretrained on larger datasets (\eg ImageNet-22k) and fine-tuned to downstream tasks. Pre-trained on ImageNet-22k, our CvT-W24 obtains a top-1 accuracy of 87.7% on the ImageNet-1k val set. Finally, our results show that the positional encoding, a crucial component in existing Vision Transformers, can be safely removed in our model, simplifying the design for higher resolution vision tasks. Code will be released at \url{this https URL}.

Topics

convolutional neural networksencoder-decoderarchitecture designsimage classificationtransfer learningvision systemssignal distortion

Keywords

Convolutional Vision TransformerConvolutional Token EmbeddingConvolutional ProjectionHierarchical TransformerPositional EmbeddingImageNet‑1kImageNet‑22kFLOPsMulti‑Stage DesignDepth‑wise Separable Convolution

Table of Contents

  • 1 Introduction
  • 2 Related Work
  • 3 Convolutional vision Transformer
  • 3.1 Convolutional Token Embedding
  • 3.2 Convolutional Projection for Attention
  • 3.2.1 Implementation Details
  • 3.2.2 Efficiency Considerations
  • 3.3 Methodological Discussions
  • 4 Experiments
  • 4.1 Setup
  • 4.2 Comparison to state of the art
  • 4.3 Downstream task transfer
  • 4.4 Ablation Study
  • 5 Conclusion
  • References

Knowls

  1. Knowl 1 — Hierarchical Pipeline of the Convolutional Vision Transformer (CvT)

    model/method

    The Convolutional Vision Transformer (CvT) introduces convolutional operations into the Vision Transformer (ViT) architecture via a multi-stage hierarchical design structured into three sequential stages.

    Each stage i∈{1,2,3}i \in \{1, 2, 3\} comprises two core components:

    1. A Convolutional Token Embedding layer that reshapes the incoming 1D sequence of tokens into a 2D spatial feature grid, performs an overlapping 2D convolution with stride, and applies layer normalization before flattening back to 1D. This simultaneously decreases spatial sequence length and increases channel feature dimensions across stages.

    2. A stack of Convolutional Transformer Blocks, where the conventional position-wise linear projections for the Query (QQ), Key (KK), and Value (VV) in Multi-Head Self-Attention (MHSA) are replaced by depth-wise separable convolutional projections.

    A learnable classification token ([CLS]) is introduced solely at the final stage (Stage 3). The output classification token from Stage 3 is passed through a Multi-Layer Perceptron (MLP) Head to generate class predictions. Explicit positional encodings are omitted entirely throughout the network.

  2. Knowl 2 — Convolutional Token Embedding

    model/method

    The Convolutional Token Embedding layer replaces standard non-overlapping patch embeddings by applying an overlapping 2D convolution to model local spatial context and implement spatial downsampling.

    Given an input 2D image or a 2D-reshaped token map from stage i−1i-1, denoted as xi−1∈RHi−1×Wi−1×Ci−1x_{i-1} \in \mathbb{R}^{H_{i-1} \times W_{i-1} \times C_{i-1}}, the embedding layer applies a 2D convolution f(⋅)f(\cdot) with kernel size s×ss \times s, stride s−os - o (where oo is the overlap parameter), and padding pp to yield a new token feature map f(xi−1)∈RHi×Wi×Cif(x_{i-1}) \in \mathbb{R}^{H_i \times W_i \times C_i}. The output spatial dimensions are:

    Hi=⌊Hi−1+2p−ss−o⌋+1,Wi=⌊Wi−1+2p−ss−o⌋+1H_i = \left\lfloor \frac{H_{i-1} + 2p - s}{s - o} \right\rfloor + 1, \quad W_i = \left\lfloor \frac{W_{i-1} + 2p - s}{s - o} \right\rfloor + 1

    The resulting tensor f(xi−1)f(x_{i-1}) is flattened into a 2D sequence of shape (HiWi)×Ci(H_i W_i) \times C_i and normalized with Layer Normalization before entering the stage's Transformer blocks.

  3. Knowl 3 — Convolutional Projection for Multi-Head Self-Attention

    model/method

    The Convolutional Projection replaces standard position-wise linear projections used to compute Query (QQ), Key (KK), and Value (VV) matrices in Vision Transformer Multi-Head Self-Attention (MHSA).

    For a 1D token sequence xi∈RT×Cx_i \in \mathbb{R}^{T \times C} at layer ii (where TT is the number of tokens and CC is the channel dimension), the tokens are first reshaped into a 2D spatial grid Reshape2D(xi)∈RH×W×C\text{Reshape2D}(x_i) \in \mathbb{R}^{H \times W \times C}. A depth-wise separable 2D convolution with kernel size s×ss \times s is then applied, followed by flattening:

    xiq/k/v=Flatten(Conv2d(Reshape2D(xi),s))x_i^{q/k/v} = \text{Flatten}\left(\text{Conv2d}(\text{Reshape2D}(x_i), s)\right)

    Here, Conv2d\text{Conv2d} is implemented sequentially as:

    Depth-wise Conv2d⟶BatchNorm2d⟶Point-wise Conv2d\text{Depth-wise Conv2d} \longrightarrow \text{BatchNorm2d} \longrightarrow \text{Point-wise Conv2d}

    Using depth-wise separable convolutions adds only s2Cs^2 C parameters and O(s2CT)\mathcal{O}(s^2 C T) FLOPs per projection compared to linear projection, avoiding the s2C2s^2 C^2 parameters and O(s2C2T)\mathcal{O}(s^2 C^2 T) FLOPs required by standard 2D convolutions.

  4. Knowl 4 — Squeezed Convolutional Projection via Key-Value Subsampling

    model/method

    To reduce the computational complexity of the Multi-Head Self-Attention (MHSA) module, the Convolutional Projection employs strided depth-wise separable convolutions to spatially subsample the Key (KK) and Value (VV) representations while maintaining the resolution of the Query (QQ) representation.

    In the default squeezed convolutional projection:

    • Query projection uses kernel size s×ss \times s with stride=1\text{stride} = 1.
    • Key and Value projections use kernel size s×ss \times s with stride=2\text{stride} = 2.

    Setting stride=2\text{stride} = 2 for Key and Value reduces the sequence length of KK and VV by a factor of 4 (2×22 \times 2 spatial downsampling), which reduces the computational complexity of the subsequent attention matrix multiplication and softmax operations by 4×4\times with negligible loss in accuracy.

  5. Knowl 5 — Elimination of Explicit Positional Encodings in Vision Transformers

    empirical result

    Because the combination of Convolutional Token Embeddings and Convolutional Projections introduces translation equivariance and 2D local context modeling into every stage of the network, explicit positional encodings (either learnable or sinusoidal) can be eliminated entirely without degrading model accuracy.

    On the ImageNet-1k classification benchmark using CvT-13 (20M parameters):

    • CvT-13 without positional encodings achieves 81.6% top-1 accuracy.
    • CvT-13 with positional encodings added at every stage achieves 81.5% top-1 accuracy.
    • CvT-13 with positional encodings at only the first stage or only the last stage achieves 81.4% top-1 accuracy.

    In contrast, removing positional encodings from DeiT-S (22M parameters) leads to a 1.8% drop in top-1 accuracy (from 79.8% down to 78.0%). Omitting positional encodings allows CvT models to natively process variable-resolution input images during inference without requiring positional encoding interpolation.

  6. Knowl 6 — CvT Architectural Configurations: CvT-13, CvT-21, and CvT-W24

    data/table

    The CvT architecture is instantiated across three primary configurations varying in depth (number of Transformer blocks per stage) and channel width (DiD_i). All models employ a 3-stage hierarchy, an MLP expansion ratio Ri=4R_i = 4 for all stages i∈{1,2,3}i \in \{1, 2, 3\}, and evaluate on default 224×224224 \times 224 input image resolutions.

    Layer / Metric CvT-13 CvT-21 CvT-W24
    Stage 1 Conv. Embed. 7×7,64,stride 47 \times 7, 64, \text{stride } 4 7×7,64,stride 47 \times 7, 64, \text{stride } 4 7×7,192,stride 47 \times 7, 192, \text{stride } 4
    Stage 1 Conv. Proj. 3×3,643 \times 3, 64 3×3,643 \times 3, 64 3×3,1923 \times 3, 192
    Stage 1 MHSA H1=1,D1=64H_1=1, D_1=64 H1=1,D1=64H_1=1, D_1=64 H1=3,D1=192H_1=3, D_1=192
    Stage 1 Blocks 1 1 2
    Stage 2 Conv. Embed. 3×3,192,stride 23 \times 3, 192, \text{stride } 2 3×3,192,stride 23 \times 3, 192, \text{stride } 2 3×3,768,stride 23 \times 3, 768, \text{stride } 2
    Stage 2 Conv. Proj. 3×3,1923 \times 3, 192 3×3,1923 \times 3, 192 3×3,7683 \times 3, 768
    Stage 2 MHSA H2=3,D2=192H_2=3, D_2=192 H2=3,D2=192H_2=3, D_2=192 H2=12,D2=768H_2=12, D_2=768
    Stage 2 Blocks 2 4 2
    Stage 3 Conv. Embed. 3×3,384,stride 23 \times 3, 384, \text{stride } 2 3×3,384,stride 23 \times 3, 384, \text{stride } 2 3×3,1024,stride 23 \times 3, 1024, \text{stride } 2
    Stage 3 Conv. Proj. 3×3,3843 \times 3, 384 3×3,3843 \times 3, 384 3×3,10243 \times 3, 1024
    Stage 3 MHSA H3=6,D3=384H_3=6, D_3=384 H3=6,D3=384H_3=6, D_3=384 H3=16,D3=1024H_3=16, D_3=1024
    Stage 3 Blocks 10 16 20
    Parameters (M) 19.98 31.54 276.70
    FLOPs (G) 4.53 7.13 60.86

    HiH_i denotes the number of self-attention heads and DiD_i denotes the embedding feature dimension in stage ii.

  7. Knowl 7 — ImageNet Classification Performance of CvT Models

    data/table

    CvT achieves higher classification accuracy on ImageNet-1k, ImageNet Real, and ImageNet V2 compared to standard CNNs and contemporary Vision Transformers, while requiring fewer parameters and lower FLOP counts.

    Network Params (M) Input Size FLOPs (G) ImageNet Top-1 (%) Real Top-1 (%) V2 Top-1 (%)
    ResNet-50 25 2242224^2 4.1 76.2 82.5 63.3
    ResNet-152 60 2242224^2 11.0 78.3 84.1 67.0
    DeiT-S 22 2242224^2 4.6 79.8 85.7 68.5
    DeiT-B 86 2242224^2 17.6 81.8 86.7 71.5
    PVT-Small 25 2242224^2 3.8 79.8 – –
    PVT-Large 61 2242224^2 9.8 81.7 – –
    T2T-ViTt-14 22 2242224^2 6.1 80.7 – –
    TNT-S 24 2242224^2 5.2 81.3 – –
    CvT-13 20 2242224^2 4.5 81.6 86.7 70.4
    CvT-21 32 2242224^2 7.1 82.5 87.2 71.3
    CvT-13 (384) 20 3842384^2 16.3 83.0 87.9 71.9
    CvT-21 (384) 32 3842384^2 24.9 83.3 87.7 71.9

    CvT-21 exceeds DeiT-B by 0.7% on ImageNet top-1 accuracy while reducing parameters by 63% and FLOPs by 60%. CvT-13 outperforms ResNet-152 by 3.3% top-1 accuracy with one-third of the parameters.

  8. Knowl 8 — ImageNet-22k Pretraining and Downstream Task Transfer Performance

    data/table

    When pretrained on the larger ImageNet-22k dataset (14M images, 22k classes) and fine-tuned to ImageNet-1k or downstream datasets at 384×384384 \times 384 resolution, CvT architectures outperform larger Transformer (ViT) and CNN (BiT) models.

    Model Params (M) ImageNet-1k Top-1 CIFAR-10 CIFAR-100 Pets Flowers-102
    BiT-M (4802480^2) 928 85.4 98.91 92.17 94.46 99.30
    ViT-B/16 86 84.0 98.95 91.67 94.43 99.38
    ViT-L/16 307 85.2 99.16 93.44 94.73 99.61
    ViT-H/16 632 85.1 99.27 93.82 94.82 99.51
    CvT-13 20 83.3 98.83 91.11 93.25 99.50
    CvT-21 32 84.9 99.16 92.88 94.03 99.62
    CvT-W24 277 87.7 99.39 94.09 94.73 99.72

    CvT-W24 pretrained on ImageNet-22k achieves 87.7% top-1 accuracy on ImageNet-1k, surpassing ViT-L/16 (85.2%) by 2.5% with fewer parameters (277M vs 307M) and competitive FLOPs (193.2G vs 191.1G), while achieving the highest accuracy on CIFAR-10 (99.39%), CIFAR-100 (94.09%), and Oxford Flowers-102 (99.72%).

  9. Knowl 9 — Ablation of Convolutional Projection Across Stages

    empirical result

    Progressively replacing standard position-wise linear projections with Convolutional Projections across the stages of CvT-13 demonstrates continuous performance improvements on ImageNet-1k top-1 accuracy:

    • Position-wise Linear Projection in all 3 stages (no Conv Proj): 80.6% top-1 accuracy.
    • Convolutional Projection in Stage 1 only (Linear in Stages 2 and 3): 80.8% top-1 accuracy.
    • Convolutional Projection in Stages 1 and 2 (Linear in Stage 3): 81.0% top-1 accuracy.
    • Convolutional Projection in all 3 stages: 81.6% top-1 accuracy.

    Replacing linear projections with depth-wise separable convolutional projections in every stage provides a cumulative +1.0% top-1 accuracy improvement over pure linear projections.

  10. Knowl 10 — Effect of Key and Value Subsampling Stride in Convolutional Projection

    empirical result

    In the Convolutional Projection module of CvT-13 (20M parameters), using a strided convolution for Key (KK) and Value (VV) projections provides a favorable computation-accuracy trade-off on ImageNet-1k:

    • With stride=1\text{stride} = 1 for Key and Value projections: 82.3% ImageNet top-1 accuracy at 6.55 G FLOPs.
    • With stride=2\text{stride} = 2 for Key and Value projections: 81.6% ImageNet top-1 accuracy at 4.53 G FLOPs.

    Setting stride=2\text{stride} = 2 decreases computational complexity by 30.8% (2.02 G FLOPs reduction) with an accuracy reduction of 0.7%, making stride=2\text{stride} = 2 the preferred default for computational efficiency.

Coverage note — Details of the neural architecture search (CvT-13-NAS) search configuration were omitted as they represent a standard search variation rather than the primary architectural contribution.
