FFT-Based Dynamic Token Mixer for Vision

Yuki TatsunamiMasato Taki

article2024AAAI69 citations

Proposes an efficient FFT-based dynamic filter token-mixer within the MetaFormer framework to deliver global receptive field processing with substantially lower computational complexity and higher throughput than multi-head self-attention on high-resolution vision tasks.

Listen

Attention-based vision architectures deliver state-of-the-art accuracy in image recognition, but their computational complexity grows quadratically with input size. This creates severe performance bottlenecks and high memory consumption when handling high-resolution images or dense tasks like semantic segmentation. Fast Fourier Transform (FFT) based models offer a promising alternative by capturing global information at lower theoretical computational complexity, but prior versions relied on static, data-independent filters and lagged behind modern architecture standards.

The article demonstrates a novel dynamic token-mixing approach called the Dynamic Filter, along with two architecture families: DFFormer and the hybrid CDFFormer (combining standard convolutions with FFT blocks). The primary objective is to evaluate whether dynamically generating frequency-domain filters can match modern vision model accuracy while maintaining high processing speeds and low memory usage at high image resolutions.

The authors implemented their models within the modern MetaFormer framework and evaluated performance using standard computer vision benchmarks. Image classification was tested on the ImageNet-1K dataset (over 1.28 million training images), while semantic segmentation was evaluated on ADE20K. The models were benchmarked across standard configurations against leading convolutional, attention-based, and frequency-based vision models, with additional ablation and representational analyses to isolate architectural contributions.

The evaluation produced four key findings. First, DFFormer and CDFFormer established new performance highs among attention-free and FFT-based architectures, with DFFormer-B36 achieving an 84.8% top-1 accuracy on ImageNet-1K (outperforming prior FFT models by over 0.5%) and CDFFormer-B36 reaching 85.0%. Second, the architecture showed strong downstream effectiveness on ADE20K semantic segmentation, where DFFormer-S36 achieved 47.5% mean Intersection over Union (mIoU), outperforming comparable baselines by 5.5 points. Third, when scaling to high resolutions (from 256x256 up to 1024x1024 pixels), DFFormer and CDFFormer maintained high throughput and low peak memory, whereas attention-based models experienced severe throughput collapse and steep memory surges. Fourth, representational analysis revealed that unlike attention modules which act as both high- and low-pass filters, dynamic filters primarily suppress high frequencies to learn distinct low-frequency global representations.

These findings imply that dynamic FFT-based architectures are highly cost-effective alternatives to attention mechanisms for vision applications where latency, memory, and resolution are critical operational constraints. By avoiding quadratic computational scaling, these models allow real-time processing and dense prediction on resource-constrained hardware without sacrificing competitive accuracy.

Organizations developing high-resolution vision systems, such as medical imaging or autonomous segmentation pipelines, should consider adopting dynamic filter architectures to lower compute costs and memory footprints. Teams should benchmark DFFormer and CDFFormer against existing attention-based baselines in pilot deployments to determine the best trade-off between convolutional hybrid features and pure FFT blocks.

The primary limitation noted in the article is that at standard low resolutions (such as 224x224), implementation-level overheads mean FFT throughput can still trail optimized attention baselines on certain hardware. Because overall speed depends on specific hardware architectures and low-level library implementations, practitioners should validate inference throughput within their own deployment environments before broad production rollout.

AnyTech Co., Ltd.Rikkyo University classification computer vision high resolution image dynamic token mixer fast Fourier transform vision transformers

arXiv: 2303.03932 okojoalg/dfformer

Paper: MetaFormer is Actually What You Need for Vision, Weihao Yu et al. (2021). It introduces the MetaFormer general architecture that serves as the direct foundational framework into which DFFormer and CDFFormer integrate their dynamic token mixers.
Paper: Dynamic Convolution: Attention Over Convolution Kernels, Yinpeng Chen et al. (2019). It establishes the concept of dynamic data-dependent filtering that motivates moving beyond static filters to dynamic token mixing in neural network layers.
Paper: An Image Patch is a Wave: Phase-Aware Vision MLP, Yehui Tang et al. (2022). It conceptualizes visual tokens as dynamic waves to achieve adaptive mixing, laying essential groundwork for wave and frequency-based token interactions in vision.
Paper: CoAtNet: Marrying Convolution and Attention for All Data Sizes, Zihang Dai et al. (2021). It provides the design principles for systematically combining convolutional operations with attention-like global mixers, directly informing the hybrid design of CDFFormer.

Paper: Frequency-Adaptive Dilated Convolution for Semantic Segmentation, Linwei Chen et al. (2024). Explore how dynamic frequency analysis and adaptive filtering can be specifically tailored to dilated convolutions for dense semantic segmentation tasks.
Paper: Frequency-Aware Transformer for Learned Image Compression, Han Li et al. (2024). Examine how directional frequency decomposition and dynamic frequency modulation extend beyond recognition tasks into learned image compression.
Paper: Vision Mamba: Efficient Visual Representation Learning with Bidirectional State Space Model, Lianghui Zhu et al. (2024). Investigate a complementary linear-complexity paradigm that replaces self-attention with bidirectional state-space models for high-resolution visual representation.

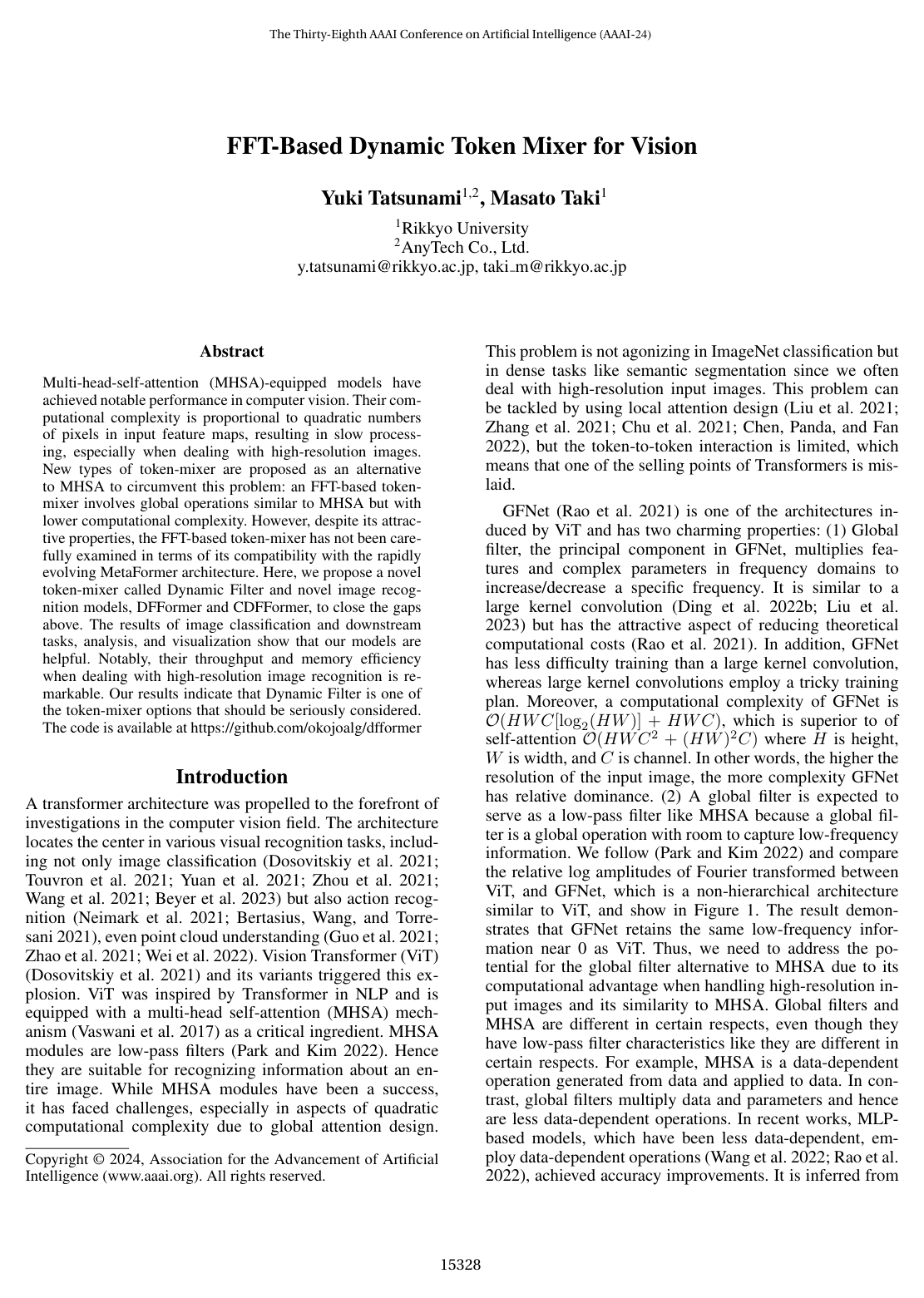

Cover for FFT-Based Dynamic Token Mixer for Vision

Abstract

Multi-head-self-attention (MHSA)-equipped models have achieved notable performance in computer vision. Their computational complexity is proportional to quadratic numbers of pixels in input feature maps, resulting in slow processing, especially when dealing with high-resolution images. New types of token-mixer are proposed as an alternative to MHSA to circumvent this problem: an FFT-based token-mixer involves global operations similar to MHSA but with lower computational complexity. However, despite its attractive properties, the FFT-based token-mixer has not been carefully examined in terms of its compatibility with the rapidly evolving MetaFormer architecture. Here, we propose a novel token-mixer called Dynamic Filter and novel image recognition models, DFFormer and CDFFFormer, to close the gaps above. The results of image classification and downstream tasks, analysis, and visualization show that our models are helpful. Notably, their throughput and memory efficiency when dealing with high-resolution image recognition is remarkable. Our results indicate that Dynamic Filter is one of the token-mixer options that should be seriously considered. The code is available at https://github.com/okojoalg/dfformer

Topics

classification computer vision high resolution image image classification visualization input features computational efficiency low resolution object detection

Keywords

dynamic token mixer fast Fourier transform vision transformers dynamic filters cyclic convolution frequency domain large kernel convolution mini-batch linear CKA semantic segmentation

Introduction
Related Work
Method
Preliminary: Global Filter
Dynamic Filter
DFFormer and CDFFormer
Experiments
Image Classification
Semantic Segmentation on ADE20K
Ablation Studies
Analysis
Advantages at Higher Resolutions
Representational Similarities
Analysis of Dynamic Filter Basis
Conclusion
Acknowledgments
References

Knowls

Knowl 1 — Dynamic Filter Token Mixer
model/method
The Dynamic Filter is an FFT-based token-mixing module that dynamically determines spatial frequency filter weights conditioned on input content. For an input feature tensor $X \in \mathbb{R}^{C \times H \times W}$ , a 2D real Fast Fourier Transform (2D-RFFT) $\mathcal{F}$ converts spatial features into the frequency domain $\mathbb{C}^{C \times H \times \lceil W/2 \rceil}$ , where redundant Hermitian components are omitted.

Instead of learning a static complex filter per channel, the Dynamic Filter maintains a shared basis of $N$ complex frequency filter matrices $\mathbb{K} = \{K_1, \dots, K_N\}$ , where each $K_i \in \mathbb{C}^{H \times \lceil W/2 \rceil}$ (default $N = 4$ ).

The input tensor is spatially pooled via global average pooling:

$\bar{X} = \frac{1}{HW} \sum_{h=1}^H \sum_{w=1}^W X_{:, h, w} \in \mathbb{R}^C$

A Multi-Layer Perceptron $M$ predicts dynamic weighting coefficients for each of the $C'$ channels (where $C' = 2C$ in the expanded block configuration):

$(s_1, \dots, s_{NC'})^\top = M(\bar{X}) = W_2 \, \text{StarReLU}(W_1 \, \text{LN}(\bar{X}))$

where $\text{LN}$ denotes Layer Normalization, $W_1 \in \mathbb{R}^{\text{int}(\rho C) \times C}$ , $W_2 \in \mathbb{R}^{NC' \times \text{int}(\rho C)}$ with intermediate dimension ratio $\rho = 0.25$ , and $\text{StarReLU}(x) = x \cdot \max(0, x)$ .

The dynamic complex filter $K_M(X) \in \mathbb{C}^{C' \times H \times \lceil W/2 \rceil}$ is constructed per channel $c \in \{1, \dots, C'\}$ via a channel-wise softmax combination over the $N$ basis filters:

$K_M(X)_{c, :, :} := \sum_{i=1}^N \left( \frac{e^{s_{(c-1)N + i}}}{\sum_{n=1}^N e^{s_{(c-1)N + n}}} \right) K_i$

For an intermediate transformed feature $A(X)$ (with continuous real mapping $A$ ), the Dynamic Filter transformation $\mathcal{D}(X)$ is defined as:

$\mathcal{D}(X) = \mathcal{F}^{-1}(K_M(X) \odot \mathcal{F}(A(X)))$

where $\odot$ denotes the element-wise Hadamard product in the complex domain, and $\mathcal{F}^{-1}$ is the 2D inverse real Fast Fourier Transform (2D-IRFFT).
Knowl 2 — DFFormer and CDFFormer Architectural Family
model/method
DFFormer and CDFFormer are four-stage hierarchical vision architectures adhering to the MetaFormer macro-architecture. Each block transforms input $X \in \mathbb{R}^{C \times H \times W}$ according to an inverted bottleneck residual formulation:

$\mathcal{T}(X) = X + \text{Conv}_{pw2} \left( \mathcal{L}\left( \text{StarReLU}\left( \text{Conv}_{pw1}(\text{LN}(X)) \right) \right) \right)$

where $\text{LN}$ is Layer Normalization, $\text{Conv}_{pw1}$ is a point-wise convolution projecting channels $C \to C'=2C$ , $\mathcal{L}(\cdot)$ is a token mixer, and $\text{Conv}_{pw2}$ is a point-wise convolution projecting channels $2C \to C$ .

In a DFFormer block (DF), the token mixer is $\mathcal{L}(Y) = \mathcal{F}^{-1}(K_M(X) \odot \mathcal{F}(Y))$ , applying a content-dependent dynamic Fourier filter. In a ConvFormer block (CF), $\mathcal{L}(Y)$ is depthwise separable convolution.

Two architectural configurations are defined based on block composition:
- DFFormer: Employs DFFormer blocks across all four stages [DF, DF, DF, DF].
- CDFFormer: A hybrid architecture employing ConvFormer blocks in stages 1 and 2 and DFFormer blocks in stages 3 and 4 [CF, CF, DF, DF].
Downsampling layers between stages use patch-embedding convolutions with kernel size $K$ , stride $S$ , and padding $P$ configured across stages as $K=(7, 3, 3, 3)$ , $S=(4, 2, 2, 2)$ , and $P=(2, 1, 1, 1)$ . Model size variants are parameterized by block counts $L = (L_1, L_2, L_3, L_4)$ and stage channel dimensions $C = (C_1, C_2, C_3, C_4)$ :
- S18: $L = (3, 3, 9, 3)$ , $C = (64, 128, 320, 512)$
- S36: $L = (3, 12, 18, 3)$ , $C = (64, 128, 320, 512)$
- M36: $L = (3, 12, 18, 3)$ , $C = (96, 192, 384, 576)$
- B36: $L = (3, 12, 18, 3)$ , $C = (128, 256, 512, 768)$
The classifier head comprises Global Average Pooling (GAP), Layer Normalization, and an MLP classifier with Squared ReLU ( $ext{ReLU}^2$ ) activation.

Knowl 3 — ImageNet-1K Visual Classification Performance

data/table

ImageNet-1K classification performance of DFFormer and CDFFormer models compared against convolutional (C), attention-based (A), retention-based (R), MLP-based (M), FFT-based (F), and hybrid (CA, CF) architectures. All models were trained for 300 epochs at $224 \times 224$ resolution, and inference throughput was benchmarked on a single NVIDIA V100 GPU (16GB memory) at batch size 16.

Model	Type	Params (M)	FLOPs (G)	Throughput (img/s)	Top-1 (%)
ConvNeXt-T	C	29	4.5	1471	82.1
ConvFormer-S18	C	27	3.9	756	83.0
CSWin-T	A	23	4.3	340	82.7
MViTv2-T	A	24	4.7	624	82.3
DiNAT-T	A	28	4.3	816	82.7
DaViT-Tiny	A	28	4.5	1121	82.8
GCViT-T	A	28	4.7	566	83.5
MaxViT-T	A	41	5.6	527	83.6
RMT-S	R	27	4.5	406	84.1
AMixer-T	M	26	4.5	724	82.0
GFNet-H-S	F	32	4.6	952	81.5
DFFormer-S18	F	30	3.8	535	83.2
CAFormer-S18	CA	26	4.1	741	83.6
CDFFormer-S18	CF	30	3.9	567	83.1
ConvNeXt-S	C	50	8.7	864	83.1
ConvFormer-S36	C	40	7.6	398	84.1
MViTv2-S	A	35	7.0	416	83.6
DiNAT-S	A	51	7.8	688	83.8
DaViT-Small	A	50	8.8	664	84.2
GCViT-S	A	51	8.5	478	84.3
RMT-B	R	54	9.7	264	85.0
DynaMixer-S	M	26	7.3	448	82.7
AMixer-S	M	46	9.0	378	83.5
GFNet-H-B	F	54	8.6	612	82.9
DFFormer-S36	F	46	7.4	270	84.3
CAFormer-S36	CA	39	8.0	382	84.5
CDFFormer-S36	CF	45	7.5	319	84.2
ConvNeXt-B	C	89	15.4	687	83.8
ConvFormer-M36	C	57	12.8	307	84.5
MViTv2-B	A	52	10.2	285	84.4
GCViT-S2	A	68	10.7	415	84.8
MaxViT-S	A	69	11.7	449	84.5
DynaMixer-M	M	57	17.0	317	83.7
AMixer-B	M	83	16.0	325	84.0
DFFormer-M36	F	65	12.5	210	84.6
CAFormer-M36	CA	56	13.2	297	85.2
CDFFormer-M36	CF	64	12.7	254	84.8
ConvNeXt-L	C	198	34.4	431	84.3
ConvFormer-B36	C	100	22.6	235	84.8
MViTv2-L	A	218	42.1	128	85.3
DiNAT-B	A	90	13.7	499	84.4
DaViT-Base	A	88	15.5	528	84.6
GCViT-B	A	90	14.8	367	85.0
MaxViT-B	A	120	23.4	224	85.0
RMT-L	R	95	18.2	233	85.5
DynaMixer-L	M	97	27.4	216	84.3
DFFormer-B36	F	115	22.1	161	84.8
CAFormer-B36	CA	99	23.2	227	85.5
CDFFormer-B36	CF	113	22.5	195	85.0

DFFormer-S18 outperforms the static FFT baseline GFNet-H-S by 1.7% top-1 accuracy (83.2% vs. 81.5%) with fewer FLOPs (3.8G vs. 4.6G). DFFormer-B36 achieves 84.8% top-1 accuracy, and the hybrid CDFFormer-B36 reaches 85.0% top-1 accuracy, exceeding purely convolutional ConvNeXt and ConvFormer models while matching or approaching multi-head self-attention models.

Knowl 4 — Resolution Scaling: Throughput and Memory Efficiency
empirical result
The theoretical computational complexity of Multi-Head Self-Attention (MHSA) is $\mathcal{O}(HWC^2 + (HW)^2C)$ , scaling quadratically with the spatial token resolution $HW$ . In contrast, global and dynamic FFT-based filter operations have a theoretical complexity of $\mathcal{O}(HWC \lceil\log_2(HW)\rceil + HWC)$ , scaling quasilinearly with spatial resolution.

Empirical benchmarking on an NVIDIA V100 GPU with 16GB memory at batch size 4 across resolutions ranging from $256 \times 256$ to $1024 \times 1024$ demonstrates the following behavior:
1. Throughput Scaling: While attention-based hybrid models (CAFormer-B36) achieve higher throughput at standard resolution ( $224 \times 224$ ) due to hardware-optimized attention kernels, their throughput degrades rapidly as resolution scales, dropping precipitously from $\approx 10^2$ img/s at $256^2$ to $< 10^1$ img/s at $1024^2$ . Conversely, DFFormer-B36, CDFFormer-B36, and GFFormer-B36 maintain high throughput across all resolutions, closely following purely convolutional ConvFormer-B36.
2. Peak Memory Scaling: CAFormer-B36 experiences exponential peak memory consumption exceeding $7000$ MB at $1024^2$ resolution. DFFormer-B36 and CDFFormer-B36 exhibit sublinear memory growth comparable to ConvFormer-B36, remaining below $3500$ MB at $1024^2$ .
These results establish that Dynamic Filter networks avoid the quadratic computational and memory bottlenecks of MHSA when handling high-resolution visual inputs.

Knowl 5 — Semantic Segmentation Performance on ADE20K

data/table

Semantic segmentation performance on the ADE20K validation benchmark using Semantic FPN as the segmentation framework across different model backbones.

Backbone	Params (M)	mIoU (%)
ResNet-50	28.5	36.7
PVT-Small	28.2	39.8
PoolFormer-S24	23.2	40.3
DFFormer-S18	31.7	45.1
CDFFormer-S18	31.4	44.9
ResNet-101	47.5	38.8
ResNeXt-101-32x4d	47.1	39.7
PVT-Medium	48.0	41.6
PoolFormer-S36	34.6	42.0
DFFormer-S36	47.2	47.5
CDFFormer-S36	46.5	46.7
PVT-Large	65.1	42.1
PoolFormer-M36	59.8	42.4
DFFormer-M36	66.4	47.6
CDFFormer-M36	65.2	48.6

DFFormer and CDFFormer backbones significantly outperform convolutional and pooling-based baselines across all parameter regimes. DFFormer-S36 achieves 47.5% mIoU, outperforming PoolFormer-S36 by 5.5 mIoU points. CDFFormer-M36 achieves the highest score of 48.6% mIoU, outperforming PVT-Large by 6.5 mIoU points.

Knowl 6 — Dynamic Filter Design and Activation Ablation

data/table

Ablation experiments on ImageNet-1K using DFFormer-S18 evaluating filter parameters, mixer formulations, and activation functions. Inference throughput was measured on an NVIDIA V100 GPU (16GB memory) at batch size 16 with $224 \times 224$ inputs.

Ablation	Variant	Params (M)	FLOPs (G)	Throughput (img/s)	Top-1 Acc. (%)
Baseline	DFFormer-S18	30	3.8	535	83.2
Filter	$N = 4 \to 2$	29	3.8	534	83.0
	$\rho = 0.25 \to 0.125$	28	3.8	532	83.1
	GFFormer-S18 (Static Global Filter)	30	3.8	575	82.9
	DF $\to$ AFNO	30	3.8	389	82.6
Activation	StarReLU $\to$ GELU	30	3.8	672	82.7
	StarReLU $\to$ ReLU	30	3.8	640	82.5
	StarReLU, DF $\to$ ReLU, AFNO	30	3.8	444	82.0

Key observations:

Reducing the basis dimension $N$ from 4 to 2 or reducing the MLP expansion ratio $\rho$ from 0.25 to 0.125 lowers accuracy by 0.2% and 0.1%, respectively, with negligible throughput differences.
Replacing dynamic filters with static global filters (GFFormer-S18) decreases accuracy by 0.3% (83.2% vs. 82.9%), demonstrating the advantage of input-dependent filter generation.
Dynamic filters outperform non-separable Adaptive Fourier Neural Operators (AFNO) by 0.6% in accuracy and deliver 37.5% higher throughput (535 vs. 389 img/s).
The performance advantage of the dynamic filter persists when controlling for activation functions: with ReLU activations, the Dynamic Filter baseline (82.5%) outperforms the AFNO variant (82.0%) by 0.5%.

Knowl 7 — Representation Similarity and Frequency Filtering Properties
empirical result
Analysis of intermediate feature representations and frequency domain responses reveals significant mechanistic differences between dynamic filters and multi-head self-attention (MHSA):
1. Representational Similarity via Linear CKA: Mini-batch linear Centered Kernel Alignment (CKA) between DFFormer-S18 and static global filter networks (GFFormer-S18) or convolutional networks (ConvFormer-S18) reveals high layer-wise similarity through stages 1 to 3, with minor divergence only in stage 4. In contrast, comparing attention-hybrid CAFormer-S18 and FFT-hybrid CDFFormer-S18 shows high representational similarity in stages 1 and 2 (where both use convolutions), but substantial divergence starting from stage 3 onward where MHSA and Dynamic Filters are introduced.
2. Frequency Filtering Profile: Fourier analysis measuring the relative logarithmic amplitude $\Delta \text{Log amplitude}$ across normalized frequencies in stage 3 reveals that MHSA in CAFormer-S18 acts as a high-pass filter in hierarchical networks, preserving or enhancing higher spatial frequencies. In contrast, Dynamic Filters in CDFFormer-S18 strongly attenuate higher frequencies relative to zero frequency, functioning as low-pass and selective band-pass spatial filters.
Knowl 8 — Frequency Domain Basis Diversity in Dynamic Filtering
empirical result
Static global filter architectures (such as GFNet) assign fixed complex filter matrices per channel, leading to noticeable filter redundancy across channels within the same layer. In the Dynamic Filter module of DFFormer-S18, each layer learns a compact set of $N=4$ complex basis matrices $K_i \in \mathbb{C}^{H \times \lceil W/2 \rceil}$ .

Visualizing the 2D frequency amplitude spectra of these basis matrices across network depths demonstrates:
1. Reduced Redundancy: The learned basis elements within each layer exhibit distinct spatial frequency distributions without replicating redundant patterns.
2. Multi-Spectral Filter Types: The learned basis elements within individual layers concurrently encompass low-pass (high central amplitudes), high-pass (attenuated central amplitudes and heightened perimeter amplitudes), and directional band-pass filter profiles.
3. Adaptive First-Order Coupling: First-order linear combination via dynamic softmax weights allows the network to adaptively synthesize low-pass, high-pass, and band-pass filters per channel for each input instance.

Coverage note — No substantial contributed material was omitted.

References

1.Ba, J. L.; Kiros, J. R.; and Hinton, G. E. 2016. Layer Normalization. In NeurIPS.
2.Bertasius, G.; Wang, H.; and Torresani, L. 2021. Is spacetime attention all you need for video understanding? In ICML.
3.Beyer, L.; Izmailov, P.; Kolesnikov, A.; Caron, M.; Kornblith, S.; Zhai, X.; Minderer, M.; Tschannen, M.; Alabdulmohsin, I.; and Pavetic, F. 2023. FlexiViT: One Model for All Patch Sizes. arXiv:2212.08013.
4.Carion, N.; Massa, F.; Synnaeve, G.; Usunier, N.; Kirillov, A.; and Zagoruyko, S. 2020. End-to-end object detection with transformers. In ECCV, 213–229. Springer.
5.Chen, C.-F.; Panda, R.; and Fan, Q. 2022. Regionvit: Regional-to-local attention for vision transformers. In ICLR.
6.Chen, Y.; Dai, X.; Liu, M.; Chen, D.; Yuan, L.; and Liu, Z. 2020. Dynamic convolution: Attention over convolution kernels. In CVPR, 11030–11039.
7.Chu, X.; Tian, Z.; Wang, Y.; Zhang, B.; Ren, H.; Wei, X.; Xia, H.; and Shen, C. 2021. Twins: Revisiting the design of spatial attention in vision transformers. Advances in Neural Information Processing Systems, 34: 9355–9366.
8.Contributors, M. 2020. MMSegmentation: OpenMMLab Semantic Segmentation Toolbox and Benchmark. https://github.com/open-mmlab/mmsegmentation.
9.Cubuk, E. D.; Zoph, B.; Shlens, J.; and Le, Q. V. 2020. RandAugment: Practical automated data augmentation with a reduced search space. In CVPRW, 702–703.
10.Ding, M.; Xiao, B.; Codella, N.; Luo, P.; Wang, J.; and Yuan, L. 2022a. Davit: Dual attention vision transformers. In ECCV, 74–92. Springer.
11.Ding, X.; Zhang, X.; Zhou, Y.; Han, J.; Ding, G.; and Sun, J. 2022b. Scaling Up Your Kernels to 31x31: Revisiting Large Kernel Design in CNNs. In CVPR.
12.Dong, X.; Bao, J.; Chen, D.; Zhang, W.; Yu, N.; Yuan, L.; Chen, D.; and Guo, B. 2022. Cswin transformer: A general vision transformer backbone with cross-shaped windows. In CVPR.
13.Dosovitskiy, A.; Beyer, L.; Kolesnikov, A.; Weissenborn, D.; Zhai, X.; Unterthiner, T.; Dehghani, M.; Minderer, M.; Heigold, G.; Gelly, S.; et al. 2021. An Image is Worth 16x16 Words: Transformers for Image Recognition at Scale. In ICLR.
14.Fan, Q.; Huang, H.; Chen, M.; Liu, H.; and He, R. 2023. Rmt: Retentive networks meet vision transformers. arXiv:2309.11523.
15.Guibas, J.; Mardani, M.; Li, Z.; Tao, A.; Anandkumar, A.; and Catanzaro, B. 2022. Adaptive fourier neural operators: Efficient token mixers for transformers. In ICLR.
16.Guo, M.-H.; Cai, J.-X.; Liu, Z.-N.; Mu, T.-J.; Martin, R. R.; and Hu, S.-M. 2021. Pct: Point cloud transformer. Computational Visual Media, 7(2): 187–199.
17.Ha, D.; Dai, A.; and Le, Q. V. 2016. Hypernetworks. In ICLR.
18.Han, K.; Wang, Y.; Guo, J.; Tang, Y.; and Wu, E. 2022. Vision gnn: An image is worth graph of nodes. In NeurIPS.
19.Hassani, A.; and Shi, H. 2022. Dilated neighborhood attention transformer. arXiv:2209.15001.
20.Hatamizadeh, A.; Yin, H.; Heinrich, G.; Kautz, J.; and Molchanov, P. 2023. Global context vision transformers. In ICML, 12633–12646. PMLR.
21.He, K.; Zhang, X.; Ren, S.; and Sun, J. 2016. Deep Residual Learning for Image Recognition. In CVPR, 770–778.
22.Hendrycks, D.; and Gimpel, K. 2023. Gaussian Error Linear Units (GELUs). arXiv:1606.08415.
23.Huang, G.; Sun, Y.; Liu, Z.; Sedra, D.; and Weinberger, K. Q. 2016. Deep Networks with Stochastic Depth. In ECCV, 646–661.
24.Jia, X.; De Brabandere, B.; Tuytelaars, T.; and Gool, L. V. 2016. Dynamic filter networks. In NeurIPS, volume 29.
25.Kirillov, A.; Girshick, R.; He, K.; and Dollár, P. 2019. Panoptic feature pyramid networks. In CVPR, 6399–6408.
26.Krizhevsky, A.; Sutskever, I.; and Hinton, G. E. 2012. ImageNet Classification with Deep Convolutional Neural Networks. In NeurIPS, volume 25, 1097–1105.
27.Lee-Thorp, J.; Ainslie, J.; Eckstein, I.; and Ontanon, S. 2022. Fnet: Mixing tokens with fourier transforms. In NAACL.
28.Li, Y.; Wu, C.-Y.; Fan, H.; Mangalam, K.; Xiong, B.; Malik, J.; and Feichtenhofer, C. 2022. MViTv2: Improved Multiscale Vision Transformers for Classification and Detection. In CVPR, 4804–4814.
29.Liu, S.; Chen, T.; Chen, X.; Chen, X.; Xiao, Q.; Wu, B.; Pechenizkiy, M.; Mocanu, D.; and Wang, Z. 2023. More convnets in the 2020s: Scaling up kernels beyond 51x51 using sparsity. In ICLR.
30.Liu, Z.; Lin, Y.; Cao, Y.; Hu, H.; Wei, Y.; Zhang, Z.; Lin, S.; and Guo, B. 2021. Swin Transformer: Hierarchical Vision Transformer using Shifted Windows. In ICCV.
31.Liu, Z.; Mao, H.; Wu, C.-Y.; Feichtenhofer, C.; Darrell, T.; and Xie, S. 2022. A ConvNet for the 2020s. In CVPR.
32.Loshchilov, I.; and Hutter, F. 2019. Decoupled Weight Decay Regularization. In ICLR.
33.Nair, V.; and Hinton, G. E. 2010. Rectified linear units improve restricted boltzmann machines. In ICML.
34.Neimark, D.; Bar, O.; Zohar, M.; and Asselmann, D. 2021. Video transformer network. In ICCV, 3163–3172.
35.Nguyen, T.; Raghu, M.; and Kornblith, S. 2021. Do wide and deep networks learn the same things? uncovering how neural network representations vary with width and depth. In ICLR.
36.Park, N.; and Kim, S. 2022. How Do Vision Transformers Work? In ICLR.
37.Paszke, A.; Gross, S.; Massa, F.; Lerer, A.; Bradbury, J.; Chanan, G.; Killeen, T.; Lin, Z.; Gimelshein, N.; Antiga, L.; et al. 2019. Pytorch: An imperative style, high-performance deep learning library. In NeurIPS, volume 32.
38.Proakis, J. G. 2007. Digital signal processing: principles, algorithms, and applications, 4/E. Pearson Education India.
39.Rao, Y.; Zhao, W.; Zhou, J.; and Lu, J. 2022. AMixer: Adaptive Weight Mixing for Self-attention Free Vision Transformers. In ECCV, 50–67. Springer.
40.Rao, Y.; Zhao, W.; Zhu, Z.; Lu, J.; and Zhou, J. 2021. Global filter networks for image classification. In NeurIPS, volume 34.
41.Sevim, N.; Özyedek, E. O.; Şahinuç, F.; and Koç, A. 2023. Fast-FNet: Accelerating Transformer Encoder Models via Efficient Fourier Layers. arXiv:2209.12816.
42.So, D. R.; Manké, W.; Liu, H.; Dai, Z.; Shazeer, N.; and Lé, Q. V. 2021. Primer: Searching for efficient transformers for language modeling. In NeurIPS.
43.Subramanian, A. 2021. torch_cka. https://github.com/AntixK/PyTorch-Model-Compare.
44.Szegedy, C.; Vanhoucke, V.; Ioffe, S.; Shlens, J.; and Wojna, Z. 2016. Rethinking the Inception Architecture for Computer Vision. In CVPR, 2818–2826.
45.Tatsunami, Y.; and Taki, M. 2022. Sequencer: Deep LSTM for Image Classification. In NeurIPS.
46.Tay, Y.; Bahri, D.; Metzler, D.; Juan, D.-C.; Zhao, Z.; and Zheng, C. 2021. Synthesizer: Rethinking self-attention for transformer models. In ICML, 10183–10192. PMLR.
47.Tolstikhin, I. O.; Houlsby, N.; Kolesnikov, A.; Beyer, L.; Zhai, X.; Unterthiner, T.; Yung, J.; Steiner, A.; Keysers, D.; Uszkoreit, J.; et al. 2021. Mlp-mixer: An all-mlp architecture for vision. In NeurIPS, volume 34.
48.Touvron, H.; Cord, M.; Douze, M.; Massa, F.; Sablayrolles, A.; and Jégou, H. 2021. Training data-efficient image transformers & distillation through attention. In ICML.
49.Tu, Z.; Talebi, H.; Zhang, H.; Yang, F.; Milanfar, P.; Bovik, A.; and Li, Y. 2022. Maxvit: Multi-axis vision transformer. In ECCV, 459–479. Springer.
50.Vaswani, A.; Shazeer, N.; Parmar, N.; Uszkoreit, J.; Jones, L.; Gomez, A. N.; Kaiser, Ł.; and Polosukhin, I. 2017. Attention is all you need. In NeurIPS, volume 30.
51.Vo, X.-T.; Nguyen, D.-L.; Priadana, A.; and Jo, K.-H. 2023. Dynamic Circular Convolution for Image Classification. In International Workshop on Frontiers of Computer Vision.
52.Wang, W.; Xie, E.; Li, X.; Fan, D.-P.; Song, K.; Liang, D.; Lu, T.; Luo, P.; and Shao, L. 2021. Pyramid Vision Transformer: A Versatile Backbone for Dense Prediction Without Convolutions. In ICCV.
53.Wang, Z.; Jiang, W.; Zhu, Y. M.; Yuan, L.; Song, Y.; and Liu, W. 2022. Dynamixer: a vision MLP architecture with dynamic mixing. In ICML, 22691–22701. PMLR.
54.Wei, Y.; Liu, H.; Xie, T.; Ke, Q.; and Guo, Y. 2022. Spatialtemporal transformer for 3d point cloud sequences. In WACV, 1171–1180.
55.Wightman, R. 2019. PyTorch Image Models. https://github.com/rwightman/pytorch-image-models.
56.Xie, S.; Girshick, R.; Dollár, P.; Tu, Z.; and He, K. 2017. Aggregated residual transformations for deep neural networks. In CVPR, 1492–1500.
57.Yang, B.; Bender, G.; Le, Q. V.; and Ngiam, J. 2019. Condconv: Conditionally parameterized convolutions for efficient inference. In NeurIPS, volume 32.
58.Yu, W.; Luo, M.; Zhou, P.; Si, C.; Zhou, Y.; Wang, X.; Feng, J.; and Yan, S. 2022a. Metaformer is actually what you need for vision. In CVPR.
59.Yu, W.; Si, C.; Zhou, P.; Luo, M.; Zhou, Y.; Feng, J.; Yan, S.; and Wang, X. 2022b. MetaFormer Baselines for Vision. arXiv:2210.13452.
60.Yuan, L.; Chen, Y.; Wang, T.; Yu, W.; Shi, Y.; Jiang, Z.-H.; Tay, F. E.; Feng, J.; and Yan, S. 2021. Tokens-to-token vit: Training vision transformers from scratch on imagenet. In ICCV, 558–567.
61.Yun, S.; Han, D.; Oh, S. J.; Chun, S.; Choe, J.; and Yoo, Y. 2019. CutMix: Regularization Strategy to Train Strong Classifiers with Localizable Features. In ICCV, 6023–6032.
62.Zhang, H.; Cisse, M.; Dauphin, Y. N.; and Lopez-Paz, D. 2018. mixup: Beyond Empirical Risk Minimization. In ICLR.
63.Zhang, P.; Dai, X.; Yang, J.; Xiao, B.; Yuan, L.; Zhang, L.; and Gao, J. 2021. Multi-scale vision longformer: A new vision transformer for high-resolution image encoding. In Proceedings of the IEEE/CVF International Conference on Computer Vision, 2998–3008.
64.Zhao, H.; Jiang, L.; Jia, J.; Torr, P. H.; and Koltun, V. 2021. Point transformer. In ICCV, 16259–16268.
65.Zhong, Z.; Zheng, L.; Kang, G.; Li, S.; and Yang, Y. 2020. Random erasing data augmentation. In AAAI, volume 34, 13001–13008.
66.Zhou, B.; Zhao, H.; Puig, X.; Fidler, S.; Barriuso, A.; and Torralba, A. 2017. Scene parsing through ade20k dataset. In CVPR, 633–641.
67.Zhou, D.; Shi, Y.; Kang, B.; Yu, W.; Jiang, Z.; Li, Y.; Jin, X.; Hou, Q.; and Feng, J. 2021. Refiner: Refining Self-attention for Vision Transformers. arXiv:2106.03714.

Citation

MLA

Tatsunami, Y., and M. Taki. “FFT-based Dynamic Token Mixer for Vision”. arXiv, 2023, http://arxiv.org/abs/2303.03932v2.

APA

Tatsunami, Y., & Taki, M. (2023). FFT-based Dynamic Token Mixer for Vision. arXiv. http://arxiv.org/abs/2303.03932v2

Chicago

Tatsunami, Y., and M. Taki. 2023. “FFT-based Dynamic Token Mixer for Vision”. arXiv. http://arxiv.org/abs/2303.03932v2.

Harvard

Tatsunami, Y. and Taki, M. (2023) “FFT-based Dynamic Token Mixer for Vision”, arXiv [Preprint]. Available at: http://arxiv.org/abs/2303.03932v2.

Vancouver

1. Tatsunami Y, Taki M (2023) FFT-based Dynamic Token Mixer for Vision. arXiv

BibTeX

@article{tatsunami2023fft,
  title = {FFT-based Dynamic Token Mixer for Vision},
  author = {Tatsunami, Yuki and Taki, Masato},
  year = {2023},
  journal = {arXiv},
  url = {http://arxiv.org/abs/2303.03932v2},
  eprint = {2303.03932}
}

Metadata:arXiv

Source Code

This paper has an official code repository available. Click below to access the source code.

View Repository

Access the Paper

This paper is available from its original source. Click below to access the PDF.

Open PDF

FFT-Based Dynamic Token Mixer for Vision

Abstract

Topics

Keywords

Table of Contents

Knowls

Knowl 1 — Dynamic Filter Token Mixer

Knowl 2 — DFFormer and CDFFormer Architectural Family

Knowl 3 — ImageNet-1K Visual Classification Performance

Knowl 4 — Resolution Scaling: Throughput and Memory Efficiency

Knowl 5 — Semantic Segmentation Performance on ADE20K

Knowl 6 — Dynamic Filter Design and Activation Ablation

Knowl 7 — Representation Similarity and Frequency Filtering Properties

Knowl 8 — Frequency Domain Basis Diversity in Dynamic Filtering

References

Citation

BibTeX

Source Code

Access the Paper
