MIGC: Multi-Instance Generation Controller for Text-to-Image Synthesis

Dewei ZhouYou LiFan MaXiaoting ZhangYi Yang

article2024CVPR135 citations

Proposes a divide-and-conquer framework for Stable Diffusion that enables precise multi-instance text-to-image synthesis by shading individual instances separately through dedicated attention mechanisms before aggregating them into a unified layout.

Listen

Generating complex images that contain multiple distinct objects remains a major hurdle for modern text-to-image systems. While existing models excel at creating single subjects from simple text prompts, they frequently fail when asked to generate multiple instances within specified bounding areas. Typical failures include attribute leakage—where colors, textures, or shapes bleed across separate objects—as well as missing instances and unwanted object merging caused by weak spatial guidance in standard text encoders and attention layers.

The article introduces and evaluates the Multi-Instance Generation Controller, a framework designed to enable standard diffusion models to accurately synthesize multiple instances at defined positions while preserving distinct attributes, quantities, and harmonious global compositions. To rigorously measure performance on this task, the authors also develop a dedicated evaluation benchmark known as COCO-MIG alongside evaluations on standard vision benchmarks.

The controller uses a divide-and-conquer strategy operating directly within the cross-attention layers of a pre-trained diffusion model. First, it breaks down the complex multi-object scene into single-instance shading subtasks bounded by spatial masks. Second, it resolves missing and merged instances through an Enhancement Attention layer that pairs text descriptions with Fourier-embedded position tokens. Third, it synthesizes the isolated instances, the background, and a Layout Attention template into a coherent final image using an attention-based Shading Aggregation Controller, further supported by an inhibition loss to prevent background artifacts. Testing was conducted across 6,400 synthetic evaluations on the COCO-MIG and COCO-Position datasets, as well as 512 test samples on DrawBench.

The evaluation demonstrates substantial improvements over prior leading methods across key metrics. On the primary benchmark, the instance generation success rate rose from 32.39% in the best baseline to 58.43%, while mean intersection over union improved from 32.25 to 51.48. On standard spatial layout benchmarks, the average precision metric increased from 40.68 to 54.69, and position success reached 80.29% compared to the prior 70.52%. On the DrawBench attribute tests, human-evaluated success climbed dramatically from 48.20% to 97.50%. Crucially, the approach achieves these control improvements without degrading overall image quality or significantly slowing down generation runtimes.

These results show that precise spatial and compositional control can be added to pre-trained generative diffusion models without requiring full retraining from scratch or heavy computational overhead during generation. By decomposing multi-object interactions into modular attention subtasks, organizations can significantly reduce generation failure rates, streamline automated digital design pipelines, and eliminate costly trial-and-error prompting cycles.

For practical adoption, engineering teams developing image generation tools should integrate localized attention conditioning modules rather than relying strictly on standard text-prompt engineering. Moving forward, the research suggests extending this architectural framework to better model complex physical interactions between adjacent instances and deploying targeted validation pilots in commercial workflows to assess complex composition needs.

Confidence in the reported improvements is high based on consistent automated and human evaluation gains across multiple public datasets. However, stakeholders should note that bounding boxes currently require explicit pre-definition or upstream extraction via language and detection models, and high inhibition loss settings must be carefully tuned to avoid subtle trade-offs in image quality.

Huawei Zhejiang University attention mechanism control systems Multi-Instance Generation Controller text-to-image synthesis multi-instance generation

arXiv: 2402.05408

Paper: T2I-CompBench: A Comprehensive Benchmark for Open-world Compositional Text-to-image Generation, Kaiyi Huang et al. (2023). This benchmark establishes the standard evaluative framework and metrics for compositional text-to-image generation, directly motivating MIGC's focus on resolving attribute binding and spatial layout failures.
Paper: Prompt-to-Prompt Image Editing with Cross Attention Control, Amir Hertz et al. (2022). This foundational work establishes the methodology of manipulating internal cross-attention maps to control spatial layout and semantics in diffusion models, a core principle leveraged in MIGC's attention controller design.
Paper: Adding Conditional Control to Text-to-Image Diffusion Models, Lvmin Zhang et al. (2023). ControlNet provides essential background on incorporating spatial conditioning into pre-trained diffusion models without requiring full retraining from scratch.
Paper: What the DAAM: Interpreting Stable Diffusion Using Cross Attention, Raphael Tang et al. (2023). DAAM demonstrates how cross-attention maps reflect linguistic syntax and instance-level attribution in Stable Diffusion, providing key interpretability insights that MIGC builds upon for instance-specific shading.
Paper: T2I-Adapter: Learning Adapters to Dig out More Controllable Ability for Text-to-Image Diffusion Models, Chong Mou et al. (2023). T2I-Adapter introduces lightweight conditioning mechanisms for pre-trained diffusion models, serving as key prior work for modular attention-based spatial guidance.
Paper: IP-Adapter: Text Compatible Image Prompt Adapter for Text-to-Image Diffusion Models, Hu Ye et al. (2023). IP-Adapter outlines how decoupling cross-attention pathways enables modular conditioning in diffusion models without altering base network weights.
Paper: Multi-Concept Customization of Text-to-Image Diffusion, Nupur Kumari et al. (2022). Custom Diffusion analyzes cross-attention parameter updates to bind and compose multiple distinct concepts in diffusion generation, addressing related multi-concept challenges.
Paper: Photorealistic Text-to-Image Diffusion Models with Deep Language Understanding, Chitwan Saharia et al. (2022). Imagen introduces the DrawBench evaluation suite and demonstrates language-conditioned diffusion architectures, both of which serve as standard baselines and benchmarks in MIGC.

Paper: Everything in Its Place: Benchmarking Spatial Intelligence of Text-to-Image Models, Zengbin Wang et al. (2026). SpatialGenEval broadens the evaluation of multi-object spatial reasoning and arrangement in generative models, providing a comprehensive benchmark to evaluate advanced compositional controllers like MIGC.
Paper: Initno: Boosting Text-to-Image Diffusion Models via Initial Noise Optimization, Xiefan Guo et al. (2024). INITNO offers a complementary inference-time approach to multi-instance alignment by optimizing initial latent noise to prevent subject omission and blending in diffusion models.
Paper: DiffEditor: Boosting Accuracy and Flexibility on Diffusion-Based Image Editing, Chong Mou et al. (2024). DiffEditor applies localized diffusion guidance principles to fine-grained, interactive multi-object spatial editing and manipulation.
Paper: SmartEdit: Exploring Complex Instruction-Based Image Editing with Multimodal Large Language Models, Yuzhou Huang et al. (2024). SmartEdit integrates multimodal reasoning into diffusion pipelines to identify and manipulate specific spatial instances based on complex compositional instructions.
Paper: Intelligent Grimm - Open-ended Visual Storytelling via Latent Diffusion Models, Chang Liu et al. (2024). StoryGen extends multi-instance visual and character control from single-frame synthesis to sequential storytelling across multi-frame contexts.

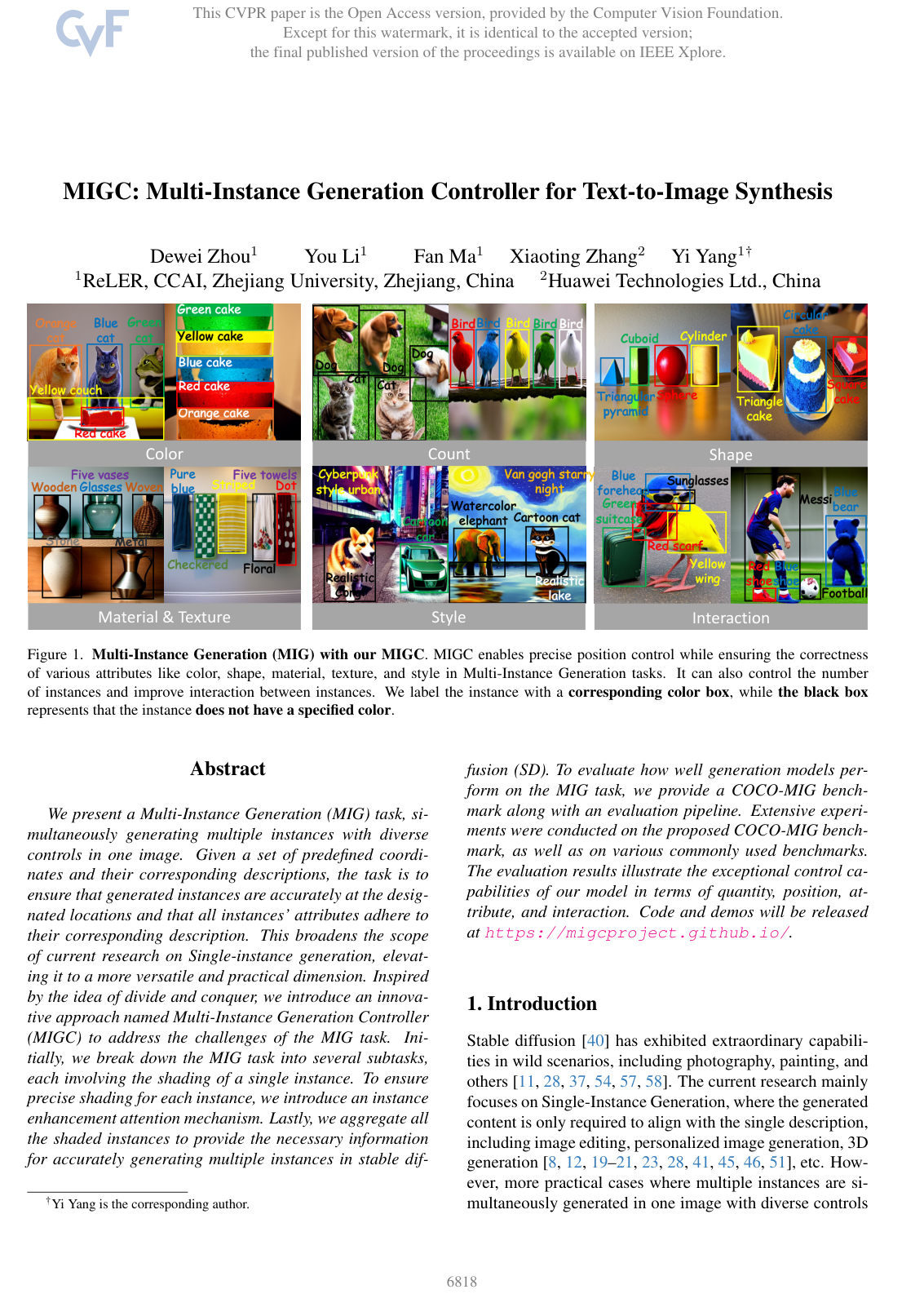

Cover for MIGC: Multi-Instance Generation Controller for Text-to-Image Synthesis

Abstract

We present a Multi-Instance Generation (MIG) task, simultaneously generating multiple instances with diverse controls in one image. Given a set of predefined coordinates and their corresponding descriptions, the task is to ensure that generated instances are accurately at the designated locations and that all instances' attributes adhere to their corresponding description. This broadens the scope of current research on Single-instance generation, elevating it to a more versatile and practical dimension. Inspired by the idea of divide and conquer, we introduce an innovative approach named Multi-Instance Generation Controller (MIGC) to address the challenges of the MIG task. Initially, we break down the MIG task into several subtasks, each involving the shading of a single instance. To ensure precise shading for each instance, we introduce an instance enhancement attention mechanism. Lastly, we aggregate all the shaded instances to provide the necessary information for accurately generating multiple instances in stable diffusion (SD). To evaluate how well generation models perform on the MIG task, we provide a COCO-MIG benchmark along with an evaluation pipeline. Extensive experiments were conducted on the proposed COCO-MIG benchmark, as well as on various commonly used benchmarks. The evaluation results illustrate the exceptional control capabilities of our model in terms of quantity, position, attribute, and interaction. Code and demos will be released at https://migcproject.github.io/.

Topics

attention mechanism control systems

Keywords

Multi-Instance Generation Controller text-to-image synthesis multi-instance generation controllable image generation COCO-MIG benchmark pre-trained stable diffusion single-instance shading feature enhancement attention cross-attention layers instance merging

1. Introduction
2. Related work
2.1. Text-to-Image Generation
2.2. Layout-to-Image Generation
3. Method
3.1. Preliminaries
3.2. Overview
3.3. Divide MIG into Instance Shading Subtasks
3.4. Conquer Instance Shading
3.5. Combine Shading Results
3.6. Summary
4. Experiments
4.1. Benchmarks
4.2. Evaluation Metrics
4.3. Baselines
4.4. Quantitative Results
4.5. Qualitative Results
4.6. Analysis of Shading Aggregation Controller
4.7. Ablation Study
5. Conclusion
References

Knowls

Knowl 1 — Multi-Instance Generation (MIG) Task Formulation
definition
The Multi-Instance Generation (MIG) task is defined as synthesizing an image $I$ conditioned on three user inputs:
- A global text prompt $\mathcal{P}$ ;
- A set of $N$ instance bounding box coordinates $\mathbb{B} = \{b^1, b^2, \dots, b^N\}$ , where each bounding box is specified by normalized coordinates $b^i = [x_1^i, y_1^i, x_2^i, y_2^i] \in [0, 1]^4$ ;
- A set of corresponding instance descriptions $\mathbb{D} = \{d^1, d^2, \dots, d^N\}$ .
The goal is to generate an image $I$ such that for each $i \in \{1, \dots, N\}$ , the visual object generated strictly within bounding box $b^i$ conforms to the instance description $d^i$ (including attributes like color, count, shape, material, texture, and style), while ensuring global visual coherence across instances and the scene context $\mathcal{P}$ . The core difficulties of MIG in diffusion models are twofold:
1. Textual Leakage: Semantic confusion occurring during prompt encoding where attributes of one instance erroneously attach to other instances.
2. Spatial Leakage: Cross-attention bleeding where instance generation overflows designated spatial boundaries and interferes with neighboring regions.
Knowl 2 — Single-Instance Shading Enhancement with Grounded Phrase Tokens
model/method
The Multi-Instance Generation Controller (MIGC) divides the multi-instance generation task into independent single-instance shading subtasks executed directly within the Cross-Attention space of a latent diffusion model's UNet. For each instance $i \in \{1, \dots, N\}$ defined by bounding box $b^i$ and text description $d^i$ :
1. Initial Masked Cross-Attention Shading: An initial instance shading feature $\mathbf{R}^i_f$ is computed using the pre-trained Cross-Attention layer: $\mathbf{R}^i_f = \text{Softmax}\left(\frac{\mathbf{Q} (\mathbf{K}^i)^T}{\sqrt{d}}\right) \mathbf{V}^i \cdot \mathbf{M}^i$ where $\mathbf{Q} \in \mathbb{R}^{(H \cdot W) \times d}$ is projected from the image feature map, $\mathbf{K}^i, \mathbf{V}^i$ are projected from the CLIP text embedding of $d^i$ , and $\mathbf{M}^i \in \{0, 1\}^{H \times W}$ is a binary spatial mask with $1$ inside box $b^i$ and $0$ elsewhere.
2. Grounded Phrase Tokens for Instance Disambiguation: To eliminate instance merge when separate bounding boxes share identical descriptions $d^i$ , text tokens are augmented with spatial position tokens: $\mathbf{G}^i = [\text{CLIP}(d^i), \text{MLP}(\text{Fourier}(b^i))]$ where $\text{Fourier}(\cdot)$ maps box coordinates to Fourier embeddings, $\text{MLP}(\cdot)$ projects them to position tokens, and $[\cdot, \cdot]$ denotes concatenation.
3. Enhancement Attention (EA) Layer: To resolve instance missing caused by unfavorable initial noise distributions, a trainable Enhancement Attention Cross-Attention layer computes an additive residual constrained to $\mathbf{M}^i$ : $\mathbf{R}^i_s = \mathbf{R}^i_f + \text{Softmax}\left(\frac{\mathbf{Q}_{ea} (\mathbf{K}^i_{ea})^T}{\sqrt{d}}\right) \mathbf{V}^i_{ea} \cdot \mathbf{M}^i$ where $\mathbf{Q}_{ea}$ is projected from the image feature map, and $\mathbf{K}^i_{ea}, \mathbf{V}^i_{ea}$ are projected from the grounded phrase tokens $\mathbf{G}^i$ . The resulting tensor $\mathbf{R}^i_s$ forms the solved shading feature for instance $i$ .
Knowl 3 — Layout Attention for Harmonized Shading Template Generation
model/method
To bridge the representational gap between independently computed instance shading results $\{\mathbf{R}^1_s, \dots, \mathbf{R}^N_s\}$ and the background shading result $\mathbf{R}^{bg}$ (computed from the global prompt $\mathcal{P}$ with background mask $\mathbf{M}^{bg} = 1 - \bigcup_{i=1}^N \mathbf{M}^i$ ), MIGC utilizes a Layout Attention (LA) layer to extract a global shading template $\mathbf{R}_{LA}$ conditioned on image features while preventing attribute leakage between regions.

The Layout Attention residual is formulated as: $\mathbf{R}_{LA} = \text{Softmax}\left(\frac{\mathbf{Q}_{LA} \mathbf{K}_{LA}^T}{\sqrt{d}} \odot \mathbf{A}\right) \mathbf{V}_{LA}$ where $\mathbf{Q}_{LA}, \mathbf{K}_{LA}, \mathbf{V}_{LA} \in \mathbb{R}^{(H \cdot W) \times d}$ are projected from the UNet intermediate image feature map, $\odot$ represents the Hadamard product, and $\mathbf{A} \in \mathbb{R}^{(H \cdot W) \times (H \cdot W)}$ is a structured attention mask defined across pixel spatial coordinates $(a, b)$ and $(c, d)$ by: $\mathbf{A}_{(a,b),(c,d)} = \begin{cases} 1, & \text{if } \exists \mathbf{m} \in \mathbb{M}_{inst} \text{ such that } \mathbf{m}_{a,b} = \mathbf{m}_{c,d} = 1 \\ -\infty, & \text{otherwise} \end{cases}$ where $\mathbb{M}_{inst} = \{\mathbf{M}^{bg}, \mathbf{M}^1, \mathbf{M}^2, \dots, \mathbf{M}^N\}$ . The mask $\mathbf{A}$ restricts self-attention at each pixel strictly to other pixels belonging to the same instance or the shared background, eliminating cross-instance feature bleeding.
Knowl 4 — Shading Aggregation Controller (SAC)
model/method
The Shading Aggregation Controller (SAC) dynamically fuses foreground instance shadings, background shading, and the layout attention template across diffusion sampling timesteps into a final Cross-Attention residual $\mathbf{R}_{final} \in \mathbb{R}^{H \times W \times C}$ .

Given the set of $N+2$ candidate shading feature maps and corresponding spatial guidance masks: $\mathbb{R}_s = \{\mathbf{R}^1_s, \mathbf{R}^2_s, \dots, \mathbf{R}^N_s, \mathbf{R}^{bg}, \mathbf{R}_{LA}\} \in \mathbb{R}^{(N+2) \times C \times H \times W}$ $\mathbb{M} = \{\mathbf{M}^1, \mathbf{M}^2, \dots, \mathbf{M}^N, \mathbf{M}^{bg}, \mathbf{M}_{LA}\} \in \mathbb{R}^{(N+2) \times 1 \times H \times W}$ where $\mathbf{M}_{LA}$ is an all-ones mask $\mathbf{1}^{H \times W}$ , SAC concatenates $\mathbb{R}_s$ and $\mathbb{M}$ along the channel dimension to form a tensor in $\mathbb{R}^{(N+2) \times (C+1) \times H \times W}$ .

SAC sequentially executes:
1. Instance Intra-Attention: Self-attention within individual instance feature slices.
2. Instance Inter-Attention: Cross-instance interaction across all $N+2$ shading candidates.
3. Spatial Softmax Normalization: Computes aggregation weights $\mathbf{W} \in \mathbb{R}^{(N+2) \times 1 \times H \times W}$ normalized along the instance dimension (dimension 0) such that $\sum_{j=1}^{N+2} \mathbf{W}_{j, 1, h, w} = 1$ .
The final integrated shading residual is computed via weighted summation: $\mathbf{R}_{final} = \sum_{j=1}^{N+2} \mathbf{W}_j \odot \mathbb{R}_{s, j}$ During early sampling steps, SAC assigns higher aggregation weights to foreground Enhancement Attention features $\mathbf{R}_s^i$ and background Layout Attention templates $\mathbf{R}_{LA}$ , gradually shifting background attention to the global context $\mathbf{R}^{bg}$ in later steps.
Knowl 5 — Multi-Instance Generation Controller Training Loss and Background Inhibition
equation
The parameters $\theta'$ of the Multi-Instance Generation Controller (MIGC) are trained while keeping the underlying pre-trained latent diffusion model parameters $\theta$ frozen. The total optimization objective is: $\min_{\theta'} \mathcal{L} = \mathcal{L}_{\text{LDM}} + \lambda \mathcal{L}_{\text{ihbt}}$ with loss weight $\lambda = 0.1$ , where:
1. Latent Denoising Loss ( $\mathcal{L}_{\text{LDM}}$ ): $\mathcal{L}_{\text{LDM}} = \mathbb{E}_{\mathbf{z}, \epsilon \sim \mathcal{N}(\mathbf{0}, \mathbf{I}), t}\left[ \left\| \epsilon - f_{\theta, \theta'}(\mathbf{z}_t, t, \mathcal{P}, \mathbb{B}, \mathbb{D}) \right\|_2^2 \right]$ where $\mathbf{z}_t$ is the noisy latent at timestep $t$ , $\epsilon$ is standard Gaussian noise, $\mathcal{P}$ is the global prompt, $\mathbb{B}$ is the bounding box set, and $\mathbb{D}$ is the set of instance descriptions.
2. Background Inhibition Loss ( $\mathcal{L}_{\text{ihbt}}$ ): To constrain instances within their designated bounding boxes and suppress the emergence of spurious objects in the background, an attention inhibition loss is applied: $\mathcal{L}_{\text{ihbt}} = \sum_{i=1}^N \left| \mathbf{A}_c^i - \text{DNR}(\mathbf{A}_c^i) \right| \odot \mathbf{M}^{bg}$ where $\mathbf{A}_c^i$ denotes the cross-attention map for the $i$ -th instance in the frozen $16 \times 16$ Cross-Attention layer of the UNet decoder, $\mathbf{M}^{bg}$ is the background mask ( $0$ on all instance boxes, $1$ elsewhere), and $\text{DNR}(\cdot)$ denotes background region denoising using a spatial average operation.
Knowl 6 — COCO-MIG Benchmark and Evaluation Protocol
experimental setup
The COCO-MIG benchmark evaluates simultaneous control over position, color attribute, and instance quantity in text-to-image synthesis:
- Dataset Construction: 800 images are sampled from MS COCO 2014, retaining original instance bounding box layouts. Each instance is assigned a designated color attribute, and global prompts are constructed via the template "a <attr1> <obj1> and a <attr2> <obj2> and a ...".
- Difficulty Levels: The benchmark is split into five levels $L_2, L_3, L_4, L_5, L_6$ , where level $L_k$ requires generating exactly $k$ controlled instances. With 8 random seeds per prompt, models generate 6,400 images in total.
- Position Evaluation: Grounding-DINO detects instances in the generated image. An instance is classified as Position Correctly Generated if the maximum Intersection over Union (IoU) between the predicted box and the ground truth box is $\ge 0.5$ .
- Attribute Evaluation: For position-correct instances, Grounded-SAM segments the instance mask. An instance is classified as Fully Correctly Generated if the designated target color occupies at least $S = 20\%$ ( $S = 0.2$ ) of the segmented pixels in HSV color space.
- Metrics:
  - Instance Success Rate (%): Percentage of specified instances across all images that are Fully Correctly Generated.
  - mIoU: Mean of maximum IoUs across all target instances, where instances failing the color attribute criterion are penalized with an IoU of $0$ .

Knowl 7 — Quantitative Performance on the COCO-MIG Benchmark

data/table

The table below compares the Multi-Instance Generation Controller (MIGC) against text-to-image and layout-to-image baselines on the COCO-MIG benchmark across difficulty levels $L_2$ through $L_6$ (where $L_i$ indicates $i$ target instances), evaluating Instance Success Rate, mean Intersection over Union (mIoU), and average per-image inference latency:

Method	Instance Success Rate (%) $\uparrow$						mIoU $\uparrow$						Time (s) $\downarrow$
	$L_2$	$L_3$	$L_4$	$L_5$	$L_6$	Avg	$L_2$	$L_3$	$L_4$	$L_5$	$L_6$	Avg
Stable Diffusion	6.87	5.01	3.45	3.27	2.21	3.61	18.92	17.44	15.85	15.17	14.42	15.80	9.18
TFLCG	20.47	12.71	8.36	6.72	4.36	8.62	29.34	25.06	20.82	18.81	17.86	20.92	19.92
BOX-Diffusion	24.61	19.22	14.20	11.92	9.31	13.96	32.64	29.88	25.39	23.81	21.19	25.14	44.17
Multi Diffusion	24.88	22.14	19.88	18.97	18.60	20.12	29.41	28.06	25.59	24.83	24.71	25.89	25.15
GLIGEN	42.30	35.55	32.66	28.18	30.84	32.39	37.58	32.34	29.95	26.60	27.70	32.25	22.00
Ours (MIGC)	67.70	59.61	58.09	56.16	56.88	58.43	59.39	52.73	51.45	49.52	49.89	51.48	15.61

MIGC improves the average Instance Success Rate to 58.43% (a +26.04% gain over GLIGEN's 32.39%) and average mIoU to 51.48 (a +19.23 gain over GLIGEN's 32.25), while running in 15.61 seconds per image.

Knowl 8 — Spatial Accuracy and Image Quality on the COCO-Position Benchmark

data/table

The table below evaluates layout control models on the COCO-Position benchmark (800 sampled images, 6,400 generated images) measuring spatial layout precision (Success Ratio, mIoU, AP, AP50, AP75 via Grounding-DINO), image-text consistency (CLIP and Local CLIP scores), and visual quality (FID-6K):

Method	Spatial Accuracy (%)					Image Text Consistency		Image Quality
	Success Ratio $\uparrow$	mIoU $\uparrow$	AP $\uparrow$	AP50 $\uparrow$	AP75 $\uparrow$	CLIP $\uparrow$	Local CLIP $\uparrow$	FID-6K $\downarrow$
Real Image	83.75	85.49	65.97	79.11	71.22	24.22	19.74	-
Stable Diffusion	5.95	21.60	0.80	2.71	0.42	25.69	17.34	23.56
TFLCG	13.54	28.01	1.75	6.77	0.56	25.07	17.97	24.65
BOX-Diffusion	17.84	33.38	3.29	12.27	1.08	23.79	18.70	25.15
Multi Diffusion	23.86	38.82	6.72	18.65	3.63	22.10	19.13	33.20
Layout Diffusion	50.53	57.49	23.45	48.10	20.70	18.28	19.08	25.94
GLIGEN	70.52	71.61	40.68	68.26	42.85	24.61	19.69	26.80
Ours (MIGC)	80.29	77.38	54.69	84.17	61.71	24.66	20.25	24.52

MIGC outperforms GLIGEN in Success Ratio (80.29% vs. 70.52%), mIoU (77.38 vs. 71.61), AP (54.69 vs. 40.68), and AP50 (84.17 vs. 68.26) while maintaining an FID of 24.52, comparable to base Stable Diffusion (23.56).

Knowl 9 — Quantitative and Human Evaluation on DrawBench

data/table

The table below presents automated evaluation ( $R$ , using Grounding-DINO and Grounded-SAM) and manual human evaluation on the DrawBench benchmark across 64 prompts (25 color/attribute, 19 counting, and 20 spatial position prompts, generating 512 images total):

Method	Spatial (%) $\uparrow$		Attribute (%) $\uparrow$		Count (%) $\uparrow$
	R	Human	R	Human	R	Human
SD1.4	-	13.30	-	57.52	-	23.70
AAE	-	23.13	-	51.50	-	30.92
Struc-D	-	13.12	-	56.50	-	30.26
Box-D	11.88	50.00	28.50	57.50	9.21	39.47
TFLCG	9.38	53.13	35.00	60.00	15.79	31.58
Multi-D	10.63	55.63	18.50	65.50	17.76	36.18
GLIGEN	61.25	78.80	51.00	48.20	44.08	55.90
Ours (MIGC)	69.38	93.13	79.00	97.50	67.76	67.50

MIGC attains the highest success rates in both automated and human metrics across all categories, achieving an attribute success rate of 97.50% (human) / 79.00% ( $R$ ), count success rate of 67.50% (human) / 67.76% ( $R$ ), and spatial success rate of 93.13% (human) / 69.38% ( $R$ ).

Knowl 10 — Ablation Study of MIGC Architectural Components and Loss Functions

empirical result

Ablation studies on the COCO-Position dataset evaluate the individual contributions of Enhancement Attention (EA), Layout Attention (LA), the Shading Aggregation Controller (SAC), and background inhibition loss ( $\mathcal{L}_{\text{ihbt}}$ ):

Module Ablation on COCO-Position:

SAC	EA	LA	R (%) $\uparrow$	mIoU $\uparrow$	AP $\uparrow$	AP50 $\uparrow$	AP75 $\uparrow$
			7.66	22.71	0.91	3.18	0.35
✓			12.10	29.55	1.89	7.64	0.49
	✓		34.70	44.08	11.02	28.64	6.83
✓	✓		80.16	76.63	53.03	84.05	58.67
	✓	✓	78.12	75.47	52.05	83.48	57.16
✓	✓	✓	80.29	77.38	54.69	84.17	61.71

Integrating Enhancement Attention (EA) produces the primary gain in spatial accuracy, raising the Success Rate from 12.10% to 80.16% and AP from 1.89 to 53.03 by mitigating instance missing.
Layout Attention (LA) and SAC refine boundaries and template alignment, further boosting AP to 54.69 and AP75 to 61.71.

Inhibition Loss Weight $\lambda$ :

$\lambda = 0.0$ (no inhibition loss): $\text{R} = 80.20\%$ , $\text{mIoU} = 77.03$ , $\text{AP} = 52.46$ , $\text{FID} = 24.73$ .
$\lambda = 0.1$ : $\text{R} = 80.29\%$ , $\text{mIoU} = 77.38$ , $\text{AP} = 54.69$ , $\text{FID} = 24.52$ .
$\lambda = 1.0$ : $\text{R} = 80.61\%$ , $\text{mIoU} = 77.79$ , $\text{AP} = 55.62$ , $\text{FID} = 26.94$ . Setting $\lambda = 0.1$ delivers significant AP gains without degrading image quality (FID).

Coverage note — None. All core methodological contributions, equations, benchmarks, quantitative findings, and ablation studies have been included as self-contained knowls.
