Diffusion-SDF: Text-to-Shape via Voxelized Diffusion

Muheng LiYueqi DuanJie ZhouJiwen Lu

article2023CVPR168 citations

Proposes a two-stage 3D generative framework that combines a patch-based signed distance field autoencoder with a voxelized diffusion model to synthesize, complete, and manipulate detailed 3D shapes from text descriptions.

Listen

Generating high-quality 3D digital content from natural language descriptions is an increasingly important capability for virtual modeling, design, and simulation. However, existing automated methods struggle to produce diverse 3D shapes that accurately match text prompts while maintaining watertight and precise structural geometries.

The article develops and evaluates Diffusion-SDF, a generative modeling framework designed for text-to-shape synthesis. The main objective is to demonstrate that combining implicit 3D representations with diffusion models can produce higher-quality and more varied 3D shapes from text descriptions than existing approaches.

The authors implemented a two-stage generative pipeline. In the first stage, a patch-wise autoencoder compresses 3D shapes—represented as voxelized truncated signed distance fields—into localized, independent latent representations across 13 object categories from the ShapeNet repository. In the second stage, a voxelized diffusion model equipped with a customized dual-network architecture generates shape representations guided by text embeddings. The model was trained and evaluated using the Text2Shape benchmark, which contains approximately 75,000 text-shape pairs.

The findings show that Diffusion-SDF substantially outperforms prior state-of-the-art methods across multiple performance dimensions. First, the framework achieved a classification accuracy of 88.56% on generated shapes, outperforming the closest baseline by about 5 percentage points and more than doubling older methods. Second, it delivered an intersection-over-union fidelity score of 0.194 and the highest text-alignment similarity score among evaluated models. Third, the system drastically improved generation diversity, reducing the total mutual difference score to 0.169 compared to 0.581 for the leading baseline. Finally, qualitative assessments confirmed the method successfully performs complex downstream tasks, including text-guided shape completion of missing parts and localized shape manipulation.

These results indicate that combining patch-independent implicit representations with diffusion models resolves major quality and diversity bottlenecks in automated 3D asset generation. For commercial workflows, this capability can reduce the time, manual labor, and production costs required for early-stage 3D content creation, making text-driven design accessible to non-specialists.

Organizations exploring automated 3D modeling should consider piloting patch-based diffusion frameworks for iterative asset drafting and editing. Before deploying these models into broader production pipelines, developers should expand training datasets to cover a wider range of object categories beyond common furniture types and investigate zero-shot synthesis leveraging pre-trained vision-language models.

Confidence in the reported benchmarks is supported by quantitative comparisons and ablation studies. However, practical application is currently bounded by the limited scope of available paired text-shape datasets, which were restricted primarily to chairs and tables, as well as resolution constraints imposed by voxel patch boundaries.

Tsinghua University3d content3d data3d modellingDiffusion-SDFtext-to-shape synthesistext-guided shape completion
arXiv: 2212.03293ttilm/Diffusion-SDF

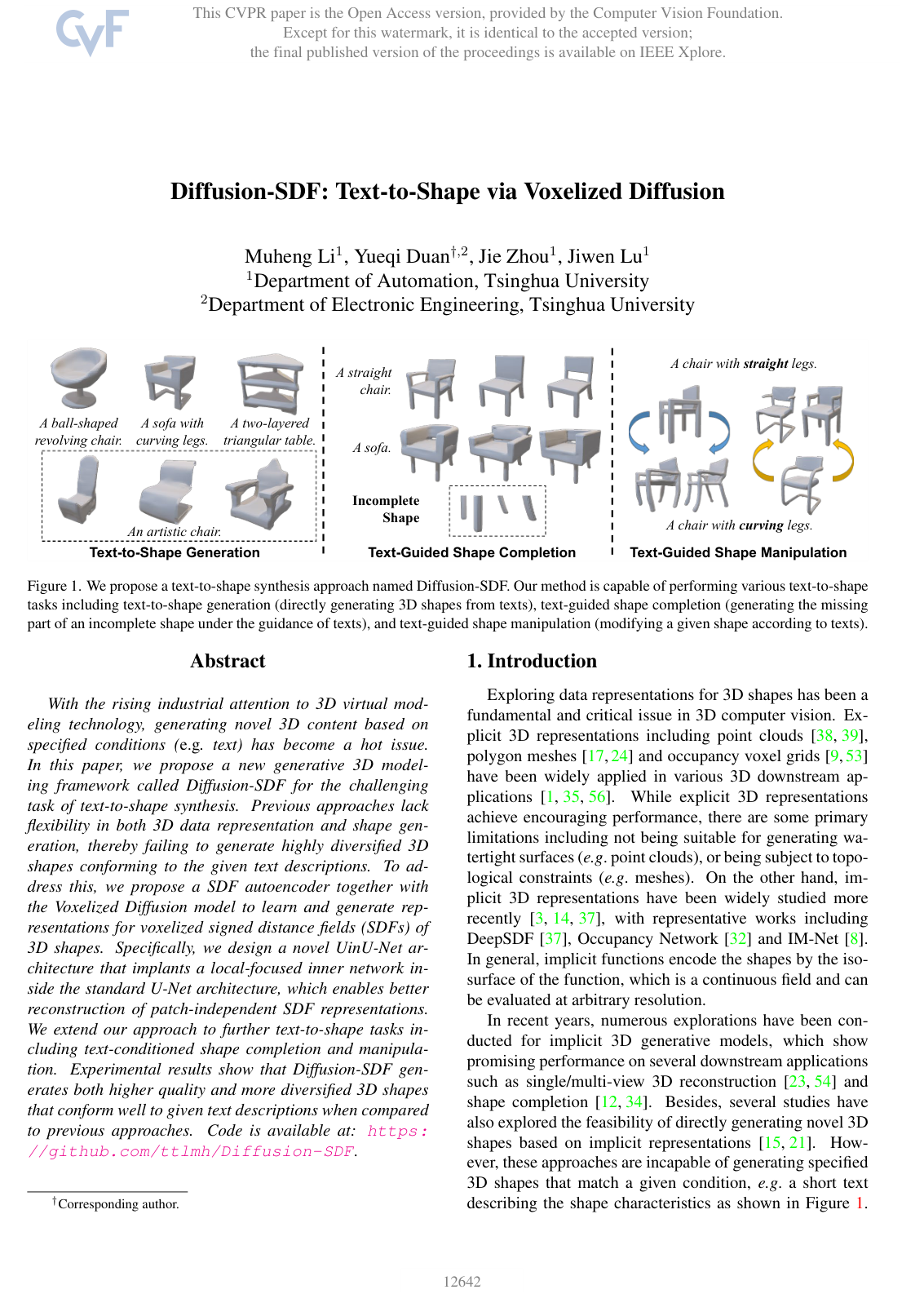

Cover for Diffusion-SDF: Text-to-Shape via Voxelized Diffusion

Abstract

With the rising industrial attention to 3D virtual modeling technology, generating novel 3D content based on specified conditions (e.g. text) has become a hot issue. In this paper, we propose a new generative 3D modeling framework called Diffusion-SDF for the challenging task of text-to-shape synthesis. Previous approaches lack flexibility in both 3D data representation and shape generation, thereby failing to generate highly diversified 3D shapes conforming to the given text descriptions. To address this, we propose a SDF autoencoder together with the Voxelized Diffusion model to learn and generate representations for voxelized signed distance fields (SDFs) of 3D shapes. Specifically, we design a novel UinU-Net architecture that implants a local-focused inner network inside the standard U-Net architecture, which enables better reconstruction of patch-independent SDF representations. We extend our approach to further text-to-shape tasks including text-conditioned shape completion and manipulation. Experimental results show that Diffusion-SDF generates both higher quality and more diversified 3D shapes that conform well to given text descriptions when compared to previous approaches. Code is available at: https://github.com/ttilm/Diffusion-SDF.

Topics

3d content3d data3d modellingarchitecture designsautoencodersreconstructionvirtual spacesdiffusion probabilistic models

Keywords

Diffusion-SDFtext-to-shape synthesistext-guided shape completionvoxelized diffusionlatent SDF representationsspatial attentionshape generationshape encoder

Table of Contents

  • 1. Introduction
  • 2. Related Work
  • 3. Method
  • 3.1. Autoencoding Signed Distance Fields
  • 3.2. Voxelized Diffusion Models (VDMs)
  • 4. Experiments
  • 4.1. Text-Conditioned Shape Generation
  • 4.2. Ablation Studies
  • 4.3. Text-Guided Shape Completion
  • 4.4. Text-Guided Shape Manipulation
  • 5. Limitations and Conclusion
  • References

Knowls

  1. Knowl 1 — Two-Stage Diffusion-SDF Generative Framework

    model/method

    Diffusion-SDF is a text-conditioned 3D shape synthesis framework that represents shapes via voxelized truncated signed distance fields (TSDFs) through a two-stage decoupled generation pipeline:

    1. Stage I (Patch-Wise SDF Compression): A 3D shape truncated signed distance field x∈RD×D×Dx \in \mathbb{R}^{D \times D \times D} is split into N=(D/P)3N = (D/P)^3 local volumetric patches Xp=[xp1,…,xpN]X_p = [x_{p1}, \dots, x_{pN}] of size P×P×PP \times P \times P. A local shape encoder Eloc\mathcal{E}_{loc} maps each patch independently into a Gaussian latent vector zpn=Eloc(xpn)∈Rcz_{pn} = \mathcal{E}_{loc}(x_{pn}) \in \mathbb{R}^c. The latent representations are repositioned into a 3D latent grid z∈R(D/P)×(D/P)×(D/P)×cz \in \mathbb{R}^{(D/P) \times (D/P) \times (D/P) \times c}. A patch-joint decoder D\mathcal{D} reconstructs the full continuous TSDF grid x~=D(z)\tilde{x} = \mathcal{D}(z). The isosurface of x~\tilde{x} is subsequently extracted as a 3D surface mesh using Marching Cubes.

    2. Stage II (Latent Voxelized Diffusion): A denoising diffusion probabilistic model operates over the compressed 3D latent grid representations zz. An autoencoder-based neural score estimator ϵθ(zt,t,τ(c))\epsilon_\theta(z_t, t, \tau(c))—termed UinU-Net—is conditioned on text embeddings τ(c)\tau(c) extracted from a frozen CLIP text encoder τ\tau, gradually denoising a pure Gaussian noise grid into a valid shape latent grid z0z_0 matching input text cc.

  2. Knowl 2 — Patch-Wise SDF Autoencoder

    model/method

    The patch-wise SDF autoencoder compresses a 3D voxelized truncated signed distance field (TSDF) while enforcing a patch-independent Gaussian latent distribution.

    Given a TSDF grid x∈RD3x \in \mathbb{R}^{D^3} (with grid resolution D=64D=64), the volume is divided into N=(D/P)3N = (D/P)^3 non-overlapping patches Xp=[xp1,…,xpN]X_p = [x_{p1}, \dots, x_{pN}], each of size P3P^3. The local encoder Eloc\mathcal{E}_{loc} encodes each patch independently:

    zpn=Eloc(xpn)∈Rcz_{pn} = \mathcal{E}_{loc}(x_{pn}) \in \mathbb{R}^c

    where cc is the latent channel dimension. The patch embeddings Zp=[zp1,…,zpN]Z_p = [z_{p1}, \dots, z_{pN}] are arranged into a regular 3D latent grid z∈R(D/P)×(D/P)×(D/P)×cz \in \mathbb{R}^{(D/P) \times (D/P) \times (D/P) \times c}. The patch-joint decoder D\mathcal{D} processes this full grid to reconstruct the complete SDF field:

    x~=D(z)\tilde{x} = \mathcal{D}(z)

    The autoencoder is trained using a composite objective consisting of an L1\mathcal{L}_1 reconstruction loss and a Kullback-Leibler (KL) divergence regularization loss:

    LAE=∥x−x~∥1+λKLDKL(q(z∣x)∥N(0,I))\mathcal{L}_{AE} = \|x - \tilde{x}\|_1 + \lambda_{\text{KL}} D_{\text{KL}}(q(z|x) \parallel \mathcal{N}(0, \mathbf{I}))

    The KL penalty enforces that each patch latent embedding is approximately distributed according to an independent standard normal distribution N(0,I)\mathcal{N}(0, \mathbf{I}), providing an isotropic Gaussian prior for subsequent diffusion modeling while preserving patch-to-global spatial continuity in the decoder.

  3. Knowl 3 — UinU-Net Score Estimator Architecture

    model/method

    The UinU-Net is a specialized 3D neural score estimator ϵθ(zt,t,τ(c))\epsilon_\theta(z_t, t, \tau(c)) designed for denoising voxelized latent TSDF grids ztz_t. Standard 3D U-Nets apply hierarchical 3×3×33 \times 3 \times 3 convolutions, which mix global and neighborhood features but struggle to reconstruct patch-independent local Gaussian representations. UinU-Net embeds an inner local network inside an outer 3D U-Net backbone:

    • Outer Network: A standard 3D U-Net backbone featuring 3×3×33 \times 3 \times 3 convolutional residual blocks, cross-attention layers conditioned on text embeddings τ(c)\tau(c), downsampling/upsampling layers, and skip connections across hierarchical resolutions (e.g., 83×1928^3 \times 192, 43×3844^3 \times 384, 23×7682^3 \times 768).
    • Inner Network: Operating directly at the native latent resolution D/PD/P (e.g., 83×88^3 \times 8), it utilizes 1×1×11 \times 1 \times 1 convolutional ResNet blocks to process patch-wise features independently without spatial mixing.
    • Spatial Transformer: A self-attention transformer module within the inner path takes positionally embedded patch representations as tokens to explicitly model non-local patch-to-patch dependencies.
    • Inner-Outer Skip Connections: Synthesis pathways of the inner network are concatenated directly to corresponding stages in the outer U-Net, allowing independent local patch representations to guide global shape formation.

  4. Knowl 4 — Latent Voxelized Diffusion and Classifier-Free Text Guidance

    model/method

    The Voxelized Diffusion Model (VDM) models the distribution of latent TSDF grids z0∼q(z0)z_0 \sim q(z_0) over a Markov chain of TT timesteps. The forward diffusion transition is:

    q(zt∣z0)=N(zt;αˉtz0,(1−αˉt)I)q(z_t | z_0) = \mathcal{N}\left(z_t; \sqrt{\bar{\alpha}_t} z_0, (1 - \bar{\alpha}_t) \mathbf{I}\right)

    where αt=1−βt\alpha_t = 1 - \beta_t and αˉt=∏i=1tαi\bar{\alpha}_t = \prod_{i=1}^t \alpha_i. The training objective for the score estimator ϵθ\epsilon_\theta optimizes the MSE of predicted noise on latent samples:

    LDiffusion-SDF=Ez0,t,ϵ∼N(0,I)[∥ϵ−ϵθ(zt,t,τ(c))∥2]\mathcal{L}_{\text{Diffusion-SDF}} = \mathbb{E}_{z_0, t, \boldsymbol{\epsilon} \sim \mathcal{N}(0, \mathbf{I})}\left[\left\|\boldsymbol{\epsilon} - \boldsymbol{\epsilon}_\theta(z_t, t, \tau(c))\right\|^2\right]

    where t∼U(1,T)t \sim \mathcal{U}(1, T), zt=αˉtz0+1−αˉtϵz_t = \sqrt{\bar{\alpha}_t} z_0 + \sqrt{1 - \bar{\alpha}_t} \boldsymbol{\epsilon}, and τ(c)\tau(c) is the text embedding of prompt cc obtained from a frozen CLIP text encoder.

    During reverse diffusion sampling, classifier-free guidance is applied with guidance scale s≥1s \ge 1:

    ϵ^θ(zt∣τ(c))=ϵθ(zt∣∅)+s⋅(ϵθ(zt∣τ(c))−ϵθ(zt∣∅))\hat{\boldsymbol{\epsilon}}_\theta(z_t | \tau(c)) = \boldsymbol{\epsilon}_\theta(z_t | \emptyset) + s \cdot \left(\boldsymbol{\epsilon}_\theta(z_t | \tau(c)) - \boldsymbol{\epsilon}_\theta(z_t | \emptyset)\right)

    where ϵθ(zt∣∅)\boldsymbol{\epsilon}_\theta(z_t | \emptyset) denotes the unconditional score computed with an empty text prompt. Sampling is accelerated using DDIM, reducing inference from T=1000T=1000 to 50 steps.

  5. Knowl 5 — Text-Guided Shape Completion via Masked Latent Diffusion

    algorithm

    Text-guided shape completion synthesizes missing 3D shape regions from a partial shape input under the guidance of a text prompt cc. The known partial shape is encoded into latent grid z0z_0, and missing regions are represented by a binary mask m∈{0,1}(D/P)3m \in \{0, 1\}^{(D/P)^3}, where m=1m=1 indicates known patches and m=0m=0 indicates unobserved patches.

    Input: Partial shape latent z0z_0, binary patch mask mm, text condition cc, total DDIM steps KK, noise schedule αˉt,βt\bar{\alpha}_t, \beta_t
    Output: Completed shape latent z0z_0
    Initialize ztK∼N(0,I)z_{t_K} \sim \mathcal{N}(0, \mathbf{I})
    for step k=Kk = K down to 11 do
        t=tkt = t_k
        tprev=tk−1t_{prev} = t_{k-1}
        Estimate denoised state z~tprev∼N(μθ(zt,t,τ(c)),βtI)\tilde{z}_{t_{prev}} \sim \mathcal{N}(\boldsymbol{\mu}_\theta(z_t, t, \tau(c)), \beta_t \mathbf{I}) using classifier-free guidance
        Sample forward diffused known patches z^tprev=αˉtprevz0+1−αˉtprevϵ\hat{z}_{t_{prev}} = \sqrt{\bar{\alpha}_{t_{prev}}} z_0 + \sqrt{1 - \bar{\alpha}_{t_{prev}}} \boldsymbol{\epsilon}, where ϵ∼N(0,I)\boldsymbol{\epsilon} \sim \mathcal{N}(0, \mathbf{I})
        Combine known and generated patches: ztprev=(1−m)⊙z~tprev+m⊙z^tprevz_{t_{prev}} = (1 - m) \odot \tilde{z}_{t_{prev}} + m \odot \hat{z}_{t_{prev}}
    end
    return z0z_0

    The final latent grid z0z_0 is decoded into a complete TSDF grid x~=D(z0)\tilde{x} = \mathcal{D}(z_0), from which a mesh is reconstructed via Marching Cubes.

  6. Knowl 6 — Text-Guided Shape Manipulation via Latent Cycle-Sampling

    algorithm

    Text-guided shape manipulation modifies structural or semantic attributes of an existing 3D shape zinitz_{\text{init}} according to an instructive text prompt cc using a forward-reverse cycle-sampling strategy.

    Input: Initial shape latent zinitz_{\text{init}}, target text prompt cc, intermediate step tmid∈(0,T)t_{\text{mid}} \in (0, T), noise schedule αˉ\bar{\alpha}
    Output: Manipulated shape latent zgoalz_{\text{goal}}
    Sample random noise ϵ∼N(0,I)\boldsymbol{\epsilon} \sim \mathcal{N}(0, \mathbf{I})
    Compute intermediate noisy latent: zmid=αˉtmidzinit+1−αˉtmidϵz_{\text{mid}} = \sqrt{\bar{\alpha}_{t_{\text{mid}}}} z_{\text{init}} + \sqrt{1 - \bar{\alpha}_{t_{\text{mid}}}} \boldsymbol{\epsilon}
    Initialize reverse trajectory at step tmidt_{\text{mid}} with ztmid=zmidz_{t_{\text{mid}}} = z_{\text{mid}}
    for step t=tmidt = t_{\text{mid}} down to 11 do
        Compute conditioned score ϵ^θ(zt∣τ(c))\hat{\boldsymbol{\epsilon}}_\theta(z_t | \tau(c)) with classifier-free guidance
        Update zt−1z_{t-1} from ztz_t following standard reverse diffusion step
    end
    zgoal=z0z_{\text{goal}} = z_0
    return zgoalz_{\text{goal}}

    The choice of tmidt_{\text{mid}} governs the trade-off between preservation of original characteristics and fidelity to the prompt: setting tmidt_{\text{mid}} to 600∼800600\sim800 out of 1000 DDPM steps alters high-level attributes (such as leg style or sofa vs. chair) while preserving base shape identity. Excessively small tmidt_{\text{mid}} leaves the shape unchanged, whereas overly large tmidt_{\text{mid}} destructs original features.

  7. Knowl 7 — Quantitative Evaluation on Text-to-Shape Generation Benchmark

    data/table

    Diffusion-SDF was quantitatively compared against state-of-the-art implicit text-to-shape methods on the chair category of the Text2Shape dataset using four metrics:

    • IoU ↑\uparrow: Intersection over Union of occupancy voxel grids downsampled to 32332^3, measuring geometric fidelity to ground truth.
    • Acc ↑\uparrow: Classification accuracy of generated shapes across 13 ShapeNet categories using a pre-trained voxel classifier.
    • CLIP-S ↑\uparrow: Maximum cosine similarity between the text description and 5 rendered 2D views of the generated 3D shape using pre-trained CLIP.
    • TMD ↓\downarrow: Total Mutual Difference, computed as the average IoU among k=10k = 10 samples generated per text query (lower indicates higher generative diversity).
    Methods IoU↑\uparrow Acc↑\uparrow CLIP-S↑\uparrow TMD↓\downarrow
    Liu et al. 0.160 34.79 29.94 0.891
    AutoSDF 0.187 83.88 29.10 0.581
    Diffusion-SDF (Ours) 0.194 88.56 30.88 0.169

    Diffusion-SDF outperforms prior methods across reconstruction fidelity (IoU), category classification accuracy (Acc), and text-shape semantic alignment (CLIP-S), while achieving a significantly lower TMD score (0.169 vs. 0.581 for AutoSDF), indicating substantial improvements in sample diversity.

  8. Knowl 8 — Ablation Studies on Denoiser Architecture Components

    data/table

    Ablations evaluate the contribution of the UinU-Net denoiser design over a standard U-Net backbone and dissect its internal components on the Text2Shape chair split:

    Architecture Variant IoU↑\uparrow Acc↑\uparrow CLIP-S↑\uparrow TMD↓\downarrow
    Standard U-Net 0.187 80.98 29.35 0.171
    UinU-Net (Full) 0.194 88.56 30.88 0.169
    – w/o in-out concat 0.198 83.91 28.68 0.181
    – w/o spatial attention 0.194 85.56 30.82 0.161

    Key findings:

    1. Incorporating the inner network (UinU-Net) improves classification accuracy from 80.98% to 88.56% and CLIP-S from 29.35 to 30.88, demonstrating that local patch modeling helps recover independent patch distributions.
    2. Removing inner-outer skip concatenation causes a major decline in semantic conformance (CLIP-S drops from 30.88 to 28.68; Acc drops from 88.56% to 83.91%).
    3. Removing the spatial self-attention module drops accuracy from 88.56% to 85.56%, indicating that capturing patch-to-patch relational context is critical for preserving global shape semantics.

  9. Knowl 9 — Limitations of Diffusion-SDF

    limitation

    Diffusion-SDF has several documented limitations:

    1. Dataset Scope: Training and evaluation are constrained by existing shape-text paired datasets, which primarily encompass chairs and tables from ShapeNet in Text2Shape, restricting generalized synthesis across diverse open-domain categories.
    2. Patch Boundary Artifacts: Partitioning the TSDF volume into regular patch grids can cause visible discontinuities or cut region artifacts across adjacent patch boundaries in complex geometry. Mitigating this requires higher grid resolutions DD and smaller patch sizes PP, which increases computation.
    3. Intermediate Step Sensitivity in Manipulation: Text-guided manipulation is sensitive to the chosen cutoff step tmidt_{\text{mid}}; improperly calibrated values either fail to alter the initial shape or completely erase its geometric identity.

Coverage note — None omitted; all primary architectural components, formulation steps, downstream task algorithms, experimental results, ablations, and limitations are covered.
