Magic3D: High-Resolution Text-to-3D Content Creation

Chen-Hsuan LinJun GaoLuming TangTowaki TakikawaXiaohui ZengXun HuangKarsten KreisSanja FidlerMing-Yu LiuTsung-Yi Lin

article2022CVPR1,698 citations

Proposes a two-stage text-to-3D optimization framework that pairs sparse neural radiance fields with high-resolution latent diffusion models to generate detailed textured 3D meshes in 40 minutes, doubling the speed and visual quality of DreamFusion.

Listen

Creating three-dimensional digital assets is critical across gaming, entertainment, architectural design, and robotics, yet traditional workflows demand specialized expertise and substantial manual effort. While recent advances allow generating images directly from text prompts, producing high-fidelity 3D assets remains bottlenecked by limited 3D training data. Existing methods that bridge this gap by using 2D image models to optimize 3D representations suffer from extreme computational delays and low output resolution, restricting their practical use in creative production pipelines.

The article demonstrates Magic3D, a framework designed to synthesize high-resolution 3D textured mesh models from text descriptions with significantly reduced processing times and enhanced visual quality.

The authors evaluate this method through a two-stage, coarse-to-fine optimization process. In the first stage, the system creates a low-resolution neural volume representation using an efficient hash grid structure to establish the basic geometry. In the second stage, it converts this volume into a textured 3D mesh and refines it with an efficient differentiable rendering engine guided by a high-resolution 2D latent diffusion model. The authors tested this pipeline against the baseline method across 397 text prompts, measuring computational speed and conducting user preference evaluations involving 1,191 pairwise comparisons.

The investigation produced several key findings. First, the proposed framework completes 3D asset generation in roughly 40 minutes, operating twice as fast as the prior baseline, which averaged 1.5 hours per prompt. Second, the system achieves an eight-fold increase in supervision resolution, stepping from 64-by-64 pixels up to 512-by-512 pixels. Third, in user evaluation studies, 61.7% of raters preferred the models produced by this approach over the baseline, and 87.7% preferred the two-stage refined outputs over coarse-only versions. Finally, the framework successfully demonstrates controllable editing capabilities, enabling users to modify existing shapes and textures via updated text prompts and personalize assets using reference images.

These results demonstrate that high-resolution 3D generation can be accelerated without sacrificing structural detail. By outputting standard 3D textured meshes, the framework allows generated assets to be imported directly into conventional graphics software, significantly reducing production turnaround times and lowering technical barriers for non-expert creators.

Organizations exploring automated 3D content creation should evaluate two-stage generation frameworks for their pipelines, particularly for rapid prototyping and asset concepting. Stakeholders should consider adopting mesh-based refinement workflows rather than relying solely on neural volume rendering when high-resolution textures are required.

The primary limitations include high hardware requirements, as benchmarks rely on high-end enterprise GPU clusters. While the findings provide strong confidence regarding geometric detail and speed improvements over prior neural field approaches, further development will be needed to optimize single-device execution and refine complex multi-object scene generation.

NVIDIA 3d content 3d modelling hash functions Magic3D text-to-3D content creation high-resolution latent diffusion

arXiv: 2211.10440

Paper: DreamFusion: Text-to-3D using 2D Diffusion, Ben Poole et al. (2023). DreamFusion introduces Score Distillation Sampling (SDS) to optimize 3D neural radiance fields using 2D text-to-image diffusion models, establishing the baseline framework that Magic3D directly addresses and accelerates.
Paper: Instant neural graphics primitives with a multiresolution hash encoding, Thomas Müller et al. (2022). This paper presents multiresolution hash encodings for fast neural radiance field optimization, which Magic3D adopts in its coarse stage to significantly speed up 3D representation learning.
Paper: High-Resolution Image Synthesis with Latent Diffusion Models, Robin Rombach et al. (2022). Latent Diffusion Models provide the efficient high-resolution 2D generative prior used by Magic3D to supervise high-quality textured mesh creation in its second stage.
Paper: NeRF: Representing Scenes as Neural Radiance Fields for View Synthesis, Ben Mildenhall et al. (2020). This foundational work introduces Neural Radiance Fields (NeRF), the core 3D neural scene representation underlying diffusion-guided 3D generation.
Paper: Classifier-Free Diffusion Guidance, Jonathan Ho et al. (2022). Classifier-free guidance is an essential mechanism used in text-to-image diffusion models to achieve strong prompt adherence during score distillation in text-to-3D synthesis.
Paper: Denoising Diffusion Probabilistic Models, Jonathan Ho et al. (2020). This paper establishes modern denoising diffusion probabilistic models, defining the mathematical generative framework adapted by score distillation methods for 3D optimization.

Paper: ProlificDreamer: High-Fidelity and Diverse Text-to-3D Generation with Variational Score Distillation, Zhengyi Wang et al. (2023). ProlificDreamer introduces Variational Score Distillation to overcome the oversaturation and lack of diversity seen in prior text-to-3D optimization baselines like Magic3D and DreamFusion.
Paper: Zero-1-to-3: Zero-shot One Image to 3D Object, Ruoshi Liu et al. (2023). Zero-1-to-3 builds on the paradigm of diffusion-guided 3D generation by fine-tuning diffusion models to explicitly understand viewpoint transformations for single-image 3D reconstruction.
Paper: SyncDreamer: Generating Multiview-consistent Images from a Single-view Image, Yuan Liu et al. (2024). SyncDreamer extends 2D diffusion priors for 3D generation by introducing multiview-synchronized attention to produce spatially consistent novel views from a single image.
Paper: LRM: Large Reconstruction Model for Single Image to 3D, Yicong Hong et al. (2024). LRM shifts from per-asset multi-stage optimization methods like Magic3D toward a scalable, single-pass feed-forward transformer for instant single-image-to-3D reconstruction.
Paper: Structured 3D Latents for Scalable and Versatile 3D Generation, Jianfeng Xiang et al. (2025). TRELLIS expands beyond two-stage mesh and NeRF optimization pipelines by developing a unified structured 3D latent representation capable of direct decoding into multiple formats.
Paper: Instruct-NeRF2NeRF: Editing 3D Scenes with Instructions, Ayaan Haque et al. (2023). Instruct-NeRF2NeRF leverages diffusion-based priors similar to 3D generation pipelines to enable localized and instruction-guided editing of complete 3D neural scenes.

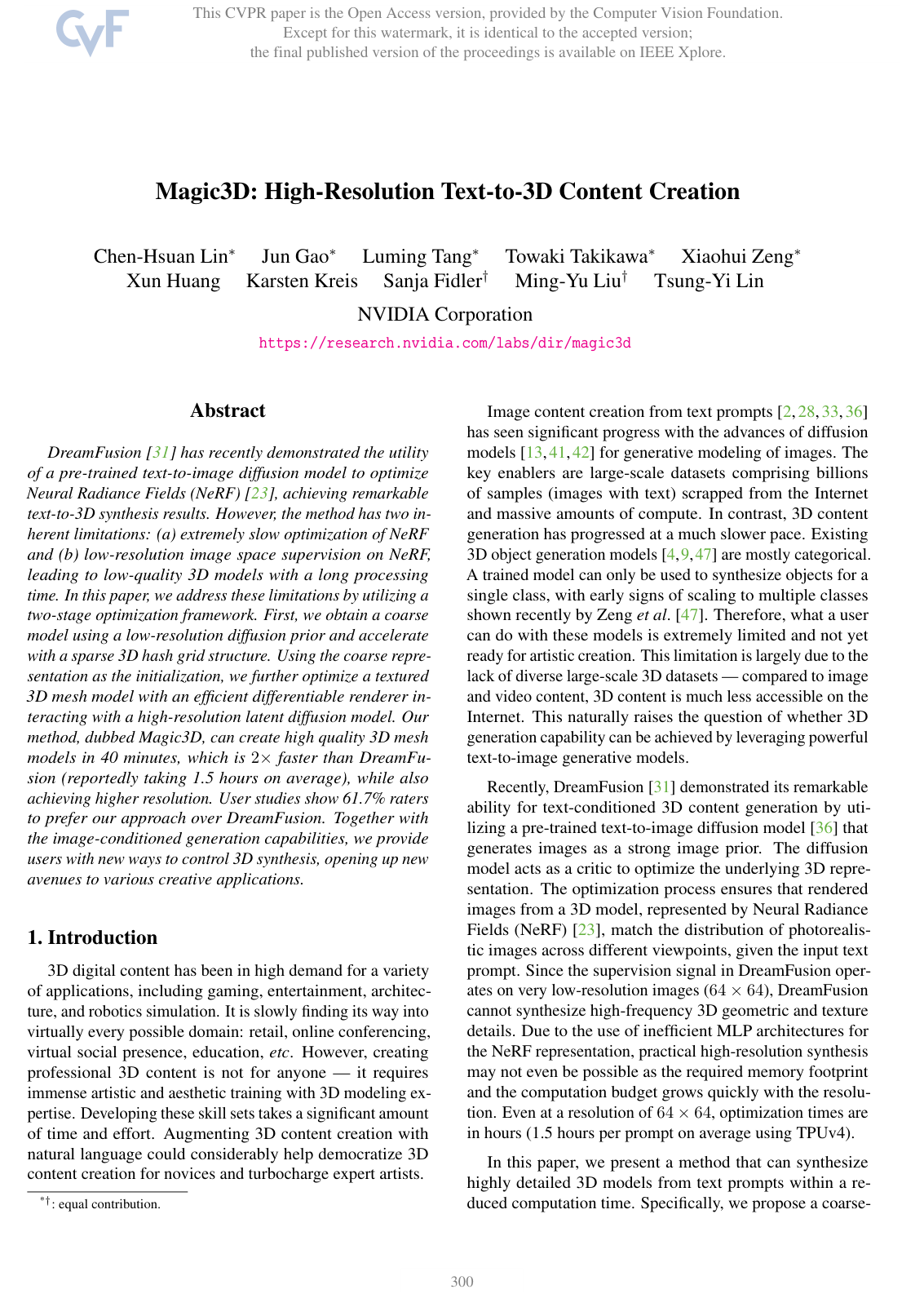

Cover for Magic3D: High-Resolution Text-to-3D Content Creation

Abstract

DreamFusion has recently demonstrated the utility of a pre-trained text-to-image diffusion model to optimize Neural Radiance Fields (NeRF), achieving remarkable text-to-3D synthesis results. However, the method has two inherent limitations: (a) extremely slow optimization of NeRF and (b) low-resolution image space supervision on NeRF, leading to low-quality 3D models with a long processing time. In this paper, we address these limitations by utilizing a two-stage optimization framework. First, we obtain a coarse model using a low-resolution diffusion prior and accelerate with a sparse 3D hash grid structure. Using the coarse representation as the initialization, we further optimize a textured 3D mesh model with an efficient differentiable renderer interacting with a high-resolution latent diffusion model. Our method, dubbed Magic3D, can create high quality 3D mesh models in 40 minutes, which is 2x faster than DreamFusion (reportedly taking 1.5 hours on average), while also achieving higher resolution. User studies show 61.7% raters to prefer our approach over DreamFusion. Together with the image-conditioned generation capabilities, we provide users with new ways to control 3D synthesis, opening up new avenues to various creative applications.

1 Introduction
2 Related Work
3 Background: DreamFusion
4 High-Resolution 3D Generation
4.1 Coarse-to-fine Diffusion Priors
4.2 Scene Models
4.3 Coarse-to-fine Optimization
5 Experiments
6 Controllable 3D Generation
7 Conclusion
A Author Contributions
B Implementation Details
C Alternative High-Resolution Prior
D Style-Guided Text-to-3D Synthesis
E Additional Results
References

Knowls

Knowl 1 — Two-Stage Coarse-to-Fine Text-to-3D Synthesis Framework
model/method
Magic3D synthesizes high-resolution, view-consistent 3D assets from text prompts using a two-stage coarse-to-fine optimization framework that combines different scene representations and diffusion priors across resolutions:
1. Coarse Stage: Initializes and optimizes a volumetric neural radiance field (NeRF) accelerated by a multiresolution sparse hash grid. Supervision is provided via Score Distillation Sampling (SDS) using a low-resolution ( $64 \times 64$ ) text-to-image base diffusion prior (such as the base model of eDiff-I). This stage rapidly recovers global 3D geometry and coarse colors without being constrained by fixed mesh topology.
2. Fine Stage: Extracts an initial surface mesh and volumetric color field from the coarse neural field using Differentiable Marching Tetrahedra (DMTet). The mesh geometry (vertex signed distance values and deformation offsets) and volumetric texture are further refined using an efficient differentiable rasterizer. Supervision in this stage is driven by high-resolution ( $512 \times 512$ ) SDS gradients from a Latent Diffusion Model (LDM, such as Stable Diffusion).
By switching from volumetric ray marching to surface mesh rasterization for high-resolution refinement, this framework resolves the severe memory and computational bottlenecks of neural volume rendering while avoiding the topological entrapment of optimizing meshes directly from scratch.
Knowl 2 — Latent Score Distillation Sampling Formulation
equation
To supervise 3D scene parameters using a pretrained Latent Diffusion Model (LDM) operating on high-resolution rendered images, the Score Distillation Sampling (SDS) gradient with respect to the 3D scene parameters $\theta$ is given by:

$\nabla_\theta \mathcal{L}_{\text{SDS}}(\phi, g(\theta)) = \mathbb{E}_{t, \epsilon} \left[ w(t) \left(\epsilon_\phi(z_t; y, t) - \epsilon\right) \frac{\partial z}{\partial x} \frac{\partial x}{\partial \theta} \right]$

where:
- $\theta$ denotes the optimizable 3D scene parameters (e.g., tetrahedral vertex SDF values $s_i$ , vertex deformation vectors $\Delta v_i$ , and neural texture field weights).
- $g(\theta)$ is a differentiable rendering function producing a high-resolution 2D image $x \in \mathbb{R}^{H \times W \times 3}$ (at $512 \times 512$ resolution) from a sampled camera pose.
- $z = \mathcal{E}(x)$ is the latent representation of the rendered image $x$ produced by the pretrained LDM image encoder $\mathcal{E}$ , where $z \in \mathbb{R}^{h \times w \times c}$ (at $64 \times 64$ latent resolution with $c=4$ channels).
- $t \in [1, T]$ is the diffusion timestep sampled uniformly, and $w(t)$ is a timestep-dependent weighting scalar.
- $\epsilon \sim \mathcal{N}(0, I)$ is the Gaussian noise added to encode $z$ into the noisy latent $z_t$ .
- $y$ is the text embedding condition derived from the input prompt.
- $\epsilon_\phi(z_t; y, t)$ is the denoising score predicted by the diffusion U-Net parametrized by $\phi$ , evaluated with classifier-free guidance.
- $\frac{\partial z}{\partial x}$ is the Jacobian of the LDM image encoder with respect to the high-resolution RGB image.
- $\frac{\partial x}{\partial \theta}$ is the Jacobian of the differentiable rasterizer output with respect to the 3D scene parameters.
Knowl 3 — Accelerated Coarse Neural Field Representation and Optimization
model/method
The coarse stage of Magic3D models 3D scene geometry and appearance using an accelerated neural field with the following components:
- Representation: A multiresolution spatial hash grid encoding combined with two shallow single-layer multi-layer perceptrons (MLPs). The first MLP predicts volume density $\sigma$ and albedo RGB color; the second MLP directly predicts surface normal vectors $\mathbf{n}$ . Explicitly predicting normals with an MLP eliminates the computational expense of evaluating numerical density gradients via finite differencing during volumetric ray marching.
- Empty Space Acceleration: An occupancy grid of resolution $256^3$ is maintained and initialized to a value of $20$ to encourage initial shape growth. The occupancy grid is updated every 10 optimization steps by applying a decay factor of $0.6$ and thresholding, which builds an octree data structure for ray-sampling empty space skipping.
- Background Decomposition: The background environment is modeled using a separate tiny MLP (hidden dimension 16) mapping ray directions to RGB values. Its learning rate is scaled down by a factor of $10\times$ relative to the foreground network to prevent the optimization from placing object content into the background.
- Optimization: The coarse model is optimized over 5,000 iterations using a batch size of 32 viewpoints with 1,024 ray samples per ray (filtered by the sparse octree) against an SDS loss on $64 \times 64$ rendered images.
Knowl 4 — High-Resolution Textured Mesh Optimization via DMTet and Differentiable Rasterization
model/method
The fine stage of Magic3D refines geometric and texture details on an explicit mesh representation initialized from the coarse neural field:
- Geometric Initialization: The coarse volumetric density field is converted into signed distance field (SDF) values by subtracting a constant positive threshold $c$ : $s_i = \sigma(v_i) - c$ . The geometry is defined over a deformable tetrahedral grid $(V_T, T)$ where each vertex $v_i \in V_T \subset \mathbb{R}^3$ possesses an SDF value $s_i \in \mathbb{R}$ and a deformation vector $\Delta v_i \in \mathbb{R}^3$ . Explicit surface triangles are extracted using Differentiable Marching Tetrahedra (DMTet).
- Texture Initialization: Surface appearance is queried from a continuous volumetric neural color field, initialized directly from the weights of the coarse-stage color network.
- Rendering and Detail Enhancement: High-resolution ( $512 \times 512$ ) images are rendered using an efficient differentiable rasterizer. During training, the camera focal length is randomly increased to render close-up views of the object surface, encouraging the Latent Diffusion Model prior to generate high-frequency micro-details in geometry and texture.
- Regularization and Antialiasing: Foreground renderings are composited with the pretrained coarse environment background map using differentiable antialiasing. An explicit smoothness regularizer penalizes angular differences between adjacent triangular face normals to stabilize surface geometry under stochastic SDS gradient updates.
Knowl 5 — Prompt-Based 3D Scene Editing Algorithm
algorithm
Magic3D provides prompt-based editing of generated 3D assets by altering text prompts in a multi-stage refinement workflow that preserves overall 3D structural layout while transforming geometry and texture.
Input: Base text prompt $y_{\text{base}}$ , edited text prompt $y_{\text{edit}}$ , base diffusion model $\phi_{\text{base}}$ , latent diffusion model $\phi_{\text{LDM}}$
Output: Edited high-resolution 3D textured mesh $(M_{\text{edit}}, T_{\text{edit}})$
// Stage 1: Coarse base model optimization
$\theta_{\text{coarse}} \leftarrow \text{OptimizeCoarseNeRF}(y_{\text{base}}, \phi_{\text{base}})$
// Stage 2: Coarse NeRF fine-tuning with edited prompt
$\theta_{\text{coarse,edit}} \leftarrow \theta_{\text{coarse}}$
for step $= 1$ to $N_{\text{edit,NeRF}}$ do
    Render view $x \leftarrow \text{VolumetricRender}(\theta_{\text{coarse,edit}})$
    Compute latent SDS gradient $G_{\text{SDS}} \leftarrow \nabla_\theta \mathcal{L}_{\text{SDS}}(\phi_{\text{LDM}}, x, y_{\text{edit}})$
     $\theta_{\text{coarse,edit}} \leftarrow \text{OptimizerUpdate}(\theta_{\text{coarse,edit}}, G_{\text{SDS}})$
end for
// Stage 3: High-resolution mesh extraction and fine-tuning
$s, \Delta v \leftarrow \text{ExtractSDF}(\theta_{\text{coarse,edit}})$
$T_{\text{vol}} \leftarrow \text{ExtractColorField}(\theta_{\text{coarse,edit}})$
for step $= 1$ to $N_{\text{mesh}}$ do
     $M \leftarrow \text{DMTetMesh}(s, \Delta v)$
    Render view $x_{\text{high}} \leftarrow \text{RasterizeMesh}(M, T_{\text{vol}})$
    Compute latent SDS gradient $G_{\text{SDS}} \leftarrow \nabla_{s, \Delta v, T_{\text{vol}}} \mathcal{L}_{\text{SDS}}(\phi_{\text{LDM}}, x_{\text{high}}, y_{\text{edit}})$
     $s, \Delta v, T_{\text{vol}} \leftarrow \text{OptimizerUpdate}((s, \Delta v, T_{\text{vol}}), G_{\text{SDS}})$
end for
$M_{\text{edit}} \leftarrow \text{DMTetMesh}(s, \Delta v)$
$T_{\text{edit}} \leftarrow T_{\text{vol}}$
return $(M_{\text{edit}}, T_{\text{edit}})$
Directly applying mesh optimization to an altered prompt without Stage 2 yields detailed textures but cannot perform larger topological changes; intermediate NeRF fine-tuning with the LDM prior enables larger geometric adaptations before surface meshing.
Knowl 6 — Personalized Text-to-3D Generation via DreamBooth Diffusion Fine-Tuning
model/method
Magic3D supports subject-driven, personalized 3D synthesis by fine-tuning 2D diffusion priors on input reference images of a specific subject:
1. Diffusion Model Fine-Tuning: Given a small set of subject reference images (e.g., 4 to 11 images), the text-to-image diffusion models are fine-tuned using DreamBooth to bind the subject's visual identity to a rare identifier token string [V]:
  - The coarse base diffusion model (eDiff-I) is fine-tuned using the Adam optimizer with a learning rate of $1 \times 10^{-5}$ for 1,500 iterations with batch size 1.
  - The high-resolution Latent Diffusion Model (LDM) is fine-tuned with a learning rate of $1 \times 10^{-6}$ for 800 iterations with batch size 1.
2. 3D Asset Optimization: The standard Magic3D coarse-to-fine optimization pipeline is executed using prompts containing the bound token identifier (e.g., "a [V] cat riding a bike"). The resulting 3D models accurately reconstruct the specific identity and appearance of the subject while conforming to novel textual poses and contexts.

Knowl 7 — User Preference Comparison of Magic3D versus DreamFusion

data/table

User preference studies were conducted on Amazon Mechanical Turk evaluating 3D models synthesized across 397 text prompts released by DreamFusion. Each prompt was assessed by 3 independent raters via side-by-side video comparisons rendered from a canonical view (totaling 1,191 pairwise comparisons):

A clear majority of raters (61.7%) preferred 3D models generated by Magic3D over DreamFusion, with the highest margin of preference in model detail (66.0%). Furthermore, 87.7% of raters preferred the fine DMTet mesh output over the coarse hash grid NeRF model alone, demonstrating the perceptual contribution of the second-stage high-resolution refinement.

Knowl 8 — Computational Speed and Optimization Efficiency Benchmarks
empirical result
Magic3D achieves high-resolution text-to-3D generation with a $2\times$ speedup over DreamFusion while supervising at $8\times$ higher spatial resolution ( $512 \times 512$ vs. $64 \times 64$ ):
- Coarse Stage: Optimized for 5,000 iterations with 1,024 samples per ray and batch size 32, requiring approximately 15 minutes (at $>8$ iterations/second, varying with scene sparsity).
- Fine Stage: Optimized for 3,000 iterations with batch size 32 at $512 \times 512$ resolution, requiring approximately 25 minutes (at 2 iterations/second).
- Total Optimization Time: 40 minutes per text prompt across both stages executed on 8 NVIDIA A100 GPUs.
- Baseline Comparison: DreamFusion reportedly requires 1.5 hours on average per prompt using TPUv4 hardware.
Knowl 9 — Comparison of Scene Representations and Single-Stage versus Two-Stage Optimization
empirical result
Ablation experiments evaluate the choice of scene representations and optimization stages:
- Single-Stage Mesh from Scratch: Optimizing a 3D mesh directly from scratch with high-resolution LDM SDS supervision fails to synthesize valid 3D shapes due to severe local minima and topological constraints.
- Single-Stage Sparse NeRF with LDM: Rendering lower-resolution NeRF views ( $64 \times 64$ or $256 \times 256$ ) and upsampling them to $512 \times 512$ for LDM input produces degraded global geometry with high-frequency noisy artifacts ("furry" surface distortions).
- Two-Stage NeRF-to-NeRF: Using a coarse NeRF followed by fine-stage NeRF optimization at $256 \times 256$ resolution successfully retains initial geometry and enhances detail, confirming the generality of the coarse-to-fine paradigm; however, volumetric rendering at $512 \times 512$ remains memory-prohibitive.
- Two-Stage NeRF-to-Mesh (Magic3D): Transferring coarse NeRF initialization to a DMTet textured mesh enables native, fast $512 \times 512$ differentiable rasterization, generating the sharpest textures and well-behaved surface geometry.

Coverage note — No substantial contributed material was omitted.
