XCube: Large-Scale 3D Generative Modeling using Sparse Voxel Hierarchies

Xuanchi RenJiahui HuangXiaohui ZengKen MusethSanja FidlerFrancis Williams

article2024CVPR157 citations

Presents a hierarchical sparse voxel latent diffusion framework built on VDB data structures that rapidly generates high-resolution 3D objects and large-scale outdoor scenes with rich geometric and semantic attributes without test-time optimization.

Listen

Generating realistic three-dimensional assets and large-scale environments is critical for fields such as robotics, autonomous driving, gaming, and digital simulation. However, existing 3D generative techniques struggle to scale. Methods relying on 2D image models require lengthy per-asset optimization and frequently introduce spatial errors, while direct 3D models are typically restricted to low resolutions or simple single objects due to heavy memory and computational constraints.

The article introduces and evaluates XCube, a 3D generative system designed to rapidly produce high-resolution 3D objects and expansive outdoor driving scenes enriched with structural and semantic details.

To achieve this, the approach generates 3D content across a hierarchy of sparse voxel grids—3D pixel representations that only store data where geometry actually exists. The method uses a cascaded latent diffusion process, which first generates a rough coarse shape and progressively synthesizes finer details at higher resolutions. The system is built on an optimized sparse computing framework that processes high-resolution volumetric grids directly on modern graphics hardware without requiring lengthy test-time optimization. Evaluation was conducted across standard object benchmarks (ShapeNet and Objaverse) and large real-world and synthetic driving scenes (Waymo Open Dataset and Karton City).

The evaluation yielded several key findings. First, the method scales to an effective resolution of 1024-cubed, generating millions of voxels for complex 3D objects in under 30 seconds and full 100-meter by 100-meter outdoor environments with 10-centimeter detail. Second, the framework runs approximately three times faster while consuming half the memory of leading sparse 3D processing alternatives. Third, on standard object generation benchmarks, the system consistently outperformed existing point, mesh, and dense-voxel baselines across shape similarity metrics. Fourth, user studies confirmed substantial quality improvements: 79.2% of evaluators preferred its text-to-3D object generations over a leading baseline, and 66.3% rated its synthetic urban driving scenes as more realistic than actual validation sensor data. Finally, the model proved flexible across practical tasks, including text-to-3D creation, intuitive multi-scale voxel editing, and complete 3D scene reconstruction from a single sparse lidar scan.

These findings demonstrate that direct 3D generative modeling can achieve high spatial resolution and geometric complexity without prohibitive computation times. For industrial applications such as autonomous driving simulation and 3D asset creation pipelines, this significantly lowers the computational cost and turnaround time required to build realistic virtual environments, reducing operational bottlenecks while enhancing consistency.

Organizations developing simulation pipelines or 3D digital content should consider adopting hierarchical sparse representations to scale their generative workflows. Technical teams can integrate coarse-to-fine editing tools into artist workflows and test single-scan completion models to accelerate autonomous vehicle simulation environments. Future initiatives should explore conditioning the architecture on standard 2D reference images and deploying the underlying generative prior across broader downstream perception tasks.

The primary limitation noted in the article is the comparative scarcity of comprehensive 3D training data relative to massive 2D web datasets, which restricts the model's ability to interpret complex, highly nuanced text prompts. Nonetheless, the findings provide a high degree of confidence that sparse hierarchical structures offer an efficient, scalable foundation for direct 3D content generation.

NVIDIA University of Toronto Vector Institute generative model optimization sparse approximations XCube sparse voxel hierarchies hierarchical voxel latent diffusion model

arXiv: 2312.03806

Paper: 3D Semantic Segmentation with Submanifold Sparse Convolutional Networks, Benjamin Graham et al. (2017). It introduces submanifold sparse convolutional networks, providing the core foundational mechanics for computing efficiently on sparse 3D structures without dilating active voxels.
Paper: OctNet: Learning Deep 3D Representations at High Resolutions, Gernot Riegler et al. (2016). It introduces octree-based hierarchical voxel grids for scaling deep 3D representations, laying the direct conceptual groundwork for sparse voxel hierarchies in 3D generation.
Paper: Cascaded Diffusion Models for High Fidelity Image Generation, Jonathan Ho et al. (2021). It establishes the coarse-to-fine cascaded diffusion framework that XCube adapts to generate low-resolution 3D shapes before progressively synthesizing fine voxel details.
Paper: Objaverse: A Universe of Annotated 3D Objects, Matt Deitke et al. (2022). It supplies the large-scale 3D object dataset Objaverse, which serves as one of the primary training and evaluation benchmarks utilized in XCube.
Paper: DreamFusion: Text-to-3D using 2D Diffusion, Ben Poole et al. (2023). It pioneered text-to-3D synthesis via Score Distillation Sampling, defining the 2D-prior optimization paradigm and its computational bottlenecks that direct 3D sparse generative models like XCube overcome.
Paper: CLIP-Sculptor: Zero-Shot Generation of High-Fidelity and Diverse Shapes from Natural Language, Aditya Sanghi et al. (2023). It establishes multi-resolution coarse-to-fine latent 3D shape generation conditioned on text, providing a direct antecedent to multi-scale hierarchical 3D generative architectures.
Paper: Learning a Probabilistic Latent Space of Object Shapes via 3D Generative-Adversarial Modeling, Jiajun Wu et al. (2016). It is a seminal work on native 3D volumetric generative modeling, establishing the baseline concepts and resolution bottlenecks of direct 3D grid synthesis.

Paper: Structured 3D Latents for Scalable and Versatile 3D Generation, Jianfeng Xiang et al. (2025). It generalizes structured 3D representations by combining sparse occupied voxel latents with rectified-flow transformers to decode into diverse 3D formats like meshes and Gaussians.
Paper: CityDreamer: Compositional Generative Model of Unbounded 3D Cities, Haozhe Xie et al. (2024). It explores an alternative compositional neural rendering paradigm to scale 3D generative models to expansive, unbounded urban environments.
Paper: SparseOcc: Rethinking Sparse Latent Representation for Vision-Based Semantic Occupancy Prediction, Pin Tang et al. (2024). It applies sparse 3D latent representations and sparse diffusion modules directly to the downstream perception task of autonomous driving semantic occupancy prediction.
Paper: VastGaussian: Vast 3D Gaussians for Large Scene Reconstruction, Jiaqi Lin et al. (2024). It addresses large-scale scene scalability from a point-based 3D Gaussian Splatting perspective via spatial partitioning rather than hierarchical volumetric grids.

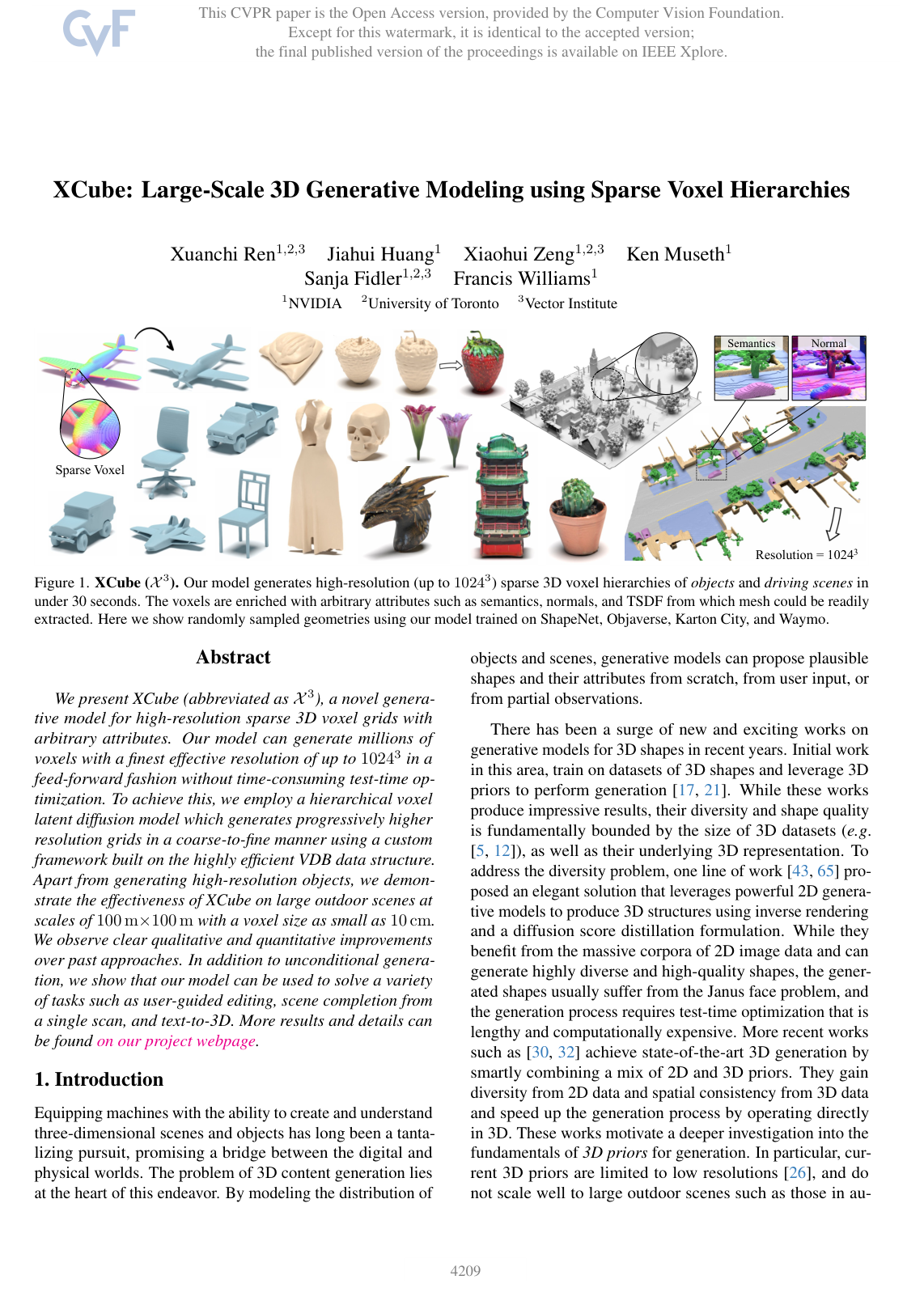

Cover for XCube: Large-Scale 3D Generative Modeling using Sparse Voxel Hierarchies

Abstract

We present XCube (abbreviated as X3), a novel generative model for high-resolution sparse 3D voxel grids with arbitrary attributes. Our model can generate millions of voxels with a finest effective resolution of up to 10243 in a feed-forward fashion without time-consuming test-time optimization. To achieve this, we employ a hierarchical voxel latent diffusion model which generates progressively higher resolution grids in a coarse-to-fine manner using a custom framework built on the highly efficient VDB data structure. Apart from generating high-resolution objects, we demonstrate the effectiveness of XCube on large outdoor scenes at scales of 100 m×100 m with a voxel size as small as 10 cm. We observe clear qualitative and quantitative improvements over past approaches. In addition to unconditional generation, we show that our model can be used to solve a variety of tasks such as user-guided editing, scene completion from a single scan, and text-to-3D. More results and details can be found on our project webpage.

Topics

generative model optimization sparse approximations diffusion probabilistic models latent factor latent variable computational grids

Keywords

XCube sparse voxel hierarchies hierarchical voxel latent diffusion model 3D generative modeling point cloud generation scene generation shape synthesis structure VAE neural fields

1. Introduction
2. Related Work
3. Method
3.1. Sparse Structure VAE
3.2. Hierarchical Voxel Latent Diffusion
3.3. Training and Sampling
3.4. Implementation Details
4. Experiments
4.1. Object-level 3D Generation on ShapeNet
4.2. Object-level 3D Generation on Objaverse
4.3. Large-scale Scene-level 3D Generation
4.4. Ablation Study
5. Discussion
References

Knowls

Knowl 1 — Hierarchical Voxel Latent Diffusion Probabilistic Model
model/method
XCube models high-resolution 3D shapes and large-scale scenes as a sparse voxel hierarchy comprising $L$ levels of coarse-to-fine sparse voxel grids $\mathcal{G} = \{G_1, \dots, G_L\}$ and corresponding per-voxel attributes $\mathcal{A} = \{A_1, \dots, A_L\}$ (such as surface normals, semantic class labels, or truncated signed distance fields (TSDF)). Each finer grid $G_{l+1}$ is spatially contained within the coarser grid $G_l$ .

The joint distribution of the hierarchy $(\mathcal{G}, \mathcal{A})$ and its latent representation $\mathcal{X} = \{X_1, \dots, X_L\}$ is factorized under a Markovian assumption across hierarchical levels:

$p(\mathcal{G}, \mathcal{A}, \mathcal{X}) = \prod_{l=1}^L p_{\psi_l}(G_l, A_l \mid X_l) \, p_{\theta_l}(X_l \mid C_{l-1})$

where $p_{\psi_l}$ is a sparse structure Variational Autoencoder (VAE) decoder parameterized by $\psi_l$ , and $p_{\theta_l}$ is a latent diffusion model parameterized by $\theta_l$ . The conditioning context $C_{l-1}$ from the coarser level is defined as:

$C_l = \begin{cases} c, & l = 0 \\ \{G_l, A_l, c\}, & l > 0 \end{cases}$

where $c$ is an optional global condition (e.g., text prompt or category label). Each latent grid $X_l$ is defined on the coarser spatial resolution matching $G_{l-1}$ .
Knowl 2 — Sparse Structure Variational Autoencoder
model/method
For each hierarchical level $l$ , a sparse structure Variational Autoencoder (VAE) maps a sparse voxel grid $G_l$ and its attributes $A_l$ into a continuous latent grid representation $X_l$ at the spatial resolution of the preceding coarser level $G_{l-1}$ .

The encoder models the posterior $q_\phi(X_l \mid G_l, A_l)$ using alternating 3D sparse convolutions and max pooling operations. The decoder models the likelihood $p_\psi(G_l, A_l \mid X_l)$ by progressively upsampling from $X_l$ to the resolution of $G_l$ . In each upsampling stage, existing sparse voxels are subdivided into octants and excessive voxels are pruned based on predicted subdivision occupancy masks.

The training loss for the level- $l$ VAE is:

$\mathcal{L}_{\text{VAE}}^l = \mathbb{E}_{\{G_l, A_l\}}\left[\mathbb{E}_{X_l \sim q_\phi}\left[\text{BCE}(G_l, \tilde{G}_l) + \mathcal{L}_{\text{Attr}}^l(A_l, \tilde{A}_l)\right] + \lambda D_{\text{KL}}\left(q_\phi(X_l \mid G_l, A_l) \parallel p(X_l)\right)\right]$

where $\tilde{G}_l, \tilde{A}_l$ are the decoded grid structure and predicted attributes, $\text{BCE}(\cdot)$ denotes binary cross-entropy on sparse voxel occupancy, $\mathcal{L}_{\text{Attr}}^l$ supervises attribute reconstruction, $p(X_l) = \mathcal{N}(0, I)$ is a standard Gaussian prior, and $\lambda$ is the KL divergence regularization weight.
Knowl 3 — Voxel Latent Diffusion Objective with v-Parameterization
equation
The latent diffusion model $p_{\theta_l}(X_l \mid C_{l-1})$ at level $l$ is trained to predict the velocity vector $v$ following the $v$ -parameterization scheme:

$\mathcal{L}_{\text{DM}}^l = \mathbb{E}_{t, X_l, \epsilon \sim \mathcal{N}(0, I)}\left[\left\| v_{\theta_l}(X_{l,t}, t) - v_{\text{ref}} \right\|_2^2\right]$

where:

$v_{\text{ref}} = \sqrt{\bar{\alpha}_t}\epsilon - \sqrt{1 - \bar{\alpha}_t}X_l$

with discrete timestep $t \sim [1, T]$ , Gaussian noise $\epsilon \sim \mathcal{N}(0, I)$ , latent sample $X_l \sim q_\phi(X_l \mid G_l, A_l)$ , noisy latent $X_{l,t} = \sqrt{\bar{\alpha}_t}X_l + \sqrt{1 - \bar{\alpha}_t}\epsilon$ , noise variance schedule $\alpha_t = 1 - \beta_t$ , and cumulative product $\bar{\alpha}_t = \prod_{s=0}^t \alpha_s$ .

The network $v_{\theta_l}$ is implemented as a 3D sparse convolutional network matching the input grid structure. Conditioning on coarser features $A_{l-1}$ is performed by direct feature concatenation (since $X_l$ shares the grid structure of $G_{l-1}$ ). Timestep conditioning $t$ is injected via Adaptive Group Normalization (AdaGN), and textual condition $c$ is encoded via CLIP and injected via cross-attention.
Knowl 4 — Hierarchical Coarse-to-Fine Sparse Voxel Sampling
algorithm
Sampling generates a full sparse voxel hierarchy progressively from the coarsest level $l=1$ to the finest level $l=L$ using Denoising Diffusion Implicit Models (DDIM).
Input: Number of hierarchy levels $L$ , global conditioning $c$ , diffusion models $\{p_{\theta_l}\}_{l=1}^L$ , VAE decoders $\{p_{\psi_l}\}_{l=1}^L$ , optional refinement networks $\{R_l\}_{l=1}^L$ .
Output: Final fine-scale sparse voxel grid $G_L$ and associated attributes $A_L$ .
Set conditioning context $C_0 = c$
for $l = 1$ to $L$ do
    Sample latent $X_l \sim p_{\theta_l}(X_l \mid C_{l-1})$ using DDIM reverse diffusion
    Decode geometry and attributes $(\tilde{G}_l, \tilde{A}_l) = p_{\psi_l}(X_l)$
    if refinement network $R_l$ is enabled then
         $(G_l, A_l) = R_l(\tilde{G}_l, \tilde{A}_l)$
    else
         $(G_l, A_l) = (\tilde{G}_l, \tilde{A}_l)$
    end if
    Update condition $C_l = \{G_l, A_l, c\}$
end for
Extract final surface mesh from TSDF in $A_L$
return $G_L, A_L$
Knowl 5 — VDB Deep Learning Engine and Error Mitigation in Sparse Hierarchies
model/method
XCube incorporates specific architectural and data structure implementations to enable high-resolution sparse voxel generative modeling:
1. GPU-Accelerated VDB Framework: Sparse voxel grids are stored using the VDB tree structure, requiring 11 MB of memory for 3.4 million active voxels. Custom GPU sparse 3D convolution and pooling operators operate directly on VDB grids, processing a $1024^3$ resolution scene in milliseconds with $\sim 3\times$ faster execution and $\sim 0.5\times$ the memory footprint of TorchSparse.
2. Early Dilation: In network layers operating at larger voxel sizes, active sparse voxels are dilated by 1 voxel. This populates halo regions with non-zero features, providing surrounding spatial context to subsequent layers.
3. Refinement Networks: To prevent cascading error accumulation across hierarchical levels, a lightweight refinement network is applied to the output of each VAE decoder $(\tilde{G}_l, \tilde{A}_l)$ . Refinement networks are trained using input data generated by decoding noise-perturbed posterior latent samples from the VAE.

Knowl 6 — ShapeNet 3D Generation Performance Benchmark

data/table

XCube was evaluated on unconditional 3D shape generation on the ShapeNet benchmark across three standard categories: Airplane (4,145 shapes), Chair (6,778 shapes), and Car (7,496 shapes) voxelized at $512^3$ resolution. Evaluation uses the 1-Nearest Neighbor Accuracy (1-NNA) metric computed with Chamfer Distance (CD) and Earth Mover's Distance (EMD), where lower percentages denote closer distributional alignment between generated and validation shapes (ideal is 50%).

	Airplane		Chair		Car
Method	CD (%)	EMD (%)	CD (%)	EMD (%)	CD (%)	EMD (%)
Point-based
PVD	69.55	60.89	57.68	54.95	64.89	54.61
LION	65.10	60.15	56.72	54.28	60.61	54.94
Triplane-based
NFD	57.55	53.47	54.87	54.06	69.49	71.96
Dense voxel-based
NWD	59.78	53.84	56.35	57.98	61.75	58.54
LAS-Diffusion	71.29	56.93	55.17	55.02	75.03	72.10
3DShape2VecSet	62.75	61.01	54.06	56.79	86.85	80.91
XCube (Ours)	52.85	49.75	53.99	48.60	57.96	54.43

XCube achieves state-of-the-art 1-NNA across all evaluated categories, outperforming point-based, triplane-based, and dense voxel-based baselines.

Knowl 7 — Large-Scale Driving Scene Synthesis and Single-Scan Completion
empirical result
XCube scales to large outdoor driving environments by modeling $102.4\text{ m} \times 102.4\text{ m}$ spatial chunks at an effective voxel resolution of $1024^3$ ( $10\text{ cm}$ per voxel) on the Waymo Open Dataset (1,000 LiDAR sequence driving scenarios) and Karton City (20 synthetic city blocks cropped into 900 training and 100 validation scenes).

In an Amazon Mechanical Turk user study presenting 30 human evaluators with 30 pairwise comparisons (900 total comparisons) between validation set scenes and XCube unconditional generations, evaluators ranked XCube outputs as more realistic than the ground-truth data in 66.3% of comparisons.

When conditioned on a single, unannotated sparse LiDAR scan, XCube performs 3D scene completion, reconstructing dense geometry alongside full semantic annotations and surface normals.
Knowl 8 — Text-to-3D and Category-Conditional Generation on Objaverse
empirical result
XCube was trained on Objaverse (approximately 800,000 3D models) using text captions from Cap3D and on the LVIS subset (approximately 40,000 objects) for category-conditional generation, voxelized at $512^3$ resolution.

In a blinded user study on Amazon Mechanical Turk comparing text-to-3D geometry against Shap-E across 30 text prompts (30 users per prompt, 900 total pairwise comparisons), participants voted for XCube's untextured geometry over Shap-E's untextured geometry in 79.2% of comparisons due to higher geometric fidelity and detail alignment with the text prompts.

Feed-forward shape synthesis with XCube requires 30 seconds for geometry generation; combined with off-the-shelf texture synthesis (30 seconds), complete textured 3D assets are produced in approximately 1 minute.

Knowl 9 — Ablation of Progressive Pruning and Hierarchy Configurations

data/table

Ablation studies on ShapeNet Chairs evaluate the impact of progressive subdivision/pruning and varying hierarchy depths/resolutions.

Progressive Pruning: Replacing progressive multi-stage pruning with a single-step pruning stage for a $16^3 \to 128^3$ VAE reduces reconstruction accuracy (grid Intersection over Union) from $92.88\%$ to $89.68\%$ and increases GPU memory consumption by a factor of $3\times$ .
Hierarchy Depth and Resolution: Evaluating different hierarchy depth configurations via 1-NNA on ShapeNet Chairs shows that hierarchical models consistently outperform single-level models ( $16^3 \to 512^3$ ), while two-level and three-level hierarchies achieve comparable generation quality:

Model Hierarchy	CD (%)	EMD (%)
$16^3 \to 512^3$ (Single-level)	59.31	57.46
$16^3 \to 128^3 \to 512^3$	53.99	48.60
$32^3 \to 128^3 \to 512^3$	55.39	51.40
$4^3 \to 16^3 \to 128^3 \to 512^3$	52.88	53.62

Knowl 10 — Limitations of XCube
limitation
XCube exhibits two primary limitations:
1. Dataset Constraints in Text-to-3D: Because existing 3D datasets are substantially smaller in scale and conceptual coverage than web-scale 2D image corpora (e.g., LAION-5B), the text-conditional diffusion models struggle to synthesize accurate shapes when provided with complex, highly compositional text prompts.
2. Lack of Direct Image Conditioning: The model framework is currently developed for unconditional, text-conditioned, category-conditioned, and single-scan LiDAR conditional generation, and lacks native conditioning mechanisms for single-view or multi-view 2D images.

Coverage note — None was omitted; all key architectural components, mathematical models, algorithms, benchmarks, ablations, applications, and limitations are fully covered.
