CLIP-Sculptor: Zero-Shot Generation of High-Fidelity and Diverse Shapes from Natural Language

Aditya SanghiRao FuVivian LiuKarl D. D. WillisHooman ShayaniAmir Hosein KhasahmadiSrinath SridharDaniel Ritchie

article2023CVPR73 citations

Proposes CLIP-Sculptor, a multi-resolution generative framework that synthesizes diverse, high-fidelity 3D shapes from natural language prompts without requiring paired text-shape training data by combining discrete latent transformers with annealed classifier-free guidance.

Listen

Generating 3D shapes directly from natural language prompts has significant potential across digital content creation, robotics, and industrial design. However, developing robust text-to-3D systems is hindered by the scarcity of large datasets containing paired text descriptions and 3D shapes. While existing methods attempt to bypass this limitation using pretrained vision-language models, they typically suffer from slow optimization times, low geometric fidelity, and limited shape diversity.

The article introduces and evaluates CLIP-Sculptor, a multi-resolution generative framework designed to produce high-fidelity, diverse 3D shapes from text queries without requiring paired text and 3D data during training. The primary objective is to demonstrate that combining discrete latent representations with hierarchical transformer models and an adaptive guidance schedule significantly improves generation accuracy and diversity while maintaining rapid inference speeds.

To achieve zero-shot text-to-shape synthesis, the approach uses a three-stage training pipeline. First, it encodes 3D voxel grids into discrete representations at both low and high resolutions using vector-quantized autoencoders. Second, it trains a coarse transformer model conditioned on image embeddings from a pretrained vision-language model (CLIP) using rendered 2D views of 3D shapes, perturbing embeddings with noise to bridge the cross-modal gap. Third, a fine transformer performs latent super-resolution to upscale the coarse representations to high-resolution geometry. Generation quality is controlled at inference time using an annealed classifier-free guidance schedule, which dynamically adjusts guidance intensity across iterative decoding steps. The framework was evaluated on the ShapeNet benchmark across 13 and 55 object categories.

The experimental findings demonstrate substantial performance advantages over existing baselines. Quantitative evaluations show that CLIP-Sculptor achieves superior semantic accuracy and diversity, reaching a classifier accuracy of approximately 87.5% and reducing the Fréchet Inception Distance (FID) to 1480.11 on ShapeNet13, outperforming competing zero-shot baselines by a wide margin. In addition, the method executes inference in roughly 0.91 seconds per shape, representing a dramatic speed advantage over optimization-based alternatives that require between 30 minutes and 24 hours. The findings also confirm that annealed guidance scheduling consistently yields a superior quality-diversity trade-off compared to conventional constant-scale guidance, and that latent-based super-resolution outperforms direct 3D synthesis baselines.

These results show that automated 3D shape synthesis can be achieved efficiently without costly manual text-shape annotation. By generating editable voxel-based geometries rapidly, the framework reduces production timelines and computational overhead, functioning as a practical aid to enhance designer workflows rather than replace them. The findings also establish that dynamic guidance schedules can improve outputs in masked generative models.

For future development, the article recommends investigating implicit shape representations to capture finer geometric details, incorporating architectures capable of numerical counting (such as specific numbers of components), and expanding models to synthesize surface textures. While the current results are highly reliable for common categories represented in vision-language models, stakeholders should note limitations when processing out-of-distribution prompts, fine geometric structures, or multi-attribute counting tasks.

Autodesk Brown University Columbia University classifiers encoder-decoder latent factor CLIP-Sculptor zero-shot shape generation natural language shape generation

arXiv: 2211.01427

Paper: Learning Transferable Visual Models From Natural Language Supervision, Alec Radford et al.. Introduces the joint vision-language contrastive embedding space (CLIP) that CLIP-Sculptor conditions its shape generation transformer upon.
Paper: StyleCLIP: Text-Driven Manipulation of StyleGAN Imagery, Or Patashnik et al. (2021). Pioneered zero-shot generative manipulation guided by pretrained CLIP representations in latent spaces, laying the foundation for zero-shot text-driven synthesis without paired training data.
Paper: Magic3D: High-Resolution Text-to-3D Content Creation, Chen-Hsuan Lin et al. (2022). Presents coarse-to-fine multi-resolution optimization for text-driven 3D generation, establishing baseline methodologies and motivation for multi-stage shape fidelity refinement.
Paper: DeepSDF: Learning Continuous Signed Distance Functions for Shape Representation, Jeong Joon Park et al. (2019). Establishes continuous signed distance function representations conditioned on latent codes for 3D shape generation, which underpins modern latent-space 3D modeling.
Paper: Zero-Shot Text-to-Image Generation, Aditya Ramesh et al. (2021). Provides the foundational two-stage paradigm of training discrete latent tokenizers and autoregressive transformers conditioned on text embeddings for diverse generation.
Paper: Hierarchical Text-Conditional Image Generation with CLIP Latents, Aditya Ramesh et al. (2022). Demonstrates hierarchical generation conditioned on CLIP latent spaces with guidance techniques to significantly improve generative diversity over realism trade-offs.

Paper: DreamFusion: Text-to-3D using 2D Diffusion, Ben Poole et al. (2023). Extends text-to-3D synthesis beyond latent shape models by optimizing neural radiance fields directly through 2D diffusion priors using Score Distillation Sampling.
Paper: ProlificDreamer: High-Fidelity and Diverse Text-to-3D Generation with Variational Score Distillation, Zhengyi Wang et al. (2023). Generalizes text-to-3D optimization by introducing Variational Score Distillation to achieve higher fidelity and diversity in generated 3D representations.
Paper: Text-to-3D using Gaussian Splatting, Zilong Chen et al. (2024). Advances zero-shot text-to-3D asset creation by replacing implicit volumetric representations with 3D Gaussian Splatting for faster rendering and finer geometric detail.
Paper: LRM: Large Reconstruction Model for Single Image to 3D, Yicong Hong et al. (2024). Scales feed-forward 3D asset generation directly via large transformer reconstruction models, bypassing iterative per-shape optimization.
Paper: Structured 3D Latents for Scalable and Versatile 3D Generation, Jianfeng Xiang et al. (2025). Unifies structured 3D latents across multiple representations using flow transformers to achieve state-of-the-art fidelity and output versatility.

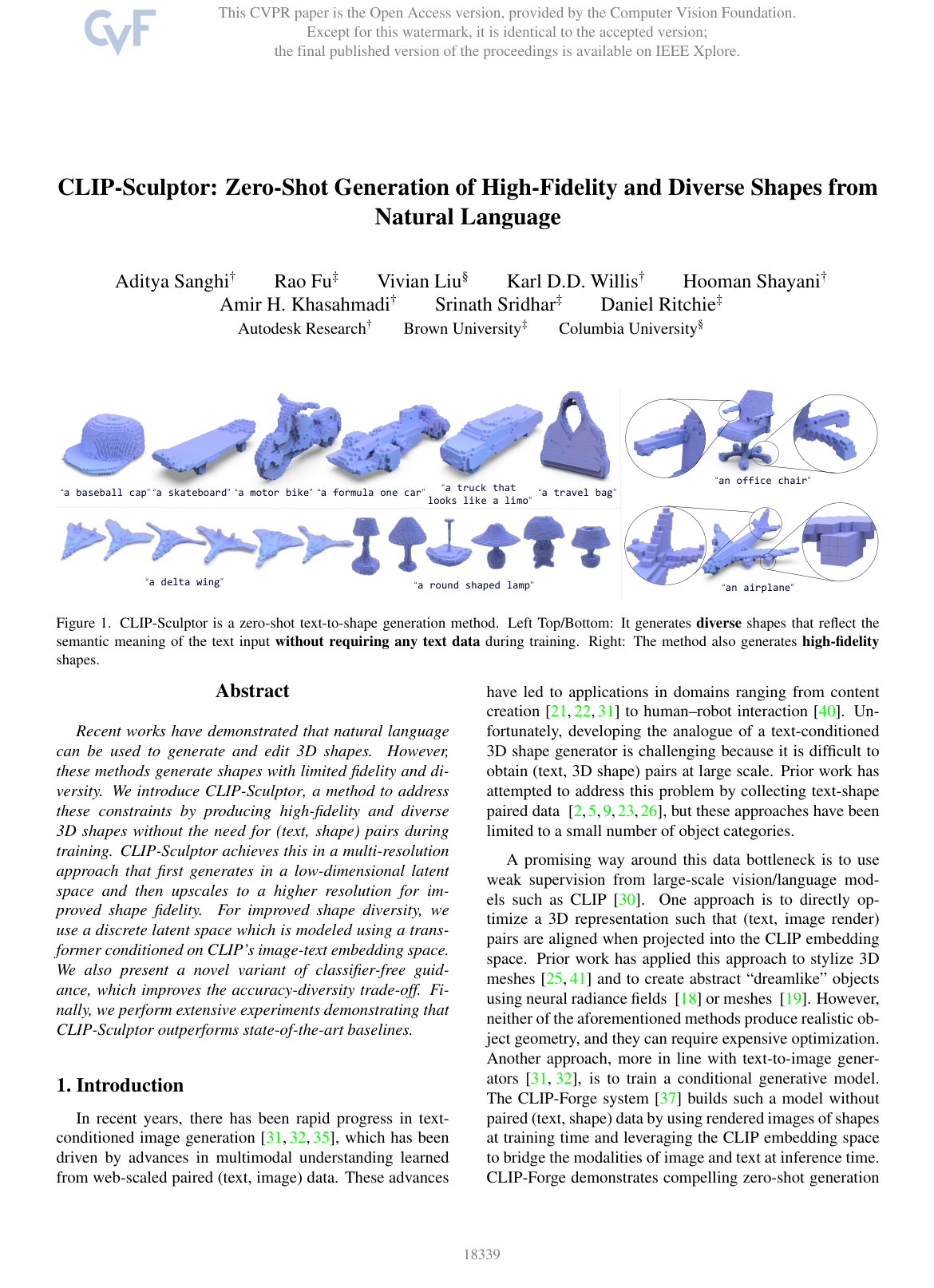

Cover for CLIP-Sculptor: Zero-Shot Generation of High-Fidelity and Diverse Shapes from Natural Language

Abstract

Recent works have demonstrated that natural language can be used to generate and edit 3D shapes. However, these methods generate shapes with limited fidelity and diversity. We introduce CLIP-Sculptor, a method to address these constraints by producing high-fidelity and diverse 3D shapes without the need for (text, shape) pairs during training. CLIP-Sculptor achieves this in a multi-resolution approach that first generates in a low-dimensional latent space and then upscales to a higher resolution for improved shape fidelity. For improved shape diversity, we use a discrete latent space which is modeled using a transformer conditioned on CLIP’s image-text embedding space. We also present a novel variant of classifier-free guidance, which improves the accuracy-diversity trade-off. Finally, we perform extensive experiments demonstrating that CLIP-Sculptor outperforms state-of-the-art baselines.

Topics

classifiers encoder-decoder latent factor latent variable trade natural language text

Keywords

CLIP-Sculptor zero-shot shape generation natural language shape generation classifier-free guidance neural discrete representation modality gap voxel grids shape fidelity

1. Introduction
2. Related Work
3. Method
3.1. Multi-Resolution Voxel VQ-VAEs
3.2. CLIP-Conditioned Coarse Transformer
3.3. Super-Resolution with Fine Transformer
3.4. Annealed Classifier-Free Guidance
4. Experiments
4.1. Evaluating Shape Diversity and Accuracy
4.2. Major Components for Conditional Generation
4.3. Annealing Strategy for Scale Parameter
4.4. Super-Resolution
5. Conclusion
References

Knowls

Knowl 1 — CLIP-Sculptor Multi-Stage Architecture for Zero-Shot Text-to-3D Generation
model/method
CLIP-Sculptor is a generative framework that synthesizes diverse, high-fidelity 3D shapes from natural language text prompts without requiring paired $(text, shape)$ training data. The method is trained in three stages:
1. Stage 1 (Discrete Latent Autoencoding): Two separate 3D Vector-Quantized Variational Autoencoders (VQ-VAEs) are trained on voxel grids of resolution $32^3$ and $64^3$ , compressing them into discrete latent grid codebooks $\mathbf{E}_{32}$ of resolution $4^3$ and $\mathbf{E}_{64}$ of resolution $8^3$ , respectively.
2. Stage 2 (Coarse Shape Generation): A coarse masked transformer $T_c(\cdot)$ is trained on the low-resolution latent grids $\mathbf{E}_{32}$ . To enable zero-shot text-to-shape conditioning without text data during training, the transformer is conditioned on perturbed image embeddings produced by the pre-trained CLIP image encoder from rendered multi-view 2D images $\{\mathbf{I}_r\}$ of the 3D shapes.
3. Stage 3 (Latent Super-Resolution): A fine transformer $T_f(\cdot)$ is trained to perform super-resolution by unmasking the high-resolution latent grid $\mathbf{E}_{64}$ conditioned on the predicted coarse latent grids $\tilde{\mathbf{E}}_{32}$ from the coarse transformer via cross-attention.
At inference time, an input text prompt is encoded by the pre-trained CLIP text encoder $f_T(\cdot)$ and mapped into conditioning vectors for the coarse transformer. Iterative unmasking with an annealed classifier-free guidance schedule produces a low-resolution discrete representation $\tilde{\mathbf{E}}_{32}$ , which the fine transformer upsamples into a high-resolution discrete grid $\mathbf{E}_{64}$ . The pre-trained Stage 1 $64^3$ VQ-VAE decoder converts $\mathbf{E}_{64}$ into the final output voxel shape $\mathbf{V}_{64}$ .
Knowl 2 — Multi-Resolution Voxel VQ-VAE Representation
model/method
To capture discrete representations of 3D geometry and avoid posterior collapse, CLIP-Sculptor trains two hierarchical 3D Vector-Quantized Variational Autoencoders (VQ-VAEs) using ResNet-based volumetric 3D convolutional neural network (CNN) encoders and decoders:
- A low-resolution VQ-VAE compresses a $32^3$ voxel grid $\mathbf{V}_{32}$ into a $4^3$ discrete latent token grid $\mathbf{E}_{32}$ , which captures global semantic shape geometry for conditional generation.
- A high-resolution VQ-VAE compresses a $64^3$ voxel grid $\mathbf{V}_{64}$ into an $8^3$ discrete latent token grid $\mathbf{E}_{64}$ , which encodes fine local details.
Both VQ-VAEs are trained using mean squared error (MSE) reconstruction loss, codebook commitment loss, and an exponential moving average (EMA) codebook update rule.
Knowl 3 — Modality-Gap Perturbed CLIP Conditioning Vector
equation
To train the coarse shape generator without paired text-shape annotations, CLIP-Sculptor leverages the joint embedding space of a pre-trained CLIP model. During training, conditioning vectors are derived from rendered images $\mathbf{I}_r$ of the 3D shape from random viewpoint $r \in R$ . To bridge the empirical modality gap between CLIP image embeddings and inference-time CLIP text embeddings, isotropic Gaussian noise is added to the normalized image embedding:

$\hat{\mathbf{c}} = f_{I}(\mathbf{I}_r) + \frac{\gamma \cdot \boldsymbol{\epsilon} \cdot \|f_{I}(\mathbf{I}_r)\|_2}{\|\boldsymbol{\epsilon}\|_2}$

where $f_I(\cdot)$ denotes the frozen CLIP image encoder, $\boldsymbol{\epsilon} \sim \mathcal{N}(\mathbf{0}, \mathbf{I})$ is standard Gaussian noise, and $\gamma \in \mathbb{R}^+$ is a scaling hyperparameter controlling the magnitude of noise perturbation (empirically optimal around $\gamma = 1.2$ ).

The perturbed vector $\hat{\mathbf{c}}$ is normalized and processed through a multi-layer perceptron (MLP) mapping network with $L$ layers to yield the conditioning vector $\tilde{\mathbf{c}}$ , which modulates each transformer block by predicting adaptive layer-normalization affine parameters.
Knowl 4 — Step-Unrolled Training Objective for Coarse Transformer
equation
To counteract autoregressive drift caused by compounding errors during iterative masked decoding at inference time, the coarse masked transformer $T_c(\cdot)$ is trained with Step-Unrolled Training (SUT). The objective maximizes the log-likelihood of ground truth tokens given both randomly masked inputs and the network's own intermediate predictions:

$\mathcal{L} = \frac{1}{N} \sum_{n=1}^N \left( \log p(\mathbf{E}_{32,n} \mid \mathbf{E}^{\text{msk}}_{32,n}, \mathbf{c}) + \log p(\mathbf{E}_{32,n} \mid \tilde{\mathbf{E}}_{32,n}, \mathbf{c}) \right)$

where $N$ is the total number of training samples, $\mathbf{E}_{32,n}$ is the ground-truth discrete low-resolution latent grid of sample $n$ , $\mathbf{E}^{\text{msk}}_{32,n}$ is the latent grid masked with a masking ratio sampled uniformly from $[0, 1]$ , $\mathbf{c}$ is the conditioning vector, and $\tilde{\mathbf{E}}_{32,n}$ is the coarse transformer's own unmasked prediction from a prior forward pass.
Knowl 5 — Discrete Latent Super-Resolution via Fine Transformer
model/method
Super-resolution is performed directly in discrete latent space using a fine masked transformer $T_f(\cdot)$ . The network takes as input a coarse latent grid $\mathbf{E}_{32}$ (size $4^3$ ) and a masked fine latent grid $\mathbf{E}^{\text{msk}}_{64}$ (size $8^3$ ), using cross-attention layers to condition the generation of high-resolution tokens on the coarse representation.

To align the training distribution with inference conditions, the fine transformer is trained using the coarse transformer's predicted output $\tilde{\mathbf{E}}_{32}$ rather than ground-truth low-resolution tokens $\mathbf{E}_{32}$ . At inference, an initially fully masked grid $\mathbf{E}^{\text{msk}}_{64}$ is iteratively unmasked over $T$ steps, and the resulting unmasked grid $\mathbf{E}_{64}$ is decoded by the Stage 1 $64^3$ VQ-VAE decoder into the final $64^3$ voxel grid $\mathbf{V}_{64}$ .
Knowl 6 — Annealed Classifier-Free Guidance for Masked Transformers
equation
During inference iterative decoding over $T$ steps, classifier-free guidance extrapolates the conditional token probability distribution away from the unconditional distribution using a time-dependent guidance scale schedule $a(t)$ :

$\hat{P}_{t}(\mathbf{c}) = P_{t}(\mathbf{0}) + a(t) \Big( P_{t}(\mathbf{c}) - P_{t}(\mathbf{0}) \Big)$

where:
- $P_{t}(\mathbf{c}) = p(\mathbf{E}_{32,t} \mid \mathbf{E}^{\text{msk}}_{32,t-1}, \mathbf{c})$ is the conditional distribution given text conditioning vector $\mathbf{c}$ ,
- $P_{t}(\mathbf{0}) = p(\mathbf{E}_{32,t} \mid \mathbf{E}^{\text{msk}}_{32,t-1}, \mathbf{0})$ is the unconditional distribution obtained with a null embedding (trained by dropping out conditioning with probability $\rho \%$ ),
- $a(t)$ is a continuous, monotonically decreasing guidance schedule (such as square root, linear, or cosine decay functions).
A higher guidance scale $a(t)$ in early decoding steps enforces strong prompt fidelity when most tokens are masked, while decreasing $a(t)$ in later steps encourages shape diversity and prevents visual artifacts.

Knowl 7 — Quantitative Text-to-Shape Generation Performance on ShapeNet13

data/table

Quantitative comparison of text-to-shape generation evaluated on 234 predetermined text queries on the ShapeNet13 benchmark using Classifier Accuracy (Acc %, measuring semantic alignment) and Fréchet Inception Distance (FID, measuring diversity and shape fidelity, where lower is better). Baselines include CLIP-Forge (CF) with various latent sampling techniques (mean shape CF-MS, Gaussian CF-G, truncated Gaussian CF-TG, clipped Gaussian CF-CG) and AutoSDF augmented with CLIP embeddings (ZS-ASDF).

Method	CF-MS	CF-G	CF-TG	CF-CG	ZS-ASDF	CS-const.	CS-sqrt	CS-linear	CS-cosine
FID $\downarrow$	2425.25	2233.48	2141.61	2100.67	7332.93	1821.78	1480.11	1629.51	1725.63
ACC $\uparrow$	83.33	62.81	68.71	71.11	39.14	86.59	87.08	87.50	87.27

All CLIP-Sculptor (CS) variants significantly outperform CLIP-Forge and ZS-ASDF in both accuracy and FID. Annealed guidance schedules (square root, linear, cosine) outperform constant scale guidance (CS-const.), achieving improved accuracy-diversity Pareto frontiers (e.g., CS-sqrt reduces FID from 1821.78 to 1480.11 while improving classification accuracy from 86.59% to 87.08%).

Knowl 8 — Ablations on Noise Perturbation, Mapping Layers, and Super-Resolution Baselines

data/table

Ablation experiments evaluate the impact of conditioning noise scale $\gamma$ , mapping network depth $L$ , and super-resolution design on ShapeNet13 generation fidelity (FID $\downarrow$ ) and semantic accuracy (Acc $\uparrow$ ):

(a) Effect of varying the Noise parameter $\gamma$
$\gamma$	$\times$ (no noise)	0.5	0.8	1.0	1.2	1.5
FID $\downarrow$	1720.02	1764.98	1484.61	1703.38	1447.91	1478.17
ACC $\uparrow$	64.87	75.73	77.41	79.09	79.63	78.47
(b) Effect of varying number of mapping network layers $L$
$L$	0	1	2	3	4	5
FID $\downarrow$	2874.87	1716.73	1518.97	1447.91	1532.50	1424.46
ACC $\uparrow$	62.72	78.70	79.17	79.63	77.16	76.09
(c) Comparison with super-resolution baselines
Method	3D-UNet		$64^3$ -DS (Direct Synth.)		CLIP-Sculptor
FID $\downarrow$	2056.92		2196.96		1910.28
ACC $\uparrow$	86.65		77.92		86.85

The optimal noise scale $\gamma = 1.2$ boosts accuracy by $14.76\%$ compared to training without noise. Using $L=3$ mapping layers provides the best accuracy-FID balance. The discrete latent super-resolution transformer in CLIP-Sculptor outperforms both a voxel-domain 3D-UNet super-resolution baseline and a direct $64^3$ synthesis transformer without multi-resolution staging.

Knowl 9 — Effect of Conditioning Dropout, Guidance Scale, and Step-Unrolled Training

data/table

Evaluation of conditioning dropout rate $\rho \%$ , constant classifier-free guidance scale $a(t) = k$ , and Step-Unrolled Training (SUT) on ShapeNet13 text-to-shape synthesis:

		$a(t) = 3$		$a(t) = 2.5$		$a(t) = 2$		$a(t) = 1.5$		$a(t) = 1$
$\rho\%$	SUT	FID $\downarrow$	Acc $\uparrow$	FID $\downarrow$	Acc $\uparrow$	FID $\downarrow$	Acc $\uparrow$	FID $\downarrow$	Acc $\uparrow$	FID $\downarrow$	Acc $\uparrow$
5	$\times$	2059.0	85.73	1970.1	85.47	1790.9	85.43	1536.5	83.98	1227.5	79.17
10	$\times$	1893.2	84.46	1821.2	84.50	1684.3	83.41	1522.4	82.34	1348.4	77.76
15	$\times$	2086.9	85.03	1964.7	84.99	1851.9	84.36	1660.9	83.14	1485.5	78.19
20	$\times$	2062.5	83.39	1972.3	82.95	1892.9	82.74	1733.3	81.13	1566.6	75.94
5	$\checkmark$	2039.8	87.69	2011.1	87.39	1811.8	87.40	1678.6	86.24	1517.9	82.18

Increasing the guidance scale $a(t)$ increases classification accuracy at the expense of sample diversity (higher FID). A dropout rate of $\rho = 5\%$ to $15\%$ establishes an effective balance. Incorporating SUT consistently increases classification accuracy across all guidance scale settings (e.g., improving accuracy from $85.73\%$ to $87.69\%$ at $a(t)=3$ with $\rho=5\%$ ).

Knowl 10 — Limitations of CLIP-Sculptor
limitation
CLIP-Sculptor is subject to four primary limitations:
1. Fine Structural Details: The model struggles to synthesize small-scale geometric topological features, such as a chair with a void or hole in its backrest.
2. Numerical Counting in Prompts: The system cannot reliably generate shapes that depend on explicit counting concepts specified in natural language (e.g., "chair with four slats").
3. CLIP Distributional Bias: Text prompts describing object semantics absent from or poorly represented in pre-trained CLIP feature representations fail to generate accurate geometries.
4. Lack of Surface Appearance: The model is restricted to voxel geometry synthesis and lacks the capability to generate surface textures or colors.

Coverage note — None was omitted; all substantive contributions, including the multi-stage discrete voxel architecture, training losses, guidance scheduling formulations, quantitative benchmarks, ablation studies, and limitations, are represented.
