SIGMA: Semantic-complete Graph Matching for Domain Adaptive Object Detection

Wuyang LiXinyu LiuYixuan Yuan

article2022CVPR230 citationsBest Paper Finalist

Proposes a domain adaptive object detection framework that reformulates cross-domain alignment as a graph matching problem while generating hallucinated nodes to complete missing batch semantics, outperforming conventional prototype-based methods.

Listen

Deploying machine vision models in real-world applications often leads to severe performance degradation when the deployment conditions differ from the training environment. In critical tasks such as autonomous driving under adverse weather or robotic visual surveillance across different camera setups, models trained on clean data struggle with distribution shifts. While standard adaptation techniques attempt to align broad category averages across domains, they frequently overlook within-class diversity and suffer when certain object classes are absent from training mini-batches.

The main objective of the article is to demonstrate an unsupervised domain adaptation framework called SIGMA (Semantic-complete Graph Matching) that bridges the domain gap for object detection by completing missing category semantics and aligning structured feature graphs.

The evaluated approach introduces a graph-embedded semantic completion module that synthesizes missing categories using cross-domain statistics and a graph-guided memory bank. It then converts visual features into cross-image graphs and reformulates domain adaptation as a bipartite graph matching optimization problem. Rather than relying on simple category averages, the framework solves for fine-grained node-to-node correspondences using structural graph constraints. The authors validated this methodology across standard public benchmarks representing weather shifts (Cityscapes to Foggy Cityscapes), synthetic-to-real transitions (Sim10k to Cityscapes), and cross-camera sensor variations (KITTI to Cityscapes).

The key findings demonstrate that SIGMA consistently surpasses existing domain adaptation baselines. On the weather adaptation benchmark, SIGMA achieved detection accuracies of 43.5% and 44.2% mean Average Precision across two standard neural backbones, outperforming competing methods by up to 4.9 percentage points. In synthetic-to-real vehicle detection, it attained 53.7% accuracy, showing an adaptation gain of 13.9 percentage points over unadapted models. Similarly, in cross-camera transfer, the model led the benchmarks with 45.8% accuracy. Ablation analyses confirmed that both the generation of missing categories and structure-aware graph matching contributed significantly to these performance improvements.

These findings indicate that addressing within-class variability and batch-level semantic mismatches provides a more reliable pathway for deploying computer vision systems in unconstrained environments. For operational teams, this reduces the risk of missed detections and false alarms caused by environmental shifts, lowering safety risks in automated driving without requiring costly manual annotation in every target scenario.

Organizations developing autonomous systems should adopt structured graph matching and semantic completion strategies when adapting vision models to novel operating conditions. Technical teams should tune sampling capacities carefully, as findings indicate optimal adaptation occurs around moderate graph node sizes (approximately 100 to 200 nodes per feature map), whereas excessive sampling degrades optimization efficiency.

Confidence in the reported improvements is high across the evaluated driving benchmarks. However, the study focuses primarily on traffic scenes with predefined category overlaps. Stakeholders should conduct pilot evaluations when deploying the framework in non-vehicular domains or environments where target domain label distributions diverge substantially from the source domain.

City University of Hong Kong graph matching object detection semantics semantic-complete graph matching domain adaptive object detection cross-domain object detection

arXiv: 2203.06398 CityU-AIM-Group/SIGMA

Paper: Domain Adaptive Faster R-CNN for Object Detection in the Wild, Yuhua Chen et al. (2018). This foundational paper established the standard framework and benchmark protocols for unsupervised domain adaptive object detection via adversarial alignment on Faster R-CNN.
Paper: Conditional Adversarial Domain Adaptation, Mingsheng Long et al. (2017). It provides crucial theoretical and practical foundations for class-conditional domain alignment, directly motivating SIGMA's approach to resolving mismatched class semantics across domains.
Paper: Transfer Feature Learning with Joint Distribution Adaptation, Mingsheng Long et al. (2013). It formalizes the principles of joint distribution adaptation by matching marginal and class-conditional distributions, a core concept that SIGMA reformulates through graph matching.
Book: Domain-Adversarial Training of Neural Networks, Yaroslav Ganin et al. (2016). It introduces domain-adversarial training and gradient reversal layers, forming the essential baseline paradigm for feature alignment upon which modern DAOD methods build.

Paper: Instance Relation Graph Guided Source-Free Domain Adaptive Object Detection, Vibashan VS et al. (2023). It extends graph-guided relational modeling in domain adaptive object detection to the more restrictive and practical source-free adaptation setting.

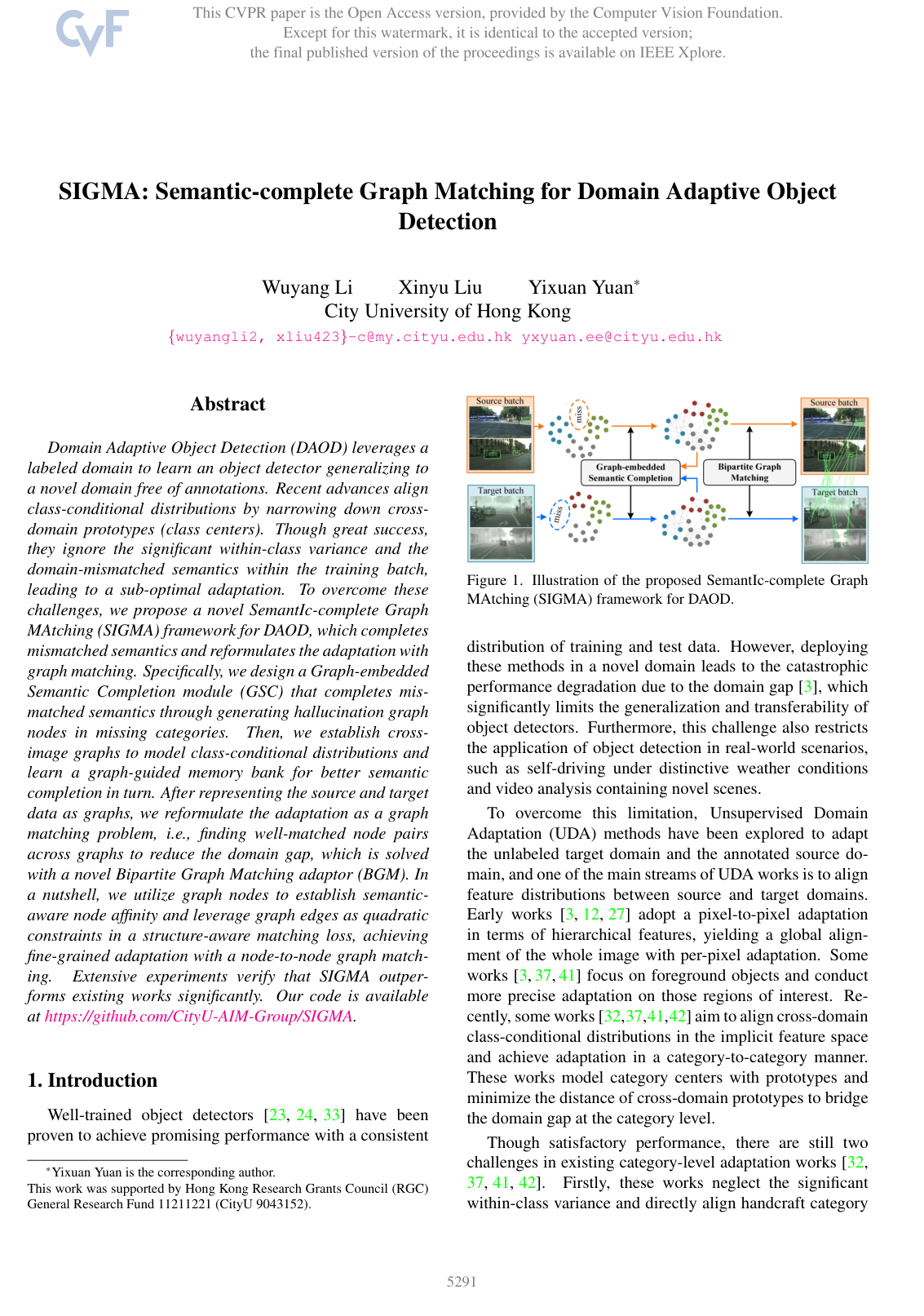

Cover for SIGMA: Semantic-complete Graph Matching for Domain Adaptive Object Detection

Abstract

Domain Adaptive Object Detection (DAOD) leverages a labeled domain to learn an object detector generalizing to a novel domain free of annotations. Recent advances align class-conditional distributions by narrowing down cross-domain prototypes (class centers). Though great success, they ignore the significant within-class variance and the domain-mismatched semantics within the training batch, leading to a sub-optimal adaptation. To overcome these challenges, we propose a novel Semantic-complete Graph Matching (SIGMA) framework for DAOD, which completes mismatched semantics and reformulates the adaptation with graph matching. Specifically, we design a Graph-embedded Semantic Completion module (GSC) that completes mismatched semantics through generating hallucination graph nodes in missing categories. Then, we establish cross-image graphs to model class-conditional distributions and learn a graph-guided memory bank for better semantic completion in turn. After representing the source and target data as graphs, we reformulate the adaptation as a graph matching problem, i.e., finding well-matched node pairs across graphs to reduce the domain gap, which is solved with a novel Bipartite Graph Matching adaptor (BGM). In a nutshell, we utilize graph nodes to establish semantic-aware node affinity and leverage graph edges as quadratic constraints in a structure-aware matching loss, achieving fine-grained adaptation with a node-to-node graph matching. Extensive experiments verify that SIGMA outperforms existing works significantly. Our code is available at https://github.com/CityU-AIM-Group/SIGMA.

Topics

graph matching object detection semantics

Keywords

semantic-complete graph matching domain adaptive object detection cross-domain object detection domain-guided node completion bipartite graph matching adaptor semantic-aware node affinity category-level adaptation deep graph matching domain alignment

1. Introduction
2. Related Work
2.1. Domain Adaptive Object Detection
2.2. Graph Matching
3. Motivation and Preliminaries
4. Proposed Method
4.1. Graph-embedded Semantic Completion
4.2. Bipartite Graph Matching
4.3. Model Optimization
5. Experiments
5.1. Datasets and Evaluation
5.2. Implementation Details
5.3. Comparison with State-of-the-arts
5.4. Ablation Studies
5.5. Sensitivity Analysis
5.6. Qualitative Results
6. Conclusion
References

Knowls

Knowl 1 — SIGMA semantic-complete graph-matching framework
model/method
SIGMA is an unsupervised domain-adaptive object detection framework that adapts a detector from an annotated source batch $S=\{(x_s^i,y_s^i)\}_{i=1}^{B}$ to an unlabeled target batch $T=\{x_t^i\}_{i=1}^{B}$ , where $B$ is the batch size and $y_s^i$ contains source bounding-box labels. A shared feature extractor $\phi$ converts both domains into visual feature maps. SIGMA then performs four main operations: (1) it samples fine-grained source and target feature nodes and projects them into a graphical space; (2) its Graph-embedded Semantic Completion module generates hallucinated nodes for object categories missing from either batch; (3) it builds cross-image graphs whose nodes represent class-conditional distributions and whose edges represent relationships among instances; and (4) its Bipartite Graph Matching adaptor aligns source and target graphs through semantic node affinities and graph-structure constraints. The full training objective combines detection, node classification, graph matching, node-level adversarial alignment, and global feature alignment losses.
Knowl 2 — Domain-guided hallucination of missing categories
model/method
SIGMA completes domain-mismatched batch semantics by generating hallucinated graph nodes for categories that appear in only one domain. Let $\Omega_s^B$ and $\Omega_t^B$ be the object-category sets present in the source and target batches, respectively, and define $\Omega_s^{\mathrm{miss}}=\Omega_t^B\setminus\Omega_s^B$ and $\Omega_t^{\mathrm{miss}}=\Omega_s^B\setminus\Omega_t^B$ . Source feature maps use spatially uniform sampling inside ground-truth boxes for foreground nodes and sample a fraction $1/(C+1)$ of outside-box pixels for background nodes, where $C$ is the number of object categories. Target feature maps use classification score maps $M_t\in\mathbb{R}^{C\times W\times H}$ : pixels with $\max_c M_t(c,p)>\tau_{fg}$ are foreground candidates and a fraction $1/(C+1)$ of pixels with $\max_c M_t(c,p)<\tau_{bg}$ are background candidates. The implementation uses $\tau_{fg}=0.5$ and $\tau_{bg}=0.05$ . A nonlinear projection maps sampled visual features into raw node embeddings.

For a source-missing category $\omega\in\Omega_s^{\mathrm{miss}}$ , SIGMA computes the coordinate-wise scale vector $\sigma_t^{(\omega)}\in\mathbb{R}^{D}$ from target nodes of category $\omega$ and retrieves a source memory seed $S_s^{(\omega)}\in\mathbb{R}^{D}$ as the category-specific mean estimate. It samples a latent hallucination vector from a diagonal Gaussian and projects it into the graph space:

$x_s^h\sim\mathcal{N}\!\left(S_s^{(\omega)},\operatorname{diag}\left((\sigma_t^{(\omega)})^2\right)\right),\qquad v_s^h=P(x_s^h),$

where $D$ is the node-embedding dimension and $P$ is a learnable linear projection. The target domain is completed symmetrically, using source statistics to generate target nodes for categories in $\Omega_t^{\mathrm{miss}}$ . Existing and hallucinated nodes together form the semantic-complete node sets used to construct the two graphs.
Knowl 3 — Cross-image graph construction and graph-guided memory bank
model/method
For each domain, SIGMA constructs a cross-image graph $G=\{V,E\}$ from the semantic-complete node matrix $V\in\mathbb{R}^{N\times D}$ , where $N$ is the number of sampled or hallucinated nodes and $D$ is the node dimension. A learnable projection $W_e$ produces edge logits, which are row-normalized and randomly sparsified by edge dropping:

$A=\operatorname{EdgeDrop}\!\left(\operatorname{softmax}\left[(VW_e)(VW_e)^T\right]\right),$

where $A\in\mathbb{R}^{N\times N}$ is the adjacency matrix. A single graph-convolution layer propagates cross-image semantic information to each node:

$\widetilde v_i=\operatorname{LN}\!\left(v_i+\frac{1}{|\mathcal{N}_i|}\sum_{j\in\mathcal{N}_i}A_{ij}v_jW_{gcn}\right),$

where $\mathcal{N}_i$ is the neighborhood of node $i$ , $W_{gcn}$ is learnable, and $\operatorname{LN}$ is layer normalization.

SIGMA stores one graph-derived memory seed $S^{(\omega)}\in\mathbb{R}^{D}$ per category and domain. For every category present in a batch, spectral clustering is applied to the memory seed together with the enhanced nodes of that category. The seed-included cluster is retained, while the other cluster is discarded. If $b$ is the mean of the retained graph nodes excluding the seed, the memory update is

$S^{(\omega)}\leftarrow \operatorname{sim}(b,S^{(\omega)})S^{(\omega)}+\left[1-\operatorname{sim}(b,S^{(\omega)})\right]b,$

with adaptive momentum

$\operatorname{sim}(b,S^{(\omega)})=\frac{b^TS^{(\omega)}}{\|b\|_2\,\|S^{(\omega)}\|_2}.$

Only existing graph nodes, not hallucinated nodes, update the memory bank; this prevents noisy or prior-dependent hallucinations from corrupting category memory.
Knowl 4 — Graph matching formulation of domain adaptation
equation
SIGMA represents the source and target batches as graphs $G_s$ and $G_t$ with adjacency matrices $A_s\in\mathbb{R}^{N_s\times N_s}$ and $A_t\in\mathbb{R}^{N_t\times N_t}$ , where $N_s$ and $N_t$ are the numbers of source and target nodes. Domain adaptation is formulated as a relaxed partial graph-matching problem. Let $U\in\mathbb{R}^{N_s\times N_t}$ be a unary node-affinity matrix and let $\Pi\in[0,1]^{N_s\times N_t}$ be the continuous assignment matrix, with $\Pi_{ij}$ indicating the assignment strength between source node $i$ and target node $j$ . The optimization objective is

$\min_{\Pi}\;\|A_s-\Pi A_t\Pi^T\|_F^2-\langle U,\Pi\rangle,$

subject to

$\Pi\mathbf{1}_{N_t}\leq\mathbf{1}_{N_s},\qquad \Pi^T\mathbf{1}_{N_s}\leq\mathbf{1}_{N_t},$

where $\|\cdot\|_F$ is the Frobenius norm, $\langle U,\Pi\rangle=\sum_{i=1}^{N_s}\sum_{j=1}^{N_t}U_{ij}\Pi_{ij}$ , and $\mathbf{1}_n$ is an all-ones vector of length $n$ . The first term matches graph structures, while the second favors semantically compatible node pairs. The inequalities allow the two graphs to have different numbers of nodes and relax one-hot permutation matching so that the objective can be optimized within a neural network.
Knowl 5 — Cross-graph interaction and semantic-aware node affinity
model/method
The Bipartite Graph Matching adaptor first exchanges information between the source and target enhanced node matrices $\widetilde V_s$ and $\widetilde V_t$ using bidirectional cross-graph attention. With learnable query, key, value, and output projections $W_q,W_k,W_v,W_p$ , the cross-aware node matrices are

$\widehat V_s=\operatorname{LN}\!\left(\operatorname{softmax}\!\left[(\widetilde V_sW_q)(\widetilde V_tW_k)^T\right](\widetilde V_tW_v)W_p+\widetilde V_s\right),$

$\widehat V_t=\operatorname{LN}\!\left(\operatorname{softmax}\!\left[(\widetilde V_tW_q)(\widetilde V_sW_k)^T\right](\widetilde V_sW_v)W_p+\widetilde V_t\right),$

where softmax is applied row-wise and layer normalization is denoted by $\operatorname{LN}$ . An auxiliary classifier is trained on these nodes with cross-entropy: source nodes use ground-truth category labels, while target nodes use pseudo-labels from target score maps.

For source node $i$ and target node $j$ , SIGMA computes a semantic-aware affinity rather than relying only on local visual similarity:

$M_{\mathrm{aff}}^{i,j}=f_{\mathrm{mlp}}\!\left(f_p(\widehat v_s^i)\mathbin{\|}f_p(\widehat v_t^j)\right),$

where $f_p$ is a linear projection, $\mathbin{\|}$ denotes concatenation, and $f_{\mathrm{mlp}}$ is an MLP with one output channel. Instance normalization followed by 20 iterations of a differentiable Sinkhorn operation converts $M_{\mathrm{aff}}$ into a doubly stochastic matrix $\widetilde M_{\mathrm{aff}}$ . Positive entries of this matrix represent candidate cross-domain node correspondences.
Knowl 6 — Structure-aware graph matching loss
equation
SIGMA trains the source-target affinity matrix with a matching loss that combines true-positive enhancement, false-positive suppression, and graph-structure consistency. Let $Y_\Pi\in\{0,1\}^{N_s\times N_t}$ satisfy $(Y_\Pi)_{ij}=1$ exactly when source node $i$ and target node $j$ have the same category, and let $\mathbf{1}$ be the all-ones matrix of the same size. For source and target adjacency matrices $A_s$ and $A_t$ , the loss is
$\mathcal{L}_{\mathrm{mat}}={}&\sum_i\frac{1}{N_s}\left[\max_j\left(\widetilde M_{\mathrm{aff}}\odot Y_\Pi\right)_{ij}-1\right]^2\\ &+\sum_{i,j}\frac{1}{\|\mathbf{1}-Y_\Pi\|_1}\left[\widetilde M_{\mathrm{aff}}\odot(\mathbf{1}-Y_\Pi)\right]_{ij}^{2}\\ &+\sum_{i,j}\frac{1}{N_sN_t}\left(A_s\widetilde M_{\mathrm{aff}}-\widetilde M_{\mathrm{aff}}A_t\right)_{ij}, \end{aligned}$$ where $\odot$ is element-wise multiplication and $\|\cdot\|_1$ is the entrywise $\ell_1$ norm. The first term raises the strongest same-category affinity for each source node, the second penalizes affinity assigned to different-category pairs, and the third imposes a quadratic structural constraint by making matched neighborhoods compatible across domains. The loss therefore aligns individual nodes while also preserving local graph relationships.$
Knowl 7 — Joint optimization with node and global adversarial alignment
equation
In addition to graph matching, SIGMA uses a node discriminator and a global discriminator. The node discriminator receives existing graph nodes through a gradient-reversal layer, three stacked fully connected–layer-normalization–ReLU blocks $f_b$ , and a domain classifier $f_{dc}$ . With source domain label $d_s=1$ and target domain label $d_t=0$ , its binary cross-entropy loss is

$\mathcal{L}_{\mathrm{NA}}=-\sum_{i=1}^{N_s}\log f_{dc}(f_b(v_s^i))-\sum_{i=1}^{N_t}\log\left[1-f_{dc}(f_b(v_t^i))\right].$

The global alignment loss $\mathcal{L}_{\mathrm{GA}}$ is an adversarial feature-alignment loss applied to the image-level features, and $\mathcal{L}_{\mathrm{det}}$ is the standard supervised detection loss on source images. The total training objective is

$\mathcal{L}=\lambda_1\mathcal{L}_{\mathrm{node}}+\lambda_2\mathcal{L}_{\mathrm{mat}}+\mathcal{L}_{\mathrm{NA}}+\mathcal{L}_{\mathrm{GA}}+\mathcal{L}_{\mathrm{det}},$

where $\mathcal{L}_{\mathrm{node}}$ is auxiliary node-classification cross-entropy and the implementation uses $\lambda_1=\lambda_2=0.1$ . Thus, graph-specific semantic matching is trained jointly with both category supervision and domain-invariance objectives.
Knowl 8 — Domain-adaptive detection evaluation protocol
experimental setup
SIGMA is evaluated under unsupervised domain adaptation, using labeled source images during training and unlabeled target images for adaptation and evaluation. The three transfer scenarios are Cityscapes $\rightarrow$ Foggy Cityscapes, Sim10k $\rightarrow$ Cityscapes, and KITTI $\rightarrow$ Cityscapes. Cityscapes contains 2,975 training and 500 validation images with eight annotated object categories; Foggy Cityscapes is a fog-corrupted version. Sim10k contains 10,000 synthetic images with annotated cars, and KITTI contains 7,481 real traffic-scene images with annotated cars.

The detector uses either VGG-16 or ResNet-50 as feature extractor and is implemented in PyTorch. Training uses SGD with learning rate $0.0025$ , batch size $4$ , momentum $0.9$ , and weight decay $5\times10^{-4}$ . At most 100 graph nodes are sampled from each feature map in each domain in the main experiments. Because graph matching can fail when a target batch has no usable nodes, SIGMA is warm-started before the BGM adaptor is introduced. Performance is reported with mean average precision over the detector's IoU thresholds, together with source-only performance and the adaptation gain over source-only training.
Knowl 9 — SIGMA achieves state-of-the-art adaptation performance
empirical result
Across all three evaluated transfer scenarios, the proposed SIGMA framework substantially improves over source-only detection and prior domain-adaptive detectors. On Cityscapes $\rightarrow$ Foggy Cityscapes, SIGMA obtains $43.5\%$ mAP with VGG-16 and $44.2\%$ mAP with ResNet-50. Its VGG-16 per-category AP values are $46.9$ for person, $48.4$ for rider, $63.7$ for car, $27.1$ for truck, $50.7$ for bus, $35.9$ for train, $34.7$ for motor, and $41.4$ for bike; the source-only score is $18.4\%$ and the adaptation gain is $25.1$ percentage points. With ResNet-50, the corresponding per-category AP values are $44.0$ , $43.9$ , $60.3$ , $31.6$ , $50.4$ , $51.5$ , $31.7$ , and $40.6$ , with source-only score $24.2\%$ and gain $20.0$ points.

On Sim10k $\rightarrow$ Cityscapes, SIGMA reaches $53.7\%$ mAP, with source-only score $39.8\%$ and adaptation gain $13.9$ points. On KITTI $\rightarrow$ Cityscapes, it reaches $45.8\%$ mAP, with source-only score $34.4\%$ and gain $11.4$ points. The method also exceeds same-detector comparison systems on Cityscapes $\rightarrow$ Foggy Cityscapes by $7.5$ , $2.6$ , and $3.9$ mAP points over EPM, KTNet, and SSAL, respectively, and on Sim10k $\rightarrow$ Cityscapes by $4.7$ , $3.0$ , and $1.9$ points over those methods.
Knowl 10 — Component ablations and node-count sensitivity
empirical result
Ablations on Cityscapes $\rightarrow$ Foggy Cityscapes with VGG-16 show that every major SIGMA component contributes. The global-alignment baseline obtains $35.3\%$ mAP. Adding the complete Graph-embedded Semantic Completion module raises performance to $41.8\%$ mAP, while removing domain-guided node completion reduces it to $40.4\%$ , replacing the graph-guided memory bank with a common buffer gives $41.0\%$ , and removing the node discriminator gives $39.4\%$ . Adding the complete Bipartite Graph Matching adaptor reaches $43.5\%$ mAP; removing cross-graph interaction gives $42.8\%$ , replacing semantic-aware affinity with the simpler affinity gives $42.6\%$ , and removing the structure-aware matching loss gives $42.2\%$ in the tabulated ablation results.

The maximum number of sampled source and target nodes per feature map also matters. Using only source nodes gives $36.8\%$ mAP, only target nodes gives $37.3\%$ , and using equal source-target counts of $20$ , $50$ , $100$ , $200$ , and $500$ gives $39.0\%$ , $41.0\%$ , $43.5\%$ , $43.9\%$ , and $42.6\%$ , respectively. Thus, increasing node coverage generally improves graph matching up to 200 nodes, while excessive node counts make matching optimization more difficult. For the matching loss, single-best matching with true-positive enhancement, false-positive suppression, and quadratic constraints obtains $43.5\%$ mAP at IoU $0.5$ , compared with $42.1\%$ using only true-positive enhancement and $43.2\%$ using true-positive enhancement plus false-positive suppression; multiple matching obtains $42.9\%$ with BCE and $43.1\%$ with MSE.

Coverage note — The qualitative detection examples and t-SNE visualizations, along with the full per-class scores of every competing method, are omitted because they corroborate the quantitative comparisons without adding an independent method or load-bearing result.
