DisCoScene: Spatially Disentangled Generative Radiance Fields for Controllable 3D-aware Scene Synthesis

Yinghao XuMenglei ChaiZifan ShiSida PengIvan SkorokhodovAliaksandr SiarohinCeyuan YangYujun ShenHsin-Ying LeeBolei Zhou

article2023CVPR80 citations

Proposes a 3D-aware generative model that uses simple 3D bounding boxes as layout priors to spatially disentangle multi-object scenes into composable radiance fields from single-view 2D images, enabling high-fidelity scene synthesis and interactive object-level editing.

Listen

Generating realistic and editable three-dimensional scenes from standard two-dimensional images remains a major challenge in artificial intelligence and computer vision. While existing generative models excel at synthesizing single, isolated objects such as individual faces or cars, they struggle to generate complex, multi-object environments like indoor rooms or outdoor street views. Most current frameworks either treat the entire scene as a single fused volume, preventing users from editing specific objects, or fail to produce photorealistic results and proper spatial depth when dealing with intricate backgrounds and diverse object arrangements.

The article introduces DisCoScene, a 3D-aware generative framework designed to produce high-quality, complex scenes while enabling interactive, object-level editing directly from 2D image collections. The primary objective is to demonstrate that incorporating a lightweight layout prior—specifically simple 3D bounding boxes without semantic category labels—enables the model to disentangle objects from the background and each other without requiring ground-truth 3D camera sequences.

To achieve this, the approach breaks the entire scene down into spatially disentangled, object-centric radiance fields shared within a single generator, combined with a separate background generator. The framework integrates an efficient neural rendering pipeline that uses ray-box intersections to sample points only within valid bounding boxes, substantially reducing computational overhead. To ensure high visual quality during training, the authors implement a dual global-local discrimination strategy: a global discriminator critiques full scene coherence, while a local object discriminator evaluates cropped individual object patches. The model was evaluated across three diverse benchmarks representing synthetic primitives (CLEVR, 80,000 images), complex indoor environments (3D-FRONT, 80,000 images), and real-world autonomous driving footage (WAYMO, 70,000 images).

The evaluation yields several critical findings. First, DisCoScene achieved state-of-the-art visual fidelity among 3D-aware methods across all datasets, achieving Frechet Inception Distance (FID) scores of 3.5 on CLEVR, 13.8 on 3D-FRONT, and 16.0 on WAYMO, matching or approaching top-tier 2D generative models. Second, it demonstrated drastic performance gains on complex real-world data over prior multi-object baselines; for instance, on WAYMO, DisCoScene improved FID from GIRAFFE's 175.7 down to 16.0. Third, the local object discriminator proved vital for preventing the background model from collapsing or entangling with foreground objects, improving object-level FID on WAYMO from 95.1 to 16.3. Finally, the framework successfully supports diverse user-controlled operations at inference time, including object rotation, translation, insertion, removal, restyling, camera movement, and real-image inversion editing.

These findings imply that complex 3D environments can be synthesized efficiently without requiring expensive, labor-intensive scene graphs or dense 3D scans. By relying on simple bounding boxes, organizations can build interactive simulation, virtual staging, and content creation pipelines from unannotated 2D imagery at lower operational and computational costs. Furthermore, the ability to seamlessly compose and edit individual objects reduces the risk of visual artifacts and spatial inconsistencies in downstream applications like autonomous vehicle simulation and virtual reality.

For future implementation, stakeholders should consider combining this framework with automated monocular 3D object detection to infer layout priors directly from raw real-world images in an end-to-end manner. When scaling to massive urban environments, integrating large-scale neural radiance field techniques will be necessary to expand model capacity. The primary limitation of the current method is its reliance on pre-existing bounding box priors and limited capacity when modeling massive global streetscapes. Nonetheless, the reported empirical results provide high confidence in DisCoScene's capability to deliver controllable, photorealistic scene synthesis across diverse indoor and outdoor domains.

King Abdullah University of Science and Technology Snap Inc.The Chinese University of Hong Kong The Hong Kong University of Science and Technology University of California, Los Angeles Zhejiang University foreground objects generative model semantic information 3D-aware scene synthesis generative radiance fields spatially disentangled generative radiance fields

arXiv: 2212.11984

Paper: GIRAFFE: Representing Scenes as Compositional Generative Neural Feature Fields, Michael Niemeyer et al. (2021). GIRAFFE pioneered compositional generative neural feature fields for multi-object scenes, serving as the foundational compositional baseline that DisCoScene directly improves upon.
Paper: Efficient Geometry-aware 3D Generative Adversarial Networks, Eric R. Chan et al. (2022). EG3D established high-efficiency 3D-aware generative adversarial networks using tri-plane representations and dual discrimination, inspiring core volumetric rendering and discrimination strategies in DisCoScene.
Paper: Scene Representation Networks: Continuous 3D-Structure-Aware Neural Scene Representations, V. Sitzmann et al. (2019). Scene Representation Networks laid the groundwork for continuous coordinate-based implicit 3D scene representations and differentiable ray marching.
Paper: D2NeRF: Self-Supervised Decoupling of Dynamic and Static Objects from a Monocular Video, Tianhao Wu et al. (2022). D2NeRF introduced methods to cleanly decouple dynamic foreground objects from static background neural radiance fields.

Paper: CityDreamer: Compositional Generative Model of Unbounded 3D Cities, Haozhe Xie et al. (2024). CityDreamer extends compositional 3D generative radiance fields from bounded object-centric scenes to unbounded, large-scale urban layouts.
Paper: XCube: Large-Scale 3D Generative Modeling using Sparse Voxel Hierarchies, Xuanchi Ren et al. (2024). XCube scales 3D generative modeling of large-scale outdoor driving scenes using hierarchical sparse voxel diffusion beyond bounding-box implicit fields.
Paper: DrivingGaussian: Composite Gaussian Splatting for Surrounding Dynamic Autonomous Driving Scenes, Xiaoyu Zhou et al. (2024). DrivingGaussian builds upon foreground-background scene decomposition for dynamic autonomous driving scenes by replacing implicit radiance fields with efficient composite Gaussian splatting.
Paper: DiffRF: Rendering-Guided 3D Radiance Field Diffusion, Norman Müller et al. (2023). DiffRF explores 3D radiance field generation using 3D diffusion models with rendering-guided losses as an alternative to adversarial radiance field frameworks.
Paper: MIME: Human-Aware 3D Scene Generation, Hongwei Yi et al. (2023). MIME advances 3D scene layout synthesis by utilizing human motion and interaction dynamics as priors for populating indoor environments.

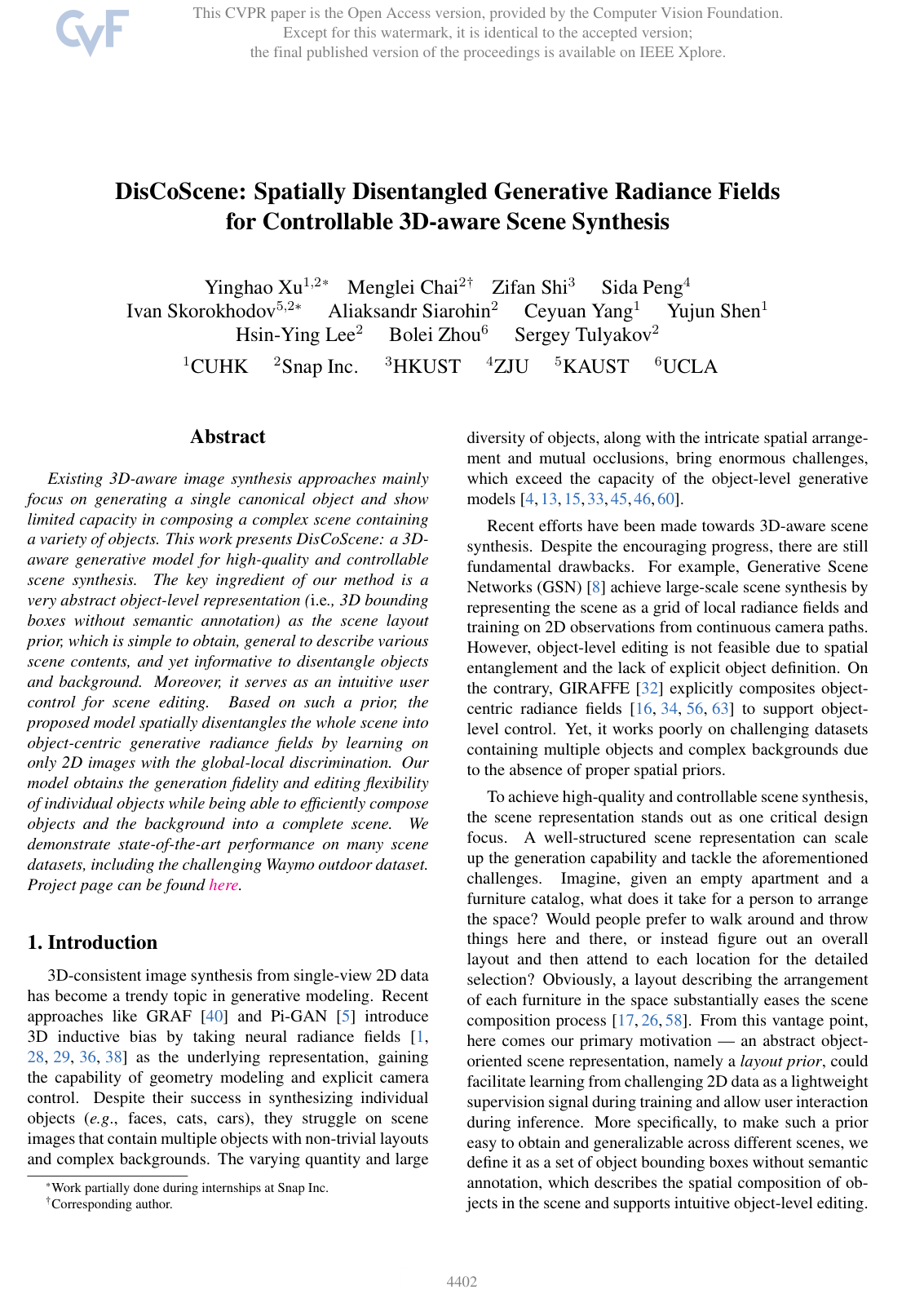

Cover for DisCoScene: Spatially Disentangled Generative Radiance Fields for Controllable 3D-aware Scene Synthesis

Abstract

Existing 3D-aware image synthesis approaches mainly focus on generating a single canonical object and show limited capacity in composing a complex scene containing a variety of objects. This work presents DisCoScene: a 3D-aware generative model for high-quality and controllable scene synthesis. The key ingredient of our method is a very abstract object-level representation (i.e., 3D bounding boxes without semantic annotation) as the scene layout prior, which is simple to obtain, general to describe various scene contents, and yet informative to disentangle objects and background. Moreover, it serves as an intuitive user control for scene editing. Based on such a prior, the proposed model spatially disentangles the whole scene into object-centric generative radiance fields by learning on only 2D images with the global-local discrimination. Our model obtains the generation fidelity and editing flexibility of individual objects while being able to efficiently compose objects and the background into a complete scene. We demonstrate state-of-the-art performance on many scene datasets, including the challenging Waymo outdoor dataset. Project page can be found here.

Topics

foreground objects generative model semantic information

Keywords

3D-aware scene synthesis generative radiance fields spatially disentangled generative radiance fields scene disentanglement scene editing scene composition view synthesis semantic image synthesis object manipulation

1. Introduction
2. Related Work
3. Method
3.1. Abstract Layout Prior
3.2. Spatially Disentangled Radiance Fields
3.3. Efficient Rendering Pipeline
3.4. Local & Global Discrimination
3.5. Training and Inference
4. Experiments
4.1. Settings
4.2. Main Results
4.3. Controllable Scene Generation
4.4. Ablation Study
5. Discussion and Conclusion
References

Knowls

Knowl 1 — DisCoScene Architecture for 3D-Aware Scene Synthesis
model/method
DisCoScene is a 3D-aware generative model designed to synthesize complex multi-object scenes with spatial disentanglement and controllable camera and object attributes from 2D image collections.

The framework represents a scene using an abstract 3D layout prior comprising unannotated 3D bounding boxes. Scene generation consists of three main stages:
1. Spatially Disentangled Field Generation: A shared canonical object generator models individual object radiance fields conditioned on per-object latent codes and layout parameters (position and scale), while a global background generator models the background radiance field conditioned on camera viewing direction and a background latent code.
2. Bounded Neural Volume Rendering: Rays cast from a virtual camera are evaluated using ray-box intersection against the 3D bounding boxes. Points sampled along the ray segments within object boxes are sorted by depth and volume-rendered into a low-resolution foreground feature map, which is alpha-composited with the global background feature map and upsampled to full image resolution via a 2D convolutional upsampler network.
3. Global-Local Adversarial Training: The generative radiance fields are trained using a scene discriminator evaluating the whole rendered image alongside a local object discriminator evaluating cropped 2D object patches extracted from the rendered and real images based on projected bounding boxes.
Knowl 2 — Abstract 3D Layout Prior Parameterization
definition
The scene layout prior is defined as a set of $N$ unannotated 3D bounding boxes $\mathcal{B} = \{B_i \mid i \in [1, N]\}$ . Each bounding box $B_i$ is parameterized by 9 spatial parameters:

$B_i = [a_i, t_i, s_i]$

where:
- $a_i = [a_x, a_y, a_z] \in \mathbb{R}^3$ denotes three Euler rotation angles, which form a 3D rotation matrix $R_i \in \mathrm{SO}(3)$ ;
- $t_i = [t_x, t_y, t_z] \in \mathbb{R}^3$ denotes the 3D translation vector;
- $s_i = [s_x, s_y, s_z] \in \mathbb{R}^3$ denotes the 3D scale dimensions.
Any bounding box $B_i$ is mapped from a canonical unit cube $C = [-0.5, 0.5]^3$ centered at the coordinate origin via the affine transformation $b_i(C)$ :

$B_i = b_i(C) = R_i \cdot \mathrm{diag}(s_i) \cdot C + t_i$

where $\mathrm{diag}(s_i)$ is a diagonal matrix containing the scale factors $s_i$ .
Knowl 3 — Spatially Conditioned Generative Radiance Fields
model/method
DisCoScene divides radiance field generation into a shared object generator and a background generator.

Object Generator: To model diverse objects with a single network while maintaining spatial disentanglement, the object generator $G_{\text{obj}}$ operates in canonical object space and is conditioned on both a latent code $z_i \sim \mathcal{N}(0, I)$ and the object's spatial configuration (translation $t_i$ and scale $s_i$ ):

$(c_i, \sigma_i) = G_{\text{obj}}\left(b_i^{-1}(\gamma(x)), \mathrm{concat}(z_i, \gamma(t_i), \gamma(s_i))\right)$

where $x \in \mathbb{R}^3$ is a 3D spatial coordinate in world space, $b_i^{-1}$ is the inverse transformation mapping $x$ to the canonical box coordinate system of box $B_i$ , $\gamma(\cdot)$ is a sinusoidal positional encoding function mapping coordinates to Fourier features, $c_i \in \mathbb{R}^C$ is the emitted feature/color, and $\sigma_i \in \mathbb{R}$ is the volume density. The object generator is not conditioned on viewing direction $v$ , leaving view-dependent effects to the convolutional upsampler.

Background Generator: The background is modeled in global coordinates by a generator $G_{\text{bg}}$ conditioned on 3D coordinate $x$ , camera viewing direction $v \in \mathbb{S}^2$ , and background latent code $z_{\text{bg}} \sim \mathcal{N}(0, I)$ :

$(c_{\text{bg}}, \sigma_{\text{bg}}) = G_{\text{bg}}(x, v, z_{\text{bg}})$
Knowl 4 — Ray-Box Bounded Volume Rendering and Scene Composition
model/method
Rendering an $S \times S$ feature map from the spatially disentangled radiance fields uses axis-aligned bounding box (Ray-AABB) intersections in canonical coordinates to avoid sampling empty 3D space:
1. Ray Intersection and Sampling: For each ray $r_j$ ( $j \in [1, S^2]$ ) intersecting box $B_l$ , near and far intersection depths $(d_{j,l,n}, d_{j,l,f})$ are computed. An intersection matrix $M \in \{0, 1\}^{N \times S^2}$ records active intersections. Exactly $N_d$ points are sampled equidistantly in $[d_{j,l,n}, d_{j,l,f}]$ .
2. Foreground Depth Sorting: For a ray $r_j$ intersecting $n_j \ge 1$ boxes, the collected $n_j N_d$ points are sorted along the ray by depth, producing an ordered point sequence $\mathcal{X}_j^s = \{x_{j, s_k} \mid s_k \in [1, n_j N_d], d_{j, s_k} \le d_{j, s_{k+1}}\}$ .
3. Volume Rendering: The foreground feature $f(r_j)$ and foreground feature map $F$ are computed via numerical quadrature:
$f(r_j) = \sum_{k=1}^{n_j N_d} T_{j,k} \alpha_{j,k} c(x_{j, s_k}), \quad T_{j,k} = \exp\left(-\sum_{o=1}^{k-1} \sigma(x_{j, s_o}) \delta_{j, s_o}\right), \quad \alpha_{j,k} = 1 - \exp\left(-\sigma(x_{j, s_k}) \delta_{j, s_k}\right)$

$F_j = \begin{cases} f(r_j), & \text{if } \exists m \in M_{:, j} \text{ such that } m = 1 \\ 0, & \text{otherwise} \end{cases}$

where $\delta_{j, s_k} = d_{j, s_{k+1}} - d_{j, s_k}$ .
1. Composition with Background: The global background map $N$ is rendered by sampling background points (using fixed depths for indoor scenes or inverse depth sampling for unbounded outdoor scenes). The composite image feature map $I_n$ is obtained by alpha-blending:
$I_n = F + \prod_{k=1}^{n_j N_d} (1 - \alpha_{j,k}) \odot N$

A 2D convolutional upsampler then processes $I_n$ to generate the final RGB output.
Knowl 5 — Global-Local Adversarial Training Formulation
model/method
DisCoScene trains its generators $G = \{G_{\text{obj}}, G_{\text{bg}}\}$ and two discriminators (a global scene discriminator $D_s$ and a local object discriminator $D_{\text{obj}}$ ) using non-saturating GAN losses with $R_1$ -style gradient penalties.

Let $I_f = G(\mathcal{B}, \mathcal{Z}, \xi)$ denote an image synthesized from layout $\mathcal{B}$ , latent codes $\mathcal{Z}$ , and camera pose $\xi \sim p_\xi$ . Let $I_r$ denote a real image. Object patches $P_{I_f}$ and $P_{I_r}$ are extracted by projecting 3D bounding boxes to 2D boxes $B_i^{2D}$ and cropping the corresponding regions: $P_I = \{P_i \mid P_i = \mathrm{crop}(I, B_i^{2D})\}$ .

The generator loss $\mathcal{L}_G$ and discriminator loss $\mathcal{L}_D$ are:

$\min_G \mathcal{L}_G = \mathbb{E}[f(-D_s(I_f))] + \lambda_1 \mathbb{E}[f(-D_{\text{obj}}(P_{I_f}))]$

$\min_D \mathcal{L}_D = \mathbb{E}[f(-D_s(I_r))] + \mathbb{E}[f(D_s(I_f))] + \lambda_1 \left(\mathbb{E}[f(-D_{\text{obj}}(P_{I_r}))] + \mathbb{E}[f(D_{\text{obj}}(P_{I_f}))]\right) + \lambda_2 \|\nabla_{I_r} D_s(I_r)\|_2^2 + \lambda_3 \|\nabla_{P_{I_r}} D_{\text{obj}}(P_{I_r})\|_2^2$

where $f(t) = \log(1 + \exp(t))$ is the softplus function, $\lambda_1$ controls the balance between object and scene discrimination (set to $1.0$ ), and $\lambda_2, \lambda_3$ weight the gradient regularization terms (both set to $1.0$ ).

Knowl 6 — Quantitative Evaluation of Scene Generation Quality

data/table

DisCoScene was evaluated against 2D GAN (StyleGAN2) and 3D-aware GAN baselines (EpiGRAF, VolumeGAN, EG3D, GIRAFFE, GSN) on three multi-object benchmarks: CLEVR (80K diagnostic images), 3D-FRONT (80K indoor bedroom images), and WAYMO (70K outdoor street front-view images) at $256 \times 256$ resolution. Evaluation metrics are Frechet Inception Distance (FID) and Kernel Inception Distance (KID $\times 10^3$ ), evaluated over 50K generated samples against all real images. Training cost (TR.) is in V100 GPU days; inference latency (INF.) is in milliseconds per image on a single V100 GPU over 1K samples.

Model	CLEVR				3D-FRONT		WAYMO
	FID $\downarrow$	KID $\downarrow$	TR. $\downarrow$	INF. $\downarrow$	FID $\downarrow$	KID $\downarrow$	FID $\downarrow$	KID $\downarrow$
StyleGAN2	4.5	3.0	13.3	44	12.5	4.3	15.1	8.3
EpiGRAF	10.4	8.3	16.0	114	107.2	102.3	27.0	26.1
VolumeGAN	7.5	5.1	15.2	90	52.7	38.7	29.9	18.2
EG3D	4.1	12.7	25.8	55	19.7	13.5	26.0	45.4
GIRAFFE	78.5	61.5	5.2	62	56.5	46.8	175.7	212.1
GSN	–	–	–	–	130.7	87.5	–	–
DisCoScene	3.5	2.1	18.1	95	13.8	7.4	16.0	8.4

DisCoScene achieves the best FID and KID scores among all 3D-aware methods across all three datasets, approaching the fidelity of the 2D baseline StyleGAN2 while enabling explicit 3D camera control and object-level manipulation.

Knowl 7 — Ablation Analysis of Local Object Discriminator

data/table

The contribution of the local object discriminator $D_{\text{obj}}$ was evaluated across CLEVR, 3D-FRONT, and WAYMO by comparing scene-level FID and object-level fidelity $\text{FID}_{\text{obj}}$ . $\text{FID}_{\text{obj}}$ is computed by cropping 2D object patches using projected bounding boxes from generated and real images.

Metric	Setting	CLEVR	3D-FRONT	WAYMO
FID $\downarrow$	w/o $D_{\text{obj}}$	5.0	18.6	19.5
FID $\downarrow$	w/ $D_{\text{obj}}$	3.5	13.8	16.0
$\text{FID}_{\text{obj}} \downarrow$	w/o $D_{\text{obj}}$	19.1	33.7	95.1
$\text{FID}_{\text{obj}} \downarrow$	w/ $D_{\text{obj}}$	5.6	19.5	16.3

Without $D_{\text{obj}}$ , the background generator tends to overfit and entangle foreground objects into a single global field (evidenced by the sharp degradation of $\text{FID}_{\text{obj}}$ to 95.1 on WAYMO). $D_{\text{obj}}$ enforces clear spatial separation between individual foreground objects and the background, substantially improving object and full-scene synthesis quality.

Knowl 8 — Unsupervised Semantic Alignment via Spatial Conditioning
empirical result
Conditioning the canonical object generator $G_{\text{obj}}$ on Fourier-encoded spatial parameters (translation $t_i$ and scale $s_i$ ) allows the model to learn semantically consistent object assignments without category annotations.

On the 3D-FRONT indoor bedroom benchmark:
- Adding spatial conditioning improves overall image FID from $15.2$ to $13.8$ and object-level $\text{FID}_{\text{obj}}$ from $23.2$ to $19.5$ .
- Qualitatively, spatial conditioning causes the model to consistently generate large center-of-room objects as beds and perimeter objects as nightstands or wardrobes, matching natural room layout distributions. Without spatial conditioning, the model generates semantically unnatural configurations (e.g., placing small tables or nightstands in the center of the room).
Knowl 9 — Interactive 3D Scene Manipulation Operations
model/method
Once trained, DisCoScene supports multiple interactive 3D scene editing capabilities at inference time via direct manipulation of the layout prior $\mathcal{B}$ and latent codes:
1. Object Rearrangement: Users can modify the 3D translation $t_i$ and rotation $a_i$ of individual bounding boxes to reposition or rotate objects while preserving their appearance, identity, and handling mutual occlusions correctly.
2. Object Removal and Cloning: Removing a bounding box eliminates the corresponding object, with the background seamlessly inpainted without having been trained on clean background-only images. Cloning is achieved by replicating a box and its latent code at a new 3D location.
3. Object Restyling: By performing style-mixing across different layers of the modulated fully-connected layers in $G_{\text{obj}}$ using independently sampled latent codes $z_i$ , object shape and appearance can be controlled independently.
4. Supersampling Anti-Aliasing (SSAA): To prevent edge aliasing artifacts during dynamic object manipulation caused by coarse $64 \times 64$ ray marching, the foreground feature rendering is evaluated at a temporary $128 \times 128$ resolution and downsampled to $64 \times 64$ before entering the 2D neural upsampler, increasing inference time only marginally (from 95 ms to 105 ms per image).
Knowl 10 — Limitations of DisCoScene
limitation
DisCoScene has two primary limitations:
1. Dependence on 3D Bounding Box Layout Priors: The method relies on predefined 3D bounding box layouts $\mathcal{B}$ . For unannotated in-the-wild datasets, it requires an external monocular 3D object detector (e.g., FCOS3D) to extract pseudo-layouts during preprocessing rather than estimating layouts end-to-end.
2. Global Space Street Scene Scaling: Representing expansive, unconstrained global environments (such as complex driving scenes in WAYMO) with a single global background generator is limited by model capacity, requiring future integration with multi-scale or tiled radiance field representations.

Coverage note — Deliberately omitted minor qualitative visualization figures, network layer-dimension breakdowns, and standard training hyperparameter lists that follow conventional StyleGAN2 and BlenderProc setups, retaining all core architecture, mathematical formulations, quantitative data, and experimental ablations.
