MIME: Human-Aware 3D Scene Generation

Hongwei YiChun-Hao P. HuangShashank TripathiLea HeringJustus ThiesMichael J. Black

article2023CVPR73 citations

Proposes an auto-regressive transformer model that synthesizes plausible indoor 3D scenes by utilizing human motion sequences to infer room layouts, object placements, and free-space constraints.

Listen

Generating realistic 3D indoor environments populated by moving humans is essential for video games, architectural planning, and artificial intelligence training data generation, but traditional scene modeling remains expensive and labor-intensive. While previous research has focused on synthesizing human movement within pre-existing 3D spaces, relatively little work explores the reverse challenge of inferring a complete environment from human body movements alone. The article addresses this gap by developing MIME (Mining Interaction and Movement to infer 3D Environments), a computational framework that treats human body motion as an active scanner to predict full, plausible 3D room layouts.

The article's main objective is to design and evaluate an auto-regressive generative framework that uses 3D human motion and floor plans to synthesize complete indoor furniture layouts that accurately support human interactions and respect open space constraints.

To achieve this, the authors created a large synthetic training dataset called 3D-FRONT HUMAN by populating existing 3D room floor plans with moving and interacting virtual humans across four room categories: bedrooms, living rooms, dining rooms, and libraries. The methodology divides human motion into two components: free-space movement, which maps out walkable floor areas where objects cannot exist, and contact interactions (such as sitting, lying, or touching), which signal the presence and type of furniture. A transformer-based neural network processes these motion inputs alongside an empty floor plan to generate furniture bounding boxes sequentially. A post-processing refinement step then retrieves matching 3D furniture models from a catalog and optimizes their placement using geometric contact and collision rules.

The experimental findings show that MIME outperforms existing baseline models in physical plausibility and interaction accuracy. First, MIME drastically cut physical collisions between generated furniture and walkable space compared to human-unaware baseline models, achieving less than half the room interpenetration rates across living rooms (0.050 vs. 0.129), dining rooms (0.047 vs. 0.121), and bedrooms (0.129 vs. 0.348). Second, MIME greatly improved 3D spatial alignment between humans and interacting furniture, achieving contact intersection-over-union scores of 0.756 to 0.920 in common rooms compared to baseline scores ranging from 0.122 to 0.376. Third, when tested on a real-world motion-capture dataset without fine-tuning, MIME achieved an 8.47 object detection accuracy score, substantially higher than the 5.36 achieved by prior motion-conditioned reconstruction methods, while uniquely generating full room layouts rather than isolated objects in contact with the human.

These results demonstrate that human motion provides strong geometric constraints that allow automated systems to reconstruct complete, functional indoor scenes at scale. By enabling the conversion of archival motion capture data into realistic 3D environments, this approach can lower the cost and development timelines required to create synthetic training data for computer vision, architectural design, and interactive virtual reality.

The authors recommend integrating motion-aware generative methods into pipelines for large-scale synthetic data generation and digital room layout design. For future technical deployments, engineering teams should implement higher-resolution floor plan encodings and develop end-to-end models that jointly predict room boundaries and 3D shapes alongside furniture layouts.

A primary limitation of the study is its reliance on static scenes and coarse floor plan grid resolutions (where one grid unit represents approximately 10 centimeters), which can occasionally induce minor spatial collisions. Additionally, the system currently assumes all objects remain stationary, leaving dynamic interactions—such as opening doors or moving handheld objects—for future work. Despite these limitations, the quantitative improvements on both synthetic and real-world datasets support high confidence in MIME's ability to generate plausible 3D layouts from human motion.

Adobe Max Planck Institute for Intelligent Systems human-aware scene synthesis 3D scene generation human-scene interaction

arXiv: 2212.04360 yhw-yhw/MIME

Paper: AMASS: Archive of Motion Capture As Surface Shapes, Naureen Mahmood et al. (2019). Provides the foundational large-scale parametric 3D human motion representation (AMASS/SMPL) used to represent human movement and body geometry in scene-interaction pipelines.
Paper: Human Motion Diffusion Model, Guy Tevet et al. (2022). Introduces key transformer-based motion modeling and physical contact regularizers that underpin modern generative representations of 3D human movement.
Paper: End-to-End Recovery of Human Shape and Pose, Angjoo Kanazawa et al. (2017). Establishes standard methods for 3D human mesh recovery and pose parameter estimation essential for extracting 3D body motion as spatial signals.
Paper: Matterport3D: Learning from RGB-D Data in Indoor Environments, Angel Chang et al. (2017). Supplies fundamental datasets and geometric priors for indoor room structures and 3D bounding-box spatial layouts.
Paper: 3D Semantic Parsing of Large-Scale Indoor Spaces, Iro Armeni et al. (2016). Pioneers hierarchical spatial parsing and floor-plan geometry analysis for indoor environments.

Paper: Unified Human-Scene Interaction via Prompted Chain-of-Contacts, Zeqi Xiao et al. (2024). Extends human-scene contact modeling by using structured chain-of-contact sequences to drive dynamic, physics-based multi-step humanoid interactions in 3D scenes.
Paper: Seamless Human Motion Composition with Blended Positional Encodings, Germán Barquero et al. (2024). Advances the synthesis of long-duration, multi-action sequential human motion that can serve as richer trajectory inputs for motion-conditioned scene reasoning.
Paper: VOID: Video Object and Interaction Deletion, Saman Motamed et al. (2026). Applies human-object interaction reasoning to counterfactual video generation and dynamic causal simulation.

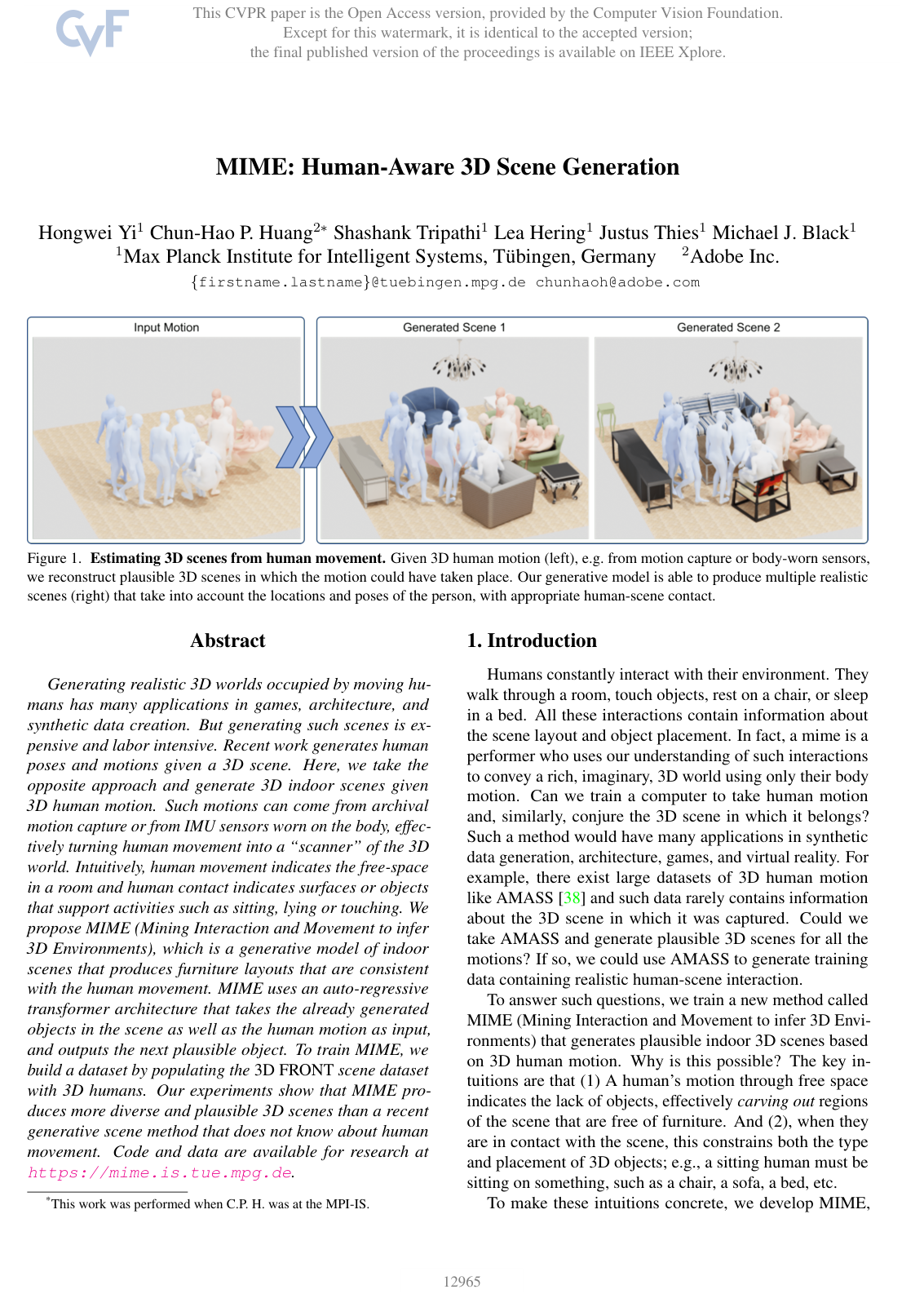

Cover for MIME: Human-Aware 3D Scene Generation

Abstract

Generating realistic 3D worlds occupied by moving humans has many applications in games, architecture, and synthetic data creation. But generating such scenes is expensive and labor intensive. Recent work generates human poses and motions given a 3D scene. Here, we take the opposite approach and generate 3D indoor scenes given 3D human motion. Such motions can come from archival motion capture or from IMU sensors worn on the body, effectively turning human movement into a “scanner” of the 3D world. Intuitively, human movement indicates the free-space in a room and human contact indicates surfaces or objects that support activities such as sitting, lying or touching. We propose MIME (Mining Interaction and Movement to infer 3D Environments), which is a generative model of indoor scenes that produces furniture layouts that are consistent with the human movement. MIME uses an auto-regressive transformer architecture that takes the already generated objects in the scene as well as the human motion as input, and outputs the next plausible object. To train MIME, we build a dataset by populating the 3D FRONT scene dataset with 3D humans. Our experiments show that MIME produces more diverse and plausible 3D scenes than a recent generative scene method that does not know about human movement. Code and data are available for research at https://mime.is.tue.mpg.de.

Keywords

human-aware scene synthesis 3D scene generation human-scene interaction indoor scene synthesis human motion sequence human pose estimation scene reconstruction scene refinement motion capture free-space humans

1. Introduction
2. Related Work
3. Method
3.1. Generative Human-aware Scene Synthesis
3.2. Training and Inference
3.3. 3D Scene Refinement
4. Dataset Generation of 3D-FRONT HUMAN
5. Experiments
5.1. Human-aware Scene Synthesis
5.2. Ablation Study
6. Limitation and Discussion
7. Conclusion
References

Knowls

Knowl 1 — MIME Human-Scene Representation and Conditioning Formulation
model/method
MIME models indoor 3D scene synthesis conditioned on 3D human motion and a 2D floor plan layout. Given human motion sequences and a floor plan $\mathcal{F}$ , the human input is split into two representations:
1. Free-space humans: Poses that only contact the ground floor plane $\mathcal{F}$ (such as walking or standing). A 2D binary free-space mask $\mathcal{E} \in \{0, 1\}^{H \times W}$ is constructed by taking the union of all projected foot contact points onto $\mathcal{F}$ . A value of $\mathcal{E}(p) = 1$ indicates that pixel location $p$ must remain clear of furniture.
2. Contact humans: Posed 3D human body meshes (represented using SMPL-X) are processed using POSA (Pose with Surfaces and Affordances) to predict surface vertices in contact with scene objects. For each contact human, a 3D bounding box is computed around their contact vertices. Non-maximum suppression (NMS) over 3D Intersection-over-Union (IoU) aggregates multiple interacting humans into a set of $N$ non-overlapping contact bounding boxes $\mathcal{C} = \{c_i\}_{i=1}^N$ .
A generated 3D scene $\mathcal{S}$ is represented as an unordered set of 3D bounding boxes partitioned into two disjoint subsets: contact objects $\mathcal{O} = \{o_i\}_{i=1}^N$ (objects interacting with the contact humans $\mathcal{C}$ ) and non-contact objects $\mathcal{Q} = \{q_i\}_{i=1}^M$ (objects placed in free space without direct human interaction), such that $\mathcal{S} = \mathcal{O} \cup \mathcal{Q}$ .
Knowl 2 — Autoregressive Scene Likelihood and Optimization Objective in MIME
equation
In MIME, the log-likelihood of generating a complete 3D scene $\mathcal{S} = \mathcal{O} \cup \mathcal{Q}$ conditioned on the 2D floor plan $\mathcal{F}$ , binary free-space mask $\mathcal{E}$ , and contact human representations $\mathcal{C} = \{c_i\}_{i=1}^N$ is factorized into contact object generation and non-contact object generation:

$\log p(\mathcal{S}) = \log p(\mathcal{O} \mid \mathcal{F}, \mathcal{E}, \mathcal{C}) + \log p(\mathcal{Q} \mid \mathcal{F}, \mathcal{E}, \mathcal{C})$

The likelihood of the contact objects $\mathcal{O}$ is computed by accumulating probabilities across random permutations $\pi(\mathcal{O})$ :

$p(\mathcal{O} \mid \mathcal{F}, \mathcal{E}, \mathcal{C}) = \sum_{\hat{\mathcal{O}} \in \pi(\mathcal{O})} \prod_{j \in \hat{\mathcal{O}}} p\left(o_j \mid o_{<j}, \mathcal{F}, \mathcal{E}, c_{\geq j}\right)$

where $o_j$ is the $j$ -th generated contact object, $o_{<j}$ denotes previously generated objects, and $c_{\geq j}$ denotes the remaining unassigned contact humans.

Once contact objects $\mathcal{O}$ are placed, they are treated as existing scene entities $\mathcal{Q}'$ , and the likelihood of non-contact objects $\mathcal{Q}$ is formulated as:

$p(\mathcal{Q} \mid \mathcal{F}, \mathcal{E}, \mathcal{C}) = p(\mathcal{Q} \mid \mathcal{F}, \mathcal{E}, \mathcal{O}) = \sum_{\hat{\mathcal{Q}} \in \pi(\mathcal{Q} \cup \mathcal{Q}')} \prod_{j \in \hat{\mathcal{Q}}} p\left(q_j \mid q_{<j}, \mathcal{F}, \mathcal{E}\right)$

Monte Carlo sampling is used during training to approximate permutations, ensuring permutation invariance over generated objects. Training minimizes the negative log-likelihood of object attributes across autoregressive steps.
Knowl 3 — MIME Transformer Architecture and Attribute Decoding
model/method
MIME uses an autoregressive transformer architecture composed of input encoders, a transformer encoder, and multi-layer perceptron (MLP) attribute decoders:
- Free-Space and Floor Plan Encoder: A ResNet-18 encodes the concatenation of the 2D floor plan $\mathcal{F}$ and the 2D free-space mask $\mathcal{E}$ into a spatial conditioning feature $F$ .
- Contact and Furniture Encoder: A shared-weight encoder $E_\theta$ embeds both contact human bounding boxes and already-generated scene objects. For the $j$ -th entity, its embedding is:
$E_\theta(I_j, k_j, t_j, r_j, s_j) \rightarrow \left(I_j, \lambda(k_j), p(t_j), p(r_j), p(s_j)\right)$

where $I_j \in \{0, 1\}$ is a binary contact indicator ( $I_j = 1$ for the specific contact human targeted in the current generation step, and $0$ for other humans and all existing furniture), $\lambda(k_j)$ is a learnable embedding of semantic/interaction class $k_j$ , and $p(\cdot)$ is sinusoidal positional encoding applied to 3D translation $t_j \in \mathbb{R}^3$ , rotation $r_j \in \mathbb{R}$ , and bounding box size $s_j \in \mathbb{R}^3$ .
- Transformer Encoder: The sequence of $M+N$ object and human embeddings $T_{i=1}^{M+N}$ , the spatial feature $F$ , and a learnable query vector $q \in \mathbb{R}^{64}$ are processed by a transformer encoder $\tau_\theta(F, T_{i=1}^{M+N}, q) \rightarrow \hat{q}$ without sequence positional encodings.
- Sequential Attribute Prediction: Given the predicted query feature $\hat{q}$ $\overset{q}{^}$ , four sequential MLPs predict the parameters of the new object $(\hat{k}, \hat{t}, \hat{r}, \hat{s})$ $(\hat{k}, \hat{t}, \overset{r}{^}, \overset{s}{^})$ :
  1. Semantic class category $\hat{k}$ (including an end-of-scene token);
  2. Translation $\hat{t}$ , conditioned on $[\hat{q}, \hat{k}]$ ;
  3. Rotation $\hat{r}$ , conditioned on $[\hat{q}, \hat{k}, \hat{t}]$ ;
  4. Size $\hat{s}$ , conditioned on $[\hat{q}, \hat{k}, \hat{t}, \hat{r}]$ .
Knowl 4 — Autoregressive Inference and Contact Human Pruning in MIME
algorithm
During inference, MIME generates 3D object bounding boxes conditioned on a floor plan $\mathcal{F}$ , free-space mask $\mathcal{E}$ , and input contact humans $\mathcal{C}$ . At each step, humans whose contact constraints are fulfilled by the newly generated object are pruned using ground-plane 2D Intersection-over-Union (IoU).
Input: Floor plan $\mathcal{F}$ , free-space mask $\mathcal{E}$ , set of contact humans $\mathcal{C} = \{c_i\}_{i=1}^N$
Output: Set of 3D object bounding boxes $\mathcal{S} = \{o_j\}_{j=1}^K$
Initialize generated scene $\mathcal{S} \leftarrow \emptyset$
Initialize active contact humans $\mathcal{C}_{\text{active}} \leftarrow \mathcal{C}$
while True do
    if $\mathcal{C}_{\text{active}} \neq \emptyset$ then
        Set contact indicator $I_1 \leftarrow 1$ for the first human in $\mathcal{C}_{\text{active}}$
        Set $I_j \leftarrow 0$ for all other humans $j > 1$ in $\mathcal{C}_{\text{active}}$
    end if

    Encode $\mathcal{F}$ and $\mathcal{E}$ into feature map $F$ using ResNet-18
    Encode each object in $\mathcal{S}$ and each human in $\mathcal{C}_{\text{active}}$ using $E_\theta$ into embeddings $T$
    Compute query embedding $\hat{q} \leftarrow \tau_\theta(F, T, q)$
    Predict class label $\hat{k}$ from $\hat{q}$

    if $\hat{k}$ is the end-of-scene token then
        break
    end if

    Predict translation $\hat{t}$ , rotation $\hat{r}$ , and size $\hat{s}$ consecutively from $\hat{q}$
    Construct object bounding box $o_{\text{new}} \leftarrow (\hat{k}, \hat{t}, \hat{r}, \hat{s})$
     $\mathcal{S} \leftarrow \mathcal{S} \cup \{o_{\text{new}}\}$

    for each contact human $c \in \mathcal{C}_{\text{active}}$ do
        Project 3D bounding box of $c$ and $o_{\text{new}}$ onto the ground floor plane
        Compute 2D Intersection-over-Union $\text{IoU}_{\text{2D}}(c, o_{\text{new}})$
        if $\text{IoU}_{\text{2D}}(c, o_{\text{new}}) > 0.5$ then
             $\mathcal{C}_{\text{active}} \leftarrow \mathcal{C}_{\text{active}} \setminus \{c\}$
        end if
    end for
end while
return $\mathcal{S}$
Knowl 5 — 3D Scene Mesh Retrieval and Geometric Optimization Refinement
model/method
After MIME predicts 3D bounding boxes $(\hat{k}, \hat{t}, \hat{r}, \hat{s})$ , 3D CAD mesh models are retrieved from the 3D-FUTURE dataset by matching semantic class $\hat{k}$ and bounding box size $\hat{s}$ . To eliminate interpenetrations and ensure realistic human-scene contact, object poses are post-processed via continuous geometric refinement:
1. A unified signed distance field (SDF) volume of the scene is calculated.
2. Contact vertices from all SMPL-X human body meshes are accumulated in 3D space.
3. Object translations and rotations are jointly optimized using the contact loss $\mathcal{L}_{\text{contact}}$ and collision loss $\mathcal{L}_{\text{collision}}$ from MOVER:
$\mathcal{L}_{\text{refine}} = w_{\text{contact}} \mathcal{L}_{\text{contact}} + w_{\text{collision}} \mathcal{L}_{\text{collision}}$

where $w_{\text{contact}} = 10^5$ pulls object surfaces into alignment with contacting human body vertices and $w_{\text{collision}} = 10^3$ penalizes human-furniture interpenetrations.
Knowl 6 — 3D-FRONT HUMAN Dataset Construction
experimental setup
To train human-aware 3D scene synthesis models, the 3D-FRONT HUMAN dataset extends synthetic room layouts from 3D-FRONT by automatically populating them with SMPL-X human bodies:
- Room Categories and Scene Counts:
  - Bedrooms: 5,689 scenes across 21 object categories
  - Living rooms: 2,987 scenes across 24 object categories
  - Dining rooms: 2,549 scenes across 24 object categories
  - Libraries: 679 scenes across 25 object categories
- Population Procedure:
  1. Contact humans: Static 3D human meshes from RenderPeople are assigned plausible interactions (touching, sitting, lying) with compatible furniture (e.g., lying on beds, sitting on chairs/sofas, touching nightstands/wardrobes).
  2. Free-space humans: A randomized number of static standing bodies and continuous walking motion clips from the AMASS dataset are placed with random initial positions and trajectories in open floor space. Humans intersecting with room objects are removed.
- Data Splitting: For each room category, scenes are partitioned into 80% training, 10% validation, and 10% testing splits.
Knowl 7 — Free-Space Interpenetration Evaluation Metric
definition
The interpenetration metric $L_{\text{inter}}$ measures spatial collision between generated 3D room objects and human movement trajectories (free space). It computes the proportion of the 2D ground-plane free-space mask $\mathcal{E}$ covered by the orthogonal 2D bounding projections of all $M$ generated objects $\{O_j\}_{j=1}^M$ :

$L_{\text{inter}} = \frac{\sum_{j=1}^{M} \sum_{p \in O_j} \mathcal{E}(p)}{\sum_{p \in \mathcal{E}} \mathcal{E}(p)}$

where $p$ denotes pixel coordinates on the floor plan image, $O_j$ is the set of pixels covered by object $j$ 's ground projection, and $\mathcal{E}(p) = 1$ if pixel $p$ is traversed by walking or standing humans ( $0$ otherwise). Lower values indicate superior preservation of human movement pathways.

Knowl 8 — Quantitative Evaluation on 3D-FRONT HUMAN Benchmark

data/table

MIME was quantitatively evaluated against the ATISS baseline on the test split of 3D-FRONT HUMAN without refinement. Interaction consistency was measured using Free-Space Interpenetration ( $L_{\text{inter}} \downarrow$ ), 2D IoU ( $\uparrow$ ), and 3D IoU ( $\uparrow$ ) between generated objects and contact human bounding boxes. Scene realism and diversity were measured using Fréchet Inception Distance (FID $\downarrow$ computed at $256^2$ resolution over 10 runs) and Category KL Divergence ( $\downarrow$ ).

Room Type	Interpenetration ( $\downarrow$ )		2D IoU ( $\uparrow$ )		3D IoU ( $\uparrow$ )		FID Score ( $\downarrow$ )		Category KL Div. ( $\downarrow$ )
	ATISS	Ours	ATISS	Ours	ATISS	Ours	ATISS	Ours	ATISS	Ours
Bedroom	0.348	0.129	0.472	0.939	0.376	0.756	70.21 $\pm$ 1.80	74.18 $\pm$ 2.19	0.028	0.044
Living	0.129	0.050	0.480	0.971	0.360	0.920	130.61 $\pm$ 1.27	150.03 $\pm$ 1.00	0.004	0.053
Dining	0.121	0.047	0.163	0.959	0.122	0.769	45.99 $\pm$ 0.90	76.75 $\pm$ 1.45	0.004	0.037
Library	0.139	0.106	0.351	0.725	0.390	0.570	93.16 $\pm$ 2.59	118.34 $\pm$ 2.94	0.066	0.093

MIME achieves large improvements in 2D IoU, 3D IoU, and interpenetration reduction across all room types. Because human motion and contact explicitly constrain the allowable object arrangements, unconditioned ATISS achieves lower (better) FID and KL divergence scores due to higher unconstrained variation.

Knowl 9 — Real-World Generalization on PROX-D Dataset

empirical result

To evaluate transfer to real captured human motion, MIME (trained on 3D-FRONT HUMAN without finetuning or mesh refinement) was evaluated against Pose2Room (P2R-Net) on the real-world PROX-D RGB-D capture dataset using 3D bounding box annotations. 3D object detection accuracy was evaluated using mean average precision at 3D IoU threshold 0.5 ([email protected]) over 10 sampled scenes for each of 5 motion sequences:

MIME achieves higher 3D object detection accuracy on contacted objects (8.47 vs. 5.36 [email protected]) while additionally synthesizing the non-contact background room layout, which Pose2Room cannot generate.

Knowl 10 — Limitations of MIME
limitation
The MIME framework has four primary stated limitations:
1. Static Scene Assumption: MIME assumes scenes and objects are rigid and static, preventing the generation of dynamic interactions such as moving furniture, grasping small objects, or opening doors.
2. Floor Plan Resolution: Floor plans are encoded at a coarse $64 \times 64$ grid representing a $6.2 \times 6.2\text{ m}^2$ room (approximately $10\text{ cm}$ per pixel), which limits fine boundary alignment.
3. Heuristic Pruning Threshold: The autoregressive pruning of resolved contact humans relies on a fixed 2D IoU threshold ( $> 0.5$ ) rather than a learned contact satisfaction model.
4. Two-Stage Mesh Generation: The pipeline separates bounding box generation from CAD model retrieval and continuous optimization refinement, rather than performing end-to-end mesh synthesis.

Coverage note — No substantial contributed material was omitted from the extracted knowls.
