Keep It SMPL: Automatic Estimation of 3D Human Pose and Shape from a Single Image

Federica BogoAngjoo KanazawaChristoph LassnerPeter GehlerJavier RomeroMichael J. Black

article2016ECCV1,839 citations

Introduces SMPLify, the first automated method to reconstruct full 3D human body pose and shape from a single unconstrained image by fitting the SMPL statistical model directly to detected 2D joints.

Listen

Estimating the three-dimensional pose and shape of the human body from a single, unconstrained two-dimensional photograph is a fundamental challenge in computer vision. Previous approaches have generally reconstructed simplified 3D stick figures or relied heavily on manual user input, known silhouettes, or multi-camera setups. These simplified approaches frequently produce anatomically impossible body configurations and fail to capture true 3D surface geometry, limiting their value for downstream applications such as animation, virtual avatars, and automated scene analysis.

The article introduces and evaluates "SMPLify," the first fully automated method to reconstruct both 3D human pose and full 3D body shape directly from a single 2D image. The researchers set out to demonstrate that standard 2D joint locations contain sufficient information to infer plausible 3D body surface meshes without requiring manual intervention.

The approach operates in two main stages: a bottom-up detection step followed by top-down statistical model fitting. First, a convolutional neural network predicts 2D body joint locations and associated confidence values from the image. Second, the system fits a statistical 3D body model (SMPL) to these detected joints by minimizing an objective function. This objective balances joint alignment errors against learned body shape statistics, unnatural joint bending limits, and an efficient collision penalty based on body capsules to prevent self-intersection. The authors evaluated the framework across synthetic benchmarks and three real-world datasets: HumanEva-I, Human3.6M, and the Leeds Sports Pose dataset.

The findings confirm that SMPLify outperforms existing state-of-the-art methods in 3D joint accuracy while uniquely reconstructing a complete 3D surface mesh. On the HumanEva-I benchmark, SMPLify achieved a mean 3D joint error of 79.9 mm, representing an approximate 27% error reduction compared to the previous leading method (110.0 mm). On the Human3.6M benchmark, SMPLify attained a mean joint error of 82.3 mm compared to 106.7 mm for the next best method, reflecting a roughly 23% performance improvement. Synthetic tests demonstrated that 2D joint positions provide robust signals for 3D body shape estimation, outperforming baseline average-shape predictions even under pixel noise. Furthermore, ablation experiments confirmed that multi-modal pose priors and self-intersection penalties successfully rule out physically impossible poses in complex imagery.

These results establish that incorporating rich 3D statistical body models significantly reduces the geometric ambiguity inherent in single-image 3D reconstruction. SMPLify delivers ready-to-animate, rigged 3D meshes using standard desktop hardware in under one minute per image, lowering operational overhead and avoiding the high costs of manual segmentation or specialized capture environments.

For future development, the authors recommend extending the framework to multi-camera and video inputs, integrating facial pose and automatic gender classification, incorporating silhouette cues, and scaling the system to multi-person scenes where 3D meshes can help resolve occlusions. Limitations include reliance on estimated camera focal length, susceptibility to 2D detection errors when subjects overlap, and depth ambiguity under severe occlusions. Nonetheless, the framework provides highly reliable and robust baseline reconstructions across diverse real-world conditions.

Max Planck Institute for Intelligent Systems Microsoft University of Maryland University of Tübingen 3d modelling convolutional neural networks two dimensional 3D human pose and shape estimation SMPL body model gender-specific SMPL models

arXiv: 1607.08128 githubcrj/simplify

Paper: SMPL, M. Loper et al. (2015). This paper establishes the SMPL parametric body model that serves as the core statistical representation fitted to 2D image detections in Keep it SMPL.
Paper: Human3.6M: Large Scale Datasets and Predictive Methods for 3D Human Sensing in Natural Environments, Catalin Ionescu et al. (2014). This work introduces the Human3.6M dataset and standard benchmark protocols used to evaluate the 3D pose and shape estimation accuracy of Keep it SMPL.
Paper: DeepPose: Human Pose Estimation via Deep Neural Networks, Alexander Toshev et al. (2014). This foundational paper establishes deep-learning-based 2D joint regression, underpinning the bottom-up 2D joint detection stage that Keep it SMPL builds upon.
Paper: A Morphable Model For The Synthesis Of 3D Faces, Volker Blanz et al. (1999). This work pioneers 3D statistical morphable models and analysis-by-synthesis fitting from 2D images, providing the conceptual foundation for SMPLify's optimization pipeline.

Paper: End-to-End Recovery of Human Shape and Pose, Angjoo Kanazawa et al. (2017). This work builds directly on SMPL and SMPLify by proposing an end-to-end deep learning framework (HMR) that eliminates slow iterative optimization to recover 3D body shape and pose in real time.
Paper: Expressive Body Capture: 3D Hands, Face, and Body From a Single Image, Georgios Pavlakos et al. (2019). This paper extends the SMPLify framework and body model into SMPLify-X and SMPL-X to jointly capture 3D body pose, expressive face, and articulated hand meshes from a single image.
Paper: AMASS: Archive of Motion Capture As Surface Shapes, Naureen Mahmood et al. (2019). This work leverages the SMPL body model parameterization to unify multiple optical motion capture datasets into a standardized 3D mesh surface archive.

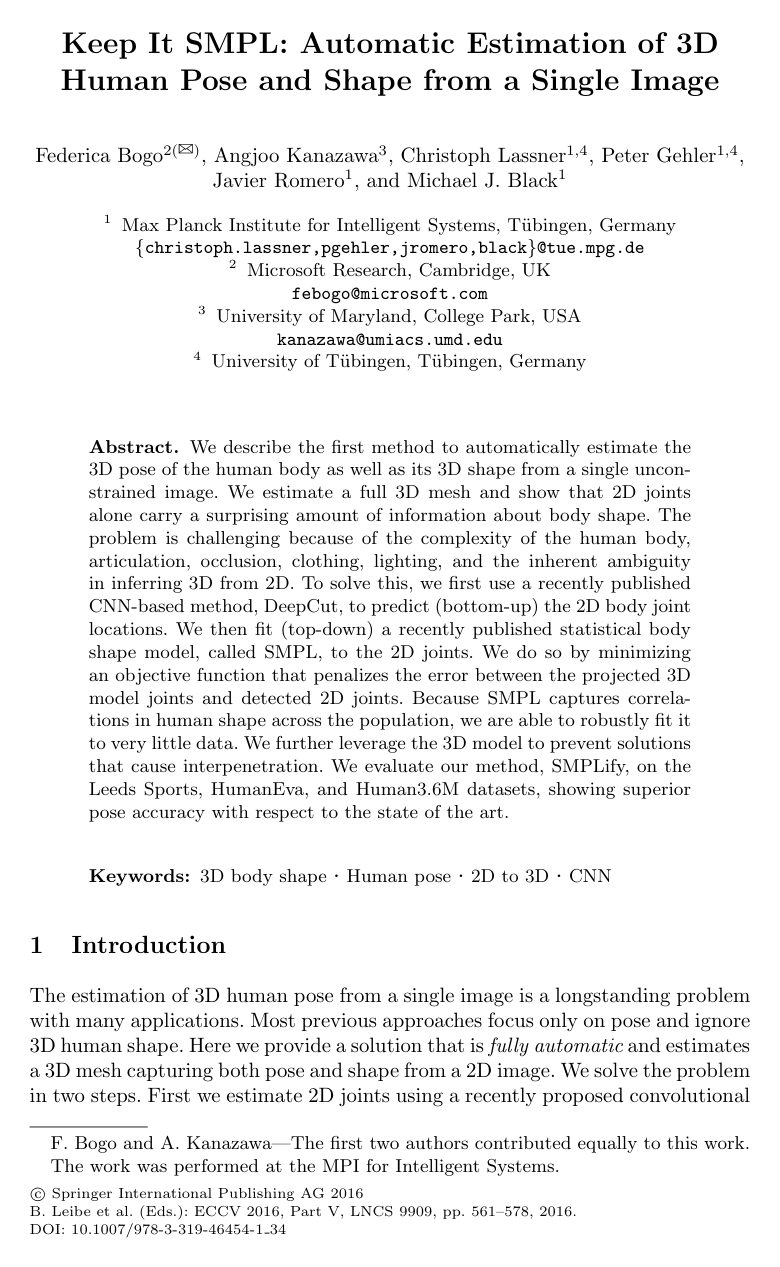

Cover for Keep It SMPL: Automatic Estimation of 3D Human Pose and Shape from a Single Image

Abstract

We describe the first method to automatically estimate the 3D pose of the human body as well as its 3D shape from a single unconstrained image. We estimate a full 3D mesh and show that 2D joints alone carry a surprising amount of information about body shape. The problem is challenging because of the complexity of the human body, articulation, occlusion, clothing, lighting, and the inherent ambiguity in inferring 3D from 2D. To solve this, we first use a recently published CNN-based method, DeepCut, to predict (bottom-up) the 2D body joint locations. We then fit (top-down) a recently published statistical body shape model, called SMPL, to the 2D joints. We do so by minimizing an objective function that penalizes the error between the projected 3D model joints and detected 2D joints. Because SMPL captures correlations in human shape across the population, we are able to robustly fit it to very little data. We further leverage the 3D model to prevent solutions that cause interpenetration. We evaluate our method, SMPLify, on the Leeds Sports, HumanEva, and Human3.6M datasets, showing superior pose accuracy with respect to the state of the art.

Topics

3d modelling convolutional neural networks two dimensional single images estimation method pose variation monocular image

Keywords

3D human pose and shape estimation SMPL body model gender-specific SMPL models Sports Pose Dataset camera translation global rigid transformation shape space

1 Introduction
2 Related Work
3 Method
3.1 Approximating Bodies with Capsules
3.2 Objective Function
3.3 Optimization
4 Evaluation
4.1 Quantitative Evaluation: Synthetic Data
4.2 Quantitative Evaluation: Real Data
4.3 Qualitative Evaluation
5 Conclusions
References

Knowls

Knowl 1 — SMPLify Objective Function for 3D Pose and Shape Fitting
model/method
SMPLify fits a 3D parametric human body model (SMPL) to 2D joints detected in a single image by minimizing a composite objective function over body shape coefficients $\beta \in \mathbb{R}^{10}$ and pose parameters $\theta \in \mathbb{R}^{72}$ (consisting of global orientation and 23 relative joint rotations in axis-angle representation):

$E(\beta, \theta) = E_J(\beta, \theta; K, J_{est}) + \lambda_\theta E_\theta(\theta) + \lambda_a E_a(\theta) + \lambda_{sp} E_{sp}(\theta; \beta) + \lambda_\beta E_\beta(\beta)$

where:
- $E_J(\beta, \theta; K, J_{est})$ is the joint-based data term penalizing 2D reprojection error against CNN-detected 2D joint positions $J_{est,i} \in \mathbb{R}^2$ weighted by detection confidences $w_i \in [0, 1]$ under camera intrinsic parameters $K$ : $E_J(\beta, \theta; K, J_{est}) = \sum_{\text{joint } i} w_i \rho\left(\Pi_K(R_\theta(J(\beta)_i)) - J_{est,i}\right)$ where $\Pi_K$ denotes perspective projection, $J(\beta)_i$ is the unposed 3D position of joint $i$ regressed from body shape $\beta$ , $R_\theta$ applies kinematic transformations, and $\rho(x) = \frac{x^2}{x^2 + \sigma_\rho^2}$ is the robust Geman-McClure penalty function to handle noisy detections and occlusions.
- $E_\theta(\theta)$ is a multi-modal Gaussian mixture pose prior learned from motion capture data.
- $E_a(\theta) = \sum_{i} \exp(\theta_i)$ is an asymmetric limit penalty summing over knee and elbow bending angles $\theta_i$ to heavily penalize unnatural hyperextension.
- $E_{sp}(\theta; \beta)$ is a differentiable interpenetration penalty enforcing body non-self-intersection using proxy capsule geometries.
- $E_\beta(\beta) = \beta^T \Sigma_\beta^{-1} \beta$ is a Mahalanobis shape prior where $\Sigma_\beta^{-1}$ is a diagonal matrix of squared singular values obtained from Principal Component Analysis (PCA) on training body scans.
- $\lambda_\theta, \lambda_a, \lambda_{sp}, \lambda_\beta$ are positive scalar regularization weights.
Knowl 2 — Differentiable Interpenetration Penalty via Linear Capsule Parameter Regression
model/method
To prevent physically impossible self-intersecting body configurations in an efficient and differentiable manner, the body surface is approximated by 20 volumetric capsules (one per body part, excluding fingers and toes):
1. Capsule Parameter Regression: For any shape $\beta \in \mathbb{R}^{10}$ , capsule radii $r(\beta)$ and axis lengths are predicted directly from shape coefficients using a linear ridge regressor trained on unposed body scans. Capsules are transformed into 3D space by kinematic rotations $R_\theta$ .
2. Discretization into 3D Gaussians: Each capsule is discretized into a chain of spheres centered at positions $C(\theta, \beta)$ along its axis with radius $r(\beta)$ . Each sphere is represented as an isotropic 3D Gaussian with standard deviation $\sigma(\beta) = \frac{r(\beta)}{3}$ .
3. Collision Energy: The interpenetration penalty $E_{sp}(\theta; \beta)$ computes the scaled integral of Gaussian overlaps over pairs of incompatible parts $I(i)$ (body parts that do not intersect in natural poses):
$E_{sp}(\theta; \beta) = \sum_i \sum_{j \in I(i)} \exp\left( - \frac{\|C_i(\theta, \beta) - C_j(\theta, \beta)\|^2}{\sigma_i^2(\beta) + \sigma_j^2(\beta)} \right)$

This term is differentiable with respect to both pose $\theta$ and shape $\beta$ . To prevent the optimizer from unnaturally shrinking the body to avoid collision, $E_{sp}$ is included when optimizing pose $\theta$ but excluded when updating shape coefficients $\beta$ .
Knowl 3 — Multi-Modal Pose Prior with Max-Mixture Approximation
model/method
To constrain human pose optimization to plausible articulated configurations, a Gaussian Mixture Model (GMM) with $N = 8$ components is trained on approximately 1 million poses from 100 subjects in the CMU motion capture dataset, parameterized as relative part rotations in axis-angle format:

$p(\theta) = \sum_{j=1}^N g_j \mathcal{N}(\theta; \mu_{\theta,j}, \Sigma_{\theta,j})$

where $g_j$ are mixture weights, $\mu_{\theta,j}$ are mean poses, and $\Sigma_{\theta,j}$ are covariance matrices.

Because computing the gradient of the negative log-likelihood of a sum is computationally cumbersome and numerically difficult in non-linear solvers, the mixture is approximated using a max operator:

$E_\theta(\theta) \equiv -\log \sum_{j=1}^N \left( g_j \mathcal{N}(\theta; \mu_{\theta,j}, \Sigma_{\theta,j}) \right) \approx -\log \left( \max_j \left( c g_j \mathcal{N}(\theta; \mu_{\theta,j}, \Sigma_{\theta,j}) \right) \right) = \min_j \left( -\log \left( c g_j \mathcal{N}(\theta; \mu_{\theta,j}, \Sigma_{\theta,j}) \right) \right)$

where $c > 0$ is a constant scaling factor. At each optimization step, the Jacobian of $E_\theta(\theta)$ is approximated by the Jacobian of the specific Gaussian mode $j^*$ that minimizes the energy for the current pose $\theta$ .
Knowl 4 — SMPLify Fitting Algorithm and Camera Initialization
algorithm
The complete SMPLify pipeline reconstructs 3D pose $\theta$ , shape $\beta$ , and camera translation $\gamma$ from detected 2D joint positions $J_{est}$ and confidence scores $w$ using a perspective camera with known or estimated focal length.
Input: 2D joint detections $J_{est} \in \mathbb{R}^{P \times 2}$ , joint confidences $w \in \mathbb{R}^P$ , camera focal length $f$
Output: Optimized 3D pose $\theta^*$ , 3D shape $\beta^*$ , camera translation $\gamma^*$
// Stage 1: Camera Depth Initialization
Set shape $\beta \leftarrow 0$ (mean SMPL shape)
Estimate depth $\gamma_z$ via ratio of similar triangles between mean SMPL 3D torso length and detected 2D torso joints
Initialize translation $\gamma = [\gamma_x, \gamma_y, \gamma_z]^T$ assuming body plane is parallel to image plane
// Stage 2: Torso Alignment
Optimize $\gamma$ and global body orientation $\theta_{\text{root}}$ by minimizing $E_J$ over torso joints only, keeping $\beta = 0$
// Stage 3: Viewpoint Ambiguity Check
if 2D distance between detected shoulder joints < threshold then
    Set hypothesis 1 with orientation $\theta_{\text{root}}$
    Set hypothesis 2 with orientation $\theta_{\text{root}} + 180^\circ$
    Optimize both hypotheses and select the one yielding lower $E_J$
end if
// Stage 4: Staged Model Optimization
Initialize weights $\lambda_\theta, \lambda_\beta$ to high values
for each optimization stage do
    Update $(\theta, \beta)$ by minimizing $E(\beta, \theta)$ using Powell's dogleg solver
    Exclude $\nabla_\beta E_{sp}$ during shape updates
    Decrease regularization weights $\lambda_\theta$ and $\lambda_\beta$ for subsequent stages
end for
return $\theta^*, \beta^*, \gamma^*$
The optimization is implemented using Chumpy and OpenDR and converges in under 1 minute per image on a standard desktop machine.
Knowl 5 — SMPL Human Model Parameterization and Gender-Neutral Formulation
model/method
SMPLify uses the SMPL body model $M(\beta, \theta, \gamma)$ , which maps shape, pose, and translation parameters to a triangulated 3D mesh containing 6890 vertices.
- Shape Parameters ( $\beta$ ): Linear coefficients $\beta \in \mathbb{R}^{10}$ modulate the first 10 principal shape components learned from thousands of aligned 3D human body scans.
- Pose Parameters ( $\theta$ ): Pose is defined by $\theta \in \mathbb{R}^{72}$ , consisting of relative axis-angle 3D rotations for 23 skeleton joints plus 1 global orientation parameter.
- Joint Function $J(\beta)$ : 3D joint locations are predicted directly from mesh vertices via a sparse linear combination matrix, directly coupling bone lengths and joint centers with shape $\beta$ .
- Gender-Neutral Model: Standard SMPL provides distinct female and male models. To enable fully automatic processing without known gender, a gender-neutral model is trained on approximately 2000 male and 2000 female body shapes with female pose-dependent deformations, maintaining pose accuracy regardless of subject gender.

Knowl 6 — Quantitative Evaluation of 3D Pose on HumanEva-I and Human3.6M

data/table

3D pose estimation performance evaluated on single frames from HumanEva-I (validation set: Walking and Boxing sequences for subjects S1, S2, S3) and Human3.6M (subjects S9 and S11 across 15 action categories, trial 1, camera 3). 2D joint inputs are predicted by the DeepCut CNN. Predicted 3D joints are aligned to ground truth via Procrustes analysis over 14 common joints, reporting mean 3D Euclidean joint error in millimeters (mm).

HumanEva-I 3D joint error (mm) across subjects S1, S2, S3 for Walking and Boxing sequences.

HumanEva-I 3D joint error (mm) across subjects S1, S2, S3 for Walking and Boxing sequences.
Method	Walking			Boxing			Mean	Median
	S1	S2	S3	S1	S2	S3
Akhter and Black	186.1	197.8	209.4	165.5	196.5	208.4	194.4	171.2
Ramakrishna et al.	161.8	182.0	188.6	151.0	170.4	158.3	168.4	145.9
Zhou et al.	100.0	98.89	123.1	112.5	118.6	110.0	110.0	98.9
SMPLify	73.3	59.0	99.4	82.1	79.2	87.2	79.9	61.9

Human3.6M 3D joint error (mm) across 15 actions for subjects S9 and S11.

Human3.6M 3D joint error (mm) across 15 actions for subjects S9 and S11.
Method	Directions	Discussion	Eating	Greeting	Phoning	Photo	Posing	Purchases
Akhter and Black	199.2	177.6	161.8	197.8	176.2	186.5	195.4	167.3
Ramakrishna et al.	137.4	149.3	141.6	154.3	157.7	158.9	141.8	158.1
Zhou et al.	99.7	95.8	87.9	116.8	108.3	107.3	93.5	95.3
SMPLify	62.0	60.2	67.8	76.5	92.1	77.0	73.0	75.3
Method	Sit	SitDown	Smoking	Waiting	WalkDog	Walk	WalkTogether	Mean (Median)
Akhter and Black	160.7	173.7	177.8	181.9	176.2	198.6	192.7	181.1 (158.1)
Ramakrishna et al.	168.6	175.6	160.4	161.7	150.0	174.8	150.2	157.3 (136.8)
Zhou et al.	109.1	137.5	106.0	102.2	106.5	110.4	115.2	106.7 (90.0)
SMPLify	100.3	137.3	83.4	77.3	79.7	86.8	81.7	82.3 (69.3)

SMPLify consistently outperforms state-of-the-art 2D-to-3D skeleton lifting methods on both datasets, demonstrating the constraining power of a statistical 3D body shape and pose model.

Knowl 7 — Ablation of Pose Priors and Interpenetration on HumanEva-I

data/table

An ablation study on HumanEva-I evaluates the quantitative impact of the mixture-of-Gaussians pose prior $E_\theta$ versus a uni-modal Gaussian pose prior $E_{\theta'}$ , and the effect of the interpenetration penalty $E_{sp}$ . Errors represent 3D Euclidean joint error in millimeters (mm) following Procrustes alignment.

HumanEva-I ablation study comparing energy configurations (errors in mm).

HumanEva-I ablation study comparing energy configurations (errors in mm).
Objective Configuration	Walking			Boxing			Mean	Median
	S1	S2	S3	S1	S2	S3
$E_\beta + E_J + E_{\theta'}$ (Uni-modal Gaussian)	98.4	79.6	117.8	105.9	98.5	122.5	104.1	82.3
$E_\beta + E_J + E_{\theta'} + E_{sp}$	97.9	79.4	116.0	105.8	98.5	122.3	103.7	82.3
SMPLify ( $E_\beta + E_J + E_\theta + E_a + E_{sp}$ )	73.3	59.0	99.4	82.1	79.2	87.2	79.9	61.9

Replacing the 8-component Gaussian mixture pose prior $E_\theta$ with a single Gaussian prior $E_{\theta'}$ causes a substantial increase in mean joint error (from 79.9 mm to 104.1 mm). The interpenetration penalty $E_{sp}$ shows negligible numerical impact on simple laboratory poses (104.1 mm vs 103.7 mm), but prevents unnatural self-intersection artifacts in complex articulated poses.

Knowl 8 — Recoverability of 3D Human Shape from 2D Joint Positions
empirical result
Quantitative experiments on 2000 synthetic images (1000 male, 1000 female at $640 \times 480$ resolution) demonstrate that 2D joint coordinates provide sufficient geometric signal to estimate 3D body shape:
1. Robustness to 2D Joint Noise: When zero-mean Gaussian noise with standard deviation from 1 to 5 pixels is added to 2D joint coordinates, fitting SMPL shape coefficients $\beta$ achieves lower mean vertex-to-vertex Euclidean error (in a canonical pose) than predicting the average dataset shape across all noise levels.
2. Dependence on Joint Count: When body pose is known, 3D shape reconstruction error decreases monotonically as more 2D joints are incorporated into the optimization: fitting to all 23 SMPL joints yields significantly higher shape accuracy than fitting to 12 joints (torso and limbs), which in turn surpasses fitting to only 4 torso joints.
Knowl 9 — Failure Modes of SMPLify on Unconstrained Images
limitation
When applied to unconstrained real-world images such as those in the Leeds Sports Pose (LSP) dataset, SMPLify is subject to three primary failure modes:
- 2D Joint Estimation Errors: False positives or mislocalizations by the bottom-up CNN detector (e.g., swapped limb labels, or assigning joints from another person in crowded scenes) propagate directly into erroneous 3D mesh configurations.
- Monocular Depth and Viewing Ambiguities: Extreme foreshortening and projective 2D-to-3D ambiguities can cause the non-convex optimization to converge to incorrect local minima (e.g., flipped limb orientations along the optical axis).
- Under-Constrained Shape Inference: Because 2D skeleton joints provide only sparse geometric constraints without silhouette boundaries, subtle surface variations (such as weight differences among individuals with identical bone lengths) cannot be precisely recovered.

Coverage note — None. All major contributions—including the full SMPLify optimization framework, capsule-based differentiable interpenetration penalty, max-mixture pose prior, staged optimization algorithm, gender-neutral SMPL model, synthetic shape recovery experiments, quantitative benchmarks on HumanEva-I and Human3.6M, ablation analyses, and qualitative failure modes—are covered.
