GMFlow: Learning Optical Flow via Global Matching

Haofei XuJing ZhangJianfei CaiHamid RezatofighiDacheng Tao

article2022CVPR573 citations

Proposes a global matching framework that reformulates optical flow estimation via Transformer-based feature matching and attention propagation, outperforming RAFT on the Sintel benchmark while running faster with only a single refinement step.

Listen

Optical flow estimation—the task of tracking pixel-level motion across consecutive video frames—is a foundational technology for computer vision applications such as autonomous driving and video processing. Prevailing deep learning architectures typically estimate flow by applying convolutional neural networks over localized search regions. However, this local formulation struggles with large pixel displacements and requires iterative, multi-step refinement loops (such as the 31 iterations used by the state-of-the-art RAFT model) to approximate global movement. These sequential iterations significantly increase runtime and computing overhead, limiting real-time operational deployment.

The article demonstrates that optical flow can be reformulated as a direct global feature-matching problem rather than a local regression task. The primary objective is to evaluate whether an attention-based matching architecture, termed GMFlow, can achieve superior accuracy and computational efficiency over iterative convolutional methods while using minimal refinement steps.

The authors developed the GMFlow architecture comprising three core modules: an attention-based feature enhancer (Transformer) incorporating cross-attention and local window mechanisms, a differentiable global matching layer that computes all pairwise correlations via matrix multiplication, and a self-attention propagation layer that fills in occluded or out-of-boundary regions using visual structure cues. A single residual refinement step at higher resolution reuses these shared components. The system was trained on standard synthetic datasets (FlyingChairs and FlyingThings3D) and benchmarked against leading methods across synthetic and real-world datasets, including Sintel and KITTI.

Key findings show that GMFlow fundamentally outperforms traditional multi-step pipelines. First, on the challenging Sintel clean benchmark, GMFlow with only one refinement step achieved an average endpoint error of 1.08 pixels, outperforming RAFT with 31 refinements (1.41 pixels) while executing significantly faster (66 ms versus 91 ms on modern hardware). Second, the global formulation resolves large-displacement motion far more effectively, reducing error on large movements (over 40 pixels) from 40.48 to 8.97 pixels prior to refinement. Third, the self-attention propagation mechanism substantially reduced error in unmatched and occluded regions from 15.54 to 10.39 pixels on Sintel clean. Finally, the framework enables bidirectional motion estimation at inference time by transposing the correlation matrix, eliminating redundant computational passes.

These findings suggest that global matching offers a practical path toward high-accuracy, low-latency motion tracking. By eliminating heavy iterative loops, the framework is well-suited to modern hardware acceleration and scalable deployment in latency-sensitive environments, potentially reducing operational compute costs. However, evaluations on the real-world KITTI dataset revealed lower performance than convolutional baselines, indicating that attention mechanisms require larger, more diverse datasets to overcome the domain gap between synthetic training data and real-world environments.

Organizations evaluating this approach for practical deployment should prioritize its use in latency-critical and high-motion video systems while taking targeted next steps. Engineering teams should fine-tune the architecture using diverse datasets (such as Virtual KITTI, AutoFlow, or TartanAir) to address cross-domain gaps and improve occlusion handling before integrating it into safety-critical domains like autonomous vehicle navigation.

JD.com Monash University University of Sydney matching algorithm matching methods optical flows optical flow global matching GMFlow framework

arXiv: 2111.13680

Paper: RAFT: Recurrent All-Pairs Field Transforms for Optical Flow, Zachary Teed et al. (2020). RAFT serves as the primary iterative optical flow baseline that GMFlow explicitly targets and reformulates into a non-iterative global matching architecture.
Paper: LoFTR: Detector-Free Local Feature Matching with Transformers, Jiaming Sun et al. (2021). LoFTR introduces detector-free dense matching using Transformer cross-attention and self-attention, establishing the foundational attention-driven matching principles adopted by GMFlow.
Paper: PWC-Net: CNNs for Optical Flow Using Pyramid, Warping, and Cost Volume, Deqing Sun et al. (2018). PWC-Net established the dominant pyramid, warping, and cost volume paradigm for deep optical flow that GMFlow re-evaluates and streamlines.
Paper: FlowNet: Learning Optical Flow with Convolutional Networks, Philipp Fischer et al. (2015). FlowNet pioneered supervised end-to-end learning of optical flow using explicit correlation layers and synthetic training datasets.
Paper: FlowNet 2.0: Evolution of Optical Flow Estimation with Deep Networks, Eddy Ilg et al. (2016). FlowNet 2.0 introduced the stacked network warping and refinement pipeline that motivated subsequent efficient optical flow architectures.
Paper: SuperGlue: Learning Feature Matching With Graph Neural Networks, Paul-Edouard Sarlin et al. (2020). SuperGlue demonstrated how attentional graph neural networks and differentiable matching layers can solve dense visual correspondence problems.
Paper: A Large Dataset to Train Convolutional Networks for Disparity, Optical Flow, and Scene Flow Estimation, Nikolaus Mayer et al. (2016). This paper introduced the synthetic FlyingThings3D dataset that serves as a standard pretraining benchmark for GMFlow.
Paper: A Naturalistic Open Source Movie for Optical Flow Evaluation, Daniel J. Butler et al. (2012). This work introduced the MPI-Sintel benchmark, which provides the primary clean and final pass evaluation tracks used to measure GMFlow's accuracy.
Paper: Optical Flow Estimation Using a Spatial Pyramid Network, Anurag Ranjan et al. (2016). SPyNet demonstrates the classic spatial pyramid approach to residual motion estimation that informs coarse-to-fine refinement strategies in optical flow.
Paper: Non-local Neural Networks, Xiaolong Wang et al. (2018). Non-local Neural Networks introduced the self-attention formulation for capturing long-range spatiotemporal dependencies in visual data.

Paper: Flow-Guided Sparse Transformer for Video Deblurring, Jing Lin et al. (2022). Applies flow-guided sparse Transformer mechanisms directly to downstream video restoration and deblurring without explicit image warping.
Paper: SCTN: Sparse Convolution-Transformer Network for Scene Flow Estimation, Bing Li et al. (2022). Extends Transformer-based motion estimation and feature correlation concepts from 2D optical flow to 3D point cloud scene flow.

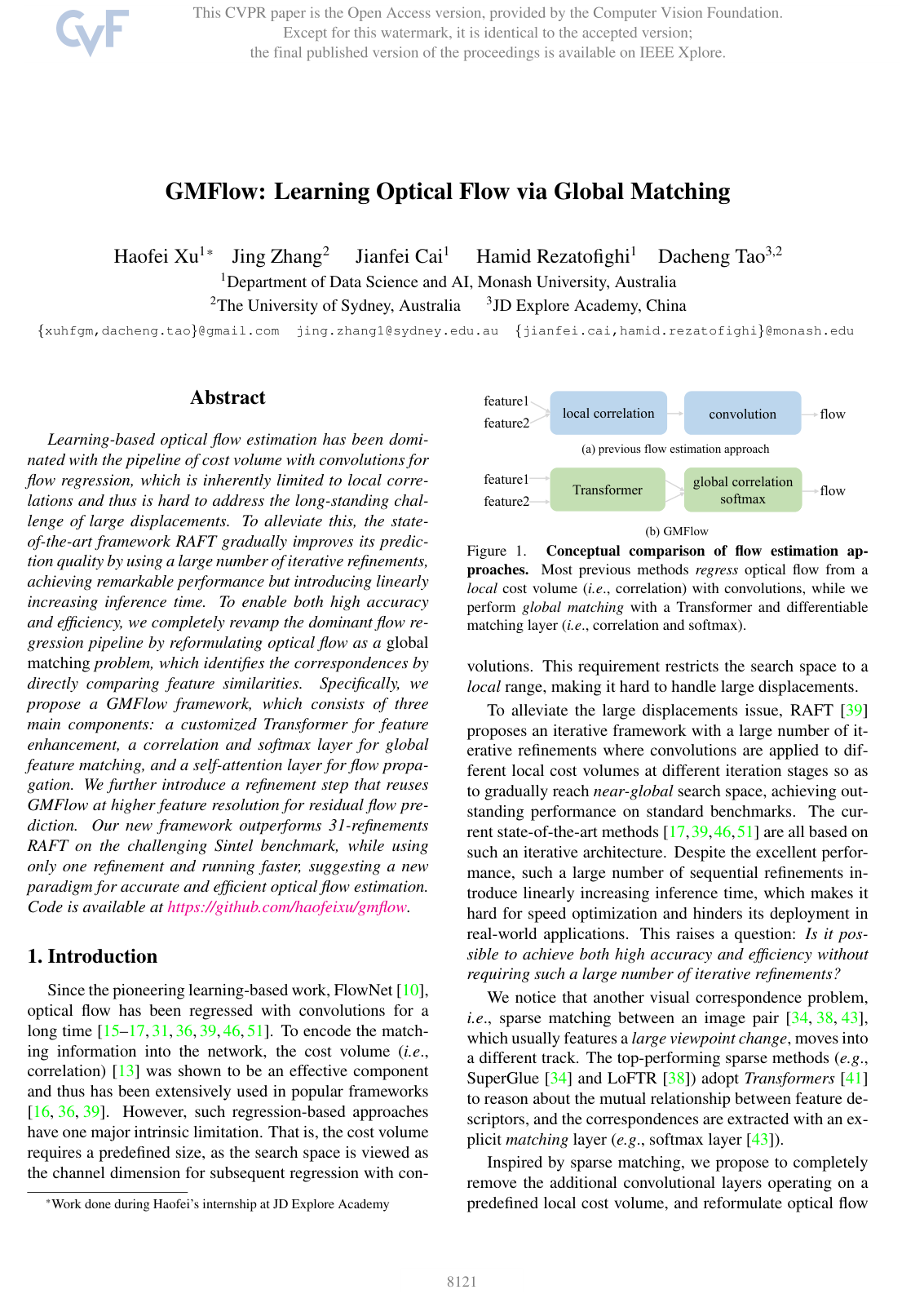

Cover for GMFlow: Learning Optical Flow via Global Matching

Abstract

Learning-based optical flow estimation has been dominated with the pipeline of cost volume with convolutions for flow regression, which is inherently limited to local correlations and thus is hard to address the long-standing challenge of large displacements. To alleviate this, the state-of-the-art framework RAFT gradually improves its prediction quality by using a large number of iterative refinements, achieving remarkable performance but introducing linearly increasing inference time. To enable both high accuracy and efficiency, we completely revamp the dominant flow regression pipeline by reformulating optical flow as a global matching problem, which identifies the correspondences by directly comparing feature similarities. Specifically, we propose a GMFlow framework, which consists of three main components: a customized Transformer for feature enhancement, a correlation and softmax layer for global feature matching, and a self-attention layer for flow propagation. We further introduce a refinement step that reuses GMFlow at higher feature resolution for residual flow prediction. Our new framework outperforms 31-refinements RAFT on the challenging Sintel benchmark, while using only one refinement and running faster, suggesting a new paradigm for accurate and efficient optical flow estimation. Code is available at https://github.com/haofeixu/gmflow.

Topics

matching algorithm matching methods optical flows

Keywords

optical flow global matching GMFlow framework visual correspondence softmax-based flow estimation dense correspondence stereo matching global correlation softmax Vision Transformer

1. Introduction
2. Related Work
3. Methodology
3.1. Formulation
3.2. Feature Enhancement
3.3. Flow Propagation
3.4. Refinement
3.5. Training Loss
4. Experiments
4.1. Methodology Comparison
4.2. Ablations
4.3. Comparison with RAFT
4.4. Comparison on Benchmarks
4.5. Limitation and Discussion
5. Conclusion
References

Knowls

Knowl 1 — Global matching formulation for dense optical flow
equation
GMFlow reformulates optical flow between consecutive frames $I_1$ and $I_2$ as dense global feature matching. A weight-sharing convolutional backbone produces feature maps that are flattened into $mathbf F_1,mathbf F_2 ewcommand{f}{mathbf}mathbf F_2\in\mathbb{R}^{HW\times D}$ , where $H\times W$ is the feature-map resolution and $D$ is the feature dimension. Let $mathbf G\in\mathbb{R}^{HW\times 2}$ contain the 2D feature-grid coordinates, measured in feature-pixel units. Every location in the first frame is compared with every location in the second frame:
$\mathbf C=\frac{\mathbf F_1\mathbf F_2^\top}{\sqrt{D}}\in\mathbb{R}^{HW\times HW},\qquad \mathbf M=\operatorname{softmax}_{q}(\mathbf C),\qquad \widehat{\mathbf G}=\mathbf M\mathbf G,\qquad \mathbf V=\widehat{\mathbf G}-\mathbf G.$
Here $\mathbf C_{pq}$ is the similarity between source location $p$ in $I_1$ and candidate location $q$ in $I_2$ , and the softmax is applied over all candidate locations $q$ for each source location $p$ . The resulting $\mathbf M$ is a differentiable matching distribution, $mathbf V\in\mathbb{R}^{HW\times 2}$ is the predicted flow, and the weighted coordinate average gives sub-pixel correspondence estimates. Because the same global correlation contains similarities in both directions, backward flow can be obtained by transposing the correlation matrix at inference without a second network forward pass; the two directions can then be used for forward-backward consistency occlusion detection.
Knowl 2 — Transformer feature enhancement with shifted local attention
model/method
The independently extracted feature maps are enhanced by a symmetric Transformer so that their descriptors encode both within-image context and cross-image dependencies. Fixed 2D sine-cosine positional encodings $mathbf P$ are added because the feature sets otherwise lack explicit spatial coordinates. With the first argument interpreted as queries and the second as keys and values, the enhanced features are
$\widehat{\mathbf F}_1=\mathcal T(\mathbf F_1+\mathbf P,\mathbf F_2+\mathbf P),\qquad \widehat{\mathbf F}_2=\mathcal T(\mathbf F_2+\mathbf P,\mathbf F_1+\mathbf P).$
The Transformer uses six stacked blocks, each containing self-attention, cross-attention, and a feed-forward network, applied symmetrically to both frames. To avoid full-image quadratic attention, the $H\times W$ feature map is divided into a fixed number $K\times K$ of adaptive windows rather than fixed-size windows. The implementation uses $K=2$ , so each window has size $(H/2)\times(W/2)$ ; the partition is shifted by half a window between consecutive partitions to connect neighboring windows. On the Things validation set, the complete six-block model obtains EPE $6.67$ , whereas removing cross-attention, positional encoding, the feed-forward network, or self-attention gives EPE $10.84$ , $8.38$ , $8.71$ , and $7.04$ , respectively. Cross-attention therefore provides the largest measured contribution, while positional encoding and self-attention also improve matching.
Knowl 3 — Self-attention flow propagation for unmatched pixels
equation
Softmax matching assumes that a corresponding visible location exists in the second frame, which fails for occluded or out-of-boundary pixels. GMFlow first computes an initial flow from the enhanced features and then propagates flow through feature self-similarity:
$\widehat{\mathbf V}=\operatorname{softmax}_{q}\left(\frac{\widehat{\mathbf F}_1\widehat{\mathbf F}_2^{\top}}{\sqrt D}\right)\mathbf G-\mathbf G,$ $\widetilde{\mathbf V}=\operatorname{softmax}_{q}\left(\frac{\widehat{\mathbf F}_1\widehat{\mathbf F}_1^{\top}}{\sqrt D}\right)\widehat{\mathbf V}.$
Here $mathbf G\in\mathbb{R}^{HW\times2}$ is the feature-coordinate grid, $mathbf F_1,mathbf F_2\in\mathbb{R}^{HW\times D}$ are the enhanced feature matrices, $mathbf V$ is the initial flow at every source location, and $mathbf V$ is the propagated flow. The second softmax averages initial flow vectors from feature-similar locations within the first frame, allowing reliable matched pixels to provide estimates for difficult unmatched pixels. On Sintel, propagation reduces unmatched-pixel EPE from $15.54$ to $10.39$ on the clean pass and from $19.50$ to $15.52$ on the final pass; overall EPE changes from $2.28$ to $1.89$ and from $3.44$ to $3.13$ , respectively.
Knowl 4 — Higher-resolution residual refinement
model/method
GMFlow first predicts flow using features at $1/8$ of the input image resolution and optionally performs one refinement at $1/4$ resolution. The coarse flow is upsampled to $1/4$ resolution, the second-frame feature is warped using this estimate, and the refinement network predicts only the residual flow. The same GMFlow operations are reused locally: the Transformer partitions the $1/4$ -resolution feature map into $8\times8$ windows, each corresponding to $1/32$ of the original image resolution; matching searches a $9\times9$ local window around the warped correspondence; and flow propagation uses a $3\times3$ local self-attention window. The Transformer and flow-propagation weights are shared between the global $1/8$ stage and the local $1/4$ refinement stage. Backbone weights are also shared when producing the two resolutions, reducing parameters and improving generalization.
Knowl 5 — Exponentially weighted supervision of flow predictions
equation
All intermediate and final flow predictions are supervised with an $ell_1$ loss. If $mathbf V_i$ is the $i$ th predicted flow, $mathbf V_{\mathrm{gt}}$ is the ground-truth flow, and $N$ is the total number of predictions, the training objective is
$L=\sum_{i=1}^{N}\gamma^{N-i}\left\|\mathbf V_i-\mathbf V_{\mathrm{gt}}\right\|_1, \qquad \gamma=0.9.$
The norm sums absolute flow-component errors over the spatial domain. Because $gamma^{N-i}$ gives larger weights to later predictions, the final refinements receive stronger supervision while earlier predictions remain directly trained.
Knowl 6 — Training and evaluation protocol
experimental setup
GMFlow uses a convolutional backbone matching RAFT's backbone design but produces 128-dimensional features instead of RAFT's 256-dimensional features. It uses six Transformer blocks and RAFT's convex upsampling to recover full-resolution flow. Training uses AdamW: 100,000 iterations on FlyingChairs with batch size 16 and learning rate $4\times10^{-4}$ , followed by FlyingThings3D fine-tuning with batch size 8 and learning rate $2\times10^{-4}$ . Ablations use 200,000 Things iterations, while the final Things model uses 800,000 iterations. The principal metrics are end-point error, the mean Euclidean flow error; motion-specific EPE is reported for ground-truth magnitudes of $0$ – $10$ , $10$ – $40$ , and more than $40$ pixels, denoted $s_{0-10}$ , $s_{10-40}$ , and $s_{40+}$ . KITTI additionally uses F1-all, the percentage of outlier pixels.
Knowl 7 — Global matching improves large-displacement estimation
empirical result
On models trained on FlyingChairs and FlyingThings3D, the proposed Transformer-plus-global-softmax formulation is substantially stronger than a cost-volume-plus-convolution baseline with a similar comparison protocol. With six Transformer blocks, GMFlow obtains Things validation EPE $6.67$ and $s_{40+}=17.37$ , Sintel training-clean EPE $2.28$ and $s_{40+}=13.89$ , and Sintel training-final EPE $3.44$ and $s_{40+}=21.02$ , using 4.2 million parameters. An 18-block cost-volume model obtains EPE $8.67$ , $2.61$ , and $3.94$ on those three evaluations, with corresponding $s_{40+}$ values $23.43$ , $15.91$ , and $24.58$ , while using 15.7 million parameters. Replacing global matching with a $9\times9$ local search increases Things validation EPE from $6.67$ to $19.88$ and $s_{40+}$ from $17.37$ to $61.06$ , despite nearly identical inference time: $52.6$ ms for global matching versus $52.9$ ms for local matching. The comparison indicates that the large-motion improvement comes from the global search rather than merely from using a stronger feature processor.
Knowl 8 — Accuracy and efficiency relative to iterative RAFT
empirical result
When trained on FlyingChairs and FlyingThings3D and evaluated at Sintel resolution $436\times1024$ , GMFlow reaches stronger accuracy with fewer sequential refinements than RAFT. With no refinement, GMFlow obtains Things validation EPE $3.48$ , Sintel-clean EPE $1.50$ , Sintel-final EPE $2.96$ , and corresponding $s_{40+}$ values $8.97$ , $8.26$ , and $17.70$ ; its inference time is $57$ ms on a V100 and $26$ ms on an A100. With one refinement, these values become EPE $2.80$ , $1.08$ , and $2.48$ , $s_{40+}$ values $7.31$ , $6.26$ , and $15.67$ , and inference time $151$ ms on a V100 and $66$ ms on an A100. RAFT with 31 refinements obtains EPE $4.25$ , $1.41$ , and $2.69$ , $s_{40+}$ values $11.63$ , $8.83$ , and $17.45$ , and inference time $170$ ms on a V100 and $91$ ms on an A100. Thus one GMFlow refinement outperforms the 31-refinement RAFT model on these evaluations while using 4.7 million rather than 5.3 million parameters and requiring less sequential computation.
Knowl 9 — Performance on the Sintel test benchmark
empirical result
After fine-tuning on mixed training data, GMFlow obtains Sintel test EPE $1.74$ on the clean pass and $2.90$ on the final pass. For clean Sintel, its EPE on matched pixels is $0.65$ and on unmatched pixels is $10.56$ ; for final Sintel, the corresponding values are $1.32$ and $15.80$ . Among methods restricted to the two input frames at inference, GMFlow is better than FlowNet2, PWC-Net+, HD3, VCN, DICL, and RAFT, whose all-pixel clean/final EPE values are respectively $4.16/5.74$ , $3.45/4.60$ , $4.79/4.67$ , $2.81/4.40$ , $2.63/3.60$ , and $1.94/3.18$ . RAFT with an additional previous-frame initialization obtains $1.61/2.86$ , and GMA with that initialization obtains $1.39/2.47$ ; these methods use multi-frame information unavailable to the two-frame GMFlow evaluation.
Knowl 10 — Occlusion and domain-gap limitations on KITTI
limitation
GMFlow remains weaker than RAFT on real-world KITTI data, particularly in occluded regions. After fine-tuning on KITTI 2015, F1-all/F1 on non-occluded pixels is $9.32/3.80$ for GMFlow versus $5.10/3.07$ for RAFT; the larger gap on all pixels indicates that occlusion handling is a principal weakness. The same limitation appears under synthetic-to-real generalization: after training only on FlyingChairs and FlyingThings3D, GMFlow obtains KITTI EPE $7.77$ and F1-all $23.40$ , compared with RAFT's $5.32$ and $17.46$ . Adding Virtual KITTI 2 reduces the gap, giving GMFlow $2.85$ EPE and $10.77$ F1-all versus RAFT's $2.45$ and $7.90$ . The authors therefore identify unreliable occluded-region predictions and poor generalization across large training-test domain gaps as remaining limitations.

Coverage note — Secondary numerical ablations on training length, window-count speed trade-offs, multi-scale weight sharing, and qualitative visualizations were omitted because they validate the included design choices without adding independent load-bearing contributions.
