PWC-Net: CNNs for Optical Flow Using Pyramid, Warping, and Cost Volume
Deqing SunXiaodong YangMing-Yu LiuJan Kautz
Presents PWC-Net, a compact neural network that integrates feature pyramids, warping, and cost volumes to achieve state-of-the-art optical flow accuracy at real-time speeds while using seventeen times fewer parameters than FlowNet2.

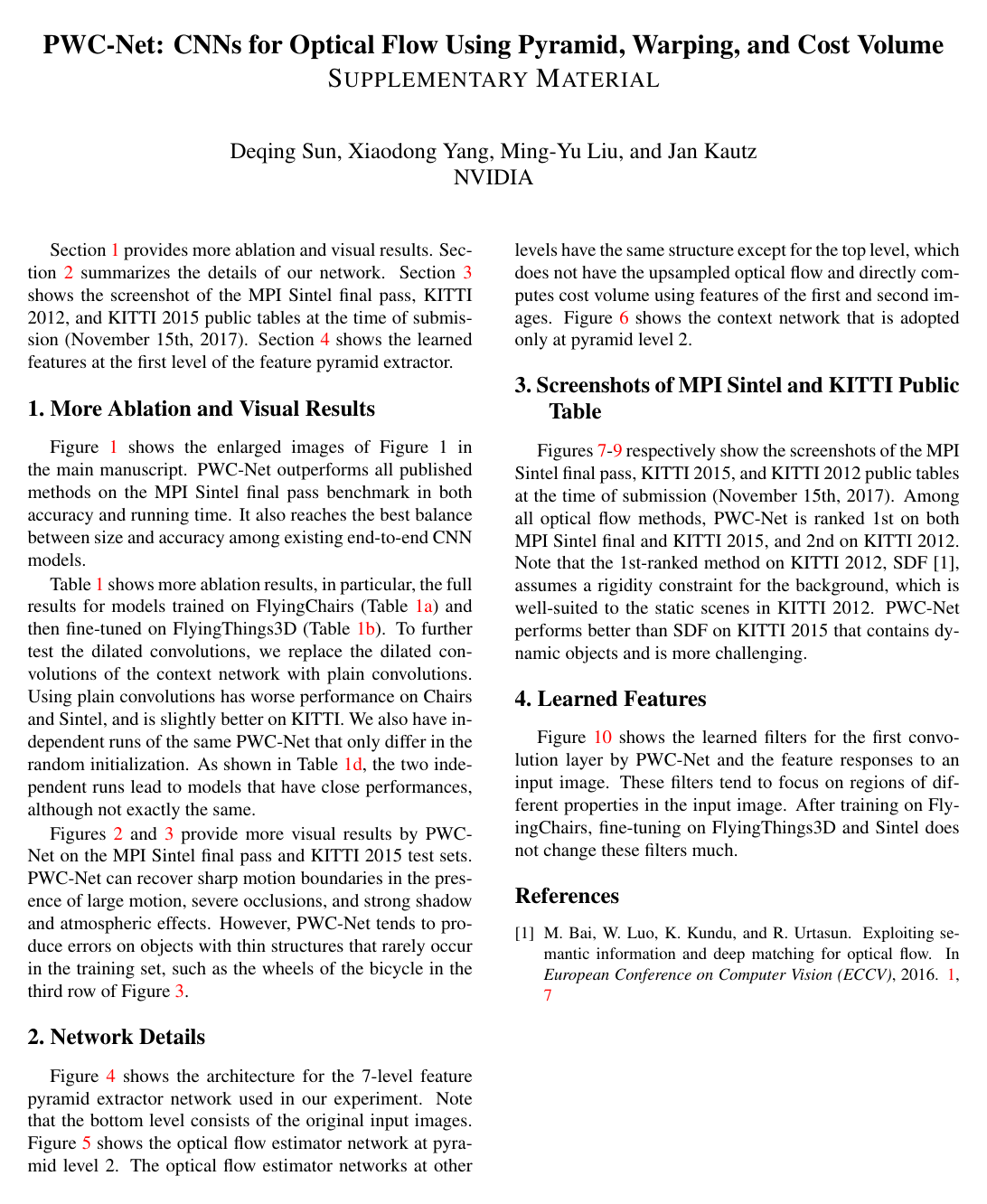

PWC-Net is a compact convolutional neural network for estimating optical flow between image pairs, addressing the longstanding challenge of achieving high accuracy without excessive model size or slow inference speeds in real-world video analysis tasks such as autonomous driving and motion tracking. The supplementary material supplies additional ablation experiments, visual results, architecture diagrams, and benchmark screenshots to substantiate the main paper’s claims about the pyramid-warping-cost-volume design.
The work set out to verify the contribution of individual network components, document performance on standard benchmarks at the time of submission, and illustrate both successes and failure modes on challenging test images. Researchers conducted controlled ablation runs on the FlyingChairs and FlyingThings3D training sets, followed by evaluation on the MPI Sintel final pass and both KITTI 2012 and 2015 test sets, while also capturing qualitative outputs and learned filter responses.
The results show that PWC-Net achieved the lowest average endpoint error among published optical-flow methods on the Sintel final pass and the lowest outlier rate on KITTI 2015, while ranking second on KITTI 2012 behind a method that imposes a strong background rigidity assumption. Removing the context network or DenseNet-style connections increased endpoint error by roughly 5–15 percent on Sintel and KITTI, confirming their value. The model also ran faster and occupied less memory than competing end-to-end networks of similar accuracy. Visual inspection revealed sharp motion boundaries even under large displacements, heavy occlusions, and strong lighting changes, yet systematic errors appeared on thin structures such as bicycle wheels that are underrepresented in the training data. Independent training runs produced nearly identical performance, indicating training stability.
These outcomes indicate that the proposed architecture delivers a practical trade-off between accuracy, speed, and model size, making dense motion estimation more feasible for embedded or real-time applications. The ranking advantage on KITTI 2015, which contains many moving objects, suggests the method generalizes better to dynamic scenes than rigidity-constrained alternatives.
No explicit next steps are stated, but the observed errors on rare thin structures point to the need for targeted data augmentation or architectural extensions that handle fine detail. The main limitations are reliance on the particular training distributions used and the absence of additional modalities such as stereo that some competing scene-flow entries exploit. Overall the evidence supports high confidence in the reported benchmark gains and component contributions, provided users remain aware of the thin-structure failure mode.
- Paper: FlowNet: Learning Optical Flow with Convolutional Networks, Philipp Fischer et al. (2015). Reading FlowNet first is essential because it establishes the foundational deep learning formulation for end-to-end optical flow regression that PWC-Net directly refines.
- Paper: FlowNet 2.0: Evolution of Optical Flow Estimation with Deep Networks, Eddy Ilg et al. (2016). Understanding FlowNet 2.0 provides crucial context on the multi-stage network stacking and dataset curriculum that PWC-Net was explicitly designed to improve upon and compress.
- Paper: A Large Dataset to Train Convolutional Networks for Disparity, Optical Flow, and Scene Flow Estimation, Nikolaus Mayer et al. (2016). Familiarity with this large-scale synthetic dataset paper is necessary to understand the training data pipeline and correlation layer concepts inherited by PWC-Net.
- Paper: RAFT: Recurrent All-Pairs Field Transforms for Optical Flow, Zachary Teed et al. (2020). RAFT directly extends PWC-Net's cost-volume paradigm by replacing coarse-to-fine pyramidal processing with an iterative recurrent field transform across all pairs.
