SIFT Flow: Dense Correspondence across Scenes and Its Applications

article2011TPAMI1,785 citations

Introduces SIFT flow, a technique that matches dense local feature descriptors across different complex scenes to establish semantically meaningful pixel-level correspondences, enabling tasks such as motion prediction from a single still image and cross-scene information transfer.

Listen

Aligning visual data across distinct scenes remains a major challenge in computer vision because images depicting different physical environments often vary significantly in object appearance, scale, viewpoint, and spatial arrangement. Traditional alignment techniques excel at matching identical scenes across frames or specific object instances, but they fail when required to establish semantically meaningful, pixel-level correspondences across entirely different scenes.

The article introduces and evaluates SIFT flow, an algorithm designed to achieve dense, pixel-to-pixel correspondence across diverse scenes by matching local structural descriptors within a large-scale database framework.

To accomplish this, the authors adapt optical flow concepts by calculating Scale-Invariant Feature Transform (SIFT) descriptors at every pixel rather than relying on raw brightness values. The algorithm matches these dense descriptors across nearest-neighbor images retrieved from a database of over 100,000 video frames, utilizing a decoupled dual-layer belief propagation method with a coarse-to-fine optimization scheme to enforce spatial smoothness and manage large spatial displacements.

The evaluation yielded several key findings. First, the coarse-to-fine matching approach dramatically improves computational efficiency, reducing the processing time for a standard image pair from approximately 127 minutes to 31 seconds while achieving equal or lower energy solutions. Second, a user validation study revealed that dense SIFT flow matches human perceptual alignment significantly better than direct feature matching without spatial regularization. Third, when applied to predicting motion from a single static image, the framework ranked the correct plausible motion first in over 50% of general scenes and in 66% of specialized street scenes. Finally, the method successfully transferred moving objects across scenes and outperformed standard sparse-feature techniques in challenging same-scene satellite image registration, reducing alignment error from 0.030 to 0.021 while remaining competitive in face recognition benchmarks with limited training data.

These findings demonstrate that dense scene alignment enables effective nonparametric data transfer—including motion, labels, and geometry—from repository images to novel query images without requiring explicit object recognition models. This capability significantly reduces the need for extensive task-specific training data in applications ranging from image synthesis and animation to satellite surveillance and biometric identification.

Organizations seeking to implement dense scene alignment should adopt the coarse-to-fine optimization pipeline to balance quality and computational load. For production environments requiring faster throughput, developing hardware-accelerated implementations on graphical processing units represents the primary path forward to reduce runtime further.

The primary limitation of this approach is its fundamental dependence on database density; if a query image has no semantically similar counterpart in the reference repository, the alignment will produce incorrect correspondences. While confidence is high in the algorithm's effectiveness for densely sampled domains, users should exercise caution when applying the method to rare or highly atypical imagery without expanding the underlying image library.

Massachusetts Institute of Technology Microsoft scale invariant feature transforms sift SIFT flow dense scene correspondence pixel-wise SIFT features

caomw/sift-flow Liu et al (2011).pdf

Paper: Distinctive Image Features from Scale-Invariant Keypoints, David G. Lowe (2004). Introduces the Scale-Invariant Feature Transform (SIFT) descriptors that form the foundational per-pixel feature representation matched across scenes in SIFT flow.
Paper: High Accuracy Optical Flow Estimation Based on a Theory for Warping, Thomas Brox et al. (2004). Establishes modern variational energy formulations and coarse-to-fine optimization strategies for optical flow that SIFT flow adapts from pixel intensities to dense descriptor fields.
Paper: A performance evaluation of local descriptors, Krystian Mikolajczyk et al. (2005). Provides a comprehensive evaluation demonstrating the distinctiveness and robustness of local SIFT features, validating their suitability for dense visual correspondence across diverse scenes.
Paper: An Iterative Image Registration Technique with an Application to Stereo Vision, Bruce D. Lucas et al. (1981). Presents foundational iterative image registration and coarse-to-fine pyramid alignment principles essential to understanding dense motion and displacement estimation.
Paper: Beyond Bags of Features: Spatial Pyramid Matching for Recognizing Natural Scene Categories, Svetlana Lazebnik et al. (2006). Demonstrates the power of dense SIFT feature extraction and spatial layout representations for scene classification and categorization.
Paper: A Database and Evaluation Methodology for Optical Flow, Simon Baker et al. (2007). Defines standardized benchmarks and evaluation metrics for dense optical flow estimation against which continuous motion and alignment techniques are assessed.
Paper: Image Analogies, Aaron Hertzmann et al. (2001). Introduces non-parametric example-based image transfer frameworks that motivate SIFT flow's downstream applications in motion and visual attribute transfer across scenes.

Paper: FlowNet: Learning Optical Flow with Convolutional Networks, Philipp Fischer et al. (2015). Transitions dense visual correspondence and optical flow estimation from handcrafted descriptor matching and belief propagation to end-to-end convolutional neural networks.
Paper: PWC-Net: CNNs for Optical Flow Using Pyramid, Warping, and Cost Volume, Deqing Sun et al. (2018). Combines classical multi-scale pyramid and warping concepts with deep cost volumes to establish a highly compact and accurate neural architecture for dense optical flow.
Paper: RAFT: Recurrent All-Pairs Field Transforms for Optical Flow, Zachary Teed et al. (2020). Replaces traditional coarse-to-fine optimization pipelines with recurrent updates over all-pairs correlation volumes for robust pixel-level correspondence.
Paper: SuperGlue: Learning Feature Matching With Graph Neural Networks, Paul-Edouard Sarlin et al. (2020). Advances semantic and wide-baseline visual correspondence by learning context aggregation and optimal feature matching with graph neural networks.
Paper: Generating Videos with Scene Dynamics, Carl Vondrick et al. (2016). Extends SIFT flow's premise of transferring dynamics to static images by learning scene dynamics and motion directly from large video collections using deep generative models.
Paper: FlowNet 2.0: Evolution of Optical Flow Estimation with Deep Networks, Eddy Ilg et al. (2016). Builds upon learned dense flow estimation by introducing stacked warping networks and specialized sub-pixel architectures to refine fine-scale displacements.
Paper: A Naturalistic Open Source Movie for Optical Flow Evaluation, Daniel J. Butler et al. (2012). Introduces the challenging MPI-Sintel benchmark to evaluate dense motion estimation algorithms under complex, naturalistic rendering and atmospheric conditions.

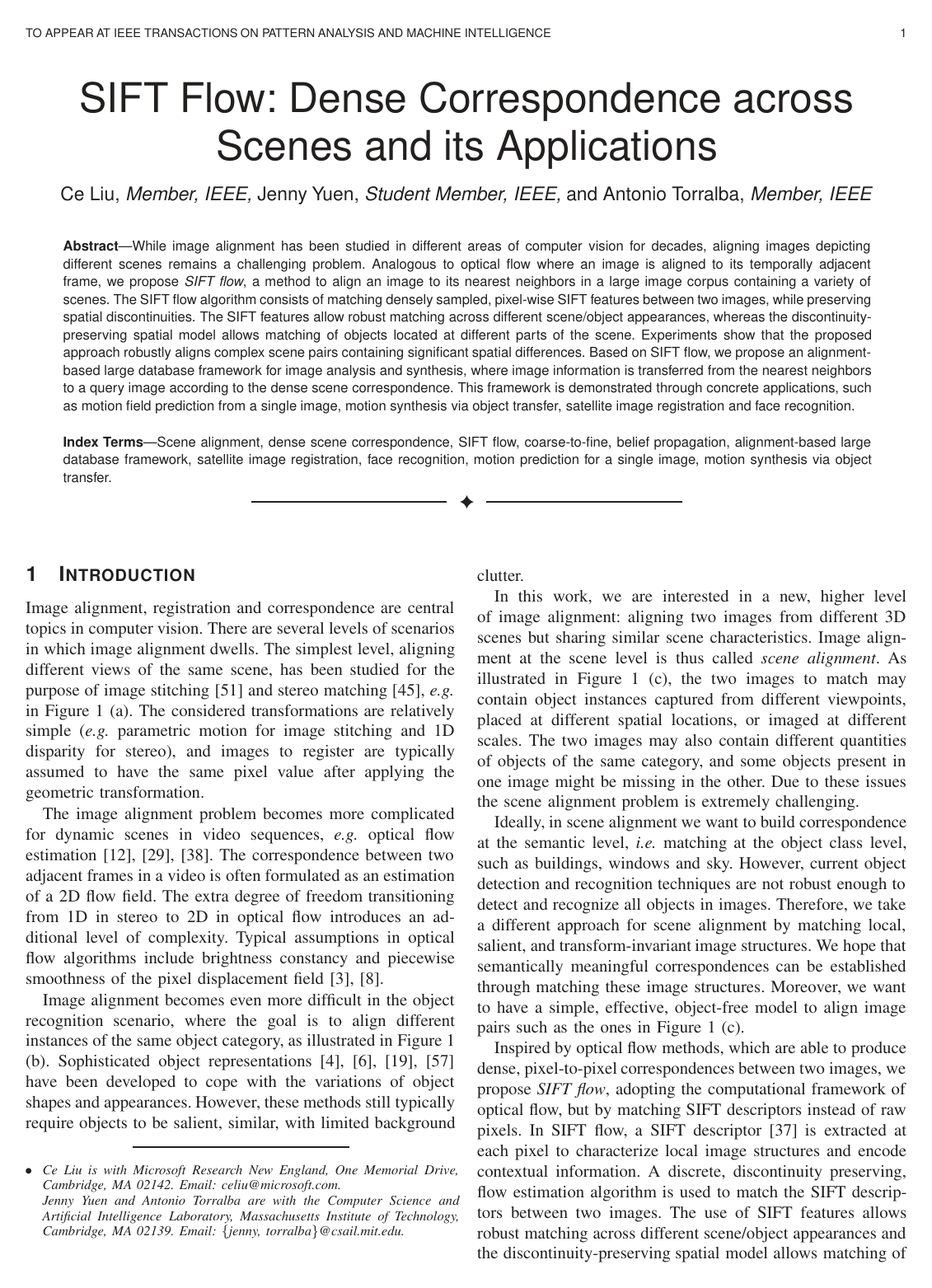

Cover for SIFT Flow: Dense Correspondence across Scenes and Its Applications

Abstract

While image alignment has been studied in different areas of computer vision for decades, aligning images depicting different scenes remains a challenging problem. Analogous to optical flow where an image is aligned to its temporally adjacent frame, we propose SIFT flow, a method to align an image to its nearest neighbors in a large image corpus containing a variety of scenes. The SIFT flow algorithm consists of matching densely sampled, pixel-wise SIFT features between two images, while preserving spatial discontinuities. The SIFT features allow robust matching across different scene/object appearances, whereas the discontinuity-preserving spatial model allows matching of objects located at different parts of the scene. Experiments show that the proposed approach robustly aligns complex scene pairs containing significant spatial differences. Based on SIFT flow, we propose an alignment-based large database framework for image analysis and synthesis, where image information is transferred from the nearest neighbors to a query image according to the dense scene correspondence. This framework is demonstrated through concrete applications, such as motion field prediction from a single image, motion synthesis via object transfer, satellite image registration and face recognition.

Topics

scale invariant feature transforms sift

Keywords

SIFT flow dense scene correspondence pixel-wise SIFT features dense SIFT optical flow scene alignment scene retrieval same-scene image registration

1 INTRODUCTION
2 RELATED WORK
3 THE SIFT FLOW ALGORITHM
3.1 Dense SIFT descriptors and visualization
3.2 Matching Objective
3.3 Coarse-to-fine matching scheme
3.4 Neighborhood of SIFT flow
4 EXPERIMENTS ON VIDEO RETRIEVAL
4.1 Results of video retrieval
4.2 Evaluation of the dense scene alignment
5 DENSE SCENE ALIGNMENT APPLICATIONS
5.1 Predicting motion fields from a single image
5.2 Quantitative evaluation of motion prediction
5.3 Motion synthesis via object transfer
6 EXPERIMENTS ON IMAGE ALIGNMENT AND FACE RECOGNITION
6.1 Same-scene image registration
6.2 Face recognition
7 DISCUSSIONS
I. Scene alignment
II. Sparse vs. Dense correspondence
III. SIFT flow vs. optical flow
8 CONCLUSION
9 ACKNOWLEDGMENTS
REFERENCES

Knowls

Knowl 1 — SIFT Flow Objective Function
equation
The SIFT flow objective function estimates a dense, discrete displacement field $\mathbf{w}(\mathbf{p}) = (u(\mathbf{p}), v(\mathbf{p})) \in \mathbb{Z}^2$ between a source SIFT image $\mathbf{s}_1$ and a target SIFT image $\mathbf{s}_2$ across an image grid coordinate system $\mathbf{p} = (x, y)$ . The objective function is defined as:

$E(\mathbf{w}) = \sum_{\mathbf{p}} \min\left( \|\mathbf{s}_1(\mathbf{p}) - \mathbf{s}_2(\mathbf{p} + \mathbf{w}(\mathbf{p}))\|_1, \, t \right) + \sum_{\mathbf{p}} \eta \left( |u(\mathbf{p})| + |v(\mathbf{p})| \right) + \sum_{(\mathbf{p}, \mathbf{q}) \in \mathcal{E}} \left( \min(\alpha |u(\mathbf{p}) - u(\mathbf{q})|, \, d) + \min(\alpha |v(\mathbf{p}) - v(\mathbf{q})|, \, d) \right)$

where:
- $\mathbf{s}_1(\mathbf{p}), \mathbf{s}_2(\mathbf{p} + \mathbf{w}(\mathbf{p})) \in \mathbb{R}^{128}$ are 128-dimensional dense SIFT descriptors extracted at pixel locations $\mathbf{p}$ and $\mathbf{p} + \mathbf{w}(\mathbf{p})$ .
- $\mathcal{E}$ denotes the set of 4-connected spatial neighbor pairs in the image lattice.
- $t > 0$ is a scalar truncation threshold on the $L_1$ descriptor data term to account for outliers and occlusions.
- $\eta \ge 0$ is a regularization coefficient penalizing displacement magnitudes when visual evidence is ambiguous.
- $\alpha > 0$ is the spatial smoothness weight.
- $d > 0$ is a scalar truncation threshold on the smoothness term to preserve sharp flow discontinuities at object and scene boundaries.
- $u(\mathbf{p})$ and $v(\mathbf{p})$ take discrete values from a set of $L$ possible displacement states.
Knowl 2 — Dense SIFT Image Representation
definition
A SIFT image is a dense, per-pixel feature map where each pixel on an image grid is represented by a 128-dimensional local gradient vector. For every pixel location $\mathbf{p}=(x, y)$ , a $16 \times 16$ pixel neighborhood centered at $\mathbf{p}$ is partitioned into a $4 \times 4$ array of spatial cells. Within each cell, gradient orientations are computed and accumulated into an 8-bin histogram. Concatenating the orientation histograms across all $4 \times 4$ cells produces a local descriptor of dimension $4 \times 4 \times 8 = 128$ at each pixel, capturing local image structure, edge orientation, and context while preserving spatial boundaries.
Knowl 3 — Coarse-to-Fine SIFT Flow Matching Algorithm
algorithm
The coarse-to-fine SIFT flow algorithm computes dense correspondence between two SIFT images $\mathbf{s}_1$ and $\mathbf{s}_2$ across a multi-resolution pyramid $\{\mathbf{s}^{(k)}\}_{k=1}^K$ , reducing the optimization time complexity from $O(h^4)$ to $O(h^2 \log h)$ for an $h \times h$ image.
Input: Dense SIFT images $\mathbf{s}_1, \mathbf{s}_2$ , number of pyramid levels $K$ (e.g., $K=3$ ), top window size $m \times m$ , fine search window size $n \times n$ (with $n=11$ ), parameters $\alpha, d, \eta, t$ .
Output: Optimal dense displacement field $\mathbf{w}(\mathbf{p}_1) = (u(\mathbf{p}_1), v(\mathbf{p}_1))$ for all pixels $\mathbf{p}_1$ in $\mathbf{s}_1^{(1)}$ .
1. Construct pyramids $\{\mathbf{s}_1^{(k)}\}_{k=1}^K$ and $\{\mathbf{s}_2^{(k)}\}_{k=1}^K$ by iterative smoothing and downsampling.
2. Initialize top level $k \leftarrow K$ with search windows centered at $\mathbf{c}_K = \mathbf{p}_K$ of size $m \times m$ .
3. Run dual-layer sequential belief propagation (BP-S) to compute $\mathbf{w}(\mathbf{p}_K)$ minimizing the SIFT flow energy.
4. for $k = K-1$ down to 1 do
       a. For each pixel $\mathbf{p}_k$ , interpolate the displacement from level $k+1$ to define the search window centroid $\mathbf{c}_k$ .
       b. Set search window size to $n \times n$ centered at $\mathbf{c}_k$ .
       c. Update displacement penalty $\eta \leftarrow 2 \eta$ while keeping $\alpha$ and $d$ constant.
       d. Execute dual-layer BP-S using generalized distance transforms across neighboring nodes with shifted search window offsets.
       e. Obtain updated flow vectors $\mathbf{w}(\mathbf{p}_k)$ .
   end for
5. return $\mathbf{w}(\mathbf{p}_1)$ .
Knowl 4 — Decoupled Dual-Layer Belief Propagation for SIFT Flow
model/method
The discrete MRF energy of SIFT flow is optimized using a dual-layer loopy belief propagation architecture. The horizontal flow field $u(\mathbf{p})$ and vertical flow field $v(\mathbf{p})$ are decoupled into two distinct 2D grid layers sharing the same spatial coordinates, linked together only by the data term at corresponding locations. Message passing operates by first updating intra-layer spatial messages along horizontal and vertical neighbors separately within each layer, followed by updating inter-layer messages between $u(\mathbf{p})$ and $v(\mathbf{p})$ .

Because the pairwise potential functions are truncated $L_1$ norms, distance transform techniques are generalized to compute spatial messages across neighboring nodes with offset search windows. For state space size $L$ per displacement component, this decoupling reduces the per-iteration message passing time complexity from $O(L^4)$ to $O(L^2)$ , with sequential belief propagation (BP-S) applied to accelerate convergence.
Knowl 5 — Alignment-Based Large Database Framework for Image Analysis and Synthesis
model/method
The alignment-based large database framework operates on the premise that dense sampling of the space of world images allows semantically meaningful scene alignment between different 3D scenes sharing common structures, directly analogous to dense temporal sampling in video optical flow.

Given an input query image $q$ and a large database of images or video frames $\mathcal{D}$ :
1. Candidate Retrieval: A fast indexing mechanism (such as spatial pyramid visual word histogram matching or global GIST matching) retrieves the top $N$ nearest neighbors from $\mathcal{D}$ .
2. Dense Alignment via SIFT Flow: SIFT flow is computed between $q$ and each retrieved candidate, re-ranking the candidates by their minimized SIFT flow matching energy $E(\mathbf{w})$ .
3. Information Transfer: Associated metadata, annotations, depth maps, labels, or temporal motion fields belonging to the optimal matches are warped onto the coordinate frame of $q$ using the estimated dense pixel displacement fields.
Knowl 6 — Motion Field Prediction from a Single Image
model/method
SIFT flow enables hallucinating plausible temporal motion fields for a static single image by transferring dynamic motion information from visually similar video sequences. Given a still query image, the top matching video frames are retrieved from a video database using quantized SIFT visual-word spatial histograms. Dense correspondence between the static query and the retrieved database frames is computed via SIFT flow. The temporal motion fields of the retrieved video frames (estimated between consecutive frames in the source video) are then warped into the query image coordinate frame.

To quantitatively evaluate predicted motion against distracters, motion fields are binarized into grids $M, N \in \{0, 1\}^{H \times W}$ representing moving ( $1$ ) versus static ( $0$ ) pixels. The similarity between two motion segmentations is measured by:

$S(M, N) = \sum_{(x, y) \in G} [M(x, y) = N(x, y)]$

When evaluating against 11 random motion distracters across 720 test scenes, the warped motion field inferred via SIFT flow ranked 1st in over 50% of all video scenes and achieved 66% top-1 rank precision on street/car scenes.
Knowl 7 — Motion Synthesis via Moving Object Transfer
algorithm
Motion synthesis animates a still image $q$ by detecting and compositing moving objects from video sequences $\mathcal{D}$ with matching scene layouts.
Input: Static query image $q$ , video database $\mathcal{D}$ , motion magnitude threshold $T$ .
Output: Synthesized video sequence $G = \{g_1, g_2, \dots, g_K\}$ .
1. Query database $\mathcal{D}$ using SIFT-based scene matching to retrieve candidate video frames $F = \{f_i\}_{i=1}^K$ .
2. for each frame $f_i \in F$ do
       a. Compute temporal motion field $m_i$ between consecutive frames $f_i$ and $f_{i+1}$ .
       b. Perform motion segmentation to obtain the binary foreground mask $z_i = [|m_i| > T]$ .
       c. Align $f_i$ and mask $z_i$ to query image $q$ using SIFT flow.
       d. Blend the moving foreground into the query background using Poisson image editing:
           $g_i = \text{PoissonBlend}(q, f_i, z_i)$ .
   end for
3. return $G = \{g_1, g_2, \dots, g_K\}$ .

Knowl 8 — Face Recognition Performance Under Limited Training Samples

data/table

SIFT flow was applied to face recognition on the ORL database (40 subjects, 10 images per subject with pose and expression variations) to establish dense alignment between query test images and database templates before nearest neighbor classification. When very few training images are available per subject, dense alignment compensates for pose and expression differences.

The table reports test error rates (mean $\pm$ standard deviation in percent) across 1, 2, and 3 training samples per subject comparing SIFT flow against Spatially Smooth Subspace Learning (S-LDA). SIFT flow achieves performance comparable to the state-of-the-art without requiring explicit facial feature point detection or component-specific alignment models.

Knowl 9 — Multi-Temporal Satellite Image Registration Performance
empirical result
SIFT flow was evaluated on multi-temporal satellite image registration of the Martian surface using image pairs captured four years apart under severe variations in illumination, sensor conditions, and surface appearances. Comparing SIFT flow against a baseline of sparse SIFT keypoint detection and matching followed by interpolation to a dense displacement field:
- Sparse SIFT feature matching with interpolation achieved a pixel-wise Mean Absolute Error (MAE) of $0.030$ .
- Dense SIFT flow achieved an MAE of $0.021$ , reducing registration error by $30\%$ and resolving local image distortions and stitching discontinuities.
Knowl 10 — Perceptual Alignment Accuracy Relative to Human Ground Truth
empirical result
In a user study with 11 human subjects annotating 10 preselected sparse correspondence points across complex cross-scene image pairs, SIFT flow was evaluated against direct minimum $L_1$ -norm SIFT matching without spatial regularization. Performance was assessed by computing $\Pr(\exists z_i, \|z_i - \mathbf{w}(\mathbf{p})\| \le r)$ , the probability that at least one human annotation $z_i$ lies within radius $r$ (in pixels) of the computed flow vector $\mathbf{w}(\mathbf{p})$ . Across all tested radii $r$ , SIFT flow achieved significantly higher correspondence agreement with human perceptual annotations than independent minimum $L_1$ SIFT matching, demonstrating that the spatial smoothness and small displacement regularizers are essential for meaningful semantic matching.

Coverage note — None was omitted; all primary contributions, algorithm formulations, mathematical models, and quantitative applications (motion prediction, motion synthesis, satellite image registration, and face recognition) are covered.
