Optimal Transport for Domain Adaptation

Nicolas CourtyRémi FlamaryDevis TuiaAlain Rakotomamonjy

article2014TPAMI1,383 citations

Proposes a regularized optimal transport framework that aligns probability distributions between distinct domains while preserving class structure, providing a principled geometric solution for visual domain adaptation tasks.

Listen

Modern data analytics and machine learning applications frequently encounter dataset drift, where predictive models trained on data from one acquisition source perform poorly when deployed on target data gathered under different conditions, such as altered lighting, background noise, or distinct sensor properties. This issue is especially acute in unsupervised domain adaptation, where target datasets lack label annotations entirely. The article evaluates a framework designed to align source and target data distributions by formulating domain adaptation as an optimal transport problem, which mathematically determines a minimal-effort mapping to transform labeled source data into the target space.

The evaluated approach introduces a regularized discrete optimal transport model that calculates non-linear, sample-specific transformations between empirical probability distributions. To prevent unrelated source samples from collapsing onto identical target points, the authors incorporate domain-specific regularizers: a convex group-lasso penalty that groups samples by class and a graph Laplacian regularizer that preserves local neighborhood structures. The framework also adapts to semi-supervised settings when limited target labels are present and scales to large datasets through a generalized conditional gradient optimization algorithm that leverages fast matrix scaling operations. The methodology was tested across synthetic non-linear benchmarks and standard real-world computer vision datasets, including digit recognition (USPS and MNIST), facial recognition across poses (PIE), and multi-domain object recognition (Caltech-Office).

The experimental results demonstrate that regularized optimal transport consistently outperforms existing domain adaptation baselines. On synthetic non-linear data, optimal transport maintained lower classification error rates across escalating transformation severities, achieving nearly flawless adaptation below forty-degree rotations where standard methods deteriorated. In real-world visual benchmarks, the proposed group-lasso and Laplacian regularizers improved average accuracy compared to unadapted baselines and standard subspace alignment algorithms, achieving up to 63.90% mean accuracy on digits and 47.70% on standard object recognition features. Furthermore, when applied to deep learning representations, optimal transport boosted accuracy by over 20 percentage points on specific domain shifts, such as between webcam and digital SLR categories. In semi-supervised evaluations with three target labels per class, embedding labels directly into the transport plan increased average accuracy to 55.6%, outperforming post-transport labeling approaches.

These findings indicate that aligning datasets via optimal transport allows organizations to transfer existing labeled assets to new domains without retraining entire deep architectures or manually re-annotating target datasets. Unlike conventional linear subspace alignments, this approach accommodates complex, non-linear physical distortions while preserving class integrity, directly mitigating the risks, operational costs, and development timelines associated with data re-labeling. Practitioners seeking to deploy models across shifting environments should consider implementing optimal transport alignment as an intermediate calibration layer, selecting group-lasso regularization when class coherence is paramount and incorporating any available target labels directly into the transportation cost matrix.

While the method provides exact recovery guarantees for affine transformations and robust empirical performance across complex shifts, users must note key boundary conditions. Performance degrades when extreme transformations cause severe ambiguity or when severe label proportion imbalances exist between source and target sets. Additionally, selecting optimization hyperparameters without target validation labels remains challenging in fully unsupervised environments. Overall confidence in the approach is high for visual adaptation tasks, and future work should focus on developing physics-informed regularizers and extending the formulation to multi-domain adaptation pipelines.

data analytics distribution functions semantic gap optimal transport domain adaptation Wasserstein distance

arXiv: 1507.00504

Paper: Analysis of Representations for Domain Adaptation, Shai Ben-David et al. (2006). This seminal work establishes the theoretical bounds on generalization error and distribution discrepancy across domains that underpin distribution-matching strategies in domain adaptation.
Paper: A theory of learning from different domains, Shai Ben-David et al. (2010). It provides the foundational statistical learning theory and divergence measures bounding target error that justify learning aligned representations between source and target domains.
Paper: Transfer Feature Learning with Joint Distribution Adaptation, Mingsheng Long et al. (2013). It demonstrates how aligning both marginal and conditional distributions via learned representations enables effective unsupervised visual domain adaptation.
Paper: Adapting Visual Category Models to New Domains, Kate Saenko et al. (2010). It introduces the visual benchmark datasets and transformation-mapping formulation widely adopted to evaluate feature alignment under domain shifts.
Paper: A Survey on Transfer Learning, Sinno Jialin Pan et al. (2010). This survey formalizes the taxonomy of transfer learning and feature-representation alignment across divergent source and target data distributions.

Paper: Learning Transferable Features with Deep Adaptation Networks, Mingsheng Long et al. (2015). It extends representation-alignment strategies to deep neural network architectures using multi-kernel maximum mean discrepancy regularizers across task-specific layers.
Paper: Unsupervised Domain Adaptation by Backpropagation, Yaroslav Ganin et al. (2015). It scales unsupervised domain alignment into an end-to-end deep learning framework via adversarial training and gradient reversal.
Paper: Return of Frustratingly Easy Domain Adaptation, Baochen Sun et al. (2015). It provides a lightweight alternative for unsupervised domain alignment by directly matching second-order statistics between source and target distributions.
Paper: Deep CORAL: Correlation Alignment for Deep Domain Adaptation, Baochen Sun et al. (2016). It builds on statistical alignment concepts by integrating covariance loss directly into deep convolutional neural network training.
Paper: Conditional Adversarial Domain Adaptation, Mingsheng Long et al. (2017). It refines unsupervised adversarial distribution alignment by conditioning the domain discriminator on multi-class classifier predictions.
Paper: Maximum Classifier Discrepancy for Unsupervised Domain Adaptation, Kuniaki Saito et al. (2017). It moves beyond standard global distribution matching by utilizing task-specific decision boundaries to align target representations.
Paper: Deep Visual Domain Adaptation: A Survey, Mei Wang et al. (2018). This survey provides a comprehensive review of the modern deep visual domain adaptation paradigms that followed distribution-matching and optimal transport formulations.

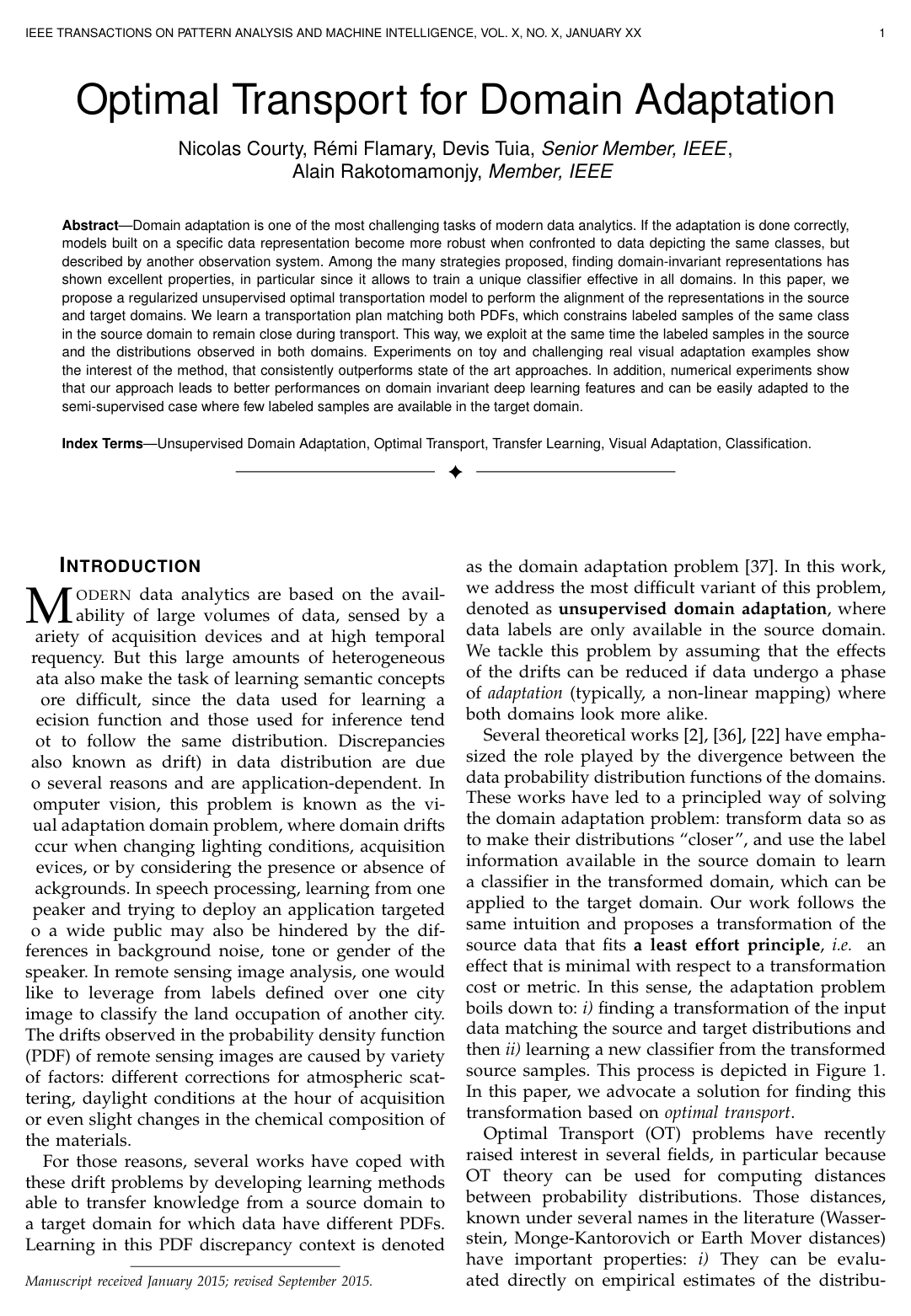

Cover for Optimal Transport for Domain Adaptation

Abstract

Domain adaptation from one data space (or domain) to another is one of the most challenging tasks of modern data analytics. If the adaptation is done correctly, models built on a specific data space become more robust when confronted to data depicting the same semantic concepts (the classes), but observed by another observation system with its own specificities. Among the many strategies proposed to adapt a domain to another, finding a common representation has shown excellent properties: by finding a common representation for both domains, a single classifier can be effective in both and use labelled samples from the source domain to predict the unlabelled samples of the target domain. In this paper, we propose a regularized unsupervised optimal transportation model to perform the alignment of the representations in the source and target domains. We learn a transportation plan matching both PDFs, which constrains labelled samples in the source domain to remain close during transport. This way, we exploit at the same time the few labeled information in the source and the unlabelled distributions observed in both domains. Experiments in toy and challenging real visual adaptation examples show the interest of the method, that consistently outperforms state of the art approaches.

Topics

data analytics distribution functions semantic gap supervised machine learning svm unsupervised learning method parameter adaptation

Keywords

optimal transport domain adaptation Wasserstein distance transfer learning Geodesic Flow Kernel Laplacian regularization covariate shift transportation plan subspace learning distribution adaptation

I Introduction
I-A Related works
II Optimal transport and application to domain adaptation
II-A Problem and theoretical motivations
II-B Domain adaptation as a transportation problem
III Regularized discrete optimal transport
III-A Discrete optimal transport
III-B Regularized optimal transport
III-C OT-based mapping of the samples
III-D Discussing optimal transport for domain adaptation
IV Class-regularization for domain adaptation
IV-A Regularizing the transport with class labels
IV-A1 Regularization with group-sparsity
IV-A2 Laplacian regularization
IV-B Regularizing for semi-supervised domain adaptation
V Generalized conditional gradient for solving regularized OT problems
VI Numerical experiments
VI-A Two moons: simulated problem with controllable complexity
VI-B Visual adaptation datasets
VI-B1 Datasets
VI-B2 Experimental setup
VI-B3 Results on unsupervised domain adaptation
VI-B4 Semi-supervised domain adaptation
VII Conclusion
References

Knowls

Knowl 1 — Optimal Transport Framework for Unsupervised Domain Adaptation
model/method
In unsupervised domain adaptation, a learner receives a labeled source dataset $X_s = \{\mathbf{x}_i^s\}_{i=1}^{N_s} \subset \Omega_s \subseteq \mathbb{R}^d$ with class labels $Y_s = \{y_i^s\}_{i=1}^{N_s} \subset \mathcal{C}$ and an unlabeled target dataset $X_t = \{\mathbf{x}_j^t\}_{j=1}^{N_t} \subset \Omega_t \subseteq \mathbb{R}^d$ . The domain discrepancy is modeled as an unknown, possibly non-linear input space mapping $T: \Omega_s \to \Omega_t$ that preserves conditional label distributions:

$P_s(y \mid \mathbf{x}^s) = P_t(y \mid T(\mathbf{x}^s)), \quad \text{implying } f_t(T(\mathbf{x})) = f_s(\mathbf{x})$

where $f_s$ and $f_t$ are the Bayes decision functions in the source and target domains, respectively.

The source and target empirical distributions are represented as discrete measures $\mu_s = \sum_{i=1}^{N_s} p_i^s \delta_{\mathbf{x}_i^s}$ and $\mu_t = \sum_{j=1}^{N_t} p_j^t \delta_{\mathbf{x}_j^t}$ , where $\delta_{\mathbf{x}}$ is the Dirac delta function, and $\mathbf{p}^s \in \mathbb{R}_+^{N_s}$ , $\mathbf{p}^t \in \mathbb{R}_+^{N_t}$ are probability vectors on the simplex (typically uniform weights $p_i^s = 1/N_s$ and $p_j^t = 1/N_t$ ). The discrete Kantorovich optimal transport formulation estimates a transportation plan $\boldsymbol{\gamma}_0 \in \mathcal{B}$ by solving:

$\boldsymbol{\gamma}_0 = \arg\min_{\boldsymbol{\gamma} \in \mathcal{B}} \langle \boldsymbol{\gamma}, \mathbf{C} \rangle_F = \arg\min_{\boldsymbol{\gamma} \in \mathcal{B}} \sum_{i=1}^{N_s} \sum_{j=1}^{N_t} \gamma(i, j) C(i, j)$

subject to the constraint set:

$\mathcal{B} = \left\{ \boldsymbol{\gamma} \in (\mathbb{R}_+)^{N_s \times N_t} \;\middle|\; \boldsymbol{\gamma} \mathbf{1}_{N_t} = \mathbf{p}^s, \; \boldsymbol{\gamma}^\top \mathbf{1}_{N_s} = \mathbf{p}^t \right\}$

where $\langle \cdot, \cdot \rangle_F$ is the Frobenius dot product, $\mathbf{1}_n$ is an $n$ -dimensional vector of ones, and $\mathbf{C} \in \mathbb{R}_+^{N_s \times N_t}$ is the cost matrix with entries $C(i, j) = c(\mathbf{x}_i^s, \mathbf{x}_j^t) = \|\mathbf{x}_i^s - \mathbf{x}_j^t\|_2^2$ (squared Euclidean distance).
Knowl 2 — Barycentric Mapping for Source Sample Transport
model/method
Once an optimal transport coupling $\boldsymbol{\gamma}_0 \in \mathbb{R}_+^{N_s \times N_t}$ between source data $X_s \in \mathbb{R}^{N_s \times d}$ and target data $X_t \in \mathbb{R}^{N_t \times d}$ is obtained, each source sample $\mathbf{x}_i^s$ is mapped into the target domain using a barycentric mapping $\hat{\mathbf{x}}_i^s \in \mathbb{R}^d$ defined by the Fréchet mean:

$\hat{\mathbf{x}}_i^s = \arg\min_{\mathbf{x} \in \mathbb{R}^d} \sum_{j=1}^{N_t} \gamma_0(i, j) c(\mathbf{x}, \mathbf{x}_j^t)$

For the squared $\ell_2$ Euclidean cost $c(\mathbf{x}, \mathbf{x}') = \|\mathbf{x} - \mathbf{x}'\|_2^2$ , this barycenter is a weighted average residing in the convex hull of target points:

$\hat{\mathbf{x}}_i^s = \frac{1}{\sum_{j=1}^{N_t} \gamma_0(i, j)} \sum_{j=1}^{N_t} \gamma_0(i, j) \mathbf{x}_j^t$

In matrix notation, the transported source dataset $\hat{X}_s \in \mathbb{R}^{N_s \times d}$ is given by:

$\hat{X}_s = \operatorname{diag}(\boldsymbol{\gamma}_0 \mathbf{1}_{N_t})^{-1} \boldsymbol{\gamma}_0 X_t$

where $\operatorname{diag}(\mathbf{v})$ denotes the diagonal matrix formed from vector $\mathbf{v}$ , and $\mathbf{1}_{N_t}$ is an $N_t$ -dimensional all-ones vector. When marginal distributions are uniform ( $p_i^s = 1/N_s$ and $p_j^t = 1/N_t$ ), the forward mapping of source points and the inverse mapping of target points $\hat{X}_t \in \mathbb{R}^{N_t \times d}$ simplify to linear transformations:

$\hat{X}_s = N_s \boldsymbol{\gamma}_0 X_t \quad \text{and} \quad \hat{X}_t = N_t \boldsymbol{\gamma}_0^\top X_s$

A classifier trained on the transported labeled source samples $(\hat{X}_s, Y_s)$ is then applied directly to classify target domain points $X_t$ .
Knowl 3 — Exact Affine Transformation Recovery in Discrete Optimal Transport
theoretical result
Let $\mu_s = \sum_{i=1}^n \frac{1}{n} \delta_{\mathbf{x}_i^s}$ and $\mu_t = \sum_{j=1}^n \frac{1}{n} \delta_{\mathbf{x}_j^t}$ be two discrete probability distributions in $\mathbb{R}^d$ with $n$ Dirac masses and uniform weights.

Assume that:
1. All source locations are distinct: $\mathbf{x}_i^s \neq \mathbf{x}_j^s$ for all $i \neq j$ .
2. The target samples are obtained via an affine transformation of source samples: $\mathbf{x}_i^t = \mathbf{A} \mathbf{x}_i^s + \mathbf{b}$ for all $i \in \{1, \dots, n\}$ .
3. The translation vector satisfies $\mathbf{b} \in \mathbb{R}^d$ , and $\mathbf{A} \in \mathcal{S}_+^d$ is a strictly positive definite matrix.
4. The ground cost is the squared Euclidean distance $c(\mathbf{x}^s, \mathbf{x}^t) = \|\mathbf{x}^s - \mathbf{x}^t\|_2^2$ .
Under these conditions, the discrete Kantorovich optimal transport problem yields a solution $T_0$ such that:

$T_0(\mathbf{x}_i^s) = \mathbf{A}\mathbf{x}_i^s + \mathbf{b} = \mathbf{x}_i^t, \quad \forall i \in \{1, \dots, n\}$

This guarantees that optimal transport exactly recovers the underlying affine transformation on discrete samples and perfectly preserves source class labels during transport.
Knowl 4 — Group-Sparse Regularization for Class-Preserving Optimal Transport
model/method
To prevent source samples with different class labels from transporting probability mass to the same target sample, class label information $Y_s$ from the source domain is incorporated into the optimal transport formulation via a convex group-lasso ( $\ell_1-\ell_2$ ) penalty on the columns of the coupling matrix $\boldsymbol{\gamma}$ .

The regularized optimal transport objective is defined as:

$\min_{\boldsymbol{\gamma} \in \mathcal{B}} \langle \boldsymbol{\gamma}, \mathbf{C} \rangle_F + \lambda \Omega_s(\boldsymbol{\gamma}) + \eta \Omega_c(\boldsymbol{\gamma})$

where $\mathcal{B} = \{ \boldsymbol{\gamma} \in (\mathbb{R}_+)^{N_s \times N_t} \mid \boldsymbol{\gamma} \mathbf{1}_{N_t} = \mathbf{p}^s, \boldsymbol{\gamma}^\top \mathbf{1}_{N_s} = \mathbf{p}^t \}$ , $\mathbf{C}$ is the cost matrix, $\lambda \ge 0$ weights the entropic regularizer $\Omega_s(\boldsymbol{\gamma}) = \sum_{i,j} \gamma(i,j) \log \gamma(i,j)$ , and $\eta \ge 0$ weights the class regularizer $\Omega_c(\boldsymbol{\gamma})$ .

The group-sparse regularizer $\Omega_c(\boldsymbol{\gamma})$ is formulated as:

$\Omega_c(\boldsymbol{\gamma}) = \sum_{j=1}^{N_t} \sum_{c \in \mathcal{C}} \|\boldsymbol{\gamma}(\mathcal{I}_c, j)\|_2$

where $\mathcal{C}$ is the set of source class labels, $\mathcal{I}_c \subset \{1, \dots, N_s\}$ denotes the row indices of source samples belonging to class $c$ , and $\boldsymbol{\gamma}(\mathcal{I}_c, j)$ is the vector of coupling coefficients from source samples of class $c$ to the $j$ -th target sample $\mathbf{x}_j^t$ . This penalty induces group sparsity over classes in each target sample's mass allocation.
Knowl 5 — Graph Laplacian Regularization for Optimal Transport Domain Adaptation
model/method
To preserve local geometric structures and neighborhood relationships during transport, a graph Laplacian regularization term penalizes distortions between neighboring source samples after transportation.

Given a symmetric similarity matrix $\mathbf{S}_s \in \mathbb{R}_+^{N_s \times N_s}$ where $S_s(i, j) \ge 0$ measures similarity between source samples $\mathbf{x}_i^s$ and $\mathbf{x}_j^s$ with cross-class connections pruned ( $S_s(i, j) = 0$ if $y_i^s \neq y_j^s$ ), the Laplacian regularizer on the transported source samples $\hat{\mathbf{x}}_i^s$ is:

$\Omega_c(\boldsymbol{\gamma}) = \frac{1}{N_s^2} \sum_{i=1}^{N_s} \sum_{j=1}^{N_s} S_s(i, j) \|\hat{\mathbf{x}}_i^s - \hat{\mathbf{x}}_j^s\|_2^2$

When source marginals are uniform, this simplifies to the quadratic form:

$\Omega_c(\boldsymbol{\gamma}) = \operatorname{Tr}(X_t^\top \boldsymbol{\gamma}^\top \mathbf{L}_s \boldsymbol{\gamma} X_t)$

where $\mathbf{L}_s = \operatorname{diag}(\mathbf{S}_s \mathbf{1}_{N_s}) - \mathbf{S}_s$ is the graph Laplacian matrix of $\mathbf{S}_s$ , and $\operatorname{Tr}(\cdot)$ denotes the trace operator.

When a target similarity matrix $\mathbf{S}_t \in \mathbb{R}_+^{N_t \times N_t}$ with Laplacian $\mathbf{L}_t = \operatorname{diag}(\mathbf{S}_t \mathbf{1}_{N_t}) - \mathbf{S}_t$ is also constructed (e.g., using an 8-nearest-neighbors graph), symmetric Laplacian regularization is defined with weighting parameter $\alpha \in [0, 1]$ :

$\Omega_c(\boldsymbol{\gamma}) = (1 - \alpha) \operatorname{Tr}(X_t^\top \boldsymbol{\gamma}^\top \mathbf{L}_s \boldsymbol{\gamma} X_t) + \alpha \operatorname{Tr}(X_s^\top \boldsymbol{\gamma} \mathbf{L}_t \boldsymbol{\gamma}^\top X_s)$
Knowl 6 — Semi-Supervised Domain Adaptation via Optimal Transport Cost Masking
model/method
When a small number of labeled target samples are available alongside labeled source data, label consistency across domains is enforced without additional hyperparameters by incorporating an exact matching penalty $\Omega_{\text{semi}}(\boldsymbol{\gamma})$ into the optimal transport objective:

$\Omega_{\text{semi}}(\boldsymbol{\gamma}) = \langle \boldsymbol{\gamma}, \mathbf{M} \rangle_F = \sum_{i=1}^{N_s} \sum_{j=1}^{N_t} \gamma(i, j) M(i, j)$

where $\mathbf{M} \in (\mathbb{R} \cup \{+\infty\})^{N_s \times N_t}$ is a masking matrix defined by:

$M(i, j) = \begin{cases} 0 & \text{if } y_i^s = y_j^t \text{ or if target sample } j \text{ is unlabeled} \\ +\infty & \text{if } y_i^s \neq y_j^t \end{cases}$

Adding $\Omega_{\text{semi}}(\boldsymbol{\gamma})$ to the optimal transport objective is equivalent to modifying the original ground cost matrix $\mathbf{C}$ to $\widetilde{\mathbf{C}} = \mathbf{C} + \mathbf{M}$ . This assigns infinite cost to transport between source and target points known to belong to different classes, guaranteeing that $\gamma(i, j) = 0$ whenever $y_i^s \neq y_j^t$ .
Knowl 7 — Generalized Conditional Gradient Algorithm for Regularized Optimal Transport
algorithm
The regularized optimal transport problem $\min_{\boldsymbol{\gamma} \in \mathcal{B}} \langle \boldsymbol{\gamma}, \mathbf{C} \rangle_F + \lambda \Omega_s(\boldsymbol{\gamma}) + \eta \Omega_c(\boldsymbol{\gamma})$ is solved by casting it as a composite optimization problem:

$\min_{\boldsymbol{\gamma} \in \mathcal{B}} f(\boldsymbol{\gamma}) + g(\boldsymbol{\gamma})$

where $f(\boldsymbol{\gamma}) = \langle \boldsymbol{\gamma}, \mathbf{C} \rangle_F + \eta \Omega_c(\boldsymbol{\gamma})$ is differentiable (for Laplacian regularization and for group lasso when initialized with positive entries), and $g(\boldsymbol{\gamma}) = \lambda \Omega_s(\boldsymbol{\gamma}) = \lambda \sum_{i,j} \gamma(i,j) \log \gamma(i,j)$ is convex. The Generalized Conditional Gradient (GCG) algorithm linearizes $f(\boldsymbol{\gamma})$ while keeping $g(\boldsymbol{\gamma})$ intact, solving each subproblem using the Sinkhorn-Knopp scaling algorithm:
Input: Cost matrix $\mathbf{C} \in \mathbb{R}_+^{N_s \times N_t}$ , parameters $\lambda > 0$ , $\eta \ge 0$ , convergence tolerance $\epsilon$
Output: Optimal transportation plan $\boldsymbol{\gamma}^* \in \mathcal{B}$
Initialize $k \leftarrow 0$ , $\boldsymbol{\gamma}^0 \in \mathcal{B}$ with $\gamma^0(i, j) > 0$ for all $i, j$
repeat
    Compute gradient $\mathbf{G} \leftarrow \nabla f(\boldsymbol{\gamma}^k) = \mathbf{C} + \eta \nabla \Omega_c(\boldsymbol{\gamma}^k)$
    Solve direction via Sinkhorn-Knopp: $\boldsymbol{\gamma}^* \leftarrow \arg\min_{\boldsymbol{\gamma} \in \mathcal{B}} \langle \boldsymbol{\gamma}, \mathbf{G} \rangle_F + \lambda \Omega_s(\boldsymbol{\gamma})$
    Set search direction $\Delta \boldsymbol{\gamma} \leftarrow \boldsymbol{\gamma}^* - \boldsymbol{\gamma}^k$
    Find step size: $\alpha^k \leftarrow \arg\min_{0 \le \alpha \le 1} f(\boldsymbol{\gamma}^k + \alpha \Delta \boldsymbol{\gamma}) + g(\boldsymbol{\gamma}^k + \alpha \Delta \boldsymbol{\gamma})$
    Update iterate: $\boldsymbol{\gamma}^{k+1} \leftarrow \boldsymbol{\gamma}^k + \alpha^k \Delta \boldsymbol{\gamma}$
     $k \leftarrow k + 1$
until convergence of objective or $\|\boldsymbol{\gamma}^k - \boldsymbol{\gamma}^{k-1}\| < \epsilon$
return $\boldsymbol{\gamma}^k$

Knowl 8 — Domain Adaptation Performance on the Two Moons Synthetic Benchmark

empirical result

The domain adaptation capability of optimal transport methods was evaluated on the two moons benchmark across increasing rotation angles from $10^\circ$ to $90^\circ$ . The source domain contains 300 samples (150 per moon class in $\mathbb{R}^2$ ), and target domains contain 300 samples generated by rotation. Generalization error was measured on 1,000 independent target test points using an SVM with a Gaussian kernel (5-fold cross-validated).

Target rotation angle	$10^\circ$	$20^\circ$	$30^\circ$	$40^\circ$	$50^\circ$	$70^\circ$	$90^\circ$
SVM (no adaptation)	0.000	0.104	0.240	0.312	0.400	0.764	0.828
DASVM	0.000	0.000	0.259	0.284	0.334	0.747	0.820
PBDA	0.000	0.094	0.103	0.225	0.412	0.626	0.687
OT-exact	0.000	0.028	0.065	0.109	0.206	0.394	0.507
OT-IT	0.000	0.007	0.054	0.102	0.221	0.398	0.508
OT-GL	0.000	0.000	0.000	0.013	0.196	0.378	0.508
OT-Laplace	0.000	0.000	0.004	0.062	0.201	0.402	0.524

The table lists the mean classification error rate over 10 independent realizations. Class-regularized optimal transport (OT-GL and OT-Laplace) maintained near-zero error rates up to $40^\circ$ rotation, outperforming unregularized optimal transport (OT-exact), entropic optimal transport (OT-IT), and baselines (DASVM, PBDA). At $90^\circ$ , all optimal transport variants achieved an error rate of approximately 0.508 due to symmetry (a $-90^\circ$ rotation yields an identical geometric distribution with inverted class labels).

Knowl 9 — Visual Domain Adaptation Benchmark on SURF Features

empirical result

Unsupervised domain adaptation methods were evaluated across visual recognition tasks using 800-bin SURF histogram descriptors: Digits (USPS denoted U, MNIST denoted M; 10 classes, 256-dimensional inputs), Face recognition (CMU PIE dataset with poses P1, P2, P3, P4; 68 classes, 1024-dimensional inputs), and Object recognition (Office-Caltech dataset across Caltech C, Amazon A, Webcam W, DSLR D; 10 classes, 800-dimensional SURF histograms). A 1-Nearest Neighbor (1NN) classifier was trained on the transported source points and tested on target points (averaged over 10 runs with 20 source samples per class, 8 for DSLR; target partitioned 50/50 for hyperparameter validation and testing).

Domains	1NN	PCA	GFK	TSL	JDA	OT-exact	OT-IT	OT-Laplace	OT-LpL1	OT-GL
U $\to$ M	39.00	37.83	44.16	40.66	54.52	50.67	53.66	57.42	60.15	57.85
M $\to$ U	58.33	48.05	60.96	53.79	60.09	49.26	64.73	64.72	68.07	69.96
mean	48.66	42.94	52.56	47.22	57.30	49.96	59.20	61.07	64.11	63.90
PIE mean (12 pairs)	26.22	34.55	26.15	36.10	56.69	50.47	54.89	56.10	55.45	55.88
C $\to$ A	20.54	35.17	35.29	45.25	40.73	30.54	37.75	38.96	48.21	44.17
C $\to$ W	18.94	28.48	31.72	37.35	33.44	23.77	31.32	31.13	38.61	38.94
C $\to$ D	19.62	33.75	35.62	39.25	39.75	26.62	34.50	36.88	39.62	44.50
A $\to$ C	22.25	32.78	32.87	38.46	33.99	29.43	31.65	33.12	35.99	34.57
A $\to$ W	23.51	29.34	32.05	35.70	36.03	25.56	30.40	30.33	35.63	37.02
A $\to$ D	20.38	26.88	30.12	32.62	32.62	25.50	27.88	27.75	36.38	38.88
W $\to$ C	19.29	26.95	27.75	29.02	31.81	25.87	31.63	31.37	33.44	35.98
W $\to$ A	23.19	28.92	33.35	34.94	31.48	27.40	37.79	37.17	37.33	39.35
W $\to$ D	53.62	79.75	79.25	80.50	84.25	76.50	80.00	80.62	81.38	84.00
D $\to$ C	23.97	29.72	29.50	31.03	29.84	27.30	29.88	31.10	31.65	32.38
D $\to$ A	27.10	30.67	32.98	36.67	32.85	29.08	32.77	33.06	37.06	37.17
D $\to$ W	51.26	71.79	69.67	77.48	80.00	65.70	72.52	76.16	74.97	81.06
mean	28.47	37.98	39.21	42.97	44.34	36.69	42.30	43.20	46.42	47.70

The table displays classification accuracy in %. OT-GL achieved the highest mean accuracy on Digits (63.90%) and Office-Caltech Objects (47.70%), outperforming subspace methods (PCA, GFK, TSL, JDA) and unregularized OT (OT-exact: 36.69%). On PIE faces, JDA achieved the top mean score (56.69%) via its iterative EM pseudo-label refinement across 68 classes, followed closely by OT-Laplace (56.10%) and OT-GL (55.88%).

Knowl 10 — Optimal Transport Domain Adaptation with Deep DeCAF Features

empirical result

Optimal transport domain adaptation was evaluated using 4,096-dimensional deep activation features extracted from the 6th (DeCAF-6) and 7th (DeCAF-7) fully connected layers of a convolutional network pre-trained on ImageNet and fine-tuned on the Office-Caltech dataset (10 classes; domains: Caltech C, Amazon A, Webcam W, DSLR D) with a 1NN classifier.

	Layer 6 (DeCAF-6)				Layer 7 (DeCAF-7)
Domains	DeCAF	JDA	OT-IT	OT-GL	DeCAF	JDA	OT-IT	OT-GL
C $\to$ A	79.25	88.04	88.69	92.08	85.27	89.63	91.56	92.15
C $\to$ W	48.61	79.60	75.17	84.17	65.23	79.80	82.19	83.84
C $\to$ D	62.75	84.12	83.38	87.25	75.38	85.00	85.00	85.38
A $\to$ C	64.66	81.28	81.65	85.51	72.80	82.59	84.22	87.16
A $\to$ W	51.39	80.33	78.94	83.05	63.64	83.05	81.52	84.50
A $\to$ D	60.38	86.25	85.88	85.00	75.25	85.50	86.62	85.25
W $\to$ C	58.17	81.97	74.80	81.45	69.17	79.84	81.74	83.71
W $\to$ A	61.15	90.19	80.96	90.62	72.96	90.94	88.31	91.98
W $\to$ D	97.50	98.88	95.62	96.25	98.50	98.88	98.38	91.38
D $\to$ C	52.13	81.13	77.71	84.11	65.23	81.21	82.02	84.93
D $\to$ A	60.71	91.31	87.15	92.31	75.46	91.92	92.15	92.92
D $\to$ W	85.70	97.48	93.77	96.29	92.25	97.02	96.62	94.17
mean	65.20	86.72	83.64	88.18	75.93	87.11	87.53	88.11

The table reports classification accuracy in %. OT-GL improved performance over raw DeCAF features by 22.98 percentage points on Layer 6 (from 65.20% to 88.18%) and by 12.18 percentage points on Layer 7 (from 75.93% to 88.11%), outperforming JDA (86.72% on Layer 6, 87.11% on Layer 7). Layer 7 features yielded comparable OT-GL performance to Layer 6 features (88.11% vs. 88.18%), demonstrating that optimal transport aligns representations effectively even without deeper network layer transformations.

Knowl 11 — Semi-Supervised Visual Domain Adaptation Performance on SURF Features

empirical result

Semi-supervised domain adaptation was benchmarked on the Office-Caltech dataset using 800-bin SURF features with 3 labeled target samples per class. Two configurations were compared: "Unsupervised + labels", where optimal transport is learned without target labels and the 3 labeled target samples per class are only included during classifier training, and "Semi-supervised", where target labels constrain the optimal transportation plan via the infinite cost masking matrix $\mathbf{M}$ , compared against Max-Margin Domain Transfer (MMDT).

	Unsupervised + labels		Semi-supervised
Domains	OT-IT	OT-GL	OT-IT	OT-GL	MMDT
C $\to$ A	$37.0 \pm 0.5$	$41.4 \pm 0.5$	$46.9 \pm 3.4$	$47.9 \pm 3.1$	$\mathbf{49.4 \pm 0.8}$
C $\to$ W	$28.5 \pm 0.7$	$37.4 \pm 1.1$	$64.8 \pm 3.0$	$\mathbf{65.0 \pm 3.1}$	$63.8 \pm 1.1$
C $\to$ D	$35.1 \pm 1.7$	$44.0 \pm 1.9$	$59.3 \pm 2.5$	$\mathbf{61.0 \pm 2.1}$	$56.5 \pm 0.9$
A $\to$ C	$32.3 \pm 0.1$	$36.7 \pm 0.2$	$36.0 \pm 1.3$	$\mathbf{37.1 \pm 1.1}$	$36.4 \pm 0.8$
A $\to$ W	$29.5 \pm 0.8$	$37.8 \pm 1.1$	$63.7 \pm 2.4$	$\mathbf{64.6 \pm 1.9}$	$\mathbf{64.6 \pm 1.2}$
A $\to$ D	$36.9 \pm 1.5$	$46.2 \pm 2.0$	$57.6 \pm 2.5$	$\mathbf{59.1 \pm 2.3}$	$56.7 \pm 1.3$
W $\to$ C	$35.8 \pm 0.2$	$36.5 \pm 0.2$	$38.4 \pm 1.5$	$\mathbf{38.8 \pm 1.2}$	$32.2 \pm 0.8$
W $\to$ A	$39.6 \pm 0.3$	$41.9 \pm 0.4$	$47.2 \pm 2.5$	$47.3 \pm 2.5$	$\mathbf{47.7 \pm 0.9}$
W $\to$ D	$77.1 \pm 1.8$	$80.2 \pm 1.6$	$79.0 \pm 2.8$	$\mathbf{79.4 \pm 2.8}$	$67.0 \pm 1.1$
D $\to$ C	$32.7 \pm 0.3$	$34.7 \pm 0.3$	$35.5 \pm 2.1$	$\mathbf{36.8 \pm 1.5}$	$34.1 \pm 1.5$
D $\to$ A	$34.7 \pm 0.3$	$37.7 \pm 0.3$	$45.8 \pm 2.6$	$46.3 \pm 2.5$	$\mathbf{46.9 \pm 1.0}$
D $\to$ W	$81.9 \pm 0.6$	$84.5 \pm 0.4$	$83.9 \pm 1.4$	$\mathbf{84.0 \pm 1.5}$	$74.1 \pm 0.8$
mean	41.8	46.6	54.8	$\mathbf{55.6}$	52.5

The table shows mean recognition accuracy $\pm$ standard deviation in % across 10 realizations. Constraining the optimal transportation plan with target labels in the semi-supervised formulation increased mean accuracy from 46.6% to 55.6% for OT-GL, outperforming MMDT (52.5%).

Coverage note — The non-convex $\ell_p-\ell_1$ heuristic penalty from preliminary work (OT-LpL1) was omitted from standalone method knowls in favor of the primary convex $\ell_1-\ell_2$ group lasso formulation, though its experimental comparisons are fully included in the empirical tables.

References

1.R. K. Ahuja, T. L. Magnanti, and J. B. Orlin, Network Flows: Theory, Algorithms, and Applications. Upper Saddle River, NJ, USA: Prentice-Hall, Inc., 1993.
2.S. Ben-David, T. Luu, T. Lu, and D. Pál, “Impossibility theorems for domain adaptation.” in Artificial Intelligence and Statistics Conference (AISTATS), 2010, pp. 129–136.
3.J.-D. Benamou and Y. Brenier, “A computational fluid mechanics solution to the monge-kantorovich mass transfer problem,” Numerische Mathematik, vol. 84, no. 3, pp. 375–393, 2000.
4.D. P. Bertsekas, Nonlinear programming. Athena scientific Belmont, 1999.
5.N. Bonneel, J. Rabin, G. Peyré, and H. Pfister, “Sliced and radon Wasserstein barycenters of measures,” Journal of Mathematical Imaging and Vision, vol. 51, pp. 22–45, 2015.
6.N. Bonneel, M. van de Panne, S. Paris, and W. Heidrich, “Displacement interpolation using Lagrangian mass transport,” ACM Transaction on Graphics, vol. 30, no. 6, pp. 158:1–158:12, 2011.
7.K. Bredies, D. A. Lorenz, and P. Maass, “A generalized conditional gradient method and its connection to an iterative shrinkage method,” Computational Optimization and Applications, vol. 42, no. 2, pp. 173–193, 2009.
8.K. Bredies, D. Lorenz, and P. Maass, Equivalence of a generalized conditional gradient method and the method of surrogate functionals. Zentrum für Technomathematik, 2005.
9.L. Bruzzone and M. Marconcini, “Domain adaptation problems: A dasvm classification technique and a circular validation strategy,” IEEE Transactions on Pattern Analysis and Machine Intelligence, vol. 32, no. 5, pp. 770–787, May 2010.
10.T. S. Caetano, T. Caelli, D. Schuurmans, and D. Barone, “Grapihcal models and point pattern matching,” IEEE Transactions on Pattern Analysis and Machine Intelligence, vol. 28, no. 10, pp. 1646–1663, 2006.
11.T. S. Caetano, J. J. McAuley, L. Cheng, Q. V. Le, and A. J. Smola, “Learning graph matching,” IEEE Transactions on Pattern Analysis and Machine Intelligence, vol. 31, no. 6, pp. 1048–1058, 2009.
12.G. Carlier, A. Oberman, and E. Oudet, “Numerical methods for matching for teams and Wasserstein barycenters,” Inria, Tech. Rep. hal-00987292, 2014.
13.M. Carreira-Perpinan and W. Wang, “LASS: A simple assignment model with laplacian smoothing,” in AAAI Conference on Artificial Intelligence, 2014.
14.N. Courty, R. Flamary, and D. Tuia, “Domain adaptation with regularized optimal transport,” in European Conference on Machine Learning and Principles and Practice of Knowledge Discovery in Databases (ECML PKDD), 2014.
15.M. Cuturi, “Sinkhorn distances: Lightspeed computation of optimal transportation,” in Neural Information Processing Systems (NIPS), 2013, pp. 2292–2300.
16.M. Cuturi and D. Avis, “Ground metric learning,” Journal of Machine Learning Research, vol. 15, no. 1, pp. 533–564, Jan. 2014.
17.M. Cuturi and A. Doucet, “Fast computation of Wasserstein barycenters,” in International Conference on Machine Learning (ICML), 2014.
18.H. Daumé III, “Frustratingly easy domain adaptation,” in Ann. Meeting of the Assoc. Computational Linguistics, 2007.
19.J. Donahue, Y. Jia, O. Vinyals, J. Hoffman, N. Zhang, E. Tzeng, and T. Darrell, “DeCAF: a deep convolutional activation feature for generic visual recognition,” in International Conference on Machine Learning (ICML), 2014, pp. 647–655.
20.S. Ferradans, N. Papadakis, J. Rabin, G. Peyré, and J.-F. Aujol, “Regularized discrete optimal transport,” in Scale Space and Variational Methods in Computer Vision, SSVM, 2013, pp. 428–439.
21.W. Gangbo and R. J. McCann, “The geometry of optimal transportation,” Acta Mathematica, vol. 177, no. 2, pp. 113–161, 1996.
22.P. Germain, A. Habrard, F. Laviolette, and E. Morvant, “A PAC-Bayesian Approach for Domain Adaptation with Specialization to Linear Classifiers,” in International Conference on Machine Learning (ICML), Atlanta, USA, 2013, pp. 738–746.
23.B. Gong, Y. Shi, F. Sha, and K. Grauman, “Geodesic flow kernel for unsupervised domain adaptation.” in IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2012, pp. 2066–2073.
24.R. Gopalan, R. Li, and R. Chellappa, “Domain adaptation for object recognition: An unsupervised approach,” in International Conference on Computer Vision (ICCV), 2011, pp. 999–1006.
25.G. Griffin, A. Holub, and P. Perona, “Caltech-256 Object Category Dataset,” California Institute of Technology, Tech. Rep. CNS-TR-2007-001, 2007.
26.J. Ham, D. Lee, and L. Saul, “Semisupervised alignment of manifolds,” in 10th International Workshop on Artificial Intelligence and Statistics, R. G. Cowell and Z. Ghahramani, Eds., 2005, pp. 120–127.
27.J. Hoffman, E. Rodner, J. Donahue, K. Saenko, and T. Darrell, “Efficient learning of domain invariant image representations,” in International Conference on Learning Representations (ICLR), 2013.
28.——, “Efficient learning of domain-invariant image representations,” in International Conference on Learning Representations (ICLR), 2013.
29.I.-H. Jhuo, D. Liu, D. T. Lee, and S.-F. Chang, “Robust visual domain adaptation with low-rank reconstruction,” in IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2012, pp. 2168–2175.
30.L. Kantorovich, “On the translocation of masses,” C.R. (Doklady) Acad. Sci. URSS (N.S.), vol. 37, pp. 199–201, 1942.
31.P. Knight, “The sinkhorn-knopp algorithm: Convergence and applications,” SIAM Journal on Matrix Analysis and Applications, vol. 30, no. 1, pp. 261–275, 2008.
32.B. Kulis, K. Saenko, and T. Darrell, “What you saw is not what you get: domain adaptation using asymmetric kernel transforms,” in IEEE Conference on Computer Vision and Pattern Recognition (CVPR), Colorado Springs, CO, 2011.
33.A. Kumar, H. Daumé III, and D. Jacobs, “Generalized multiview analysis: A discriminative latent space,” in IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2012.
34.M. Long, J. Wang, G. Ding, J. Sun, and P. Yu, “Transfer feature learning with joint distribution adaptation,” in International Conference on Computer Vision (ICCV), Dec 2013, pp. 2200–2207.
35.B. Luo and R. Hancock, “Structural graph matching using the em algorithm and singular value decomposition,” IEEE Transactions on Pattern Analysis and Machine Intelligence, vol. 23, no. 10, pp. 1120–1136, 2001.
36.Y. Mansour, M. Mohri, and A. Rostamizadeh, “Domain adaptation: Learning bounds and algorithms,” in Conference on Learning Theory (COLT), 2009, pp. 19–30.
37.S. J. Pan and Q. Yang, “A survey on transfer learning,” IEEE Transactions on Knowledge and Data Engineering, vol. 22, no. 10, pp. 1345–1359, 2010.
38.——, “Domain adaptation via transfer component analysis,” IEEE Transactions on Neural Networks, vol. 22, pp. 199–210, 2011.
39.V. M. Patel, R. Gopalan, R. Li, and R. Chellappa, “Visual domain adaptation: an overview of recent advances,” IEEE Signal Processing Magazine, vol. 32, no. 3, 2015.
40.J. Rabin, G. Peyré, J. Delon, and M. Bernot, “Wasserstein barycenter and its application to texture mixing,” in Scale Space and Variational Methods in Computer Vision, ser. Lecture Notes in Computer Science, 2012, vol. 6667, pp. 435–446.
41.Y. Rubner, C. Tomasi, and L. Guibas, “A metric for distributions with applications to image databases,” in International Conference on Computer Vision (ICCV), 1998, pp. 59–66.
42.K. Saenko, B. Kulis, M. Fritz, and T. Darrell, “Adapting visual category models to new domains,” in European Conference on Computer Vision (ECCV), ser. LNCS, 2010, pp. 213–226.
43.F. Santambrogio, “Optimal transport for applied mathematicians,” Birkäuser, NY, 2015.
44.S. Si, D. Tao, and B. Geng, “Bregman divergence-based regularization for transfer subspace learning,” IEEE Transactions on Knowledge and Data Engineering, vol. 22, no. 7, pp. 929–942, July 2010.
45.J. Solomon, R. Rustamov, G. Leonidas, and A. Butscher, “Wasserstein propagation for semi-supervised learning,” in International Conference on Machine Learning (ICML), 2014, pp. 306–314.
46.M. Sugiyama, S. Nakajima, H. Kashima, P. Buenau, and M. Kawanabe, “Direct importance estimation with model selection and its application to covariate shift adaptation,” in Neural Information Processing Systems (NIPS), 2008.
47.D. Tuia and G. Camps-Valls, “Kernel manifold alignment for domain adaptation,” PLoS One, vol. 11, no. 2, p. e0148655, 2016.
48.D. Tuia, R. Flamary, A. Rakotomamonjy, and N. Courty, “Multitemporal classification without new labels: a solution with optimal transport,” in 8th International Workshop on the Analysis of Multitemporal Remote Sensing Images, 2015.
49.C. Villani, Optimal transport: old and new, ser. Grundlehren der mathematischen Wissenschaften. Springer, 2009.
50.C. Wang, P. Krafft, and S. Mahadevan, “Manifold alignment,” in Manifold Learning: Theory and Applications, Y. Ma and Y. Fu, Eds. CRC Press, 2011.
51.C. Wang and S. Mahadevan, “Manifold alignment without correspondence,” in International Joint Conference on Artificial Intelligence (IJCAI), Pasadena, CA, 2009.
52.——, “Heterogeneous domain adaptation using manifold alignment,” in International Joint Conference on Artificial Intelligence (IJCAI). AAAI Press, 2011, pp. 1541–1546.
53.K. Zhang, V. W. Zheng, Q. Wang, J. T. Kwok, Q. Yang, and I. Marsic, “Covariate shift in Hilbert space: A solution via surrogate kernels,” in International Conference on Machine Learning (ICML), 2013.
54.J. Zheng, M.-Y. Liu, R. Chellappa, and P. Phillips, “A Grassmann manifold-based domain adaptation approach,” in International Conference on Pattern Recognition (ICPR), Nov 2012, pp. 2095–2099.

Citation

MLA

Courty, N., et al. “Optimal Transport for Domain Adaptation”. arXiv, 2015, http://arxiv.org/abs/1507.00504v2.

APA

Courty, N., Flamary, R., Tuia, D., & Rakotomamonjy, A. (2015). Optimal Transport for Domain Adaptation. arXiv. http://arxiv.org/abs/1507.00504v2

Chicago

Courty, N., R. Flamary, D. Tuia, and A. Rakotomamonjy. 2015. “Optimal Transport for Domain Adaptation”. arXiv. http://arxiv.org/abs/1507.00504v2.

Harvard

Courty, N. et al. (2015) “Optimal Transport for Domain Adaptation”, arXiv [Preprint]. Available at: http://arxiv.org/abs/1507.00504v2.

Vancouver

1. Courty N, Flamary R, Tuia D, Rakotomamonjy A (2015) Optimal Transport for Domain Adaptation. arXiv

BibTeX

@article{courty2015optimal,
  title = {Optimal Transport for Domain Adaptation},
  author = {Courty, Nicolas and Flamary, Rémi and Tuia, Devis and Rakotomamonjy, Alain},
  year = {2015},
  journal = {arXiv},
  url = {http://arxiv.org/abs/1507.00504v2},
  eprint = {1507.00504}
}

Metadata:arXiv

Access the Paper

This paper is available from its original source. Click below to access the PDF.

Open PDF

Optimal Transport for Domain Adaptation

Abstract

Topics

Keywords

Table of Contents

Knowls

Knowl 1 — Optimal Transport Framework for Unsupervised Domain Adaptation

Knowl 2 — Barycentric Mapping for Source Sample Transport

Knowl 3 — Exact Affine Transformation Recovery in Discrete Optimal Transport

Knowl 4 — Group-Sparse Regularization for Class-Preserving Optimal Transport

Knowl 5 — Graph Laplacian Regularization for Optimal Transport Domain Adaptation

Knowl 6 — Semi-Supervised Domain Adaptation via Optimal Transport Cost Masking

Knowl 7 — Generalized Conditional Gradient Algorithm for Regularized Optimal Transport

Knowl 8 — Domain Adaptation Performance on the Two Moons Synthetic Benchmark

Knowl 9 — Visual Domain Adaptation Benchmark on SURF Features

Knowl 10 — Optimal Transport Domain Adaptation with Deep DeCAF Features

Knowl 11 — Semi-Supervised Visual Domain Adaptation Performance on SURF Features

References

Citation

BibTeX

Access the Paper
