Analyzing Multi-Head Self-Attention: Specialized Heads Do the Heavy Lifting, the Rest Can Be Pruned

Elena Voita $^{1,2}$
$^{1}$ Yandex, Russia; $^{2}$ University of Amsterdam, Netherlands

David Talbot $^{1}$
$^{1}$ Yandex, Russia

Fedor Moiseev $^{1,5}$
$^{1}$ Yandex, Russia; $^{5}$ Moscow Institute of Physics and Technology, Russia

Rico Sennrich $^{3,4}$
$^{3}$ University of Edinburgh, Scotland; $^{4}$ University of Zurich, Switzerland

Ivan Titov $^{3,2}$
$^{3}$ University of Edinburgh, Scotland; $^{2}$ University of Amsterdam, Netherlands

Abstract

Multi-head self-attention is a key component of the Transformer, a state-of-the-art architecture for neural machine translation. In this work we evaluate the contribution made by individual attention heads in the encoder to the overall performance of the model and analyze the roles played by them. We find that the most important and confident heads play consistent and often linguistically-interpretable roles. When pruning heads using a method based on stochastic gates and a differentiable relaxation of the $L_0$ penalty, we observe that specialized heads are last to be pruned. Our novel pruning method removes the vast majority of heads without seriously affecting performance. For example, on the English-Russian WMT dataset, pruning 38 out of 48 encoder heads results in a drop of only 0.15 BLEU.

Executive Summary: Modern state-of-the-art neural machine translation systems rely heavily on Transformer models, which use multi-head self-attention mechanisms to process language. While multi-head attention provides strong translation performance, these models require significant computational resources, and it has been largely unclear how much individual attention heads actually contribute to output quality. The article evaluates the individual contribution of attention heads in Transformer models, identifies the specific functions of the most critical heads, and demonstrates that the vast majority of heads can be pruned without substantially degrading translation performance.

To evaluate head importance, the analysis applied layer-wise relevance propagation—a technique measuring the contribution of individual components to the final output prediction—across models trained on translation tasks between English and three target languages (Russian, German, and French). The study examined 2.5 million sentence pairs from standard translation benchmarks and an additional 6 million sentence pairs from movie subtitle data. The researchers then evaluated the specific linguistic functions of high-performing heads against standard syntactic dependency structures. Finally, they introduced a pruning method that applies a differentiable penalty to disable unnecessary heads during fine-tuning from a converged model.

The investigation produced four central findings. First, only a small fraction of attention heads drive translation quality, while the majority contribute very little. Second, the most important heads perform specialized, interpretable functions: positional heads track adjacent words (assigning over 90% of attention to immediate neighbors), syntactic heads identify grammatical dependencies (such as subject-verb or verb-object relationships, often exceeding positional baselines by 10% to 40%), and rare-word heads focus on infrequent vocabulary. Third, pruning non-essential heads produces substantial model compression with minimal quality loss; for example, removing 38 out of 48 encoder heads on English-to-Russian translation resulted in a quality drop of only 0.15 points on the standard evaluation scale, and pruning over half of all heads across the entire network caused a drop of no more than 0.25 points. Fourth, attention types exhibit distinct roles and sensitivities: encoder-decoder attention heads are the most critical and resistant to pruning, whereas encoder self-attention heads are pruned first.

These findings indicate that full Transformer architectures contain substantial redundancy. Practitioners can significantly compress models to lower memory footprints, reduce latency, and reduce deployment costs while maintaining translation performance. Importantly, the analysis shows that compact models must be derived by pruning fully trained architectures rather than training small models from scratch, as training a sparse model from scratch consistently yields lower translation quality.

Organizations deploying Transformer-based translation systems should pilot post-training pruning techniques on existing models before production deployment to reduce computational overhead. Engineering teams should prioritize pruning encoder self-attention layers while carefully preserving cross-attention (decoder-encoder) heads and specialized syntactic heads. Further validation across broader language families and additional natural language processing tasks is recommended to confirm the generalizability of these pruning dynamics before broad implementation.

1. Introduction

Section Summary: The Transformer model dominates neural machine translation through its encoder-decoder structure and multi-head attention mechanism, which allows different heads to capture varied information and boosts performance over single-head versions. Prior work has struggled to analyze these heads individually because it often averaged their contributions or ignored differences in their importance, prompting new questions about how much translation quality relies on specific heads, what distinct roles they play, and whether many can be removed without harm. By applying relevance propagation and a pruning technique, the study finds that only a small subset of heads matter, and these tend to specialize in clear functions such as tracking nearby words or particular grammatical relationships.

The Transformer [1] has become the dominant modeling paradigm in neural machine translation. It follows the encoder-decoder framework using stacked multi-head self-attention and fully connected layers. Multi-head attention was shown to make more efficient use of the model's capacity: performance of the model with 8 heads is almost 1 BLEU point higher than that of a model of the same size with single-head attention [1]. The Transformer achieved state-of-the-art results in recent shared translation tasks [2, 3]. Despite the model's widespread adoption and recent attempts to investigate the kinds of information learned by the model's encoder [4], the analysis of multi-head attention and its importance for translation is challenging. Previous analysis of multi-head attention considered the average of attention weights over all heads at a given position or focused only on the maximum attention weights [5, 6], but neither method explicitly takes into account the varying importance of different heads. Also, this obscures the roles played by individual heads which, as we show, influence the generated translations to differing extents. We attempt to answer the following questions:

• To what extent does translation quality depend on individual encoder heads?
• Do individual encoder heads play consistent and interpretable roles? If so, which are the most important ones for translation quality?
• Which types of model attention (encoder self-attention, decoder self-attention or decoder-encoder attention) are most sensitive to the number of attention heads and on which layers?
• Can we significantly reduce the number of attention heads while preserving translation quality?

We start by identifying the most important heads in each encoder layer using layer-wise relevance propagation [7]. For heads judged to be important, we then attempt to characterize the roles they perform. We observe the following types of role: positional (heads attending to an adjacent token), syntactic (heads attending to tokens in a specific syntactic dependency relation) and attention to rare words (heads pointing to the least frequent tokens in the sentence).

To understand whether the remaining heads perform vital but less easily defined roles, or are simply redundant to the performance of the model as measured by translation quality, we introduce a method for pruning heads based on [8]. While we cannot easily incorporate the number of active heads as a penalty term in our learning objective (i.e. the $L_0$ regularizer), we can use a differentiable relaxation. We prune attention heads in a continuous learning scenario starting from the converged full model and identify the roles of those which remain in the model. These experiments corroborate the findings of layer-wise relevance propagation; in particular, heads with clearly identifiable positional and syntactic functions are pruned last and hence shown to be most important for the translation task.

Our key findings are as follows:

• Only a small subset of heads are important for translation;
• Important heads have one or more specialized and interpretable functions in the model;
• The functions correspond to attention to neighbouring words and to tokens in specific syntactic dependency relations.

2. Transformer Architecture

Section Summary: The Transformer is an encoder-decoder neural network built from stacked layers that rely on self-attention mechanisms and simple feed-forward networks to process sequences. Each encoder layer computes attention by comparing queries, keys, and values derived from the previous layer’s output, then passes the result through a two-layer network; the decoder adds a further attention step that pulls information from the encoder. The model applies this attention pattern in three ways, though the paper focuses mainly on the encoder’s self-attention.

In this section, we briefly describe the Transformer architecture [1] introducing the terminology used in the rest of the paper.

The Transformer is an encoder-decoder model that uses stacked self-attention and fully connected layers for both the encoder and decoder. The encoder consists of $N$ layers, each containing two sub-layers: (a) a multi-head self-attention mechanism, and (b) a feed-forward network. The multi-head attention mechanism relies on scaled dot-product attention, which operates on a query $Q$, a key $K$ and a value $V$:

$ \textnormal{Attention}(Q, K, V ) = \textnormal{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $

where $d_k$ is the key dimensionality. In self-attention, queries, keys and values come from the output of the previous layer.

The multi-head attention mechanism obtains $h$ (i.e. one per head) different representations of ($Q$, $K$, $V$), computes scaled dot-product attention for each representation, concatenates the results, and projects the concatenation through a feed-forward layer. This can be expressed in the same notation as Equation (1):

$ \textnormal{head}_i = \textnormal{Attention}(QW_i^Q , K W_i^K , V W_i^V ) $

$ \textnormal{MultiHead}(Q, K, V ) = \textnormal{Concat}_i(\textnormal{head}_i)W^O $

where the $W_i$ and $W^O$ are parameter matrices.

The second component of each layer of the Transformer network is a feed-forward network. The authors propose using a two-layer network with a ReLU activation.

Analogously, each layer of the decoder contains the two sub-layers mentioned above as well as an additional multi-head attention sub-layer. This additional sub-layer receives the output of the encoder as its keys and values.

The Transformer uses multi-head attention in three different ways: encoder self-attention, decoder self-attention and decoder-encoder attention. In this work, we concentrate primarily on encoder self-attention.

3. Data and setting

Section Summary: The study examines machine translation from English into Russian, German, and French, using exactly 2.5 million sentence pairs drawn from WMT data for each language pair so that training resources remain comparable. The same held-out set of 50,000 English sentences serves as test data across these pairs, while additional experiments with the OpenSubtitles corpus explore how results change across different domains, especially for English–Russian. All models share the same size and training setup, with further technical details placed in an appendix.

We focus on English as a source language and consider three target languages: Russian, German and French. For each language pair, we use the same number of sentence pairs from WMT data to control for the amount of training data and train Transformer models with the same numbers of parameters. We use 2{.}5m sentence pairs, corresponding to the amount of English–Russian parallel training data (excluding UN and Paracrawl). In Section 5.2 we use the same held-out data for all language pairs; these are 50k English sentences taken from the WMT EN-FR data not used in training.

For English-Russian, we perform additional experiments using the publicly available OpenSubtitles2018 corpus [9] to evaluate the impact of domains on our results.

In Section 6 we concentrate on English-Russian and two domains: WMT and OpenSubtitles.

Model hyperparameters, preprocessing and training details are provided in Appendix B.

4. Identifying Important Heads

Section Summary: Previous analyses of Transformer attention either averaged attention weights across heads or took their maximum, without accounting for the fact that individual heads contribute unequally to the model's output. To address this, the authors measure each head's "confidence" by how strongly it focuses on a single token and apply layer-wise relevance propagation to quantify how much each head influences the model's top prediction. Their results indicate that only a few heads per layer are highly important, with confidence scores largely aligning with relevance rankings.

Previous work analyzing how representations are formed by the Transformer's multi-head attention mechanism focused on either the average or the maximum attention weights over all heads [5, 6], but neither method explicitly takes into account the varying importance of different heads. Also, this obscures the roles played by individual heads which, as we will show, influence the generated translations to differing extents.

We define the "confidence" of a head as the average of its maximum attention weight excluding the end of sentence symbol,[^1] where average is taken over tokens in a set of sentences used for evaluation (development set). A confident head is one that usually assigns a high proportion of its attention to a single token. Intuitively, we might expect confident heads to be important to the translation task.

[^1]: We exclude EOS on the grounds that it is not a real token.

Layer-wise relevance propagation (LRP) [7] is a method for computing the relative contribution of neurons at one point in a network to neurons at another.[^2] Here we propose to use LRP to evaluate the degree to which different heads at each layer contribute to the top-1 logit predicted by the model. Heads whose outputs have a higher relevance value may be judged to be more important to the model's predictions.

[^2]: A detailed description of LRP is provided in Appendix A.

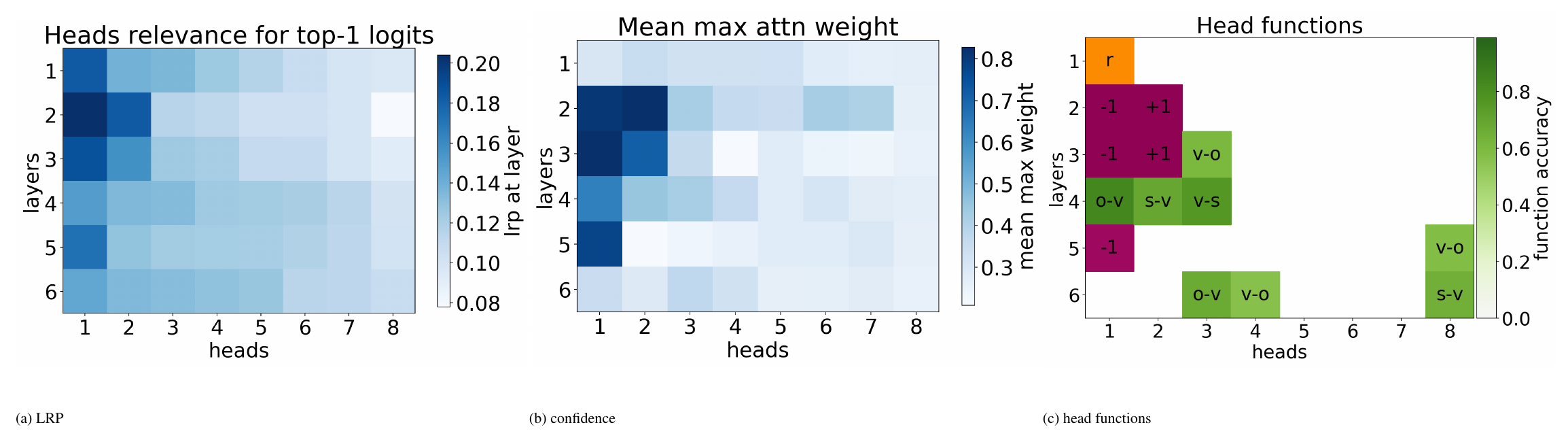

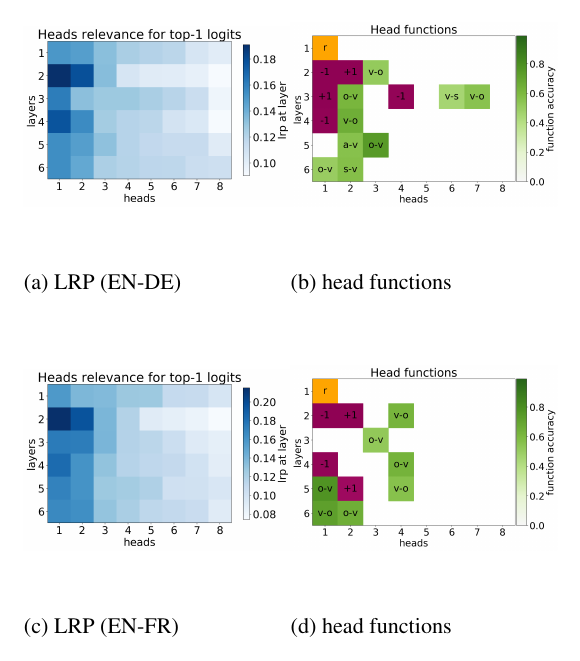

The results of LRP are shown in Figure 1a, Figure 2a, Figure 2c. In each layer, LRP ranks a small number of heads as much more important than all others.

The confidence for each head is shown in Figure 1b. We can observe that the relevance of a head as computed by LRP agrees to a reasonable extent with its confidence. The only clear exception to this pattern is the head judged by LRP to be the most important in the first layer. It is the most relevant head in the first layer but its average maximum attention weight is low. We will discuss this head further in Section 5.3.

5. Characterizing heads

Section Summary: Researchers analyzed attention patterns in the Transformer encoder to determine whether individual heads perform consistent, interpretable roles during translation. They identified three main types: positional heads that reliably attend to adjacent tokens, syntactic heads that track specific grammatical relations such as subject or object, and a rare-word head in the first layer that focuses on infrequent tokens. These specialized heads largely overlap with those ranked as most important by relevance propagation, indicating that the model relies on them for structured language handling.

We now turn to investigating whether heads play consistent and interpretable roles within the model.

We examined some attention matrices paying particular attention to heads ranked highly by LRP and identified three functions which heads might be playing:

1. positional: the head points to an adjacent token,
2. syntactic: the head points to tokens in a specific syntactic relation,
3. rare words: the head points to the least frequent tokens in a sentence.

Now we discuss the criteria used to determine if a head is performing one of these functions and examine properties of the corresponding heads.

5.1 Positional heads

We refer to a head as "positional" if at least 90% of the time its maximum attention weight is assigned to a specific relative position (in practice either -1 or +1, i.e. attention to adjacent tokens). Such heads are shown in purple in Figure 1c for English-Russian, Figure 2b for English-German, Figure 2d for English-French and marked with the relative position.

As can be seen, the positional heads correspond to a large extent to the most confident heads and the most important heads as ranked by LRP. In fact, the average maximum attention weight exceeds $0{.}8$ for every positional head for all language pairs considered here.

5.2 Syntactic heads

We hypothesize that, when used to perform translation, the Transformer's encoder may be responsible for disambiguating the syntactic structure of the source sentence. We therefore wish to know whether a head attends to tokens corresponding to any of the major syntactic relations in a sentence. In our analysis, we looked at the following dependency relations: nominal subject (nsubj), direct object (dobj), adjectival modifier (amod) and adverbial modifier (advmod). These include the main verbal arguments of a sentence and some other common relations. They also include those relations which might inform morphological agreement or government in one or more of the target languages considered here.

5.2.1 Methodology

We evaluate to what extent each head in the Transformer's encoder accounts for a specific dependency relation by comparing its attention weights to a predicted dependency structure generated using CoreNLP [10] on a large number of held-out sentences. We calculate for each head how often it assigns its maximum attention weight (excluding EOS) to a token with which it is in one of the aforementioned dependency relations. We count each relation separately and allow the relation to hold in either direction between the two tokens.

We refer to this relative frequency as the "accuracy" of head on a specific dependency relation in a specific direction. Note that under this definition, we may evaluate the accuracy of a head for multiple dependency relations.

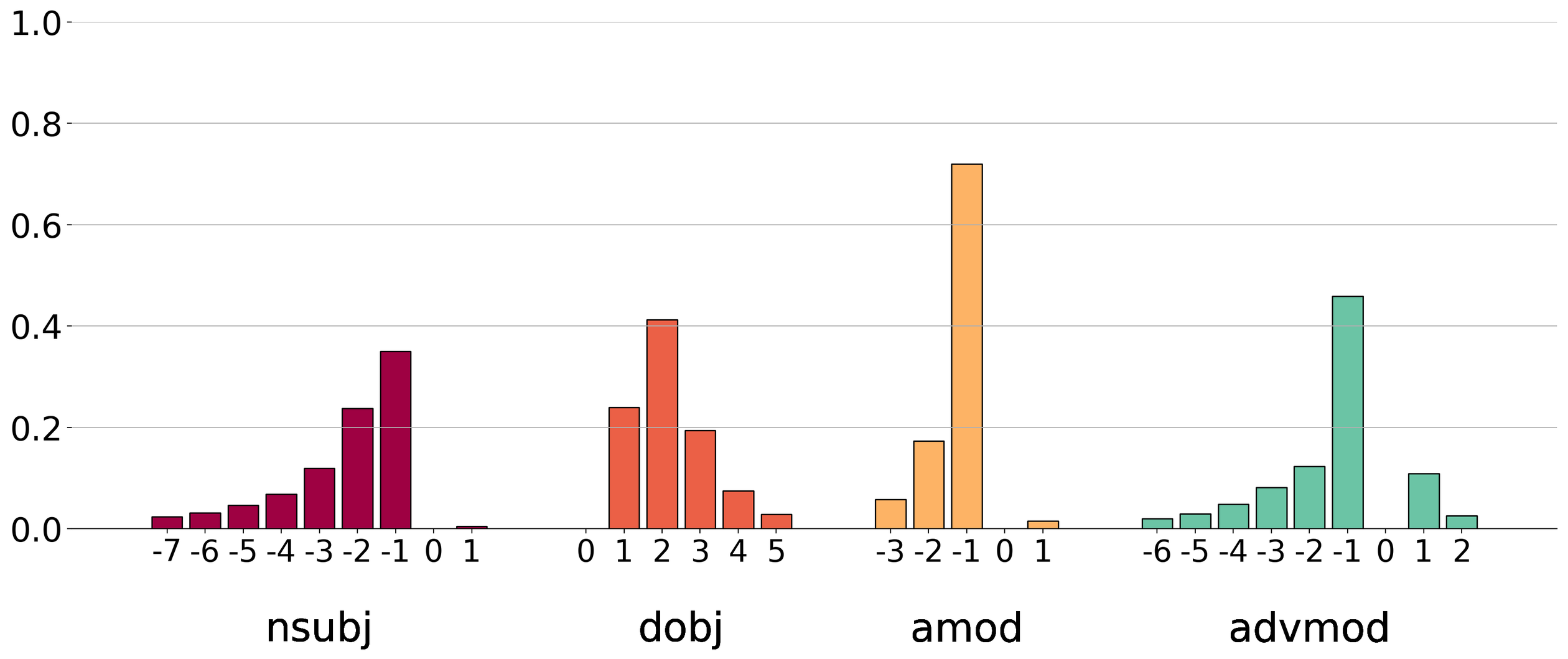

Many dependency relations are frequently observed in specific relative positions (for example, often they hold between adjacent tokens, see Figure 3). We say that a head is "syntactic" if its accuracy is at least $10%$ higher than the baseline that looks at the most frequent relative position for this dependency relation.

5.2.2 Results

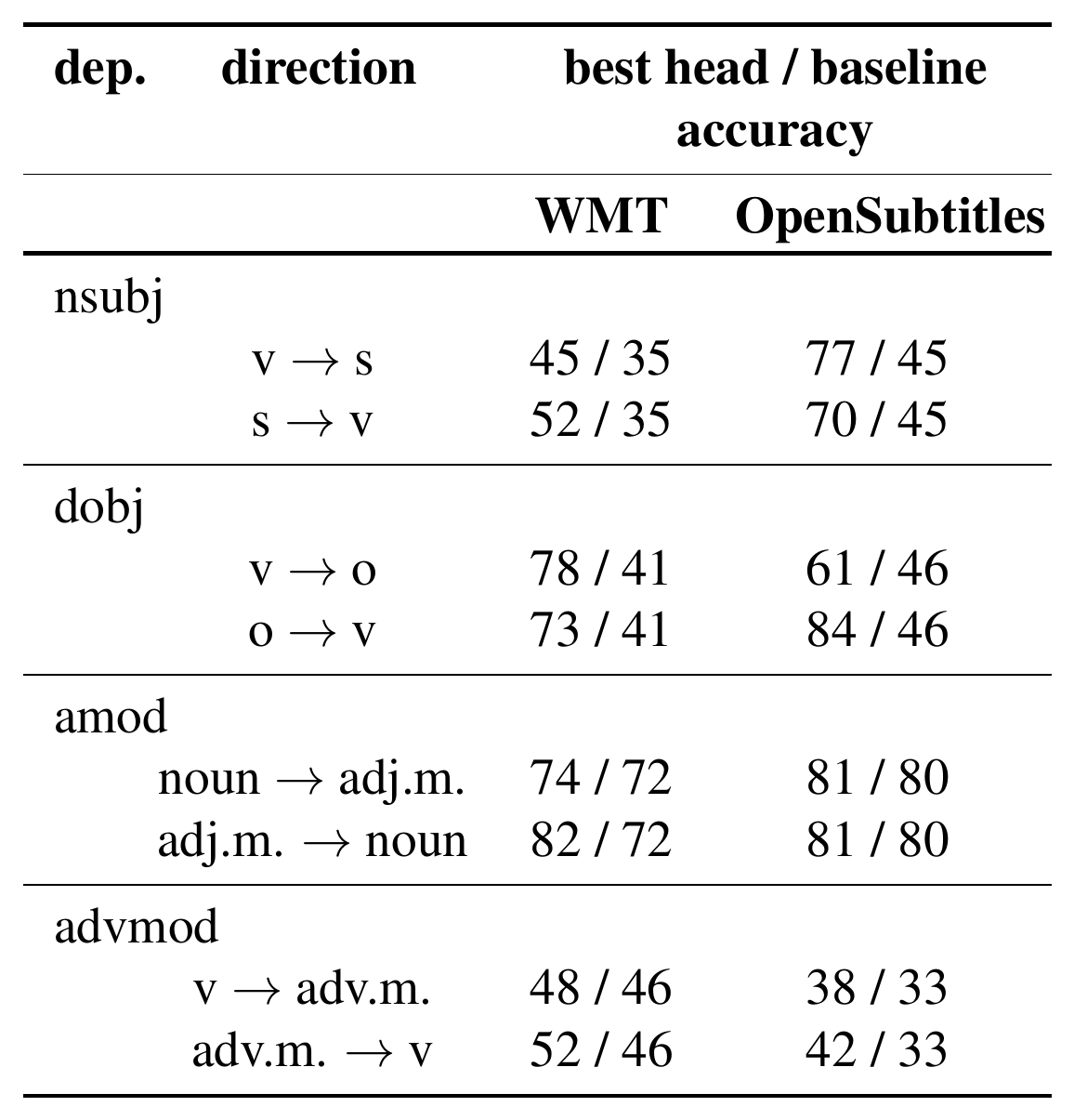

::: {caption="Table 1: Dependency scores for EN-RU, comparing the best self-attention head to a positional baseline. Models trained on 2.5m WMT data and 6m OpenSubtitles data."}

:::

Table 1 shows the accuracy of the most accurate head for each of the considered dependency relations on the two domains for English-Russian. Figure 4 compares the scores of the models trained on WMT with different target languages.

Clearly certain heads learn to detect syntactic relations with accuracies significantly higher than the positional baseline. This supports the hypothesis that the encoder does indeed perform some amount of syntactic disambiguation of the source sentence.

Several heads appear to be responsible for the same dependency relation. These heads are shown in green in Figure 1c, Figure 2b, Figure 2d.

Unfortunately, it is not possible to draw any strong conclusions from these results regarding the impact of target language morphology on the accuracy of the syntactic attention heads although relations with strong target morphology are among those that are most accurately learned.

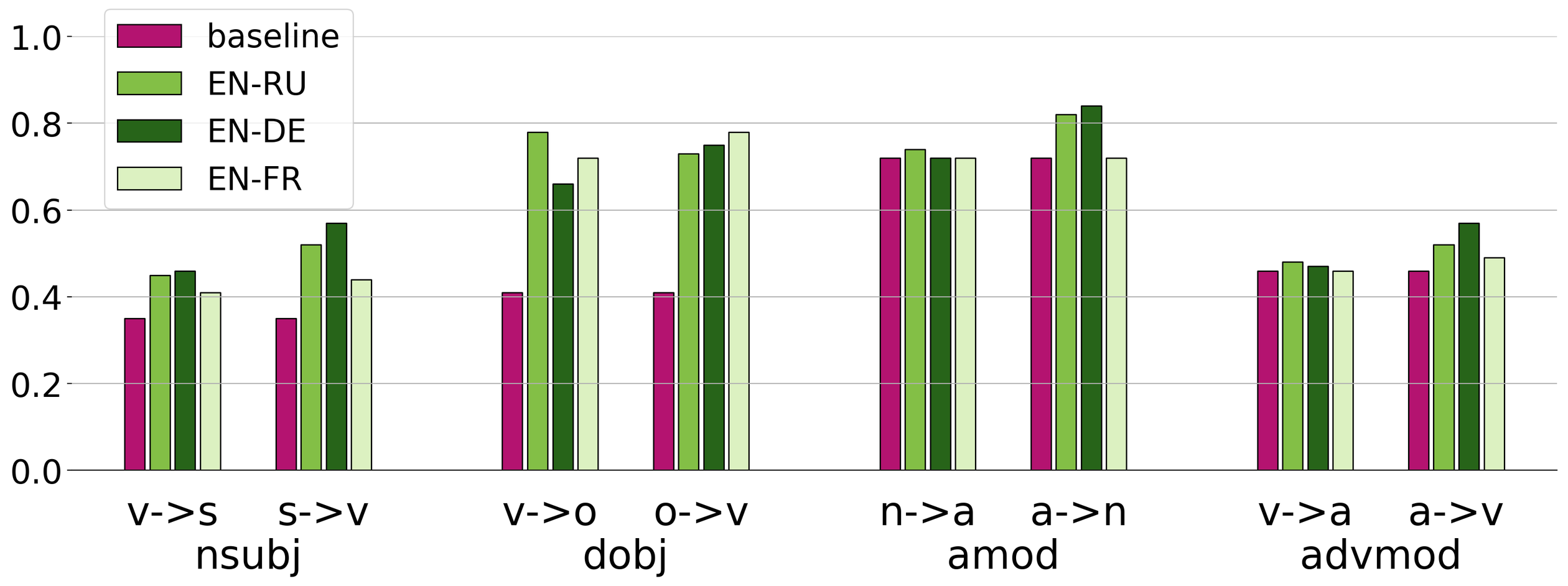

Note the difference in accuracy of the verb-subject relation heads across the two domains for English-Russian. We hypothesize that this is due to the greater variety of grammatical person present[^3] in the Subtitles data which requires more attention to this relation. However, we leave proper analysis of this to future work.

[^3]: First, second and third person subjects are encountered in approximately $6%$, $3%$ and $91%$ of cases in WMT data and in $32%$, $21%$ and $47%$ of cases in OpenSubtitles data.

5.3 Rare words

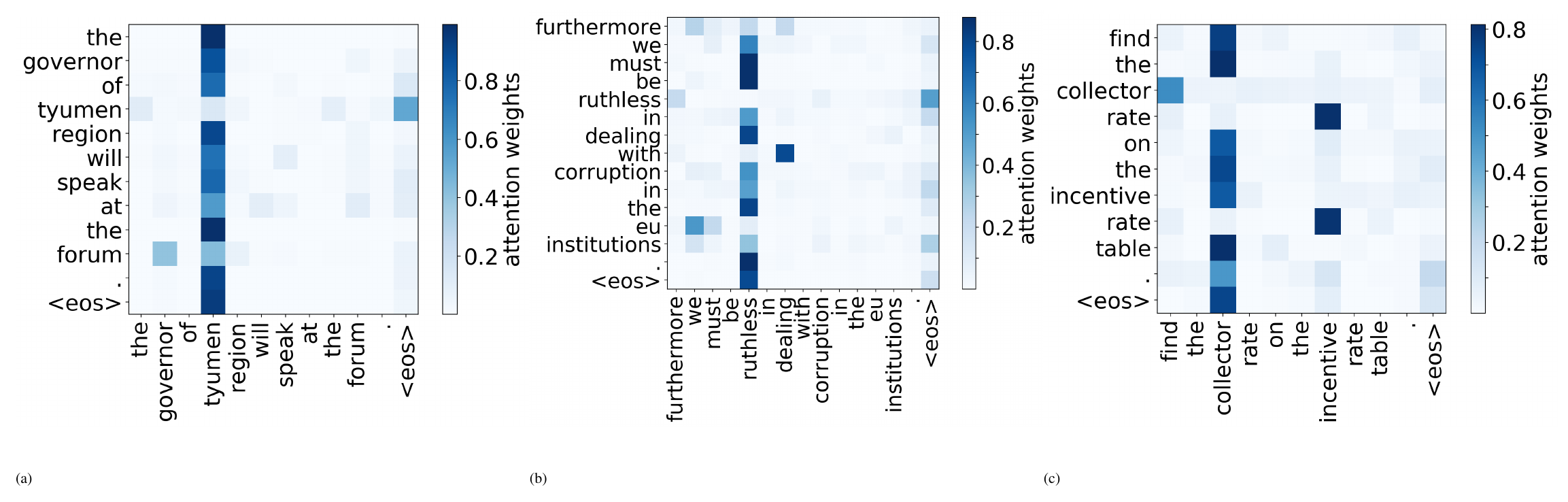

In all models (EN-RU, EN-DE, EN-FR on WMT and EN-RU on OpenSubtitles), we find that one head in the first layer is judged to be much more important to the model's predictions than any other heads in this layer.

We find that this head points to the least frequent tokens in a sentence. For models trained on OpenSubtitles, among sentences where the least frequent token in a sentence is not in the top-500 most frequent tokens, this head points to the rarest token in 66$%$ of cases, and to one of the two least frequent tokens in 83$%$ of cases. For models trained on WMT, this head points to one of the two least frequent tokens in more than 50$%$ of such cases. This head is shown in orange in Figure 1c, Figure 2b, Figure 2d. Examples of attention maps for this head for models trained on WMT data with different target languages are shown in Figure 5.

6. Pruning Attention Heads

Section Summary: The section describes a pruning method that multiplies each attention head's output by a learned scalar gate, trained with a regularizer based on the Hard Concrete distribution to drive most gates to exactly zero and thereby disable unnecessary heads. Starting from a converged translation model, the approach fine-tunes only the encoder (or selected layers) under this penalty, allowing the network to converge to a sparse configuration that can be evaluated as a standard Transformer. Results indicate that BLEU scores remain nearly unchanged after removing the great majority of heads, implying that many are redundant for translation quality while a small retained subset preserves the essential functions.

We have identified certain functions of the most relevant heads at each layer and showed that to a large extent they are interpretable. What of the remaining heads? Are they redundant to translation quality or do they play equally vital but simply less easily defined roles? We introduce a method for pruning attention heads to try to answer these questions. Our method is based on [8]. Whereas they pruned individual neural network weights, we prune entire model components (i.e. heads). We start by describing our method and then examine how performance changes as we remove heads, identifying the functions of heads retained in the sparsified models.

6.1 Method

We modify the original Transformer architecture by multiplying the representation computed by each head$_i$ by a scalar gate $g_i$. Equation (3) turns into

$ \nonumber \textnormal{MultiHead}(Q,K,V )!=! \textnormal{Concat}_i(g_i!\cdot!\textnormal{head}_i)W^O. $

Unlike usual gates, $g_i$ are parameters specific to heads and are independent of the input (i.e. the sentence). As we would like to disable less important heads completely rather than simply downweighting them, we would ideally apply $L_0$ regularization to the scalars $g_i$. The $L_0$ norm equals the number of non-zero components and would push the model to switch off less important heads:

$ L_0(g_1, \ldots, g_h) = \sum_{i=1}^{h} (1 - [[ g_i = 0 ]]), $

where $h$ is the number of heads, and $[[ \quad ]]$ denotes the indicator function.

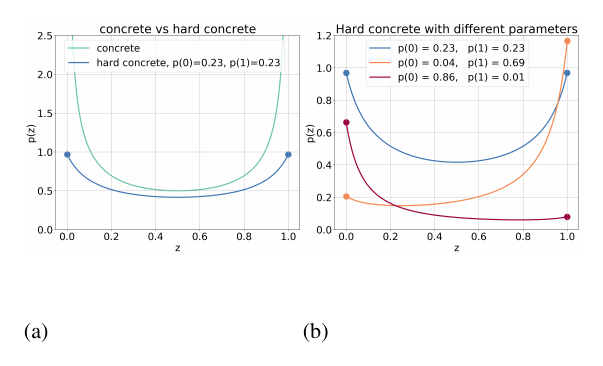

Unfortunately, the $L_0$ norm is non-differentiable and so cannot be directly incorporated as a regularization term in the objective function. Instead, we use a stochastic relaxation: each gate $g_i$ is now a random variable drawn independently from a head-specific distribution.[^4] We use the Hard Concrete distributions [8], a parameterized family of mixed discrete-continuous distributions over the closed interval $[0,1]$, see Figure 6a. The distributions have non-zero probability mass at 0 and 1, $P(g_i = 0 | \phi_i)$ and $P(g_i = 1 | \phi_i)$, where $\phi_i$ are the distribution parameters. Intuitively, the Hard Concrete distribution is obtained by stretching the binary version of the Concrete (aka Gumbel softmax) distribution [11, 12] from the original support of $(0, 1)$ to $(- \epsilon, 1 + \epsilon)$ and then collapsing the probability mass assigned to $(- \epsilon, 1]$ and $[1, 1 + \epsilon)$ to single points, 0 and 1, respectively. These stretching and rectification operations yield a mixed discrete-continuous distribution over $[0, 1]$. Now the sum of the probabilities of heads being non-zero can be used as a relaxation of the $L_0$ norm:

$ L_C(\phi) = \sum_{i=1}^{h} (1 - P(g_i = 0 | \phi_i)). $

[^4]: In training, we resample gate values $g_i$ for each batch.

The new training objective is

$ L(\theta, \phi) = L_{xent}(\theta, \phi) + \lambda L_C(\phi), $

where $\theta$ are the parameters of the original Transformer, $L_{xent}(\theta, \phi)$ is cross-entropy loss for the translation model, and $L_C(\phi)$ is the regularizer described above. The objective is easy to optimize: the reparameterization trick [13, 14] can be used to backpropagate through the sampling process for each $g_i$, whereas the regularizer and its gradients are available in the closed form. Interestingly, we observe that the model converges to solutions where gates are either almost completely closed (i.e. the head is pruned, $P(g_i = 0 | \phi_i) \approx 1$) or completely open ($P(g_i = 1 | \phi_i) \approx 1$), the latter not being explicitly encouraged.[^5] This means that at test time we can treat the model as a standard Transformer and use only a subset of heads.[^6]

[^5]: The 'noise' pushes the network not to use middle values. The combination of noise and rectification has been previously used to achieve discretization (e.g., [15]).

[^6]: At test time, gate values are either 0 or 1 depending on which of the values $P(g_i = 0 | \phi_i)$, $P(g_i = 1 | \phi_i)$ is larger.

When applying this regularizer, we start from the converged model trained without the $L_C$ penalty (i.e. parameters $\theta$ are initialized with the parameters of the converged model) and then add the gates and continue training the full objective. By varying the coefficient $\lambda$ in the optimized objective, we obtain models with different numbers of heads retained.

6.2 Pruning encoder heads

To determine which head functions are most important in the encoder and how many heads the model needs, we conduct a series of experiments with gates applied only to encoder self-attention. Here we prune a model by fine-tuning a trained model with the regularized objective.[^7] During pruning, the parameters of the decoder are fixed and only the encoder parameters and head gates are fine-tuned. By not fine-tuning the decoder, we ensure that the functions of the pruned encoder heads do not migrate to the decoder.

[^7]: In preliminary experiments, we observed that fine-tuning a trained model gives slightly better results (0{.}2–0{.}6 BLEU) than applying the regularized objective, or training a model with the same number of self-attention heads, from scratch.

6.2.1 Quantitative results: BLEU score

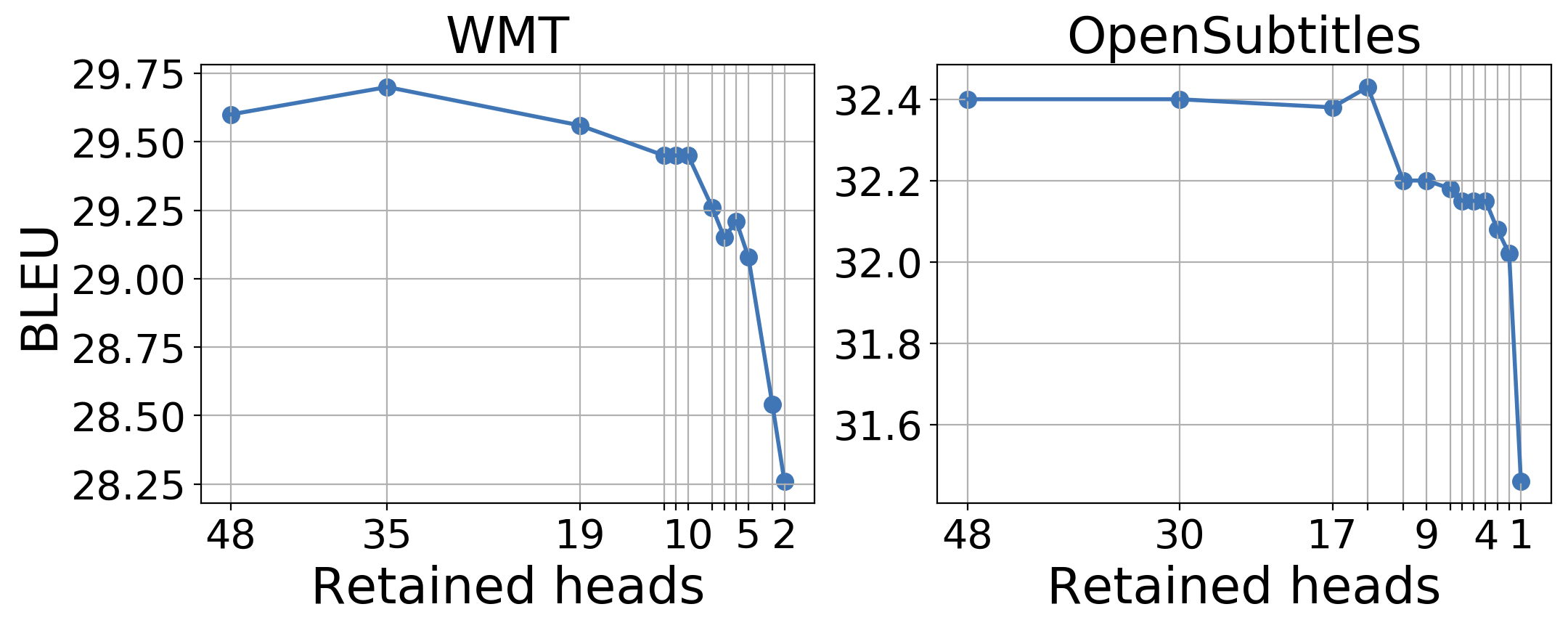

BLEU scores are provided in Figure 7. Surprisingly, for OpenSubtitles, we lose only $0{.}25$ BLEU when we prune all but 4 heads out of 48.[^8] For the more complex WMT task, 10 heads in the encoder are sufficient to stay within $0{.}15$ BLEU of the full model.

[^8]: If all heads in a layer are pruned, the only remaining connection to the previous layer is the residual connection.

6.2.2 Functions of retained heads

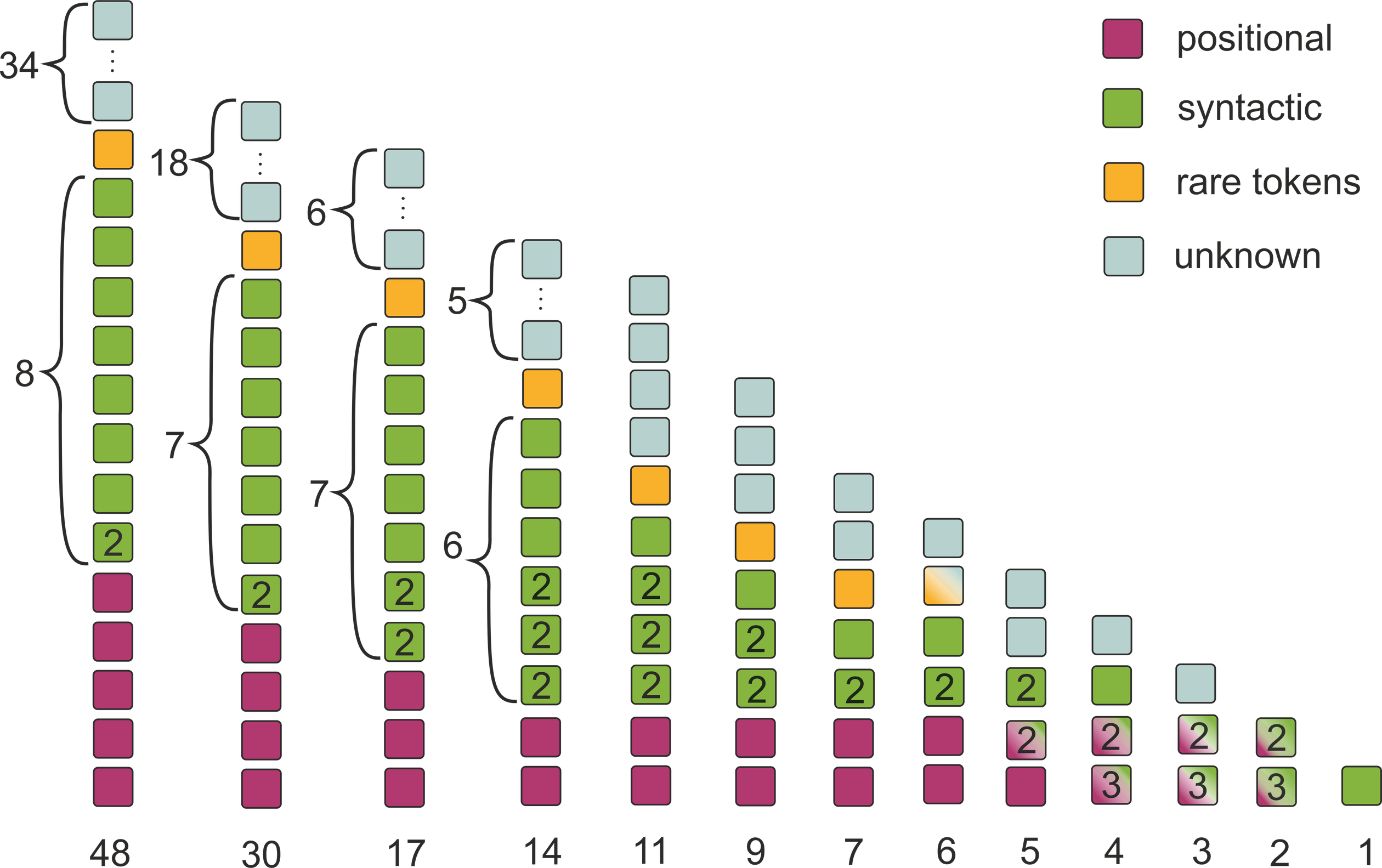

Results in Figure 7 suggest that the encoder remains effective even with only a few heads. In this section, we investigate the function of those heads that remain in the encoder during pruning. Figure 8 shows all heads color-coded for their function in a pruned model. Each column corresponds to a model with a particular number of heads retained after pruning. Heads from all layers are ordered by their function. Some heads can perform several functions (e.g., $s\rightarrow v$ and $v\rightarrow o$); in this case the number of functions is shown.

First, we note that the model with 17 heads retains heads with all the functions that we identified in Section 5, even though 2/3 of the heads have been pruned.

This indicates that these functions are indeed the most important. Furthermore, when we have fewer heads in the model, some functions "drift" to other heads: for example, we see positional heads starting to track syntactic dependencies; hence some heads are assigned more than one color at certain stages in Figure 8.

6.3 Pruning all types of attention heads

We found our pruning technique to be efficient at reducing the number of heads in the encoder without a major drop in translation quality. Now we investigate the effect of pruning all types of attention heads in the model (not just in the encoder). This allows us to evaluate the importance of different types of attention in the model for the task of translation. In these experiments, we add gates to all multi-head attention heads in the Transformer, i.e. encoder and decoder self-attention and attention from the decoder to the encoder.

6.3.1 Quantitative results: BLEU score

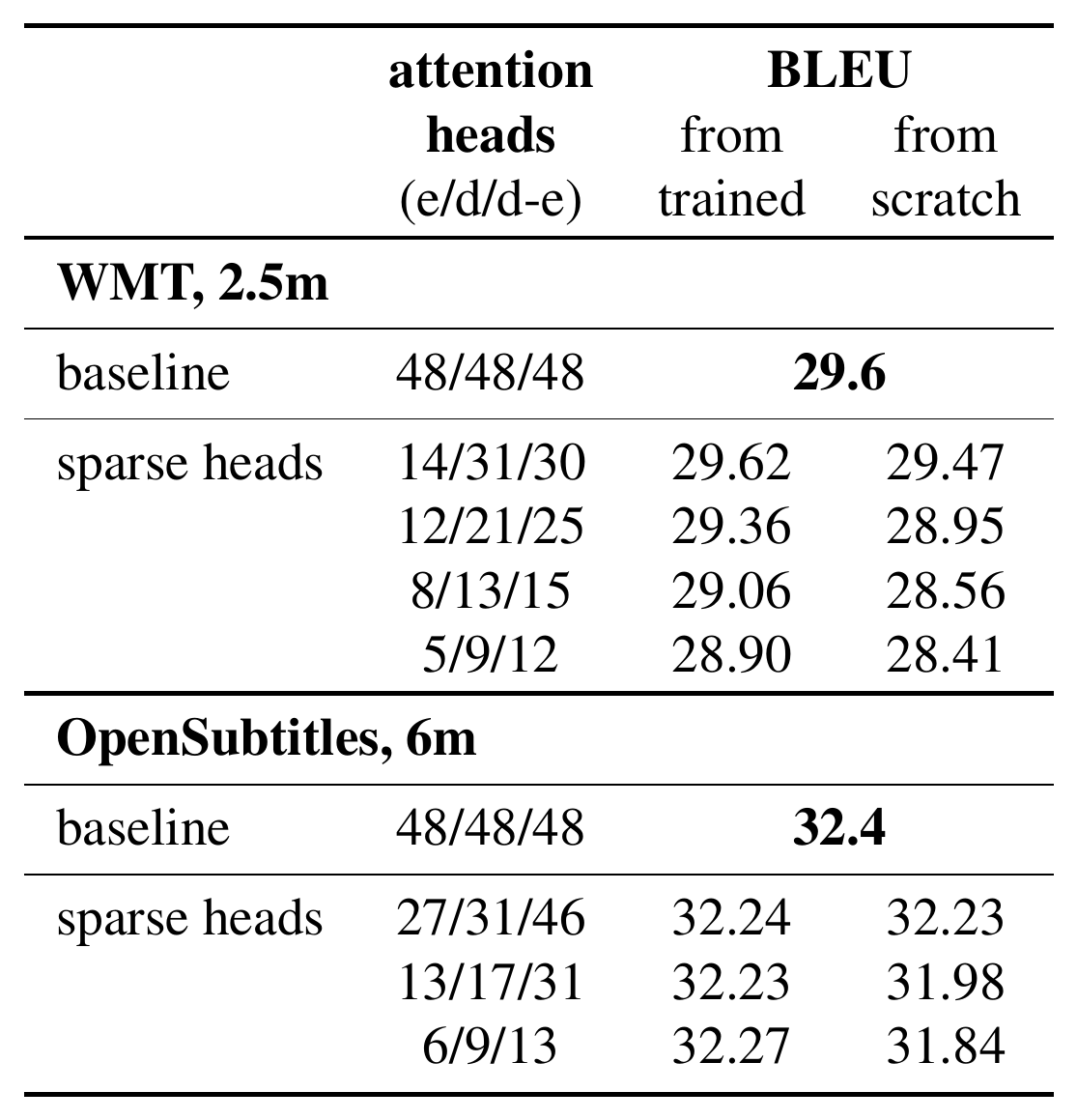

::: {caption="Table 2: BLEU scores for gates in all attentions, EN-RU. Number of attention heads is provided in the following order: encoder self-attention, decoder self-attention, decoder-encoder attention."}

:::

Results of experiments pruning heads in all attention layers are provided in Table 2. For models trained on WMT data, we are able to prune almost 3/4 of encoder heads and more than 1/3 of heads in decoder self-attention and decoder-encoder attention without any noticeable loss in translation quality (sparse heads, row 1). We can also prune more than half of all heads in the model and lose no more than 0{.}25 BLEU.

While these results show clearly that the majority of attention heads can be removed from the fully trained model without significant loss in translation quality, it is not clear whether a model can be trained from scratch with such a small number of heads. In the rightmost column in Table 2 we provide BLEU scores for models trained with exactly the same number and configuration of heads in each layer as the corresponding pruned models but starting from a random initialization of parameters. Here the degradation in translation quality is more significant than for pruned models with the same number of heads. This agrees with the observations made in works on model compression: sparse architectures learned through pruning cannot be trained from scratch to the same test set performance as a model trained with joint sparsification and optimization [16, 17]. In our case, attention heads are less likely to learn important roles when a model is retrained from scratch with a small number of heads.

6.3.2 Heads importance

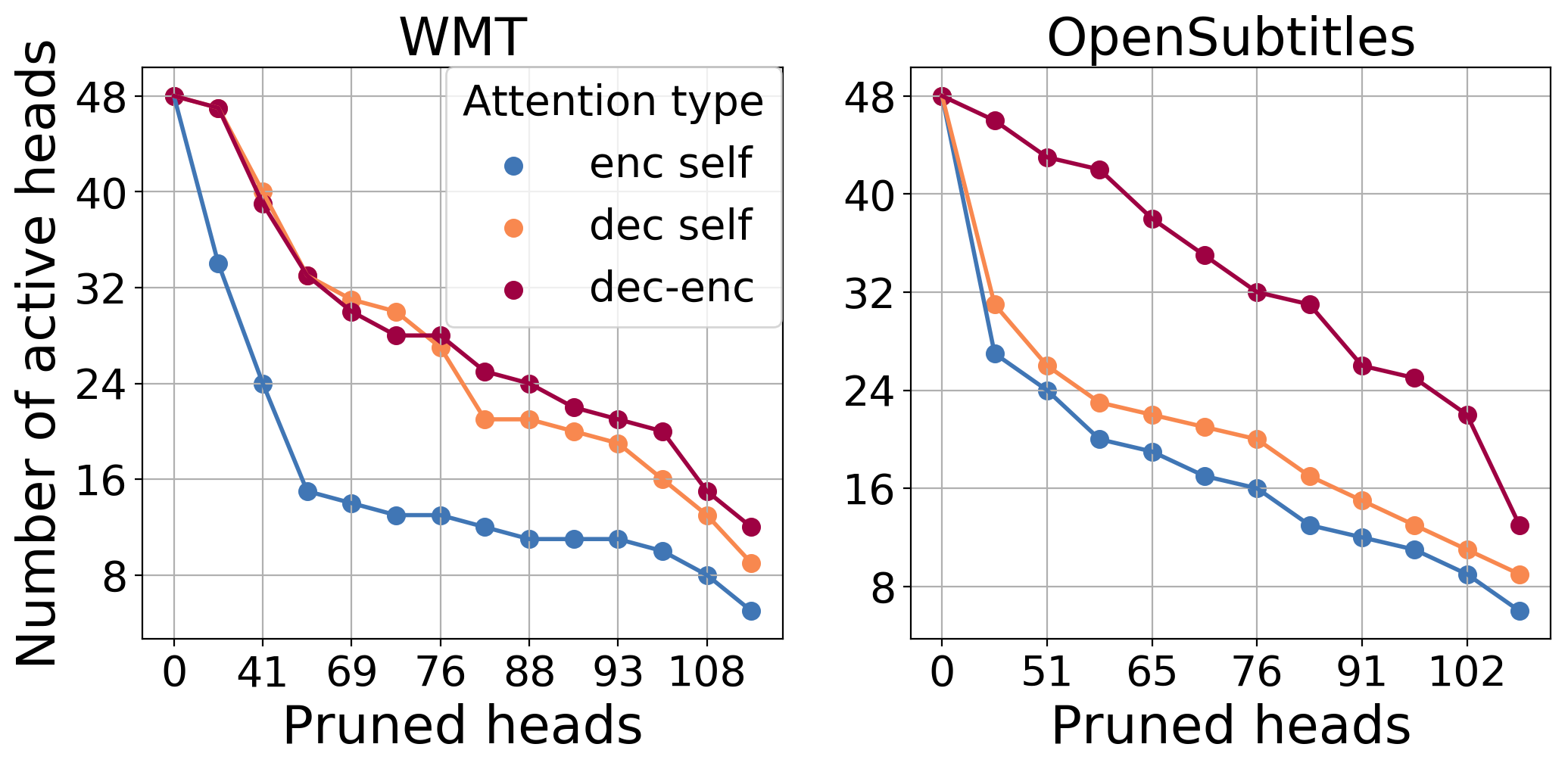

Figure 9 shows the number of retained heads for each attention type at different pruning rates. We can see that the model prefers to prune encoder self-attention heads first, while decoder-encoder attention heads appear to be the most important for both datasets. Obviously, without decoder-encoder attention no translation can happen.

The importance of decoder self-attention heads, which function primarily as a target side language model, varies across domains. These heads appear to be almost as important as decoder-encoder attention heads for WMT data with its long sentences (24 tokens on average), and slightly more important than encoder self-attention heads for OpenSubtitles dataset where sentences are shorter (8 tokens on average).

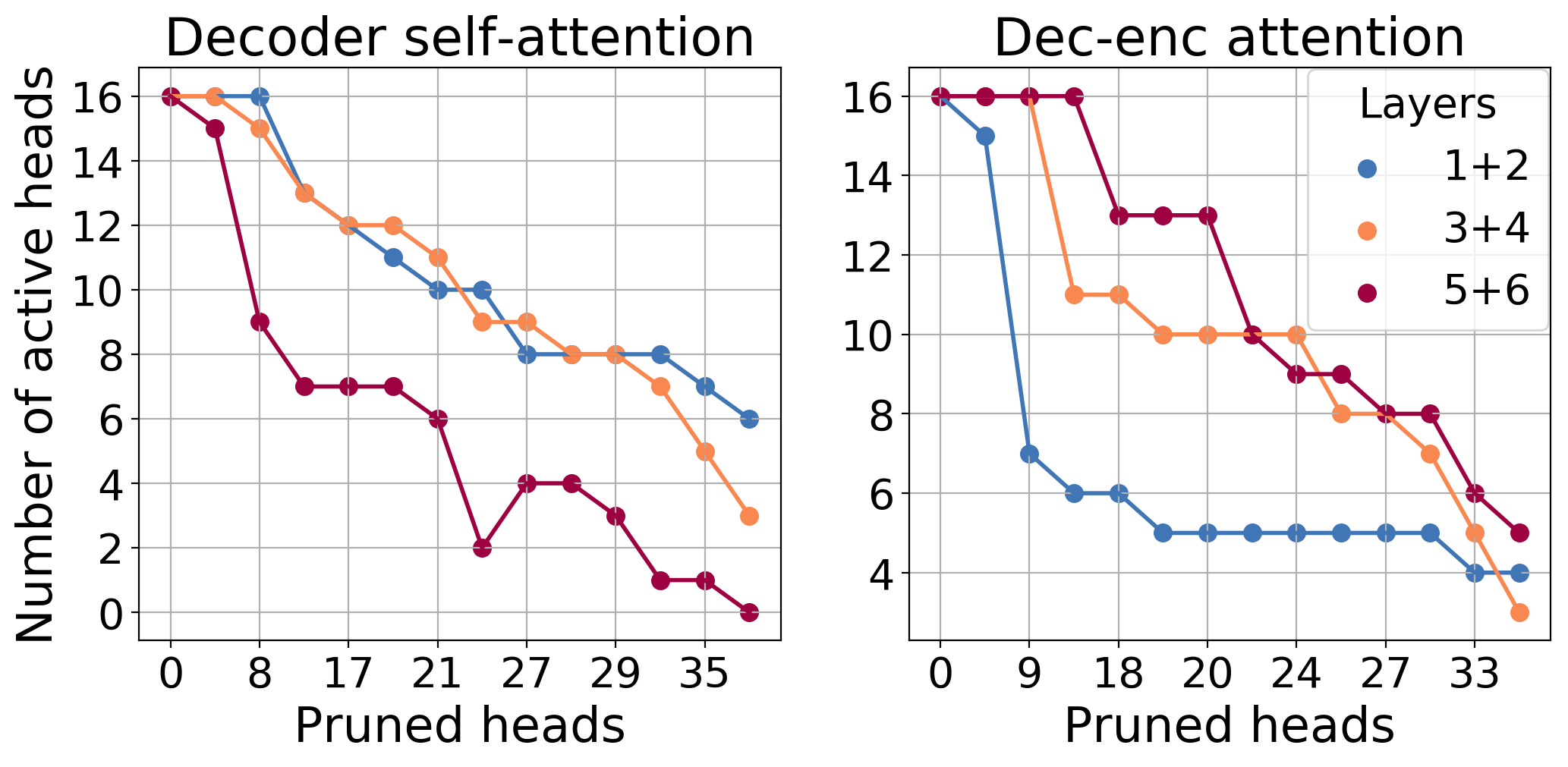

Figure 10 shows the number of active self-attention and decoder-encoder attention heads at different layers in the decoder for models with different sparsity rate (to reduce noise, we plot the sum of heads remaining in pairs of adjacent layers). It can be seen that self-attention heads are retained more readily in the lower layers, while decoder-encoder attention heads are retained in the higher layers. This suggests that lower layers of the Transformer's decoder are mostly responsible for language modeling, while higher layers are mostly responsible for conditioning on the source sentence. These observations are similar for both datasets we use.

7. Related work

Section Summary: Researchers have explored what information neural machine translation models capture by testing how well their internal representations support tasks involving morphology, syntax, and semantics, or by checking the models' sensitivity to grammatical mistakes. Other studies have examined attention patterns in these models, for instance by using encoder self-attention to build sentence trees or by pinpointing important individual neurons, yet they stop short of measuring how specific attention heads handle particular grammatical relations or of confirming those heads' importance through pruning. This work builds on those efforts by showing how entire attention heads specialize and by validating their roles with relevance propagation and systematic head removal.

One popular approach to the analysis of NMT representations is to evaluate how informative they are for various linguistic tasks. Different levels of linguistic analysis have been considered including morphology [18, 19, 20], syntax [21] and semantics [22, 23, 4].

[20] showed that the target language determines which information gets encoded. This agrees with our results for different domains on the English-Russian translation task in Section 5.2.2. There we observed that attention heads are more likely to track syntactic relations requiring more complex agreement in the target language (in this case the subject-verb relation).

An alternative method to study the ability of language models and machine translation models to capture hierarchical information is to test their sensitivity to specific grammatical errors [24, 25, 26, 27, 28]. While this line of work has shown that NMT models, including the Transformer, do learn some syntactic structures, our work provides further insight into the role of multi-head attention.

There are several works analyzing attention weights of different NMT models [29, 5, 6, 4]. [4] use the self-attention weights of the Transformer's encoder to induce a tree structure for each sentence and compute the unlabeled attachment score of these trees. However they do not evaluate specific syntactic relations (i.e. labeled attachment scores) or consider how different heads specialize to specific dependency relations.

Recently [30] proposed a method for identifying important individual neurons in NMT models. They show that similar important neurons emerge in different models. Rather than verifying the importance of individual neurons, we identify the importance of entire attention heads using layer-wise relevance propagation and verify our findings by observing which heads are retained when pruning the model.

8. Conclusions

Section Summary: Researchers analyzed how much each attention head in a Transformer model contributes to translation quality and found that only a small number of heads carry most of the work while the rest add little value. These key heads often perform clear tasks such as linking nearby words or tracking grammatical relationships, and a new pruning technique confirmed their importance by removing the less useful heads first. The study shows that the majority of heads can be eliminated with little loss in performance, pointing to simpler and more efficient models in the future.

We evaluate the contribution made by individual attention heads to Transformer model performance on translation. We use layer-wise relevance propagation to show that the relative contribution of heads varies: only a small subset of heads appear to be important for the translation task. Important heads have one or more interpretable functions in the model, including attending to adjacent words and tracking specific syntactic relations. To determine if the remaining less-interpretable heads are crucial to the model's performance, we introduce a new approach to pruning attention heads.

We observe that specialized heads are the last to be pruned, confirming their importance directly. Moreover, the vast majority of heads, especially the encoder self-attention heads, can be removed without seriously affecting performance. In future work, we would like to investigate how our pruning method compares to alternative methods of model compression in NMT.

Acknowledgments

Section Summary: The authors thank anonymous reviewers for their feedback, along with Wilker Aziz and Joost Bastings for their useful suggestions. They also credit the Yandex Machine Translation team for providing helpful discussions and ideas that shaped the project. Ivan Titov notes financial support from the European Research Council and the Dutch National Science Foundation.

We would like to thank anonymous reviewers for their comments. We thank Wilker Aziz, Joost Bastings for their helpful suggestions. The authors also thank Yandex Machine Translation team for helpful discussions and inspiration. Ivan Titov acknowledges support of the European Research Council (ERC StG BroadSem 678254) and the Dutch National Science Foundation (NWO VIDI 639.022.518).

Appendix

Section Summary: The appendix first describes an adaptation of layer-wise relevance propagation, a technique for tracing how much each part of a neural network contributes to its final output, to Transformer models. It explains the method’s core conservation principle, the specific formulas used to redistribute relevance scores backward through layers and operations like matrix multiplications, and how these scores are aggregated to quantify the importance of individual attention heads. The second part outlines the practical experimental details, including data preprocessing with byte-pair encoding, model architecture following the standard Transformer base configuration, and the optimizer settings with its learning-rate schedule.

A. Layer-wise Relevance Propagation

Layer-wise relevance propagation (LRP) was originally designed to compute the contributions of single pixels to predictions of image classifiers [31]. LRP back-propagates relevance recursively from the output layer to the input layer. We adapt LRP to the Transformer model to calculate relevance that measures the association degree between two arbitrary neurons in neural networks. In the following, we describe the general idea of the LRP method, give the formal definition used in our experiments and describe how to compute a head relevance.

A.1 General idea

Layer-wise relevance propagation in its general form assumes that the model can be decomposed into several layers of computation. The first layer are the inputs (for example, the pixels of an image or tokens of a sentence), the last layer is the real-valued prediction output of the model $f$. The $l$-th layer is modeled as a vector $z=(z_{d}^{(l)}){d=1}^{V(l)}$ with dimensionality $V(l)$. Layer-wise relevance propagation assumes that we have a Relevance score $R_d^{(l+1)}$ for each dimension $z{d}^{(l+1)}$ of the vector $z$ at layer $l + 1$. The idea is to find a Relevance score $R_d^{(l)}$ for each dimension $z_d^{(l)}$ of the vector $z$ at the next layer $l$ which is closer to the input layer such that the following equation holds:

$ f!=!\dots!=!\sum\limits_{d\in l + 1}!R_d^{(l+1)}!=\sum\limits_{d\in l}!R_d^{(l)}=\dots=\sum\limits_{d}R_d^{(1)}. $

This equation represents a conservation principle, on which LRP relies to propagate the prediction back without using gradients. Intuitively, this means that total contribution of neurons at each layer is constant. Since we are interested only in heads relevance, we do not propagate till input variables and stop at the neurons of the encoder layer of interest.

A.2 Formal rules

In this section, we provide formal rules for propagating relevance. Here we follow the approach by [7] previously used for neural machine translation.

Let $r_{u\leftarrow v}$ denote relevance of neuron $u$ for neuron $v$.

Definition 1 Given a neuron $u$, its incoming neuron set $IN(u)$ comprises all its direct connected preceding neurons in the network.

Definition 2 Given a neuron $u$, its outcoming neuron set $OUT(u)$ comprises all its direct connected descendant neurons in the network.

Definition 3 Given a neuron $v$ and its incoming neurons $u \in IN(v)$, the weight ratio measures the contribution of $u$ to $v$. It is calculated as

$ w_{u\rightarrow v}=\frac{W_{u,v}u}{\sum\limits_{u' \in IN(v)}!!!!W_{u',v}u'} \ \ \ \ \text{if} \ \ v=!!!!\sum\limits_{u' \in IN(v)}!!!!W_{u',v}u', $

$ w_{u\rightarrow v}=\frac{u}{\sum\limits_{u' \in IN(v)} u'} \ \ \ \ \text{if} \ \ v=!!!!\prod\limits_{u' \in IN(v)} u'. $

These equations define weight ratio for matrix multiplication and element-wise multiplication operations.

Redistribution rule for LRP Relevance is propagated using the local redistribution rule as follows:

$ r_{u\leftarrow v} = \sum\limits_{z\in OUT(u)}w_{u\rightarrow z}r_{z\leftarrow v}. $

The provided equations for computing weights ratio and the redistribution rule allow to compute the relative contribution of neurons at one point in a network to neurons at another. Note that we follow [7] and ignore non-linear activation functions.

A.3 Head relevance

In our experiments, we compute relative contribution of each head to the network predictions. For this, we evaluate contribution of neurons in $\textnormal{head}_i$ (see equation 1) to the top-1 logit predicted by the model. Head relevance for a given prediction is computed as the sum of relevances of its neurons, normalized over heads in a layer. The final relevance of a head is its average relevance, where average is taken over all generation steps for a development set.

B. Experimental setup

B.1 Data preprocessing

Sentences were encoded using byte-pair encoding [32], with source and target vocabularies of about 32000 tokens. For OpenSubtitles data, we pick only sentence pairs with a relative time overlap of subtitle frames between source and target language subtitles of at least $0.9$ to reduce noise in the data. Translation pairs were batched together by approximate sequence length. Each training batch contained a set of translation pairs containing approximately 16000[^9] source tokens. It has been shown that Transformer's performance depends heavily on a batch size [33], and we chose a large value of batch size to ensure that models show their best performance.

[^9]: This can be reached by using several of GPUs or by accumulating the gradients for several batches and then making an update.

B.2 Model parameters

We follow the setup of Transformer base model [1]. More precisely, the number of layers in the encoder and in the decoder is $N=6$. We employ $h = 8$ parallel attention layers, or heads. The dimensionality of input and output is $d_{model} = 512$, and the inner-layer of a feed-forward networks has dimensionality $d_{ff}=2048$.

We use regularization as described in [1].

B.3 Optimizer

The optimizer we use is the same as in [1]. We use the Adam optimizer [34] with $\beta_1 = 0{.}9$, $\beta_2 = 0{.}98$ and $\varepsilon = 10^{-9}$. We vary the learning rate over the course of training, according to the formula:

$ \begin{split} l_{rate}=scale\cdot \min(step_num^{-0.5},\ step_num\cdot warmup_steps^{-1.5}) \end{split} $

We use $warmup_steps = 16000$, $scale=4$.

References

Section Summary: This section compiles a numbered list of academic citations, primarily research papers from conferences like NeurIPS, ACL, EMNLP, and ICLR published between 2014 and 2019. The works focus on neural machine translation systems, attention mechanisms, model analysis techniques, and methods for pruning or regularizing neural networks. They also include supporting resources on datasets, toolkits, and variational inference approaches relevant to language processing tasks.

[1] Ashish Vaswani, Noam Shazeer, Niki Parmar, Jakob Uszkoreit, Llion Jones, Aidan N Gomez, Lukasz Kaiser, and Illia Polosukhin. 2017. Attention is all you need. In NeurIPS, Los Angeles.

[2] Ondřej Bojar, Christian Federmann, Mark Fishel, Yvette Graham, Barry Haddow, Matthias Huck, Philipp Koehn, and Christof Monz. 2018. Findings of the 2018 conference on machine translation (wmt18). In Proceedings of the Third Conference on Machine Translation, Volume 2: Shared Task Papers, pages 272–307, Belgium, Brussels. Association for Computational Linguistics.

[3] Jan Niehues, Ronaldo Cattoni, Sebastian Stüker, Mauro Cettolo, Marco Turchi, and Marcello Federico. 2018. The IWSLT 2018 Evaluation Campaign. In Proceedings of the 15th International Workshop on Spoken Language Translation, pages 118–123, Bruges, Belgium.

[4] Alessandro Raganato and Jörg Tiedemann. 2018. An analysis of encoder representations in transformer-based machine translation. In Proceedings of the 2018 EMNLP Workshop BlackboxNLP: Analyzing and Interpreting Neural Networks for NLP, pages 287–297, Brussels, Belgium. Association for Computational Linguistics.

[5] Elena Voita, Pavel Serdyukov, Rico Sennrich, and Ivan Titov. 2018. Context-aware neural machine translation learns anaphora resolution. In Proceedings of the 56th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), pages 1264–1274, Melbourne, Australia. Association for Computational Linguistics.

[6] Gongbo Tang, Rico Sennrich, and Joakim Nivre. 2018. An analysis of attention mechanisms: The case of word sense disambiguation in neural machine translation. In Proceedings of the Third Conference on Machine Translation: Research Papers, pages 26–35, Belgium, Brussels. Association for Computational Linguistics.

[7] Yanzhuo Ding, Yang Liu, Huanbo Luan, and Maosong Sun. 2017. Visualizing and understanding neural machine translation. In Proceedings of the 55th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), pages 1150–1159, Vancouver, Canada. Association for Computational Linguistics.

[8] Christos Louizos, Max Welling, and Diederik P. Kingma. 2018. Learning sparse neural networks through l_0 regularization. In International Conference on Learning Representations, Vancouver, Canada.

[9] Pierre Lison, Jörg Tiedemann, and Milen Kouylekov. 2018. OpenSubtitles2018: Statistical Rescoring of Sentence Alignments in Large, Noisy Parallel Corpora. In Proceedings of the Eleventh International Conference on Language Resources and Evaluation (LREC 2018), Miyazaki, Japan. European Language Resources Association (ELRA).

[10] Christopher D. Manning, Mihai Surdeanu, John Bauer, Jenny Finkel, Steven J. Bethard, and David McClosky. 2014. The Stanford CoreNLP natural language processing toolkit. In Proceedings of 52nd Annual Meeting of the Association for Computational Linguistics: System Demonstrations, pages 55–60, Baltimore, Maryland. Association for Computational Linguistics.

[11] Chris J. Maddison, Andriy Mnih, and Yee Whye Teh. 2017. The concrete distribution: A continuous relaxation of discrete random variables. In International Conference on Learning Representations, Toulon, France.

[12] Eric Jang, Shixiang Gu, and Ben Poole. 2017. Categorical reparameterization with gumbel-softmax. In International Conference on Learning Representations, Toulon, France.

[13] Diederik P. Kingma and Max Welling. 2014. Auto-encoding variational bayes. In International Conference on Learning Representations, Banff, Canada.

[14] Danilo Jimenez Rezende, Shakir Mohamed, and Daan Wierstra. 2014. Stochastic backpropagation and approximate inference in deep generative models. In Proceedings of the 31st International Conference on Machine Learning, volume 32 of Proceedings of Machine Learning Research, pages 1278–1286, Bejing, China. PMLR.

[15] Łukasz Kaiser and Samy Bengio. 2018. Discrete autoencoders for sequence models. arXiv preprint arXiv:1801.09797.

[16] Michael Zhu and Suyog Gupta. 2017. To prune, or not to prune: exploring the efficacy of pruning for model compression. arXiv preprint arXiv:1710.01878.

[17] Trevor Gale, Erich Elsen, and Sara Hooker. 2019. The state of sparsity in deep neural networks. arXiv preprint.

[18] Yonatan Belinkov, Nadir Durrani, Fahim Dalvi, Hassan Sajjad, and James Glass. 2017a. What do neural machine translation models learn about morphology? In Proceedings of the 55th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), pages 861–872. Association for Computational Linguistics.

[19] Fahim Dalvi, Nadir Durrani, Hassan Sajjad, Yonatan Belinkov, and Stephan Vogel. 2017. Understanding and improving morphological learning in the neural machine translation decoder. In Proceedings of the Eighth International Joint Conference on Natural Language Processing (Volume 1: Long Papers), pages 142–151. Asian Federation of Natural Language Processing.

[20] Arianna Bisazza and Clara Tump. 2018. The lazy encoder: A fine-grained analysis of the role of morphology in neural machine translation. In Proceedings of the 2018 Conference on Empirical Methods in Natural Language Processing, pages 2871–2876, Brussels, Belgium. Association for Computational Linguistics.

[21] Xing Shi, Inkit Padhi, and Kevin Knight. 2016. Does string-based neural mt learn source syntax? In Proceedings of the 2016 Conference on Empirical Methods in Natural Language Processing, pages 1526–1534. Association for Computational Linguistics.

[22] Felix Hill, Kyunghyun Cho, Sébastien Jean, and Y Bengio. 2017. The representational geometry of word meanings acquired by neural machine translation models. Machine Translation, 31.

[23] Yonatan Belinkov, Lluís Màrquez, Hassan Sajjad, Nadir Durrani, Fahim Dalvi, and James Glass. 2017b. Evaluating layers of representation in neural machine translation on part-of-speech and semantic tagging tasks. In Proceedings of the Eighth International Joint Conference on Natural Language Processing (Volume 1: Long Papers), pages 1–10. Asian Federation of Natural Language Processing.

[24] Tal Linzen, Emmanuel Dupoux, and Yoav Goldberg. 2016. Assessing the ability of lstms to learn syntax-sensitive dependencies. Transactions of the Association for Computational Linguistics, 4:521–535.

[25] Kristina Gulordava, Piotr Bojanowski, Edouard Grave, Tal Linzen, and Marco Baroni. 2018. Colorless green recurrent networks dream hierarchically. In Proceedings of the 2018 Conference of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies, Volume 1 (Long Papers), pages 1195–1205. Association for Computational Linguistics.

[26] Ke Tran, Arianna Bisazza, and Christof Monz. 2018. The importance of being recurrent for modeling hierarchical structure. In Proceedings of the 2018 Conference on Empirical Methods in Natural Language Processing, pages 4731–4736. Association for Computational Linguistics.

[27] Rico Sennrich. 2017. How Grammatical is Character-level Neural Machine Translation? Assessing MT Quality with Contrastive Translation Pairs. In Proceedings of the 15th Conference of the European Chapter of the Association for Computational Linguistics: Volume 2, Short Papers, pages 376–382, Valencia, Spain.

[28] Gongbo Tang, Mathias Müller, Annette Rios, and Rico Sennrich. 2018. Why self-attention? a targeted evaluation of neural machine translation architectures. In Proceedings of the 2018 Conference on Empirical Methods in Natural Language Processing, pages 4263–4272. Association for Computational Linguistics.

[29] Hamidreza Ghader and Christof Monz. 2017. What does attention in neural machine translation pay attention to? In Proceedings of the Eighth International Joint Conference on Natural Language Processing (Volume 1: Long Papers), pages 30–39. Asian Federation of Natural Language Processing.

[30] Anthony Bau, Yonatan Belinkov, Hassan Sajjad, Nadir Durrani, Fahim Dalvi, and James Glass. 2019. Identifying and controlling important neurons in neural machine translation. In International Conference on Learning Representations, New Orleans.

[31] Sebastian Bach, Alexander Binder, Grégoire Montavon, Frederick Klauschen, Klaus-Robert Müller, and Wojciech Samek. 2015. On pixel-wise explanations for non-linear classifier decisions by layer-wise relevance propagation. PloS one, 10(7):e0130140.

[32] Rico Sennrich, Barry Haddow, and Alexandra Birch. 2016. Neural machine translation of rare words with subword units. In Proceedings of the 54th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), pages 1715–1725, Berlin, Germany. Association for Computational Linguistics.

[33] Martin Popel and Ondrej Bojar. 2018. Training Tips for the Transformer Model. pages 43–70.

[34] Diederik Kingma and Jimmy Ba. 2015. Adam: A method for stochastic optimization. In Proceedings of the International Conference on Learning Representation (ICLR 2015).
