What Does BERT Look at? An Analysis of BERT’s Attention

Kevin ClarkUrvashi KhandelwalOmer LevyChristopher D. Manning

article2019ACL2,120 citationsBest Paper Award

Reveals that individual attention heads in BERT encode distinct grammatical relations and coreference patterns, offering an attention-based analysis framework to interpret linguistic knowledge inside transformer models.

Listen

Large neural language models like BERT achieve state-of-the-art performance across natural language processing tasks, yet their internal mechanics remain largely opaque. While prior research focused on evaluating final outputs or internal vector states, the article investigates the internal attention mechanisms of BERT to understand what specific linguistic properties are learned directly from unannotated text.

The article aims to evaluate the surface-level patterns and linguistic capabilities encoded across the 144 attention heads in standard BERT. Specifically, it tests whether individual attention components or linear combinations of them capture grammatical syntax and coreference relationships without explicit task training.

To conduct this evaluation, the study examined attention weight distributions across 1,000 Wikipedia text segments and evaluated grammatical performance using standard benchmark datasets, including the Penn Treebank for dependency parsing and the CoNLL-2012 dataset for coreference resolution. The approach evaluated individual attention heads as direct classifiers and built lightweight diagnostic probes that combine attention weights with fixed word representations, avoiding modifications to the underlying pre-trained model weights.

The analysis reveals several key findings. First, attention heads frequently exhibit broad structural behaviors, such as focusing on adjacent tokens, spreading attention evenly across the sentence, or directing over 50% of their attention mass to separator tokens, which the authors show act as an inactive default state. Second, individual heads specialize heavily in specific grammatical roles; for example, specific heads identify noun determiners with 94.3% accuracy, direct objects of verbs with 86.8% accuracy, and prepositional objects with 76.3% accuracy, outperforming simple positional baselines by 35 to 46 percentage points. Third, a dedicated attention head successfully tracks entity coreference with 65% accuracy, approaching the 69% accuracy of specialized rule-based systems. Finally, combining attention maps with word embeddings in a simple diagnostic parser yields an overall parsing score of 77, indicating that comprehensive syntactic structure is directly encoded in the attention layers.

These findings demonstrate that language models naturally discover hierarchical syntax and coreference purely as an emergent property of self-supervised pre-training, rather than requiring hand-crafted syntactic rules. The results also show significant functional redundancy, as attention heads within the same layer cluster closely in behavior. This redundancy implies opportunities to streamline model architectures, reduce computational and deployment costs, and improve interpretability by pruning inactive or duplicative attention components.

Organizations developing or deploying language models should leverage attention map analysis as a standard diagnostic tool alongside vector evaluations to audit model capabilities. Model optimization teams should explore pruning redundant heads to reduce runtime latency while preserving specialized linguistic heads. Future research should evaluate whether these attention patterns persist across larger architectures and diverse languages, and explore methods to deliberately train compact models with specialized attention distributions.

Confidence in these findings is high for standard English language benchmarks under the BERT-base architecture. However, limitations remain: the quantitative linguistic evaluations were restricted to English datasets with truncated sequence lengths of 128 tokens, and individual heads showed high proficiency only on specific grammatical relations rather than full-sentence parsing independently. Stakeholders should account for these boundary conditions when generalizing the findings to other languages or longer-context models.

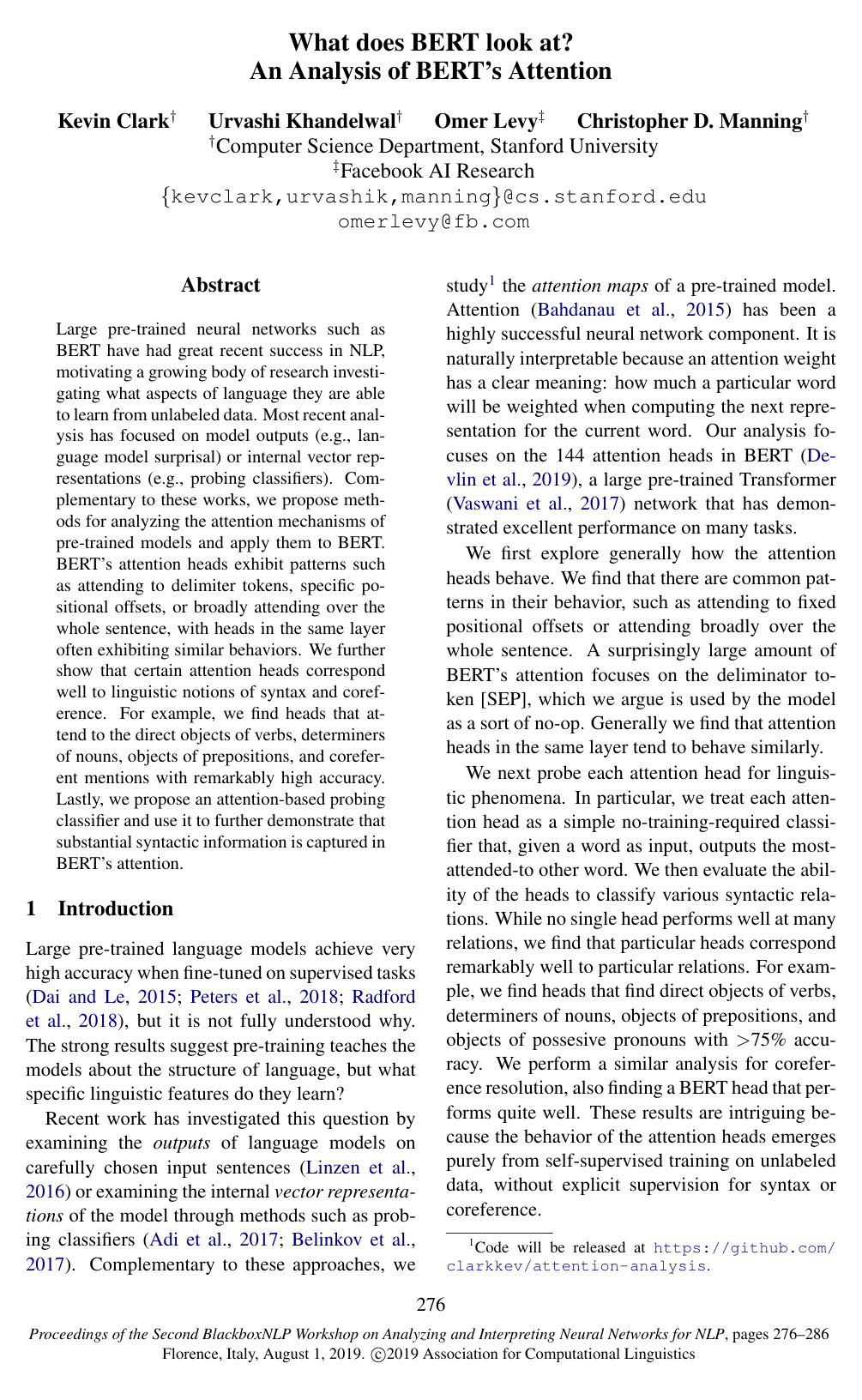

Cover for What Does BERT Look at? An Analysis of BERT’s Attention

Abstract

Large pre-trained neural networks such as BERT have had great recent success in NLP, motivating a growing body of research investigating what aspects of language they are able to learn from unlabeled data. Most recent analysis has focused on model outputs (e.g., language model surprisal) or internal vector representations (e.g., probing classifiers). Complementary to these works, we propose methods for analyzing the attention mechanisms of pre-trained models and apply them to BERT. BERT's attention heads exhibit patterns such as attending to delimiter tokens, specific positional offsets, or broadly attending over the whole sentence, with heads in the same layer often exhibiting similar behaviors. We further show that certain attention heads correspond well to linguistic notions of syntax and coreference. For example, we find heads that attend to the direct objects of verbs, determiners of nouns, objects of prepositions, and coreferent mentions with remarkably high accuracy. Lastly, we propose an attention-based probing classifier and use it to further demonstrate that substantial syntactic information is captured in BERT's attention.

Table of Contents

  • 1 Introduction
  • 2 Background: Transformers and BERT
  • 3 Surface-Level Patterns in Attention
  • 3.1 Relative Position
  • 3.2 Attending to Separator Tokens
  • 3.3 Focused vs Broad Attention
  • 4 Probing Individual Attention Heads
  • 4.1 Method
  • 4.2 Dependency Syntax
  • 4.3 Coreference Resolution
  • 5 Probing Attention Head Combinations
  • 6 Clustering Attention Heads
  • 7 Related Work
  • 8 Conclusion
  • References

Knowls

  1. Knowl 1 — Attention-and-Words Probing Classifier for Dependency Parsing

    model/method

    To evaluate the syntactic knowledge distributed across multiple attention heads of BERT without modifying the underlying model, a parameterized probing classifier is defined over fixed attention maps and word representations. The classifier treats dependency parsing as directed head selection for each word jj across candidate heads ii.

    The Attention-and-Words probing model conditions head importance on word identity by incorporating GloVe word embeddings vi,vjRdv_i, v_j \in \mathbb{R}^d for candidate head ii and dependent jj. The probability distribution over candidate heads ii for a given dependent word jj is:

    p(ij)exp(k=1nWk,:(vivj)αijk+Uk,:(vivj)αjik)p(i \mid j) \propto \exp \left( \sum_{k=1}^n W_{k,:} (v_i \oplus v_j) \alpha_{ij}^k + U_{k,:} (v_i \oplus v_j) \alpha_{ji}^k \right)

    where αijk\alpha_{ij}^k is the attention weight from word ii to word jj in attention head kk, αjik\alpha_{ji}^k is the reverse attention weight from word jj to word ii in head kk, nn is the total number of attention heads across all layers (n=144n = 144 in BERT-base), \oplus denotes vector concatenation, and W,URn×2dW, U \in \mathbb{R}^{n \times 2d} are learned parameter matrices that generate word-conditioned importance weights for each attention head.

    A simpler Attention-Only probe assigns scalar weights wk,ukRw_k, u_k \in \mathbb{R} to head kk without word embeddings:

    p(ij)exp(k=1nwkαijk+ukαjik)p(i \mid j) \propto \exp \left( \sum_{k=1}^n w_k \alpha_{ij}^k + u_k \alpha_{ji}^k \right)

    During training, BERT weights and GloVe vectors remain frozen, and only parameters WW and UU (or ww and uu) are optimized via supervised learning on labeled treebank data.

  2. Knowl 2 — Dependency Parsing Evaluation of Attention Probing Classifiers

    data/table

    The overall syntactic information captured across all 144 attention heads of BERT-base is evaluated on the Wall Street Journal section of the Penn Treebank annotated with Stanford Dependencies using Unlabeled Attachment Score (UAS).

    Model UAS
    Right-branching baseline 26
    Distances + GloVe 58
    Random Init Attn + GloVe 30
    Attn (Attention-Only probe) 61
    Attn + GloVe (Attention-and-Words probe) 77
    Structural probe (Hewitt and Manning, 2019) 80 UUAS*

    *The structural probe score is in Undirected Unlabeled Attachment Score (UUAS) on a single BERT layer's vector representations and is not directly comparable.

    The Attention-and-Words probe achieves 77 UAS, substantially outperforming the baseline using GloVe with distance features (58 UAS) and the control baseline using attention maps from a randomly initialized Transformer with pre-trained embeddings (30 UAS). This demonstrates that BERT's attention weights inherently encode substantial directed syntactic dependency structure.

  3. Knowl 3 — Syntactic Dependency Specialization in Individual BERT Attention Heads

    data/table

    Individual attention heads in BERT-base (formatted as <layer>-<head>) specialize in specific syntactic dependency relations. Each attention head is evaluated as an unsupervised classifier where the predicted syntactic head of a word is chosen as the word receiving the maximum attention weight from that word (or vice versa).

    Relation Head Accuracy (%) Baseline (%)
    All relations (overall UAS) Head 7-6 34.5 26.3 (offset 1)
    Prepositional modifier (prep) Head 7-4 66.7 61.8 (offset -1)
    Object of preposition (pobj) Head 9-6 76.3 34.6 (offset -2)
    Determiner (det) Head 8-11 94.3 51.7 (offset 1)
    Noun compound modifier (nn) Head 4-10 70.4 70.2 (offset 1)
    Nominal subject (nsubj) Head 8-2 58.5 45.5 (offset 1)
    Adjectival modifier (amod) Head 4-10 75.6 68.3 (offset 1)
    Direct object (dobj) Head 8-10 86.8 40.0 (offset -2)
    Adverbial modifier (advmod) Head 7-6 48.8 40.2 (offset 1)
    Auxiliary (aux) Head 4-10 81.1 71.5 (offset 1)
    Possessive modifier (poss) Head 7-6 80.5 47.7 (offset 1)
    Passive auxiliary (auxpass) Head 4-10 82.5 40.5 (offset 1)
    Clausal complement (ccomp) Head 8-1 Wandering 48.8 12.4 (offset -2)
    Marker (mark) Head 8-2 50.7 14.5 (offset 2)
    Phrasal verb particle (prt) Head 6-7 99.1 91.4 (offset -1)

    Baseline accuracies represent the best fixed-offset prediction (the number in parentheses indicates the token offset). In almost all relations except pobj, the direction of highest accuracy occurs when the syntactic dependent attends to the syntactic head word, reflecting the one-to-many nature of heads to dependents.

  4. Knowl 4 — Subword-to-Word Attention Aggregation Method

    model/method

    Because BERT uses byte-pair subword tokenization, token-level attention maps must be converted into word-level attention maps to evaluate linguistic phenomena at the word level.

    Let II be the set of subword tokens comprising word uu, and let JJ be the set of subword tokens comprising word vv. Given token-to-token attention weights αtoken(i,j)\alpha_{\text{token}}(i, j) from token iIi \in I to token jJj \in J:

    1. Attention from a single token ii to a split word vv is computed by summing over target subwords: α(i,J)=jJαtoken(i,j)\alpha(i, J) = \sum_{j \in J} \alpha_{\text{token}}(i, j)

    2. Attention from a split word uu to word vv is computed by taking the mean across all source subwords: αword(u,v)=1IiIα(i,J)=1IiIjJαtoken(i,j)\alpha_{\text{word}}(u, v) = \frac{1}{|I|} \sum_{i \in I} \alpha(i, J) = \frac{1}{|I|} \sum_{i \in I} \sum_{j \in J} \alpha_{\text{token}}(i, j)

    This aggregation preserves the property that total outgoing attention from any word uu to all words in the sentence sums to 1. For word-level head probing, the predicted link for word uu is argmaxvuαword(u,v)\arg\max_{v \neq u} \alpha_{\text{word}}(u, v), ignoring special tokens [CLS] and [SEP].

  5. Knowl 5 — Coreference Resolution Performance of BERT Attention Head 5-4

    data/table

    Individual attention heads in BERT-base can perform coreference antecedent selection without fine-tuning. Evaluated on the CoNLL-2012 coreference dataset, the head word of a coreferent mention selects as its antecedent the mention whose head word receives the maximum attention weight.

    Model All (%) Pronoun (%) Proper (%) Nominal (%)
    Nearest mention 27 29 29 19
    Head-word match 52 47 67 40
    Rule-based sieve system 69 70 77 60
    Neural coreference (Wiseman et al., 2015)* 83
    Head 5-4 65 64 73 58

    *The neural coreference system is trained specifically on coreference on full documents, whereas the attention probing is zero-shot on documents truncated to 128 tokens.

    BERT Head 5-4 achieves 65% overall accuracy on antecedent selection, outperforming string-matching baselines by 13 percentage points and performing close to the multi-pass rule-based sieve system, demonstrating particular strength on nominal mentions (58%) through fuzzy semantic matching.

  6. Knowl 6 — Separator Token Attention as a No-Op Mechanism in BERT

    empirical result

    In BERT-base, over 50% of the total attention mass across heads in layers 6–10 is placed directly on the [SEP] delimiter token, despite [SEP] occupying only a tiny fraction (typically 2 out of 128 tokens) of the input sequence.

    Evidence indicates that attending to [SEP] functions as a computational no-op (no-operation) when a head's specific function is inapplicable:

    1. When the current token is [SEP], over 90% of its own attention is directed back to itself and the other [SEP] token, rather than aggregating broad sentence context.
    2. In specialized heads, tokens lacking the relevant syntactic property default to attending to [SEP]. For instance, in Head 8-10 (which links direct objects to verbs), non-noun tokens place their attention primarily on [SEP].
    3. Gradient-based feature importance measurements of the masked language modeling loss L\mathcal{L} with respect to attention weights α\alpha, given by Lα\left| \frac{\partial \mathcal{L}}{\partial \alpha} \right|, drop close to zero for [SEP] beginning in layer 5, indicating that changes in attention weight to [SEP] have negligible influence on model outputs.
  7. Knowl 7 — Positional and Entropy Patterns Across BERT Attention Layers

    empirical result

    BERT-base attention heads exhibit distinct layer-dependent positional and entropy behaviors:

    1. Positional Offsets: Most heads put negligible attention on the current token itself. Early layers contain heads specialized to immediate positional offsets: 4 heads (in layers 2, 4, 7, and 8) place on average >50%>50\% of attention on the previous token (t1t-1), and 5 heads (in layers 1, 2, 2, 3, and 6) place >50%>50\% on the next token (t+1t+1).
    2. Distribution Entropy: Lower layers (especially layer 1) contain high-entropy attention heads that distribute attention broadly, allocating at most 10% of attention mass to any single token and functioning as bag-of-vectors sentence representations.
    3. [CLS] Token Attention: While attention distributions from [CLS] across most layers match normal token entropy profiles, [CLS] in layer 12 exhibits an average entropy of 3.89 nats, attending broadly across the entire input to aggregate sequence-level representations for the next-sentence prediction objective.
  8. Knowl 8 — Layer-Wise Functional Clustering of Attention Heads via Jensen-Shannon Divergence

    empirical result

    The functional similarity between any pair of attention heads HiH_i and HjH_j is quantified by computing the average Jensen-Shannon (JS) divergence between their output attention distributions over tokens in a dataset:

    Distance(Hi,Hj)=tokendataJS(Hi(token),Hj(token))\text{Distance}(H_i, H_j) = \sum_{\text{token} \in \text{data}} \text{JS}\big(H_i(\text{token}), H_j(\text{token})\big)

    Two-dimensional visualization via Multidimensional Scaling (MDS) reveals that attention heads form clear functional clusters corresponding to specific behaviors (e.g., delimiter attention, fixed positional offsets, and specific syntactic relations). Furthermore, heads within the same layer cluster close to each other, exhibiting substantial intra-layer behavioral similarity and redundancy, which is hypothesized to arise partly from the use of attention dropout during training.

Coverage note — None was omitted; all key empirical analyses, probing architectures, quantitative results for dependency syntax and coreference, and qualitative attention phenomena reported in the paper are covered.
