Explainable Artificial Intelligence: Understanding, Visualizing and Interpreting Deep Learning Models

Wojciech SamekThomas WiegandKlaus-Robert Müller

article2017arXiv1,527 citations

Presents and evaluates two practical interpretability methods—input sensitivity analysis and decision decomposition—to explain how complex deep learning models arrive at their predictions across diverse classification tasks.

Listen

Modern artificial intelligence (AI) systems, particularly deep neural networks, achieve high accuracy across complex tasks such as image classification, language processing, and strategic games. However, their complex internal structures make them non-transparent "black boxes." In critical applications such as healthcare, autonomous driving, and financial services, this opacity poses severe risks. Without the ability to understand why an AI system makes a specific decision, organizations cannot easily detect flaws, verify safety, or satisfy legal mandates such as the European Union's "right to explanation."

The article advocates for explainable AI and compares two primary techniques for interpreting individual model predictions: sensitivity analysis and layer-wise relevance propagation. Through structured benchmarks, the authors evaluate how accurately each method explains model behavior across image recognition, text document classification, and human action recognition in video.

The evaluated methods take distinct technical approaches. Sensitivity analysis uses local gradients to measure how small adjustments to input features change the final output. In contrast, layer-wise relevance propagation redistributes the model's final decision score backward through the network layers, conserving the total score and decomposing it into positive and negative relevance values for each input feature. To evaluate both methods objectively, the authors applied perturbation analysis across thousands of samples, measuring how rapidly prediction accuracy dropped when removing the features identified as most important.

The findings show that layer-wise relevance propagation outperforms sensitivity analysis across all tested domains. In image classification, it accurately highlights core defining features (such as the contour of a cup) while sensitivity analysis produces noisy heatmaps that highlight irrelevant background regions. Perturbation tests over 5,040 images confirmed that masking features selected by layer-wise relevance propagation caused a significantly steeper drop in model confidence. In text analysis across 4,154 documents, layer-wise relevance propagation distinctly separated supporting evidence from contradictory evidence, leading to faster accuracy degradation under perturbation. In video action recognition, the method accurately isolated the specific spatial body movements and timeframes driving the classification.

These results demonstrate that simply measuring model sensitivity is insufficient for operational decision validation, as sensitivity highlights what could change a score rather than what actually produced it. Decomposing predictions through layer-wise relevance propagation allows practitioners to identify dataset biases (such as spurious statistical correlations), select models based on proper reasoning rather than just raw accuracy, and meet strict compliance requirements.

Organizations deploying deep learning in high-stakes environments should implement prediction decomposition tools to audit decisions and monitor compliance. The article's conclusions are strongly supported for feed-forward neural networks, convolutional architectures, and support vector machines across standard benchmarks. However, leaders should note that the evaluation is limited to post-hoc explanation methods on specific classification tasks. Future work is required to embed explainability directly into model architectures and extend these interpretation frameworks to additional operational domains.

Fraunhofer Heinrich Hertz InstituteKorea UniversityMax Planck Institute for InformaticsTechnische Universität Berlinclassificationclassification methodsdeep learningExplainable Artificial Intelligenceinterpretable machine learningdeep learning models
arXiv: 1708.08296

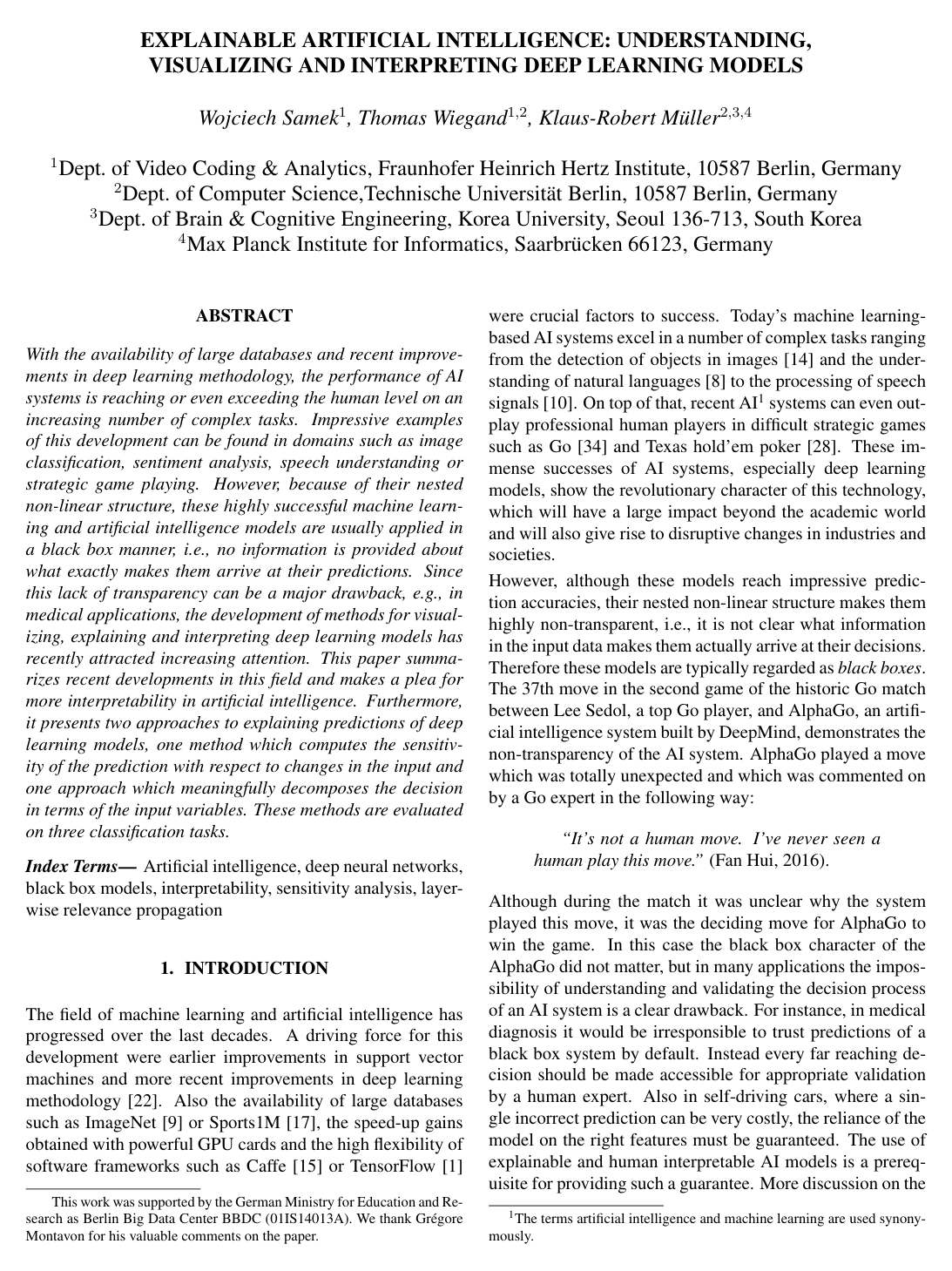

Cover for Explainable Artificial Intelligence: Understanding, Visualizing and Interpreting Deep Learning Models

Abstract

With the availability of large databases and recent improvements in deep learning methodology, the performance of AI systems is reaching or even exceeding the human level on an increasing number of complex tasks. Impressive examples of this development can be found in domains such as image classification, sentiment analysis, speech understanding or strategic game playing. However, because of their nested non-linear structure, these highly successful machine learning and artificial intelligence models are usually applied in a black box manner, i.e., no information is provided about what exactly makes them arrive at their predictions. Since this lack of transparency can be a major drawback, e.g., in medical applications, the development of methods for visualizing, explaining and interpreting deep learning models has recently attracted increasing attention. This paper summarizes recent developments in this field and makes a plea for more interpretability in artificial intelligence. Furthermore, it presents two approaches to explaining predictions of deep learning models, one method which computes the sensitivity of the prediction with respect to changes in the input and one approach which meaningfully decomposes the decision in terms of the input variables. These methods are evaluated on three classification tasks.

Topics

classificationclassification methodsdeep learningimage classificationinterpretabilitysentiment analysisstrategic gameconvolutional neural networkstransfer learningexpert systems

Keywords

Explainable Artificial Intelligenceinterpretable machine learningdeep learning modelsmodel interpretabilitylayer-wise relevance propagationblack box modelsimage classificationaction recognitiondocument classificationvideo classification
