Grad-CAM: Visual Explanations from Deep Networks via Gradient-Based Localization

Ramprasaath R. SelvarajuAbhishek DasRamakrishna VedantamMichael CogswellDevi ParikhDhruv Batra

article2016IJCV29,332 citations

Introduces Grad-CAM, a gradient-based visual explanation technique that makes arbitrary convolutional neural networks interpretable without retraining, allowing practitioners to debug model failures, identify dataset biases, and verify prediction rationales.

Listen

Deep neural networks based on convolutional layers now deliver strong results on image classification, captioning, and visual question answering, yet their internal decisions remain opaque. When these systems err, they often do so without warning or justification, which erodes user trust and slows safe deployment in real-world settings. The paper introduces Gradient-weighted Class Activation Mapping (Grad-CAM) to generate visual explanations that highlight the image regions driving any target output, without requiring changes to model architecture or additional training.

The method computes the gradient of the target score with respect to the final convolutional feature maps, globally averages those gradients to obtain importance weights for each map, and produces a coarse localization heatmap by a weighted combination followed by a ReLU. High-resolution detail is recovered by element-wise multiplication with Guided Backpropagation. The approach was tested on standard ImageNet-pretrained networks, captioning models, and several visual-question-answering architectures, using both quantitative localization benchmarks on ILSVRC-15 and PASCAL VOC and human-subject studies on Amazon Mechanical Turk.

Grad-CAM yields lower localization error than prior methods such as Class Activation Mapping and contrastive Marginal Winning Probability while preserving classification accuracy. It produces maps that are demonstrably more class-discriminative than Guided Backpropagation or Deconvolution alone, and these maps correlate more strongly with occlusion-based sensitivity maps, indicating greater faithfulness to the underlying model. Human evaluators correctly identify the visualized class more often with Guided Grad-CAM than with baseline visualizations, and they reliably distinguish a stronger network from a weaker one when shown only the explanations. The same technique exposes dataset biases, such as gender stereotypes in a “doctor versus nurse” classifier, and remains stable under adversarial perturbations that fool the network’s final prediction.

These capabilities matter because they let practitioners diagnose failure modes, detect unintended biases, and decide whether a model is trustworthy enough for deployment without sacrificing accuracy. The visualizations also work on models that lack explicit attention mechanisms, showing that many captioning and question-answering networks already localize relevant image content.

The main limitations are that localization quality degrades in earlier convolutional layers and that the method has so far been demonstrated primarily on vision tasks. The evidence nevertheless supports immediate use of Grad-CAM for model auditing and bias auditing, with further validation recommended on reinforcement-learning and language-only pipelines before broader policy reliance.

Georgia Institute of Technology Meta cam classification classification models Grad-CAM Class‑Discriminative Localization Visual Explanation

arXiv: 1610.02391 ramprs/grad-cam

Paper: Learning Deep Features for Discriminative Localization, Bolei Zhou et al. (2016). Reading Class Activation Mapping (CAM) first is essential because Grad-CAM directly builds upon its conceptual foundation while extending localization to models without global average pooling.
Paper: Deep Inside Convolutional Networks: Visualising Image Classification Models and Saliency Maps, Karen Simonyan et al. (2013). This foundational work on gradient-based saliency maps provides the core backward-pass techniques that Grad-CAM generalizes across diverse convolutional architectures.
Paper: Visualizing and Understanding Convolutional Networks, Matthew D. Zeiler et al. (2014). Understanding how convolutional networks build hierarchical features through deconvolutional visualization provides necessary background for interpreting the feature maps targeted by Grad-CAM.

Paper: Grad-CAM++: Improved Visual Explanations for Deep Convolutional Networks, Aditya Chattopadhyay et al. (2017). Grad-CAM++ directly extends the source work by incorporating higher-order derivatives to better localize multiple object instances and capture entire object regions.
Paper: Sanity Checks for Saliency Maps, Julius Adebayo et al. (2018). This follow-up study subjects Grad-CAM and related saliency methods to rigorous sanity checks, evaluating whether their visual explanations genuinely depend on learned model parameters.

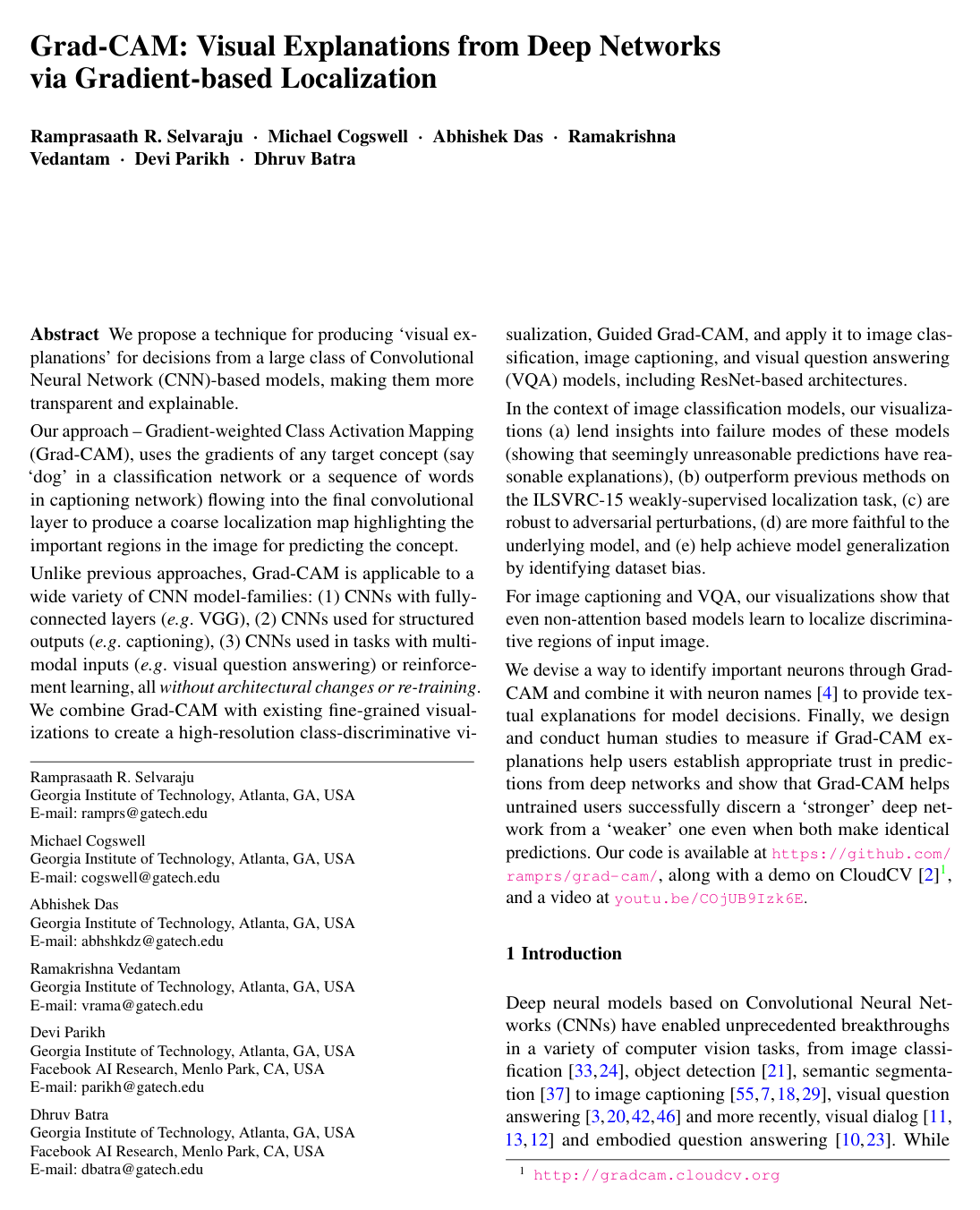

Cover for Grad-CAM: Visual Explanations from Deep Networks via Gradient-Based Localization

Abstract

We propose a technique for producing "visual explanations" for decisions from a large class of CNN-based models, making them more transparent. Our approach - Gradient-weighted Class Activation Mapping (Grad-CAM), uses the gradients of any target concept, flowing into the final convolutional layer to produce a coarse localization map highlighting important regions in the image for predicting the concept. Grad-CAM is applicable to a wide variety of CNN model-families: (1) CNNs with fully-connected layers, (2) CNNs used for structured outputs, (3) CNNs used in tasks with multimodal inputs or reinforcement learning, without any architectural changes or re-training. We combine Grad-CAM with fine-grained visualizations to create a high-resolution class-discriminative visualization and apply it to off-the-shelf image classification, captioning, and visual question answering (VQA) models, including ResNet-based architectures. In the context of image classification models, our visualizations (a) lend insights into their failure modes, (b) are robust to adversarial images, (c) outperform previous methods on localization, (d) are more faithful to the underlying model and (e) help achieve generalization by identifying dataset bias. For captioning and VQA, we show that even non-attention based models can localize inputs. We devise a way to identify important neurons through Grad-CAM and combine it with neuron names to provide textual explanations for model decisions. Finally, we design and conduct human studies to measure if Grad-CAM helps users establish appropriate trust in predictions from models and show that Grad-CAM helps untrained users successfully discern a 'stronger' nodel from a 'weaker' one even when both make identical predictions. Our code is available at this https URL, along with a demo at this http URL, and a video at this http URL.

1 Introduction
2 Related Work
3 Grad-CAM
3.1 Grad-CAM generalizes CAM
3.2 Guided Grad-CAM
3.3 Counterfactual Explanations
4 Evaluating Localization Ability of Grad-CAM
4.1 Weakly-supervised Localization
4.2 Weakly-supervised Segmentation
4.3 Pointing Game
5 Evaluating Visualizations
5.1 Evaluating Class Discrimination
5.2 Evaluating Trust
5.3 Faithfulness vs. Interpretability
6 Diagnosing image classification CNNs with Grad-CAM
6.1 Analyzing failure modes for VGG-16
6.2 Effect of adversarial noise on VGG-16
6.3 Identifying bias in dataset
7 Textual Explanations with Grad-CAM
8 Grad-CAM for Image Captioning and VQA
8.1 Image Captioning
8.1.1 Grad-CAM for individual words of caption
8.2 Visual Question Answering
9 Conclusion
10 Acknowledgements
A Appendix Overview
B Ablation studies
C Qualitative results for vision and language tasks
D More details of Pointing Game
E Qualitative comparison to Excitation Backprop (c-MWP) and CAM
F Visual and Textual explanations for Places dataset
G Analyzing Residual Networks
References

Knowls

Knowl 1 — Gradient-weighted Class Activation Mapping
model/method
Gradient-weighted Class Activation Mapping (Grad-CAM) generates a coarse 2D localization heatmap indicating the discriminative image regions supporting any target concept $c$ in a Convolutional Neural Network (CNN), without requiring architectural modifications or retraining.

Let $y^c$ be the score (the logit before the softmax layer) for a class or concept $c$ , and let $A^k \in \mathbb{R}^{u \times v}$ be the $k$ -th feature map activation of a chosen convolutional layer (such as the final convolutional layer) of spatial width $u$ and height $v$ , containing $Z = u \cdot v$ spatial locations indexed by $(i,j)$ .
1. Neuron importance weights $\alpha_k^c$ are calculated by global-average-pooling the gradients of $y^c$ with respect to the activations $A^k$ : $\alpha_k^c = \frac{1}{Z} \sum_{i=1}^u \sum_{j=1}^v \frac{\partial y^c}{\partial A_{ij}^k}$
2. The class-discriminative localization map $L_{\text{Grad-CAM}}^c \in \mathbb{R}^{u \times v}$ is computed by taking a weighted linear combination of forward activation maps followed by a Rectified Linear Unit (ReLU): $L_{\text{Grad-CAM}}^c = \text{ReLU}\left( \sum_k \alpha_k^c A^k \right)$
The weight $\alpha_k^c$ represents a partial linearization of the downstream layers and captures the importance of feature map $k$ for class $c$ . The ReLU operation ensures that the map exclusively highlights features that exert a positive influence on the score $y^c$ , while suppressing features associated with other classes.
Knowl 2 — Guided Grad-CAM Visualization
model/method
While Grad-CAM produces class-discriminative heatmaps that localize object categories, the resulting maps are coarse due to the low spatial resolution of deep convolutional layers. Conversely, pixel-space gradient visualization methods (such as Guided Backpropagation) generate high-resolution visualizations of edges and textures but lack class-discriminative capability.

Guided Grad-CAM fuses these complementary representations to produce high-resolution, class-discriminative visual explanations:
1. The coarse Grad-CAM localization map $L_{\text{Grad-CAM}}^c$ is upsampled to the input image dimensions using bilinear interpolation.
2. The upsampled heatmap is multiplied point-wise with the pixel-space visualization obtained from Guided Backpropagation: $V_{\text{Guided Grad-CAM}}^c = V_{\text{Guided Backprop}} \odot \text{interpolate}(L_{\text{Grad-CAM}}^c)$
This pointwise gating suppresses features that do not belong to the target class $c$ while highlighting fine-grained visual details (such as facial markings, stripes, or object parts) specific to that class.
Knowl 3 — Generalization of Class Activation Mapping (CAM)
theoretical result
Grad-CAM is a strict generalization of Class Activation Mapping (CAM) to arbitrary CNN architectures.

In CAM architectures, the $K$ convolutional feature maps $A^k \in \mathbb{R}^{u \times v}$ of the penultimate layer are spatially averaged via Global Average Pooling (GAP) to obtain $F^k = \frac{1}{Z} \sum_{i=1}^u \sum_{j=1}^v A_{ij}^k$ (where $Z = u \cdot v$ ), and the pre-softmax score for class $c$ is computed as a linear combination $Y^c = \sum_k w_k^c F^k$ .

Taking the partial derivative of $Y^c$ with respect to a single feature map element $A_{ij}^k$ gives: $\frac{\partial Y^c}{\partial A_{ij}^k} = \frac{\partial Y^c}{\partial F^k} \cdot \frac{\partial F^k}{\partial A_{ij}^k} = w_k^c \cdot \frac{1}{Z}$

Summing both sides over all $Z$ spatial pixels $(i,j)$ yields: $\sum_{i=1}^u \sum_{j=1}^v \frac{\partial Y^c}{\partial A_{ij}^k} = Z \cdot \left( \frac{1}{Z} w_k^c \right) = w_k^c$

Rearranging terms shows that the class feature weight $w_k^c$ equals: $w_k^c = Z \cdot \left( \frac{1}{Z} \sum_{i=1}^u \sum_{j=1}^v \frac{\partial Y^c}{\partial A_{ij}^k} \right) = Z \cdot \alpha_k^c$

Up to the proportionality constant $1/Z$ (which is eliminated when visual heatmaps are normalized), the weight $w_k^c$ in CAM is identical to the importance weight $\alpha_k^c$ in Grad-CAM. Thus, Grad-CAM reproduces CAM for GAP architectures while extending visual explanations to architectures with fully-connected layers, multi-modal networks, and recurrent layers without retraining.

Knowl 4 — Weakly-Supervised Localization Performance on ImageNet

data/table

Weakly-supervised object localization on the ILSVRC-15 validation set is evaluated by generating Grad-CAM heatmaps for predicted classes, thresholding the heatmap at 15% of its maximum intensity to extract connected components, and fitting a bounding box to the single largest segment. The underlying models are trained solely on image-level class labels without bounding box annotations.

	Classification Error (%)		Localization Error (%)
Method	Top-1	Top-5	Top-1	Top-5
VGG-16
Backprop	30.38	10.89	61.12	51.46
c-MWP	30.38	10.89	70.92	63.04
Grad-CAM (ours)	30.38	10.89	56.51	46.41
CAM	33.40	12.20	57.20	45.14
AlexNet
c-MWP	44.2	20.8	92.6	89.2
Grad-CAM (ours)	44.2	20.8	68.3	56.6
GoogleNet
Grad-CAM (ours)	31.9	11.3	60.09	49.34
CAM	31.9	11.3	60.09	49.34

Grad-CAM applied to an off-the-shelf VGG-16 achieves a top-1 localization error of 56.51%, outperforming plain Backpropagation (61.12%), c-MWP (70.92%), and CAM (57.20%). Furthermore, while CAM requires replacing fully-connected layers with GAP and retraining the network (incurring a 2.98% drop in top-1 classification performance), Grad-CAM achieves lower localization error without compromising classification accuracy.

Knowl 5 — Human Trust, Class Discrimination, and Model Faithfulness Evaluations

data/table

Human user studies on Amazon Mechanical Turk and occlusion-based sensitivity experiments quantify the class-discriminative ability, trustworthiness, and model faithfulness of visual explanations generated for VGG-16 and AlexNet fine-tuned on PASCAL VOC 2007.

Class Discrimination: Across 90 image pairs with two distinct annotated classes evaluated by 43 human workers, Guided Grad-CAM visualizations enabled workers to identify the visualized class in 61.23% of trials, compared to 44.44% for Guided Backpropagation (a 16.79% absolute improvement). Deconvolution Grad-CAM also improved human identification over baseline Deconvolution (60.37% vs. 53.33%).
Trust / Relative Reliability: When AlexNet and VGG-16 made identical, correct predictions, 54 human subjects rated explanation reliability on a scale from $-2$ to $+2$ . Guided Grad-CAM produced a mean score of $+1.27$ favoring VGG-16 (the more accurate model: 79.09 vs. 69.20 mAP) compared to $+1.00$ for Guided Backpropagation, demonstrating that Grad-CAM helps untrained users identify better generalizing models from individual predictions.
Faithfulness: Faithfulness is evaluated by measuring the rank correlation between explanation intensity and score drops from patch occlusion across 2,510 images. Guided Grad-CAM achieves a correlation of 0.261 (and Grad-CAM achieves 0.254), higher than Guided Backpropagation (0.168), CAM (0.208), and c-MWP (0.220).

Knowl 6 — Counterfactual Visual Explanations via Negated Gradients
model/method
Counterfactual explanations identify spatial regions containing visual evidence that opposes a target class prediction $c$ —that is, regions whose presence reduces the model's confidence in class $c$ , and whose removal would increase the prediction score.

Counterfactual importance weights $\alpha_k^c$ are obtained by global-average-pooling the negated gradients of the pre-softmax score $y^c$ with respect to convolutional feature map activations $A^k$ : $\alpha_k^c = \frac{1}{Z} \sum_{i=1}^u \sum_{j=1}^v -\frac{\partial y^c}{\partial A_{ij}^k}$

The counterfactual localization map is computed via the rectified weighted combination: $L_{\text{counterfactual}}^c = \text{ReLU}\left( \sum_k \alpha_k^c A^k \right)$

This highlights regions that provide contradictory evidence against category $c$ , distinguishing them from standard Grad-CAM maps that highlight supportive evidence.
Knowl 7 — Weakly-Supervised Segmentation and Pointing Game Localization
empirical result
Grad-CAM provides effective localization cues across weakly-supervised segmentation and pointing game benchmarks:
1. Weakly-Supervised Semantic Segmentation: In the Seed, Expand, Constrain (SEC) framework on PASCAL VOC 2012, replacing CAM localization seeds with Grad-CAM heatmaps obtained from a standard VGG-16 network improves validation Intersection over Union (IoU) from 44.6% to 49.6%.
2. Pointing Game with Rejection: Evaluated on top-5 CNN predictions on COCO with the ability to reject absent classes when maximum heatmap intensity falls below a threshold, Grad-CAM achieves a localization accuracy of 70.58%, significantly outperforming contrastive Marginal Winning Probability (c-MWP, 60.30%) on VGG-16.
3. Caption Word Grounding: Using a Show-and-Tell image captioning model on 1,000 COCO images with 830 caption words mapped to 80 COCO categories, Grad-CAM pointing accuracy against ground-truth segmentation masks reaches 30.0% without grounding supervision during training.
Knowl 8 — Textual Explanations via Grad-CAM Neuron Importance
model/method
Grad-CAM neuron importance scores can be combined with automatic concept labels assigned to convolutional filters (such as names generated via Network Dissection) to produce textual explanations for neural network decisions.
1. Semantic concept names are assigned to channels in the final convolutional layer based on overlap (e.g., $\text{IoU} \ge 0.05$ ) between individual filter activations and ground-truth concept segmentation masks.
2. For a given input image and class score $y^c$ , neuron importance weights $\alpha_k^c = \frac{1}{Z} \sum_{i,j} \frac{\partial y^c}{\partial A_{ij}^k}$ are computed.
3. Neurons are sorted by their importance scores:
  - Top-5 positive $\alpha_k^c$ neurons are identified as persuasive concepts whose presence increases the class prediction.
  - Bottom-5 negative $\alpha_k^c$ neurons are identified as inhibitive concepts whose presence decreases the class prediction.
4. The names of these top and bottom neurons provide a textual justification complementing the spatial Grad-CAM heatmap.
Knowl 9 — Grad-CAM for Multimodal Vision and Language Tasks
model/method
Grad-CAM generates visual explanations for multimodal architectures where the output target score $y^c$ is not a standard image classification logit:
1. Image Captioning: For CNN-LSTM models (such as NeuralTalk2), setting $y^c$ to the log probability of a generated sentence or an individual word $w_t$ at step $t$ allows gradients to flow back to the CNN's final convolutional layer (e.g., conv5_3 in VGG-16). In DenseCap evaluation, the ratio of mean activation inside versus outside ground-truth bounding boxes is $3.27 \pm 0.18$ for Grad-CAM and $6.38 \pm 0.99$ for Guided Grad-CAM (compared to a baseline ratio of $1.0$ for uniform attention and $2.32 \pm 0.08$ for Guided Backpropagation).
2. Visual Question Answering (VQA): In VQA networks predicting answers from fused image and question representations, setting $y^c$ to the logit of the predicted answer produces answer-specific heatmaps. On the VQA benchmark (Lu et al.), Grad-CAM achieves a rank correlation with occlusion maps of $0.60 \pm 0.038$ (vs. $0.42 \pm 0.038$ for Guided Backpropagation) and a rank correlation with human gaze attention maps of $0.136$ .
Knowl 10 — Dataset Bias Diagnosis and Adversarial Noise Robustness
empirical result
Grad-CAM visual explanations diagnose systematic dataset biases and evaluate model sensitivity to adversarial attacks:
1. Dataset Bias Diagnosis: A VGG-16 classifier trained on web-scraped images for a binary 'doctor' vs. 'nurse' task achieved high training and validation accuracy but degraded to 82% test accuracy on a gender-balanced test set. Grad-CAM revealed that the model localized facial features and hairstyles to differentiate classes due to search query bias (where 78% of doctor images were men and 93% of nurse images were women). Retraining the model on a debiased dataset with female doctors and male nurses increased test accuracy to 90% and shifted Grad-CAM attention toward stethoscopes and uniforms.
2. Adversarial Robustness: In images perturbed by adversarial noise that causes VGG-16 to misclassify scenes as 'airliner' with $>0.9999$ confidence, Grad-CAM computed for the true underlying classes (e.g., 'tiger cat' or 'boxer') continues to localize the actual objects accurately, while Grad-CAM for the predicted adversarial class highlights diffuse background areas.

Knowl 11 — Ablation Analysis of Grad-CAM Components

data/table

An ablation study on the ILSVRC-15 validation set evaluates localization performance under different gradient pooling operations, activation rectifications, and layer selections.

Impact of ReLU: Omitting the ReLU operation after the weighted sum increases top-1 localization error from 59.65% to 74.98% (+15.33%), as negative weights highlight non-target classes.
Global Average Pooling vs. Max Pooling: Global Average Pooling (59.65% error) outperforms Global Max Pooling (59.96% error) because averaging is more robust to gradient noise.
Backward ReLU Variants: Using Deconvolution ReLU in the backward pass severely degrades localization performance (83.95% error), showing that negative gradients carry critical class-discriminative information. Guided ReLU yields 59.14% localization error but reduces class discriminativeness in qualitative visualizations.
Layer Depth: Computing Grad-CAM on shallower convolutional layers progressively degrades localization due to smaller receptive fields and the lack of high-level semantic representations.

Coverage note — Specific qualitative visualization figures and software demo implementation details were omitted as they serve as individual illustrative instances of the core evaluated methods.
