Pix2Struct: Screenshot Parsing as Pretraining for Visual Language Understanding

Kenton LeeMandar JoshiIulia Raluca TurcHexiang HuFangyu LiuJulian Martin EisenschlosUrvashi KhandelwalPeter ShawMing-Wei ChangKristina Toutanova

article2023ICML521 citations

Presents Pix2Struct, an image-to-text model pretrained by parsing masked web screenshots into simplified HTML, enabling a single OCR-free architecture to handle diverse visual language tasks across documents, diagrams, and user interfaces.

Listen

Modern digital environments—such as documents, mobile applications, and web pages—present language and visual information holistically. Previous artificial intelligence methods for processing this visually-situated text have relied on fragmented, domain-specific pipelines that depend heavily on external tools, such as optical character recognition (OCR) or specialized application metadata. These multi-step pipelines increase engineering complexity, limit adaptability across different formats, and elevate computational costs.

The article demonstrates Pix2Struct, a unified, pretrained image-to-text model designed for purely visual language understanding without requiring external OCR tools or domain-specific intermediate steps. The goal was to establish a single general-purpose framework capable of handling varied visual language tasks by learning directly from raw pixel inputs.

The approach uses a vision transformer architecture trained on 80 million web page screenshots paired with simplified HTML source code. During this self-supervised pretraining, the model learns to reconstruct the underlying HTML structure from partially masked screenshots, effectively blending OCR, masked language modeling, and image captioning into one objective. To handle the varied aspect ratios of documents and user interfaces without distortion, the authors introduced a variable-resolution patching mechanism. For downstream tasks, text prompts (such as questions) are rendered directly onto the input image, processing all information through a single visual channel. Two model variants were evaluated across nine benchmarks spanning four domains: illustrations, user interfaces, natural images, and documents.

The evaluation yielded several key findings. Pix2Struct established a new state of the art in six of the nine benchmarks. In low-resource domains, it outperformed existing specialized systems, improving chart question-answering accuracy from 45.5 to 58.6 and mobile screen summarization score from 64.3 to 109.4. Across all tested benchmarks, it substantially outperformed Donut, the leading OCR-free baseline, by 9 to 53 points. While the model trailed top-performing OCR-reliant pipelines in text-dense document tasks and models trained on billions of caption pairs for natural images, it delivered competitive performance using substantially less domain-specific training.

These results indicate that end-to-end visual pretraining from web markup provides a viable, scalable alternative to specialized multi-stage pipelines. By eliminating reliance on external OCR tools, organizations can reduce architectural complexity, streamline operational maintenance, and deploy a single model across diverse visual and document formats.

Decision-makers and engineering teams should consider piloting unified, pixel-only models for user interface and illustration workflows where specialized tools are brittle or unavailable. For text-heavy document extraction, organizations should weigh the simplicity of an end-to-end model against the marginal accuracy advantage of established OCR pipelines. Future development should focus on scaling pretraining data and exploring long-range architectures to further close performance gaps in document-dense domains.

The primary limitation of the model is its high sensitivity to image resolution, as high-resolution inputs demand significant computational memory and sequence lengths during processing. Additionally, the pretraining data relies on web corpora that require careful curation to mitigate undesirable content risks. While confidence is high in the model's effectiveness across user interfaces and illustrative tasks, readers should exercise caution when deploying purely pixel-based models to high-density document tasks without task-specific validation.

Google Succinctly AI University of Cambridge html language model ocr Pix2Struct screenshot parsing visual language understanding

arXiv: 2210.03347 google-research/pix2struct

Paper: DocVQA: A Dataset for VQA on Document Images, Minesh Mathew et al. (2020). Introduces the Document Visual Question Answering benchmark that establishes the core challenge of visually-situated language comprehension addressed by Pix2Struct.
Paper: Masked Autoencoders Are Scalable Vision Learners, Kaiming He et al. (2022). Presents masked image modeling with vision transformers, providing the conceptual foundation for masked patch reconstruction used in Pix2Struct's pretraining.
Paper: An Empirical Study of Training End-to-End Vision-and-Language Transformers, Zi-Yi Dou et al. (2022). Provides a comprehensive empirical study on architectural choices and objectives for end-to-end vision-and-language transformers.
Paper: Generative Pretraining From Pixels, Mark Chen et al. (2020). Demonstrates the feasibility of training generative sequence transformers directly on raw visual pixels without domain-specific inductive biases.

Paper: MatCha: Enhancing Visual Language Pretraining with Math Reasoning and Chart Derendering, Fangyu Liu et al. (2023). Directly extends Pix2Struct by continual pretraining on chart derendering and mathematical reasoning tasks to enhance chart understanding.
Paper: From Pixels to UI Actions: Learning to Follow Instructions via Graphical User Interfaces, Peter Shaw et al. (2023). Applies the screenshot-parsing pretraining paradigm to build autonomous agents that navigate graphical user interfaces from raw pixels.
Paper: Spotlight: Mobile UI Understanding using Vision-Language Models with a Focus, Gang Li et al. (2023). Builds upon vision-only screenshot modeling to interpret mobile user interfaces using dynamic region focus rather than fragile view hierarchies.
Paper: ScreenQA: Large-Scale Question-Answer Pairs Over Mobile App Screenshots, Yu-Chung Hsiao et al. (2025). Introduces a large-scale visual question-answering benchmark specifically designed to assess pixel-based reading comprehension across full mobile screen captures.

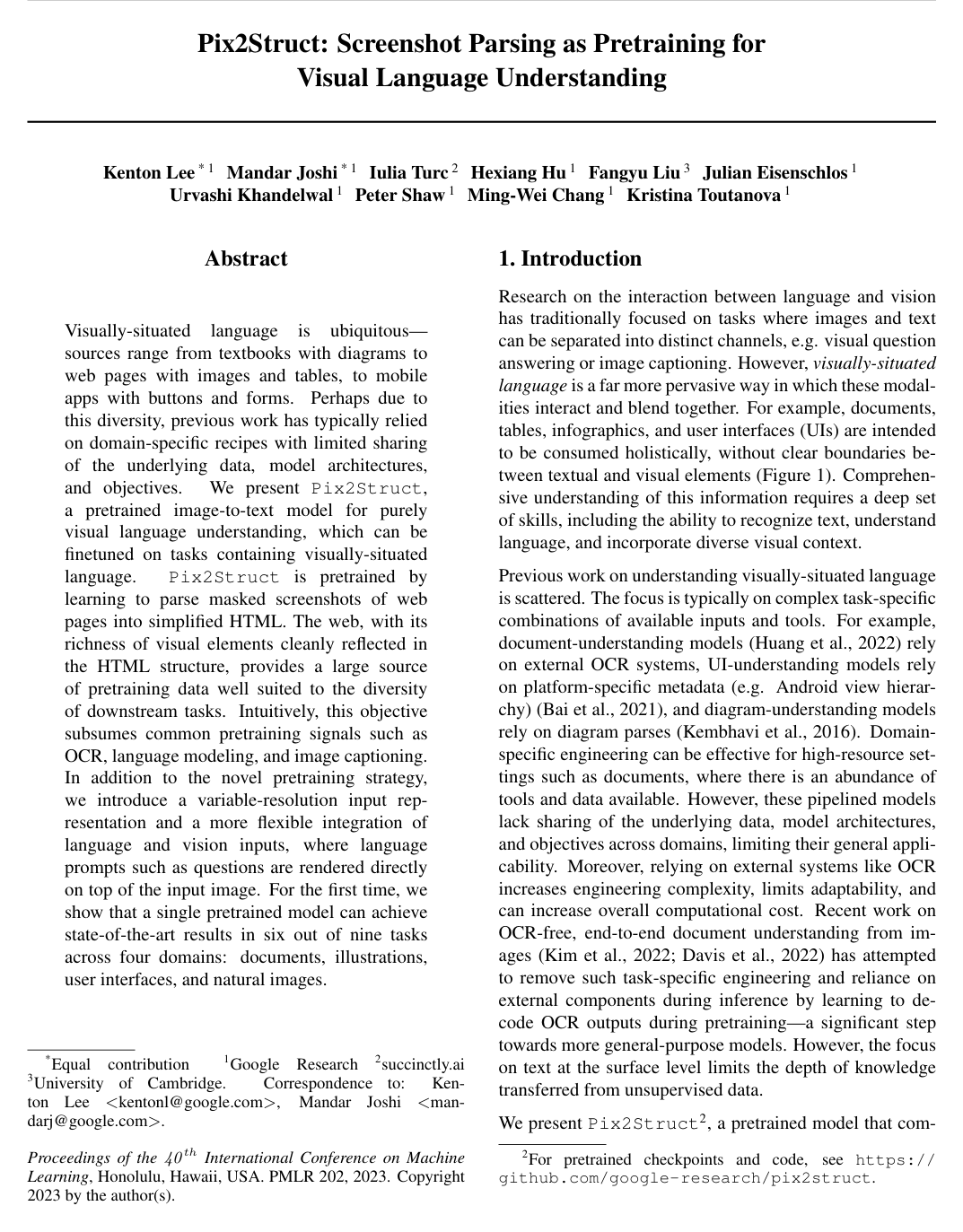

Cover for Pix2Struct: Screenshot Parsing as Pretraining for Visual Language Understanding

Abstract

Visually-situated language is ubiquitous—sources range from textbooks with diagrams to web pages with images and tables, to mobile apps with buttons and forms. Perhaps due to this diversity, previous work has typically relied on domain-specific recipes with limited sharing of the underlying data, model architectures, and objectives. We present Pix2Struct, a pretrained image-to-text model for purely visual language understanding, which can be finetuned on tasks containing visually-situated language. Pix2Struct is pretrained by learning to parse masked screenshots of web pages into simplified HTML. The web, with its richness of visual elements cleanly reflected in the HTML structure, provides a large source of pretraining data well suited to the diversity of downstream tasks. Intuitively, this objective subsumes common pretraining signals such as OCR, language modeling, and image captioning. In addition to the novel pretraining strategy, we introduce a variable-resolution input representation and a more flexible integration of language and vision inputs, where language prompts such as questions are rendered directly on top of the input image. For the first time, we show that a single pretrained model can achieve state-of-the-art results in six out of nine tasks across four domains: documents, illustrations, user interfaces, and natural images.

Topics

html language model ocr parsing algorithm web content

Keywords

Pix2Struct screenshot parsing visual language understanding UI understanding document understanding OCR-based pipelines multimodal models image-caption pairs

1. Introduction
2. Method
2.1. Background
2.2. Architecture
2.3. Pretraining
2.4. Warming up with a reading curriculum
2.5. Finetuning
3. Experimental Setup
3.1. Benchmarks
3.2. Implementation and Baselines
4. Results
4.1. Illustrations
4.2. UIs
4.3. Natural Images
4.4. Documents
5. Analysis
6. Discussion
7. Related Work
References
A. Resolution in visually-situated language understanding tasks
B. Full Results
C. Finetuning Dataset Details
D. Hyperparameters
E. Warmup Stage Data
F. Pretraining Data

Knowls

Knowl 1 — Screenshot Parsing Pretraining Objective
model/method
Pix2Struct introduces a self-supervised screenshot parsing pretraining task where the model takes a masked screenshot of a web page as visual input and autoregressively generates a simplified HTML-based Document Object Model (DOM) parse.

To construct training pairs from web pages rendered with a $1024 \times 1024$ pixel viewport:
1. DOM Condensation: The DOM tree is filtered to retain only nodes with visible elements or visible descendants. When a node lacks visible content and has only one child, it is collapsed into that child to remove redundant nesting.
2. Content Extraction: For each retained node, only the text, image filenames, and image alternative text (alt-text) are preserved.
3. Subtree Selection: The largest linearized DOM subtree that fits within the decoder sequence budget (128 tokens) is selected as the target. A visual bounding box corresponding to the region covered by this subtree is rendered directly onto the input screenshot.
4. Masking: A denoising objective is applied by masking $50\%$ of the text spans in the selected subtree directly on the screenshot image with solid masks, requiring the decoder to recover the full subtree.
This objective unifies three core capabilities in visually-situated language processing: recovering unmasked text acts as optical character recognition (OCR); predicting masked text acts as masked language modeling (MLM) guided by visual context; and predicting alt-text and filenames acts as context-aware image captioning.
Knowl 2 — Variable-Resolution Input Representation for Vision Transformers
model/method
Standard Vision Transformers (ViT) rescale input images to a fixed square resolution (such as $224 \times 224$ or $512 \times 512$ ), which either distorts the natural aspect ratio of visually-situated language inputs (such as tall documents or wide web pages) or introduces excessive zero-padding that wastes sequence capacity.

Pix2Struct replaces fixed-resolution preprocessing with a variable-resolution patching mechanism:
1. Given an input image with original width $W$ and height $H$ , and a sequence length budget of $L$ patches of fixed size $p \times p$ (where $p = 16$ pixels), the image is scaled by an isotropic factor $s$ such that the total number of extracted patches $\lceil \frac{sW}{p} \rceil \times \lceil \frac{sH}{p} \rceil \le L$ is maximized while preserving the aspect ratio $W / H$ .
2. Patches are extracted from the scaled image without distortion or artificial padding.
3. To handle variable patch grid dimensions unambiguously, each patch is assigned a 2-dimensional absolute positional embedding corresponding to its discrete $(x, y)$ coordinate in the patch grid.
This representation allows on-the-fly adjustment of sequence lengths and resolutions between pretraining and finetuning without interpolation of positional embeddings.
Knowl 3 — Visual Prompt Rendering for Multimodal Downstream Tasks
model/method
Pix2Struct processes all multimodal inputs through a purely visual channel by rendering text prompts and spatial annotations directly onto the input image before encoding:
- Visual Question Answering (VQA): In tasks such as DocVQA, InfographicsVQA, ChartQA, and OCR-VQA, the question text is rendered as a visual header banner directly above the input image. For multiple-choice questions (e.g., AI2D), candidate choices are also rendered inside the header banner alongside the question.
- Image and Widget Captioning: In standard image captioning (e.g., TextCaps, Screen2Words), the raw image is passed directly. For localized targets (e.g., Widget Captioning), a bounding box is drawn over the target UI component directly on the image.
- Referring Expression Resolution: In UI referring expression tasks (e.g., RefExp), each candidate component is evaluated by generating an image containing the screenshot, the query expression rendered in the header, and a bounding box around the candidate component. The model decodes a binary token ("true" or "false"). Training uses five negative candidates per positive instance, and inference ranks candidates by the model's generation score for "true".
Knowl 4 — Reading Curriculum Warmup Pretraining
model/method
Directly pretraining Pix2Struct from random initialization on screenshot parsing causes training instability and slow convergence. To address this, pretraining begins with a short synthetic reading curriculum warmup stage.

Warmup data generation:
- Text snippets up to 128 bytes long are sampled from the BooksCorpus dataset.
- Snippets are rendered as unmasked text on a plain white background with a width of 640 pixels (height fitted to content).
- Render styling is randomized: fonts are uniformly sampled from Google Fonts, font sizes are uniformly sampled from 12pt to 36pt, and text colors are uniformly sampled across all RGB values.
- The model is trained for 30,000 steps to transcribe the text with a maximum input sequence length of 128 patches.
This warmup stage imparts basic character recognition capabilities, stabilizing subsequent screenshot parsing pretraining, speeding up optimization convergence, and improving downstream finetuning performance.
Knowl 5 — Pix2Struct Architecture and Pretraining Configurations
experimental setup
Pix2Struct is an image-encoder-text-decoder transformer model using a Vision Transformer (ViT) encoder and an autoregressive text decoder.

Model variants:
- Pix2Struct-Base: 282 million parameters, 12 encoder layers, 12 decoder layers, and a hidden dimension of 768.
- Pix2Struct-Large: 1.3 billion parameters, 18 encoder layers, 18 decoder layers, and a hidden dimension of 1536.
Pretraining specifications:
- Pretraining Data: 80 million pairs of web page screenshots and HTML DOM trees collected from URLs in the C4 corpus, rendered at a viewport of $1024 \times 1024$ pixels.
- Optimization: Adafactor optimizer with a linear learning rate warmup over 1,000 steps to a peak learning rate of 0.01, followed by cosine decay to 0.
- Training Schedule: Both models undergo a 30,000-step reading warmup on synthetic BooksCorpus renders (sequence length 128 patches). Pix2Struct-Base is then trained for 270,000 steps on screenshot parsing with a batch size of 2,048 across 64 Cloud TPUs (sequence length 2,048 patches). Pix2Struct-Large is trained for 170,000 steps with a batch size of 1,024 across 128 Cloud TPUs (sequence length 2,048 patches). The decoder target sequence length is 128 tokens (up to 1,024 characters).
- Validation Performance: Pix2Struct-Base achieves 30 BLEU and Pix2Struct-Large achieves 32 BLEU on the pretraining validation set.

Knowl 6 — Downstream Benchmark Performance Across Visually-Situated Language Domains

data/table

Pix2Struct was evaluated on nine single-task benchmarks across four domains: Illustrations (ChartQA, AI2D, OCR-VQA), User Interfaces (RefExp, Widget Captioning, Screen2Words), Natural Images (TextCaps), and Documents (DocVQA, InfographicVQA).

Metrics used:

Relaxed Accuracy (RA, %) for ChartQA.
Exact Match (EM, %) for AI2D, OCR-VQA, and RefExp.
CIDEr score for Widget Captioning, Screen2Words, and TextCaps.
Average Normalized Levenshtein Similarity (ANLS, %) for DocVQA and InfographicVQA.

Method	Pretraining	ChartQA	AI2D	OCR-VQA	RefExp	WidgetCap	Screen2Words	TextCaps	DocVQA	InfoVQA
Pipelined / Specialized SotA
VisionTaPas	Pipeline	45.5	-	-	-	-	-	-	-	-
DQA-NET	Pipeline	-	38.5	-	-	-	-	-	-	-
LATr	OCR Pipeline	-	-	67.5	-	-	-	-	-	-
UI Bert	View Hierarchy	-	-	-	90.8	-	-	-	-	-
VUT	View Hierarchy	-	-	-	-	97.0	64.3	-	-	-
PaLI	Captioning + OCR	-	-	-	-	-	-	160.4	-	-
UDOP	OCR Pipeline	-	-	-	-	-	-	-	84.7	47.4
Pixel-Only Models
GIT2	Image Captioning	-	-	70.3	-	-	-	145.0	-	-
Donut	Synthetic OCR	41.8	30.8	66.0	-	127.4	56.4	74.4	67.5	11.6
Pix2Struct-Base	Screenshot Parsing	56.0	40.9	69.4	92.2	133.1	107.0	88.0	72.1	38.2
Pix2Struct-Large	Screenshot Parsing	58.6	42.1	71.3	94.2	136.7	109.4	95.5	76.6	40.0

Pix2Struct-Large sets new state-of-the-art results on six of nine benchmarks (ChartQA, AI2D, OCR-VQA, RefExp, Widget Captioning, and Screen2Words) and outperforms the pixel-only baseline Donut across all nine benchmarks by 9 to 53 points.

Knowl 7 — Ablation Analysis of Pretraining Objectives

data/table

To evaluate the contributions of the pretraining components, a Pix2Struct-Base model was trained for a fixed budget of 100,000 total pretraining steps across four configurations and evaluated on the validation sets of DocVQA (ANLS, %), Widget Captioning (CIDEr), and TextCaps (CIDEr):

Full: 30,000 warmup steps on BooksCorpus followed by 70,000 screenshot parsing steps with 50% text masking.
-- Warmup: 100,000 screenshot parsing steps with text masking directly from random initialization.
-- Masking: 30,000 warmup steps followed by 70,000 screenshot parsing steps without text masking.
-- Screenshot Parsing: 100,000 warmup steps on linear text snippets from BooksCorpus (no screenshot parsing).

Pretraining Configuration	DocVQA (ANLS)	Widget Captioning (CIDEr)	TextCaps (CIDEr)
Full	67.8	137.5	84.2
– Warmup	56.2	128.0	71.7
– Masking	55.7	129.4	77.4
– Screenshot Parsing	12.2	35.1	24.2

Removing screenshot parsing causes severe performance degradation across all tasks, demonstrating that reading linear text alone cannot support visually-situated language tasks. Warmup reading pretraining and contextual text masking both provide substantial additive gains.

Knowl 8 — Input Resolution and Sequence Length Scaling Behavior
empirical result
Pixel-only visual language models show high sensitivity to input sequence length and image resolution:
- Resolution Scaling on DocVQA: Document QA performance (ANLS) scales steeply with input sequence length. Pix2Struct ANLS rises from under 20% at 128 patches ( $2^{15}$ pixels) to over 70% at 4096 patches of $16 \times 16$ pixels ( $2^{20} \approx 10^6$ pixels), after which performance gains show diminishing returns.
- Aspect Ratio Handling: During synthetic warmup training, variable-resolution patching without aspect ratio distortion outperforms both stretched patching (which distorts characters) and padded patching (which expends sequence capacity on blank padding) in transcription exact match accuracy across all training step intervals.
- Inference Speed: Measured on a Cloud TPU v3-8 at a sequence length of 4096 patches (1M pixels) with autoregressive decoding up to 32 tokens, Pix2Struct-Base processes 62 documents per second, and Pix2Struct-Large processes 20 documents per second on DocVQA.
Knowl 9 — Limitations of Pixel-Only Visual Language Understanding
limitation
Pix2Struct and pixel-only visual language models exhibit several key limitations:
1. High Resolution and Sequence Length Costs: Accurate text recognition in visually-situated language requires high image resolutions (up to 4096 patches / $10^6$ pixels). Due to the quadratic attention cost in transformer encoders, pixel-only processing is computationally heavier than OCR pipelines that decouple high-resolution text detection from lower-resolution visual encoding.
2. Performance Gap on Text-Heavy Documents: On dense, purely textual documents (such as DocVQA), specialized OCR pipelines leveraging large pretrained language models (e.g., UDOP at 84.7 ANLS vs. Pix2Struct-Large at 76.6 ANLS) outperform pixel-only models because text encoders process longer token sequences more compactly.
3. Web Pretraining Noise and Biases: Pretraining on scraped web screenshots (from the C4 dataset) inherits web noise, boilerplate markup, and potential web-scale biases and harmful content.

Coverage note — All primary contributions, methods, pretraining configurations, downstream benchmark evaluations, ablations, resolution scaling analyses, and stated limitations have been included as knowls.
