Spotlight: Mobile UI Understanding using Vision-Language Models with a Focus

Gang LiYang Li

article2023ICLR107 citations

Introduces Spotlight, a vision-language approach that achieves state-of-the-art mobile user interface understanding directly from raw screenshots and region-of-interest focus points, removing the need for incomplete or noisy view hierarchy metadata.

Listen

Mobile user interface (UI) understanding is essential for enabling automated interactions and enhancing digital accessibility, such as screen readers for vision-impaired users. Historically, systems relied on underlying structural data—known as view hierarchies—alongside raw screenshots. However, view hierarchies are frequently missing, incomplete, or corrupted with inaccurate metadata and misaligned bounding boxes, which introduces runtime overhead, creates brittle dependencies, and constrains model performance.

The article demonstrates the effectiveness of Spotlight, a vision-only framework that models mobile UIs exclusively from raw screen pixels and focus coordinates. The primary objective is to evaluate whether a scalable vision-language architecture can understand mobile screens without needing view hierarchy metadata.

The researchers developed Spotlight by pairing a standard Vision Transformer for visual encoding with a Transformer text decoder. They introduced a "Region Summarizer" attention mechanism that uses a target area's bounding box coordinates to dynamically query visual tokens, capturing both local UI elements and broader surrounding context. To teach the model UI concepts prior to task fine-tuning, the authors pretrained the architecture on an extensive dataset consisting of 80 million rendered web pages from the C4 corpus and 2.5 million mobile screenshots. Spotlight was subsequently evaluated across four representative benchmarks: widget captioning, screen summarization, command grounding, and tappability prediction.

The evaluation produced four central findings. First, Spotlight established new state-of-the-art performance across all four downstream tasks, outperforming prior systems that relied on combined visual and view hierarchy inputs. Second, in widget captioning and screen summarization, the model achieved massive gains, improving captioning CIDEr metrics from the previous best of 99.3 to 141.8 (an increase of over 40%) and summarization from 65.6 to 106.7 (an improvement of more than 60%). Third, a unified multi-task model performed on par with specialized single-task systems in widget captioning and tappability, while still exceeding prior benchmarks in command grounding and summarization. Finally, ablation studies showed that joint pretraining on web and mobile visual data is essential; models trained from scratch or with frozen vision encoders failed to achieve competitive results.

These findings indicate that relying on brittle runtime structural metadata is unnecessary for UI modeling. By transitioning to a pure vision-language approach, organizations can streamline system architectures, reduce engineering overhead tied to cleaning noisy UI hierarchies, and deploy single multi-task models that lower operational footprints across diverse digital platforms.

Teams building mobile automation, accessibility tools, or design validation systems should transition from metadata-reliant pipelines toward unified vision-language architectures. Organizations should consider adopting the Region Summarizer design to handle localized UI interactions without sacrificing full-screen visual context. Before deploying few-shot prompting in production, practitioners should conduct additional domain-specific pretraining, as zero- and few-shot capabilities remain limited for complex UI tasks.

While the model delivers strong results, the study's conclusions are constrained by the relatively modest size of the investigated models (up to 843 million parameters) and the limited transferability of few-shot prompting beyond captioning. Additionally, while the framework bypasses runtime hierarchy requirements, initial bounding box coordinates are still required to direct the model's focus. Confidence in the reported fine-tuning and multi-task improvements remains high given the comprehensive evaluations and consistent performance across diverse standard benchmarks.

Googleautomationlanguage modeluser interfacesmobile UI understandingvision-language modelsScreen Summarization task
arXiv: 2209.14927

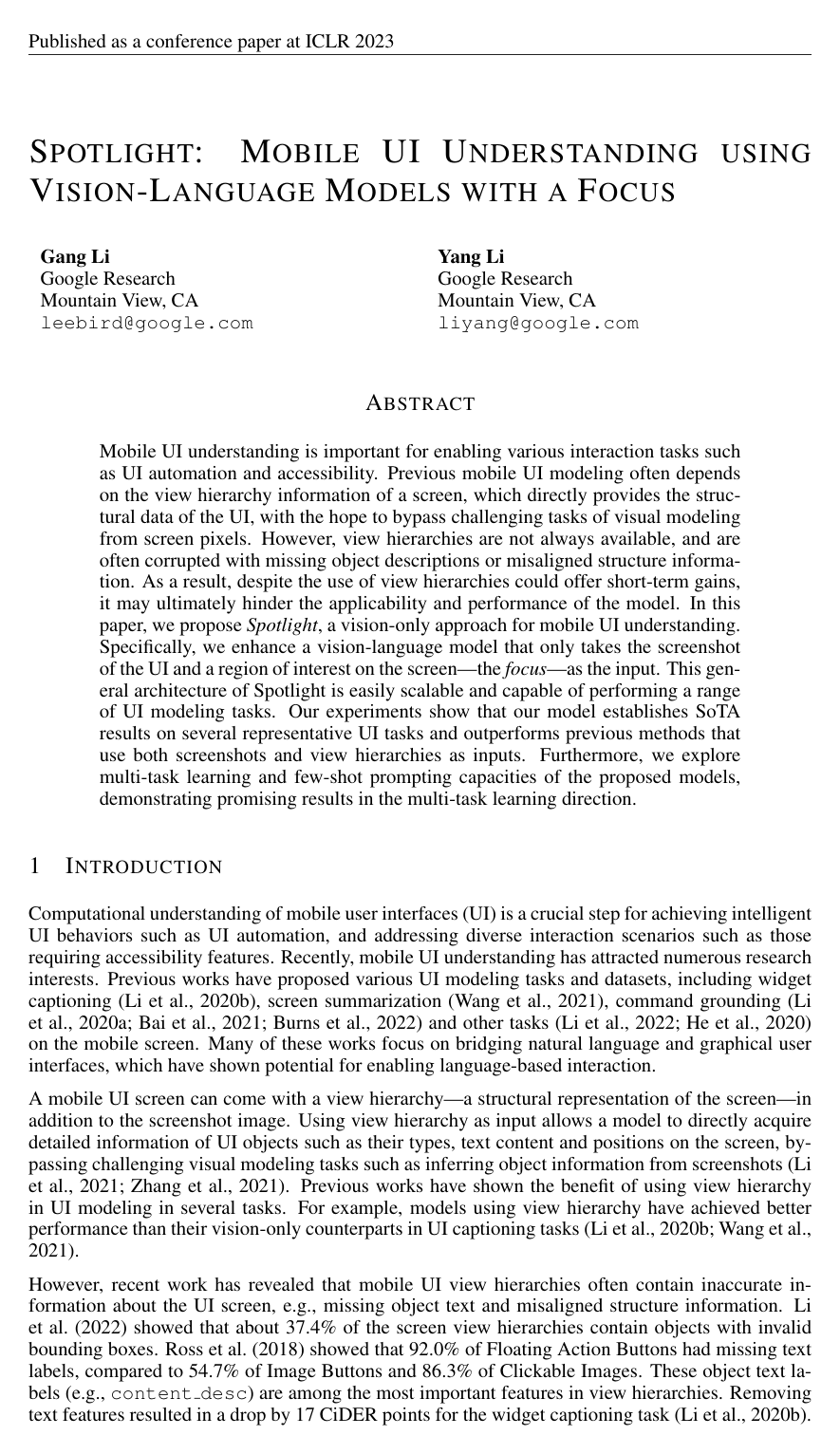

Cover for Spotlight: Mobile UI Understanding using Vision-Language Models with a Focus

Abstract

Mobile UI understanding is important for enabling various interaction tasks such as UI automation and accessibility. Previous mobile UI modeling often depends on the view hierarchy information of a screen, which directly provides the structural data of the UI, with the hope to bypass challenging tasks of visual modeling from screen pixels. However, view hierarchies are not always available, and are often corrupted with missing object descriptions or misaligned structure information. As a result, despite the use of view hierarchies could offer short-term gains, it may ultimately hinder the applicability and performance of the model. In this paper, we propose Spotlight, a vision-only approach for mobile UI understanding. Specifically, we enhance a vision-language model that only takes the screenshot of the UI and a region of interest on the screen -- the focus -- as the input. This general architecture of Spotlight is easily scalable and capable of performing a range of UI modeling tasks. Our experiments show that our model establishes SoTA results on several representative UI tasks and outperforms previous methods that use both screenshots and view hierarchies as inputs. Furthermore, we explore multi-task learning and few-shot prompting capacities of the proposed models, demonstrating promising results in the multi-task learning direction.

Topics

automationlanguage modeluser interfacesmultitask learning

Keywords

mobile UI understandingvision-language modelsScreen Summarization taskWidget CaptioningUI automationview hierarchyscreen contextcross-attention layers

Table of Contents

  • 1 Introduction
  • 2 Related Work
  • 3 Data
  • 3.1 Pretraining Datasets
  • 3.2 UI Task Datasets
  • 4 Models
  • 5 Experiments
  • 5.1 Pretraining
  • 5.2 Finetuning, Multi-task Learning and Few-shot Prompting
  • 5.2.1 Finetuning
  • 5.2.2 Multi-task Learning
  • 5.2.3 Few-shot Learning
  • 6 Discussions
  • 7 Conclusions
  • References
  • A Hyperparameters & Model Sizes
  • B Ablation Study
  • C Pseudo Code
  • D Pretraining Datasets
  • E Downstream Tasks & Datasets

Knowls

  1. Knowl 1 — Spotlight Architecture for Focus-Aware Mobile UI Understanding

    model/method

    Spotlight is a vision-only encoder-decoder framework designed for mobile user interface (UI) modeling tasks that eliminates the dependency on structural view hierarchies. The architecture consists of three principal components:

    1. Vision Transformer (ViT) Image Encoder: Encodes raw UI screenshot images (resized with aspect ratio preserved and padded to 740×740740 \times 740 pixels) into visual feature representations H∈Rm×dH \in \mathbb{R}^{m \times d}, where mm is the sequence length of visual tokens and dd is the latent feature dimension.

    2. Region Summarizer (Focus Region Extractor): Takes normalized 4-scalar bounding box coordinates B=[left,top,right,bottom]T∈R4×1B = [\text{left}, \text{top}, \text{right}, \text{bottom}]^T \in \mathbb{R}^{4 \times 1} representing a region of interest (focus), expands them into query descriptors, and performs cross-attention over the ViT image encodings HH across ll Transformer layers to produce focus region representations Ql∈R4n×dQ_l \in \mathbb{R}^{4n \times d}.

    3. Transformer Decoder: An auto-regressive text decoder (initialized from multilingual T5) that attends to the focus region representations QlQ_l via cross-attention to generate target text sequences.

    By operating directly on visual pixels and bounding box coordinates, Spotlight maintains full visual context and avoids failure modes associated with missing, noisy, or misaligned structural metadata in view hierarchies.

  2. Knowl 2 — Region Summarizer Formulation

    equation

    The Region Summarizer maps a bounding box B=[b1,b2,b3,b4]T∈R4×1B = [b_1, b_2, b_3, b_4]^T \in \mathbb{R}^{4 \times 1} (representing normalized coordinates [left,top,right,bottom][\text{left}, \text{top}, \text{right}, \text{bottom}]) into query representations that attend to ViT image encodings H∈Rm×dH \in \mathbb{R}^{m \times d} through cross-attention.

    First, bounding box coordinates are projected to dense descriptor queries:

    E=Reshape4×nde→4×n×de([GeLU(BWe)]Wx)E = \text{Reshape}_{4 \times n d_e \to 4 \times n \times d_e}\left(\left[\text{GeLU}(B W_e)\right] W_x\right)

    X=Reshape4×n×d→4n×d(E+C)X = \text{Reshape}_{4 \times n \times d \to 4n \times d}(E + C)

    where We∈R1×ndeW_e \in \mathbb{R}^{1 \times n d_e} maps each scalar coordinate to nn dense vectors of dimension ded_e, Wx∈Rde×dW_x \in \mathbb{R}^{d_e \times d} projects descriptors to the transformer hidden dimension dd, and C∈R4×1×dC \in \mathbb{R}^{4 \times 1 \times d} is a learnable coordinate type embedding distinguishing the four coordinate positions.

    The initial region queries Q0=X∈R4n×dQ_0 = X \in \mathbb{R}^{4n \times d} are iteratively refined across ll Transformer layers (0≤i<l0 \le i < l):

    Yi+1=Qi+CrossAttention(q=Qi,kv=H ∥ Qi)Y_{i+1} = Q_i + \text{CrossAttention}(q = Q_i, kv = H \, \| \, Q_i)

    Qi+1=Yi+1+Dense(Yi+1)Q_{i+1} = Y_{i+1} + \text{Dense}(Y_{i+1})

    where H ∥ Qi∈R(m+4n)×dH \, \| \, Q_i \in \mathbb{R}^{(m + 4n) \times d} denotes concatenation along the sequence dimension, qq is the query, and kvkv is the key-value memory. The final output Ql∈R4n×dQ_l \in \mathbb{R}^{4n \times d} represents the contextualized focus region.

  3. Knowl 3 — Pretraining on Heterogeneous Web and Mobile UI Corpora

    model/method

    Spotlight is pretrained with an autoregressive sequence decoding objective to predict text attributes associated with UI regions given screenshot images and object bounding boxes, drawing from two complementary datasets:

    1. C4 Web Screenshots Dataset: Contains 80 million web page screenshots. Candidate text targets are derived from HTML attributes (e.g., button text, alt-text, aria-label, title, and placeholder). Object text consists of sampled attributes, with the overall webpage title sampled at a weight of 0.01 for whole-screen summarization.

    2. Mobile App UI Dataset: Contains 2.69 million mobile app screenshots collected from an Android emulator. Targets are extracted from leaf node view hierarchy attributes (text, content_desc, resource_id) and OCR text detected with ≥80%\ge 80\% confidence.

    Pretraining filters out generic non-informative words, non-alphabetical strings, URLs, and rare tokens (<5<5 occurrences). High-frequency phrases are downsampled using word2vec subsampling with threshold t=10−5t = 10^{-5}. Training examples are formed by packing 1 to 5 screenshot-object-text tuples per sequence padded to 5 tuples, separated by special Beginning-of-Chunk (BOC) and End-of-Chunk (EOC) tokens, with batches sampled at a 9:1 ratio between C4 and mobile data.

  4. Knowl 4 — Unified Sequence Decoding for Diverse UI Modeling Tasks

    model/method

    Spotlight unifies heterogeneous mobile UI tasks into a standard sequence generation formulation given an input tuple consisting of an image screenshot, a bounding box focus region, and an optional prompt text:

    • Widget Captioning: Focus is set to a UI object bounding box with no prompt text. The model autoregressively decodes the natural language functional description of the object.

    • Screen Summarization: Focus is set to the full screen bounding box [0,0,1,1][0, 0, 1, 1]. The model autoregressively decodes a high-level summary of the entire screen.

    • Command Grounding: Given a natural language command, the model iterates over candidate UI objects on the screen. For each object focus, the command is provided as a prompt text, and the decoder evaluates the log-likelihood of emitting the token Yes versus No. The object with the highest probability for Yes is selected as the predicted UI target.

    • Tappability Prediction: Given an object focus and a prompt string Tappable |, the model generates either Yes or No to predict whether the UI component is perceived as clickable.

  5. Knowl 5 — Downstream Task Finetuning Performance

    data/table

    Task-specific finetuning results demonstrate that vision-only Spotlight models (using ViT B/16 or ViT L/16 with T5 base) outperform prior multimodal models that rely on ground-truth or parsed view hierarchies:

    Model Captioning (CIDEr) Summarization (CIDEr) Grounding (Acc %) Tappability (F1 %)
    Widget Caption baseline 97.0 - - -
    Screen2Words baseline - 61.3 - -
    VUT (multimodal) 99.3 65.6 82.1 -
    Taperception baseline - - - 85.5
    Swearngin Li (2019) - - - 87.9
    Spotlight (ViT-B/16) 136.6 103.5 95.7 86.9
    Spotlight (ViT-L/16) 141.8 106.7 95.8 88.4

    Spotlight achieves substantial performance gains across all benchmarks without utilizing view hierarchy inputs, establishing improvements of over 40 CIDEr points on widget captioning and screen summarization, and over 13% absolute accuracy on command grounding relative to multimodal baselines.

  6. Knowl 6 — Multi-Task Downstream Performance

    data/table

    A single Spotlight model trained jointly on all four downstream UI tasks (using batch sampling weights [3, 2, 15, 1] for Widget Captioning, Screen Summarization, Command Grounding, and Tappability Prediction) achieves performance competitive with single-task models and significantly outperforms prior multi-task architectures:

    Model Captioning (CIDEr) Summarization (CIDEr) Grounding (Acc %) Tappability (F1 %)
    VUT multi-task 99.3 65.1 80.8 -
    Spotlight (ViT-B/16) 140.0 102.7 90.8 89.4
    Spotlight (ViT-L/16) 141.3 99.2 94.2 89.5

    Multi-task Spotlight models maintain high performance across diverse objective types (free-form generation and binary scoring) within a unified model instance.

  7. Knowl 7 — Region Summarizer Algorithm

    algorithm

    The Region Summarizer extracts bounding-box-focused feature vectors from dense visual tokens using coordinate-type embeddings and stacked cross-attention layers.

    Input: Normalized bounding box coordinates bbox∈Rbatch×4×1bbox \in \mathbb{R}^{\text{batch} \times 4 \times 1}
    Input: Visual token features vit_outputs∈Rbatch×m×dvit\_outputs \in \mathbb{R}^{\text{batch} \times m \times d}
    Input: Hyperparameters num_layersnum\_layers, hidden dimension hidden_dim=dhidden\_dim = d, projection dimension output_dim=deoutput\_dim = d_e, queries per coordinate num_query=nnum\_query = n
    Output: Contextualized region features x∈Rbatch×4n×dx \in \mathbb{R}^{\text{batch} \times 4n \times d}
    bbox←GeLU(Dense(bbox,features=output_dim))bbox \leftarrow \text{GeLU}(\text{Dense}(bbox, \text{features}=output\_dim))
    bbox←Reshape(bbox,[batch,4,num_query,−1])bbox \leftarrow \text{Reshape}(bbox, [\text{batch}, 4, num\_query, -1])
    bbox←Dense(bbox,features=hidden_dim)bbox \leftarrow \text{Dense}(bbox, \text{features}=hidden\_dim)
    coord_types←[[1],[2],[3],[4]]coord\_types \leftarrow [[1], [2], [3], [4]]
    type_embedding←Embed(coord_types)type\_embedding \leftarrow \text{Embed}(coord\_types)
    type_embedding←Reshape(type_embedding,[1,4,1,hidden_dim])type\_embedding \leftarrow \text{Reshape}(type\_embedding, [1, 4, 1, hidden\_dim])
    bbox←bbox+type_embeddingbbox \leftarrow bbox + type\_embedding
    x←Reshape(bbox,[batch,4⋅num_query,hidden_dim])x \leftarrow \text{Reshape}(bbox, [\text{batch}, 4 \cdot num\_query, hidden\_dim])
    for i=0i = 0 to num_layers−1num\_layers - 1 do
        kv←Concat([vit_outputs,x],axis=1)kv \leftarrow \text{Concat}([vit\_outputs, x], \text{axis}=1)
        x←x+CrossAttentioni(q=x,kv=kv)x \leftarrow x + \text{CrossAttention}_i(q=x, kv=kv)
        x←x+Densei(x)x \leftarrow x + \text{Dense}_i(x)
    end for
    return xx

  8. Knowl 8 — Ablation Study of Architecture and Pretraining Configurations

    data/table

    Ablation experiments evaluated on Spotlight variants (using ViT-B/16 pretrained for 100K steps) demonstrate the relative contributions of dataset mixture and Region Summarizer design choices across the four downstream tasks:

    Ablation Variant Widget Caption (CIDEr) Screen Summary (CIDEr) Grounding (Acc %) Tappability (F1 %)
    Full model 125.1 95.7 95.6 86.9
    Freeze ViT 37.5 19.6 72.6 72.3
    From scratch (no pretrain) 18.5 23.1 36.7 79.5
    C4 dataset only 120.3 94.2 96.3 87.8
    Mobile dataset only 105.7 90.3 89.8 87.3
    Static bbox queries 118.0 96.2 95.1 87.4
    No bbox in KV memory 114.7 93.7 95.9 87.8
    Joint bbox coordinate embedding 119.0 94.0 96.7 87.8
    ROI Align features as query 124.4 94.9 89.4 87.4
    Direct ROI Align (no Summarizer) 121.8 87.5 89.0 86.8

    Key takeaways from the ablation data:

    • Pretraining ViT end-to-end on both web and mobile data is critical; training from scratch or freezing ViT leads to catastrophic drops across all tasks.
    • Combining web (C4) and mobile corpora outperforms training on either alone.
    • Region Summarizer's individual coordinate projection and iterative memory updates provide necessary flexibility, outperforming standard ROI Align (especially on Screen Summarization, where ROI Align drops by 8.2 CIDEr points due to pooling loss).

  9. Knowl 9 — Few-Shot In-Context Prompting on Widget Captioning

    data/table

    Evaluating frozen pretrained Spotlight models without parameter finetuning across varying prompt shot counts {0,4,8,16,32}\{0, 4, 8, 16, 32\} reveals capacity-dependent in-context learning behavior on the Widget Captioning benchmark:

    ViT Backbone 0-shot 4-shot 8-shot 16-shot 32-shot
    ViT-B/16 57.1 56.7 55.6 55.5 54.9
    ViT-L/16 61.6 61.9 62.0 61.9 62.1

    While ViT-B/16 exhibits slight performance degradation as shots increase, the larger ViT-L/16 shows marginal improvements with additional context shots. Few-shot prompting did not yield meaningful performance on grounding, summarization, or tappability, indicating that smaller pretraining scale relative to general-domain foundation models limits few-shot generalization for tasks further from the pretraining text-decoding distribution.

  10. Knowl 10 — Contextual Attention Behavior in Region Summarizer

    empirical result

    Cross-attention weight analysis in the final layer of the Region Summarizer indicates that the learned bounding box queries perform soft, context-aware visual feature aggregation rather than strict hard cropping:

    1. Local Object Tasks (Widget Captioning): When presented with an isolated bounding box (e.g., a blank checkbox icon), the attention weights attend to the local target region while simultaneously attending to spatially distant context required for caption generation (e.g., corresponding text labels situated on the opposite side of the screen).

    2. Global Tasks (Screen Summarization): When given the bounding box for the entire viewport ([0,0,1,1][0, 0, 1, 1]), the cross-attention queries selectively focus on functionally dominant UI elements (e.g., headers, major cards, and action buttons) across the screen layout rather than distributing attention uniformly.

Coverage note — Omitted low-level hyperparameter listings from Appendix A (e.g., TPU hardware core hours, warmup schedules, and Adam optimizer details) and the exhaustive list of stop words from Appendix D, as these constitute standard configuration details rather than primary conceptual contributions.
