RBGNet: Ray-based Grouping for 3D Object Detection

Haiyang WangShaoshuai ShiZe YangRongyao FangQi QianHongsheng LiBernt SchieleLiwei Wang

article2022CVPR69 citations

Presents RBGNet, a point-based 3D object detection framework that improves bounding box prediction on point clouds by combining foreground-biased point sampling with ray-based feature grouping to model object surface geometry.

Listen

Three-dimensional object detection from spatial point clouds is a critical capability for autonomous systems, robotics, and augmented reality. Point clouds collected by depth sensors are naturally sparse, irregular, and unorganized, making it difficult for automated systems to accurately identify object boundaries and orientations. Existing point-based detection methods aggregate local points into object candidates, but they largely overlook fine-grained surface geometry and frequently waste computational capacity by sampling empty background areas instead of informative foreground surfaces.

The article demonstrates a single-stage 3D object detection framework, named RBGNet, designed to improve 3D bounding box estimation from raw point clouds. The core objective is to evaluate whether explicitly capturing foreground surface geometry and concentrating point sampling on object surfaces can significantly enhance detection accuracy without sacrificing processing efficiency.

To achieve this, the approach introduces two primary mechanisms into a voting-based detection architecture. First, a ray-based feature grouping module emits a uniform set of rays outward from predicted candidate centers to sample anchor points along object surfaces in a coarse-to-fine manner, effectively capturing geometric shape features. Second, a foreground biased sampling strategy classifies points early in the network and allocates 87.5% of downsampled points to probable foreground objects while retaining 12.5% from the background to preserve overall scene context. The framework was evaluated on two benchmark indoor datasets, ScanNet V2 and SUN RGB-D, across standard average precision metrics.

The experimental findings show that the proposed framework sets a new state of the art in 3D object detection. On the ScanNet V2 benchmark, the baseline model achieved a detection accuracy of 70.2% at a 0.25 intersection-over-union threshold and 54.2% at a 0.50 threshold, outperforming prior leading point-based methods by 2.5 and 3.3 percentage points, respectively. On the SUN RGB-D benchmark, it reached 64.1% accuracy at the 0.25 threshold, surpassing all previous geometry-only detectors. Ablation experiments revealed that adding ray-based grouping alone improved accuracy by several percentage points, and increasing ray density consistently enhanced object surface point recovery. Furthermore, the foreground sampling strategy drastically improved the concentration of object points during processing (reaching 87.8% foreground concentration in deep layers compared to 30.3% in standard sampling) while maintaining competitive inference speeds of 4.75 to 7.23 frames per second.

These results demonstrate that surface geometry and biased sampling provide vital spatial cues that resolve bounding box ambiguities without requiring multi-modal inputs such as standard RGB images. By generating tighter, more reliable 3D bounding boxes at competitive processing speeds, the approach enhances the safety, situational awareness, and operational precision of robotic navigation and spatial computing systems.

Organizations developing 3D perception pipelines should consider adopting foreground biased sampling and ray-based geometric grouping to upgrade point-cloud processing backbones. Engineering teams can select between ray configurations (such as 6 rays for higher frame rates versus 66 rays for maximum detection accuracy) to balance real-time latency requirements against detection performance. Future work should focus on validating the framework on outdoor autonomous driving environments, exploring edge-device optimizations, and evaluating performance under severe sensor noise or partial object occlusions.

Alibaba Group Max Planck Institute for Informatics Peking University The Chinese University of Hong Kong University of Toronto 3d object 3d objects detection algorithm RBGNet 3D object detection ray-based feature grouping

arXiv: 2204.02251

Paper: Deep Hough Voting for 3D Object Detection in Point Clouds, Charles R. Qi et al. (2019). Introduces VoteNet's deep Hough voting mechanism for generating object center proposals from sparse point clouds, which RBGNet directly builds upon with its ray-based grouping and biased sampling strategies.
Paper: PointNet++: Deep Hierarchical Feature Learning on Point Sets in a Metric Space, Charles R. Qi et al. (2017). Presents hierarchical feature learning and sampling on point sets via PointNet++, providing the standard point-processing backbone foundational to vote-based 3D object detection architectures.
Paper: PointNet: Deep Learning on Point Sets for 3D Classification and Segmentation, Charles R. Qi et al. (2017). Establishes the foundational deep learning architecture for directly processing irregular and unordered 3D point sets with permutation invariance.
Paper: PointRCNN: 3D Object Proposal Generation and Detection From Point Cloud, Shaoshuai Shi et al. (2019). Introduces foreground point segmentation and direct 3D box proposal generation from point clouds, underlying the foreground-biased sampling principles utilized in RBGNet.
Paper: PV-RCNN: Point-Voxel Feature Set Abstraction for 3D Object Detection, Shaoshuai Shi et al. (2019). Demonstrates keypoint-based set abstraction and multi-scale feature pooling for point cloud bounding box refinement, motivating RBGNet's fine-grained surface geometric grouping.

Paper: Superpoint Transformer for 3D Scene Instance Segmentation, Jiahao Sun et al. (2023). Extends 3D scene understanding by grouping raw points into geometric superpoints and leveraging attention mechanisms for direct end-to-end instance segmentation without candidate bounding boxes.
Paper: CoDA: Collaborative Novel Box Discovery and Cross-modal Alignment for Open-vocabulary 3D Object Detection, Yang Cao et al. (2023). Generalizes indoor 3D object detection to open-vocabulary settings by discovering novel 3D bounding boxes and aligning point cloud features with multimodal language priors.
Paper: Uni3D: A Unified Baseline for Multi-Dataset 3D Object Detection, Bo Zhang et al. (2023). Addresses cross-dataset generalizability in 3D object detection by unifying feature representations and detection heads across diverse sensor setups and benchmark taxonomies.
Paper: BEVNeXt: Reviving Dense BEV Frameworks for 3D Object Detection, Zhenxin Li et al. (2024). Advances 3D object detection by reviving dense bird's-eye-view representations with perspective cross-attention and temporal feature fusion.
Paper: RADIANT: Radar-Image Association Network for 3D Object Detection, Yunfei Long et al. (2023). Applies geometric offset learning between sparse radar returns and physical object centroids to improve 3D bounding box estimation accuracy.

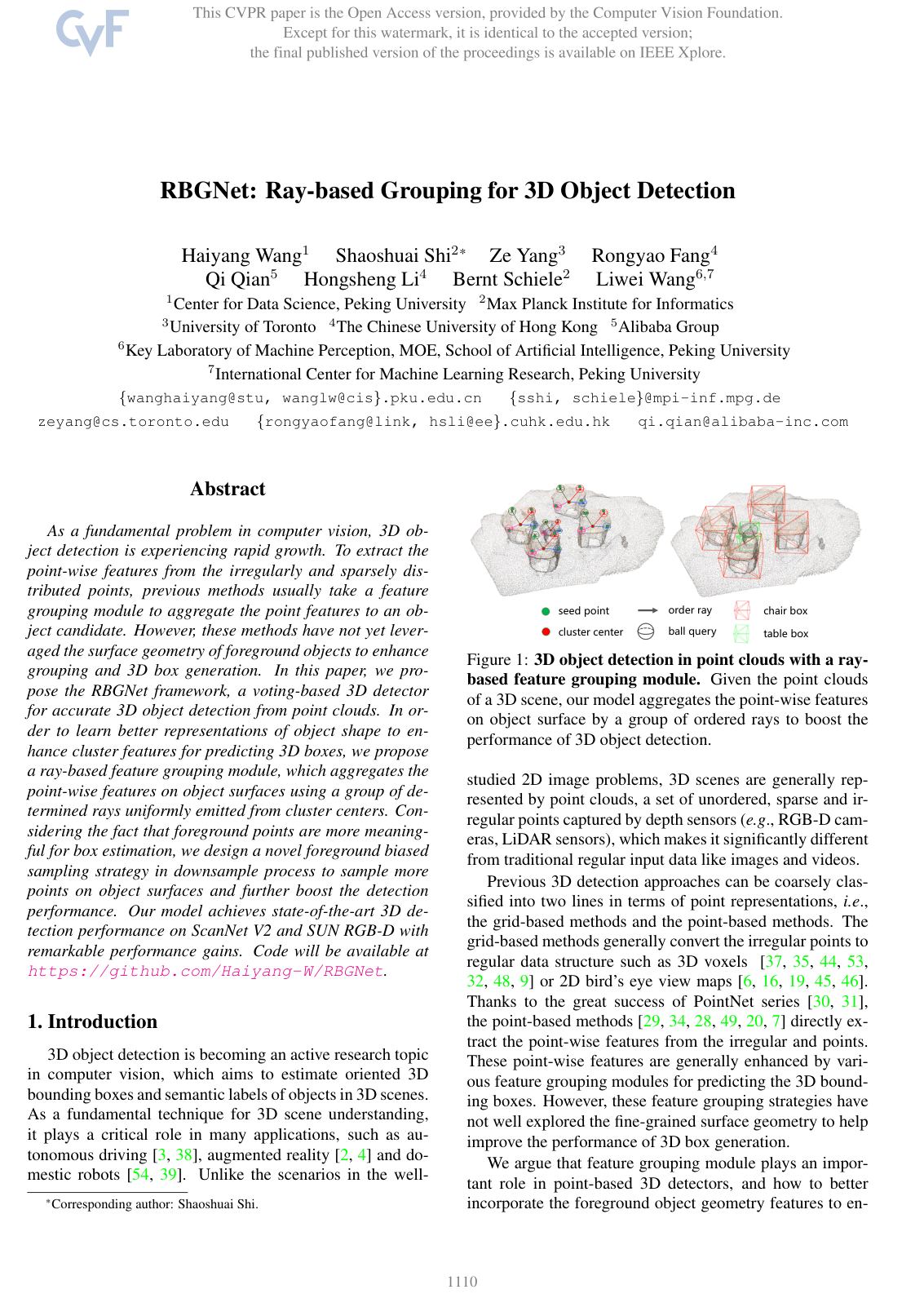

Cover for RBGNet: Ray-based Grouping for 3D Object Detection

Abstract

As a fundamental problem in computer vision, 3D object detection is experiencing rapid growth. To extract the point-wise features from the irregularly and sparsely distributed points, previous methods usually take a feature grouping module to aggregate the point features to an object candidate. However, these methods have not yet leveraged the surface geometry of foreground objects to enhance grouping and 3D box generation. In this paper, we propose the RBGNet framework, a voting-based 3D detector for accurate 3D object detection from point clouds. In order to learn better representations of object shape to enhance cluster features for predicting 3D boxes, we propose a ray-based feature grouping module, which aggregates the point-wise features on object surfaces using a group of determined rays uniformly emitted from cluster centers. Considering the fact that foreground points are more meaningful for box estimation, we design a novel foreground biased sampling strategy in downsample process to sample more points on object surfaces and further boost the detection performance. Our model achieves state-of-the-art 3D detection performance on ScanNet V2 and SUN RGB-D with remarkable performance gains. Code will be available at https://github.com/Haiyang-W/RBGNet.

Topics

3d object 3d objects detection algorithm object detection algorithms

Keywords

RBGNet 3D object detection ray-based feature grouping ray point representation point cloud sampling bounding box estimation object surface points shape representation

1. Introduction
2. Related Work
3. Methodology
3.1. Overview
3.2. Ray-based Feature Grouping
3.2.1 Ray Point Representation
3.2.2 Feature Enhancement by Determined Rays
3.3. Foreground Biased Sampling
3.4. Learning Objective
4. Experiments
4.1. Datasets and Evaluation Metric
4.2. Implementation Details
4.3. Comparison with state-of-the-art methods
4.4. Ablation Studies and Discussions
4.5. Inference Speed
5. Conclusion
References

Knowls

Knowl 1 — RBGNet one-stage detection architecture
model/method
RBGNet is a one-stage point-cloud 3D detector built on a VoteNet-style voting pipeline. It receives 50,000 three-dimensional scene points, extracts hierarchical point features with a PointNet++ backbone, replaces farthest-point sampling in the second through fourth set-abstraction layers with Foreground Biased Sampling, and uses voting to form candidate object centers with associated cluster features. A ray-based feature grouping module operates around each candidate center, encodes the candidate object surface, and augments the cluster feature used for 3D box regression and semantic classification. The resulting proposals are filtered with 3D non-maximum suppression. The standard RBGNet configuration uses 66 rays per candidate and 256 object candidates; a larger configuration uses 512 candidates and twice the PointNet++ channel capacity.
Knowl 2 — Determined spherical ray representation
equation
For each vote cluster, RBGNet represents a candidate as $c_i=[v_i,f_i]$ , where $v_i\in\mathbb{R}^3$ is the predicted cluster center, $f_i\in\mathbb{R}^C$ is its $C$ -dimensional feature, and $i\in\{1,\ldots,M\}$ indexes the $M$ clusters. The method emits rays from $v_i$ using $P$ uniformly spaced polar-angle bins. For bin $p\in\{0,\ldots,P-1\}$ , the polar angle and number of rays are
$\theta_p=\frac{\pi p}{P-1},\qquad A_p=\begin{cases} 1,&p=0\text{ or }p=P-1,\\ 4p,&0<p\leq (P-1)/2,\\ 4(P-p-1),&(P-1)/2<p<P-1. \end{cases}$
The $a$ -th ray in bin $p$ , for $a\in\{0,\ldots,A_p-1\}$ , has azimuth $psi_{p,a}=2\pi a/A_p$ and polar angle $theta_{p,a}=\theta_p$ . The total number of rays is $N=\sum_{p=0}^{P-1}A_p$ ; RBGNet uses $P=9$ , which gives $N=66$ rays, with denser angular coverage near the equatorial plane. All rays from cluster $i$ have the same far-bound distance $l_i$ , predicted from $f_i$ as the candidate object scale. The scale is explicitly supervised by
$\mathcal{L}_{\mathrm{scale\text{-}reg}}=\frac{1}{I}\sum_i \left\lVert l_i-l_i^*\right\rVert_{\eta}\,\mathbb{1}[i\text{ is positive}],$
where $l_i^*$ is the half-diagonal length of the assigned ground-truth box, a positive cluster is one whose center lies within $0.3$ m of a ground-truth object center, $I$ is the number of positive clusters, $\mathbb{1}[\cdot]$ is an indicator, and $\lVert\cdot\rVert_{\eta}$ denotes the smooth- $\ell_1$ norm.
Knowl 3 — Coarse-to-fine surface anchor generation
model/method
RBGNet samples anchor points along every determined ray in two stages. Before ray sampling, the seed-point representation is upsampled to 2,048 points by trilinear interpolation at the target positions used by the first PointNet++ set-abstraction layer. In the coarse stage, each ray is divided into $K_c$ equal bins and one anchor point is sampled from each bin by stratified sampling. PointNet++ set abstraction aggregates nearby seed features around every coarse anchor. A binary mask head then predicts whether each coarse anchor belongs to the candidate object, using the anchor’s local feature together with the candidate cluster feature. During training, an anchor is positive when the ball-query region around it contains a surface point from its assigned ground-truth object.

In the fine stage, RBGNet uses inverse-transform sampling to draw $K_f$ anchors from the positive regions predicted for each ray by the coarse mask. This concentrates fine anchors in dense portions of the candidate object rather than allocating them uniformly to free space and background. Fine anchors receive local features and positive masks through the same set-abstraction and mask-prediction process. The procedure produces coarse and fine feature sets, masks, and three-dimensional anchor positions for all $N$ rays.
Knowl 4 — Ordered ray feature enhancement
model/method
RBGNet converts the masked coarse and fine anchor features into an object-shape descriptor while preserving the predefined order of rays and the order of anchors along each ray. For either branch, the feature of every negative anchor is replaced by zero. In the coarse branch, the $K_c$ masked features $\hat{\rho}^{(c)}_{n,k}$ on ray $n$ are concatenated in depth order and projected to a 32-dimensional ray feature:
$r_n^{(c)}=\mathcal{F}_{\mathrm{point}}^{(c)}\left(\{\hat{\rho}^{(c)}_{n,k}\}_{k=1}^{K_c},\odot\right),$
where $\odot$ denotes concatenation. The $N$ ray features are then concatenated in the determined ray order and processed by a two-layer MLP to obtain a 128-dimensional coarse descriptor:
$\mu^{(c)}=\mathcal{F}_{\mathrm{ray}}^{(c)}\left(\{r_n^{(c)}\}_{n=1}^{N},\odot\right).$
The fine branch applies the same operations to produce a 128-dimensional descriptor $\mu^{(f)}$ . A fusion network combines the two descriptors, $g=\mathcal{F}_{\mathrm{fuse}}(\mu^{(c)},\mu^{(f)})$ , and the fused surface-geometry feature $g$ is combined with the original cluster feature $f_i$ for box and semantic prediction. The authors report that changing the predefined ordering strategy does not materially affect performance, provided that the ordering is consistent within the feature aggregation process.
Knowl 5 — Foreground Biased Sampling
algorithm
Foreground Biased Sampling replaces task-agnostic farthest-point sampling with separate sampling of high-confidence foreground points and the remaining background points.
Input: Point set D with 2048 points, point coordinates, point features, target sample counts alpha and beta, and foreground quota kappa
Output: Final sampled point set S
For every point d_j in D, compute a foreground score e_j in [0, 1] from its feature and coordinates using a segmentation head
Sort D by descending foreground score
Put the top kappa points into foreground set D_f
Put the remaining points into background set D_b
Apply farthest-point sampling to D_f to obtain alpha points D_hat_f
Apply farthest-point sampling to D_b to obtain beta points D_hat_b
Return S as the concatenation of D_hat_f and D_hat_b
The foreground segmentation head is supervised by the ground-truth 3D boxes with cross-entropy loss. In the standard setting, 87.5% of the target samples come from the foreground set and 12.5% come from the background set, preserving scene coverage while emphasizing object surfaces. For the 2,048-to-1,024 downsampling step, RBGNet uses $\kappa=1024$ , $\alpha=896$ , and $\beta=128$ . At inference time, the foreground score is obtained from the margin between the positive and negative class outputs. The same strategy is applied in the second through fourth PointNet++ set-abstraction layers.
Knowl 6 — Joint training objective
equation
RBGNet is trained end-to-end with a weighted sum of six losses:
$\mathcal{L}=\lambda_{\mathrm{vote\text{-}reg}}\mathcal{L}_{\mathrm{vote\text{-}reg}}+\lambda_{\mathrm{fbs}}\mathcal{L}_{\mathrm{fbs}}+\lambda_{\mathrm{rbfg}}\mathcal{L}_{\mathrm{rbfg}}+\lambda_{\mathrm{obj\text{-}cls}}\mathcal{L}_{\mathrm{obj\text{-}cls}}+\lambda_{\mathrm{box}}\mathcal{L}_{\mathrm{box}}+\lambda_{\mathrm{sem\text{-}cls}}\mathcal{L}_{\mathrm{sem\text{-}cls}}.$
Here the six terms respectively supervise vote-center regression, foreground-biased sampling, ray-based feature grouping, proposal objectness, 3D box estimation, and semantic classification; each $\lambda$ is a nonnegative loss-balancing coefficient. The ray-based grouping loss is
$\mathcal{L}_{\mathrm{rbfg}}=\lambda_{\mathrm{scale\text{-}reg}}\mathcal{L}_{\mathrm{scale\text{-}reg}}+\lambda_{\mathrm{c\text{-}cls}}\mathcal{L}_{\mathrm{c\text{-}cls}}+\lambda_{\mathrm{f\text{-}cls}}\mathcal{L}_{\mathrm{f\text{-}cls}},$
where $\mathcal{L}_{\mathrm{scale\text{-}reg}}$ is the smooth- $\ell_1$ scale-regression loss, and $\mathcal{L}_{\mathrm{c\text{-}cls}}$ and $\mathcal{L}_{\mathrm{f\text{-}cls}}$ are cross-entropy losses for valid coarse and fine surface-anchor queries. The foreground-sampling loss $\mathcal{L}_{\mathrm{fbs}}$ is also cross entropy; the remaining voting, objectness, box, and semantic losses use the VoteNet label assignments and loss definitions.
Knowl 7 — Training and evaluation protocol
experimental setup
RBGNet is evaluated on ScanNet V2 and SUN RGB-D using their standard data splits and the VoteNet evaluation protocol. ScanNet V2 contains 1,513 reconstructed indoor training scenes with axis-aligned boxes for 18 categories. SUN RGB-D contains approximately 5,000 RGB-D training images with oriented 3D boxes for 10 categories; depth images are converted to point clouds using the supplied camera parameters. Mean average precision is reported at 3D intersection-over-union thresholds of 0.25 and 0.50.

Each training scene is subsampled to 50,000 input points. The network is optimized with AdamW, batch size 8 per GPU, for 360 epochs. The initial learning rate is 0.006 on ScanNet V2 and 0.004 on SUN RGB-D, and each learning rate is reduced by a factor of 10 at epochs 240 and 330. Gradient-norm clipping is used to stabilize training.
Knowl 8 — State-of-the-art detection performance
empirical result
RBGNet improves point-only 3D detection on both evaluated indoor-scene benchmarks. On ScanNet V2 with a standard PointNet++ backbone and 66 rays, the 256-candidate configuration obtains 70.2 [email protected] and 54.2 [email protected]; its averages over 25 trials are 69.6 and 53.6. A stronger configuration with twice the channel capacity and 512 candidates obtains 70.6 and 55.2, with 25-trial averages of 69.9 and 54.7. The corresponding Group-free baseline reports 67.2 and 49.7 as its best scores, with averages of 66.6 and 49.0. Thus, the standard RBGNet configuration improves on the same-backbone prior comparison by 2.5 mAP points at IoU 0.25 and 3.3 points at IoU 0.50; the stronger configuration improves over the compared Group-free configuration by 1.5 and 2.4 points.

On SUN RGB-D, the standard RBGNet configuration obtains 64.1 [email protected] and 47.2 [email protected], with 25-trial averages of 63.6 and 46.3. The corresponding Group-free scores are 63.0 and 45.2, with averages of 62.6 and 44.4. RBGNet uses geometric point-cloud input only and nevertheless outperforms the prior point-only methods reported in the comparison.
Knowl 9 — Ablation evidence for ray grouping and foreground sampling
empirical result
On ScanNet V2, the two proposed modules provide complementary gains. A strong baseline without either module reaches 66.2 [email protected] and 48.2 [email protected]. Adding only Foreground Biased Sampling raises the scores to 67.1 and 49.0; adding only ray-based feature grouping raises them to 69.0 and 52.9; adding both reaches 69.6 and 53.6.

The number of rays controls both surface coverage and accuracy. With 0, 6, 18, 38, 66, and 102 rays, the reported [email protected] values are respectively 67.1, 68.4, 68.7, 69.2, 69.6, and 69.9, while the [email protected] values are 49.0, 51.6, 52.0, 52.7, 53.6, and 53.9. The corresponding reported object-point recalls for 6, 18, 38, 66, and 102 rays are 38.1, 63.3, 75.8, 78.1, and 86.5 percent. RBGNet selects 66 rays as the accuracy-memory compromise.

With all other settings fixed, replacing the baseline voting grouping with RoI pooling, back-tracing, Group-free grouping, or RBGNet ray grouping gives respectively $(67.6,49.9)$ , $(67.7,50.1)$ , $(68.1,50.5)$ , and $(69.6,53.6)$ for [email protected] and [email protected]; the voting baseline is $(67.1,49.0)$ . Foreground Biased Sampling also retains more foreground points through the backbone: at the second, third, and fourth downsampling layers, foreground percentages on ScanNet V2 are $(51.2,73.2,87.8)$ for RBGNet, compared with $(31.1,30.8,30.3)$ for standard FPS and $(40.4,42.1,43.8)$ for fused FPS. On SUN RGB-D, the corresponding percentages are $(30.8,45.3,65.1)$ for RBGNet, $(17.9,17.8,17.7)$ for FPS, and $(21.3,22.9,23.5)$ for fused FPS.
Knowl 10 — Inference-speed trade-off across ray counts
empirical result
RBGNet maintains competitive inference speed while improving detection accuracy. On the same workstation—a single NVIDIA Tesla V100 GPU with 256 GB RAM and an Intel Xeon E5-2650 v3—the reported methods achieve the following best [email protected], best [email protected], and frame rate: MLCVNet $(64.5,41.4,5.37)$ , BRNet $(66.1,50.9,7.37)$ , H3DNet $(67.2,48.1,3.75)$ , and Group-free $(67.3,48.9,6.64)$ . RBGNet with 6, 18, 38, and 66 rays obtains respectively $(69.0,52.3,7.23)$ , $(69.0,52.6,5.70)$ , $(69.7,53.3,5.27)$ , and $(70.2,54.2,4.75)$ , where the third value in each tuple is frames per second. Increasing the number of rays improves accuracy but reduces throughput; the selected 66-ray configuration remains faster than H3DNet while delivering higher reported accuracy.

Coverage note — The preliminary ground-truth-feature diagnostic, qualitative box visualizations, and appendix-specific loss-weight details were omitted because they are supportive analyses rather than standalone load-bearing contributions.
