Cross Aggregation Transformer for Image Restoration

Zheng ChenYulun ZhangJinjin GuYongbing ZhangLinghe KongXin Yuan

article2022NeurIPS225 citations

Proposes the Cross Aggregation Transformer for image restoration, utilizing parallel horizontal and vertical rectangle-window self-attention alongside an axial-shift operation to expand receptive fields and capture long-range dependencies with linear computational complexity.

Listen

Image restoration is a foundational visual computing problem that involves recovering high-quality images from degraded, low-quality inputs. While modern deep learning architectures—specifically Vision Transformers—excel at capturing global context, their high computational complexity has traditionally forced models to use small, square processing windows. These constrained windows prevent the model from establishing broad image context and understanding directional structures like parallel lines or repetitive urban patterns, which limits overall restoration fidelity.

To overcome these constraints, the article introduces the Cross Aggregation Transformer, a novel neural network architecture designed to process high-resolution images efficiently. The primary objective is to demonstrate that aggregating features across perpendicular rectangular windows and coupling global attention with local convolutional operations significantly improves image restoration quality across multiple tasks without excessive computational cost.

To evaluate this architecture, the authors conducted extensive experiments across three primary domains: image super-resolution, JPEG compression artifact removal, and real-world photographic denoising. The evaluation tested the model against prominent standard benchmark datasets, including Urban100, Classic5, LIVE1, SIDD, and DND. The model design incorporates two primary structural configurations—a regular rectangle-window variant and an axial full-stripe variant—and compares their performance against prior state-of-the-art methods in terms of distortion metrics, structural similarity, and computational efficiency.

The findings show that the proposed architecture consistently outperforms existing convolutional and transformer-based methods. In image super-resolution, the model achieved substantial gains over leading competitors, improving signal-to-noise metrics on challenging urban scenes by up to 0.45 dB. In JPEG artifact reduction and real-world image denoising, the framework consistently achieved superior or highly competitive visual sharpness and reconstruction accuracy while using fewer parameters than prominent alternatives. Furthermore, the tests revealed that the added local feature module increased computational load by less than 0.32% while delivering consistent measurable quality gains.

These results demonstrate that rectangular attention windows and global-local feature coupling solve the trade-off between computational efficiency and large-scale image context. For organizations deploying imaging systems, this approach enables higher-fidelity visual reconstruction at manageable computational and parameter costs, reducing the hardware footprint needed to process high-resolution degraded imagery.

Organizations evaluating image restoration pipelines should consider adopting rectangular-window attention architectures for tasks where directional structures and fine details are critical. Teams facing strict computational constraints can deploy the regular rectangular-window variant to match baseline resource limits while still gaining fidelity, whereas applications prioritizing maximum output quality should adopt the axial stripe configuration. Further testing and validation on proprietary operational datasets are recommended before full deployment.

The article notes certain design boundaries, showing that using overly narrow axial stripes can degrade performance by capturing insufficient context or introducing noise. Additionally, while the results provide high confidence across standard academic benchmarks, the authors did not report multi-run statistical error bars, meaning performance under diverse production conditions should be verified empirically.

ETH Zurich Harbin Institute of Technology Shanghai Artificial Intelligence Laboratory Shanghai Jiao Tong University University of Sydney Westlake University encoder-decoder image restoration Cross Aggregation Transformer image restoration image super-resolution

arXiv: 2211.13654 zhengchen1999/CAT

Paper: Swin Transformer: Hierarchical Vision Transformer using Shifted Windows, Ze Liu et al. (2021). It introduces shifted local-window self-attention, establishing the foundational windowing mechanism whose limited inter-window interaction CAT explicitly sets out to overcome.
Paper: SwinIR: Image Restoration Using Swin Transformer, Jingyun Liang et al. (2021). It provides the baseline paradigm of applying window-based Swin Transformers to image restoration that CAT directly builds upon and enhances.
Paper: CSWin Transformer: A General Vision Transformer Backbone with Cross-Shaped Windows, Xiaoyi Dong et al. (2021). It introduces cross-shaped horizontal and vertical stripe window attention, inspiring the rectangular window self-attention design used in CAT.
Paper: Uformer: A General U-Shaped Transformer for Image Restoration, Zhendong Wang et al. (2021). It establishes a benchmark architecture for window-based transformer restoration and integrating local context modules into transformer blocks.
Paper: CvT: Introducing Convolutions to Vision Transformers, Haiping Wu et al. (2021). It pioneered the strategy of injecting convolutional inductive biases into vision transformers to couple local and global features.
Paper: Pre-Trained Image Processing Transformer, Hanting Chen et al. (2020). It pioneered the application of vision transformer architectures to low-level image restoration tasks.

Paper: TransNeXt: Robust Foveal Visual Perception for Vision Transformers, Dai Shi (2024). It further addresses the depth degradation and visual artifact limitations of localized window-based vision transformers through biomimetic aggregated attention.
Paper: Efficient Multi-Scale Attention Module with Cross-Spatial Learning, Daliang Ouyang et al. (2023). It builds on multi-scale spatial and channel attention principles to achieve efficient cross-spatial feature learning across parallel branches.

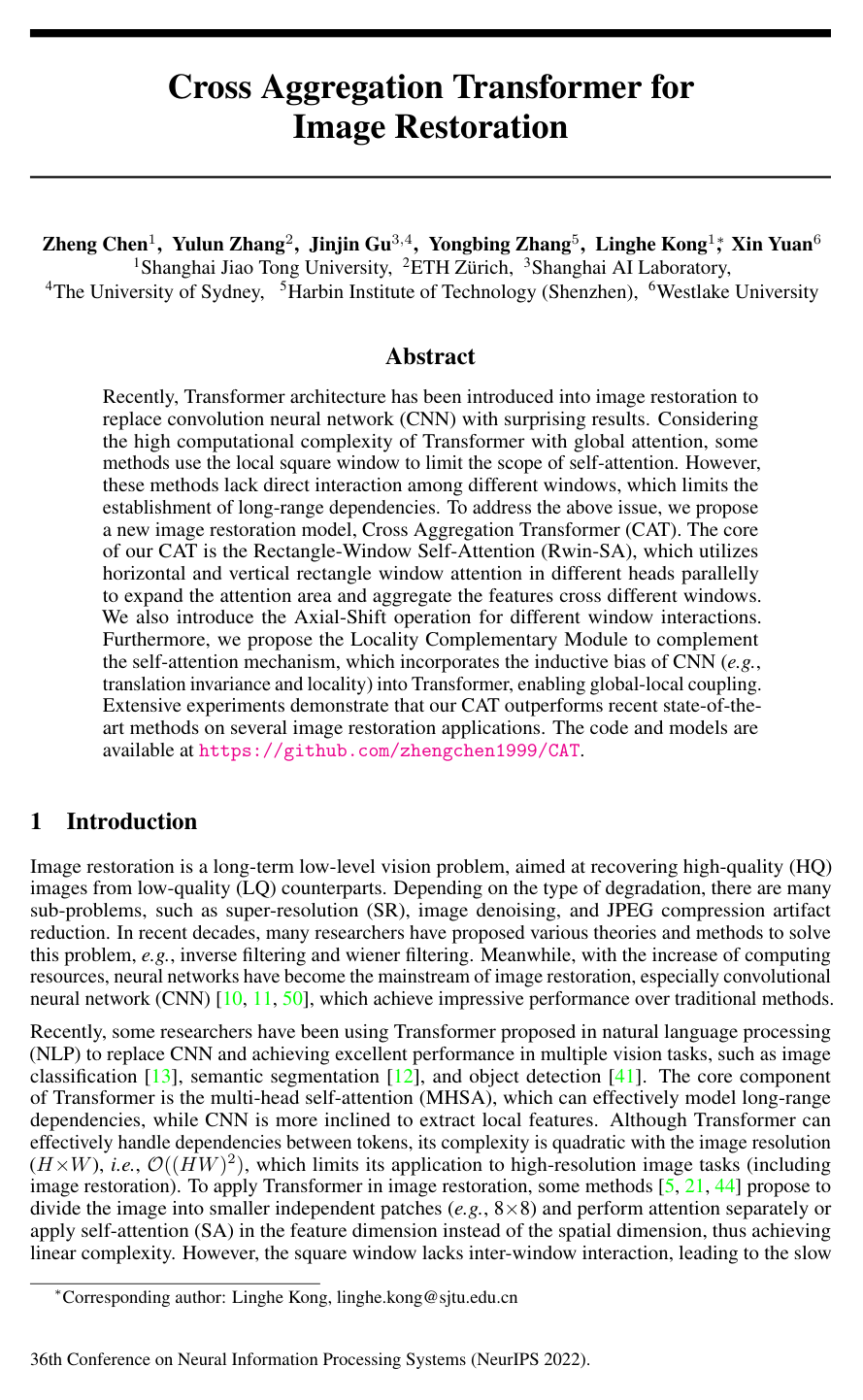

Cover for Cross Aggregation Transformer for Image Restoration

Abstract

Recently, Transformer architecture has been introduced into image restoration to replace convolution neural network (CNN) with surprising results. Considering the high computational complexity of Transformer with global attention, some methods use the local square window to limit the scope of self-attention. However, these methods lack direct interaction among different windows, which limits the establishment of long-range dependencies. To address the above issue, we propose a new image restoration model, Cross Aggregation Transformer (CAT). The core of our CAT is the Rectangle-Window Self-Attention (Rwin-SA), which utilizes horizontal and vertical rectangle window attention in different heads parallelly to expand the attention area and aggregate the features cross different windows. We also introduce the Axial-Shift operation for different window interactions. Furthermore, we propose the Locality Complementary Module to complement the self-attention mechanism, which incorporates the inductive bias of CNN (e.g., translation invariance and locality) into Transformer, enabling global-local coupling. Extensive experiments demonstrate that our CAT outperforms recent state-of-the-art methods on several image restoration applications. The code and models are available at https://github.com/zhengchen1999/CAT.

Topics

encoder-decoder image restoration

Keywords

Cross Aggregation Transformer image restoration image super-resolution image denoising vision transformer artifacts reduction Swin Transformer low-level vision residual channel attention shallow feature extraction

1 Introduction
2 Related Work
3 Method
3.1 CAT Architecture
3.2 Cross Aggregation Transformer Block
4 Experiments
4.1 Experimental Settings
4.2 Ablation Study
4.3 Image Super-Resolution
4.4 JPEG Compression Artifact Reduction
4.5 Real Image Denoising
4.6 Model Size Analyses
5 Conclusion
References
Checklist

Knowls

Knowl 1 — Cross Aggregation Transformer (CAT) Architecture for Image Restoration
model/method
Cross Aggregation Transformer (CAT) is an image restoration network structured into three sequential stages: shallow feature extraction, deep feature extraction, and image reconstruction.
1. Shallow Feature Extraction: Given a degraded low-quality input image $I_{LQ} imes \mathbb{R}^{H \times W \times C_{in}}$ (where $H$ , $W$ , and $C_{in}$ represent height, width, and input channel count), a single $3 \times 3$ convolution layer extracts shallow feature representations $F_0 \in \mathbb{R}^{H \times W \times C}$ , where $C$ is the feature channel dimension.
2. Deep Feature Extraction: The shallow features $F_0$ pass through $N_1$ Residual Groups (RGs) followed by a $3 \times 3$ convolution layer and a global residual connection to yield deep features $F_{DF} \in \mathbb{R}^{H \times W \times C}$ . Each RG contains $N_2$ Cross Aggregation Transformer Blocks (CATBs) followed by a $3 \times 3$ convolution layer and a local residual skip connection. The default configuration uses $N_1 = 6$ residual groups, $N_2 = 6$ CATBs per group, feature dimension $C = 180$ , and 6 attention heads.
3. Task-Specific Reconstruction Module: To generate the high-quality restored image $I_{HQ} \in \mathbb{R}^{H \times W \times C_{out}}$ from $F_{DF}$ :
- Image Super-Resolution (SR): A sub-pixel convolution upsampling layer is bounded by pre- and post-upsampling $3 \times 3$ convolution layers.
- JPEG Compression Artifact Reduction: A single $3 \times 3$ convolution maps channels from $C$ to $C_{out}$ , and the input image $I_{LQ}$ is added via a global residual connection ( $I_{HQ} = I_{LQ} + \text{Conv}(F_{DF})$ ).
- Real Image Denoising: The CATB modules are arranged inside a 4-level encoder-decoder U-Net architecture with block counts $[4, 6, 6, 8]$ and attention head allocations $[2, 2, 4, 8]$ across levels 1 to 4.
Knowl 2 — Rectangle-Window Self-Attention (Rwin-SA)
model/method
Rectangle-Window Self-Attention (Rwin-SA) is a local multi-head self-attention mechanism that splits attention heads across orthogonal rectangular windows to expand the receptive field and enable cross-window feature aggregation without increasing computational cost over square windows.

Given an input feature map $X \in \mathbb{R}^{H \times W \times C}$ , an even number of attention heads $M$ is partitioned into two equal groups of size $M/2$ . For each head in the first group, $X$ is split into non-overlapping horizontal rectangular windows ( $sh < sw$ , denoted H-Rwin) of dimension $sh \times sw$ . For each head in the second group, $X$ is split into vertical rectangular windows ( $sh > sw$ , denoted V-Rwin) of dimension $sw \times sh$ .

For the $i$ -th rectangular window feature $X_i \in \mathbb{R}^{(sh \times sw) \times C}$ (where $i = 1, \dots, \frac{HW}{sh \cdot sw}$ ) in head $m$ , the queries, keys, and values are computed using projection matrices $W_Q^m, W_K^m, W_V^m \in \mathbb{R}^{C \times d}$ with head dimension $d = D = C/M$ : $(Q_i^m, K_i^m, V_i^m) = (X_i W_Q^m, X_i W_K^m, X_i W_V^m)$

The self-attention feature $Y_i^m \in \mathbb{R}^{(sh \times sw) \times D}$ is formulated as: $Y_i^m = \text{Attention}(Q_i^m, K_i^m, V_i^m) = \text{SoftMax}\left(\frac{Q_i^m (K_i^m)^T}{\sqrt{d}} + B\right) V_i^m$ where $B$ is a dynamic relative position bias matrix. The window outputs are rearranged into the full spatial feature $Y^m \in \mathbb{R}^{H \times W \times D}$ .

The outputs of all $M$ heads (the first $M/2$ using H-Rwin and the remaining $M/2$ using V-Rwin) are concatenated along the channel dimension and projected by $W_P \in \mathbb{R}^{C \times C}$ : $\text{Rwin-SA}(X) = \text{Concat}(Y^1, Y^2, \dots, Y^M) W_P$
Knowl 3 — Computational Complexity of Regular-Rwin and Axial-Rwin
theoretical result
For an input feature map of height $H$ , width $W$ , and channel dimension $C$ , the computational complexity of rectangular window self-attention depends on whether fixed-size rectangular windows (regular-Rwin) or image-adaptive full-axis stripe windows (axial-Rwin) are used.
1. Regular Rectangle-Window Attention (regular-Rwin): Uses fixed window dimensions $sh \times sw$ for horizontal windows and $sw \times sh$ for vertical windows. Its computational complexity is: $\mathcal{O}(\text{regular-Rwin}) = H W C \times (4C + 2sh \times sw)$ For square images ( $H = W$ ), the asymptotic complexity is $\mathcal{O}(H^2)$ , scaling linearly with the total pixel count $HW$ .
2. Axial Rectangle-Window Attention (axial-Rwin): Sets one side length of the rectangular window to match the image dimensions $H$ or $W$ , while the short-side length is fixed to a hyperparameter $sl$ (yielding horizontal windows of size $sl \times W$ and vertical windows of size $H \times sl$ ). Its computational complexity is: $\mathcal{O}(\text{axial-Rwin}) = H W C \times (4C + sl \times H + sl \times W)$ For square inputs ( $H = W$ ), the complexity scales as $\mathcal{O}(H^3)$ , which is higher than regular-Rwin's $\mathcal{O}(H^2)$ but strictly lower than full global self-attention's quadratic-with-area complexity of $\mathcal{O}(H^4)$ .
Knowl 4 — Axial-Shift Operation for Window Interaction
model/method
The Axial-Shift Operation is a shifted window partitioning strategy applied alternately between consecutive Cross Aggregation Transformer Blocks to enable information exchange across isolated rectangular windows.

Axial-shift splits into two directional operations tailored to rectangular geometry:
- H-Shift: Moves the window partition down and left by $\frac{sh}{2}$ and $\frac{sw}{2}$ pixels for the horizontal rectangle window (H-Rwin).
- V-Shift: Moves the window partition down and left by $\frac{sw}{2}$ and $\frac{sh}{2}$ pixels for the vertical rectangle window (V-Rwin).
In implementation, feature maps undergo a down-left cyclical shift before self-attention, and a masking mechanism is applied during self-attention computation to prevent spurious attention between non-adjacent pixels wrap-around boundaries. Axial-shift facilitates two distinct interactions:
1. Explicit Interaction: Directly merges adjacent windows of the same orientation (H-Rwin with H-Rwin, or V-Rwin with V-Rwin) across consecutive blocks.
2. Implicit Interaction: Fuses features between orthogonal windows (H-Rwin with V-Rwin) via parallel multi-head execution and linear channel projection.
Knowl 5 — Locality Complementary Module (LCM)
model/method
The Locality Complementary Module (LCM) incorporates convolutional inductive bias (translation invariance and local 2D structural awareness) directly into the self-attention mechanism by applying a depth-wise convolution in parallel with multi-head self-attention on the value projection.

Let $X \in \mathbb{R}^{H \times W \times C}$ be the input feature map and $V \in \mathbb{R}^{H \times W \times C}$ be the unpartitioned value feature projected linearly from $X$ . The LCM applies a $3 \times 3$ depth-wise convolution $\text{Conv}(\cdot)$ to $V$ in parallel with the multi-head rectangle-window self-attention features $Y^1, \dots, Y^M \in \mathbb{R}^{H \times W \times D}$ (where $D = C/M$ and $M$ is the number of heads): $\text{Rwin-SA}(X) = \left(\text{Concat}(Y^1, Y^2, \dots, Y^M) + \text{Conv}(V)\right) W_P$ where $W_P \in \mathbb{R}^{C \times C}$ is the output projection matrix.

Operating directly on $V$ rather than $X$ places the learnable static weights of the convolution in the same feature domain as the content-dependent dynamic attention weights, allowing the block to adaptively couple local structural features (edges, corners) with long-range contextual dependencies.
Knowl 6 — Cross Aggregation Transformer Block (CATB)
model/method
A Cross Aggregation Transformer Block (CATB) consists of a Rectangle-Window Self-Attention (Rwin-SA) module equipped with the Locality Complementary Module (LCM), followed by a Multi-Layer Perceptron (MLP), with Layer Normalization (LN) and residual connections applied at each stage.

For an input feature $X_{in} \in \mathbb{R}^{H \times W \times C}$ , the forward pass through the CATB is defined by: $X' = \text{Rwin-SA}(\text{LN}(X_{in})) + X_{in}$ $X_{out} = \text{MLP}(\text{LN}(X')) + X'$ where $\text{LN}(\cdot)$ denotes Layer Normalization, and $\text{MLP}(\cdot)$ contains two linear projection layers with an intermediate GELU non-linearity and a channel expansion ratio of 4. Consecutive CATBs alternate between standard window partitioning and axial-shifted window partitioning.
Knowl 7 — Ablation Analysis of Window Geometries, Axial Shifts, and Locality Coupling
empirical result
Ablation experiments conducted on single image super-resolution ( $imes 2$ ) trained on DIV2K and Flickr2K (150K iterations, $64 \times 64$ patch size) and evaluated on Urban100 with FLOPs measured at input size $3 \times 128 \times 128$ demonstrate the individual contributions of Rwin-SA, axial-shift, and LCM:
1. Window Shape and Shift Mechanism:
- Square window ( $8 \times 8$ ) without shift achieves 32.50 dB PSNR / 0.9325 SSIM at 281.8G FLOPs.
- Square window ( $8 \times 8$ ) with Swin shift achieves 32.75 dB PSNR / 0.9347 SSIM at 281.8G FLOPs.
- Regular rectangle window ( $4 \times 16$ ) without axial shift achieves 32.66 dB PSNR / 0.9334 SSIM at 281.8G FLOPs (+0.16 dB over square without shift at identical FLOPs).
- Regular rectangle window ( $4 \times 16$ ) with axial-shift achieves 32.91 dB PSNR / 0.9360 SSIM at 281.8G FLOPs (+0.16 dB over Swin square shift).
1. Locality Complementary Module (LCM):
- Adding LCM to CAT-R (regular-Rwin) increases PSNR from 32.91 dB to 32.98 dB (+0.07 dB) while increasing FLOPs from 281.8G to 282.7G (+0.32%).
- Adding LCM to CAT-A (axial-Rwin) increases PSNR from 33.01 dB to 33.11 dB (+0.10 dB) while increasing FLOPs from 349.7G to 350.7G (+0.26%).
1. Axial-Rwin Stripe Width ( $sl$ ):
- $sl = [2, 2, 2, 2, 2, 2]$ yields 32.97 dB PSNR (323.5G FLOPs).
- $sl = [2, 2, 2, 4, 4, 4]$ yields 33.11 dB PSNR (350.7G FLOPs).
- $sl = [4, 4, 4, 4, 4, 4]$ yields 33.20 dB PSNR (377.9G FLOPs).

Knowl 8 — Quantitative Super-Resolution Benchmark Comparisons

data/table

Cross Aggregation Transformer variants CAT-R (regular rectangle window, $[sh, sw] = [4, 16]$ ) and CAT-A (axial rectangle window, $sl = [2, 2, 2, 4, 4, 4]$ ) outperform prior CNN and Transformer models across standard SR benchmarks (Set5, Set14, B100, Urban100, Manga109). Models marked with '+' utilize self-ensemble testing.

Method	Scale	Set5 PSNR/SSIM	Set14 PSNR/SSIM	B100 PSNR/SSIM	Urban100 PSNR/SSIM	Manga109 PSNR/SSIM
EDSR	$\times 2$	38.11 / 0.9602	33.92 / 0.9195	32.32 / 0.9013	32.93 / 0.9351	39.10 / 0.9773
RCAN	$\times 2$	38.27 / 0.9614	34.12 / 0.9216	32.41 / 0.9027	33.34 / 0.9384	39.44 / 0.9786
SAN	$\times 2$	38.31 / 0.9620	34.07 / 0.9213	32.42 / 0.9028	33.10 / 0.9370	39.32 / 0.9792
IGNN	$\times 2$	38.24 / 0.9613	34.07 / 0.9217	32.41 / 0.9025	33.23 / 0.9383	39.35 / 0.9786
HAN	$\times 2$	38.27 / 0.9614	34.16 / 0.9217	32.41 / 0.9027	33.35 / 0.9385	39.46 / 0.9785
CSNLN	$\times 2$	38.28 / 0.9616	34.12 / 0.9223	32.40 / 0.9024	33.25 / 0.9386	39.37 / 0.9785
NLSA	$\times 2$	38.34 / 0.9618	34.08 / 0.9231	32.43 / 0.9027	33.42 / 0.9394	39.59 / 0.9789
IPT	$\times 2$	38.37 / -	34.43 / -	32.48 / -	33.76 / -	- / -
SwinIR	$\times 2$	38.42 / 0.9623	34.46 / 0.9250	32.53 / 0.9041	33.81 / 0.9427	39.92 / 0.9797
CAT-R	$\times 2$	38.48 / 0.9625	34.53 / 0.9251	32.56 / 0.9045	34.08 / 0.9443	40.09 / 0.9804
CAT-A	$\times 2$	38.51 / 0.9626	34.78 / 0.9265	32.59 / 0.9047	34.26 / 0.9440	40.10 / 0.9805
CAT-R+	$\times 2$	38.52 / 0.9627	34.59 / 0.9257	32.58 / 0.9047	34.19 / 0.9450	40.18 / 0.9805
CAT-A+	$\times 2$	38.55 / 0.9628	34.81 / 0.9267	32.60 / 0.9048	34.34 / 0.9445	40.18 / 0.9806
SwinIR	$\times 3$	34.97 / 0.9318	30.93 / 0.8534	29.46 / 0.8145	29.75 / 0.8826	35.12 / 0.9537
CAT-R	$\times 3$	34.99 / 0.9320	31.00 / 0.8539	29.49 / 0.8154	29.91 / 0.8848	35.29 / 0.9542
CAT-A	$\times 3$	35.06 / 0.9326	31.04 / 0.8538	29.52 / 0.8160	30.12 / 0.8862	35.38 / 0.9546
CAT-R+	$\times 3$	35.07 / 0.9324	31.06 / 0.8544	29.52 / 0.8159	30.05 / 0.8864	35.44 / 0.9548
CAT-A+	$\times 3$	35.10 / 0.9327	31.09 / 0.8545	29.55 / 0.8164	30.21 / 0.8872	35.48 / 0.9550
SwinIR	$\times 4$	32.92 / 0.9044	29.09 / 0.7950	27.92 / 0.7489	27.45 / 0.8254	32.03 / 0.9260
CAT-R	$\times 4$	32.89 / 0.9044	29.13 / 0.7955	27.95 / 0.7500	27.62 / 0.8292	32.16 / 0.9269
CAT-A	$\times 4$	33.08 / 0.9052	29.18 / 0.7960	27.99 / 0.7510	27.89 / 0.8339	32.39 / 0.9285
CAT-R+	$\times 4$	32.98 / 0.9049	29.18 / 0.7963	27.98 / 0.7506	27.73 / 0.8310	32.35 / 0.9280
CAT-A+	$\times 4$	33.14 / 0.9059	29.23 / 0.7968	28.01 / 0.7516	27.99 / 0.8356	32.52 / 0.9293

The largest gains occur on Urban100, where CAT-A outperforms SwinIR by 0.45 dB ( $imes 2$ ), 0.37 dB ( $imes 3$ ), and 0.44 dB ( $imes 4$ ), reflecting the advantage of rectangular and axial window attention on structured, directional textures.

Knowl 9 — Performance on JPEG Artifact Reduction and Real Image Denoising

data/table

CAT achieves state-of-the-art results on JPEG compression artifact reduction and competitive results on real-world raw image denoising.

JPEG Compression Artifact Reduction (Y-channel PSNR/SSIM):

Dataset	$q$	RNAN	RDN	DRUNet	SwinIR	CAT	CAT+
LIVE1	10	29.63 / 0.8239	29.67 / 0.8247	29.79 / 0.8278	29.86 / 0.8287	29.89 / 0.8295	29.92 / 0.8299
LIVE1	20	32.03 / 0.8877	32.07 / 0.8882	32.17 / 0.8899	32.25 / 0.8909	32.30 / 0.8913	32.32 / 0.8915
LIVE1	30	33.45 / 0.9149	33.51 / 0.9153	33.59 / 0.9166	33.69 / 0.9174	33.73 / 0.9177	33.75 / 0.9179
LIVE1	40	34.47 / 0.9299	34.51 / 0.9302	34.58 / 0.9312	34.67 / 0.9317	34.72 / 0.9320	34.74 / 0.9322
Classic5	10	29.96 / 0.8178	30.00 / 0.8188	30.16 / 0.8234	30.27 / 0.8249	30.26 / 0.8250	30.30 / 0.8257
Classic5	20	32.11 / 0.8693	32.15 / 0.8699	32.39 / 0.8734	32.52 / 0.8748	32.57 / 0.8754	32.60 / 0.8756
Classic5	30	33.38 / 0.8924	33.43 / 0.8930	33.59 / 0.8949	33.73 / 0.8961	33.77 / 0.8964	33.80 / 0.8966
Classic5	40	34.27 / 0.9061	34.27 / 0.9061	34.41 / 0.9075	34.52 / 0.9082	34.58 / 0.9087	34.60 / 0.9088

Real Image Denoising (SIDD and DND benchmarks):

Dataset	DANet+	CycleISP	MIRNet	MPRNet	Uformer	Restormer	CAT	CAT+
Params (M)	9.15	2.83	31.79	15.74	50.88	26.11	25.77	25.77
SIDD PSNR	39.47	39.52	39.72	39.71	39.89	40.02	40.01	40.05
SIDD SSIM	0.9570	0.9571	0.9586	0.9586	0.9594	0.9603	0.9600	0.9602
DND PSNR	39.58	39.56	39.88	39.82	39.98	40.03	40.05	40.08
DND SSIM	0.9545	0.9564	0.9563	0.9540	0.9554	0.9564	0.9561	0.9563

On DND, CAT attains 40.05 dB (40.08 dB with ensemble), surpassing Restormer (40.03 dB) while requiring fewer parameters (25.77M vs. 26.11M).

Knowl 10 — Model Complexity and Efficiency Comparison on Image Super-Resolution

data/table

Computational complexity (FLOPs measured on $3 \times 512 \times 512$ output size), parameter counts, and reconstruction performance (PSNR on Urban100 $\times 4$ ) show that CAT models achieve favorable trade-offs between computational budget and restoration accuracy.

Method	Urban100 PSNR (dB)	FLOPs (G)	Parameters (M)
EDSR	26.64	823.3	43.09
RCAN	26.82	261.0	15.59
HAN	26.85	269.1	16.07
CSNLN	27.22	84,155.2	6.57
SwinIR	27.45	215.3	11.90
CAT-R (ours)	27.62	292.7	16.60
CAT-A (ours)	27.89	360.7	16.60
CAT-R-2 (ours)	27.59	216.3	11.93

When constrained to the parameter and FLOP profile of SwinIR (11.93M vs 11.90M params, 216.3G vs 215.3G FLOPs), the lightweight variant CAT-R-2 achieves 27.59 dB, outperforming SwinIR (27.45 dB) by 0.14 dB.

Coverage note — None was omitted; all main architectural components, mathematical formulations, theoretical complexity bounds, ablation experiments, and empirical benchmark comparisons across Super-Resolution, JPEG artifact reduction, and real image denoising were captured.

References

1.Abdelrahman Abdelhamed, Stephen Lin, and Michael S Brown. A high-quality denoising dataset for smartphone cameras. In CVPR, 2018. 6
2.Pablo Arbelaez, Michael Maire, Charless Fowlkes, and Jitendra Malik. Contour detection and hierarchical image segmentation. TPAMI, 2010. 6
3.Marco Bevilacqua, Aline Roumy, Christine Guillemot, and Marie Line Alberi-Morel. Low-complexity single-image super-resolution based on nonnegative neighbor embedding. In BMVC, 2012. 6
4.Pierre Charbonnier, Laure Blanc-Feraud, Gilles Aubert, and Michel Barlaud. Two deterministic half-quadratic regularization algorithms for computed imaging. In ICIP, 1994. 6
5.Hanting Chen, Yunhe Wang, Tianyu Guo, Chang Xu, Yiping Deng, Zhenhua Liu, Siwei Ma, Chunjing Xu, Chao Xu, and Wen Gao. Pre-trained image processing transformer. In CVPR, 2021. 1, 3, 4, 7, 8
6.Haoyu Chen, Jinjin Gu, and Zhi Zhang. Attention in attention network for image super-resolution. arXiv preprint arXiv:2104.09497, 2021. 2
7.Xiangxiang Chu, Zhi Tian, Yuqing Wang, Bo Zhang, Haibing Ren, Xiaolin Wei, Huaxia Xia, and Chunhua Shen. Twins: Revisiting the design of spatial attention in vision transformers. In NeurIPS, 2021. 3
8.Xiangxiang Chu, Zhi Tian, Bo Zhang, Xinlong Wang, Xiaolin Wei, Huaxia Xia, and Chunhua Shen. Conditional positional encodings for vision transformers. arXiv preprint arXiv:2102.10882, 2021. 5
9.Tao Dai, Jianrui Cai, Yongbing Zhang, Shu-Tao Xia, and Lei Zhang. Second-order attention network for single image super-resolution. In CVPR, 2019. 7, 8
10.Chao Dong, Yubin Deng, Chen Change Loy, and Xiaoou Tang. Compression artifacts reduction by a deep convolutional network. In ICCV, 2015. 1, 2
11.Chao Dong, Chen Change Loy, Kaiming He, and Xiaoou Tang. Learning a deep convolutional network for image super-resolution. In ECCV, 2014. 1, 2
12.Xiaoyi Dong, Jianmin Bao, Dongdong Chen, Weiming Zhang, Nenghai Yu, Lu Yuan, Dong Chen, and Baining Guo. Cswin transformer: A general vision transformer backbone with cross-shaped windows. In CVPR, 2022. 1, 2, 5
13.Alexey Dosovitskiy, Lucas Beyer, Alexander Kolesnikov, Dirk Weissenborn, Xiaohua Zhai, Thomas Unterthiner, Mostafa Dehghani, Matthias Minderer, Georg Heigold, Sylvain Gelly, et al. An image is worth 16x16 words: Transformers for image recognition at scale. In ICLR, 2021. 1, 2, 3
14.Alessandro Foi, Vladimir Katkovnik, and Karen Egiazarian. Pointwise shape-adaptive dct for high-quality denoising and deblocking of grayscale and color images. TIP, 2007. 6
15.Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. Deep residual learning for image recognition. In CVPR, 2016. 2
16.Gao Huang, Zhuang Liu, Kilian Q Weinberger, and Laurens van der Maaten. Densely connected convolutional networks. In CVPR, 2017. 2
17.Jia-Bin Huang, Abhishek Singh, and Narendra Ahuja. Single image super-resolution from transformed self-exemplars. In CVPR, 2015. 4, 6, 7
18.Diederik Kingma and Jimmy Ba. Adam: A method for stochastic optimization. In ICLR, 2015. 6
19.Xiangtao Kong, Xina Liu, Jinjin Gu, Yu Qiao, and Chao Dong. Reflash dropout in image super-resolution. In CVPR, 2022. 2
20.Zheyuan Li, Yingqi Liu, Xiangyu Chen, Haoming Cai, Jinjin Gu, Yu Qiao, and Chao Dong. Blueprint separable residual network for efficient image super-resolution. In CVPR, 2022. 2
21.Jingyun Liang, Jiezhang Cao, Guolei Sun, Kai Zhang, Luc Van Gool, and Radu Timofte. Swinir: Image restoration using swin transformer. In ICCVW, 2021. 1, 3, 4, 6, 7, 8, 9, 10
22.Bee Lim, Sanghyun Son, Heewon Kim, Seungjun Nah, and Kyoung Mu Lee. Enhanced deep residual networks for single image super-resolution. In CVPRW, 2017. 6, 7, 8, 9, 10
23.Ze Liu, Yutong Lin, Yue Cao, Han Hu, Yixuan Wei, Zheng Zhang, Stephen Lin, and Baining Guo. Swin transformer: Hierarchical vision transformer using shifted windows. In ICCV, 2021. 2, 5, 7
24.Ilya Loshchilov and Frank Hutter. Sgdr: Stochastic gradient descent with warm restarts. In ICLR, 2017. 6
25.Ilya Loshchilov and Frank Hutter. Decoupled weight decay regularization. In ICLR, 2019. 6
26.Kede Ma, Zhengfang Duanmu, Qingbo Wu, Zhou Wang, Hongwei Yong, Hongliang Li, and Lei Zhang. Waterloo exploration database: New challenges for image quality assessment models. TIP, 2016. 6
27.David Martin, Charless Fowlkes, Doron Tal, and Jitendra Malik. A database of human segmented natural images and its application to evaluating segmentation algorithms and measuring ecological statistics. In ICCV, 2001. 6
28.Yusuke Matsui, Kota Ito, Yuji Aramaki, Azuma Fujimoto, Toru Ogawa, Toshihiko Yamasaki, and Kiyoharu Aizawa. Sketch-based manga retrieval using manga109 dataset. Multimedia Tools and Applications, 2017. 6
29.Yiqun Mei, Yuchen Fan, and Yuqian Zhou. Image super-resolution with non-local sparse attention. In CVPR, 2021. 7, 8
30.Yiqun Mei, Yuchen Fan, Yuqian Zhou, Lichao Huang, Thomas S Huang, and Humphrey Shi. Image super-resolution with cross-scale non-local attention and exhaustive self-exemplars mining. In CVPR, 2020. 7, 8, 10
31.Ben Niu, Weilei Wen, Wenqi Ren, Xiangde Zhang, Lianping Yang, Shuzhen Wang, Kaihao Zhang, Xiaochun Cao, and Haifeng Shen. Single image super-resolution via a holistic attention network. In ECCV, 2020. 2, 7, 8, 10
32.Adam Paszke, Sam Gross, Soumith Chintala, Gregory Chanan, Edward Yang, Zachary DeVito, Zeming Lin, Alban Desmaison, Luca Antiga, and Adam Lerer. Automatic differentiation in pytorch. 2017. 6
33.Tobias Plotz and Stefan Roth. Benchmarking denoising algorithms with real photographs. In CVPR, 2017. 6
34.Olaf Ronneberger, Philipp Fischer, and Thomas Brox. U-net: Convolutional networks for biomedical image segmentation. In MICCAI, 2015. 2, 3
35.Hamid R Sheikh, Muhammad F Sabir, and Alan C Bovik. A statistical evaluation of recent full reference image quality assessment algorithms. TIP, 2006. 6
36.Wenzhe Shi, Jose Caballero, Ferenc Huszár, Johannes Totz, Andrew P Aitken, Rob Bishop, Daniel Rueckert, and Zehan Wang. Real-time single image and video super-resolution using an efficient sub-pixel convolutional neural network. In CVPR, 2016. 3
37.Radu Timofte, Eirikur Agustsson, Luc Van Gool, Ming-Hsuan Yang, Lei Zhang, Bee Lim, Sanghyun Son, Heewon Kim, Seungjun Nah, Kyoung Mu Lee, et al. Ntire 2017 challenge on single image super-resolution: Methods and results. In CVPRW, 2017. 6, 7
38.Wenxiao Wang, Lu Yao, Long Chen, Binbin Lin, Deng Cai, Xiaofei He, and Wei Liu. Crossformer: A versatile vision transformer hinging on cross-scale attention. In ICLR, 2022. 4
39.Zhendong Wang, Xiaodong Cun, Jianmin Bao, Wengang Zhou, Jianzhuang Liu, and Houqiang Li. Uformer: A general u-shaped transformer for image restoration. In CVPR, 2022. 3, 9
40.Zhou Wang, Alan C Bovik, Hamid R Sheikh, and Eero P Simoncelli. Image quality assessment: from error visibility to structural similarity. TIP, 2004. 6
41.Jianwei Yang, Chunyuan Li, Pengchuan Zhang, Xiyang Dai, Bin Xiao, Lu Yuan, and Jianfeng Gao. Focal self-attention for local-global interactions in vision transformers. In NeurIPS, 2021. 1, 2
42.Kun Yuan, Shaopeng Guo, Ziwei Liu, Aojun Zhou, Fengwei Yu, and Wei Wu. Incorporating convolution designs into visual transformers. In CVPR, 2021. 5
43.Zongsheng Yue, Qian Zhao, Lei Zhang, and Deyu Meng. Dual adversarial network: Toward real-world noise removal and noise generation. In ECCV, 2020. 9
44.Syed Waqas Zamir, Aditya Arora, Salman Khan, Munawar Hayat, Fahad Shahbaz Khan, and Ming-Hsuan Yang. Restormer: Efficient transformer for high-resolution image restoration. In CVPR, 2022. 1, 3, 4, 6, 9
45.Syed Waqas Zamir, Aditya Arora, Salman Khan, Munawar Hayat, Fahad Shahbaz Khan, Ming-Hsuan Yang, and Ling Shao. Cycleisp: Real image restoration via improved data synthesis. In CVPR, 2020. 9
46.Syed Waqas Zamir, Aditya Arora, Salman Khan, Munawar Hayat, Fahad Shahbaz Khan, Ming-Hsuan Yang, and Ling Shao. Learning enriched features for real image restoration and enhancement. In ECCV, 2020. 9
47.Syed Waqas Zamir, Aditya Arora, Salman Khan, Munawar Hayat, Fahad Shahbaz Khan, Ming-Hsuan Yang, and Ling Shao. Multi-stage progressive image restoration. In CVPR, 2021. 9
48.Roman Zeyde, Michael Elad, and Matan Protter. On single image scale-up using sparse-representations. In Proc. 7th Int. Conf. Curves Surf., 2010. 6
49.Kai Zhang, Yawei Li, Wangmeng Zuo, Lei Zhang, Luc Van Gool, and Radu Timofte. Plug-and-play image restoration with deep denoiser prior. TPAMI, 2021. 8, 9
50.Kai Zhang, Wangmeng Zuo, Yunjin Chen, Deyu Meng, and Lei Zhang. Beyond a gaussian denoiser: Residual learning of deep cnn for image denoising. TIP, 2017. 1
51.Yulun Zhang, Kunpeng Li, Kai Li, Lichen Wang, Bineng Zhong, and Yun Fu. Image super-resolution using very deep residual channel attention networks. In ECCV, 2018. 2, 3, 6, 7, 8, 10
52.Yulun Zhang, Kunpeng Li, Kai Li, Bineng Zhong, and Yun Fu. Residual non-local attention networks for image restoration. In ICLR, 2019. 2, 6, 8, 9
53.Yulun Zhang, Yapeng Tian, Yu Kong, Bineng Zhong, and Yun Fu. Residual dense network for image restoration. TPAMI, 2020. 8, 9
54.Shangchen Zhou, Jiawei Zhang, Wangmeng Zuo, and Chen Change Loy. Cross-scale internal graph neural network for image super-resolution. In NeurIPS, 2020. 7, 8

Citation

MLA

Chen, Z., et al. “Cross Aggregation Transformer for Image Restoration”. Advances in Neural Information Processing Systems, vol. 35, 2022, pp. 25478–90, https://proceedings.neurips.cc/paper_files/paper/2022/file/a37fea8e67f907311826bc1ba2654d97-Paper-Conference.pdf.

APA

Chen, Z., Zhang, Y., Gu, J., zhang, . yongbing ., Kong, L., & Yuan, X. (2022). Cross Aggregation Transformer for Image Restoration. Advances in Neural Information Processing Systems, 35, 25478–25490. https://proceedings.neurips.cc/paper_files/paper/2022/file/a37fea8e67f907311826bc1ba2654d97-Paper-Conference.pdf

Chicago

Chen, Z., Y. Zhang, J. Gu, . yongbing . zhang, L. Kong, and X. Yuan. 2022. “Cross Aggregation Transformer for Image Restoration”. Advances in Neural Information Processing Systems 35: 25478–90. https://proceedings.neurips.cc/paper_files/paper/2022/file/a37fea8e67f907311826bc1ba2654d97-Paper-Conference.pdf.

Harvard

Chen, Z. et al. (2022) “Cross Aggregation Transformer for Image Restoration”, Advances in Neural Information Processing Systems. Curran Associates, Inc., pp. 25478–25490. Available at: https://proceedings.neurips.cc/paper_files/paper/2022/file/a37fea8e67f907311826bc1ba2654d97-Paper-Conference.pdf.

Vancouver

1. Chen Z, Zhang Y, Gu J, zhang yongbing, Kong L, Yuan X (2022) Cross Aggregation Transformer for Image Restoration. In: Advances in Neural Information Processing Systems. Curran Associates, Inc., pp 25478–25490

BibTeX

@inproceedings{chen2022cross,
  title = {Cross Aggregation Transformer for Image Restoration},
  author = {Chen, Zheng and Zhang, Yulun and Gu, Jinjin and zhang, yongbing and Kong, Linghe and Yuan, Xin},
  year = {2022},
  booktitle = {Advances in Neural Information Processing Systems},
  publisher = {Curran Associates, Inc.},
  volume = {35},
  pages = {25478-25490},
  url = {https://proceedings.neurips.cc/paper_files/paper/2022/file/a37fea8e67f907311826bc1ba2654d97-Paper-Conference.pdf}
}

Metadata:DOI registry

Source Code

This paper has an official code repository available. Click below to access the source code.

View Repository

Access the Paper

This paper is available from its original source. Click below to access the PDF.

Open PDF

License: Authors

Cross Aggregation Transformer for Image Restoration

Abstract

Topics

Keywords

Table of Contents

Knowls

Knowl 1 — Cross Aggregation Transformer (CAT) Architecture for Image Restoration

Knowl 2 — Rectangle-Window Self-Attention (Rwin-SA)

Knowl 3 — Computational Complexity of Regular-Rwin and Axial-Rwin

Knowl 4 — Axial-Shift Operation for Window Interaction

Knowl 5 — Locality Complementary Module (LCM)

Knowl 6 — Cross Aggregation Transformer Block (CATB)

Knowl 7 — Ablation Analysis of Window Geometries, Axial Shifts, and Locality Coupling

Knowl 8 — Quantitative Super-Resolution Benchmark Comparisons

Knowl 9 — Performance on JPEG Artifact Reduction and Real Image Denoising

Knowl 10 — Model Complexity and Efficiency Comparison on Image Super-Resolution

References

Citation

BibTeX

Source Code

Access the Paper
