Learn to Explain: Multimodal Reasoning via Thought Chains for Science Question Answering

Pan LuSwaroop MishraTony XiaLiang QiuKai-Wei ChangSong-Chun ZhuOyvind TafjordPeter ClarkAshwin Kalyan

article2022NeurIPS2,641 citations

Introduces ScienceQA, a multimodal benchmark of 21,000 science questions with annotated explanations, demonstrating that chain-of-thought reasoning significantly improves model accuracy and allows systems to match baseline performance using only forty percent of training data.

Listen

The article addresses the challenge of building AI systems that can reliably reason about science questions using multimodal inputs while revealing their thought processes, a gap that limits interpretability and generalization in current models. Existing science question datasets either omit explanations for answers or are confined to text-only formats, small scales, and narrow topics, making it hard to diagnose or improve multi-hop reasoning abilities.

The article set out to introduce a large-scale multimodal benchmark called SCIENCEQA and to test whether language models can generate lectures and explanations as a chain of thought to mimic human reasoning when answering questions.

Researchers assembled roughly 21,000 multiple-choice questions drawn from elementary and high school science curricula across natural, social, and language science, annotating most with lectures for background knowledge and explanations for specific reasoning steps. They benchmarked a range of vision-language models and large language models, then developed chain-of-thought variants: fine-tuning UnifiedQA to output answers plus lectures and explanations, and prompting GPT-3 with in-context examples that include reasoning chains.

The main results show that chain-of-thought generation raises UnifiedQA accuracy by 3.99 percentage points and GPT-3 by 1.20 points over baselines without explanations. Supplying gold explanations in the prompt lifts GPT-3 performance by nearly 19 points, while models using chain of thought reach equivalent accuracy with only 40 percent of the training data. Roughly 65 percent of GPT-3-generated explanations satisfy human standards for relevance, correctness, and completeness.

These outcomes indicate that explicit reasoning chains make large language models both more accurate and more data-efficient on complex multimodal tasks, narrowing the reliability gap with human performance and supporting applications that require traceable decisions.

The work recommends continued development of models that integrate visual and textual evidence more tightly and that generate higher-quality explanations before producing answers. Additional data collection, targeted error analysis on multimodal and domain-specific failures, and human-in-the-loop pilots would strengthen readiness for deployment.

Limitations include reliance on curriculum-sourced data that may not cover all real-world scenarios, dependence on image captions that lose fine-grained visual detail, and persistent model failures on uncommon terminology or complex reasoning chains; results should be viewed as promising but not yet general across all science domains.

Allen Institute for AIArizona State UniversityUniversity of California, Los Angelesdeep learninginterpretabilitymultihopSCIENCEQAMultimodalChain of Thought
arXiv: 2209.09513lupantech/ScienceQA

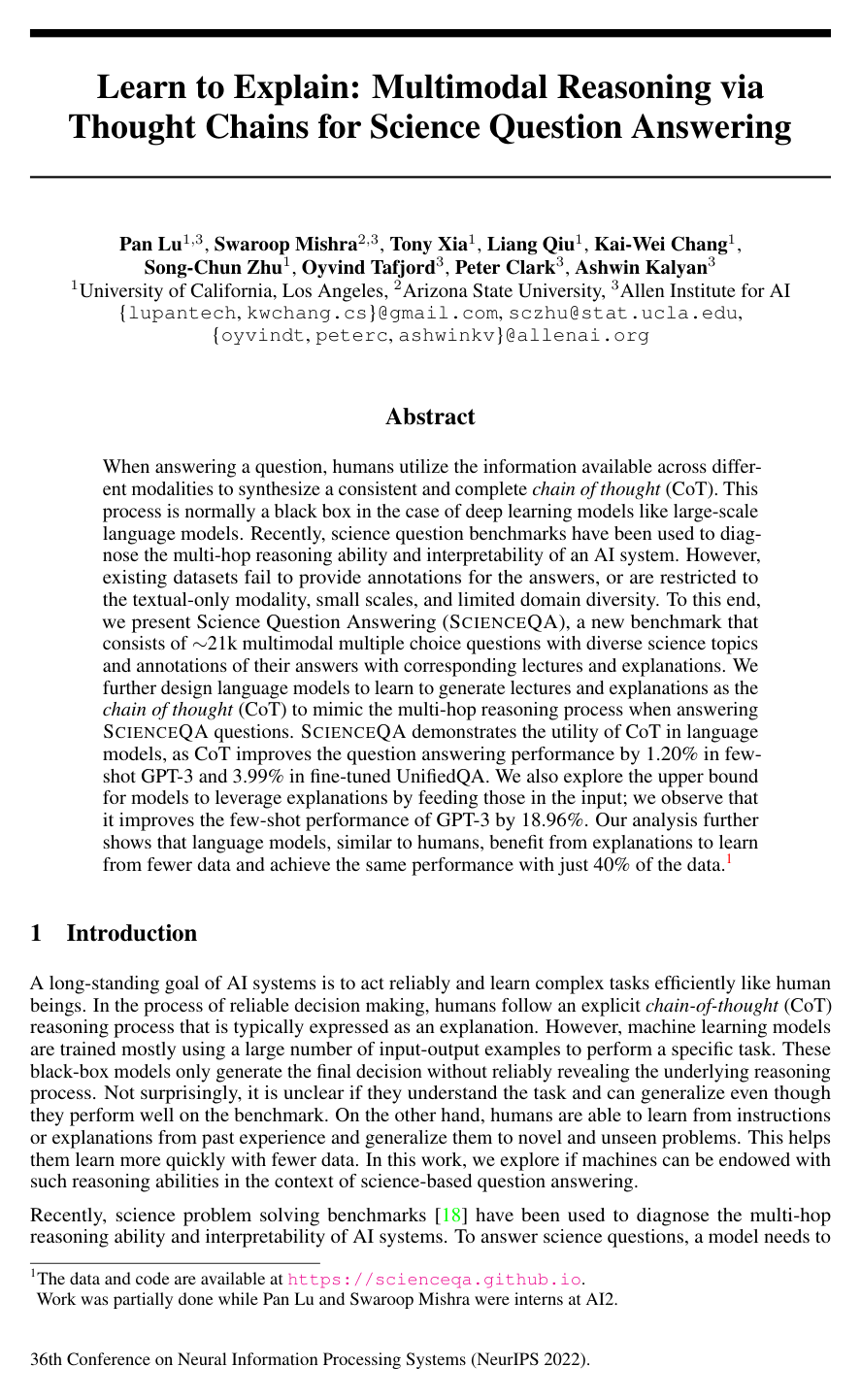

Cover for Learn to Explain: Multimodal Reasoning via Thought Chains for Science Question Answering

Abstract

When answering a question, humans utilize the information available across different modalities to synthesize a consistent and complete chain of thought (CoT). This process is normally a black box in the case of deep learning models like large-scale language models. Recently, science question benchmarks have been used to diagnose the multi-hop reasoning ability and interpretability of an AI system. However, existing datasets fail to provide annotations for the answers, or are restricted to the textual-only modality, small scales, and limited domain diversity. To this end, we present Science Question Answering (ScienceQA), a new benchmark that consists of ~21k multimodal multiple choice questions with a diverse set of science topics and annotations of their answers with corresponding lectures and explanations. We further design language models to learn to generate lectures and explanations as the chain of thought (CoT) to mimic the multi-hop reasoning process when answering ScienceQA questions. ScienceQA demonstrates the utility of CoT in language models, as CoT improves the question answering performance by 1.20% in few-shot GPT-3 and 3.99% in fine-tuned UnifiedQA. We also explore the upper bound for models to leverage explanations by feeding those in the input; we observe that it improves the few-shot performance of GPT-3 by 18.96%. Our analysis further shows that language models, similar to humans, benefit from explanations to learn from fewer data and achieve the same performance with just 40% of the data. The data and code are available at this https URL.

Topics

deep learninginterpretabilitymultihopquestion answeringreasoningsocial sciencesstatistical language models

Keywords

SCIENCEQAMultimodalChain of ThoughtExplanationFew‑ShotGPT‑3UnifiedQAMulti‑Hop ReasoningDatasetLecture

Table of Contents

  • 1 Introduction
  • 2 Related Work
  • 3 Dataset
  • 3.1 Data Analysis
  • 3.2 Comparisons with Existing Datasets
  • 4 Baselines and Chain-of-Thought Models
  • 4.1 Baselines
  • 4.2 Language Models with the Chain of Thought
  • 5 Experiments
  • 5.1 Experimental Setup
  • 5.2 Results for Question Answering
  • 5.3 Results for Generated Explanations
  • 5.4 Analysis
  • 6 Discussion and Conclusion
  • 7 Acknowledgment
  • References
  • A Dataset Analysis
  • A.1 Data Collection
  • A.2 Question Statistics
  • A.3 Choice Statistics
  • A.4 Subject Statistics
  • A.5 Grade Statistics
  • B Experiments
  • B.1 Experimental Details
  • B.2 Human Performance Study
  • B.3 Human Evaluation of Generated Explanations
  • B.4 Case Study and Limitations
  • B.5 Broader Impacts

Knowls

  1. Knowl 1 — ScienceQA Benchmark Dataset

    definition

    Science Question Answering (ScienceQA) is a multimodal multiple-choice benchmark consisting of 21,208 science curriculum questions collected from K-12 educational resources (grades 1 to 12). The dataset spans three overarching subjects: natural science, social science, and language science, divided into 26 topics, 127 categories, and 379 specific skills.

    The benchmark contains diverse input context combinations:

    • Questions with text context only: 3,688 (17.39%)
    • Questions with image context only: 3,800 (17.92%)
    • Questions with both image and text contexts: 6,532 (30.80%)
    • Questions with no context: 7,188 (33.89%)

    Visual contexts total 7,803 unique images covering natural images (~2,960; 14.0%) and diagrams (~7,372; 34.8%), while textual contexts comprise 4,651 unique passages. Beyond questions, choices (ranging from 2 to 5 options), and answers, ScienceQA annotates questions with grounded lectures (17,798 examples, 83.9%) that provide general background domain knowledge, and detailed explanations (19,202 examples, 90.5%) that supply step-by-step rationales for the correct choice. The dataset is split into training (12,726 examples; 60%), validation (4,241 examples; 20%), and test (4,241 examples; 20%) sets.

  2. Knowl 2 — Post-Answer Chain-of-Thought Formulation for Multimodal QA

    model/method

    To model multi-step reasoning while maintaining robust answer extraction in language models, ScienceQA formulates Chain-of-Thought (CoT) generation such that the predicted answer option is produced prior to the lecture and explanation, rather than after them (QCM→ALEQCM \to ALE instead of QCM→LEAQCM \to LEA or QCM→EAQCM \to EA).

    Given question text QQ, context text CC, and multiple choice options MM, visual contexts (when present) are first transformed into text captions using an image captioning model (a Vision Transformer encoder paired with a GPT-2 decoder). The target sequence consists of the correct answer AA, followed by the background lecture LL and specific explanation EE.

    In few-shot in-context learning with large language models such as GPT-3 (text-davinci-002), an nn-shot instruction prompt II is formed by concatenating nn training demonstrations with the test instance: I=({Ii}i=1n,It)I = (\{I_i\}_{i=1}^n, I_t) where each demonstration IiI_i is formatted as: Question: QiOptions: MiContext: CiAnswer: The answer is Ai. BECAUSE: lecture : Li explanation : Ei\text{Question: } Q_i \quad \text{Options: } M_i \quad \text{Context: } C_i \quad \text{Answer: The answer is } A_i \text{. BECAUSE: lecture : } L_i \text{ explanation : } E_i and the test prompt ItI_t ends at Answer: to prompt the model to generate At,Lt,EtA_t, L_t, E_t.

    In the supervised fine-tuning setting with UnifiedQA, the model is trained end-to-end to autoregressively decode the concatenated sequence of the answer token, lecture text, and explanation text given the tokenized input sequence QCMQCM.

  3. Knowl 3 — Comparative Performance of VQA and Language Models on ScienceQA

    empirical result

    Evaluating visual question answering (VQA) baselines, fine-tuned UnifiedQA, and few-shot prompted GPT-3 on the ScienceQA test set demonstrates that language models equipped with Chain-of-Thought (CoT) generation outperform standard classification and QA baselines, though remaining well below human performance.

    Model Learning Format NAT SOC LAN TXT IMG NO G1-6 G7-12 Avg
    Random chance - M→\toA 40.28 46.13 29.25 47.45 40.08 33.66 39.35 40.67 39.83
    MCAN train set QCM→\toA 56.08 46.23 58.09 59.43 51.17 55.40 51.65 59.72 54.54
    Top-Down train set QCM→\toA 59.50 54.33 61.82 62.90 54.88 59.79 57.27 62.16 59.02
    BAN train set QCM→\toA 60.88 46.57 66.64 62.61 52.60 65.51 56.83 63.94 59.37
    DFAF train set QCM→\toA 64.03 48.82 63.55 65.88 54.49 64.11 57.12 67.17 60.72
    ViLT train set QCM→\toA 60.48 63.89 60.27 63.20 61.38 57.00 60.72 61.90 61.14
    Patch-TRM train set QCM→\toA 65.19 46.79 65.55 66.96 55.28 64.95 58.04 67.50 61.42
    VisualBERT train set QCM→\toA 59.33 69.18 61.18 62.71 62.17 58.54 62.96 59.92 61.87
    UnifiedQABASE_{\text{BASE}} zero-shot QCM→\toA 50.13 44.54 48.18 53.08 48.09 46.69 47.58 50.03 48.46
    UnifiedQABASE_{\text{BASE}} train set QCM→\toA 68.16 69.18 74.91 63.78 61.38 77.84 72.98 65.00 70.12
    UnifiedQABASE_{\text{BASE}} (CoT) train set QCM→\toAE 70.60 74.02 78.36 65.69 64.80 81.53 75.48 69.48 73.33
    UnifiedQABASE_{\text{BASE}} (CoT) train set QCM→\toALE 71.00 76.04 78.91 66.42 66.53 81.81 77.06 68.82 74.11
    GPT-3 zero-shot QCM→\toA 75.04 66.59 78.00 74.24 65.74 79.58 76.36 69.87 74.04
    GPT-3 2-shot QCM→\toA 74.64 69.74 76.00 74.44 67.28 77.42 76.80 68.89 73.97
    GPT-3 (CoT) 2-shot QCM→\toAE 76.60 65.92 77.55 75.51 66.09 79.58 78.49 67.63 74.61
    GPT-3 (CoT) 2-shot QCM→\toALE 75.44 70.87 78.09 74.68 67.43 79.93 78.23 69.68 75.17
    Human - QCM→\toA 90.23 84.97 87.48 89.60 87.50 88.10 91.59 82.42 88.40

    Key findings include:

    1. Generating lectures and explanations (QCM→ALEQCM \to ALE) improves the accuracy of fine-tuned UnifiedQABASE_{\text{BASE}} by +3.99% (from 70.12% to 74.11%) over direct answer generation (QCM→AQCM \to A).
    2. In few-shot prompting, GPT-3 with 2-shot CoT (QCM→ALEQCM \to ALE) achieves 75.17% overall accuracy (+1.20% over 2-shot standard prompting at 73.97%).
    3. VisualBERT is the strongest VQA baseline at 61.87% accuracy.
    4. Human performance stands at 88.40% overall, establishing a 13.23% gap over the best model (75.17%) and a 20.07% gap specifically on image-context questions (87.50% human vs 67.43% GPT-3 CoT).

  4. Knowl 4 — Automatic vs. Human Evaluation of Model-Generated Explanations

    empirical result

    Model-generated explanations evaluated with automated n-gram/embedding metrics differ substantially from human rater evaluations. Automated lexical metrics favor fine-tuned models that mimic training set phrasing, whereas human ratings indicate that few-shot GPT-3 produces explanations that are more relevant, correct, and complete.

    In human evaluations, annotators evaluated whether generated explanations were:

    • Relevant: directly related to the question topic.
    • Correct: providing accurate reasoning that leads to the true answer.
    • Complete: fully explaining the problem without missing logical links.
    • Gold Standard: satisfying Relevance, Correctness, and Completeness simultaneously.
    Model Format BLEU-1 BLEU-4 ROUGE-L Similarity Relevant Correct Complete Gold
    UnifiedQABASE_{\text{BASE}} (CoT) QCM→\toALE 0.397 0.370 0.714 0.811 80.4% 76.6% 76.1% 56.9%
    GPT-3 (CoT) QCM→\toAE 0.234 0.048 0.351 0.561 76.9% 73.0% 70.5% 52.5%
    GPT-3 (CoT) QCM→\toALE 0.192 0.052 0.323 0.595 88.5% 78.8% 84.5% 65.2%

    While UnifiedQABASE_{\text{BASE}} achieves the highest BLEU-4 (0.370), ROUGE-L (0.714), and Sentence-BERT semantic similarity (0.811), GPT-3 (QCM→ALEQCM \to ALE) achieves the highest proportion of gold-standard explanations according to human judges (65.2% vs 56.9%), showing that surface lexical overlap does not fully capture explanatory quality.

  5. Knowl 5 — Upper Bound on Question Answering via Oracle Explanations

    empirical result

    Supplying ground-truth lectures (L∗L^*) and explanations (E∗E^*) directly inside the input prompt of GPT-3 provides an empirical upper bound on how much explanatory reasoning can benefit question answering.

    Prompt type Sampling Accuracy (%)
    QCML∗→^* \to A Random 73.59
    QCML∗→^* \to AE Random 74.32
    QCME∗→^* \to A Random 94.03 (+18.86)
    QCMLE∗→^* \to A Random 94.13 (+18.96)
    QCM →\to ALE Random 75.17

    Feeding the gold explanation directly into the input (QCME∗→AQCME^* \to A) boosts GPT-3 accuracy by +18.86% to 94.03%, and feeding both the gold lecture and explanation (QCMLE∗→AQCMLE^* \to A) yields 94.13% (+18.96% over the standard 2-shot CoT baseline of 75.17%). In contrast, providing only the background lecture (QCML∗→AQCML^* \to A) yields 73.59%, indicating that specific step-by-step explanatory rationales, rather than general background facts alone, drive the upper bound performance.

  6. Knowl 6 — Sensitivity of Language Model Accuracy to CoT Output Sequence Ordering

    empirical result

    In few-shot Chain-of-Thought prompting on ScienceQA, placing the target answer before the lecture and explanation (QCM→ALEQCM \to ALE) yields substantially higher accuracy than generating the explanation or lecture before the answer choice.

    Evaluated on 1,000 test examples with 2-shot GPT-3:

    Prompt type Sequence Order Description Accuracy (%)
    QCM →\to ALE Answer →\to Lecture →\to Explanation 73.6
    QCM →\to LA Lecture →\to Answer 60.6
    QCM →\to EA Explanation →\to Answer 56.0
    QCM →\to LEA Lecture →\to Explanation →\to Answer 55.4
    QCM →\to ELA Explanation →\to Lecture →\to Answer 51.5

    Placing the explanation before the answer drops accuracy by 17.6% (QCM→EAQCM \to EA) to 22.1% (QCM→ELAQCM \to ELA). This occurs because generating long explanatory text first increases the risk of premature model stopping or exceeding token generation limits before the final answer token is produced.

  7. Knowl 7 — Sample Efficiency Gains from Chain-of-Thought Supervised Fine-Tuning

    empirical result

    Supervised fine-tuning of language models to generate reasoning chains alongside answers enhances sample efficiency during training.

    Comparing UnifiedQABASE_{\text{BASE}} fine-tuned on subsets of the ScienceQA training set (from 10% to 100% data):

    • UnifiedQABASE_{\text{BASE}} fine-tuned with Chain-of-Thought (QCM→ALEQCM \to ALE) on 40% of the training data achieves approximately 70% test accuracy.
    • Standard UnifiedQABASE_{\text{BASE}} (QCM→AQCM \to A) requires 100% of the training data to reach the same ~70% accuracy level.

    Learning to generate explicit intermediate explanations enables language models to internalize coherent reasoning paths and attain equivalent task proficiency with 60% less labeled training data.

  8. Knowl 8 — In-Context Exemplar Count and Dynamic Sampling Effects in Few-Shot CoT

    empirical result

    Ablation studies on GPT-3 CoT prompt composition reveal the impact of prompt formatting, shot counts, and exemplar selection strategies:

    1. Prompt Type Stability: Prompting GPT-3 with both lectures and explanations (QCM→ALEQCM \to ALE) achieves higher average accuracy across random seeds and lower variance than prompting with explanations alone (QCM→AEQCM \to AE), which produces high variance and less stable predictions.
    2. Shot-Count Scaling: Varying the number of in-context training examples from 1 to 5 demonstrates that performance for QCM→ALEQCM \to ALE peaks at 2 shots (~75.2%), beyond which adding further in-context examples leads to gradual performance degradation.
    3. Dynamic Sampling vs. Random Sampling: Selecting in-context demonstration examples dynamically to match the test sample's category hierarchy yields negligible performance differences compared to uniform random sampling:
    • Random sampling: 75.17%
    • Dynamic sampling from same topic: 75.15%
    • Dynamic sampling from same category: 74.58%
    • Dynamic sampling from same skill: 75.10%

  9. Knowl 9 — Modality and Domain Failure Modes in Multimodal Science Question Answering

    limitation

    Language models relying on image-to-text captions for visual understanding face systematic failure modes on multimodal science questions:

    1. Loss of Fine-Grained Diagrammatic Information: Generic captioning models (such as ViT-GPT-2) generate coarse natural scene descriptions that omit critical structural data, numbers, labels, and relational semantics in science diagrams and climate graphs. This causes language models to hallucinate facts or generate irrelevant explanations.
    2. Complex Domain Terminology and Multi-Stage Scientific Processes: Models struggle to correctly reason over domain-specific terminology (such as distinguishing personification from metaphors in language arts) and complex multi-stage chemical and physical transformations (such as the mineralization sequence occurring during dinosaur fossil formation).

Coverage note — None was omitted. All key dataset statistics, baseline benchmarks, Chain-of-Thought model formulations, human study results, upper bound investigations, sequence ordering ablations, sample efficiency analyses, and failure modes are fully captured.
