MixSTE: Seq2seq Mixed Spatio-Temporal Encoder for 3D Human Pose Estimation in Video

Jinlu ZhangZhigang TuJianyu YangYujin ChenJunsong Yuan

article2022CVPR436 citations

Proposes MixSTE, a sequence-to-sequence transformer architecture that alternates between modeling individual joint trajectories over time and spatial joint dependencies within frames to achieve state-of-the-art accuracy in video-based 3D human pose estimation.

Listen

Estimating three-dimensional human body poses from standard two-dimensional video is a fundamental computer vision capability with significant value for robotics, action recognition, and virtual human systems. However, extracting accurate 3D positions from monocular video remains challenging because different 3D poses can correspond to the identical 2D projection. While recent approaches have leveraged attention-based transformer models across video sequences, they typically fail to capture the distinct, independent motion trajectories of individual body joints over time, and they commonly predict only a single central frame per sequence, which introduces substantial computational redundancy.

The article demonstrates and evaluates MixSTE, a sequence-to-sequence neural network architecture designed to reconstruct full 3D pose sequences from 2D keypoints. MixSTE alternately stacks spatial attention blocks to capture relationships across body joints within each frame and temporal attention blocks to separately track the movement path of each individual joint across time.

To establish credibility and performance benchmarks, the authors evaluated MixSTE across three widely recognized experimental datasets: Human3.6M, MPI-INF-3DHP, and HumanEva. The model was evaluated using standard 2D pose detection inputs as well as ground-truth 2D keypoints, testing both short- and long-term sequence lengths ranging from 1 to 243 frames.

The findings confirm that MixSTE establishes new state-of-the-art performance across all benchmarked datasets. On the Human3.6M benchmark using standard 2D inputs, the model reduces mean joint position error to 40.9 mm, achieving a 7.6% error reduction over prior leading transformer methods, while yielding a 10.9% improvement under rigid alignment metrics. When provided with ground-truth 2D keypoints, MixSTE achieves a 31.0% error reduction over previous transformer baselines. Ablation experiments demonstrated that treating each joint as a separate temporal token drastically cut computational operations per frame from over 186,000 to 645 megaflops, while the full sequence-to-sequence output significantly increased inference processing speed.

These results show that separating joint trajectories and enforcing end-to-end sequence coherence substantially boosts accuracy while resolving the high latency and computational inefficiencies common in prior methods. For enterprise applications, these improvements reduce hardware infrastructure costs and enable practical deployment in real-time or resource-constrained environments where rapid video processing is critical.

Stakeholders deploying 3D human pose systems should consider adopting sequence-to-sequence alternating spatio-temporal architectures to maximize throughput and positional precision. For applications involving small datasets, fine-tuning pretrained models from larger datasets is recommended to ensure strong generalization. Future engineering and research efforts should prioritize modeling input noise distributions and pairing the architecture with robust upstream 2D detectors to mitigate performance degradation caused by missing or inaccurate 2D keypoints.

Soochow UniversityTechnical University of MunichUniversity at BuffaloWuhan Universityencoder-decoderframeshuman pose estimationsMixSTESeq2seq Mixed Spatio-Temporal Encoder3D human pose estimation
arXiv: 2203.00859JinluZhang1126/MixSTE

No sufficiently relevant recommendations were found.

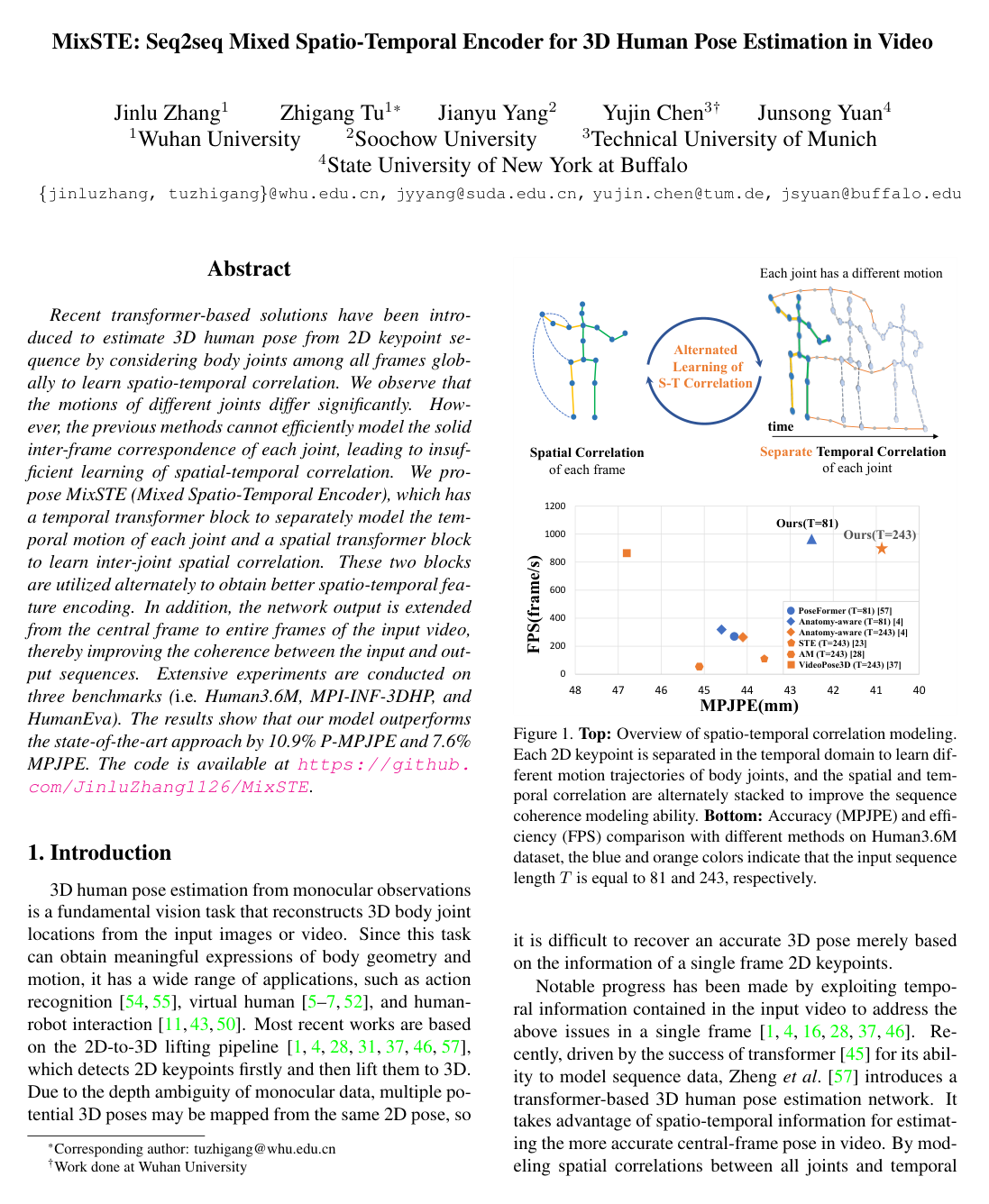

Cover for MixSTE: Seq2seq Mixed Spatio-Temporal Encoder for 3D Human Pose Estimation in Video

Abstract

Recent transformer-based solutions have been introduced to estimate 3D human pose from 2D keypoint sequence by considering body joints among all frames globally to learn spatio-temporal correlation. We observe that the motions of different joints differ significantly. However, the previous methods cannot efficiently model the solid inter-frame correspondence of each joint, leading to insufficient learning of spatial-temporal correlation. We propose MixSTE (Mixed Spatio-Temporal Encoder), which has a temporal transformer block to separately model the temporal motion of each joint and a spatial transformer block to learn inter-joint spatial correlation. These two blocks are utilized alternately to obtain better spatio-temporal feature encoding. In addition, the network output is extended from the central frame to entire frames of the input video, thereby improving the coherence between the input and output sequences. Extensive experiments are conducted on three benchmarks (Human3.6M, MPI-INF-3DHP, and HumanEva). The results show that our model outperforms the state-of-the-art approach by 10.9% P-MPJPE and 7.6% MPJPE. The code is available at this https URL.

Topics

encoder-decoderframeshuman pose estimationsmpivideo streamslocal featurespatial and temporal correlationmonocular image

Keywords

MixSTESeq2seq Mixed Spatio-Temporal Encoder3D human pose estimationvideo pose estimationtemporal attentiontemporal transformer2D-to-3D pose liftingmotion trajectories

Table of Contents

  • 1 Introduction
  • 2 Related Work
  • 3 Our Approach
  • 3.1 Mixed Spatio-Temporal Encoder
  • 3.1.1 Separate Temporal Correlation Learning
  • 3.1.2 Spatial Correlation Learning
  • 3.1.3 Alternating design with Seq2seq
  • 3.2 Transformer Block in MixSTE
  • 3.3 Loss Function
  • 4 Experiment
  • 4.1 Datasets and Evaluation Protocols
  • 4.2 Implementation Details
  • 4.3 Comparison with State-of-the-art Methods
  • 4.4 Ablation Study
  • 4.5 Qualitative Results
  • 5 Conclusion
  • References

Knowls

  1. Knowl 1 — MixSTE Spatio-Temporal Transformer Architecture for 3D Pose Sequence Estimation

    model/method

    The Mixed Spatio-Temporal Encoder (MixSTE) is a sequence-to-sequence (seq2seq) transformer framework designed to lift a sequence of 2D human pose keypoints CN,T∈RN×T×2C_{N,T} \in \mathbb{R}^{N \times T \times 2} (NN body joints across TT consecutive frames) directly into a complete 3D human pose sequence Out∈RN×T×3\text{Out} \in \mathbb{R}^{N \times T \times 3}.

    The input 2D coordinates are first linearly projected into a feature tensor PN,T∈RN×T×dmP_{N,T} \in \mathbb{R}^{N \times T \times d_m}, where dmd_m denotes the joint feature embedding dimension. Spatial positional embeddings Es-pos∈RN×dmE_{s\text{-}pos} \in \mathbb{R}^{N \times d_m} and temporal positional embeddings Et-pos∈RT×dmE_{t\text{-}pos} \in \mathbb{R}^{T \times d_m} are incorporated in the initial encoder layer to retain spatial skeleton layout and temporal frame order.

    The core of the encoder consists of an alternating stack of dld_l loops, where each loop comprises:

    1. A Spatial Transformer Block (STB) that executes multi-head self-attention (MSA) across the NN joint tokens within each frame, capturing inter-joint structural and kinematic dependencies.
    2. A Temporal Transformer Block (TTB) that applies MSA across the TT frame tokens independently for each joint, modeling individual joint motion trajectories.

    Throughout the dld_l loops, the joint feature dimension is held constant at dmd_m. After processing through the stacked alternating blocks, a linear regression head projects the resulting representation X∈RN×T×dmX \in \mathbb{R}^{N \times T \times d_m} from dimension dmd_m to 33, yielding the output 3D joint coordinate sequence.

  2. Knowl 2 — Separate Temporal Motion Modeling via Joint Separation

    model/method

    Prior spatio-temporal transformers for 3D pose estimation flatten all NN joints of a single frame into a joint feature token of dimension N×dmN \times d_m for temporal modeling. In contrast, MixSTE introduces joint separation, which isolates the temporal trajectory of each individual joint i∈{1,…,N}i \in \{1, \dots, N\} across all TT frames as an independent sequence of tokens pi=(pi,1,pi,2,…,pi,T)∈R1×T×dmp_i = (p_{i,1}, p_{i,2}, \dots, p_{i,T}) \in \mathbb{R}^{1 \times T \times d_m}, where pi,j∈Rdmp_{i,j} \in \mathbb{R}^{d_m} is the feature of joint ii at frame jj.

    The temporal transformer function F\mathcal{F} processes each joint trajectory in parallel:

    Xlt=Concat(F(p1,1,…,p1,T),…,F(pN,1,…,pN,T))∈RN×T×dmX_l^t = \text{Concat}\left(\mathcal{F}(p_{1,1}, \dots, p_{1,T}), \dots, \mathcal{F}(p_{N,1}, \dots, p_{N,T})\right) \in \mathbb{R}^{N \times T \times d_m}

    where XltX_l^t is the output of the ll-th Temporal Transformer Block (TTB). This formulation reduces the temporal transformer token dimension from N×dmN \times d_m to dmd_m, drastically lowering computational complexity (FLOPs) and enabling the model to scale to significantly longer sequence lengths TT while capturing joint-specific motion trajectories.

  3. Knowl 3 — Theoretical Inference Speedup of Seq2seq over Seq2frame Lifting

    equation

    In 2D-to-3D pose lifting, seq2frame methods estimate only the 3D pose of the central frame by processing an input window of tt frames, requiring sliding-window evaluation with heavy overlap to reconstruct a full video. Given a total video length TT, input receptive field t<Tt < T, and sequence padding length δ\delta, seq2frame methods require T(1+2δ)T(1+2\delta) inference passes, whereas a seq2seq method predicting all tt frames simultaneously requires (T+2δ)/t(T + 2\delta)/t inference passes.

    The theoretical inference pass speedup ratio GG of seq2seq over seq2frame is formulated as:

    G=T(1+2δ)T+2δt=T(1+2δ)T+2δ⋅t≈(1+2δ)⋅tG = \frac{T(1+2\delta)}{\frac{T+2\delta}{t}} = \frac{T(1+2\delta)}{T + 2\delta} \cdot t \approx (1+2\delta) \cdot t

    As the input sequence length tt increases, seq2seq eliminates redundant window calculations, yielding inference speeds exceeding 1,000 frames per second.

  4. Knowl 4 — Hierarchically Weighted MPJPE and Temporal Consistency Loss Formulation

    model/method

    MixSTE is trained end-to-end using a composite loss function L\mathcal{L} that balances per-joint position accuracy and temporal sequence smoothness:

    L=Lw+λtLt+λmLm\mathcal{L} = \mathcal{L}_w + \lambda_t \mathcal{L}_t + \lambda_m \mathcal{L}_m

    where Lw\mathcal{L}_w is the Weighted Mean Per-Joint Position Error (WMPJPE), Lt\mathcal{L}_t is the temporal consistency loss (TCLoss), Lm\mathcal{L}_m is the Mean Per-Joint Velocity Error (MPJVE) loss, and λt,λm\lambda_t, \lambda_m are balancing hyperparameters.

    The WMPJPE loss applies body-part-specific importance weights WiW_i based on kinematic flexibility:

    Lw=1Ns∑i=1Ns(Wi⋅1T∑j=1T∥pi,j−gti,j∥22)\mathcal{L}_w = \frac{1}{N^s} \sum_{i=1}^{N^s} \left( W_i \cdot \frac{1}{T} \sum_{j=1}^T \|p_{i,j} - gt_{i,j}\|_2^2 \right)

    where NsN^s is the number of skeleton joints, TT is the sequence length, pi,j∈R3p_{i,j} \in \mathbb{R}^3 is the predicted 3D position of joint ii at frame jj, and gti,j∈R3gt_{i,j} \in \mathbb{R}^3 is the ground-truth 3D position.

    The weighting vector WiW_i is structured hierarchically across four joint groups:

    • Torso joints: W=1.0W = 1.0
    • Head joints: W=1.5W = 1.5
    • Middle limb joints (elbows, knees): W=2.5W = 2.5
    • Terminal limb joints (wrists, feet): W=4.0W = 4.0

    Lt\mathcal{L}_t enforces first-order consistency across consecutive frames, while Lm\mathcal{L}_m directly minimizes the L2L_2 error between predicted and ground-truth inter-frame joint velocities.

  5. Knowl 5 — 3D Human Pose Estimation Performance on Human3.6M

    data/table

    The performance of MixSTE on Human3.6M was evaluated under Protocol 1 (MPJPE in mm, without rigid alignment), Protocol 2 (P-MPJPE in mm, with Procrustes alignment), and MPJVE (velocity error in mm/frame) across 15 action classes using detected 2D poses from Cascaded Pyramid Network (CPN) and High-Resolution Network (HRNet), as well as 2D ground truth (GT).

    Method 2D Input Sequence Length (TT) MPJPE (mm) ↓\downarrow P-MPJPE (mm) ↓\downarrow
    VideoPose3D (Pavllo et al., 2019) CPN 243 46.8 -
    Attention Mesh (Liu et al., 2020) CPN 243 45.1 35.6
    Anatomy-aware (Chen et al., 2021) CPN 243 44.1 -
    PoseFormer (Zheng et al., 2021) CPN 81 44.3 36.5
    MixSTE (Ours) CPN 81 42.4 33.9
    MixSTE (Ours) CPN 243 40.9 32.6
    Motion Guided (Wang et al., 2020) HRNet 96 42.6 32.7
    MixSTE (Ours) HRNet 243 39.8 30.6
    PoseFormer (Zheng et al., 2021) 2D GT 81 31.3 -
    MixSTE (Ours) 2D GT 81 25.9 -
    MixSTE (Ours) 2D GT 243 21.6 -

    Under CPN detections, MixSTE (T=243T=243) improves MPJPE by 7.6% (40.9 mm vs. 44.3 mm) and P-MPJPE by 10.9% (32.6 mm vs. 36.5 mm) compared to PoseFormer (T=81T=81). With ground-truth 2D inputs, MixSTE (T=243T=243) improves MPJPE by 31.0% over PoseFormer (21.6 mm vs. 31.3 mm). MixSTE also achieves the lowest velocity error (MPJVE of 2.3 mm/frame compared to 3.1 mm/frame for PoseFormer).

  6. Knowl 6 — Ablation of MixSTE Architectural Components and Computational Complexity

    data/table

    An ablation study conducted on Human3.6M with CPN 2D detections demonstrates the individual and cumulative impact of the seq2seq setup, alternating spatio-temporal design, joint separation, and the proposed loss formulation on reconstruction accuracy (MPJPE) and computational cost (FLOPs per frame).

    Configuration Seq2seq Alternating Design Joint Separation Custom Loss MPJPE (mm) ↓\downarrow FLOPs (M) ↓\downarrow
    Baseline ✓ 51.7 186,405
    + Alternating ✓ ✓ 45.5 186,405
    + Separation ✓ ✓ ✓ 41.7 645
    MixSTE (Full) ✓ ✓ ✓ ✓ 40.9 645

    Alternating the spatial and temporal transformer blocks improves MPJPE by 6.2 mm (from 51.7 mm to 45.5 mm). Incorporating joint separation further reduces MPJPE by 3.8 mm (to 41.7 mm) while decreasing computational complexity by a factor of 289×\times (from 186,405 M FLOPs to 645 M FLOPs per frame). Adding the weighted position and temporal consistency losses yields an overall 20.9% error reduction (from 51.7 mm to 40.9 mm).

  7. Knowl 7 — Evaluation on MPI-INF-3DHP and HumanEva Benchmarks

    data/table

    MixSTE was evaluated on MPI-INF-3DHP using ground-truth 2D inputs and on HumanEva-I using 2D detector inputs with and without pretraining (fine-tuning) on Human3.6M.

    Dataset / Method Setting / Pretrain PCK (%) ↑\uparrow AUC (%) ↑\uparrow MPJPE (mm) ↓\downarrow
    MPI-INF-3DHP
    Anatomy-aware (Chen et al., 2021) T=243T=243 87.8 53.8 79.1
    PoseFormer (Zheng et al., 2021) T=27T=27 88.6 56.4 77.1
    MixSTE (Ours) T=1T=1 94.2 63.8 57.9
    MixSTE (Ours) T=27T=27 94.4 66.5 54.9
    HumanEva-I Walk Jog Average
    VideoPose3D (Pavllo et al., 2019) T=81T=81, FT 14.0 / 12.5 20.3 / 17.5 18.2
    PoseFormer (Zheng et al., 2021) T=43T=43, FT 14.4 / 10.2 22.7 / 13.4 20.1
    MixSTE (Ours) T=43T=43 (from scratch) 20.3 / 22.4 27.3 / 34.3 28.5
    MixSTE (Ours) T=43T=43, stride=1 16.2 / 14.2 24.6 / 25.8 20.9
    MixSTE (Ours) T=43T=43, FT 12.7 / 10.9 22.6 / 17.0 16.1

    On MPI-INF-3DHP (T=27T=27), MixSTE achieves 94.4% PCK, 66.5% AUC, and 54.9 mm MPJPE, outperforming PoseFormer by 22.2 mm MPJPE. On HumanEva-I with Human3.6M pretraining (FT), MixSTE attains an average MPJPE of 16.1 mm.

  8. Knowl 8 — Ablation of Loss Objectives and Model Hyperparameters

    data/table

    Ablations on Human3.6M analyze the contribution of individual loss terms to position error (MPJPE) and motion smoothness (MPJVE), as well as the impact of encoder depth (dld_l), feature dimension (dmd_m), and sequence length (TT).

    Loss Formulation MPJPE (mm) MPJVE Depth (dld_l) Dim (dmd_m) Length (TT) MPJPE (mm)
    MPJPE Loss 41.7 5.0 4 64 27 54.3
    WMPJPE Loss 41.3 4.6 6 64 27 53.2
    WMPJPE + Motion Loss 41.3 4.3 8 64 27 51.8
    WMPJPE + TCLoss 41.2 3.6 10 64 27 51.1
    WMPJPE + MPJVE Loss 41.2 2.6 8 128 27 47.9
    WMPJPE + T-Loss (Full) 40.9 2.3 8 256 27 46.1
    8 512 27 45.1
    8 640 27 46.0
    8 512 81 42.7
    8 512 128 42.0
    8 512 243 40.9
    8 512 300 41.8

    WMPJPE improves position accuracy over uniform MPJPE (41.3 mm vs. 41.7 mm). Adding TCLoss and MPJVE loss significantly improves smoothness, cutting MPJVE from 4.6 to 2.3 mm/frame. Optimal hyperparameters are depth dl=8d_l=8, channel dimension dm=512d_m=512, and sequence length T=243T=243. Although dl=10d_l=10 achieves slightly lower error (51.1 mm vs 51.8 mm at dm=64d_m=64), dl=8d_l=8 is selected to avoid parameter inflation (33.7M vs. 42.2M parameters).

  9. Knowl 9 — Vulnerability to 2D Keypoint Detector Noise and Missing Detections

    limitation

    MixSTE's 3D pose reconstruction accuracy depends heavily on the reliability of the upstream 2D pose detector. Errors in 2D keypoint estimation—such as occlusions, missing keypoints, or spatial jitter—propagate directly into the spatio-temporal self-attention layers. On small datasets (such as HumanEva-I trained from scratch without fine-tuning), the lack of inductive bias in full transformer encoders leads to suboptimal performance without data sample stride adjustments or pretraining on larger datasets.

Coverage note — None. All key contributions, mathematical formulations, architectural mechanisms, ablation findings, experimental benchmarks, and stated limitations are fully represented.
