QuickTime VR: an image-based approach to virtual environment navigation

Shenchang Eric Chen

article1995SIGGRAPH1,553 citations

Introduces an image-based rendering technique using cylindrical panoramas and real-time image warping to enable interactive panoramic viewing and virtual environment navigation on personal computers without requiring 3D geometric modeling.

Listen

Virtual reality systems traditionally depend on real-time 3D polygon modeling and rendering. This conventional approach suffers from high authoring costs, severe limits on scene visual complexity, and a reliance on specialized 3D accelerator hardware that is unavailable to typical personal computer users. Alternative pre-rendered branching movie methods offer photo-realistic detail but demand massive storage space and sharply restrict user navigation.

The article demonstrates an image-based virtual reality framework, implemented in Apple Computer's QuickTime VR software, which generates interactive 3D perspective views by applying real-time software warping to 360-degree cylindrical panoramic images and multi-view object arrays.

The approach was evaluated through software implementation, performance benchmarking across standard personal computer processors, and practical application testing. Authors create environments by capturing overlapping photographs, automatically stitching them into seamless cylindrical panoramas using correlation algorithms, marking orientation-independent interactive hot spots, and linking discrete nodes across 5- to 10-foot intervals.

The evaluation revealed several key findings regarding performance and operational viability. First, the software-only rendering engine achieves real-time interactive navigation on standard personal computers without specialized graphics hardware, achieving frame update rates between roughly 4 and 30 frames per second depending on processor model and panning dimensions. Second, the automated stitching tool successfully assembled approximately 80% (8 out of 10) of photo panoramas without manual intervention, stitching a 12-picture set in about 5 minutes on an 80 MHz PowerPC processor. Third, image dicing and compression reduced a standard panorama to roughly 500 kilobytes, allowing a single 600-megabyte CD-ROM to store more than 1,000 navigable nodes. Finally, the authoring pipeline demonstrated rapid production timelines, enabling the complete capture and assembly of more than two hundred panoramic nodes for a major commercial CD-ROM title in under two months.

These results demonstrate that organizations can deliver rich, photorealistic interactive walkthroughs and object inspections on commodity hardware with minimal computational overhead. Decoupling image detail from display performance eliminates expensive hardware constraints, drastically cuts content creation costs, and establishes a practical pathway for deploying interactive spatial environments across packaged media and low-bandwidth digital networks.

For digital media deployment, decision-makers should adopt panoramic image stitching for complex real-world environments while using multi-frame object arrays for detailed item inspections. In production, teams should maintain 50% overlap during photographic capture, level camera rotations at the nodal point, and utilize lossless compression for interactive hot spots. Future initiatives should explore combining static panoramic backgrounds with lightweight real-time 3D object overlays and incorporating time-varying panoramic video streams.

The system has notable operational constraints: it is fundamentally limited to static environments, restrains movement to discrete node-to-node jumping rather than continuous free-path navigation, and restricts vertical panning due to the cylindrical panoramic projection. Confidence in the reported performance and production feasibility is high, as the findings are grounded in shipping commercial software and empirical hardware benchmarks, provided content creators operate within static scene parameters.

Applecomputer hardwarevirtual environmentsvirtual spacesQuickTime VRvirtual environment navigationimage-based approach
Chen (1995).pdf
  • Paper: Animating rotation with quaternion curves, Ken Shoemake (1985). Shoemake introduces the foundational mathematics of unit quaternion interpolation for camera rotations, providing the underlying rotational mechanics necessary for smoothly orienting views in virtual navigation systems.
  • Paper: The Visual Hull Concept for Silhouette-Based Image Understanding, Aldo Laurentini (1994). Laurentini establishes the visual hull concept and geometric limits of multi-view shape and appearance reconstruction, underpinning early image-based multi-view representation methods.
  • Paper: Light field rendering, Marc Levoy et al. (1996). Levoy and Hanrahan generalize QuickTime VR's static cylindrical panoramas to full 4D light fields, allowing unconstrained novel view synthesis without fixed cylindrical viewing centers.
  • Paper: The lumigraph, Steven J. Gortler et al. (1996). Gortler et al. advance image-based rendering by developing the Lumigraph, which incorporates approximate geometry to render views from arbitrary positions rather than discrete panoramic nodes.
  • Paper: Automatic Panoramic Image Stitching using Invariant Features, Matthew Brown et al. (2007). Brown and Lowe modernize the automated cylindrical image-stitching pipeline used in QuickTime VR by utilizing scale-invariant feature matching to stitch unordered multi-directional photo sets.
  • Paper: High-quality video view interpolation using a layered representation, C. Lawrence Zitnick et al. (2004). Zitnick et al. extend image-based view interpolation principles to dynamic, moving scenes by combining layered representations with real-time video rendering.
  • Paper: Modeling the World from Internet Photo Collections, Noah Snavely et al. (2008). Snavely et al. expand discrete node-based photo navigation into continuous 3D explorations of uncalibrated, unstructured internet photo collections.
  • Paper: NeRF: Representing Scenes as Neural Radiance Fields for View Synthesis, Ben Mildenhall et al. (2020). Mildenhall et al. replace discrete panoramic image warping with continuous neural radiance fields, achieving photorealistic view synthesis across complex 3D environments.

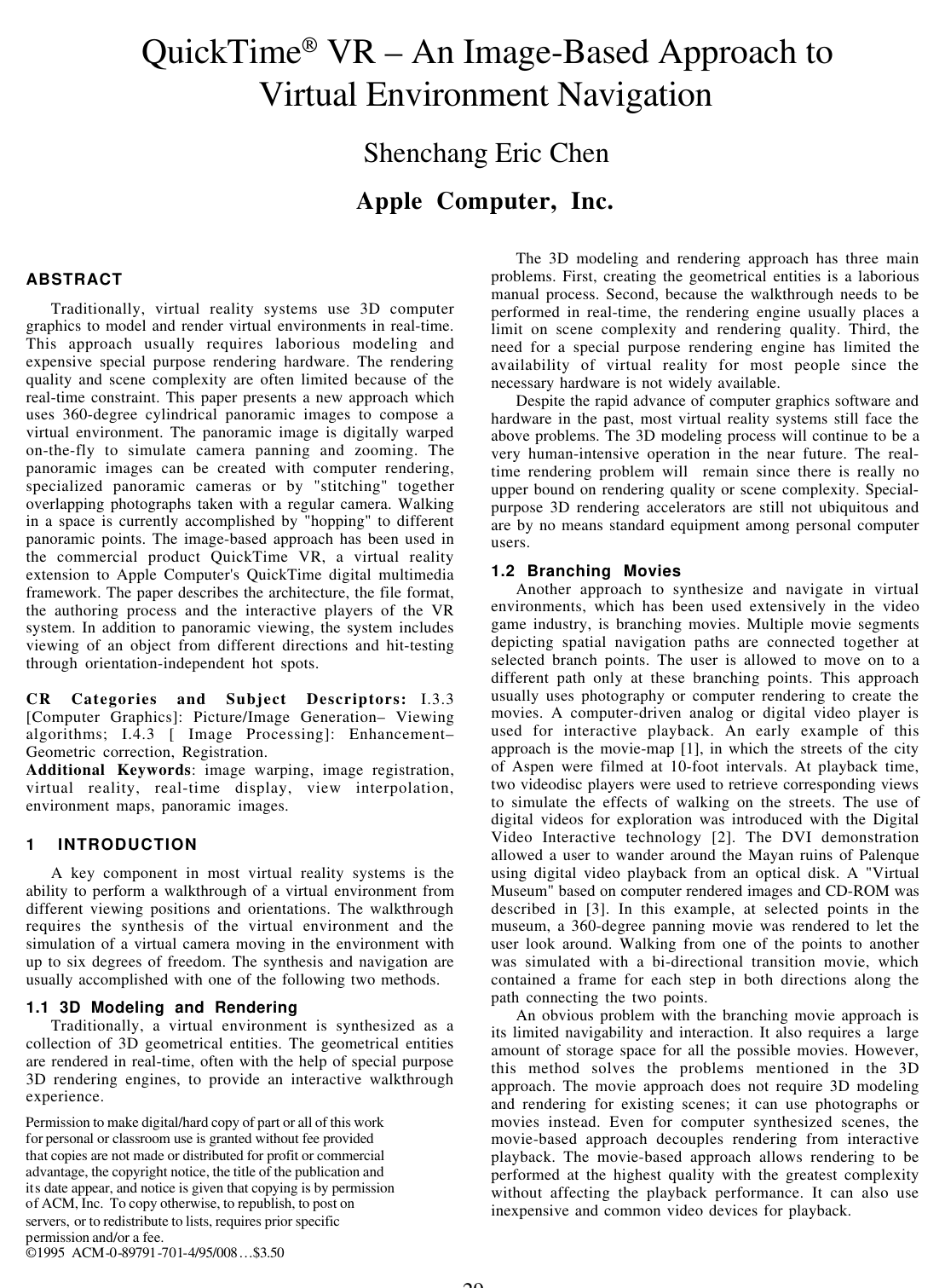

Cover for QuickTime VR: an image-based approach to virtual environment navigation

Abstract

Traditionally, virtual reality systems use 3D computer graphics to model and render virtual environments in real-time. This approach usually requires laborious modeling and expensive special purpose rendering hardware. The rendering quality and scene complexity are often limited because of the real-time constraint. This paper presents a new approach which uses 360-degree cylindrical panoramic images to compose a virtual environment. The panoramic image is digitally warped on-the-fly to simulate camera panning and zooming. The panoramic images can be created with computer rendering, specialized panoramic cameras or by "stitching" together overlapping photographs taken with a regular camera. Walking in a space is currently accomplished by "hopping" to different panoramic points. The image-based approach has been used in the commercial product QuickTime VR, a virtual reality extension to Apple Computer's QuickTime digital multimedia framework. The paper describes the architecture, the file format, the authoring process and the interactive players of the VR system. In addition to panoramic viewing, the system includes viewing of an object from different directions and hit-testing through orientation-independent hot spots.

Topics

computer hardwarevirtual environmentsvirtual spaces

Keywords

QuickTime VRvirtual environment navigationimage-based approachpanoramic imagesenvironment map moviespanoramic moviestime-varying environment mapshot spot imagesvirtual camera

Table of Contents

  • 1 INTRODUCTION
  • 1.1 3D Modeling and Rendering
  • 1.2 Branching Movies
  • 1.3 Objectives
  • 1.4 Overview
  • 2. RELATED WORK
  • 3. IMAGE-BASED RENDERING
  • 3.1 Camera Rotation
  • 3.2 Object Rotation
  • 3.3 Camera Movement
  • 3.4 Camera Zooming
  • 4. QUICKTIME VR
  • 4.1 The Movie Format
  • 4.1.1 The Panoramic Movie
  • 4.1.2 The Object Movie
  • 4.2 The Interactive Environment
  • 4.2.1 The Panoramic Player
  • 4.2.2 The Object Player
  • 4.3 The Authoring Environment
  • 4.3.1 Panoramic Movie Making
  • 4.3.1.1 Node Selection
  • 4.3.1.2 Stitching
  • 4.3.1.3 Hot Spot Marking
  • 4.3.1.4 Linking
  • 4.3.1.5 Dicing and Compression
  • 4.3.2 Object Movie Making
  • 5. APPLICATIONS
  • 6. CONCLUSIONS AND FUTURE DIRECTIONS
  • 7. ACKNOWLEDGMENTS
  • REFERENCES

Knowls

  1. Knowl 1 — Cylindrical Panoramic Environment Mapping for Virtual Navigation

    model/method

    QuickTime VR employs 360∘360^\circ cylindrical environment maps to simulate camera rotation and zooming from a fixed viewpoint using real-time image processing rather than full 3D geometric rendering.

    A cylindrical environment map captures a full 360∘360^\circ horizontal field of view and a vertical field of view of less than 180∘180^\circ. To synthesize a novel perspective view in real-time, the panoramic player reprojects the visible section of the cylinder onto a planar view window via a software-based two-pass image warping algorithm. Camera panning in yaw (horizontal rotation) and pitch (vertical pivoting) corresponds to shifting and warping the selected sub-region of the cylindrical map. Camera roll is performed via 2D planar image rotation, and camera zooming is achieved by dynamically adjusting the simulated field of view through image magnification or reduction. This decouples interactive display frame rates from scene complexity and rendering quality.

  2. Knowl 2 — Panoramic Movie Multi-Track File Architecture

    model/method

    QuickTime VR retrofits multi-dimensional, event-driven spatial scenes into the linear QuickTime media architecture by decomposing a panoramic scene into three parallel, synchronized tracks:

    1. Panoramic Track: Encodes a directed node graph where each node represents a distinct spatial observation point in the environment. A node data structure stores local viewing parameters, links to adjacent nodes, and triggers for external programmatic events.
    2. Panoramic Image Video Track: Stores compressed, diced video frames containing the cylindrical panoramic imagery corresponding to each node in the graph.
    3. Hot Spot Video Track (Optional): Stores compressed, diced pseudo-color index images aligned with the panoramic imagery to identify interactive regions.

    All three tracks share an identical time duration and timebase scale. The starting time offset of a node in the panoramic track serves as the time index to locate its corresponding imagery and hot spot frames in the video tracks. The panoramic image and hot spot video tracks are disabled during standard linear playback, ensuring that only the custom panoramic runtime engine traverses the node graph interactively.

  3. Knowl 3 — Orientation-Independent Panoramic Hot Spot Hit-Testing

    model/method

    Interactive regions (hot spots) within a virtual environment are represented as 8-bit indexed pseudo-color panoramic images that share the exact spatial coordinates and cylindrical geometry of the primary scene panoramas.

    Each unique 8-bit color value corresponds to a hot spot identifier, permitting up to 256 distinct interactive regions per panoramic node. When rendering an interactive view, the hot spot image undergoes the identical geometric warping transformation as the visible scene panorama. Because hit-testing occurs in warped screen space against the transformed hot spot IDs, interactive regions remain registered to scene objects across arbitrary camera yaw, pitch, and zoom settings without requiring independent 2D boundary definitions for each viewing angle.

  4. Knowl 4 — Tiled Offscreen Buffering and Adaptive Quality Display Pipeline

    algorithm

    To achieve interactive display rates on memory-constrained personal computers, the panoramic rendering engine uses a tiled memory cache and dynamic quality switching:

    Input: User viewing parameters (yaw θ\theta, pitch ϕ\phi, field of view α\alpha), compressed diced panorama tiles TT, offscreen buffer BB
    Output: Rendered perspective view in display window WW
    Identify tile set Tvisible⊂TT_{visible} \subset T intersecting current view frustum defined by (θ,ϕ,α)(\theta, \phi, \alpha)
    for each tile t∈Tvisiblet \in T_{visible} do
        if t∉MainMemoryCachet \notin \text{MainMemoryCache} then
            Read tt from storage (hard disk or CD-ROM)
            Store tt in MainMemoryCache\text{MainMemoryCache}
        end if
        if t∉Bt \notin B then
            Decompress tt into designated region of BB
        end if
    end for
    if CameraIsMoving then
        Set WarpQuality to Low (reduced filtering)
    else
        Set WarpQuality to High (full filtering)
    end if
    Warp visible sub-region of BB into display window WW at WarpQuality using two-pass cylindrical-to-planar projection
    if SystemIsIdle then
        Pre-page adjacent tiles Tadjacent∉MainMemoryCacheT_{adjacent} \notin \text{MainMemoryCache} into cache
    end if

    For a typical 2500×7682500 \times 768 pixel cylindrical panorama, dicing the image into 24 vertical stripes balances disk read seek overhead against decompression buffer size.

  5. Knowl 5 — Photographic Stitching Pipeline for Cylindrical Panoramas

    algorithm

    Seamless cylindrical panoramas are constructed from a sequence of overlapping photographic stills taken with a standard camera rotating about its optical nodal center.

    Input: Ordered set of NN overlapping photographs {I1,I2,…,IN}\{I_1, I_2, \dots, I_N\} captured at roughly equal angular intervals about a vertical axis with approximately 50% overlap
    Output: Single seamless 360∘360^\circ cylindrical panoramic image PP
    Mount camera sideways on a leveled tripod centered at the optical nodal point
    for k=1k = 1 to NN do
        Digitize image IkI_k
    end for
    for k=1k = 1 to NN do
        Inext←I(k mod N)+1I_{next} \leftarrow I_{(k \bmod N) + 1}
        Determine horizontal and vertical alignment offsets (Δx,Δy)(\Delta x, \Delta y) between IkI_k and InextI_{next} in overlapping region using correlation-based image registration
        Blend overlapping boundary regions between IkI_k and InextI_{next} to smooth intensity transitions
    end for
    Composite aligned and blended images into final cylindrical panorama PP
    Dice PP into vertical stripe tiles
    Compress tiles using vector quantization (Cinepak) at approximately 10:1 compression ratio
    return Compressed diced panorama PP

    Using separate source photographs permits tailoring exposure settings per viewing angle, capturing high dynamic range scenes (such as sunsets) that exceed the dynamic range of single-exposure film.

  6. Knowl 6 — Navigable Object Movie Representation and Automated Capture

    model/method

    QuickTime VR represents external inspection of 3D objects via object movies, which store a multi-dimensional array of image frames indexed by viewing angles.

    Frames are organized in a two-dimensional grid indexed by longitude (360∘360^\circ) and latitude (up to 180∘180^\circ), typically sampled at 10∘10^\circ angular increments. A third dimension is added when multiple frames are captured per orientation to support continuous cyclic animation (such as flickering flames). The user interacts with the object using a virtual-sphere mouse interface that indexes the appropriate frame array element.

    Physical object movies are captured using a computer-controlled capture apparatus ("object maker") featuring two stepper motors that orbit a video camera around an object mounted on a slender stand against a black curtain. The camera view remains fixed on the object center while a digitizer synchronizes frame grabbing with 10∘10^\circ motor step increments.

  7. Knowl 7 — Multi-Node Spatial Walkthrough Navigation and Orientation Registration

    model/method

    Navigating through extended spaces is achieved by discretizing the environment into a network of panoramic observation nodes connected as a directed graph.

    Nodes are empirically spaced at 5 to 10 foot intervals for interior environments, with wider spacing for exterior environments. Walkthrough movement is executed by hopping between adjacent nodes along defined graph links. To preserve visual continuity and spatial orientation during hops, the coordinate frames of connected panoramas are aligned during authoring by manually registering source and destination viewing directions using a graphical linking tool. When a user activates a transition link, the player maintains the user's relative view direction upon entering the destination node.

  8. Knowl 8 — Panoramic Player Display Frame Rate Benchmarks

    data/table

    The performance of the real-time software cylindrical-to-planar image warping engine was evaluated across several microprocessor architectures in a 640×400640 \times 400 pixel window using 16-bit color mode.

    Processor 1D Panning (updates/sec) 2D Panning (updates/sec)
    PowerPC 601 / 80 MHz 29.5 11.6
    MC68040 / 40 MHz 12.3 5.4
    Pentium / 90 MHz 11.4 7.5
    Intel 486 / 66 MHz 5.9 3.6

    1D horizontal panning exhibits substantially higher frame rates than full 2D (simultaneous horizontal and vertical) panning across all CPUs because the underlying two-pass cylindrical reprojection algorithm exploits scanline coherence during pure horizontal shifts.

  9. Knowl 9 — Inherent Constraints and Limitations of Cylindrical Image-Based Navigation

    limitation

    The cylindrical image-based virtual reality framework has three fundamental limitations:

    1. Static Scene Requirement: The scene is assumed to be static. Dynamic elements require either time-lapse/time-varying panoramic video sequences or hybrid compositing of real-time 3D rendered polygon models over static panoramic backgrounds via alpha masking or depth layering.
    2. Constrained Viewpoint Translation: Viewpoint translation is limited to discrete hops between predetermined panoramic nodal points, preventing continuous free-camera translation or motion parallax within a node.
    3. Singularity at Polar Extremes: Because cylindrical projections cannot represent the top (+90∘+90^\circ) and bottom (−90∘-90^\circ) poles, the player cannot display views looking straight up or straight down without switching to spherical or cubic environment maps.

Coverage note — Omitted introductory and historical background on prior video-based systems (e.g., Aspen Movie Map, Palenque DVI, and Virtual Museum) and general theoretical view interpolation literature (Chen and Williams 1993), focusing strictly on the specific QuickTime VR file architecture, display pipeline, authoring toolset, benchmarks, and limitations contributed by the paper.
