Video Enhancement with Task-Oriented Flow

Tianfan XueBaian ChenJiajun WuDonglai WeiWilliam T. Freeman

article2017IJCV1,775 citations

Proposes task-oriented flow (TOFlow) and the Vimeo-90K benchmark, demonstrating that learning task-specific motion representations end-to-end outperforms standard optical flow for video frame interpolation, denoising, and super-resolution.

Listen

Video enhancement applications—including frame interpolation, denoising, compression artifact removal, and super-resolution—traditionally rely on estimating standard optical flow to track motion between video frames. However, estimating exact physical motion is computationally expensive and frequently prone to errors caused by lighting changes, motion blur, and occlusions. More critically, physical motion representations are often sub-optimal for restoration tasks because matching visible object boundaries fails to address the inpainting needed for occluded areas or noise removal.

The article evaluates whether learning a task-specific motion representation within an end-to-end framework improves video processing performance. The authors introduce Task-Oriented Flow (TOFlow), an approach that simultaneously estimates motion and enhances video quality, and present Vimeo-90K, a large-scale, high-quality benchmark dataset tailored for low-level video processing tasks.

To demonstrate this, the authors designed a unified neural network composed of three interconnected modules: motion estimation, image transformation via spatial transformer networks, and task-specific image reconstruction. Rather than training motion estimation separately to minimize displacement errors against true motion, the entire network is trained jointly using self-supervision on final output quality. The framework was evaluated on standard public benchmarks as well as the newly curated Vimeo-90K dataset—which contains 89,800 diverse, high-definition video clips (720p or higher)—across frame interpolation, denoising/deblocking, and super-resolution.

The findings show that TOFlow consistently and significantly outperforms both traditional two-step optical flow pipelines and recent deep learning approaches across all evaluated tasks. In frame interpolation, TOFlow achieved superior reconstruction accuracy on the Vimeo benchmark (reaching up to 33.73 dB PSNR compared to 32.02 dB for EpicFlow and 30.10 dB for fixed flow pipelines) and effectively eliminated ghosting artifacts near occlusion boundaries. In video denoising and deblocking, TOFlow demonstrated strong noise resilience and sharper edge retention, outperforming traditional filters like V-BM4D across varying compression and noise levels. In video super-resolution, using only 7 input frames with TOFlow achieved comparable or superior detail recovery relative to legacy methods relying on 30 to 50 frames. Notably, cross-task ablation tests revealed that flow fields trained on one specific task (such as super-resolution) experience sharp performance drops (e.g., around 5 dB) when applied to a different task (such as denoising), confirming that optimal motion fields must be custom-tailored to the target task.

These results imply that engineering pipelines do not need computationally intensive, physically exact optical flow algorithms to achieve state-of-the-art video restoration. By tightly coupling motion estimation directly to image synthesis objectives, systems can achieve higher output fidelity and reduce downstream processing artifacts. The Vimeo-90K dataset also provides a standard, artifact-free benchmark to train and evaluate future deep-learning video enhancement architectures.

Organizations developing video processing or enhancement pipelines should consider adopting joint, end-to-end training of motion and reconstruction modules rather than using off-the-shelf, general-purpose optical flow models. When deploying super-resolution pipelines, using sequences of 5 to 7 frames offers an optimal balance between quality and computational overhead. When adapting this framework, motion modules should be specifically trained on the target application rather than reused across different restoration domains.

The conclusions should be considered in light of certain limitations: the system primarily assumes linear motion between adjacent frames and experiences reduced super-resolution performance when inputs involve complex point-spread blur kernels (showing approximately a 1 to 2 dB drop with box and Gaussian downsampling). Additionally, inference times on tested hardware range from 200 to 400 milliseconds per clip, which may require further optimization for real-time edge deployment.

Google Harvard University Massachusetts Institute of Technology deblocking frame interpolation frames task-oriented flow video enhancement video super-resolution

arXiv: 1711.09078 anchen1011/toflow

Paper: FlowNet: Learning Optical Flow with Convolutional Networks, Philipp Fischer et al. (2015). FlowNet pioneered end-to-end optical flow learning with convolutional networks, laying the essential architectural foundation that TOFlow adapts and integrates into task-specific video processing pipelines.
Paper: FlowNet 2.0: Evolution of Optical Flow Estimation with Deep Networks, Eddy Ilg et al. (2016). FlowNet 2.0 demonstrates deep stacked architectures and warping-based flow estimation that directly inform TOFlow's learnable motion estimation module.
Paper: High Accuracy Optical Flow Estimation Based on a Theory for Warping, Thomas Brox et al. (2004). This seminal work establishes the theoretical justification and formulation for warping-based motion compensation upon which modern video frame registration methods rely.
Paper: Unsupervised Learning of Depth and Ego-Motion from Video, Tinghui Zhou et al. (2017). It introduces self-supervised learning principles via photometric warping losses between video frames, directly motivating TOFlow's self-supervised task-specific training scheme.
Paper: Deep multi-scale video prediction beyond mean square error, Michael Mathieu et al. (2015). This paper explores multi-scale architectures and loss formulations for video frame prediction, serving as a key predecessor to deep learning-based video enhancement and interpolation.
Paper: Perceptual Losses for Real-Time Style Transfer and Super-Resolution, Justin Johnson et al. (2016). It provides the foundational framework and loss design for feed-forward neural networks applied to low-level image and video enhancement tasks.
Paper: A Naturalistic Open Source Movie for Optical Flow Evaluation, Daniel J. Butler et al. (2012). The MPI-Sintel benchmark established standard protocols for evaluating optical flow quality across complex scenes, highlighting the limitations of general-purpose flow that TOFlow targets.
Paper: A Database and Evaluation Methodology for Optical Flow, Simon Baker et al. (2007). This paper establishes standard evaluation methodologies for optical flow and frame interpolation error metrics referenced across video processing research.

Paper: PWC-Net: CNNs for Optical Flow Using Pyramid, Warping, and Cost Volume, Deqing Sun et al. (2018). PWC-Net establishes a compact pyramid and warping-based optical flow architecture that advances the motion estimation components used across downstream video enhancement tasks.
Paper: RAFT: Recurrent All-Pairs Field Transforms for Optical Flow, Zachary Teed et al. (2020). RAFT introduces an all-pairs recurrent field transform that significantly surpasses earlier optical flow architectures for temporal frame alignment in video tasks.
Paper: Video-to-Video Synthesis, Ting-Chun Wang et al. (2018). This work extends flow-based frame warping and task-specific neural synthesis to high-resolution photorealistic video-to-video translation.
Paper: First Order Motion Model for Image Animation, Aliaksandr Siarohin et al. (2019). It builds on self-supervised motion representations and warping fields to animate source frames with complex, non-rigid motions without requiring task-specific ground-truth flow.
Paper: MoCoGAN: Decomposing Motion and Content for Video Generation, Sergey Tulyakov et al. (2018). MoCoGAN advances the concept of separating dynamic motion from static visual content for flexible and consistent video generation.

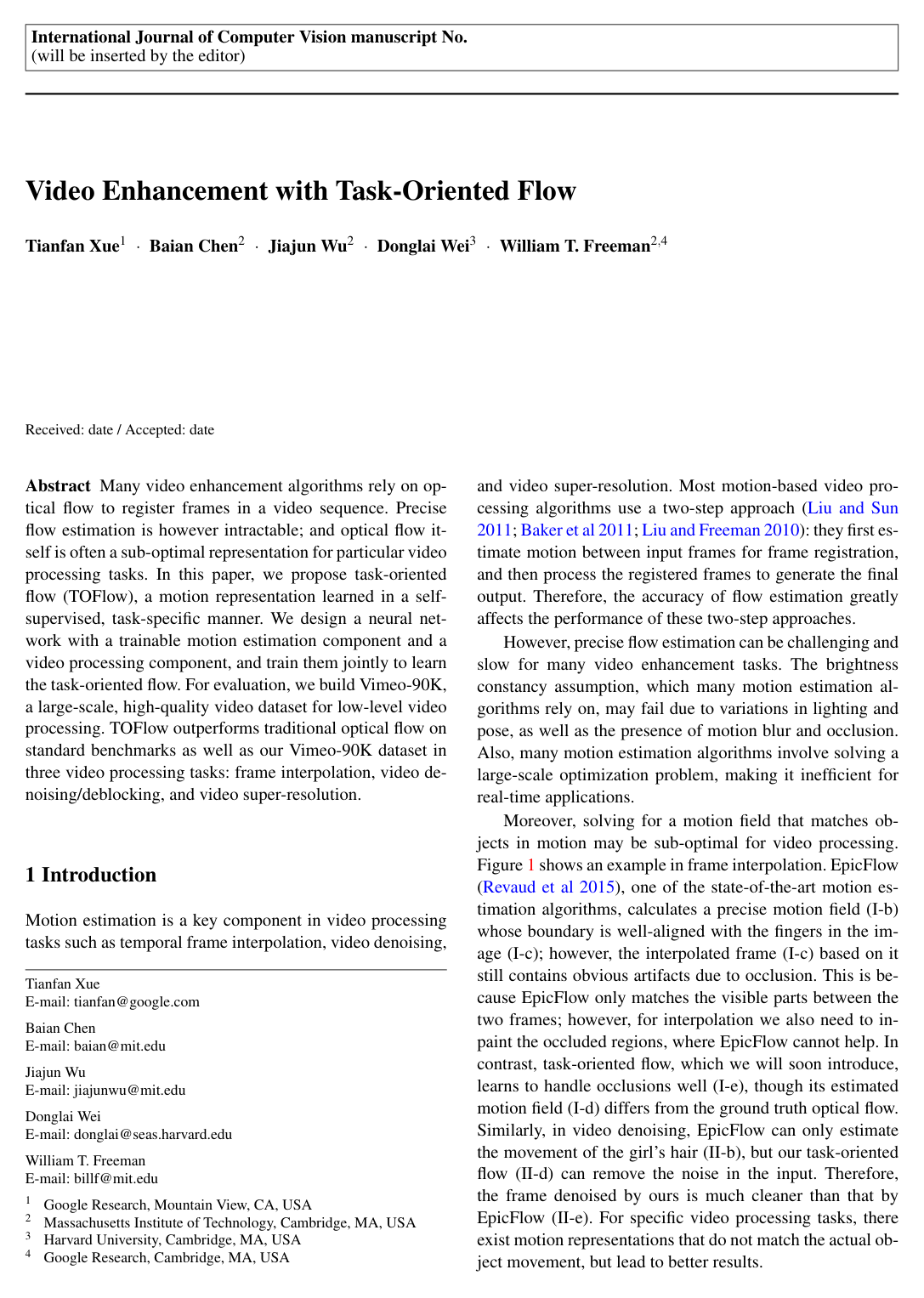

Cover for Video Enhancement with Task-Oriented Flow

Abstract

Many video enhancement algorithms rely on optical flow to register frames in a video sequence. Precise flow estimation is however intractable; and optical flow itself is often a sub-optimal representation for particular video processing tasks. In this paper, we propose task-oriented flow (TOFlow), a motion representation learned in a self-supervised, task-specific manner. We design a neural network with a trainable motion estimation component and a video processing component, and train them jointly to learn the task-oriented flow. For evaluation, we build Vimeo-90K, a large-scale, high-quality video dataset for low-level video processing. TOFlow outperforms traditional optical flow on standard benchmarks as well as our Vimeo-90K dataset in three video processing tasks: frame interpolation, video denoising/deblocking, and video super-resolution.

Topics

deblocking frame interpolation frames neural networks optical flows superresolution video streams estimation method

Keywords

task-oriented flow video enhancement video super-resolution video interpolation video denoising optical flow estimation motion estimation network low-level video processing

1 Introduction
2 Related Work
3 Tasks
4 Task-Oriented Flow for Video Processing
4.1 Toy Example
4.2 Flow Estimation Module
4.3 Image Transformation Module
4.4 Image Processing Module
4.5 Training
5 The Vimeo-90K Dataset
6 Evaluation
6.1 Frame Interpolation
6.2 Video Denoising/Deblocking
6.3 Video Super-Resolution
6.4 Flows Learned from Different Tasks
6.5 Accuracy of Retrained Flow
6.6 Different Flow Estimation Network Structure
7 Conclusion
References

Knowls

Knowl 1 — Task-Oriented Flow (TOFlow) Video Enhancement Framework
model/method
Task-Oriented Flow (TOFlow) is an end-to-end differentiable neural framework for motion-based video processing tasks, including temporal frame interpolation, video denoising/deblocking, and video super-resolution. Rather than treating optical flow estimation as a separate, fixed pre-processing step that estimates true physical object displacement, TOFlow jointly learns motion estimation and video enhancement in a self-supervised, task-specific loop.

The framework consists of three sequential modules:
1. Flow Estimation Module: Given $N$ input video frames (e.g., $N=3$ for temporal frame interpolation, $N=7$ for denoising, deblocking, and super-resolution), the module designates a reference frame index (the central frame $I_{\text{ref}}$ ) and estimates dense 2D motion fields between each input frame and the reference. For interpolation where the central frame $I_2$ is missing, the module predicts motion fields $v_{21}$ and $v_{23}$ (from $I_2$ to $I_1$ and $I_3$ ) directly from the available pair $(I_1, I_3)$ .
2. Image Transformation Module: Utilizes Spatial Transformer Networks (STNs) featuring differentiable bilinear interpolation layers to warp each non-reference input frame $I_k$ ( $k \neq \text{ref}$ ) into the spatial coordinates of the reference frame using the predicted motion field $v_{\text{ref}, k}$ .
3. Image Processing Module: A task-specific convolutional neural network that takes the set of registered (warped) frames as input (optionally combined with learned occlusion masks) and aggregates them to synthesize the restored target frame $\hat{I}_{\text{ref}}$ .
Because all three modules are differentiable, loss gradients from the reconstructed frame output backpropagate through the spatial transformers directly into the flow estimation network. This enables the flow network to discover task-specific motion representations that naturally account for occlusions, noise filtering, and high-frequency edge reconstruction.
Knowl 2 — Vimeo-90K Dataset and Video Processing Benchmarks
experimental setup
The Vimeo-90K dataset is a large-scale, high-quality video corpus designed for training and benchmarking low-level video processing algorithms. It comprises 4,278 high-definition videos ( $720\text{p}$ or higher) collected from Vimeo, selected specifically without inter-frame video compression (such as H.264 temporal compression) so that each frame is compressed independently to eliminate video codec artifacts.

Using threshold-based shot boundary detection and GIST feature filtering to remove visually redundant scenes, the dataset is partitioned into 89,800 independent video shots. All frames are standardized to a resolution of $448 \times 256$ pixels, retaining consecutive frame sequences with average motion magnitudes between 1 and 8 pixels per frame.

From this dataset, three task-specific benchmarks are defined:
- Vimeo Interpolation Benchmark: Consists of 73,171 frame triplets ( $\{I_1, I_2, I_3\}$ ) extracted from 14,777 video clips. Triplets satisfy three selection criteria: (1) more than 5% of pixels have motion larger than 3 pixels; (2) the $L_1$ photometric difference between the reference frame and the warped frame under optical flow is at most 15 intensity levels (on a $[0, 255]$ scale); and (3) the average motion difference between neighboring fields $(\|v_{21} - v_{23}\|)$ is less than 1 pixel, enforcing linear motion.
- Vimeo Denoising and Deblocking Benchmark: Consists of 91,701 frame septuplets ( $\{I_1, \dots, I_7\}$ ) extracted from 38,990 video clips satisfying criteria (1) and (2). For denoising, degraded inputs are generated with additive Gaussian noise (standard deviation $\sigma = 0.1$ or $\sigma \in \{15, 25\}$ ) and mixed noise (Gaussian plus 10% salt-and-pepper noise). For deblocking, clips are compressed using FFmpeg JPEG2000 (format J2k) with quantization factors $q \in \{20, 40, 60\}$ .
- Vimeo Super-Resolution Benchmark: Uses the 91,701 frame septuplets downsampled by a spatial factor of 4 from $448 \times 256$ to $112 \times 64$ via MATLAB imresize bicubic interpolation, as well as box and Gaussian blur kernels.
Knowl 3 — Training Protocol and Loss Optimization for TOFlow
model/method
The TOFlow training pipeline employs a phased pre-training scheme followed by end-to-end task-specific joint fine-tuning.
1. Pre-training the Flow Network:
  - Step 1: The multi-scale motion estimation network is initialized by pre-training on the MPI Sintel dataset using the $L_1$ distance between predicted flow fields and ground truth optical flow vectors.
  - Step 2: For denoising and super-resolution, the flow network is fine-tuned on degraded (noisy or blurred) inputs. For frame interpolation, the network takes frames $I_1$ and $I_3$ as input and is trained to predict the intermediate motion fields $v_{23}$ and $v_{21}$ by minimizing the $L_1$ error against ground truth flow fields.
2. Pre-training the Mask Network (Optional, for Interpolation):
  - An occlusion mask network predicting masks $m_{21}$ and $m_{23}$ from motion fields $v_{21}$ and $v_{23}$ is pre-trained by minimizing $L_1$ loss against pseudo-ground truth occlusion masks. These masks are computed via forward-backward cycle consistency: for forward flow $v_{12}$ and backward flow $v_{21}$ , a pixel $p \in I_1$ is labeled occluded if $\|p - v_{21}(p + v_{12}(p))\|_2 > 2$ pixels.
3. Joint End-to-End Fine-Tuning:
  - All modules (flow estimation, spatial transformation, mask estimation, and image reconstruction) are trained jointly by minimizing the $L_1$ reconstruction loss between the predicted output frame $\hat{I}$ and the ground truth frame $I_{\text{gt}}$ : $\mathcal{L} = \|\hat{I} - I_{\text{gt}}\|_1$
  - Optimization is performed using the Adam optimizer with a weight decay of $10^{-4}$ for 15 epochs with a batch size of 1. The learning rate is set to $10^{-4}$ for video denoising, deblocking, and super-resolution, and $3 \times 10^{-4}$ for temporal frame interpolation. No explicit supervision or loss is applied to the intermediate optical flow fields during joint training.
Knowl 4 — Network Module Architectures of TOFlow
model/method
TOFlow implements modular neural network sub-architectures configured for each stage of processing:
- Flow Estimation Module: Structured as a 4-level spatial pyramid network based on SpyNet. Each pyramid level employs an independent sub-network consisting of 5 convolutional layers with $7 \times 7$ kernels (zero-padded), batch normalization, and ReLU activations. The layer channel sequence is $32 \to 64 \to 32 \to 16 \to 2$ . The coarsest level receives a zero motion field; subsequent levels take the upsampled flow prediction from the preceding scale concatenated with the image pyramids.
- Occlusion Mask Module (Interpolation): Structured as a 4-level convolutional pyramid network. Each level contains 5 convolutional layers with $7 \times 7$ kernels, batch normalization, and ReLU activations ( $32 \to 64 \to 32 \to 16 \to 2$ channels). The first level accepts concatenated optical flow fields (4 channels) and outputs 2 mask channels. Higher levels accept concatenated optical flow fields and bilinear-upsampled masks from the preceding level.
- Image Processing Modules:
  - Frame Interpolation: A residual structure combining an averaging branch and a residual CNN. The averaging branch computes the mean of the two warped frames $I_{21}$ and $I_{23}$ . The residual CNN processes the warped frames (or masked warped frames $I'_{21}, I'_{23}$ ) through 3 convolutional layers with kernel sizes $9 \times 9$ , $1 \times 1$ , $1 \times 1$ and channel dimensions $64 \to 64 \to 3$ , with ReLU activations after the first two layers. The output is added to the averaged frame: $\hat{I}_2 = (I_{21} + I_{23})/2 + \Delta I_2$ .
  - Denoising and Deblocking: 3 convolutional layers with kernel sizes $9 \times 9$ , $1 \times 1$ , $1 \times 1$ and output channel dimensions $64 \to 64 \to 3$ with ReLU activations, operating directly on the 7 registered frames without residual addition.
  - Super-Resolution: Input frames are pre-upsampled by a factor of 4 via bicubic interpolation and warped to the central reference. The processing CNN consists of 4 convolutional layers with kernel sizes $9 \times 9$ , $9 \times 9$ , $1 \times 1$ , $1 \times 1$ and channel dimensions $64 \to 64 \to 64 \to 3$ , with ReLU activations on the first three layers.

Knowl 5 — Frame Interpolation Performance on Standard Benchmarks

empirical result

TOFlow and its masked variant (TOFlow + Mask) were evaluated against classical two-step optical flow pipelines (EpicFlow, SpyNet, Fixed Flow) and deep learning models (Deep Voxel Flow [DVF], AdaConv, SepConv) on the Vimeo Interpolation Test Set, the DVF Test Set, and the Middlebury Flow Benchmark.

Methods	Vimeo Interp.		DVF Dataset
	PSNR (dB)	SSIM	PSNR (dB)	SSIM
SpyNet	31.95	0.9601	33.60	0.9633
EpicFlow	32.02	0.9622	33.71	0.9635
DVF	33.24	0.9627	34.12	0.9631
AdaConv	32.33	0.9568	—	—
SepConv	33.45	0.9674	34.69	0.9656
Fixed Flow	29.09	0.9229	31.61	0.9544
Fixed Flow + Mask	30.10	0.9322	32.23	0.9575
TOFlow	33.53	0.9668	34.54	0.9666
TOFlow + Mask	33.73	0.9682	34.58	0.9667

Methods	PMMST	DeepFlow	SepConv	TOFlow	TOFlow Mask
All Regions	5.783	5.965	5.605	5.67	5.49
Discontinuous	9.545	9.785	8.741	8.82	8.54
Untextured	2.101	2.045	2.334	2.20	2.17

On the Vimeo interpolation benchmark, TOFlow + Mask achieves the highest performance (33.73 dB PSNR, 0.9682 SSIM), outperforming SepConv (33.45 dB), DVF (33.24 dB), EpicFlow (32.02 dB), and Fixed Flow (29.09 dB). On the Middlebury flow benchmark (evaluated via sum-of-squared-differences [SSD] square root error, where lower is better), TOFlow + Mask achieves the lowest overall error (5.49) and lowest motion discontinuity error (8.54).

Knowl 6 — Video Denoising and Deblocking Performance

empirical result

TOFlow was evaluated on multi-frame video denoising across various noise types (additive Gaussian noise with $\sigma=15$ and $\sigma=25$ , and mixed Gaussian + 10% salt-and-pepper noise) and on video deblocking across JPEG2000 compression quantization factors $q \in \{20, 40, 60\}$ , comparing against Fixed Flow and V-BM4D.

Methods	Vimeo-Gauss15		Vimeo-Gauss25		Vimeo-Mixed
	PSNR (dB)	SSIM	PSNR (dB)	SSIM	PSNR (dB)	SSIM
Fixed Flow	36.25	0.9626	34.74	0.9411	31.85	0.9089
TOFlow	36.63	0.9628	34.89	0.9518	33.51	0.9395

Methods	Vimeo-Blocky ( $q=20$ )		Vimeo-Blocky ( $q=40$ )		Vimeo-Blocky ( $q=60$ )
	PSNR (dB)	SSIM	PSNR (dB)	SSIM	PSNR (dB)	SSIM
V-BM4D	35.75	0.9587	33.72	0.9402	32.67	0.9287
Fixed Flow	36.52	0.9636	34.50	0.9485	33.06	0.9168
TOFlow	36.92	0.9663	34.97	0.9527	34.02	0.9447

Across all RGB noise levels, TOFlow outperforms Fixed Flow, exhibiting a 1.66 dB gain under mixed noise (33.51 dB vs. 31.85 dB). On grayscale video denoising (Vimeo-BW), TOFlow outperforms V-BM4D by 3.58 dB PSNR and 0.0519 SSIM. In video deblocking, TOFlow consistently outperforms Fixed Flow and V-BM4D across all compression levels, eliminating block boundary artifacts and ringing around edges.

Knowl 7 — Video Super-Resolution Performance and Frame Count Analysis

empirical result

TOFlow was evaluated on $4\times$ multi-frame video super-resolution on the Vimeo-SR and BayesSR datasets, comparing against single-frame bicubic upsampling, DeepSR, BayesSR, SPMC, and Fixed Flow.

Input Frames	Methods	Vimeo-SR		BayesSR
		PSNR (dB)	SSIM	PSNR (dB)	SSIM
Full Clip (30–50)	DeepSR	—	—	22.69	0.7746
	BayesSR	—	—	24.32	0.8486
1 Frame	Bicubic	29.79	0.9036	22.02	0.7203
7 Frames	DeepSR	25.55	0.8498	21.85	0.7535
	BayesSR	24.64	0.8205	21.95	0.7369
	SPMC	32.70	0.9380	21.84	0.7990
	Fixed Flow	31.81	0.9288	22.85	0.7655
	TOFlow	33.08	0.9417	23.54	0.8070

Frame Count Impact: Evaluating TOFlow on Vimeo-SR with varying numbers of input frames yields:
- 3 Frames: 32.66 dB PSNR / 0.9375 SSIM
- 5 Frames: 33.04 dB PSNR / 0.9415 SSIM
- 7 Frames: 33.08 dB PSNR / 0.9417 SSIM Performance improves sharply from 3 to 5 frames (+0.38 dB) and levels off between 5 and 7 frames (+0.04 dB).
Downsampling Blur Kernel Impact: Evaluating TOFlow across downsampling kernel types yields:
- Cubic Kernel: 33.08 dB PSNR / 0.9417 SSIM
- Box Kernel: 32.08 dB PSNR / 0.9372 SSIM
- Gaussian Kernel (variance 2 px): 31.15 dB PSNR / 0.9314 SSIM The ~1 dB drop per blur kernel occurs because anti-aliasing filtering eliminates high-frequency aliased signals that multi-frame super-resolution relies upon to reconstruct fine details.

Knowl 8 — Task-Specificity and Cross-Task Flow Transfer

empirical result

An ablation study evaluating cross-task transferability of TOFlow models demonstrates that the learned motion representations are task-specific and do not generalize across different video enhancement tasks.

Tasks trained on	Tasks evaluated on (PSNR in dB)
	Denoising	Deblocking	Super-resolution
Denoising	34.89	36.13	31.30
Deblocking	25.74	36.92	31.86
Super-resolution	25.99	31.86	33.08
Fixed Flow	34.74	36.52	31.81
EpicFlow	30.43	30.09	28.05

When a flow network fine-tuned on deblocking or super-resolution is deployed within the denoising pipeline, reconstruction performance collapses by ~9 dB (from 34.89 dB to 25.74 dB or 25.99 dB), introducing prominent noise artifacts. Applying a super-resolution flow network to deblocking causes ringing artifacts. Generic Fixed Flow outperforms cross-task TOFlow models on mismatched tasks (e.g., Fixed Flow achieves 34.74 dB on denoising vs. 25.74 dB from deblocking flow), but is inferior to TOFlow on matching tasks. Qualitative analysis reveals that interpolation flows are globally smooth across occlusions, whereas super-resolution flows produce high-frequency artificial displacements aligned with texture edges.

Knowl 9 — Dissociation Between Optical Flow Accuracy and Video Processing Quality

empirical result

Evaluating flow estimation accuracy on the MPI Sintel benchmark reveals that optimizing motion fields directly for downstream video processing tasks degrades their physical optical flow accuracy, while substantially improving video enhancement quality.

Motion accuracy is evaluated using Average End-Point Error (EPE, where lower indicates closer alignment to true physical motion). EpicFlow achieves an EPE of 4.115 across all regions, and Fixed Flow achieves 14.120, both significantly more accurate than TOFlow fine-tuned on denoising (EPE 16.638) or super-resolution (EPE 16.586). However, in downstream evaluations across frame interpolation, denoising, and super-resolution, TOFlow systematically outperforms EpicFlow and Fixed Flow. This establishes that ground-truth physical optical flow is sub-optimal for video restoration tasks because it only aligns visible surfaces, whereas task-oriented flow alters displacement fields to perform neighborhood inpainting, noise averaging, and high-frequency edge reconstruction.

Knowl 10 — Generalization of TOFlow to Alternative Flow Backbones

empirical result

To evaluate the architectural generalizability of the TOFlow joint learning paradigm, the SpyNet flow module was replaced with FlowNetC within the TOFlow framework and evaluated across denoising, deblocking, and super-resolution.

Methods	Denoising		Deblocking		Super-resolution
	PSNR (dB)	SSIM	PSNR (dB)	SSIM	PSNR (dB)	SSIM
Fixed Flow	24.685	0.8297	36.028	0.9672	31.834	0.9291
TOFlow	24.689	0.8374	36.496	0.9700	33.010	0.9411

Due to memory constraints, FlowNetC estimated optical flow fields at a reduced resolution of $256 \times 192$ , which were subsequently bilinearly upsampled to the full resolution. Despite the lower absolute metrics caused by this resolution bottleneck, joint task-oriented training (TOFlow) consistently improved reconstruction quality over fixed separate training (Fixed Flow) across all three tasks (e.g., +1.176 dB PSNR in super-resolution, +0.468 dB in deblocking), confirming that the benefits of task-oriented flow optimization are independent of the specific underlying flow network architecture.

Coverage note — None omitted; the knowls cover all core methodological contributions, dataset specifications, architectural details, training procedures, benchmark evaluations across three tasks, and analytical ablations presented in the paper.
