Dynamic Memory Compression: Retrofitting LLMs for Accelerated Inference

Piotr NawrotAdrian LancuckiMarcin ChochowskiDavid TarjanEdoardo M. Ponti

article2024ICML103 citations

Introduces Dynamic Memory Compression, an approach for retrofitting pre-trained large language models to adaptively compress key-value caches across heads and layers, increasing inference throughput up to 3.7x without requiring extra parameters or degrading downstream accuracy.

Listen

Deploying large language models for real-world generative AI applications is severely limited by inference inefficiency. In modern Transformer architectures, generating responses requires storing intermediate key-value representations in memory for past tokens. This memory footprint scales linearly with sequence length and batch size, rapidly exhausting GPU hardware capacity during long-context processing or high-volume concurrent serving. Existing mitigation methods, such as token-dropping heuristics or fixed grouping approaches, often suffer from severe degradation in downstream task accuracy.

The article introduces and evaluates Dynamic Memory Compression, a method designed to compress key-value memory on the fly during inference. The main objective is to retrofit existing pre-trained models into compressed variants that reduce memory usage and accelerate inference speeds without degrading generation quality or adding extra model parameters.

The researchers retrofitted open-source language models across multiple scales (7-billion, 13-billion, and 70-billion parameters) through continued pre-training on a minimal fraction of data—amounting to roughly 2% to 4% of original training volumes. Using gradient descent with continuous relaxations, the system learns at each decoding step whether to append key-value states to memory or accumulate them with the preceding state via a weighted average. The evaluation measured downstream performance on standard benchmarks for factual knowledge, common-sense reasoning, and code generation, alongside physical hardware latency and throughput metrics on high-performance GPUs.

The findings show that Dynamic Memory Compression successfully preserves baseline model accuracy at up to 4-fold memory compression, occasionally outperforming original baselines due to light continued training. It systematically outperforms common eviction baselines and Grouped Query Attention, demonstrating superior sample efficiency during training. Compounded gains are also achievable: applying a 2-fold compression to a 70-billion parameter model already utilizing 8-fold Grouped Query Attention yielded a combined 16-fold memory compression without performance loss. In hardware testing, this compression enabled larger batch sizes and delivered between 3.4-fold and 3.7-fold increases in serving throughput for 7-billion and 13-billion models on advanced GPUs. Analysis of learned compression behavior revealed that models naturally prefer higher compression ratios in deeper transformer layers.

These results demonstrate that Dynamic Memory Compression can substantially reduce hardware operational costs and carbon footprint while accelerating response times and supporting longer contexts. Because it uses existing parameter dimensions, it serves as an efficient drop-in upgrade for pre-trained architectures. Organizations serving large language models should consider adopting this compression technique to improve GPU utilization and throughput. For optimal results, implementations should leverage memory management tools like PagedAttention that accommodate variable-length cache allocations across attention heads.

Confidence in these findings is high for retrofitting scenarios, though practitioners should note key limitations. The technique currently applies to continuing the training of pre-existing base models; preliminary attempts to train models from scratch with dynamic compression yielded negative results due to instability between representation learning and token boundary segmentation. Additional research into staged training schedules is required before this method can be reliably used for initial pre-training from scratch.

NVIDIA University of Edinburgh University of Wrocław inference large language models random access memory Dynamic Memory Compression large language models KV cache

arXiv: 2403.09636 NVIDIA/Megatron-LM

Paper: Efficient Memory Management for Large Language Model Serving with PagedAttention, Woosuk Kwon et al. (2023). This work introduces PagedAttention and efficient KV cache management systems that Dynamic Memory Compression explicitly relies on to support variable-length cache allocations during serving.
Paper: GQA: Training Generalized Multi-Query Transformer Models from Multi-Head Checkpoints, Joshua Ainslie et al. (2023). It establishes Grouped Query Attention (GQA) and checkpoint adaptation methods, serving as the primary structural baseline and compounding foundation evaluated in Dynamic Memory Compression.
Paper: Fast Transformer Decoding: One Write-Head is All You Need, Noam Shazeer (2019). This seminal paper introduces Multi-Query Attention to resolve key-value memory bandwidth bottlenecks during autoregressive decoding, providing the foundational architectural context for KV compression.
Paper: Dynamic Context Pruning for Efficient and Interpretable Autoregressive Transformers, Sotiris Anagnostidis et al. (2023). It demonstrates dynamic context pruning to drop uninformative tokens from the KV cache during autoregressive generation, introducing the learnable cache reduction paradigm that Dynamic Memory Compression improves upon.

Paper: PolarQuant: Quantizing KV Caches with Polar Transformation, Insu Han et al. (2025). It builds on KV cache footprint reduction for long-context LLMs by introducing a polar transformation framework for low-bit cache quantization.
Paper: ThinK: Thinner Key Cache by Query-Driven Pruning, Yuhui Xu et al. (2025). It extends KV cache compression by demonstrating query-driven channel pruning across key dimensions to complement sequence-level and token-merging methods.
Paper: QJL: 1-Bit Quantized JL Transform for KV Cache Quantization with Zero Overhead, Amir Zandieh et al. (2025). It continues the advancement of online KV cache compression by proposing zero-overhead 1-bit quantization via randomized projections.
Paper: DeepSeek-V4.1-Flash: Pushing the Limits of KV Cache Compression, DeepSeek-AI (2026). It advances extreme KV cache compression techniques to massive scale using cross-layer reuse and low-precision state storage in long-horizon LLMs.
Paper: Random Attention: Rethinking KV Cache Eviction for Efficient Reasoning, Heng Wang et al. (2026). It critically evaluates learned and heuristic KV cache reduction policies against simple baseline strategies during long-trace LLM reasoning.
Paper: Speed Always Wins: A Survey on Efficient Architectures for Large Language Models, Weigao Sun et al. (2025). This survey contextualizes Dynamic Memory Compression within the broader landscape of modern efficient sequence modeling and KV cache optimization architectures.

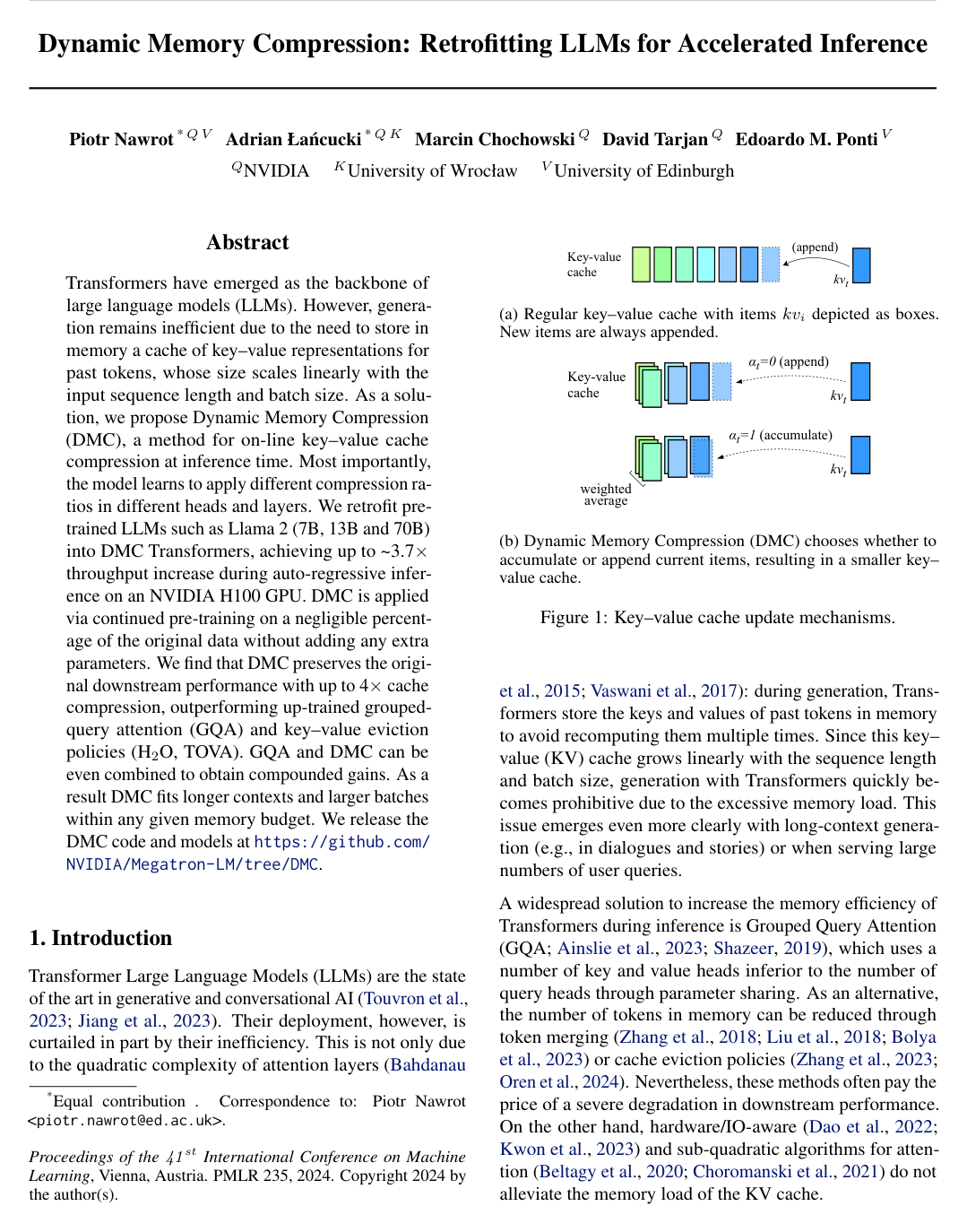

Cover for Dynamic Memory Compression: Retrofitting LLMs for Accelerated Inference

Abstract

Transformers have emerged as the backbone of large language models (LLMs). However, generation remains inefficient due to the need to store in memory a cache of key–value representations for past tokens, whose size scales linearly with the input sequence length and batch size. As a solution, we propose Dynamic Memory Compression (DMC), a method for on-line key–value cache compression at inference time. Most importantly, the model learns to apply different compression ratios in different heads and layers. We retrofit pre-trained LLMs such as Llama 2 (7B, 13B and 70B) into DMC Transformers, achieving up to ~3.7× throughput increase during auto-regressive inference on an NVIDIA H100 GPU. DMC is applied via continued pre-training on a negligible percentage of the original data without adding any extra parameters. We find that DMC preserves the original downstream performance with up to 4× cache compression, outperforming up-trained grouped-query attention (GQA) and key–value eviction policies (H2O, TOVA). GQA and DMC can be even combined to obtain compounded gains. As a result DMC fits longer contexts and larger batches within any given memory budget. We release the DMC code and models at https://github.com/NVIDIA/Megatron-LM/tree/DMC.

Topics

inference large language models random access memory probabilistic inference

Keywords

Dynamic Memory Compression large language models KV cache cache compression generative inference autoregressive generation memory pooling cache eviction attention layers

1. Introduction
2. Background
2.1. Multi-Head Self-Attention
2.2. KV Caching During Inference
3. Method: Dynamic Memory Compression
3.1. Inference
3.2. Training
3.3. Practical Considerations
4. Experimental Setup
5. Results
5.1. Main Results
5.2. Throughput and Latency Measurements
5.3. Per-Head Learned Compression Ratios
6. Related Work
7. Conclusions and Future Work
Acknowledgements
Impact Statement
References
Appendix
A. Memory-Bound Operations in Transformers
B. Replicating the Original Results
C. Retrofitting Data
D. Analysis of the Compression Schema Learned by DMC
E. Similar Per-layer Compression Rates
F. Training Ablations
G. DMC Ablations
H. Masking Implementation Details
I. Limitations

Knowls

Knowl 1 — Dynamic Memory Compression cache update
algorithm
Dynamic Memory Compression (DMC) adaptively shortens each attention head’s key–value cache during autoregressive inference. For a head, let $K$ and $V$ be the current key and value caches of length $l$ , and let $q_t,k_t,v_t$ be the query, key, and value vectors for the newly generated token at time $t$ . DMC reuses the first scalar coordinate of $k_t$ and $q_t$ to predict a binary segmentation decision and a continuous importance weight, so it introduces no parameters.
Input: Current key cache K of length l, value cache V of length l, and current vectors qt, kt, vt
Output: Updated K and V, with the first coordinates of qt and kt removed from attention
αt ← round(sigmoid(kt[0]))
ωt ← sigmoid(qt[0])
Set kt[0] and qt[0] to zero
if αt = 1 then
    Accumulate the current token into the last cache slot
    zt ← zt−1 + ωt
    Kl ← (Kl zt−1 + kt ωt) / zt
    Vl ← (Vl zt−1 + vt ωt) / zt
else
    Append a new cache slot
    zt ← ωt
    K ← [K, kt]
    V ← [V, vt]
end if
return K, V, qt, kt
Here $z_t$ is the running sum of importance weights since the most recent append decision. Thus, $[1m\alpha_t=1[0m$ merges the new key and value into the last cache item, whereas $[1m\alpha_t=0[0m$ starts a new segment and appends a cache item. For a sequence of $n$ tokens, the resulting cache length is $l=\sum_{t=1}^{n}(1-\alpha_t)$ , and the compression ratio is $\mathrm{CR}=n/l$ . The procedure is applied independently to every layer and head, so different heads may retain different numbers of cache items.
Knowl 2 — Differentiable training objective for DMC
model/method
DMC is trained end-to-end by replacing its discrete append-or-accumulate decisions with continuous stochastic relaxations. For each token, the decision is sampled as $\alpha_t\sim\operatorname{GumbelSigmoid}(k_t[0]-c,\tau)\in[0,1]$ , where $k_t[0]$ is the first coordinate of the current key, $c$ is a bias that initially suppresses compression, and $\tau$ is the temperature. The importance score is $\omega_t=\operatorname{sigmoid}(q_t[0]+c)$ , where $q_t[0]$ is the first query coordinate. Low $\tau$ makes the relaxed decisions nearly binary.

For a head, the partially accumulated state for token $i$ is defined from the current key $k_i$ , value $v_i$ , decision $\alpha_i$ , and importance $\omega_i$ by
$z_0=\omega_0,\qquad \bar{k}_0=k_0,\qquad \bar{v}_0=v_0,$ $z_i=\alpha_i z_{i-1}+\omega_i,\qquad \bar{k}_i=\frac{\alpha_i z_{i-1}\bar{k}_{i-1}+\omega_i k_i}{z_i},\qquad \bar{v}_i=\frac{\alpha_i z_{i-1}\bar{v}_{i-1}+\omega_i v_i}{z_i}.$
When $\alpha_i=0$ , the state is the current token’s key and value; when $\alpha_i=1$ , it is a weighted continuation of the preceding segment. During parallel training, all intermediate states are retained, and an additive attention mask prevents queries from using intermediate states that would be discarded at inference. For a query position $i$ and key position $j$ , the mask adds $\log(1-\alpha_{j+1})$ to the normalized attention score, in addition to the usual causal restriction. Consequently, a nearly binary $\alpha_{j+1}=1$ blocks that intermediate state with a value approaching $-\infty$ , while $\alpha_{j+1}=0$ leaves it unmasked.

Let $L$ be the number of Transformer layers, $H$ the number of heads per layer, $N$ the number of training tokens, and $\mathrm{CR}_{\mathrm{target}}$ the desired global compression ratio. DMC uses the one-sided global compression penalty
$\ell_{\mathrm{CR}}=\frac{1}{LHN}\max\left(0,\sum_{\ell=1}^{L}\sum_{h=1}^{H}\sum_{t=1}^{N}(1-\alpha_{\ell ht})-\frac{LHN}{\mathrm{CR}_{\mathrm{target}}}\right),$
where $\alpha_{\ell ht}$ is the relaxed decision for layer $\ell$ , head $h$ , and token $t$ . The model parameters $\theta$ minimize $\ell_{\mathrm{LM}}+\ell_{\mathrm{CR}}$ , combining the language-modeling loss with a penalty for retaining more tokens than the target cache budget.
Knowl 3 — Retrofitting schedule and training requirements
experimental setup
The authors retrofit pretrained Llama 2 models rather than training DMC from scratch. DMC reuses the first dimensions of the query and key vectors as control signals, so it adds no model parameters. Because zeroing those dimensions initially disrupts attention, an initialization phase first trains the model to disregard them: for training step $s$ out of $S=250$ , the first coordinates are annealed according to
$q_s[0]\leftarrow q_s[0]\left(1-\frac{s}{S}\right),\qquad k_s[0]\leftarrow k_s[0]\left(1-\frac{s}{S}\right).$
This phase processes 1 billion tokens. The main retrofitting phase then linearly increases the global compression ratio from $1\times$ to the target ratio, followed by an 8-billion-token solidification phase at fixed compression. During solidification, the learning rate follows a cosine schedule down to 10% of its initial value. The standard continued-pretraining schedules use 24B, 48B, and 72B tokens for target ratios of $2\times$ , $3\times$ , and $4\times$ , respectively; Llama 2 7B and 13B are trained up to $4\times$ , while Llama 2 70B is trained only up to an additional $2\times$ because it already has $8\times$ GQA.

The training uses AdamW with $\beta_1=0.9$ , $\beta_2=0.95$ , $\epsilon=10^{-5}$ , weight decay $0.1$ , gradient clipping at $1.0$ , batch size $1024$ , and sequence length $4096$ . The constant learning rate is $3\times10^{-5}$ for 7B and 13B and $1.5\times10^{-5}$ for 70B. The Gumbel-sigmoid bias is $c=5$ , giving initial values approximately $\alpha_t=0.0067$ and $\omega_t=0.9933$ ; the temperature is fixed at $0.1$ . A window size of $12$ is used for the partial-accumulation approximation.

Retrofitting uses approximately 2% of the original pretraining data for $2\times$ compression and approximately 4% for $4\times$ compression. Ablations show that gradually increasing the target ratio is important: setting the target compression immediately causes an early perplexity spike and lowers downstream accuracy even when perplexity later recovers. The gradual schedule also permits usable checkpoints at intermediate compression ratios.

Knowl 4 — Downstream performance under cache compression

data/table

DMC preserves the downstream quality of Llama 2 at $2\times$ and $4\times$ cache compression, whereas GQA and cache-eviction baselines generally lose accuracy as compression increases. MMLU is accuracy on a 5-shot factuality evaluation, CS-QA is accuracy averaged over six 0-shot commonsense question-answering tasks, and HumanEval is Python-generation pass@1. The 70B model already has $8\times$ GQA; its DMC result adds $2\times$ compression for a total $16\times$ reduction relative to a model with neither method.

Scale	Method	CR	MMLU	CS-QA	HumanEval
7B	Original	$1\times$	44.6	70.5	14.0
7B	GQA	$2\times$	39.8	68.9	12.8
7B	H2O	$2\times$	45.2	67.5	9.8
7B	TOVA	$2\times$	44.9	70.0	6.1
7B	DMC	$2\times$	45.2	70.8	15.2
7B	GQA	$4\times$	34.7	68.3	14.0
7B	H2O	$4\times$	41.1	56.8	4.9
7B	TOVA	$4\times$	43.4	64.2	1.8
7B	DMC	$4\times$	43.9	70.2	16.5
13B	Original	$1\times$	54.5	73.5	17.5
13B	GQA	$2\times$	50.2	72.7	15.9
13B	H2O	$2\times$	54.1	70.3	16.5
13B	TOVA	$2\times$	54.4	72.8	12.2
13B	DMC	$2\times$	54.8	74.2	20.7
13B	GQA	$4\times$	48.6	72.2	16.5
13B	H2O	$4\times$	50.7	60.0	8.5
13B	TOVA	$4\times$	53.3	67.8	2.4
13B	DMC	$4\times$	54.2	73.2	22.0
70B	Original + GQA	$8\times$	68.8	78.0	29.6
70B	H2O	$16\times$	68.7	74.1	18.3
70B	TOVA	$16\times$	68.1	77.6	29.9
70B	DMC + GQA	$16\times$	68.8	77.9	29.9

At $2\times$ , DMC sometimes improves over the original model, including MMLU and CS-QA for 7B and 13B. At $4\times$ , its largest reported degradations relative to the corresponding original model are only $0.7$ MMLU points and $0.3$ CS-QA points for 7B, and $0.3$ points on both metrics for 13B; HumanEval improves for both model sizes.

Knowl 5 — Inference throughput and latency gains
empirical result
DMC’s smaller key–value caches produce practical inference gains, not just lower memory usage. The measurements use Megatron-LM in bfloat16, with Llama 2 7B and 13B on one NVIDIA A100 80GB SXM or H100 SXM GPU and Llama 2 70B on two same-type GPUs with tensor parallelism. Each run processes 2,000 prompt tokens and generates 2,000 additional tokens; throughput is averaged over the final 1,000 generated tokens, with batch size increased to the largest value fitting in GPU memory.

Relative to the uncompressed model, $2\times$ DMC increases throughput by more than $1.8\times$ for 7B, 13B, and 70B on both tested GPU types. $4\times$ DMC increases throughput by $3.4\times$ – $3.7\times$ for the 7B and 13B models. These gains are close to the theoretical cache-size benefit because autoregressive attention is memory-bound, and the saved memory also permits larger batches.

For next-token latency, when each model is run at its own maximum batch size, the cost begins scaling approximately linearly with context length after about 2,200 generated tokens as reading the cache from high-bandwidth memory becomes dominant. If DMC 4× uses the same batch size as the original model instead of a larger maximum batch, its reduced cache footprint substantially lowers latency for longer contexts.
Knowl 6 — Advantages over GQA and cache eviction
empirical result
At equal compression ratios, DMC outperforms up-trained grouped-query attention (GQA) on both the 7B and 13B Llama 2 models. On MMLU, DMC’s advantage over GQA is $+5.4$ points at $2\times$ and $+9.2$ points at $4\times$ for 7B, and $+4.6$ points at $2\times$ and $+5.6$ points at $4\times$ for 13B. DMC also shows comparable gains over GQA on CS-QA and HumanEval. In sample-efficiency experiments, DMC reaches its reported $2\times$ performance after about 8,000 fine-tuning steps, whereas GQA still does not match it after more than 17,000 steps.

H2O and TOVA perform token eviction using post-softmax attention scores. This can require materializing an $n\times n$ attention-score tensor for sequence length $n$ , making them incompatible with efficient FlashAttention-style execution and potentially slowing inference despite reducing cache size. Their downstream performance also falls sharply at high compression, especially on HumanEval.

DMC composes with GQA rather than replacing it. Llama 2 70B, which has an $8\times$ GQA cache reduction, retains essentially unchanged downstream performance after an additional $2\times$ DMC reduction, yielding a total $16\times$ cache compression.
Knowl 7 — Learned compression is heterogeneous across layers and heads
empirical result
DMC does not impose a predefined allocation of compression across layers or heads. Instead, each attention head learns its own compression ratio from the global compression objective. Across Llama 2 7B, 13B, and 70B, the dominant pattern is to compress deeper layers: layers above approximately 16 in 7B, 22 in 13B, and 44 in 70B are most heavily compressed. The final few layers are compressed somewhat less than the preceding deep layers. At $4\times$ global compression, some heads also learn unusually high ratios in the first few layers, although this is counterproductive because early token representations are not yet sufficiently contextualized.

The layerwise allocation evolves during training: compression first concentrates in deeper layers, then spreads to earlier and sometimes noncontiguous intermediate ranges as the global target increases. For a fixed trained model, the achieved compression ratio increases approximately logarithmically with total sequence length rather than remaining uniform across lengths. Average decision values are approximately independent of absolute token position, indicating that DMC does not simply follow a fixed positional compression pattern.

Some learned groupings align with linguistic structure. For example, a Llama 2 13B head at compression ratio $4\times$ merges subwords back into words and occasionally groups semantic phrases such as “1 9 th century,” “5 0 percent,” and “a week back later.” Many other heads are not linguistically interpretable, while higher layers generally merge longer token sequences.
Knowl 8 — Efficient storage and windowed accumulation
model/method
Because DMC learns compression independently for every layer and head, the resulting key–value sequences have variable lengths. The authors store these sequences with PagedAttention, allocating memory pages on demand separately for each head instead of padding every head to a common length. This permits the learned heterogeneous compression pattern with little storage overhead and supports efficient FlashAttention-compatible inference.

For a sequence of length $n$ , computing the exact partially accumulated state sequentially has an $O(n)$ dependency span. To reduce this cost, DMC uses a windowed approximation: at each position, the accumulation recurrence is evaluated over only the most recent $w$ tokens, with $w=12$ in the experiments. With at least $n$ parallel execution threads, the dependency span becomes $O(w)$ rather than $O(n)$ . The same approximation accelerates prompt processing during inference. Its limitation is that heads whose segments accumulate more than $w$ tokens must retain the sliding window in cache.
Knowl 9 — Constrained per-layer compression trades accuracy for simpler storage
empirical result
The constrained variant DMC-C adds a penalty that encourages all heads within a layer to have similar compression ratios. This makes the cache easier to store as padded tensors, but it removes some of DMC’s ability to assign compression selectively across heads. The following results report MMLU, CS-QA, and HumanEval in that order:
- For 7B at $2\times$ , DMC scores $45.2$ , $70.8$ , and $15.2$ , whereas DMC-C scores $45.5$ , $70.6$ , and $14.6$ ; at $4\times$ , DMC scores $43.9$ , $70.2$ , and $16.5$ , whereas DMC-C scores $38.2$ , $69.6$ , and $14.6$ .
- For 13B at $2\times$ , DMC scores $54.8$ , $74.2$ , and $20.7$ , whereas DMC-C scores $54.8$ , $73.9$ , and $18.3$ ; at $4\times$ , DMC scores $54.2$ , $73.2$ , and $22.0$ , whereas DMC-C scores $52.4$ , $72.9$ , and $18.3$ .
- For 70B with total compression $16\times$ , DMC scores $68.8$ , $77.9$ , and $29.9$ , whereas DMC-C scores $67.4$ , $78.2$ , and $31.1$ .
The largest loss occurs for 7B at $4\times$ , where DMC-C is $6.4$ MMLU points below the original model, while unconstrained DMC remains close to the original. Thus, when custom variable-length attention storage is available, the unconstrained head-specific DMC is preferred.
Knowl 10 — Limitation of training DMC from scratch
limitation
The paper’s successful results concern retrofitting pretrained LLMs. Preliminary experiments that trained LLMs with DMC from scratch performed worse than the corresponding GQA training curve. The authors attribute this result tentatively to a mutual dependency: early, low-quality token representations make append-or-accumulate boundary decisions unreliable, while incorrect boundaries in turn produce poor token representations. They suggest that an alternating procedure, such as an expectation-maximization-style alternation between representation modeling and segmentation, may be needed to break this feedback loop.

Coverage note — Detailed secondary ablations on short versus long compression schedules, shared hard decisions, uniform accumulation weights, and fixed pooling were omitted because they support the main design choices already captured by the training and constrained-compression results.
