Micron-BERT: BERT-Based Facial Micro-Expression Recognition

Xuan-Bac NguyenChi Nhan DuongXin LiSusan GauchHan-Seok SeoKhoa Luu

article2023CVPR126 citations

Proposes a self-supervised BERT-based framework that captures subtle facial micro-expressions between video frames without manual annotations by pairing diagonal micro-attention with an unsupervised patch-of-interest detector.

Listen

Facial micro-expressions are brief, involuntary muscle movements lasting between a fraction of a second and half a second. Because they reveal genuine emotional states that individuals often attempt to suppress, recognizing them is critical in high-stakes fields such as criminal analysis and lie detection. However, automated micro-expression recognition is exceptionally challenging because these movements are subtle and short-lived, while existing computer vision models struggle to isolate tiny facial changes from background noise and head movements without requiring costly manual data labeling.

The article aims to introduce and evaluate Micron-BERT, a deep learning framework based on bidirectional transformers that automatically detects, localizes, and classifies facial micro-expressions without requiring pre-labeled facial landmarks or bounding boxes.

To achieve this, the authors designed a self-supervised approach that trains on unlabeled video frames. The method uses a patch-swapping strategy combined with two specialized components: Diagonal Micro-Attention, which pinpoints minute pixel differences across video frames, and a Patch of Interest module, which automatically forces the model to focus on salient facial regions while ignoring background interference. The system was pre-trained on an unlabeled dataset of eight million video frames and evaluated across four widely recognized benchmark datasets (CASME3, CASME II, SAMM, and SMIC) as well as a composite dataset spanning subjects of diverse ages, genders, and ethnicities.

The evaluation produced several notable findings. First, Micron-BERT significantly outperformed all prior state-of-the-art methods across all tested benchmarks. On the challenging CASME3 dataset, it achieved double-digit accuracy and F1 score improvements over previous baselines, demonstrating roughly 14 to 22 percentage-point gains across various emotion-classification settings. Second, on established benchmarks like CASME II, SAMM, and SMIC, the system consistently set new performance records, reaching an unweighted F1 score of 90.34% on CASME II and 85.50% on SMIC. Third, ablation testing demonstrated that combining both the micro-attention and facial region-focusing modules yielded an approximate 10 percentage-point performance jump over foundational transformer baselines, confirming that isolating facial regions from noisy backgrounds is essential for accurate recognition.

These findings demonstrate that self-supervised deep learning can master micro-movement detection directly from raw video, eliminating the heavy cost and time associated with manual data labeling and landmark pre-processing. By effectively suppressing background distractions and focusing on true facial movements, this approach provides a robust and scalable foundation for automated emotion and deception analysis in real-world environments.

Organizations developing automated behavioral and facial analysis tools should consider adopting self-supervised transformer architectures that incorporate localized attention mechanisms rather than relying on standard whole-image models. Future development should focus on enhancing the model's robustness against extreme lighting shifts, as unmoving facial areas exposed to sudden illumination changes can occasionally be misinterpreted as movement. Overall, the extensive experimental validation across diverse public datasets provides high confidence in the framework's effectiveness under standard video capture conditions.

Concordia University University of Arkansas West Virginia University affective computing contrastive learning encoder-decoder facial micro-expression recognition BERT framework Diagonal Micro-Attention

arXiv: 2304.03195 uark-cviu/Micron-BERT

Paper: BEiT: BERT Pre-Training of Image Transformers, Hangbo Bao et al. (2022). BEiT establishes the masked image modeling framework that adapts BERT pre-training to vision transformers, forming the conceptual foundation for Micron-BERT's architecture.
Paper: BERT: Pre-training of Deep Bidirectional Transformers for Language Understanding, Jacob Devlin et al. (2019). BERT introduces the bidirectional Transformer pre-training methodology that Micron-BERT adapts and customizes for unsupervised facial micro-expression recognition.
Paper: Masked Autoencoders Are Scalable Vision Learners, Kaiming He et al. (2022). Masked Autoencoders provide foundational principles of self-supervised visual representation learning through patch masking and reconstruction that motivate Micron-BERT's design.
Paper: Deep Facial Expression Recognition: A Survey, Shan Li et al. (2018). This survey provides essential background on deep learning architectures, spatio-temporal modeling, and benchmark challenges in facial expression recognition.
Paper: Recognizing Action Units for Facial Expression Analysis, Ying-li Tian et al. (2001). This paper establishes the foundational principles of recognizing subtle, fine-grained localized facial muscle actions essential for understanding micro-expressions.

Paper: ConvNeXt V2: Co-designing and Scaling ConvNets with Masked Autoencoders, Sanghyun Woo et al. (2023). ConvNeXt V2 advances self-supervised masked autoencoder architectures by incorporating global response normalization to prevent feature collapse, offering complementary architectural insights for visual representation learning.
Paper: Efficient Multi-Scale Attention Module with Cross-Spatial Learning, Daliang Ouyang et al. (2023). This work explores efficient multi-scale attention and cross-spatial learning modules that complement and extend the spatial attention mechanisms developed in Micron-BERT.

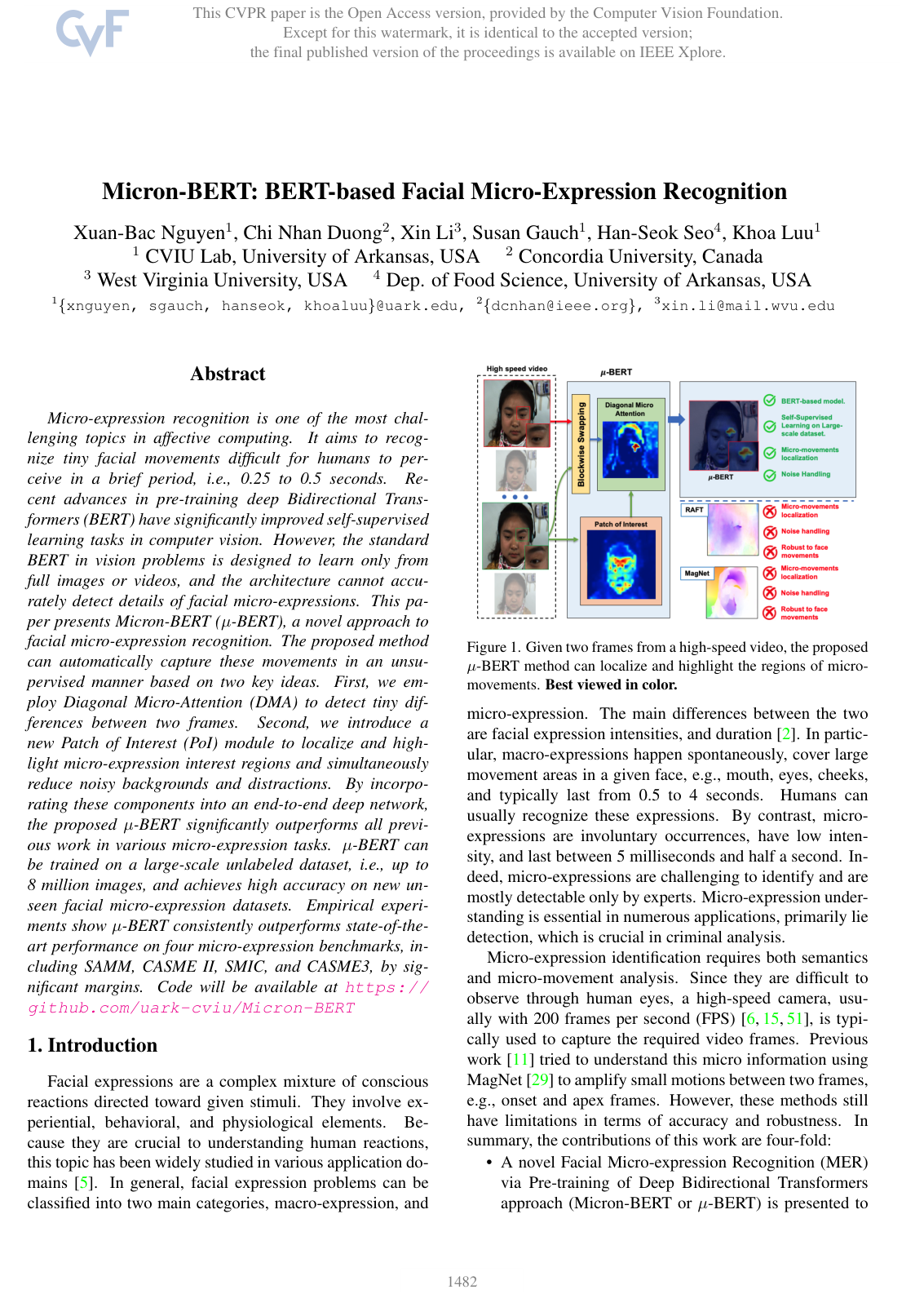

Cover for Micron-BERT: BERT-Based Facial Micro-Expression Recognition

Abstract

Micro-expression recognition is one of the most challenging topics in affective computing. It aims to recognize tiny facial movements difficult for humans to perceive in a brief period, i.e., 0.25 to 0.5 seconds. Recent advances in pre-training deep Bidirectional Transformers (BERT) have significantly improved self-supervised learning tasks in computer vision. However, the standard BERT in vision problems is designed to learn only from full images or videos, and the architecture cannot accurately detect details of facial micro-expressions. This paper presents Micron-BERT (µ-BERT), a novel approach to facial micro-expression recognition. The proposed method can automatically capture these movements in an unsupervised manner based on two key ideas. First, we employ Diagonal Micro-Attention (DMA) to detect tiny differences between two frames. Second, we introduce a new Patch of Interest (PoI) module to localize and highlight micro-expression interest regions and simultaneously reduce noisy backgrounds and distractions. By incorporating these components into an end-to-end deep network, the proposed µ-BERT significantly outperforms all previous work in various micro-expression tasks. µ-BERT can be trained on a large-scale unlabeled dataset, i.e., up to 8 million images, and achieves high accuracy on new unseen facial micro-expression datasets. Empirical experiments show µ-BERT consistently outperforms state-of-the-art performance on four micro-expression benchmarks, including SAMM, CASME II, SMIC, and CASME3, by significant margins. Code will be available at https://github.com/uark-cviu/Micron-BERT

Topics

affective computing contrastive learning encoder-decoder expression recognition frames facial images high resolution image

Keywords

facial micro-expression recognition BERT framework Diagonal Micro-Attention expression-specific feature learning facial action unit fusion facial graph representation learning spontaneous micro-expression database deep Bidirectional Transformers

1. Introduction
2. Related Work
3. BERT Revisited
3.1. BERT in Vision Problems
3.2. Limitations of BERT in Vision Problems
4. The Proposed µ-BERT Approach
4.1. Non-overlapping Patches Representation
4.2. µ-Encoder
4.3. µ-Decoder
4.4. Blockwise Swapping
4.5. Diagonal Micro Attention (DMA)
4.6. Patch of Interest (POI)
4.7. Loss Functions
5. Experimental Results
5.1. Datasets and Protocols
5.2. Micro-Expression Self-Training
5.3. Micro-Expression Recognition
5.4. Results
5.5. How µ-BERT perceives micro-movements
5.6. Ablation studies
6. Conclusions and Discussions
References

Knowls

Knowl 1 — Micron-BERT Architecture for Facial Micro-Expression Recognition
model/method
Micron-BERT ( $\mu$ -BERT) is an end-to-end self-supervised bidirectional transformer framework designed to capture subtle facial micro-movements across consecutive video frames without requiring tokenizers or explicit facial landmark annotations. Given two video frames $I_t, I_{t+\delta} \in \mathbb{R}^{H \times W \times C}$ separated by a temporal index $\delta$ , each image is partitioned into $N_p = HW / ps^2$ non-overlapping patches of size $ps \times ps$ . Each patch $p_t^i$ is linearly projected into a latent vector $\mathbf{z}_t^i = \alpha(p_t^i) + \mathbf{e}(i) \in \mathbb{R}^{1 \times d}$ , where $\alpha$ is a projection embedding network and $\mathbf{e}(i)$ is a fixed positional embedding, forming the latent sequence $\mathbf{Z}_t = [\mathbf{z}_t^0, \mathbf{z}_t^1, \dots, \mathbf{z}_t^{N_p-1}] \in \mathbb{R}^{N_p \times d}$ .

The $\mu$ -BERT architecture consists of five core components:
1. $\mu$ -Encoder ( $\mathcal{E}$ ): A stack of $L_e$ transformer blocks composed of alternating Multi-Head Attention (MHA) and Multi-Layer Perceptron (MLP) layers with Layer Normalization (LN), producing latent representations $\mathbf{P}_t = \mathcal{E}(\mathbf{Z}_t) \in \mathbb{R}^{N_p \times d}$ .
2. Blockwise Swapping: A data augmentation step that randomly exchanges rectangular blocks of corresponding patches between $I_t$ and $I_{t+\delta}$ to yield a perturbed composite image $I_{t/s}$ containing patches $\mathcal{P}_{t/s}$ .
3. Diagonal Micro-Attention (DMA): An attention mechanism that measures patch-wise correlations between the perturbed frame $I_{t/s}$ and the future frame $I_{t+\delta}$ , extracting the diagonal attention weights to identify swapped and micro-movement regions.
4. Patch of Interest (POI): A self-supervised saliency module that learns to focus on facial regions and filter out background noise using a contextual token and a contextual agreement loss.
5. $\mu$ -Decoder ( $\mathcal{D}$ ): A symmetric transformer decoder with $L_d$ blocks followed by a linear projection and reshaping operation that reconstructs the original frame $I_t$ from the processed latent representations $\mathbf{P}_t$ as $\mathbf{y}'_t \in \mathbb{R}^{H \times W \times C}$ .
Knowl 2 — Diagonal Micro-Attention Mechanism
model/method
Diagonal Micro-Attention (DMA) is an attention mechanism that detects micro-disparities between two frames $I_t$ and $I_{t+\delta}$ after Blockwise Swapping creates a swapped patch sequence $\mathbf{P}_{t/s}$ . The sequence $\mathbf{P}_{t/s}$ contains both unchanged patches from $I_t$ and swapped patches originating from $I_{t+\delta}$ .

To identify and weigh the patches containing micro-movements without requiring supervised ground-truth swap indices, an attention matrix $\hat{A} \in \mathbb{R}^{N_p \times N_p}$ is computed between the query projections of $\mathbf{P}_{t+\delta}$ and the key projections of $\mathbf{P}_{t/s}$ : $\hat{A} = \text{softmax}\left(Q(\mathbf{P}_{t+\delta}) \otimes K(\mathbf{P}_{t/s})^T\right), \quad \sum_{j=0}^{N_p-1} \hat{A}(i,j) = 1$ where $Q(\cdot)$ and $K(\cdot)$ are linear query and key projection functions, $\otimes$ denotes matrix multiplication, and $N_p$ is the number of image patches.

Because corresponding patches from the same spatial position in $I_{t+\delta}$ and $I_{t/s}$ yield high correlation scores when a patch has been swapped into $I_{t/s}$ from $I_{t+\delta}$ , the diagonal elements satisfy $\hat{A}(i,i) > \hat{A}(j,j)$ for all swapped patches $p_{t/s}^i \in \mathcal{P}_{t+\delta}$ relative to unswapped patches $p_{t/s}^j \in \mathcal{P}_t$ . The diagonal vector $\text{diag}(\hat{A}) \in \mathbb{R}^{N_p \times 1}$ is used as an importance weight vector to modulate the value projections $V(\mathbf{P}_{t/s})$ : $\mathbf{P}_{dma} = \text{diag}(\hat{A}) \times V(\mathbf{P}_{t/s})$ where $\times$ denotes element-wise multiplication across patch tokens.
Knowl 3 — Patch of Interest Module and Saliency Weighting
model/method
The Patch of Interest (POI) module isolates salient facial regions from background noise without using bounding boxes, facial landmark detectors, or segmentation masks. It prepends a learnable Contextual Token $\mathbf{z}^{CT}$ to the patch sequence before passing through the transformer encoder $\mathcal{E}$ . As the sequence traverses the transformer layers, $\mathbf{z}^{CT}$ aggregates contextual information from all spatial patches $\mathbf{z}_t^i$ .

To force $\mathbf{z}^{CT}$ to capture subject-centric facial features rather than background context, an agreement loss enforces consistency between the contextual representation of frame $I_{t+\delta}$ and a randomly cropped version $\text{Crop}(I_{t+\delta})$ : $\mathcal{L}_{agg} = \text{MSE}\left(\mathbf{p}^{CT}_{t+\delta}, \mathbf{p}^{CT}_{t+\delta/crop}\right)$ where $\mathbf{p}^{CT}_{t+\delta}$ and $\mathbf{p}^{CT}_{t+\delta/crop}$ denote the output contextual token features for the full frame and cropped frame, respectively, and $\text{MSE}$ is the Mean Squared Error.

The facial saliency score vector $\mathbf{S}_{t+\delta}$ is extracted directly from the attention map $A$ of the final self-attention layer in the encoder $\mathcal{E}$ corresponding to the contextual token: $\mathbf{S}_{t+\delta} = A[0, :] = \left[s^0_{t+\delta}, s^1_{t+\delta}, \dots, s^{N_p-1}_{t+\delta}\right], \quad \sum_{i=0}^{N_p-1} s^i_{t+\delta} = 1$ where a higher score $s^i_{t+\delta}$ indicates that patch $i$ contains richer facial contextual information.

To jointly prioritize micro-movements and suppress background noise, the Diagonal Micro-Attention features $\mathbf{P}_{dma}$ are weighted by the combined matrix $W$ : $W = \text{diag}(\hat{A}) \times \mathbf{S}_{t+\delta}$ $\mathbf{P}_{dma} = W \times V(\mathbf{P}_{t/s})$ where $\text{diag}(\hat{A})$ is the diagonal correlation vector between $I_{t+\delta}$ and swapped frame $I_{t/s}$ , and $V(\cdot)$ is the value projection.
Knowl 4 — Blockwise Swapping Algorithm
algorithm
Blockwise Swapping is an unsupervised data augmentation procedure that creates a synthetic composite image patch set $\mathcal{P}_{t/s}$ by iteratively selecting 2D rectangular blocks of patches from frame $I_{t+\delta}$ and replacing the corresponding patches in frame $I_t$ . The swapping continues until the total count of swapped patches reaches a target swapping ratio $r_s \times N_p$ .
Input: Patch sequence $\mathcal{P}_t$ , Patch sequence $\mathcal{P}_{t+\delta}$ (where $N_p = h \times w$ ), swapping ratio $r_s$ (default: 0.5), minimum block size $min\_bs$ (default: 16), minimum aspect ratio $min\_ar$ (default: 0.3)
Output: Swapped patch sequence $\mathcal{P}_{t/s}$
$\mathcal{P}_{t/s} \leftarrow \mathcal{P}_t$
$N_p \leftarrow |\mathcal{P}_t|$
$c \leftarrow 0$
while $c \leq r_s \times N_p$ do
     $bs \leftarrow \text{rnd}(min\_bs, r_s \times N_p - c)$
     $ar \leftarrow \text{rnd}(min\_ar, 1 / min\_ar)$
     $m \leftarrow \lfloor \sqrt{bs \cdot ar} \rfloor$
     $n \leftarrow \lfloor \sqrt{bs / ar} \rfloor$
     $p \leftarrow \text{rnd}(0, h - m)$
     $q \leftarrow \text{rnd}(0, w - n)$
    for $i \in [p, p + m)$ do
        for $j \in [q, q + n)$ do
             $k \leftarrow i \times w + j$
             $\mathcal{P}_{t/s}(k) \leftarrow \mathcal{P}_{t+\delta}(k)$
        end for
    end for
     $c \leftarrow c + m \times n$
end while
return $\mathcal{P}_{t/s}$
Knowl 5 — Micron-BERT Self-Supervised Training Objective
equation
The self-supervised training objective of $\mu$ -BERT balances image reconstruction of the original frame from the swapped frame and contextual agreement for facial region localization: $\mathcal{L} = \gamma \times \mathcal{L}_r + \beta \times \mathcal{L}_{agg}$ where $\gamma$ and $\beta$ are weighting hyperparameters.

The reconstruction loss $\mathcal{L}_r$ evaluates the pixel-level Mean Squared Error between the decoder's reconstructed output image $\mathbf{y}'_t \in \mathbb{R}^{H \times W \times C}$ and the target ground-truth original frame $I_t \in \mathbb{R}^{H \times W \times C}$ : $\mathcal{L}_r = \text{MSE}(\mathbf{y}'_t, I_t)$

The contextual agreement loss $\mathcal{L}_{agg}$ measures the Mean Squared Error between the contextual token features $\mathbf{p}^{CT}_{t+\delta}$ of frame $I_{t+\delta}$ and $\mathbf{p}^{CT}_{t+\delta/crop}$ of its cropped variant $\text{Crop}(I_{t+\delta})$ : $\mathcal{L}_{agg} = \text{MSE}\left(\mathbf{p}^{CT}_{t+\delta}, \mathbf{p}^{CT}_{t+\delta/crop}\right)$
Knowl 6 — Downstream Micro-Expression Recognition Setup and Metrics
model/method
For downstream Micro-Expression Recognition (MER), the pre-trained $\mu$ -BERT encoder $\mathcal{E}$ and Diagonal Micro-Attention (DMA) module are used as the backbone. The input to the network is a pair of frames: the onset frame (representing $I_t$ ) and the apex frame (representing $I_{t+\delta}$ ).

The feature representation $\mathbf{P}_{dma}$ , which encodes the micro-movements and texture changes occurring between the onset and apex frames, is fed into a classification head to predict the micro-expression class.

Evaluation is conducted using Leave-One-Out Cross-Validation (LOOCV) under the MEGC 2019 challenge standard protocols using two metrics:
1. Unweighted F1-score (UF1): $\text{UF1} = \frac{1}{C} \sum_{i=0}^{C-1} \frac{2 \times \text{TP}_i}{2 \times \text{TP}_i + \text{FP}_i + \text{FN}_i}$
2. Unweighted Average Recall (UAR): $\text{UAR} = \frac{1}{C} \sum_{i=0}^{C-1} \frac{\text{TP}_i}{N_i}$ where $C$ is the total number of micro-expression classes, $N_i$ is the total number of samples in class $i$ , and $\text{TP}_i, \text{FP}_i, \text{FN}_i$ are true positives, false positives, and false negatives for class $i$ .

Knowl 7 — Ablation Study of Self-Supervised Baselines and Micron-BERT Modules on CASME3

data/table

Evaluating pre-training methods and progressive component configurations of $\mu$ -BERT on the 7-class CASME3 benchmark demonstrates the cumulative contributions of Blockwise Swapping, Diagonal Micro-Attention (DMA), and Patch of Interest (POI). Generic self-supervised vision baselines (MoCo V3, BEiT, MAE) pre-trained on CASME3 improve over ImageNet-pretrained ViT-S, but remain limited by single-image context learning. Introducing Blockwise Swapping alone (MB1) outperforms MAE by ~1.4% UF1 and ~2.1% UAR. Adding DMA (MB2) guides the model to micro-movements, adding ~2.1% UF1 and ~3.2% UAR. Incorporating POI (MB3) to filter background noise provides an additional ~5.3% UF1 and ~6.4% UAR boost.

Method	Pre-train	DMA	POI	UF1 (%)	UAR (%)
ViT-S	ImageNet			20.34	18.76
MoCo V3 - R50	CASME3			19.12	17.36
MoCo V3 - R101	CASME3			20.14	18.52
MoCo V3	CASME3			22.13	19.34
BEiT	CASME3			23.54	19.89
MAE	CASME3			23.86	20.87
-BERT (MB1)	CASME3			25.27	22.96
-BERT (MB2)	CASME3	✓		27.35	26.18
-BERT (MB3)	CASME3	✓	✓	32.64	32.54

Knowl 8 — Benchmark Recognition Performance of Micron-BERT Across Datasets

data/table

Micron-BERT ( $\mu$ -BERT) consistently outperforms prior state-of-the-art micro-expression recognition methods across multiple standard benchmarks under Leave-One-Out Cross-Validation (LOOCV):

CASME3 (Table 1): On 3-class recognition, $\mu$ -BERT achieves 56.04% UF1 and 61.25% UAR (vs. RCN-A at 39.28% / 38.93%). On 4-class, it achieves 47.18% UF1 and 49.13% UAR (vs. Baseline (+Depth) at 30.01% / 29.82%). On 7-class, it achieves 32.64% UF1 and 32.54% UAR (vs. Baseline (+Depth) at 17.73% / 18.29%).
CASME II (Table 2): On 5-class evaluation, $\mu$ -BERT attains 85.53% UF1 and 83.48% UAR (outperforming TSCNN at 80.70% UF1 and SMA-STN at 82.59% UAR). On 3-class evaluation, $\mu$ -BERT attains 90.34% UF1 and 89.14% UAR (outperforming MAE at 88.03% and OFF-ApexNet at 88.28% UAR).
SAMM (Table 3, 5-class): $\mu$ -BERT attains 83.86% UF1 and 84.75% UAR (outperforming MAE at 80.40% UF1 and MiMaNet at 76.70% UAR).
SMIC (Table 4, 3-class): $\mu$ -BERT achieves 85.50% UF1 and 83.84% UAR (outperforming MAE at 81.86% UF1 / 80.82% UAR).
Composite Dataset (MEGC2019, Table 5, 3-class): $\mu$ -BERT achieves 89.03% UF1 and 88.42% UAR (outperforming MAE at 88.50% UF1 and MiMaNet at 88.30% UF1 / 87.60% UAR).

Dataset	# Classes	Best Prior Method	Prior Best (UF1 / UAR %)	-BERT (UF1 / UAR %)
CASME3	3	RCN-A	39.28 / 38.93	56.04 / 61.25
CASME3	4	Baseline (+Depth)	30.01 / 29.82	47.18 / 49.13
CASME3	7	Baseline (+Depth)	17.73 / 18.29	32.64 / 32.54
CASME II	5	TSCNN / SMA-STN	80.70 / 82.59	85.53 / 83.48
CASME II	3	MAE / OFF-ApexNet	88.03 / 88.28	90.34 / 89.14
SAMM	5	MAE	80.40 / 88.98	83.86 / 84.75
SMIC	3	MAE	81.86 / 80.82	85.50 / 83.84
Composite (MEGC2019)	3	MAE / MiMaNet	88.50 / 87.60	89.03 / 88.42

Knowl 9 — Implementation and Self-Supervised Pre-Training Setup
experimental setup
The self-supervised pre-training of $\mu$ -BERT is performed using an unlabelled pool of 8 million video frames extracted from the raw footage of CASME3 (excluding test-set frames), without utilizing emotion labels, apex frames, onset frames, or offset annotations.

Key architectural and training specifications include:
- Image and Patch Dimensions: Input resolution $H = W = 224$ with $C = 3$ color channels. Patch size $ps = 8$ , yielding $N_p = 784$ non-overlapping patches.
- Transformer Architecture: Latent feature dimension $d = 512$ for all projected vectors. Encoder depth $L_e = 4$ transformer blocks; decoder depth $L_d = 4$ transformer blocks.
- Swapping and Temporal Hyperparameters: Temporal frame gap $\delta$ is sampled uniformly at random between a lower bound of 5 and an upper bound of 11 ( $\delta \in [5, 11]$ ). Swapping ratio $r_s = 0.5$ (50% of patches swapped between frames).
- Optimization: Trained using PyTorch with the AdamW optimizer for 100 epochs. Learning rate starts at $10^{-4}$ and decays to 0 using a CosineLinear schedule. The batch size is 64 per GPU across 32 $\times$ NVIDIA A100 GPUs (40GB each), completing pre-training in approximately 3 days.
Knowl 10 — Sensitivity of Micro-Difference Representations to Non-Motion Facial Illumination Variations
limitation
While the Patch of Interest (POI) module effectively suppresses non-facial background regions and their associated lighting noise, it is limited when lighting and illumination shifts occur directly on static facial regions (such as the forehead) in the absence of actual muscle movement. In such scenarios, illumination-induced pixel disparities between the two frames can be mistakenly detected by the network as facial micro-movement features, potentially introducing noise into the downstream recognition pipeline.

Coverage note — None was omitted; all key contributions including framework architecture, Blockwise Swapping algorithm, Diagonal Micro-Attention, Patch of Interest module, loss functions, pre-training details, experimental results across five benchmarks, ablation studies, and stated limitations are fully covered.
