Recognizing Action Units for Facial Expression Analysis

Ying-li TianT. KanadeJeffrey F. Cohn

article2001TPAMI1,982 citations

Develops an automated facial expression analysis system that accurately recognizes subtle and combined Facial Action Coding System action units by combining multi-state tracking of permanent features and transient wrinkles with neural network classification.

Listen

Most automated facial expression systems focus on classifying a small set of basic emotions, such as anger or happiness. In daily life, however, these exaggerated expressions occur rarely. Human communication relies far more on subtle, fine-grained movements in isolated facial features, such as raised eyebrows or tightened lips. Manual identification of these muscle movements using the Facial Action Coding System requires extensive human training and labor. Automating this process has proven difficult because over 7,000 combinations of facial actions can occur, many of which alter the visual appearance of individual features when combined.

The article evaluated a computer vision system designed to automatically track facial features and accurately classify discrete facial action units in video sequences. It demonstrated the capability to identify these movements whether they occur alone or in complex combinations across both the upper and lower face.

The approach uses multi-state geometric models to track permanent features, such as the eyes, brows, and lips, alongside transient features like forehead wrinkles and cheek furrows in near-frontal video sequences. The system calculates 15 normalized parameters for the upper face and 9 parameters for the lower face relative to a neutral baseline frame. These parameters feed into artificial neural networks to classify 7 upper face and 11 lower face action units. The framework was evaluated across two datasets: a 24-subject dataset comprising 236 video sequences for the upper face, and a diverse 122-subject dataset comprising 463 sequences for the lower face.

The key findings demonstrate high classification performance across facial regions. The system achieved a 95% recognition accuracy on upper face action units and combinations, with a false alarm rate of 6.4%. For lower face movements, the system achieved a 96.71% recognition accuracy when modeling non-additive combinations and 96.3% when modeling basic units alone. Testing on novel subjects showed a 92.9% recognition rate with zero false alarms on single movements, confirming that the normalized geometric ratios generalize well to unseen individuals. Furthermore, separately modeling complex, non-additive upper face combinations provided no accuracy gain over standard models, whereas doing so for lower face movements yielded a slight performance improvement.

These results show that geometric feature tracking and normalized parameter ratios provide an effective, computationally efficient alternative to full-image holistic analysis or dense optical flow methods. Rather than requiring distinct models for thousands of possible action unit combinations, a unified neural network can reliably interpret isolated and combined expressions. This capability enables objective, high-throughput facial analysis that matches the reliability of certified human coders, reducing labor costs and measurement subjectivity in behavioral research, psychological assessment, and human-computer interaction.

Moving forward, developers should prioritize gathering larger training datasets for rare, non-additive combinations, such as combined nose wrinkling and chin raising, which caused the majority of classification errors. The primary recommendation is to integrate jaw and mandible tracking into lower face models to better distinguish between open-lip variations, as well as to expand the system's multi-state framework to handle significant out-of-plane head rotations.

Readers should interpret the findings within the article's operational boundary conditions. The current system relies on an initial neutral-expression frame for baseline comparison and assumes near-frontal head views with only minor rotations. While confidence in the reported accuracies is high for controlled, frontal video sequences across diverse adult demographics, performance in unconstrained settings with dynamic head poses and spontaneous baseline expressions remains subject to further validation.

action unit component model facial expression analysis facial expression analysis action units recognition facial action coding

Tian et al (2001).pdf

Paper: Automatic Analysis of Facial Expressions: The State of the Art, M. Pantic et al. (2000). Read this survey first to see the late-1990s expression-analysis systems and limitations that frame the source’s move from basic emotion labels to action-unit recognition.

Paper: OpenFace: An open source facial behavior analysis toolkit, Tadas Baltrusaitis et al. (2016). OpenFace carries automated action-unit analysis forward into an integrated, real-time toolkit, adding landmark tracking, pose estimation, and gaze analysis to the source’s recognition focus.

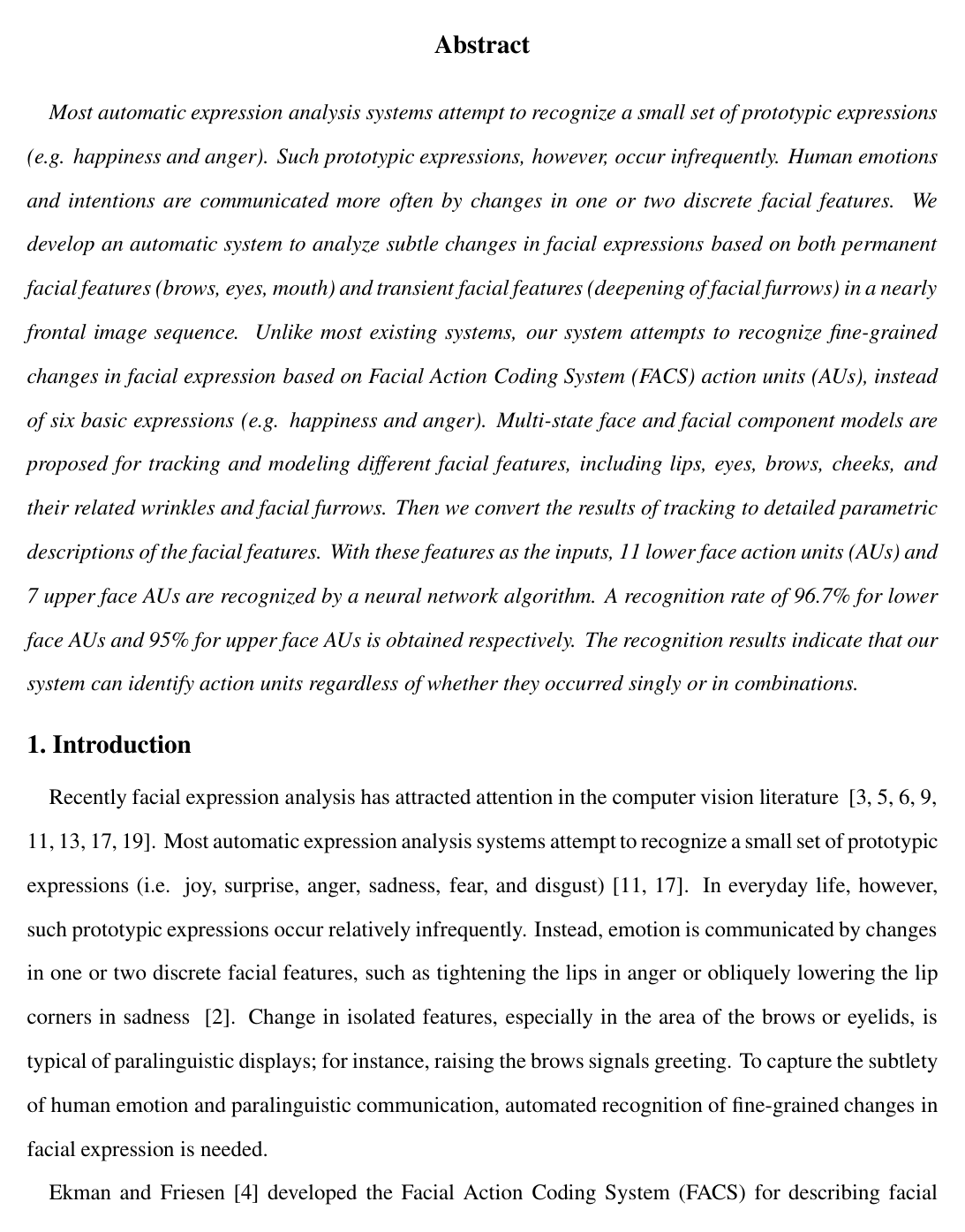

Cover for Recognizing Action Units for Facial Expression Analysis

Abstract

Most automatic expression analysis systems attempt to recognize a small set of prototypic expressions (e.g. happiness and anger). Such prototypic expressions, however, occur infrequently. Human emotions and intentions are communicated more often by changes in one or two discrete facial features. We develop an automatic system to analyze subtle changes in facial expressions based on both permanent facial features (brows, eyes, mouth) and transient facial features (deepening of facial furrows) in a nearly frontal image sequence. Unlike most existing systems, our system attempts to recognize fine-grained changes in facial expression based on Facial Action Coding System (FACS) action units (AUs), instead of six basic expressions (e.g. happiness and anger). Multi-state face and facial component models are proposed for tracking and modeling different facial features, including lips, eyes, brows, cheeks, and their related wrinkles and facial furrows. Then we convert the results of tracking to detailed parametric descriptions of the facial features. With these features as the inputs, 11 lower face action units (AUs) and 7 upper face AUs are recognized by a neural network algorithm. A recognition rate of 96.7% for lower face AUs and 95% for upper face AUs is obtained respectively. The recognition results indicate that our system can identify action units regardless of whether they occurred singly or in combinations.

Topics

action unit component model facial expression analysis facial images human emotion human motions image sequence neural networks face features frontal faces

Keywords

facial expression analysis action units recognition facial action coding upper face AU recognition lower face action units facial feature tracking discrete facial features facial component models

1. Introduction
2. Multi-State Models for Face and Facial Components
2.1. Multi-state face model
2.2. Multi-state face component models
3. Facial Feature Extraction
3.1. Permanent features
3.2. Transient features
4. Facial Feature Representation
4.1. Upper Face Feature Representation
4.2. Lower Face Feature Representation
5. Facial Action Unit Definitions
5.1. Upper Face Action Units
5.2. Lower face action units
6. Image Database
6.1. Image Database for Upper Face AU Recognition
6.2. Image Database for Lower Face AU Recognition
7. Face Action Units Recognition
7.1. Upper Face Action Units Recognition
7.1.1 Upper Face Individual AU Recognition
7.1.2 Upper Face AU Combination Recognition When Modeling 7 Individual AUs
7.1.3 Upper Face AU Combination Recognition When Modeling Nonadditive Combinations
7.2. Lower Face Action Units Recognition
8. Conclusion and Discussion
Acknowledgements
References

Knowls

Knowl 1 — Multi-State Parametric Facial Feature Tracking
model/method
To track permanent facial features across varying expressions and head orientations in nearly frontal video sequences, multi-state geometric templates are employed:
- Lips (Three-State Model): State is classified as open, closed, or tightly closed. For open and closed states, lip contours are modeled using two parabolic arcs parameterized by center position $(x_c, y_c)$ , height parameters $h_1$ (upper lip height) and $h_2$ (lower lip height), lip width $w$ , and inclination angle $\theta$ . For tightly closed lips, the dark boundary line connecting the two lip corners is detected directly. Initial lip color is modeled in the first neutral frame using a Gaussian mixture model, and feature points are tracked across subsequent frames.
- Eyes (Two-State Model): State is classified as open or closed. For open eyes, the iris is modeled as a circle with radius $r$ and center $(x_0, y_0)$ detected via a half-circle edge mask, while eyelid contours are modeled by two parabolic arcs parameterized by $(x_c, y_c, h_1, h_2, w, \theta)$ . For closed eyes, the eye is parameterized by the coordinates of the two corners, $(x_1, y_1)$ and $(x_2, y_2)$ , connected by a linear boundary segment without eyelid contour tracking.
- Brows and Cheeks (Single-State Models): Brows and cheeks are each tracked using a three-point triangular template $(x_1, y_1)$ , $(x_2, y_2)$ , and $(x_3, y_3)$ propagated across frames using a gradient-based Lucas-Kanade feature tracker.
Knowl 2 — Normalized Coordinate System and Parametric Upper Face Representation
model/method
To achieve invariance to facial scale and subject conformation, upper facial features are mapped into a canonical coordinate system where the $x$ -axis connects the left and right inner eye corners and the $y$ -axis is orthogonal. All continuous motion parameters are computed as ratio scores relative to measurements from the neutral initial frame (denoted with subscript $0$ ):
- Inner brow motion:
  $r_{binner} = \frac{b_i - b_{i0}}{b_{i0}}$
  (positive values indicate upward displacement).
- Outer brow motion:
  $r_{bouter} = \frac{b_o - b_{o0}}{b_{o0}}$
  (positive values indicate upward displacement).
- Eye height change:
  $r_{eheight} = \frac{(h_1 + h_2) - (h_{10} + h_{20})}{h_{10} + h_{20}}$
  where $h_1$ and $h_2$ are upper and lower eyelid heights.
- Upper eyelid motion:
  $r_{top} = \frac{h_1 - h_{10}}{h_{10}}$
- Lower eyelid motion:
  $r_{btm} = \frac{h_2 - h_{20}}{h_{20}}$
- Cheek motion:
  $r_{cheek} = \frac{c - c_0}{c_0}$
  where $c$ is cheek elevation.
- Inter-brow distance change:
  $D_{brow} = \frac{D - D_0}{D_0}$
  where $D$ is the horizontal distance between the inner brows.
- Crows-feet wrinkles: Binary indicators $W_{left}, W_{right} \in \{0, 1\}$ indicating absence ( $0$ ) or presence ( $1$ ).
These produce a 15-dimensional input vector consisting of bilateral pairs for inner brow, outer brow, eye height, top lid, bottom lid, cheek elevation, plus $D_{brow}$ , $W_{left}$ , and $W_{right}$ .
Knowl 3 — Normalized Parametric Lower Face Representation
model/method
Lower facial actions are described using a set of normalized parameters aligned with the inner eye corner baseline:
- Lip height ratio:
  $r_{height} = \frac{(h_1 + h_2) - (h_{10} + h_{20})}{h_{10} + h_{20}}$
  where $h_1$ and $h_2$ denote upper and lower lip heights relative to lip center, and $h_{10}, h_{20}$ denote baseline values.
- Lip width ratio:
  $r_{width} = \frac{w - w_0}{w_0}$
  where $w$ is current mouth width.
- Lip corner vertical displacements:
  $r_{left} = \frac{D_{left} - D_{left0}}{D_{left0}}, \quad r_{right} = \frac{D_{right} - D_{right0}}{D_{right0}}$
  where $D_{left}$ and $D_{right}$ denote vertical distances from the left and right lip corners to the inner eye corner line.
- Top and bottom lip vertical motion:
  $r_{top} = \frac{D_{top} - D_{top0}}{D_{top0}}, \quad r_{btm} = \frac{D_{btm} - D_{btm0}}{D_{btm0}}$
  where $D_{top}$ and $D_{btm}$ denote vertical distances from the upper and lower lip margins to the eye baseline.
- Nose wrinkle state: Binary flag $S_{nosew} \in \{0, 1\}$ indicating presence ( $1$ ) or absence ( $0$ ).
- Nasolabial furrow angles: Continuous angles $Angle_{left}$ and $Angle_{right}$ relative to the eye baseline. Due to high inter-subject anatomical variation, these angles are omitted from cross-subject classification networks, yielding a 7-dimensional cross-subject lower face feature vector.
Knowl 4 — Detection of Transient Furrows and Facial Wrinkles
model/method
Transient facial features are classified into binary states (present vs. absent) based on Canny edge detection within regions determined by permanent feature positions:
- Nose Wrinkles: Evaluated inside a square bounding box situated between the two inner eye corners.
- Crows-Feet Wrinkles: Evaluated inside rectangular regions located lateral to each outer eye corner.
For nose wrinkles and crows-feet wrinkles, the count of detected edge pixels in the current frame $E$ is compared against the baseline edge pixel count $E_0$ of the neutral initial frame. Furrows are marked as present if:
$\frac{E}{E_0} > T$
where $T$ is a detection threshold; otherwise they are absent.
- Nasolabial Furrows: Evaluated in the facial zone between the inner eye corners horizontal line and the lip corners horizontal line. Presence is determined by extracting continuous diagonal edges, and the angle of the furrow relative to the eye corner baseline is computed.
Knowl 5 — Neural Network Architecture for Action Unit Classification
model/method
Action unit recognition is implemented using three-layer feedforward neural networks (multi-layer perceptrons) with one hidden layer:
- Upper Face Network: Receives the 15 normalized upper face parameters. For single AU classification, the network uses 6 hidden units and 7 output nodes corresponding to AU0 (neutral), AU1 (inner brow raiser), AU2 (outer brow raiser), AU4 (brow lowerer), AU5 (upper lid raiser), AU6 (cheek raiser), and AU7 (lid tightener). For recognizing combinations, the hidden layer is increased to 12 hidden units to allow multiple output nodes to fire concurrently.
- Lower Face Network: Receives the 7 normalized lower face parameters ( $r_{height}, r_{width}, r_{left}, r_{right}, r_{top}, r_{btm}, S_{nosew}$ ). The output layer contains 11 nodes corresponding to AU0 (neutral), AU9 (nose wrinkler), AU10 (upper lip raiser), AU12 (lip corner puller), AU15 (lip corner depressor), AU17 (chin raiser), AU20 (lip stretcher), AU25 (lips part), AU26 (jaw drop), AU27 (mouth stretch), and the combined unit AU23+24 (lip tightener and presser).
Knowl 6 — Upper Face Action Unit Recognition Performance
empirical result
The upper face AU recognition system was evaluated on image sequences from 24 Caucasian subjects (236 total sequences: 99 containing single AUs and 137 containing AU combinations):
- On single AU sequences with novel subjects absent from the training set ( $TrainS3 / TestS3$ ), the classifier achieved an average recognition rate of $92.9\%$ with zero false alarms.
- When tested on complex AU combinations using a 7-output network modeling individual AUs ( $TrainC1 / TestC1$ ), the system achieved an average recognition rate of $95.0\%$ with a false alarm rate of $6.4\%$ .
- When nonadditive combinations (AU1+2, AU1+4, AU4+5, AU1+2+4) were explicitly assigned dedicated output units (11 outputs total), average recognition accuracy was $93.7\%$ with a $4.5\%$ false alarm rate, indicating that separate combinatorial outputs do not improve recognition accuracy over multi-label basic AU modeling.
Knowl 7 — Lower Face Action Unit Recognition Performance
empirical result
Lower face action unit recognition was evaluated on the Pitt-CMU database across 463 image sequences from 122 subjects (65% female, 35% male; 85% European-American, 15% African-American or Asian) using 400 sequences (1220 frames) for training and 63 sequences (243 frames) for testing:
- When modeling 11 basic lower face AUs, the system achieved an average recognition rate of $96.30\%$ across 243 test tokens.
- When explicitly modeling nonadditive combination classes (such as AU9+17 and AU10+17), the recognition rate increased slightly to $96.71\%$ .
- Perfect recognition ( $100\%$ ) was achieved on AU0, AU9, AU12, AU15, AU20, AU25, AU27, and AU23+24.

Knowl 8 — Upper Face Action Unit Combination Performance Breakdown

data/table

The table below displays classification performance for upper face AU combination sequences on the $TestC1$ test partition (94 total target action unit occurrences) using the 7-output individual AU neural network architecture:

AU	No.	Correct	False	Missed	Confused	Recognition Rate
0	22	22	-	-	-	100%
1	18	18	-	-	-	100%
2	12	12	2	-	-	100%
4	10	10	4	-	-	100%
5	10	7	-	1	2	70.0%
6	14	12	-	2	-	85.7%
7	8	8	-	-	-	100%
Total	94	89	6	3	2	95.0%

The overall average recognition accuracy is $95.0\%$ , with an overall false alarm rate of $6.4\%$ . The majority of false alarms arise when single AU tokens trigger secondary outputs during nonadditive combination presentations (such as AU2 triggering an AU1 output).

Knowl 9 — Lower Face Action Unit Performance Breakdown and Error Modes

data/table

The table below shows the lower face action unit recognition results on the 243-token test set when nonadditive combinations are modeled:

AU	No.	Correct	False	Missed	Confused	Recognition Rate
0	63	63	-	-	-	100%
9	16	16	-	-	-	100%
10	12	11	-	1	-	91.67%
12	14	14	2	-	-	100%
15	12	12	-	-	-	100%
17	36	34	-	-	2 (AU12)	94.44%
20	12	12	-	-	-	100%
25	50	50	5	-	-	100%
26	14	9	-	-	5 (AU25)	64.29%
27	8	8	-	-	-	100%
23+24	6	6	-	-	-	100%
Total	243	235	7	1	7	96.71%

Specific failure modes include:

AU26 (jaw drop): Recognized at $64.29\%$ ; all misidentifications are confusions with AU25 (lips part) because both involve parted lips, and the parametric representation does not explicitly measure mandible tracking.
AU10 and AU17: Confusions occur exclusively during AU10+17 co-occurrence, where combined muscle contraction alters local feature morphology and few training examples (10 out of 1220 frames) were present.

Coverage note — No substantial contributed material was omitted from the extraction.
