HOLD: Category-Agnostic 3D Reconstruction of Interacting Hands and Objects from Video

Zicong FanMaria ParelliMaria Eleni KadoglouXu ChenMuhammed KocabasMichael J. BlackOtmar Hilliges

article2024CVPR69 citationsCVPR 2024 Highlight

Presents HOLD, the first category-agnostic approach to jointly reconstruct 3D articulated hands and arbitrary manipulated objects from monocular video using compositional neural implicit models and physical interaction constraints without requiring 3D annotations or pre-scanned object templates.

Listen

Capturing realistic three-dimensional (3D) representations of human hands interacting with physical objects is essential for virtual reality, robotics, and behavioral modeling. However, existing computer vision approaches face significant hurdles: they typically require pre-scanned 3D geometric templates of the objects, rely on constrained multi-view camera rigs, assume rigid non-articulated hands, or depend heavily on supervised models limited to a small set of pre-trained object classes. These dependencies severely restrict their practical use in unconstrained real-world environments.

The article demonstrates that high-quality, category-agnostic 3D surfaces of both articulated hands and arbitrary manipulated objects can be jointly reconstructed directly from standard monocular (single-camera) video recordings without requiring any pre-scanned object templates, prior category knowledge, or 3D training annotations.

The researchers developed an approach named HOLD (Hand and Object reconstruction by Leveraging interaction constraints in three Dimensions). The framework initializes hand and object poses using standard 2D hand regression and classical structure-from-motion techniques. It then constructs a compositional implicit neural representation that simultaneously models the articulated hand, the object, and dynamic background elements. Hand and object poses are iteratively refined by enforcing physical contact and spatial alignment constraints, after which the neural model is fully trained to produce fine geometric detail. The approach was validated quantitatively on benchmark laboratory datasets (HO3D-v3) and qualitatively across newly collected real-world video sequences featuring diverse lighting, indoor and outdoor settings, and both static and moving first-person (egocentric) views.

The evaluation yielded several key findings. First, HOLD significantly outperformed existing state-of-the-art baselines in object surface accuracy and spatial positioning: on benchmark data, it achieved a Chamfer distance of 0.4 cm² compared to 3.8–4.3 cm² for baselines, an F-score of 96.5% compared to 68.8–75.8%, and cut hand pose errors down to 24.2 mm. Second, while prior category-dependent models suffered major performance degradation on novel objects (dropping from 83.5% to 57.8% F-score), HOLD maintained consistently high accuracy (above 95% F-score) across both familiar and completely unseen items. Third, ablation analyses confirmed that jointly modeling the hand and object provides critical complementary cues; omitting hand modeling led to severe object artifacts such as holes at grasp points, while omitting contact-based pose refinement resulted in large spatial misalignments.

These findings establish that high-fidelity 3D interaction capture can be achieved from consumer-grade monocular video (such as a smartphone camera) without expensive 3D scanning equipment or restrictive training datasets. This substantially lowers the cost, hardware requirements, and complexity of digitizing human interactions, making scalable deployment feasible for consumer augmented reality, spatial computing, and scalable robot imitation learning.

Organizations seeking to implement scalable 3D interaction capture should adopt joint hand-object modeling architectures and leverage contact-based constraints rather than treating hand tracking and object reconstruction independently. Future development efforts should focus on integrating detector-free structure-from-motion to better handle thin or featureless items, incorporating generative 2D priors to hallucinate unobserved object surfaces, and adopting faster rendering primitives (such as Gaussian splatting) to reduce computational overhead.

The findings are supported by strong benchmark metrics and convincing qualitative demonstrations across diverse in-the-wild video feeds. Nonetheless, decision-makers should recognize current limitations: the initialization pipeline struggles with textureless or extremely thin objects where structure-from-motion fails, fully unobserved object regions cannot be reconstructed from visual data alone, and full-sequence neural optimization currently requires substantial graphics processing time (approximately 10 hours on high-end hardware).

ETH ZurichMax Planck Institute for Intelligent Systems3d reconstructionreconstructionvideo streamshand-object reconstructioncategory-agnostic interaction reconstructionmonocular interaction video
arXiv: 2311.18448

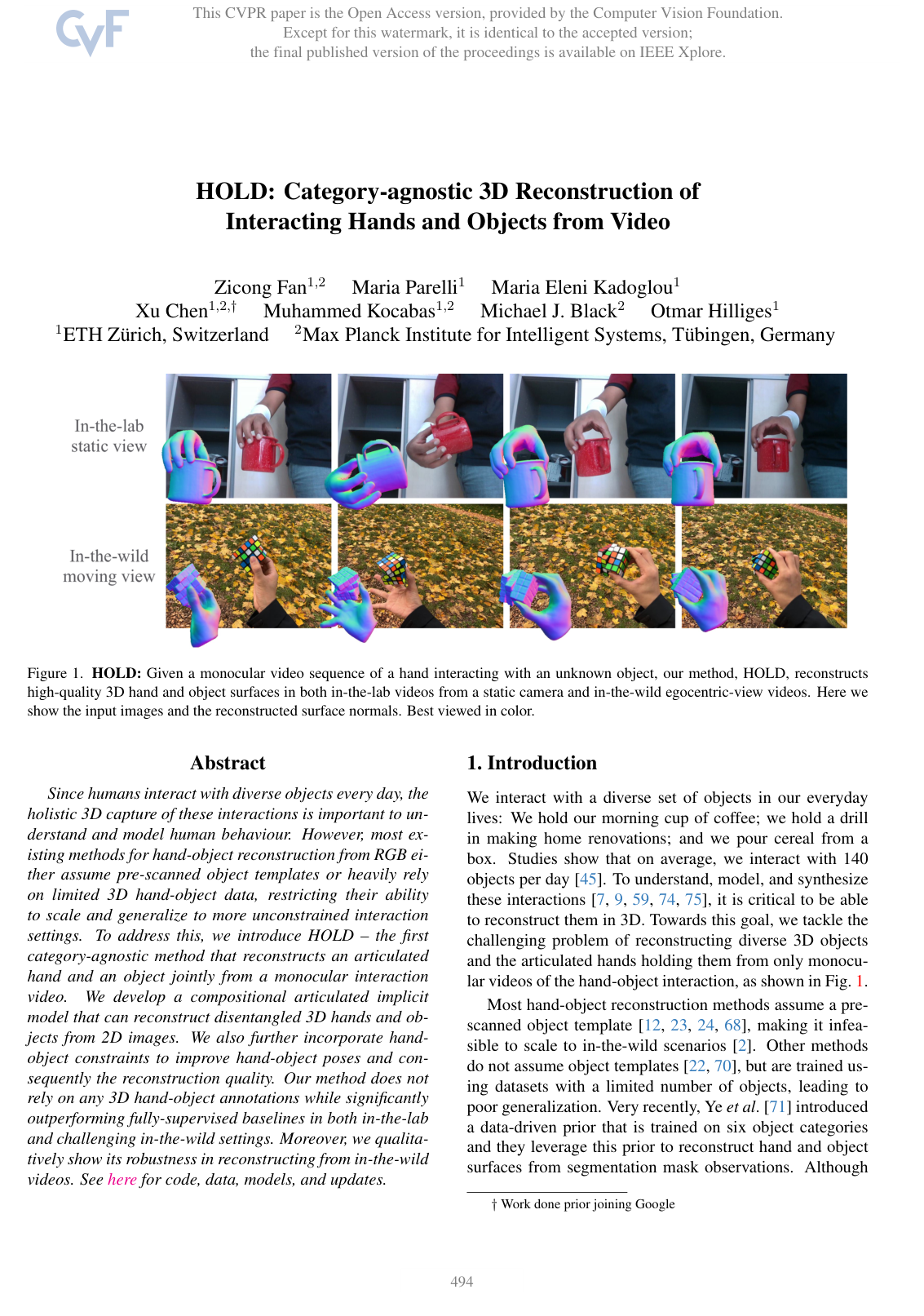

Cover for HOLD: Category-Agnostic 3D Reconstruction of Interacting Hands and Objects from Video

Abstract

Since humans interact with diverse objects every day, the holistic 3D capture of these interactions is important to understand and model human behaviour. However, most existing methods for hand-object reconstruction from RGB either assume pre-scanned object templates or heavily rely on limited 3D hand-object data, restricting their ability to scale and generalize to more unconstrained interaction settings. To address this, we introduce HOLD – the first category-agnostic method that reconstructs an articulated hand and an object jointly from a monocular interaction video. We develop a compositional articulated implicit model that can reconstruct disentangled 3D hands and objects from 2D images. We also further incorporate hand-object constraints to improve hand-object poses and consequently the reconstruction quality. Our method does not rely on any 3D hand-object annotations while significantly outperforming fully-supervised baselines in both in-the-lab and challenging in-the-wild settings. Moreover, we qualitatively show its robustness in reconstructing from in-the-wild videos. See here for code, data, models, and updates.

Topics

3d reconstructionreconstructionvideo streams

Keywords

hand-object reconstructioncategory-agnostic interaction reconstructionmonocular interaction videohand trackinghand pose estimationvolumetric renderingHO3D datasethand-relative Chamfer

Table of Contents

  • 1. Introduction
  • 2. Related Work
  • 3. Method: HOLD
  • 3.1. Pose initialization
  • 3.2. HOLD-Net training
  • 3.2.1 HOLD-Net
  • 3.2.2 Training losses
  • 3.3. Pose refinement
  • 3.4. Final training
  • 4. Experiments
  • 4.1. State-of-the-art comparison
  • 4.2. Ablation
  • 5. Conclusion
  • References

Knowls

  1. Knowl 1 — Category-agnostic joint reconstruction pipeline

    model/method

    HOLD reconstructs an articulated hand and an unknown rigid object jointly from a monocular RGB interaction video. It requires neither a pre-scanned object template, a known object category, nor 3D hand–object annotations. The output consists of disentangled 3D hand and object surfaces, canonical geometries shared across video frames, and frame-specific hand and object poses.

    The pipeline has four stages: (1) initialize hand and object poses from off-the-shelf estimators; (2) briefly train a compositional implicit model, HOLD-Net, using the noisy poses; (3) refine the hand–object poses using contact and image-alignment constraints; and (4) retrain HOLD-Net with the refined poses to obtain the final geometries. The central modeling assumption is that hand shape, object shape, and their physical interaction provide complementary evidence for resolving monocular shape and depth ambiguities.

  2. Knowl 2 — Pose initialization without an object template

    model/method

    For every video frame, HOLD initializes the hand with an off-the-shelf hand pose estimator, obtaining MANO pose parameters theta in R^{48}, hand shape parameters beta, and hand translation t_h in R^3. The 48-dimensional pose includes the global hand orientation.

    Because no category-level object pose estimator is assumed, HOLD first removes the hand and other pixels using an off-the-shelf segmentation model. It applies HLoc-based structure-from-motion to the resulting object-only images, producing an object point cloud and per-frame object rotation R_o in SO(3) and translation t_o in R^3. Structure-from-motion determines the object only up to an unknown scale s in R.

    HOLD aligns the hand and object coordinate systems and estimates ss by optimizing the per-frame translations {t_h,t_o}, global hand shape beta, and object scale ss. The optimization encourages hand–object contact while requiring the projected hand joints and reconstructed object points to agree with their original 2D image projections. This initialization is category-agnostic but depends on structure-from-motion producing a usable object point cloud.

  3. Knowl 3 — Compositional canonical implicit representations

    model/method

    HOLD-Net represents the hand and object with separate canonical signed-distance and RGB texture fields, allowing their surfaces to be disentangled while sharing observations across frames. The hand field is an MLP with learnable parameters psi_h:

    f_h: R^3 to R times R^3, qquad x mapsto (d_h(x),c_h(x)),

    where x in R^3 is a canonical-space point, d_h(x) in R is its signed distance to the hand surface, and c_h(x) in R^3 is its RGB color. The hand field is conditioned on MANO pose theta and translation t_h. A point x' in R^3 in the posed observation space is mapped to canonical space by inverse linear blend skinning:

    x=(∑i=1nbwi(x′)Bi)−1x′,x=\left(\sum_{i=1}^{n_b}w_i(x')\mathbf B_i\right)^{-1}x',

    where nbn_b is the number of MANO bones, B_i is the bone transformation computed from theta, and wi(x′)w_i(x') is the skinning weight assigned to the deformed point. The weights are obtained from the distance-weighted skinning weights of the KK nearest MANO vertices.

    The object field has learnable parameters psi_o and a per-frame 32-dimensional latent code z_o in R^{32}:

    f_o: R^3 times R^{32} to R times R^3, qquad (x,z_o) mapsto(d_o(x,z_o),c_o(x,z_o)).

    For object scale ss, rotation R_o, translation t_o, and observation-space point x', the canonical object point is

    x=(sRo)−1(x′−to).x=(s\mathbf R_o)^{-1}(x'-t_o).

    The latent code zoz_o accounts for appearance changes caused by pose, occlusion, and shadows. A separate background field with learnable parameters psi_b models the dynamic scene and partially visible body regions; it takes a point xx, viewing direction v in R^3, and a distinct per-frame code z_b in R^{32}, and predicts signed distance and RGB color. The hand and object canonical geometries are time-independent across frames, whereas the object appearance and background are allowed to vary.

  4. Knowl 4 — Compositional volumetric rendering of hand, object, and background

    model/method

    For each camera ray rr with camera center oo and viewing direction vv, HOLD-Net independently samples points for the hand and object using error-bounded sampling. Hand samples are mapped to canonical space by inverse skinning, object samples by the rigid transformation, and background samples by the background parameterization. Signed distances are converted to volume densities sigma using the cumulative distribution function of a scaled Laplace distribution with positive learnable scale parameters.

    The hand and object samples are merged and sorted by depth. If the merged samples are indexed by i=1, ldots,2n, with density sigma_i, RGB color cic_i, and inter-sample distance delta_i, the foreground color is

    C_F(r)=\sum_{i=1}^{2n}\tau_i c_i, qquad \tau_i=\exp\left(-\sum_{j<i}\sigma_j\delta_j\right)\left(1-\exp(-\sigma_i\delta_i)\right).

    Here tau_i is the rendering weight of sample ii. The foreground occupancy probability is MF(r)=∑i=12nτiM_F(r)=\sum_{i=1}^{2n}\tau_i, and if CB(r)C_B(r) is the independently rendered background color, the final pixel color is

    C(r)=CF(r)+(1−MF(r))CB(r).C(r)=C_F(r)+(1-M_F(r))C_B(r).

    Accumulating only hand samples or only object samples produces amodal hand and object mask probabilities Mh(r)M_h(r) and Mo(r)M_o(r). Replacing each sample color with a one-hot class vector similarly produces per-pixel probabilities for hand, object, and background. These separate rendered quantities enable RGB supervision, semantic disentanglement, and sparsity constraints even when one surface occludes the other.

  5. Knowl 5 — Multi-term self-supervised training objective

    equation

    HOLD-Net is trained from RGB video, rendered masks, and geometric priors rather than 3D hand–object annotations. The optimized parameters include the hand, object, and background field parameters {\psi_h,\psi_o,\psi_b}; frame-specific pose, translation, and latent parameters {\theta,t_h,R_o,t_o,z_o,z_b}; and global hand-shape and object-scale parameters {\beta,s}.

    For rays rr sampled from the input images, the RGB term compares rendered color C(r)C(r) with observed color C^(r)\hat C(r), and the segmentation term compares the rendered three-class probability S(r)S(r) with the one-hot segmentation label S^(r)\hat S(r):

    \mathcal L_{\mathrm{rgb}}=\sum_r\lVert C(r)-\hat C(r)\rVert, qquad \mathcal L_{\mathrm{segm}}=\sum_r\lVert S(r)-\hat S(r)\rVert.

    For canonical hand points x∈Xx\in\mathcal X, where X is a random set of points sampled uniformly and near surfaces, the hand signed-distance prediction dh(x)d_h(x) is regularized toward the signed distance SDF⁡MANO(x)\operatorname{SDF}_{\mathrm{MANO}}(x) of a Loop-subdivided MANO mesh:

    Lsdf=∑x∈X∥dh(x)−SDF⁡MANO(x)∥.\mathcal L_{\mathrm{sdf}}=\sum_{x\in\mathcal X}\lVert d_h(x)-\operatorname{SDF}_{\mathrm{MANO}}(x)\rVert.

    An eikonal loss regularizes the gradients of the canonical hand and object signed-distance fields. A sparsity loss suppresses hand occupancy on rays rr in a set Fh\mathcal F_h whose closest point is farther than a threshold from the MANO mesh, and object occupancy on rays rr in a corresponding set Fo\mathcal F_o defined from a periodically extracted object mesh:

    Lsparse=∑r∈Fh∥Mh(r)∥+∑r∈Fo∥Mo(r)∥.\mathcal L_{\mathrm{sparse}}=\sum_{r\in\mathcal F_h}\lVert M_h(r)\rVert+\sum_{r\in\mathcal F_o}\lVert M_o(r)\rVert.

    The total objective is

    L=Lrgb+λsegmLsegm+λsdfLsdf+λsparseLsparse+λeikonalLeikonal,\mathcal L=\mathcal L_{\mathrm{rgb}}+\lambda_{\mathrm{segm}}\mathcal L_{\mathrm{segm}}+\lambda_{\mathrm{sdf}}\mathcal L_{\mathrm{sdf}}+\lambda_{\mathrm{sparse}}\mathcal L_{\mathrm{sparse}}+\lambda_{\mathrm{eikonal}}\mathcal L_{\mathrm{eikonal}},

    where each lambda is a loss weight. Because automatic segmentation is noisy, HOLD gradually decreases lambda_{\mathrm{segm}} during training while increasing lambda_{\mathrm{sdf}} and lambda_{\mathrm{sparse}}.

  6. Knowl 6 — Contact-based pose refinement and final reconstruction

    algorithm

    HOLD refines pose after a short pretraining stage has produced a coarse object surface. Jointly learning poses and shapes from the beginning is inefficient because each frame receives training signals only when it is sampled, so the coarse learned object mesh is instead used for a separate pose-refinement stage.

    The refinement optimizes hand translation tht_h, object rotation RoR_o, object translation tot_o, hand shape beta, and object scale ss using the extracted object mesh and the MANO hand model. Let VtipsiV_{\mathrm{tips}}^i be frequently contacting hand vertices and VojV_o^j be object vertices. The contact loss is

    Lcontact=∑imin⁡j∥Vtipsi−Voj∥.\mathcal L_{\mathrm{contact}}=\sum_i\min_j\lVert V_{\mathrm{tips}}^i-V_o^j\rVert.

    Soft Rasterizer renders amodal hand and object masks, and an occlusion-aware mask loss aligns those projections with the segmentation masks. The contact term reduces relative hand–object depth ambiguity, while the mask term improves 2D image alignment.

    After refinement, HOLD fully retrains the implicit fields with the refined poses. The shape and background networks and the object and background latent codes are reinitialized and trained from scratch to prevent artifacts caused by inaccurate poses during pretraining. The final training uses the same loss formulation as pretraining but runs for twice as many epochs; in the reported implementation, pretraining uses 100 epochs and final training uses 200 epochs.

  7. Knowl 7 — Evaluation protocol and implementation

    experimental setup

    HOLD is evaluated on HO3D-v3 and on a newly captured HOLD dataset. HO3D-v3 contains RGB videos of articulated hands manipulating rigid objects, with MANO parameters and 6D object poses. Because the HO3D test annotations are unavailable, evaluation uses two annotated training sequences per object: one selected to match prior work and one random sequence in which the hand and object remain visible. Banana and scissors are excluded from the main evaluation because structure-from-motion fails on their textureless or thin structures.

    The HOLD dataset contains household-object videos recorded with an iPhone 14 in indoor and outdoor scenes, using both moving first-person views and static third-person views under varied lighting. Videos are downsampled by retaining every tenth frame. Qualitative results show that HOLD reconstructs diverse objects and articulated hands in both static and moving egocentric views despite changing backgrounds and illumination.

    Hand accuracy is measured by root-relative mean-per-joint error (MPJPE) in millimeters. Object shape is measured by Chamfer distance (CD) in squared centimeters and F-score at 5 mm and 10 mm, reported as F5 and F10 percentages. For canonical object-shape evaluation, iterative closest point alignment to the ground-truth mesh allows scale, rotation, and translation. Hand-relative Chamfer distance CDhCD_h is computed after subtracting the predicted hand-root position from each object mesh, thereby measuring the object’s shape and position relative to the hand.

    Each sequence is optimized with Adam using 10 randomly sampled images per iteration and gradient clipping. Initial training takes approximately 10 hours for 100 epochs on an A100 GPU; final training uses 200 epochs. Hand and object masks are obtained with SAM-track, initialized by point prompts in the first frame.

  8. Knowl 8 — Performance on annotated hand–object reconstruction

    data/table

    On the HO3D evaluation sequences, HOLD achieves lower hand-pose error and object reconstruction error, higher local-shape F-score, and more accurate hand-relative object placement than the compared methods. The comparison is particularly notable because HOMan assumes a ground-truth object template, iHOI uses 3D annotations of test objects during training, whereas HOLD and DiffHOI do not use such test-object information.

    Could not parse LaTeX table

    HOLD also produces visibly finer geometry and more accurate poses than the baselines, including details such as mug handles and car frames. It remains qualitatively stable across in-the-lab and in-the-wild videos, varied backgrounds and lighting, and moving egocentric cameras.

  9. Knowl 9 — Category generalization and canonical object scanning

    data/table

    HOLD maintains its reconstruction quality on object categories outside the training distribution of DiffHOI, whereas DiffHOI degrades substantially on those unseen categories. HOLD also outperforms an in-hand object-scanning method on canonical object shape and local details.

    For objects belonging to DiffHOI’s training categories, the reported results are:

    Could not parse LaTeX table

    For canonical object scanning, comparison with Hampali et al. uses the released object point clouds because their implementation is unavailable:

    Could not parse LaTeX table

    These results support the claim that HOLD does not merely retrieve a category prior: it reconstructs instance-specific object details, including objects outside the categories represented by competing training data.

  10. Knowl 10 — Ablation evidence for joint modeling and contact refinement

    empirical result

    Ablations show that both hand modeling and contact-based pose refinement materially improve reconstruction. In the no-hand variant, the hand is masked from every frame and only an object network is trained. This produces a small degradation in object metrics and can leave a hole near the grasping region because the object field must explain pixels that actually belong to the occluding hand. Omitting pose refinement leaves the hand and object spatially misaligned under monocular depth ambiguity and greatly worsens their hand-relative placement.

    Could not parse LaTeX table

    The full model therefore improves not only the isolated object surface but also the relative 3D arrangement of the hand and object.

  11. Knowl 11 — Stated limitations

    limitation

    HOLD’s category-agnostic reconstruction remains limited in three situations. First, thin or textureless objects can defeat the detector-based structure-from-motion used for object-pose initialization; detector-free structure-from-motion is suggested as a possible remedy. Second, rarely observed object regions may be poorly reconstructed because the method relies on RGB supervision and receives little evidence for those surfaces; stronger shape priors could help. Third, sequence-specific neural implicit training is computationally expensive, and faster scene representations are identified as a possible way to reduce training time.

Coverage note — No substantial contributed material was deliberately omitted; implementation details and qualitative findings are included with the main method and evaluation knowls.
