ArtiBoost: Boosting Articulated 3D Hand-Object Pose Estimation via Online Exploration and Synthesis

Lixin YangKailin LiXinyu ZhanJun LvWenqiang XuJiefeng LiCewu Lu

article2022CVPR120 citations

Proposes an online synthetic data generation framework that adaptively samples and renders diverse, physically valid hand-object interactions based on training loss feedback to improve single-image 3D hand-object pose estimation.

Listen

Estimating the articulated three-dimensional poses of hands and objects from a single standard camera image is vital for applications in robotics and augmented reality. However, real-world data collection and manual annotation for this task are exceptionally difficult, slow, and expensive. Because human hands have high degrees of freedom and interact closely with objects, existing datasets suffer from limited diversity in hand poses, object configurations, and camera viewpoints.

The article demonstrates an online data enhancement framework called ArtiBoost, which systematically boosts hand-object pose estimation performance by continuously exploring and synthesizing diverse, physically plausible interaction data during model training.

The approach constructs a structured search space encompassing object types, anatomically valid hand grasp configurations, and camera viewpoints. Grasp poses are generated using contact constraints to ensure realism while preventing impossible hand-object intersections. Rather than generating a static synthetic dataset offline, the framework operates in real time alongside model training. It renders synthetic images, mixes them into batches of real images, and uses training error feedback to adaptively re-weight and sample difficult hand-object configurations that the machine learning model struggles to discern.

The findings show substantial improvements across standard benchmarks. Integrating ArtiBoost into standard classification and regression baseline models allowed them to outperform previous state-of-the-art architectures, improving hand pose error by approximately 10% to 28% on the HO3D benchmark. The contact-guided grasp synthesis significantly outperformed conventional offline grasp datasets. Crucially, a baseline model trained on only 10% of real annotated data combined with synthetic data achieved better accuracy than the same model trained on 100% of real annotated data.

These results demonstrate that online, targeted synthetic data generation can drastically lower the cost and operational bottlenecks associated with collecting massive real-world training datasets. By prioritizing harder examples and ensuring anatomical plausibility, machine learning systems can achieve higher precision and faster convergence without requiring overly complex neural network architectures.

Organizations developing vision-based manipulation or tracking systems should consider adopting dynamic, contact-aware data synthesis to augment scarce labeled data and reduce annotation costs. For deployment, engineering teams should evaluate integrating adaptive sampling into existing training pipelines.

The primary limitations include a persistent visual domain gap between synthetic renderings and real images, as well as dependence on a predefined lookup space rather than a fully differentiable rendering pipeline. Nonetheless, the experimental evidence strongly supports that increasing pose diversity via targeted online synthesis is a highly effective, reliable strategy for improving 3D hand-object pose estimation.

Shanghai Jiao Tong University Shanghai Qi Zhi Institute boosting object pose articulated 3D hand-object pose estimation hand-object reconstruction online exploration and synthesis

arXiv: 2109.05488 lixiny/ArtiBoost

Paper: Expressive Body Capture: 3D Hands, Face, and Body From a Single Image, Georgios Pavlakos et al. (2019). Presents expressive whole-body and articulated hand parametric modeling (SMPL-X) that underlies modern 3D hand representation and pose estimation from monocular images.
Paper: PoseCNN: A Convolutional Neural Network for 6D Object Pose Estimation in Cluttered Scenes, Yu Xiang et al. (2017). Establishes foundational CNN-based frameworks and loss formulations for 6D object pose estimation from RGB images in occluded settings.
Paper: Learning from Simulated and Unsupervised Images through Adversarial Training, Ashish Shrivastava et al. (2016). Demonstrates adversarial refinement methods to bridge the domain gap between synthetic and real data for 3D hand pose estimation.
Paper: Domain randomization for transferring deep neural networks from simulation to the real world, Josh Tobin et al. (2017). Introduces domain randomization as a core technique to train deep vision models on synthetic renderings for robust real-world transfer.
Paper: A Brief Introduction to Boosting, R. Schapire (1999). Provides the foundational algorithmic principles of boosting and adaptive sample reweighting that inspire ArtiBoost's loss-feedback data exploration pipeline.

Paper: ARCTIC: A Dataset for Dexterous Bimanual Hand-Object Manipulation, Zicong Fan et al. (2023). Provides a comprehensive real-world dataset of bimanual dexterous hand-object manipulation with accurate 3D contacts, extending the evaluation of articulated hand-object interaction beyond monocular synthetic exploration.
Paper: HOT3D: Hand and Object Tracking in 3D from Egocentric Multi-View Videos, Prithviraj Banerjee et al. (2025). Expands 3D hand-object pose and tracking research into egocentric, multi-view video settings across diverse real-world daily interactions.
Paper: Objaverse: A Universe of Annotated 3D Objects, Matt Deitke et al. (2022). Scales 3D object repositories to massive collections of annotated and articulable 3D assets that can directly empower synthetic data synthesis pipelines like ArtiBoost.

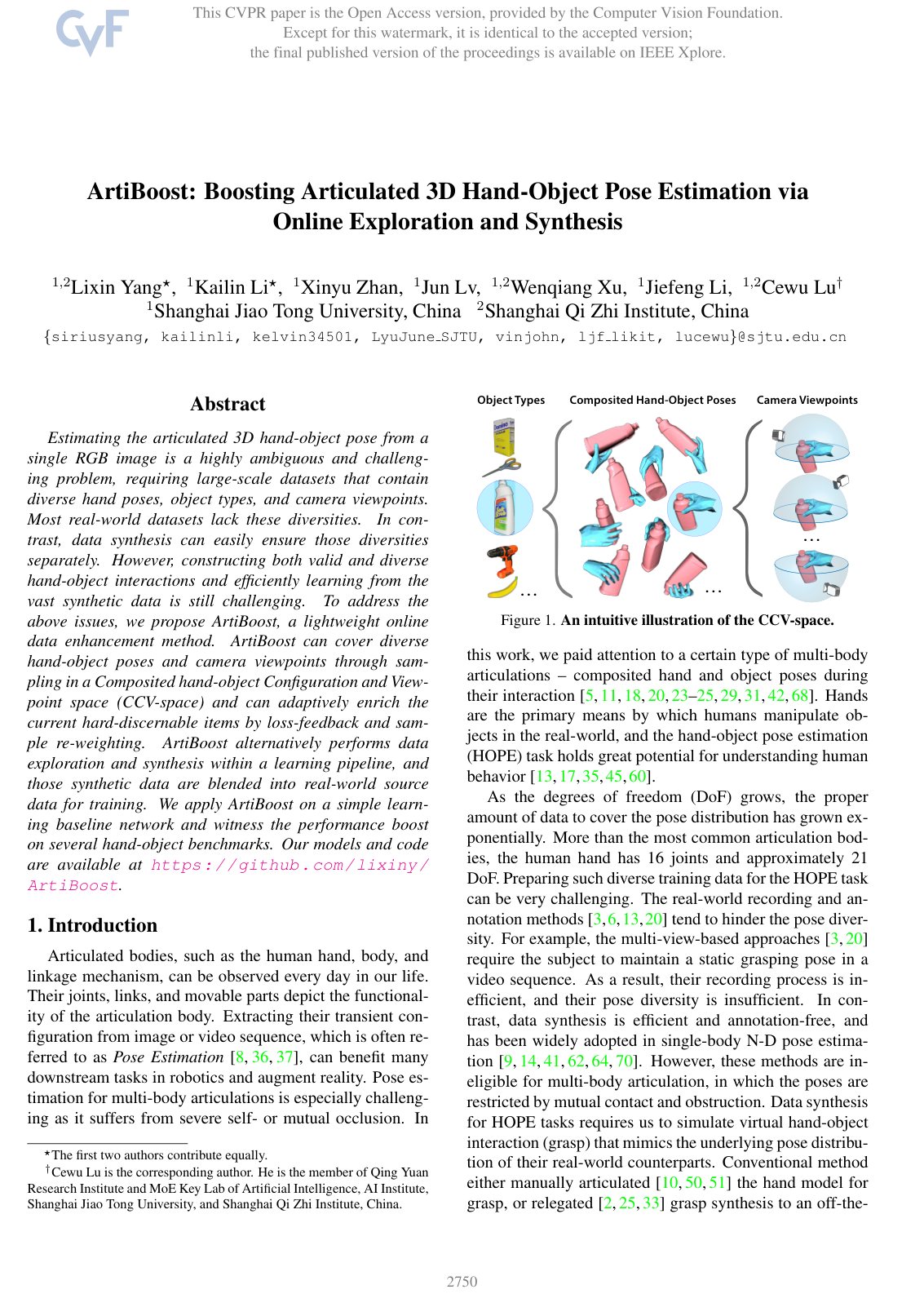

Cover for ArtiBoost: Boosting Articulated 3D Hand-Object Pose Estimation via Online Exploration and Synthesis

Abstract

Estimating the articulated 3D hand-object pose from a single RGB image is a highly ambiguous and challenging problem, requiring large-scale datasets that contain diverse hand poses, object types, and camera viewpoints. Most real-world datasets lack these diversities. In contrast, data synthesis can easily ensure those diversities separately. However, constructing both valid and diverse hand-object interactions and efficiently learning from the vast synthetic data is still challenging. To address the above issues, we propose ArtiBoost, a lightweight online data enhancement method. ArtiBoost can cover diverse hand-object poses and camera viewpoints through sampling in a Composited hand-object Configuration and Viewpoint space (CCV-space) and can adaptively enrich the current hard-discernable items by loss-feedback and sample re-weighting. ArtiBoost alternatively performs data exploration and synthesis within a learning pipeline, and those synthetic data are blended into real-world source data for training. We apply ArtiBoost on a simple learning baseline network and witness the performance boost on several hand-object benchmarks. Our models and code are available at https://github.com/lixiny/ArtiBoost.

Topics

boosting object pose

Keywords

articulated 3D hand-object pose estimation hand-object reconstruction online exploration and synthesis grasp synthesis synthetic grasps inverse kinematics

1. Introduction
2. Related Work
3. Method
3.1. Online Exploration in CCV-Space
3.2. Online Synthesis for HOPE task
3.3. Learning Framework
4. Experiment and Result
4.1. Dataset and Metrics
4.2. HOPE Network Performance
4.3. Ablation Study
4.4. Applications
5. Discussion
References

Knowls

Knowl 1 — ArtiBoost alternates online exploration, synthesis, and loss-guided training
model/method
ArtiBoost is a model-agnostic online data-enhancement method for articulated 3D hand-object pose estimation. Given a real training set $D_{\mathrm{real}}$ , a discrete lookup space $\mathcal{C}$ of hand-object-viewpoint triplets, and a sampling-weight map $M$ , it repeatedly performs the following loop: (1) sample hand-object-viewpoint triplets from $\mathcal{C}$ according to $M$ ; (2) render the sampled triplets into labeled synthetic RGB images; (3) mix the synthetic images with real images in training batches; (4) train any HOPE network by forward and backward propagation; and (5) after each training epoch, update $M$ using the synthetic samples' pose-estimation losses. Thus, the data generator and the pose-estimation model communicate during training, causing later synthetic batches to emphasize triplets that are difficult for the current model. The method is integrated by modifying the data loader rather than the network architecture.
Knowl 2 — Composited hand-object configuration and viewpoint space
definition
The Composited Configuration and Viewpoint space (CCV-space) is a finite representation of the HOPE input domain. It contains object type, valid hand-object configuration, and camera viewpoint as three discrete dimensions:
$\mathcal{S}=\{(n_o,n_p,n_v)\in\mathbb{N}_{+}^{3}\mid n_o\leq N_o,\;n_p\leq N_p,\;n_v\leq N_v\}.$
Here, $N_o$ is the number of object types, $N_p$ is the number of stored interacting hand poses per object, $N_v$ is the number of camera viewpoints, and $(n_o,n_p,n_v)$ denotes observing the $n_p$ -th hand-object configuration for object $n_o$ from viewpoint $n_v$ . Object type and hand pose are deliberately coupled: a valid grasp depends on the geometry of the selected object, so the space stores composited hand-object configurations rather than independently combining arbitrary objects and hand poses.

Camera directions are sampled uniformly on the unit sphere using $u\sim U[-1,1]$ and $\phi\sim U[0,2\pi]$ :
$\mathbf{n}_v=\left(\sqrt{1-u^2}\cos\phi,\;\sqrt{1-u^2}\sin\phi,\;u\right)^{\mathsf T},$
where $\mathbf{n}_v$ is the viewpoint direction. The implementation uses $N_u=12$ elevation samples and $N_\phi=24$ azimuth samples, giving $N_v=288$ viewpoints. It fits 300 candidate interactions per object, manually removes severely intersecting or unnatural grasps, and retains at most $N_p=100$ poses per object. For the 20 objects in DexYCB, this yields $20\times100\times288=576{,}000$ possible triplets.
Knowl 3 — Anatomically constrained hand configuration space
definition
ArtiBoost represents hand geometry with the MANO model but does not interpolate its unconstrained 48-dimensional joint-rotation space. Instead, it constructs a valid hand configuration space with 21 degrees of freedom using an axis-adapted twist-splay-bend coordinate system. The five non-metacarpal joint chains are restricted to bending, while the five metacarpal joints can bend and splay; twisting along the finger-pointing direction and splaying at non-metacarpal joints are prohibited. Within each finger, proximal and distal bending angles are linked, whereas metacarpal bending is independent. Different fingers are independent provided that these anatomical restrictions are respected. The resulting degrees of freedom comprise one splay angle and two independent bending degrees of freedom for each of five fingers, plus six wrist degrees of freedom.

The hand configuration is therefore described by the selected bending or splaying angles of 15 joints together with a wrist pose $\xi_w\in\mathrm{se}(3)$ , while MANO shape parameters remain separate. These restrictions are used both to avoid anatomically abnormal interpolations and to preserve visually plausible prehensile configurations.
Knowl 4 — Contact-guided synthesis of diverse hand-object grasps
model/method
ArtiBoost constructs the composited hand-object configuration space by fitting MANO hands to object contacts. An interaction is accepted only when the thumb and at least one other finger contact the object surface and the hand and object meshes do not intersect.

For each object, the synthesis procedure is: (1) construct an offset surface outside the object, uniformly sample wrist-control points $p_w$ , find the closest object vertex $v_o$ for each point, and use $v_o-p_w$ as the hand approach direction; initialize a prehensile hand resembling a parallel-jaw-gripper rest pose at $p_w$ ; (2) define the contact-feasible region between $v_o$ and the farthest object vertex reachable by the fingers, randomly select the thumb plus $N$ additional fingers with $1\leq N\leq4$ , choose a random minimum reaching radius $r_c$ , and pair each selected fingertip $p_f$ with a contact point $v_c$ satisfying $\|v_c-p_w\|_2\geq r_c$ and minimizing its distance to $p_f$ ; and (3) optimize the hand using an anchor-based, contact-based objective in which unattached fingertip anchors are attracted to their paired object contacts and intersecting anchors are pushed outward. Optimization is restricted to the valid 21-DoF hand configuration space, preserving the hand-pose constraints. The procedure generates 300 candidates per object before manual rejection of severe interpenetration and unnatural grasps, after which up to 100 diverse interacting poses are retained.
Knowl 5 — Loss-percentile sampling emphasizes hard CCV triplets
algorithm
ArtiBoost assigns every CCV-space triplet $i$ a nonnegative sampling weight $w_i$ in a map $M$ . Its sampling probability is
$p_i=\frac{w_i}{\sum_j w_j},$
where the sum is over all CCV-space triplets. Synthetic triplets are sampled according to the resulting multinomial distribution, with sampling performed without replacement within the current exploration batch.

After each training epoch, the method computes the wrist-aligned mean per joint position error $e_i$ for every synthetic sample. Let $e_{\min}$ and $e_{\max}$ be the minimum and maximum errors in that epoch. The normalized error percentile and multiplicative weight update are
$q_i=\frac{e_{\max}-e_i}{e_{\max}-e_{\min}},\qquad \delta w_i=\frac{1}{q_i+0.5}.$
The updated weight is the original weight multiplied by $\delta w_i$ , then clamped to the interval $[0.1,2.0]$ . Consequently, the sample with maximum error receives factor $2$ , while the sample with minimum error receives factor $2/3$ . High-loss, hard-to-discern triplets therefore become more likely in later exploration rounds, while already easy triplets are down-weighted without allowing the distribution to become arbitrarily imbalanced.
Knowl 6 — Online synthesis adds pose, viewpoint, shape, and appearance variation
model/method
Before rendering a sampled CCV triplet, ArtiBoost perturbs it while retaining the main validity constraints. The dependency between proximal and distal finger bending angles is relaxed for this disturbance, and Gaussian noise $\mathcal{N}(0,\sigma_1^2)$ is added to each of the 15 bending angles with $\sigma_1=3$ degrees. Gaussian noise $\mathcal{N}(0,\sigma_2^2)$ is added to the five metacarpal splay angles with $\sigma_2=1.5$ degrees. The perturbed hand is passed through the GrabNet RefineNet module to reduce newly introduced hand-object interpenetration. MANO shape parameters $\beta\in\mathbb{R}^{10}$ are sampled from the reported distribution $\mathcal{N}(0,0.5)$ .

For the camera, the elevation variable receives uniform noise $U(-\delta_u,\delta_u)$ with $\delta_u=0.05$ , the azimuth receives $U(-\delta_\phi,\delta_\phi)$ with $\delta_\phi=7.5$ degrees, and the in-plane camera rotation receives $U(0,2\pi)$ . Hand skin tone and texture are sampled using the HTML parametric hand-texture model; the paper reports that omitting HTML's shadow-removal operation produces more plausible results. PyRender composites the textured hand and object over COCO backgrounds onto $224\times224$ images. Rendering runs at approximately 120 frames per second per Titan X graphics card, allowing it to proceed in parallel with network training.
Knowl 7 — Classification and regression HOPE baselines share a four-term objective
model/method
ArtiBoost is evaluated with two simple HOPE networks, both using a ResNet-34 backbone. The classification model, Clas, predicts 22 volumetric heatmaps for 21 hand joints and the object centroid in a restricted $u$ - $v$ -depth coordinate system, applies soft-argmax, and converts the resulting coordinates to camera-space 3D points using camera intrinsics and the known wrist location. The regression model, Reg, uses multilayer perceptrons to predict MANO pose $\theta$ , MANO shape $\beta$ , the wrist-relative object centroid, and object rotation $r_o$ ; MANO converts $\theta$ and $\beta$ to wrist-relative hand joints, which are translated to camera space using the known wrist location.

Both models are trained with a weighted sum of location, object-corner, ordinal-depth, and symmetry-aware losses. For predicted points $p_i$ and ground-truth points $\hat p_i$ over the 21 hand joints plus object centroid, the location term is
$\mathcal{L}_{\mathrm{loc}}=\frac{1}{22}\sum_{i=1}^{22}\|p_i-\hat p_i\|_2^2.$
For the eight object corners, $\bar c_i$ is a canonical corner, $\hat c_i$ is its ground-truth camera-space position, and $\exp(r_o)$ is the predicted rotation matrix:
$\mathcal{L}_{\mathrm{cor}}=\frac{1}{8}\sum_{i=1}^{8}\|\exp(r_o)\bar c_i-\hat c_i\|_2^2.$
Let $c_j$ be a predicted object corner, $\mathbf n_\perp$ the viewing direction, and $\mathbb{1}\mkern-6mu 1^{\mathrm{ord}}_{i,j}$ equal to one when the predicted depth ordering of hand joint $p_i$ and corner $c_j$ disagrees with the ground truth and zero otherwise. The ordinal loss is
$\mathcal{L}_{\mathrm{ord}}=\sum_{j=1}^{8}\sum_{i=1}^{21}\mathds{1}^{\mathrm{ord}}_{i,j}\left|(p_i-c_j)\cdot\mathbf n_\perp\right|.$
For an object-specific symmetry set $\mathcal{S}$ of valid rotation matrices and ground-truth rotation $\hat r_o$ , the symmetry-aware term is
$\mathcal{L}_{\mathrm{sym}}=\min_{R\in\mathcal{S}}\frac{1}{8}\sum_{i=1}^{8}\left\|\exp(r_o)\bar c_i-\exp(\hat r_o)R\bar c_i\right\|_2^2.$
The final objective is
$\mathcal{L}_{\mathrm{HOPE}}=\mathcal{L}_{\mathrm{loc}}+\lambda_1\mathcal{L}_{\mathrm{cor}}+\lambda_2\mathcal{L}_{\mathrm{ord}}+\lambda_3\mathcal{L}_{\mathrm{sym}},$
where $\lambda_1,\lambda_2,\lambda_3$ are loss weights. For ordinary MPCPE evaluation the experiments use $\lambda_1=\lambda_2=1$ and $\lambda_3=0$ ; for symmetry-aware training they use $\lambda_1=\lambda_2=0$ and $\lambda_3=1$ .
Knowl 8 — Evaluation protocol covers three hand-object benchmarks and three pose metrics
experimental setup
The method is evaluated on FHAB, HO3D, HO3D v3, and DexYCB. FHAB contains approximately 20K manipulation samples; the action split used here has 10,503 training and 10,998 testing samples and is used mainly to verify the learning framework. HO3D testing is evaluated through its online server, while HO3D v3 uses its revised training/testing split. DexYCB contains 582K frames involving 20 YCB objects; the experiments use the official right-hand S0 split and remove frames whose minimum hand-object distance exceeds 5 cm.

Hand accuracy is measured by wrist-aligned mean per joint position error (MPJPE). Object accuracy is measured by mean per corner position error (MPCPE) and maximum symmetry-aware surface distance (MSSD). MPCPE evaluates a unique object pose, whereas MSSD compares the predicted pose with the closest pose under the object's rotational symmetries, which is more appropriate for symmetric or revolution-invariant objects and for objects heavily occluded by the hand.
Knowl 9 — ArtiBoost improves classification and regression baselines across benchmarks
empirical result
The reported benchmark comparisons show that adding ArtiBoost synthetic data improves both the classification and regression baselines. Errors are in millimeters for FHAB and DexYCB and centimeters for HO3D and HO3D v3. MPJPE and MPCPE are wrist-aligned unless otherwise stated.
Could not parse LaTeX table
Could not parse LaTeX table
With symmetry-aware training on HO3D, the reported values are MPJPE followed by MSSD for mustard bottle, bleach cleanser, and potted meat can: Hampali et al. achieves $2.57,4.41,6.03,9.08$ ; Clas sym achieves $3.10,4.07,6.56,8.70$ ; and Clas sym + ArtiBoost achieves $2.53,3.14,5.72,6.36$ cm. On DexYCB, Clas sym obtains MPJPE $13.00$ mm and MSSD values $74.95$ , $63.68$ , $88.10$ , and $91.66$ mm for power drill, cracker box, scissors, and bleach cleanser; Clas sym + ArtiBoost obtains $12.80$ mm and $52.70$ , $46.13$ , $66.52$ , and $72.31$ mm. On HO3D v3, Clas + ArtiBoost improves over Clas from MPJPE/MPCPE $2.94/7.53$ to $2.50/5.88$ cm, while Clas sym + ArtiBoost achieves the best reported MPJPE of $2.34$ cm and MSSD values $2.66$ , $5.23$ , and $5.82$ cm for the three listed object categories.
Knowl 10 — Ablations show that CCV diversity and online feedback are both important
empirical result
The ablations isolate the contributions of contact-guided CCV grasps, online re-weighting, and synthetic data volume. On HO3D, all values are in centimeters:
Could not parse LaTeX table
Using the same rendering pipeline and the same amount of synthetic data, CCV-space grasps outperform manually annotated YCBAfford grasps, supporting the paper's claim that valid and diverse interaction configurations matter more than simply adding grasp examples. The full method improves further through online re-weighting.

When only 10% of HO3D's real training data is used, Reg obtains $3.81/8.77$ MPJPE/MPCPE, whereas Reg with ArtiBoost obtains $3.29/6.87$ ; Clas obtains $3.63/7.66$ , whereas Clas with ArtiBoost obtains $3.05/6.02$ . Thus, synthetic data partly compensates for reduced real-world supervision, although the 100%-real-data Clas baseline remains at $3.06/7.24$ .

ArtiBoost also transfers to the camera-space hand-object model of Hasson et al. On HO3D v1, the reproduced baseline changes from MPJPE/MPCPE/ camera-space MPJPE $5.75/9.61/6.24$ to $3.67/3.24/3.57$ with ArtiBoost. On HO3D, it changes from $3.69/12.38/5.52$ to $3.39/8.31/4.90$ , all in centimeters. In the DexYCB convergence study, online re-weighting reaches lower MPJPE throughout training and finishes at approximately $12.80$ mm versus $12.95$ mm for fixed-weight offline sampling.
Knowl 11 — ArtiBoost does not explicitly solve the synthetic-to-real domain gap
limitation
The method does not explicitly mitigate the domain gap between rendered and real images. The authors attribute the dominant improvement to the greater diversity of hand-object pose variants rather than to more realistic rendered appearance. In addition, the renderer is non-differentiable, so the current method explores a predefined lookup table such as CCV-space rather than continuously optimizing the data distribution. The proposed future direction is a generative and contrastive model that learns features shared by real and synthetic images.

Coverage note — No other substantial load-bearing contribution was omitted; appendix implementation details and qualitative visualizations were not expanded into separate knowls because they add reproduction detail or illustration rather than a distinct methodological or quantitative contribution.
