Pointly-Supervised Instance Segmentation

Bowen ChengOmkar ParkhiAlexander Kirillov

article2022CVPR153 citations

Proposes a point-based annotation scheme combining bounding boxes with just ten labeled random points per object, allowing standard instance segmentation models to match up to 98% of fully supervised performance while cutting annotation time by five times.

Listen

High-performance computer vision systems for instance segmentation—the task of detecting objects and outlining their exact pixel boundaries—typically rely on full mask annotations. Manually drawing these pixel-level polygon masks is a severe operational bottleneck, taking roughly 79 seconds per object in standard datasets. While weakly supervised approaches using only bounding boxes reduce labeling time, they exhibit a substantial performance drop of 15% or more compared to fully supervised baselines. Consequently, organizations face high data acquisition costs and lengthy timelines when deploying segmentation models to new domains or object classes.

The article demonstrates a point-based annotation scheme that pairs object bounding boxes with binary labels for uniformly sampled points inside each box. The objective is to evaluate whether this low-cost supervision can train standard, off-the-shelf segmentation models to match full mask supervision performance across diverse datasets while drastically reducing labeling time and pipeline complexity.

To assess this strategy, the authors evaluated standard architectures (such as Mask R-CNN, CondInst, and PointRend) across multiple prominent benchmark datasets, including COCO, PASCAL VOC, Cityscapes, and LVIS. Instead of requiring human annotators to select click locations, the scheme automatically samples random coordinates within each box and prompts annotators to perform a simple binary choice: object or background. This setup enabled rigorous simulation across existing ground truth datasets, supplemented by real-world human timing trials using a custom labeling interface. The authors also introduced Implicit PointRend, an architectural variant tailored for point-level supervision that dynamically generates instance-specific parameters to predict masks from coordinates and image features.

The findings show that training Mask R-CNN with only 10 annotated random points per instance (termed P10) achieves 94% to 98% of its fully supervised performance across all tested datasets. Human annotator trials revealed that classifying a single point takes only 0.9 seconds, meaning a complete object annotation (a 7-second bounding box plus 10 points) requires 16 seconds—making the process approximately 5 times faster than standard polygon mask collection. Furthermore, the annotation scheme proved highly robust; the model retained performance even with a 5% label error rate or across different random point selections. In downstream evaluations, pre-training models on point-annotated data achieved 100% of the transfer performance of models pre-trained on full masks, and the proposed Implicit PointRend model trained on 10 points matched the absolute accuracy of fully supervised Mask R-CNN.

These results establish that complete manual mask delineation is largely unnecessary for achieving production-grade instance segmentation. For engineering and data operations, adopting point-supervised labeling can cut annotation labor budgets and lead times by up to 80% with minimal risk to model performance. The workflow eliminates the need for specialized interactive models or multi-stage pseudo-mask generation, enabling immediate integration into standard training pipelines through simple prediction interpolation.

Organizations initiating new vision labeling campaigns should transition from manual polygon tracing to a hybrid box-plus-point workflow, targeting approximately 10 random points per instance. Teams working with high-capacity backbones or implicit models should also incorporate point subsampling data augmentation to prevent overfitting. Where top-tier performance is required, self-training pipelines can be deployed to close the remaining gap to full supervision.

The findings are supported by consistent results across diverse domains ranging from autonomous driving scenes to large-scale vocabularies exceeding 1,000 categories. However, practitioners should note that labeling noise increases slightly around subtle object boundaries, and models with extremely coarse intermediate feature resolutions require architectural adaptations (such as Implicit PointRend) to fully exploit point-level supervisory signals.

Meta University of Illinois Urbana-Champaign automatic segmentations convolutional neural networks object detection pointly-supervised instance segmentation point supervision proposal-based instance segmentation

arXiv: 2104.06404

Paper: Mask R-CNN, Kaiming He et al. (2017). Mask R-CNN introduces the standard two-stage instance segmentation architecture and RoIAlign mechanism that the source directly uses as its primary baseline and benchmark for point-based supervision.
Paper: Per-Pixel Classification is Not All You Need for Semantic Segmentation, Bowen Cheng et al. (2021). MaskFormer establishes the unified mask classification paradigm that underpins modern query-based segmentation pipelines evaluated under point-level supervisory signals.
Paper: YOLACT: Real-Time Instance Segmentation, Daniel Bolya et al. (2019). YOLACT demonstrates single-stage dynamic instance mask generation via linear combination of prototypes, providing architectural foundations for implicit and dynamic segmentation heads.
Paper: Simple Copy-Paste is a Strong Data Augmentation Method for Instance Segmentation, Golnaz Ghiasi et al. (2020). Simple Copy-Paste provides foundational data augmentation strategies and low-data regime analysis for instance segmentation models.
Paper: Simultaneous Detection and Segmentation, Bharath Hariharan et al. (2014). This paper establishes the simultaneous detection and instance segmentation formulation that defines the problem domain simplified by pointly-supervised training.

Paper: Segment Anything, Alexander M. Kirillov et al. (2023). Segment Anything scales promptable segmentation using sparse inputs such as single points and bounding boxes to a foundational zero-shot segmentation paradigm.
Paper: Mask Transfiner for High-Quality Instance Segmentation, Lei Ke et al. (2022). Mask Transfiner extends sparse point-based computation by selectively processing error-prone boundary regions using a multi-scale quadtree and transformer refinement.
Paper: Masked-attention Mask Transformer for Universal Image Segmentation, Bowen Cheng et al. (2022). Mask2Former extends universal mask classification architectures with masked attention and point-sampled loss formulations across all standard segmentation tasks.
Paper: Token Contrast for Weakly-Supervised Semantic Segmentation, Lixiang Ru et al. (2023). Token Contrast investigates weak supervision alternatives using vision transformers to address regional over-smoothing without dense pixel masks.
Paper: Weakly Supervised Semantic Segmentation via Adversarial Learning of Classifier and Reconstructor, Hyeokjun Kweon et al. (2023). This work explores an alternative weakly supervised segmentation strategy using adversarial reconstruction to delineate accurate boundaries from minimal supervisory tags.

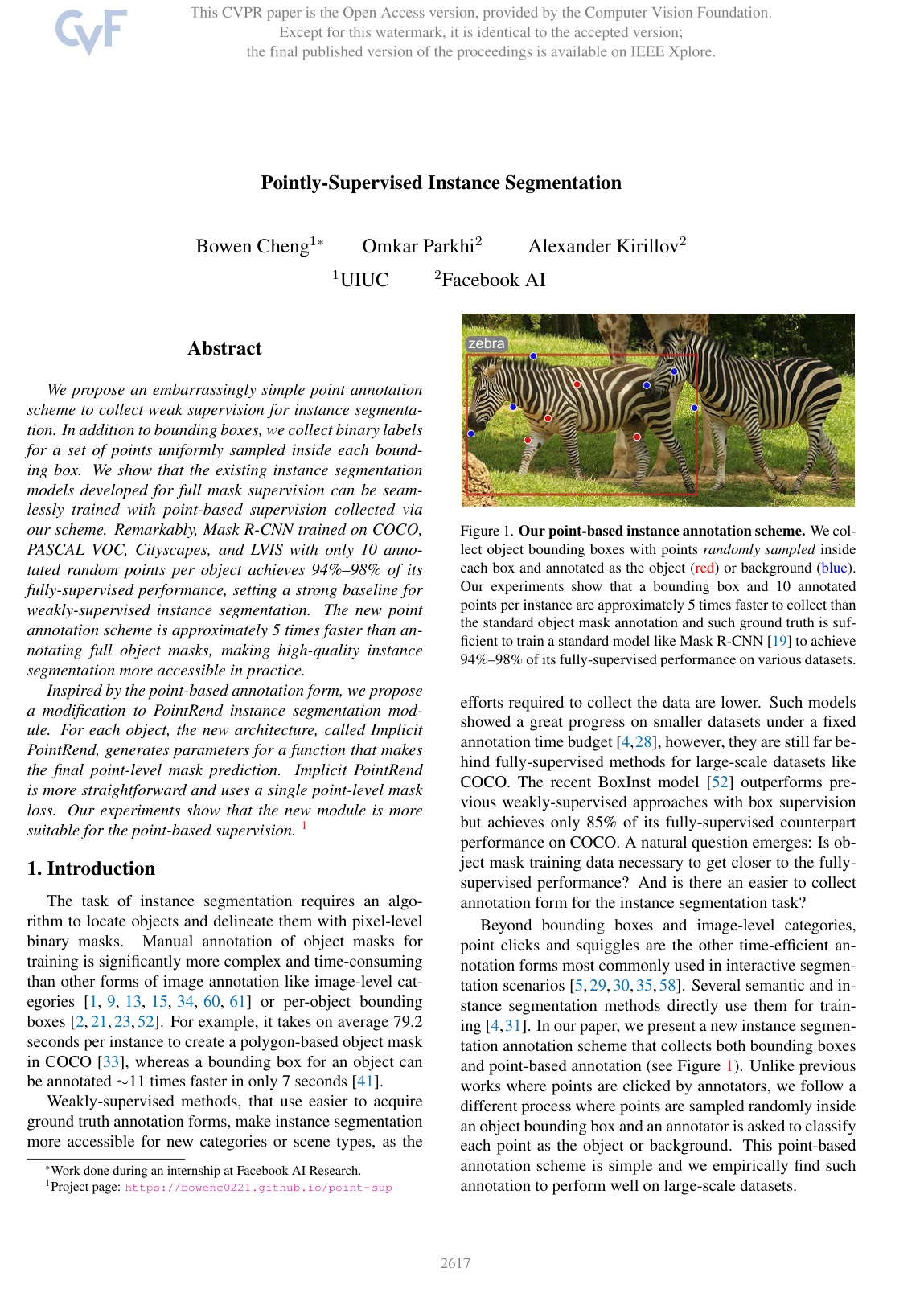

Cover for Pointly-Supervised Instance Segmentation

Abstract

We propose an embarrassingly simple point annotation scheme to collect weak supervision for instance segmentation. In addition to bounding boxes, we collect binary labels for a set of points uniformly sampled inside each bounding box. We show that the existing instance segmentation models developed for full mask supervision can be seamlessly trained with point-based supervision collected via our scheme. Remarkably, Mask R-CNN trained on COCO, PASCAL VOC, Cityscapes, and LVIS with only 10 annotated random points per object achieves 94%–98% of its fully-supervised performance, setting a strong baseline for weakly-supervised instance segmentation. The new point annotation scheme is approximately 5 times faster than annotating full object masks, making high-quality instance segmentation more accessible in practice.

Inspired by the point-based annotation form, we propose a modification to PointRend instance segmentation module. For each object, the new architecture, called Implicit PointRend, generates parameters for a function that makes the final point-level mask prediction. Implicit PointRend is more straightforward and uses a single point-level mask loss. Our experiments show that the new module is more suitable for the point-based supervision.

Topics

automatic segmentations convolutional neural networks object detection object segmentation segmentation methods architecture designs semantic information control point

Keywords

pointly-supervised instance segmentation point supervision proposal-based instance segmentation point-based annotation point-based data augmentation implicit PointRend interactive segmentation weakly-supervised methods bounding box supervision

1. Introduction
2. Related Works
3. Pointly-Supervised Instance Segmentation
3.1. Annotation format and collection
3.2. Training with points
3.3. Experiments with point supervision
3.3.1 Ablation of the annotation design
3.3.2 Main results
3.3.3 Annotation time and performance trade-off.
4. Implicit PointRend Model
4.1. Point-wise representation and point head
4.2. Point selection for inference and training
4.3. Implementation details
4.4. Experimental evaluation
5. Conclusion
References

Knowls

Knowl 1 — Point-Supervised Instance Segmentation Annotation Scheme
model/method
The $P_N$ annotation scheme collects weak supervision for instance segmentation by combining bounding boxes with $N$ uniformly sampled points per instance. The collection proceeds in two stages:
1. Bounding Box Collection: Object bounding boxes are obtained using standard methods, such as extreme clicking (which requires approximately $7$ seconds per object).
2. Point Labeling: Exactly $N$ random spatial locations are sampled uniformly within each bounding box. Annotators perform a sequential binary classification task, labeling each point as object (foreground) or background, given the box and category label.
A human annotator takes approximately $0.9$ seconds per point. For $N = 10$ ( $P_{10}$ ), the total annotation time per instance is: $\text{Time}(P_{10}) = 7 + 10 \times 0.9 = 16\text{ seconds}$ This is roughly 5 times faster than polygon-based mask annotation in COCO, which takes an average of $79.2$ seconds per instance.

Because points are sampled uniformly at random rather than through annotator clicks, the scheme avoids spatial correlation biases of human clicking and can be simulated deterministically on datasets with existing full mask ground truth by querying pixel labels at sampled coordinates.
Knowl 2 — Training Instance Segmentation Models via Point Bilinear Interpolation
model/method
Standard instance segmentation models predicting mask logits on a discrete regular grid (such as a $28 \times 28$ Region of Interest (RoI) grid in Mask R-CNN or an image-level grid in CondInst) can be directly trained with point-based supervision without architectural modifications.

Given an object with ground-truth point coordinates $(x_i, y_i)$ and binary labels $y_i \in \{0, 1\}$ for $i \in \{1, \dots, N\}$ , continuous mask predictions $\hat{y}_i$ at $(x_i, y_i)$ are computed via bilinear interpolation from the network's grid logits. The point-level mask loss is formulated as a binary cross-entropy loss over the annotated points: $\mathcal{L}_{\text{mask}} = -\frac{1}{N} \sum_{i=1}^N \Big[ y_i \log \hat{y}_i + (1 - y_i) \log(1 - \hat{y}_i) \Big]$ Gradients are backpropagated through the bilinear interpolation weights to the grid representation. For region-based detectors, ground-truth points falling outside predicted bounding boxes are ignored during training.
Knowl 3 — Implicit PointRend Architecture
model/method
Implicit PointRend is an instance segmentation module that replaces the coarse $7 \times 7$ mask head of standard PointRend with an instance-conditioned implicit representation, utilizing a single point-level loss.

Architecture:
- Parameter Head: Takes Region of Interest (RoI) features and dynamically predicts the parameters (weights and biases) of a point head MLP for each detected object instance.
- Point Head: A Multi-Layer Perceptron (MLP) containing 3 hidden layers with 256 channels, ReLU activations, and a final sigmoid activation. The point head takes as input the concatenation of:
  1. Fine-grained image features extracted from the $P_2$ level of Feature Pyramid Networks (FPN) at the point's image coordinate via bilinear interpolation ( $256$ dimensions).
  2. Positional encoding of the point's coordinates $(x, y)$ relative to the bounding box center, encoded using random Fourier features.
Training and Inference:
- Loss Function: Trained with a single point-wise binary cross-entropy loss applied to the point head outputs, along with an $L_2$ regularization penalty (weight $10^{-5}$ ) on the predicted dynamic MLP parameters to prevent unbounded growth.
- Sampling: Uses simple uniform point sampling during mask training instead of uncertainty-based importance sampling.
- Inference: Employs adaptive subdivision rendering, starting with a $28 \times 28$ uniform grid and iteratively upsampling by a factor of 2 up to $224 \times 224$ by selecting the $N = 28^2$ most uncertain points at each step.
Knowl 4 — Point Subsampling Data Augmentation
model/method
When training instance segmentation models with limited point supervision (e.g., $P_{10}$ ), higher-capacity backbones (such as ResNeXt-101) and implicit dynamic architectures can suffer from reduced training data variability and overfit.

To mitigate this, point subsampling data augmentation randomly samples a subset equal to half of the available ground-truth points per instance at each training iteration (e.g., selecting 5 random points per object out of the 10 available in $P_{10}$ ). The mask loss is then computed exclusively over this subsampled point set. This simple iteration-level subsampling increases data variability and improves the performance of high-capacity models.

Knowl 5 — Performance of Mask R-CNN with 10-Point Supervision Across Datasets

data/table

Mask R-CNN with a ResNet-50-FPN backbone trained with 10 randomly sampled points per instance ( $P_{10}$ ) achieves 94%–97% of the performance of the same model trained with full polygon mask supervision ( $M$ ) across four distinct benchmarks without modifying the architecture or default hyperparameters:

Dataset	Metric	Full Mask ( $M$ )	10 Points ( $P_{10}$ )	Retained Performance
COCO val2017	AP	37.2	36.1	97%
PASCAL VOC val	$\text{AP}_{50}$	66.3	64.2	97%
Cityscapes val	AP	32.7	30.7	94%
LVISv1.0 val	AP	22.8	21.5	94%

These results demonstrate that point supervision generalizes across different dataset scales (from 20 categories in PASCAL VOC to over 1,000 categories in LVIS) and scene domains (common objects to street scenes).

Knowl 6 — Implicit PointRend vs. PointRend and Mask R-CNN Under Point Supervision

data/table

Implicit PointRend overcomes the limitations of standard PointRend under point supervision on COCO val2017 using a ResNet-50-FPN backbone:

While PointRend drops by $2.6$ AP under $P_{10}$ supervision due to low-resolution coarse head conflicts, Implicit PointRend gains $+1.2$ AP over PointRend under $P_{10}$ .

Furthermore, Implicit PointRend trained with 10 points matches or exceeds fully supervised Mask R-CNN across various backbone capacities on COCO:

Knowl 7 — Robustness of Point Supervision to Number of Points, Sampling Seed, and Label Noise
empirical result
Ablation experiments on COCO val2017 with Mask R-CNN (ResNet-50-FPN) evaluate point supervision sensitivity:
1. Number of Points ( $N$ ): Mask AP increases sharply with point count up to 10 points ( $P_1 \approx 31.8$ , $P_{10} = 36.1$ ) and shows diminishing returns beyond ( $P_{20} = 36.4$ , an improvement of only $+0.3$ AP despite doubling annotation time).
2. Sampling Seed Variability: Training Mask R-CNN across 5 independent random uniform point samplings of $P_{10}$ on COCO train2017 results in an AP variation of only $0.1$ AP on val2017, showing minimal sensitivity to exact point locations.
3. Label Noise Sensitivity:
  - Corrupting $5\%$ of randomly selected point labels in $P_{10}$ reduces AP by $0.2$ (from $36.1$ to $35.9$ AP).
  - Corrupting $5\%$ of point labels located specifically closest to object boundaries reduces AP by $0.4$ (to $35.7$ AP).
This resilience indicates that rigorous manual verification steps can be relaxed during point data collection.
Knowl 8 — Transfer Learning and Self-Training with Point Supervision
empirical result
Point-based supervision can be effectively combined with transfer learning and self-training pipelines:
- Self-Training on COCO: Generating pseudo-masks from a $P_{10}$ -supervised Mask R-CNN (36.1 AP) and retraining Mask R-CNN on these pseudo-masks achieves $36.7$ AP ( $+0.6$ AP gain), closing the gap to $98\%$ of a fully supervised Mask R-CNN trained with an equivalent $6\times$ schedule.
- Downstream Fine-Tuning on PASCAL VOC:
  - Pre-training on COCO with full masks (COCO- $M$ ) and fine-tuning on PASCAL VOC with $P_{10}$ achieves $74.0\% \text{ AP}_{50}$ , closing the gap with full mask fine-tuning ( $74.5\% \text{ AP}_{50}$ ).
  - Pre-training on COCO with 10 points (COCO- $P_{10}$ ) followed by full mask fine-tuning on PASCAL VOC achieves $74.5\% \text{ AP}_{50}$ , performing identically to pre-training with full COCO masks ( $74.5\% \text{ AP}_{50}$ ).
Knowl 9 — Annotation Time Efficiency of Point Supervision
empirical result
When evaluated under fixed annotation time budgets (worker days) on COCO val2017, Mask R-CNN trained with $P_{10}$ point supervision significantly outperforms models trained with full mask supervision (Mask R-CNN) and bounding-box-only supervision (BoxInst):
- To achieve a given Mask AP, pointly-supervised Mask R-CNN requires $1.7\times$ less total annotation time than full mask supervision.
- At equal total annotation time budgets, Mask R-CNN trained with $P_{10}$ achieves up to a $+2.9$ AP gain over full mask supervision trained on the subset of data annotatable within that same time budget.

Knowl 10 — Point Supervision Across Alternative Instance Segmentation Architectures

data/table

Point supervision ( $P_{10}$ ) evaluated across different instance segmentation architectures with a ResNet-50-FPN backbone on COCO val2017 shows varying sensitivity to point-level losses:

Note: CondInst and PointRend were trained with point subsampling data augmentation, which improved their performance.

While all three models achieve comparable absolute performance under $P_{10}$ ( $35.7$ – $36.1$ AP), standard PointRend experiences the largest drop from full mask supervision ( $93\%$ vs. $97\%$ for Mask R-CNN), because its $7 \times 7$ coarse mask head receives ambiguous supervision signals when conflicting points fall in the same coarse bin.

Coverage note — None was omitted; all key contributions—including the annotation scheme, training methodology, point augmentation, Implicit PointRend architecture, empirical results across multiple datasets and backbones, sensitivity analyses, self-training/transfer learning, and annotation time trade-offs—are fully covered.
