Bridging the Gap Between Learning in Discrete and Continuous Environments for Vision-and-Language Navigation

Yicong HongZun WangQi WuStephen Gould

article2022CVPR137 citations

Proposes a candidate waypoint predictor that enables discrete Vision-and-Language Navigation models to operate directly in continuous environments, achieving state-of-the-art performance on the R2R-CE and RxR-CE benchmarks.

Listen

Vision-and-language navigation tasks require autonomous agents to interpret human language instructions and navigate through unfamiliar environments. While training agents in discrete spaces—where the environment is represented as a pre-mapped graph of locations—has led to significant algorithmic advances, these agents fail to operate in realistic, continuous spaces where an agent must execute low-level movements without a predefined map. Navigating in continuous spaces typically leaves agents struggling to identify obstacles and accessible paths, resulting in a substantial performance drop of approximately 20% compared to discrete navigation.

The article evaluates whether a visual candidate waypoints predictor can bridge this domain gap by generating accessible local destinations on the fly in continuous environments. This approach aims to demonstrate that agents designed for discrete navigation can be directly transferred to continuous settings using high-level directional actions instead of tedious low-level motor controls.

The authors developed a predictor using visual encoders and a spatial attention network trained on refined 3D indoor spatial graphs across 90 simulated building environments. This module predicts obstacle-free local candidate waypoints within a three-meter radius around the agent. The authors evaluated two distinct navigation architectures—a cross-modal matching agent and a visiolinguistic transformer agent—on continuous navigation benchmarks. They also applied a waypoint augmentation technique during training to diversify the paths and visual perspectives the agents experienced.

The key findings show that supplying predicted waypoints significantly improves continuous navigation. Incorporating waypoint prediction reduced the discrete-to-continuous performance gap by 11.76% in path efficiency for the cross-modal matching agent and by 18.24% for the transformer-based agent. Training with waypoint augmentation further enhanced generalization, allowing the simpler agent to reach a 40.80% success rate in unseen test spaces, matching or exceeding graph-based performance. Additionally, the approach reduced obstacle collision rates from 15% to 7% and established new state-of-the-art benchmarks on standard continuous navigation datasets (R2R-CE and RxR-CE), achieving a 38% to 42% success rate on unseen test paths.

These results demonstrate that the core challenge of continuous navigation is identifying navigable space rather than executing complex motor actions. Decoupling waypoint prediction from instruction following enables standard imitation learning to succeed without complex reinforcement learning pipelines. This dramatically lowers compute requirements, reducing training overhead from 64 graphics processors over five days to a single processor in roughly three and a half days while achieving superior navigation accuracy.

Teams developing embodied artificial intelligence and autonomous service robots should adopt local waypoint prediction modules to transition high-level planning models into continuous real-world environments. Future development should focus on extending waypoint predictors to support language-conditioned navigation and testing the framework across broader embodied tasks, such as object-goal and audio-visual navigation.

A current limitation is that the predictor may occasionally fail to identify valid pathways across challenging architectural features, such as stairs, leading to failed trajectories. Nevertheless, confidence in the primary findings remains high, as the methodology demonstrated strong, consistent improvements across multiple model architectures and standardized evaluation splits.

Australian National University University of Adelaide navigation systems vision-and-language navigation discrete environments continuous environments

arXiv: 2203.02764

Paper: Vision-and-Language Navigation: Interpreting Visually-Grounded Navigation Instructions in Real Environments, Peter Anderson et al. (2017). This seminal paper establishes the Room-to-Room benchmark and baseline frameworks for instruction-following in indoor environments, creating the core vision-and-language navigation foundation upon which the source paper builds.
Paper: Habitat: A Platform for Embodied AI Research, Manolis Savva et al. (2019). It introduces the Habitat simulation platform that provides the underlying 3D photorealistic environments and continuous physics engine essential for evaluating continuous navigation.
Paper: Target-driven visual navigation in indoor scenes using deep reinforcement learning, Yuke Zhu et al. (2016). It pioneers target-driven visual indoor navigation using deep reinforcement learning across continuous and simulated spaces, introducing foundational concepts for navigating without predefined maps.
Paper: Learning to Navigate in Complex Environments, Piotr Mirowski et al. (2017). It demonstrates how auxiliary predictive tasks—such as depth and loop closure—allow navigation agents to capture spatial structure directly from sensory inputs.
Paper: Think Global, Act Local: Dual-scale Graph Transformer for Vision-and-Language Navigation, Shizhe Chen et al. (2022). It establishes a dual-scale graph transformer for vision-and-language navigation that informs how agents balance coarse topological reasoning with local action selection.
Paper: Counterfactual Cycle-Consistent Learning for Instruction Following and Generation in Vision-Language Navigation, Hanqing Wang et al. (2022). It introduces cycle-consistent learning and data augmentation strategies between instruction followers and speakers that underpin the multi-modal agent baselines adapted in the source.

Paper: PanoGen: Text-Conditioned Panoramic Environment Generation for Vision-and-Language Navigation, Jialu Li et al. (2023). It extends vision-and-language navigation research by generating text-conditioned panoramic environments to enhance agent generalization across unseen layouts.
Paper: GOAT-Bench: A Benchmark for Multi-Modal Lifelong Navigation, Mukul Khanna et al. (2024). It broadens embodied navigation benchmarks from single-episode instruction following to multimodal, lifelong continuous navigation across diverse goal formats.
Paper: SPOC: Imitating Shortest Paths in Simulation Enables Effective Navigation and Manipulation in the Real World, Kiana Ehsani et al. (2024). It applies scalable imitation learning over shortest-path simulated heuristics to execute continuous navigation and manipulation tasks on physical robots without complex reinforcement learning.
Paper: Renderable Neural Radiance Map for Visual Navigation, Obin Kwon et al. (2023). It advances visual continuous navigation by creating 2D renderable neural radiance spatial memories for real-time localization and path planning in novel environments.
Paper: Kosmos-2: Grounding Multimodal Large Language Models to the World, Zhiliang Peng et al. (2023). It scales multimodal grounding by integrating discrete spatial coordinate tokens into large language models to bridge the gap between high-level language and low-level visual grounding.

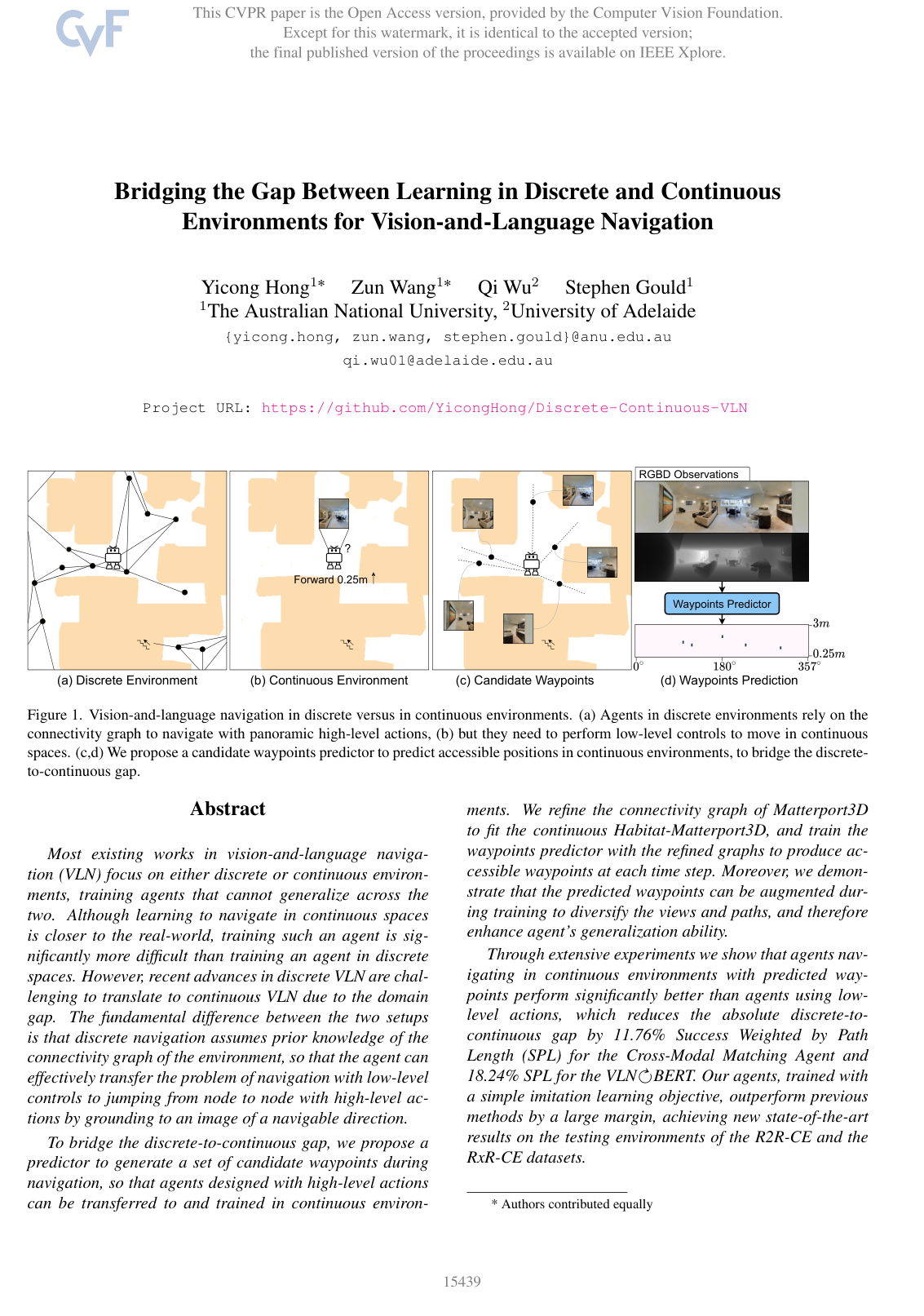

Cover for Bridging the Gap Between Learning in Discrete and Continuous Environments for Vision-and-Language Navigation

Abstract

Most existing works in vision-and-language navigation (VLN) focus on either discrete or continuous environments, training agents that cannot generalize across the two. Although learning to navigate in continuous spaces is closer to the real-world, training such an agent is significantly more difficult than training an agent in discrete spaces. However, recent advances in discrete VLN are challenging to translate to continuous VLN due to the domain gap. The fundamental difference between the two setups is that discrete navigation assumes prior knowledge of the connectivity graph of the environment, so that the agent can effectively transfer the problem of navigation with low-level controls to jumping from node to node with high-level actions by grounding to an image of a navigable direction.

To bridge the discrete-to-continuous gap, we propose a predictor to generate a set of candidate waypoints during navigation, so that agents designed with high-level actions can be transferred to and trained in continuous environments. We refine the connectivity graph of Matterport3D to fit the continuous Habitat-Matterport3D, and train the waypoints predictor with the refined graphs to produce accessible waypoints at each time step. Moreover, we demonstrate that the predicted waypoints can be augmented during training to diversify the views and paths, and therefore enhance agent's generalization ability.

Through extensive experiments we show that agents navigating in continuous environments with predicted waypoints perform significantly better than agents using low-level actions, which reduces the absolute discrete-to-continuous gap by 11.76% Success Weighted by Path Length (SPL) for the Cross-Modal Matching Agent and 18.24% SPL for the VLN○BERT. Our agents, trained with a simple imitation learning objective, outperform previous methods by a large margin, achieving new state-of-the-art results on the testing environments of the R2R-CE and RxR-CE datasets.

Topics

navigation systems

Keywords

vision-and-language navigation discrete environments continuous environments neural SLAM imitation learning Habitat simulator waypoint predictors scene memory panoramic actions visual navigation

1. Introduction
2. Related Work
3. Background
3.1. Navigation Setups
3.2. What is the Value of High-Level Actions?
4. Candidate Waypoints Predictor
4.1. Network Architecture and Processing
4.2. Connectivity Graphs in Habitat-MP3D
4.3. Confirmation of Predictor Performance
5. Bridging the Discrete to Continuous Gap
5.1. Setups
5.2. Main Results
6. Conclusion
References

Knowls

Knowl 1 — Candidate Waypoints Predictor Architecture and Formulation
model/method
The candidate waypoints predictor estimates accessible local positions in continuous 3D environments from egocentric visual inputs to support high-level action selection without a pre-defined connectivity graph.

At any agent position $p_t$ , the environment is observed via an RGB panorama and a depth panorama, each discretized into 12 single-view images spaced by $30^\circ$ with a $90^\circ$ horizontal field of view. Visual features are extracted using two fixed ResNet-50 backbones: one pre-trained on ImageNet for RGB images yielding $\{v_1^{\text{rgb}}, \dots, v_{12}^{\text{rgb}}\}$ , and one pre-trained on PointGoal navigation for depth images yielding $\{v_1^{\text{d}}, \dots, v_{12}^{\text{d}}\}$ . For each direction $i \in \{1, \dots, 12\}$ , the RGB and depth features are merged via a non-linear layer $W_m$ :

$v_i^{\text{rgbd}} = W_m([v_i^{\text{rgb}}; v_i^{\text{d}}])$

The 12 merged representations are processed by a 2-layer Transformer with 12 self-attention heads. Self-attention for each token $v_i^{\text{rgbd}}$ is constrained locally to its adjacent directional neighbors, attending only to $v_{i-1}^{\text{rgbd}}$ , $v_i^{\text{rgbd}}$ , and $v_{i+1}^{\text{rgbd}}$ .

The resulting output tokens $\tilde{v}_i^{\text{rgbd}}$ are passed to a multi-layer perceptron classifier that predicts a polar waypoint probability heatmap of dimension $120 \times 12$ , spanning 120 angular sectors ( $3^\circ$ per sector over $360^\circ$ ) and 12 radial distance bins ( $0.25\text{ m}$ to $3.00\text{ m}$ in $0.25\text{ m}$ steps). The network is trained by minimizing the mean squared error (MSE) against a ground-truth Gaussian heatmap. During inference, non-maximum suppression (NMS) over the predicted heatmap yields up to $K=5$ candidate waypoint coordinates.
Knowl 2 — Refined Ground-Truth Connectivity Graphs in Habitat-Matterport3D
model/method
To train the candidate waypoints predictor, the discrete connectivity graph $G^{\text{MP3D}}$ from the Matterport3D dataset is adapted into a continuous, collision-free graph $G^*$ in Habitat-Matterport3D (Habitat-MP3D).

In $G^{\text{MP3D}}$ , graph edges frequently intersect 3D obstacle geometry and some nodes reside in inaccessible locations, making them unsuitable for learning navigability in continuous simulators. The refined graph $G^*$ constrains all nodes and edges to lie strictly within obstacle-free open space, inserting intermediate nodes where necessary to maintain global connectivity.

Across 90 indoor environments, $G^*$ contains 13,358 nodes with an average node degree of 3.31 edges and an average edge length of $1.87\text{ m}$ , compared to 10,559 nodes, average degree 4.07, and average edge length $2.26\text{ m}$ in $G^{\text{MP3D}}$ .

For each node $g \in G^*$ , a local ground-truth polar heatmap of dimension $120 \times 12$ is constructed over a $3\text{ m}$ radius. Each neighbor node is mapped to its corresponding angle-distance bin and represented as a 2D Gaussian distribution with radial standard deviation $\sigma_r = 1.75\text{ m}$ and angular standard deviation $\sigma_\theta = 15^\circ$ to provide target tolerance.
Knowl 3 — Waypoint Augmentation During Agent Policy Training
model/method
Waypoint augmentation is a data augmentation method applied when training navigation agents with predicted waypoints in continuous environments.

During training with imitation learning, when the navigation agent selects a candidate high-level direction from the candidate waypoints predictor, the exact sub-goal location is randomly sampled from the local heatmap patch corresponding to that chosen view rather than deterministically selecting the NMS peak.

This sampling perturbation shifts the target waypoint in continuous space, requiring the agent to traverse varying trajectory lengths, encounter diverse camera viewpoints, and navigate around different obstacle configurations to reach the sub-goal, thereby improving out-of-distribution generalization to unseen environments.
Knowl 4 — Hierarchical Execution of High-Level Actions in Continuous VLN
model/method
Vision-and-language navigation in continuous environments (VLN-CE) using high-level actions is structured as a hierarchical process decoupled between high-level waypoint selection and low-level actuation.

At step $t$ , the candidate waypoints predictor generates $K$ candidate reachable waypoints around the current agent pose $p_t$ . For each candidate $k \in \{1, \dots, K\}$ , a visual-directional feature vector $f_k^p = [v_k^p; d_k^p]$ is formed by concatenating visual feature $v_k^p$ pointing toward the candidate and relative directional encoding $d_k^p$ .

A high-level discrete policy network (e.g., Cross-Modal Matching Agent or Recurrent VLN-BERT) updates its recurrent hidden state $h_t$ with attended language instruction features $c_t^{\text{lang}}$ and prior action $a_{t-1}$ :

$h_t = \text{LSTM}([c_t^{\text{lang}}; a_{t-1}], h_{t-1})$

The probability of selecting candidate waypoint $i$ is determined via cross-modal attention:

$p_i = \text{Softmax}\left([h_t; c_t^{\text{lang}}; c_t^{\text{rgb}}]^\top W_p f_i^p\right)$

where $c_t^{\text{rgb}}$ is the attended visual context and $W_p$ is a learnable projection matrix. Once candidate $i$ is selected, its polar displacement relative to the agent is decomposed into a sequence of low-level primitive actions (turn left $15^\circ$ , turn right $15^\circ$ , move forward $0.25\text{ m}$ , or stop) executed progressively in the continuous simulator until the agent reaches the sub-goal.

Knowl 5 — Dissecting the Value of Navigable View Selection vs. Waypoint Teleportation

empirical result

A diagnostic study evaluates the independent contributions of two core mechanisms inherent to discrete graph navigation: navigable view selection (identifying unobstructed directions) and waypoint teleportation (skipping low-level step execution). Tests were conducted using the Reinforced Cross-Modal Matching (RCM / CMA) agent in Habitat-MP3D on R2R-CE validation splits.

Action		R2R-CE Val-Seen				R2R-CE Val-Unseen
Select	Teleport	NE $\downarrow$	nDTW $\uparrow$	SR $\uparrow$	SPL $\uparrow$	NE $\downarrow$	nDTW $\uparrow$	SR $\uparrow$	SPL $\uparrow$	Time (s) $\downarrow$
✓	✓	6.28	58.37	41.48	36.58	6.51	55.41	39.32	33.89	0.55
✓	$\times$	5.70	61.06	46.31	43.20	6.38	56.27	37.72	35.02	1.79
$\times$	✓	8.10	43.19	23.36	19.85	7.62	47.69	28.32	24.64	0.78
$\times$	$\times$	7.20	50.67	29.53	27.29	7.54	49.19	27.29	24.97	2.61

Select	Dist (m)	R2R-CE Val-Seen				R2R-CE Val-Unseen
		NE $\downarrow$	nDTW $\uparrow$	SR $\uparrow$	SPL $\uparrow$	NE $\downarrow$	nDTW $\uparrow$	SR $\uparrow$	SPL $\uparrow$	Time (s) $\downarrow$
$\times$	0.25	7.20	50.67	29.53	27.29	7.54	49.19	27.29	24.97	2.61
$\times$	1.00	7.21	52.52	29.66	27.19	7.51	50.14	25.47	23.51	1.28
$\times$	2.00	7.60	47.90	24.16	22.25	8.06	45.74	22.96	20.59	1.18
$\times$	3.00	7.66	48.28	23.62	21.73	7.87	46.29	21.37	19.39	0.90
✓	0.25	6.10	58.24	39.33	38.26	6.52	55.26	32.02	31.15	1.58
✓	1.00	6.88	53.09	36.11	33.91	6.85	52.44	34.81	32.51	0.46
✓	2.00	6.56	52.83	38.52	35.62	6.96	50.25	33.05	30.35	0.27
✓	3.00	6.75	51.85	32.21	29.28	7.00	49.35	31.00	28.12	0.20

Navigable view selection accounts for the majority of the performance advantage: providing ground-truth navigable directions without teleportation achieves $37.72\%$ SR and $35.02\%$ SPL on Val-Unseen, comparable to full graph navigation ( $39.32\%$ SR, $33.89\%$ SPL). Increasing forward distance per step reduces decision frequency and inference time per episode (from $2.61\text{ s}$ to $0.20\text{ s}$ ), but view selection remains the primary factor determining navigation accuracy.

Knowl 6 — Comparative Evaluation of Candidate Waypoint Predictors

empirical result

The candidate waypoints predictor was evaluated against alternative architectures on the Matterport3D (MP3D) Train and Val-Unseen splits using four metrics: $|\Delta|$ (absolute count error between predicted and target waypoints), %Open (percentage of predicted waypoints situated in collision-free open space), $d_C$ (Chamfer distance in meters), and $d_H$ (Hausdorff distance in meters).

Model	MP3D Train				MP3D Val-Unseen
Model	$\|\Delta\|$	%Open $\uparrow$	$d_C$ (m) $\downarrow$	$d_H$ (m) $\downarrow$	$\|\Delta\|$	%Open $\uparrow$	$d_C$ (m) $\downarrow$	$d_H$ (m) $\downarrow$
Baseline (No Transformer)	1.29	81.73	1.13	2.17	1.37	80.18	1.08	2.06
U-Net	1.15	63.60	1.05	2.10	1.21	52.54	1.01	2.00
Ours (Transformer)	1.30	82.56	1.12	2.13	1.40	79.86	1.07	2.00

The convolutional U-Net baseline achieves lower point distance metrics ( $d_C = 1.01\text{ m}$ , $d_H = 2.00\text{ m}$ ) but outputs nearly half of its predictions into obstacles on unseen scenes ( $52.54\%$ open space). The Transformer predictor maintains high obstacle-free prediction accuracy ( $79.86\%$ on Val-Unseen) while achieving point cloud distances superior to the non-Transformer baseline ( $d_C = 1.07\text{ m}$ , $d_H = 2.00\text{ m}$ ).

Knowl 7 — Bridging the Discrete-to-Continuous Navigation Performance Gap on R2R-CE

empirical result

The impact of candidate waypoint prediction and waypoint augmentation on bridging the performance gap between discrete and continuous VLN was evaluated on R2R-CE using Cross-Modal Matching Agent (CMA) and Recurrent VLN-BERT (VLN $\circlearrowright$ BERT).

Method	Connectivity		R2R-CE Val-Seen				R2R-CE Val-Unseen
Method	Train	Val	NE $\downarrow$	nDTW $\uparrow$	SR $\uparrow$	SPL $\uparrow$	NE $\downarrow$	nDTW $\uparrow$	SR $\uparrow$	SPL $\uparrow$
CMA (Graph)	Graph	Graph	6.28	58.37	41.48	36.58	6.51	55.41	39.32	33.89
CMA (Freeze Transfer)	Graph	Predictor	6.83	53.16	33.83	30.23	6.81	52.86	33.50	29.92
CMA (Predictor Trained)	Predictor	Predictor	5.81	59.06	43.89	40.20	6.50	54.34	37.49	33.90
CMA (Augmented)	Augmented	Predictor	5.36	61.46	48.05	43.89	6.19	55.56	40.80	36.73
CMA (Low-Level Actions)	Low-Level	Low-Level	7.20	50.67	29.53	27.29	7.54	49.19	27.29	24.97
VLN $\circlearrowright$ BERT (Graph)	Graph	Graph	4.63	61.46	52.21	42.53	5.22	57.71	48.89	40.36
VLN $\circlearrowright$ BERT (Freeze Transfer)	Graph	Predictor	5.62	56.19	43.22	37.10	5.91	53.35	39.94	34.42
VLN $\circlearrowright$ BERT (Predictor Trained)	Predictor	Predictor	5.06	59.46	49.40	43.43	5.68	53.50	42.96	38.53
VLN $\circlearrowright$ BERT (Augmented)	Augmented	Predictor	5.07	59.18	52.35	46.08	5.52	54.20	45.19	39.91
VLN $\circlearrowright$ BERT (Low-Level Actions)	Low-Level	Low-Level	7.40	48.07	26.85	25.19	7.66	47.71	23.19	21.67

Compared to low-level control baselines, training with augmented predicted waypoints increases Val-Unseen SPL by $11.76\%$ for CMA ( $24.97\% \to 36.73\%$ ) and by $18.24\%$ for VLN $\circlearrowright$ BERT ( $21.67\% \to 39.91\%$ ), recovering $90\%$ of the discrete-to-continuous gap for VLN $\circlearrowright$ BERT and exceeding the ground-truth graph performance for CMA ( $36.73\%$ vs. $33.89\%$ ).

Knowl 8 — Benchmark Results on R2R-CE and RxR-CE Test Sets

empirical result

Continuous VLN agents trained using the candidate waypoints predictor and simple imitation learning were benchmarked on the test sets of R2R-CE and RxR-CE against prior state-of-the-art continuous navigation methods.

Methods	R2R-CE Val-Seen					R2R-CE Val-Unseen					R2R-CE Test-Unseen
Methods	NE $\downarrow$	nDTW $\uparrow$	OSR $\uparrow$	SR $\uparrow$	SPL $\uparrow$	NE $\downarrow$	nDTW $\uparrow$	OSR $\uparrow$	SR $\uparrow$	SPL $\uparrow$	NE $\downarrow$	OSR $\uparrow$	SR $\uparrow$	SPL $\uparrow$
VLN-CE	7.12	54	46	37	35	7.37	51	40	32	30	7.91	36	28	25
LAW	–	58	–	40	37	–	54	–	35	31	–	–	–	–
SASRA	7.17	53	–	36	34	8.32	47	–	24	22	–	–	–	–
Waypoint Models	5.48	–	53	46	43	6.31	–	40	36	34	6.65	37	32	30
Ours (CMA)	5.20	61	61	51	45	6.20	55	52	41	36	6.30	49	38	33
Ours (VLN $\circlearrowright$ BERT)	5.02	58	59	50	44	5.74	54	53	44	39	5.89	51	42	36

Methods	RxR-CE Test-Unseen
	TL	NE $\downarrow$	SR $\uparrow$	SPL $\uparrow$	nDTW $\uparrow$	SDTW $\uparrow$
VLN-CE	7.33	12.1	13.93	11.96	30.86	11.01
Ours (CMA)	20.04	10.4	24.08	19.07	37.39	18.65
Ours (VLN $\circlearrowright$ BERT)	20.09	10.4	24.85	19.61	37.30	19.05

On R2R-CE Test-Unseen, the proposed model sets a new state-of-the-art with $42\%$ SR and $36\%$ SPL (compared to $32\%$ SR and $30\%$ SPL for Waypoint Models). On the multilingual RxR-CE Test-Unseen set, the model achieves $24.85\%$ SR and $19.61\%$ SPL (compared to $13.93\%$ SR and $11.96\%$ SPL for baseline VLN-CE). The model achieves these results via cross-entropy imitation learning trained on a single GPU in 3.5 days, compared to reinforcement learning methods requiring 64 GPUs over 5 days.

Knowl 9 — Limitations of Language-Agnostic Candidate Waypoint Prediction
limitation
The candidate waypoints predictor is decoupled from the language instruction and agent trajectory history, predicting candidate waypoints purely from local sensory navigability.

In environments requiring specialized navigation actions—such as locating and traversing staircases between floor levels—the predictor may fail to generate valid candidate waypoints in the target direction, leading to unrecoverable navigation failures. Navigation performance remains upper-bounded by the spatial accuracy and candidate recall of the local navigability predictor.

Coverage note — None was omitted; all key contributed methods (waypoint predictor architecture, refined Habitat-MP3D graph construction, waypoint augmentation), diagnostic analyses, gap-bridging ablations, test benchmark results, and limitations are fully covered.
