Renderable Neural Radiance Map for Visual Navigation

Obin KwonJeongho ParkSonghwai Oh

article2023CVPR80 citationsHighlight

Proposes a 2D grid-based neural radiance map that embeds visual scene features into latent codes to enable real-time camera tracking, image-based localization, and image-goal movement across unseen environments without scene-specific retraining.

Listen

Autonomous visual navigation in unfamiliar indoor environments remains a significant challenge for robotics. Conventional approaches rely on simple geometric maps that lack rich visual information, while newer neural rendering methods are computationally intensive and require pre-training on specific target environments. This limits their practical deployment in real-time robotics where agents must quickly navigate unseen spaces under noisy real-world conditions.

The article introduces and evaluates the Renderable Neural Radiance Map, a novel grid-based spatial memory framework designed to capture 3D environmental appearance efficiently. The primary objective is to demonstrate that embedding visual latent codes into a 2D map enables real-time localization, novel view image synthesis, and robust image-goal navigation in unfamiliar environments without requiring per-scene optimization.

The authors designed a modular framework using a pre-trained encoder to convert color and depth camera images into latent vectors that are registered on a 2D grid, paired with a decoder capable of rendering 3D views. Evaluation was conducted through simulations using the Habitat platform across 72 indoor scenes from the Gibson dataset and standardized test paths. The system's performance was measured against leading reinforcement learning and modular baseline methods across camera tracking, image-based localization, and image-goal navigation tasks under sensor and movement noise.

The evaluation produced several key findings. First, the proposed framework achieved a 65.7% success rate in complex curved navigation scenarios, outperforming the existing state of the art by 18.6 percentage points. Second, the system operates with high computational efficiency, running mapping at 91.9 Hz and image localization at 56.8 Hz, while camera tracking operates at 5.0 Hz. Third, the localization framework achieved a 99% recall rate within a 50-centimeter error threshold in recorded maps and retained 97.4% accuracy even when one-third of the scene's objects changed. Finally, the framework demonstrated zero-shot generalization by successfully navigating and localizing in unseen environments without environment-specific fine-tuning.

These results demonstrate that structured spatial representations embedded with visual features provide a more sample-efficient and robust foundation for navigation than computationally demanding reinforcement learning policies. The high processing speeds and resilience to environmental alterations reduce operational risks and hardware overhead, making neural radiance concepts practical for real-time mobile robotics and automated facility inspections.

Organizations developing autonomous mobile systems should consider adopting grid-based neural radiance representations for vision-guided search and inspection tasks. Next steps should focus on deploying the framework onto physical robotic hardware to assess real-world sensor dynamics and developing graph-based optimization mechanisms to correct accumulated drift over extended operational timelines.

The findings are supported by comprehensive comparative simulations across standard industry benchmarks. However, confidence should be tempered by the fact that evaluations were conducted in simulated indoor environments with 3-degree-of-freedom movement. Additionally, the system faces limitations when correcting past mapping errors once features are registered, and performance degrades in environments with highly repetitive or visually ambiguous scenes.

navigation systems renderable neural radiance map visual navigation neural radiance fields

arXiv: 2303.00304

Paper: NeRF: Representing Scenes as Neural Radiance Fields for View Synthesis, Ben Mildenhall et al. (2020). This foundational paper establishes coordinate-based neural radiance fields and volume rendering for novel view synthesis, providing the core rendering concept that the source adapts into a 2D grid-based memory map.
Paper: Habitat: A Platform for Embodied AI Research, Manolis Savva et al. (2019). This paper introduces the Habitat simulation platform and benchmark environments, which provide the primary evaluation framework and indoor scenes used to validate the source's navigation system.
Paper: pixelNeRF: Neural Radiance Fields from One or Few Images, Alex Yu et al. (2021). This work formulates generalizable neural radiance fields from sparse image inputs via pixel-aligned visual features, directly informing the source's pre-trained encoder-decoder approach for zero-shot view synthesis.
Paper: Target-driven visual navigation in indoor scenes using deep reinforcement learning, Yuke Zhu et al. (2016). This work establishes the target-driven visual navigation problem using deep reinforcement learning, representing a primary baseline and navigation paradigm that the source seeks to outperform.
Paper: Lift, Splat, Shoot: Encoding Images From Arbitrary Camera Rigs by Implicitly Unprojecting to 3D, Jonah Philion et al. (2020). This paper develops the paradigm of lifting 2D camera features into unified top-down spatial grid representations, which underpins the source's structured 2D grid memory mapping.
Paper: Direct Voxel Grid Optimization: Super-fast Convergence for Radiance Fields Reconstruction, Cheng Sun et al. (2021). This paper demonstrates explicit voxel grid optimization for rapid radiance field convergence, providing foundational concepts for accelerating neural scene representation without slow MLP per-scene optimization.
Paper: Scene Representation Networks: Continuous 3D-Structure-Aware Neural Scene Representations, V. Sitzmann et al. (2019). This work introduces continuous 3D structure-aware neural scene representations learned directly from 2D images, laying theoretical groundwork for rendering 3D views from latent scene features.

Paper: GOAT-Bench: A Benchmark for Multi-Modal Lifelong Navigation, Mukul Khanna et al. (2024). This benchmark extends visual navigation from single-goal episodes into lifelong multimodal navigation, evaluating whether spatial memory systems can continually adapt over extended sequential tasks.
Paper: Reloc3r: Large-Scale Training of Relative Camera Pose Regression for Generalizable, Fast, and Accurate Visual Localization, Siyan Dong et al. (2025). This work scales relative camera pose regression for fast zero-shot visual localization across diverse scenes, building on the real-time visual localization requirements explored in the source.
Paper: OpenNeRF: Open Set 3D Neural Scene Segmentation with Pixel-Wise Features and Rendered Novel Views, Francis Engelmann et al. (2024). This paper extends neural radiance fields with pixel-aligned vision-language embeddings and novel view synthesis for open-set 3D semantic understanding in indoor environments.
Paper: Feature 3DGS: Supercharging 3D Gaussian Splatting to Enable Distilled Feature Fields, Shijie Zhou et al. (2024). This paper integrates distilled 2D foundation model features into explicit 3D radiance fields, advancing real-time scene rendering to include downstream semantic segmentation and editing.
Paper: SPOC: Imitating Shortest Paths in Simulation Enables Effective Navigation and Manipulation in the Real World, Kiana Ehsani et al. (2024). This work builds upon simulated visual navigation by leveraging large-scale procedural environments and shortest-path cloning to enable robust real-world robotic navigation and manipulation.

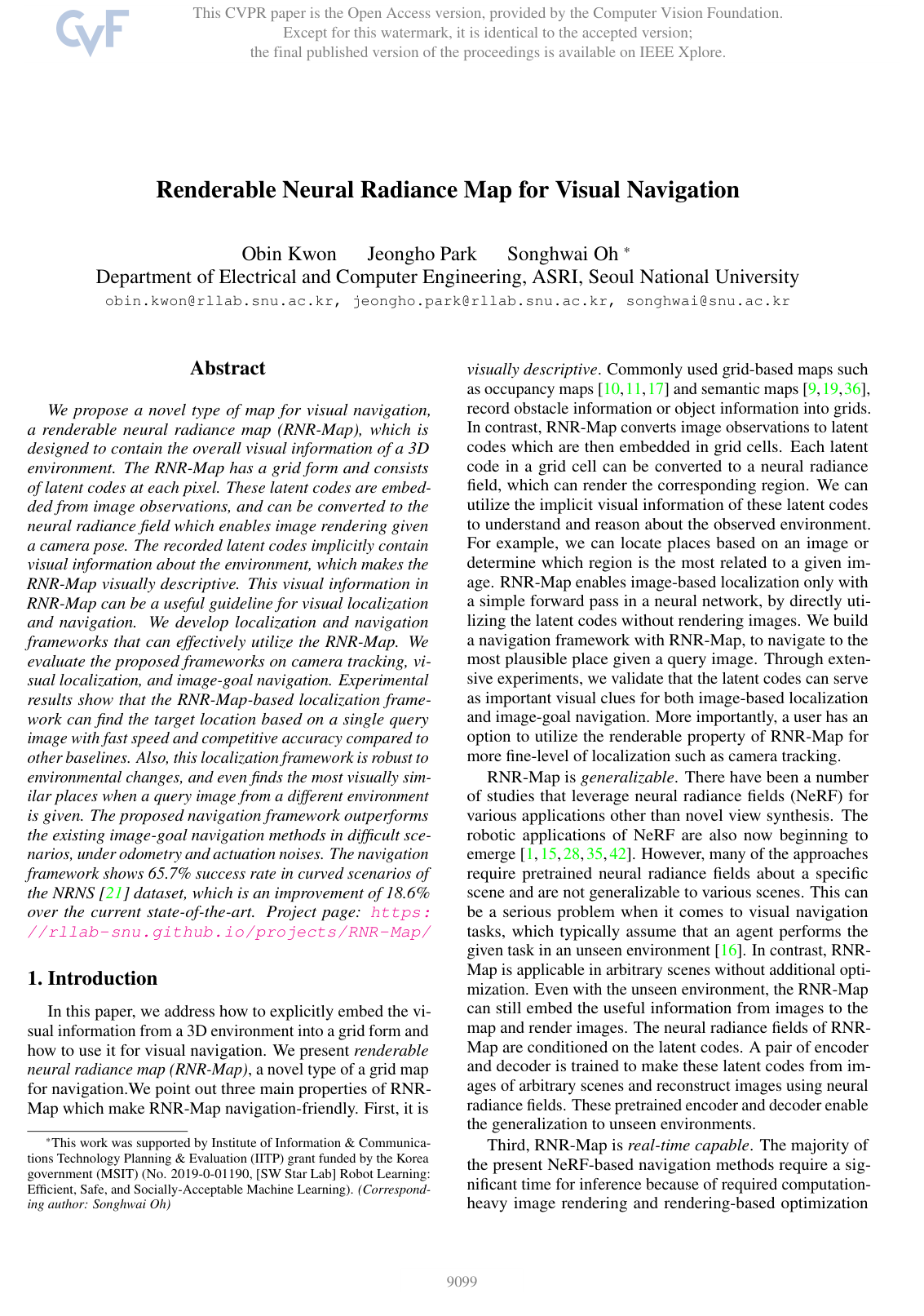

Cover for Renderable Neural Radiance Map for Visual Navigation

Abstract

We propose a novel type of map for visual navigation, a renderable neural radiance map (RNR-Map), which is designed to contain the overall visual information of a 3D environment. The RNR-Map has a grid form and consists of latent codes at each pixel. These latent codes are embedded from image observations, and can be converted to the neural radiance field which enables image rendering given a camera pose. The recorded latent codes implicitly contain visual information about the environment, which makes the RNR-Map visually descriptive. This visual information in RNR-Map can be a useful guideline for visual localization and navigation. We develop localization and navigation frameworks that can effectively utilize the RNR-Map. We evaluate the proposed frameworks on camera tracking, visual localization, and image-goal navigation. Experimental results show that the RNR-Map-based localization framework can find the target location based on a single query image with fast speed and competitive accuracy compared to other baselines. Also, this localization framework is robust to environmental changes, and even finds the most visually similar places when a query image from a different environment is given. The proposed navigation framework outperforms the existing image-goal navigation methods in difficult scenarios, under odometry and actuation noises. The navigation framework shows 65.7% success rate in curved scenarios of the NRNS [21] dataset, which is an improvement of 18.6% over the current state-of-the-art. Project page: https://rllab-snu.github.io/projects/RNR-Map/

Topics

navigation systems

Keywords

renderable neural radiance map visual navigation neural radiance fields image-goal navigation visual localization view synthesis rendering-based optimization occupancy maps spatial memory

1. Introduction
2. Related Work
3. RNR-Map
4. Localization
4.1. Image-Based Localization
4.2. Camera Tracking
5. Navigation
5.1. Mapping Module
5.2. Localization Module
5.3. Navigation Module
5.4. Implementation Details
6. Experiments
6.1. Localization
6.2. Image-Goal Navigation
6.2.1 Baselines
6.2.2 Task setup
6.2.3 Image-goal navigation Results
7. Conclusion
References

Knowls

Knowl 1 — Renderable neural radiance map construction
model/method
An RNR-Map is a 2-D spatial grid $m\in\mathbb{R}^{U\times V\times D}$ whose cell $m(u,v)\in\mathbb{R}^{D}$ is a latent visual code for a spatial region, rather than an occupancy or semantic label. A robot observes an RGB-D image $I_t\in\mathbb{R}^{H\times W\times 4}$ at a 3-DoF pose $p_t=(x_t,y_t,a_t)$ and uses a pretrained encoder to produce pixel features $C_t\in\mathbb{R}^{H\times W\times D}$ . Each feature is assigned to the corresponding map cell through inverse camera projection and spatial quantization.

For pixel coordinates $(h,w)$ , depth $d_{h,w}$ , camera intrinsic matrix $K$ , extrinsic parameters $[R\mid t]$ , and map resolution $s$ , the corresponding world position $q_{h,w}=(q_x,q_y,q_z)^\top$ and grid coordinates $(u,v)$ are
$q_{h,w}=d_{h,w}R^{-1}K^{-1}\begin{bmatrix}h\\w\\1\end{bmatrix}-t, \qquad u=\operatorname{round}\left(\frac{q_x}{s}\right), \qquad v=\operatorname{round}\left(\frac{q_y}{s}\right).$
For the set $X_{u,v}$ of encoded pixel features assigned to cell $(u,v)$ , the local map code and observation-count mask are
$X_{u,v}=\{c_{h,w}\in C_t:\ (u,v)=\left(\operatorname{round}(q_x(h,w)/s),\operatorname{round}(q_y(h,w)/s)\right)\},$ $m_t^l(u,v)=\frac{1}{n_t^l(u,v)}\sum_{c_i\in X_{u,v}}c_i, \qquad n_t^l(u,v)=|X_{u,v}|.$
The global map is built incrementally without rendering. If a newly observed local cell and an existing global cell have counts $n_t^l(u,v)$ and $n_{t-1}(u,v)$ , respectively, their codes are fused by count-weighted averaging:
$m_t(u,v)=\frac{m_t^l(u,v)n_t^l(u,v)+m_{t-1}(u,v)n_{t-1}(u,v)}{n_t^l(u,v)+n_{t-1}(u,v)}, \qquad n_t(u,v)=n_t^l(u,v)+n_{t-1}(u,v).$
The update is applied to observed cells; unobserved cells retain zero observation count. Thus repeated observations of the same spatial region accumulate a visual latent representation using odometry and known camera calibration.
Knowl 2 — Latent-code decoding and reconstruction training
model/method
The RNR-Map encoder and decoder are trained jointly so that latent codes preserve enough visual information to reconstruct RGB-D observations. Given a map $m$ and a camera pose $p$ , the decoder samples the latent codes along the camera ray associated with every output pixel, converts those samples into locally conditioned radiance fields using modulation-linear-layer conditioning, and volume-renders an RGB-D image $F_{\mathrm{dec}}(m,p;\theta_{\mathrm{dec}})$ . The reconstruction workflow illustrated on page 3 consists of registration of observations into a map followed by radiance-field decoding from a query pose.

For a sequence of $N$ training images $I_i$ with poses $p_i$ , the encoder parameters $\theta_{\mathrm{enc}}$ first construct maps $(m_i^g,n_i^g)$ incrementally. The training objective is
$\mathcal{L}(\theta_{\mathrm{enc}},\theta_{\mathrm{dec}}) =\frac{1}{N}\sum_{i=1}^{N}\left\|I_i-F_{\mathrm{dec}}(m_N^g,p_i;\theta_{\mathrm{dec}})\right\|_1,$
where $m_N^g$ is the final map made from the $N$ observations and $\|\cdot\|_1$ is the elementwise RGB-D $L_1$ error. Because the radiance field is conditioned on image-derived latent codes rather than optimized for one fixed scene, the pretrained encoder-decoder can embed and render observations in previously unseen environments without additional scene-specific optimization. It can also synthesize novel viewpoints within observed 3-D regions; rendering is limited by observed points and produces gray output in unobserved regions.
Knowl 3 — Cross-correlation image-based localization
model/method
The image-based localization function $F_{\mathrm{loc}}$ searches an RNR-Map for the region most visually related to a target RGB-D image $I_{\mathrm{trg}}$ . Since the target pose is unknown, the target image is registered at the arbitrary origin $p_0=(0,0,0)$ to produce $m_{\mathrm{trg}}=F_{\mathrm{reg}}(I_{\mathrm{trg}},p_0;\theta_{\mathrm{enc}})$ . Three learned components are then used: $F_k$ embeds the current RNR-Map $m$ , $F_q$ embeds the target map $m_{\mathrm{trg}}$ , and $F_E$ converts cross-correlation responses into a spatial probability heatmap and an orientation prediction.

The target embedding is rotated through $R$ discrete orientations. If $\operatorname{Rot}_r$ denotes rotation by the $r$ -th angle in $\{0^\circ,360^\circ/R,\ldots,360^\circ(R-1)/R\}$ , the localization function is
$F_{\mathrm{loc}}(m,m_{\mathrm{trg}};\theta_{\mathrm{loc}}) =F_E\left(\operatorname{Conv}\left(F_k(m),\{\operatorname{Rot}_r(F_q(m_{\mathrm{trg}}))\}_{r=1}^{R}\right)\right),$
where $\operatorname{Conv}$ is cross-correlation, $\theta_{\mathrm{loc}}$ contains the parameters of $F_k$ , $F_q$ , and $F_E$ , and the output heatmap $E\in\mathbb{R}^{U\times V}$ assigns each map cell a probability of being the target location. The orientation head discretizes the target heading into 18 bins.

Training uses a Gaussian ground-truth heatmap $E_{\mathrm{gt}}$ centered at the true map cell and a cross-entropy orientation target. For predicted heatmap $\hat E$ and orientation $\hat a_{\mathrm{trg}}$ , the loss is
$\mathcal{L}_{\mathrm{loc}}=D_{\mathrm{KL}}(E_{\mathrm{gt}},\hat E)+CE(a_{\mathrm{trg}},\hat a_{\mathrm{trg}}),$
where $D_{\mathrm{KL}}$ is KL divergence and $CE$ is cross-entropy. The page-5 localization diagram depicts the same process: target-map encoding, multi-angle cross-correlation with the RNR-Map, and prediction of a spatial heatmap and target angle.
Knowl 4 — Differentiable camera tracking under odometry noise
model/method
RNR-Map camera tracking refines a noisy odometric pose by minimizing photometric error between the current RGB-D observation and an image rendered from the previously built map. Let $\hat p_{t-1}$ be the previously estimated pose, let $\Delta p_t$ be the measured relative odometry increment, and let $I_t$ be the current observation. The initial pose estimate is $\bar p_t=\hat p_{t-1}+\Delta p_t$ . Using the differentiability of the decoder, the corrected pose is
$\hat p_t=F_{\mathrm{track}}(m_{t-1},\bar p_t) =\arg\min_{\delta p_t}\left\|F_{\mathrm{dec}}(m_{t-1},\bar p_t+\delta p_t)-I_t\right\|_1,$
where $m_{t-1}$ is the map before incorporating the current observation and $\delta p_t$ is a 3-DoF pose correction. Gradient-based optimization is initialized at $\bar p_t$ and can use only a small subset of image pixels to reduce computation, allowing tracking during navigation.
Knowl 5 — RNR-Map image-goal navigation system
model/method
The proposed image-goal navigation system combines a persistent target representation, incremental RNR-Map construction, learned localization, camera tracking, and occupancy-based motion planning. At the beginning of an episode, the target image $I_{\mathrm{trg}}$ is encoded into a target map $m_{\mathrm{trg}}$ . During navigation, each current RGB-D observation updates the current RNR-Map $m_t$ and a separate occupancy map; the occupancy map records occupied, free, and unseen cells and is used for collision avoidance.

The localization module applies $F_{\mathrm{loc}}$ to $m_t$ and $m_{\mathrm{trg}}$ to obtain a target-likelihood heatmap $E$ , while $F_{\mathrm{track}}$ corrects the agent pose before the next map update. For exploration, a generalized Voronoi graph is constructed over the occupancy map. Each graph node receives a latent score from the heatmap $E$ and an exploration score proportional to the number of unseen occupancy pixels in its neighborhood; their sum determines visitation priority. The highest-priority node is selected as an exploration target.

A point-navigation controller follows the shortest occupancy-map path to the selected node and heuristically avoids obstacles. A learned stopper $F_{\mathrm{stop}}$ takes $m_{\mathrm{trg}}$ and $m_t$ and predicts whether the target has been reached. Once the target is detected, keypoint matching followed by Perspective-n-Point with RANSAC estimates the relative target pose, and the point-navigation controller performs the final approach. The navigation-system diagram on page 5 represents these mapping, localization, exploration, point-navigation, and stopping modules as a closed loop.
Knowl 6 — Image-goal navigation evaluation protocol
experimental setup
The navigation experiments use the Habitat simulator with the Gibson and NRNS image-goal navigation datasets. Gibson contains 72 houses for training and 14 houses for validation; the authors collected 200 random navigation trajectories per training scene to train the encoder, decoder, localization networks, and stopper. The NRNS benchmark has easy, medium, and hard difficulty levels with straight and curved path types, with 1,000 episodes per difficulty-path combination except for hard-straight, which has 806 episodes.

The agent receives only current RGB-D observations and odometry. Experiments use a directional camera with $90^\circ$ horizontal field of view, noisy odometry and actuation, and four discrete actions: move forward $0.25$ m, turn left $10^\circ$ , turn right $10^\circ$ , or stop. Each episode lasts at most 500 steps and is successful when the stop action is taken within 1 m of the target. Performance is reported using success rate (SR) and success weighted by path length (SPL), where SPL rewards successful paths while penalizing unnecessary path length.
Knowl 7 — Image-goal navigation performance
data/table
The main quantitative comparison evaluates image-goal navigation under the noisy protocol. Each table entry is SR/SPL in percent; within each path type, the four columns are easy, medium, hard, and overall. The table reproduced from page 8 compares the proposed RNR-Map system with behavior cloning, reinforcement learning, occupancy-map exploration, topological exploration, and last-mile variants.
Could not parse LaTeX table
RNR-Map obtains the best curved-path overall result among the listed methods, with 65.7 SR and 40.8 SPL, compared with 55.4 SR and 37.4 SPL for OVRL + SLING and 43.7 SR and 14.3 SPL for NRNS + SLING. It also exceeds the other listed methods on curved easy, medium, and hard success rates, demonstrating that the learned latent target signal is especially useful when the route is not straight.
Knowl 8 — Localization accuracy and robustness to visual change
empirical result
The RNR-Map localization components were evaluated for camera tracking and image-based localization. Camera tracking achieved a reported pose error of $0.108$ m while operating at $5$ Hz, which the authors considered adequate for real-time navigation. Image-based localization recovered previously observed images with 99% recall when an inlier was required to be within $50$ cm.

The localization method was also tested when the map and query image did not match exactly. In an object-change condition where 33.9% of observed images had changed, it localized the query within $50$ cm in 97.4% of cases and within $20^\circ$ orientation error in 97.5% of cases. In a novel-environment condition, where the query image came from a different scene, the selected location achieved 94.5% of the best possible visual similarity available in the current scene. The authors report failures primarily when several places look alike or when the query image contains little visual information.
Knowl 9 — Runtime and component ablation
data/table
The runtime and ablation results quantify whether RNR-Map can operate online and which components matter for navigation. Runtime was measured on a desktop with an Intel i7-9700KF CPU at 3.60 GHz and an NVIDIA GeForce RTX 2080 Ti GPU. The page-8 runtime table reports both frequency and per-call latency.
Could not parse LaTeX table
The ablation values below are averages over straight and curved scenarios; each entry is SR/SPL in percent. Noise indicates whether odometry and actuation noise are enabled, while $F_{\mathrm{loc}}$ and $F_{\mathrm{track}}$ indicate whether the corresponding modules are active.
Could not parse LaTeX table
The results show that removing the target-localization heatmap causes a large performance drop, from 66.9/42.3 overall with all modules and noise to 59.8/39.4 when tracking is also removed, and to 52.6/33.7 when localization is absent in the no-noise comparison. Activating camera tracking improves noisy navigation from 59.8 SR and 39.4 SPL to 66.9 SR and 42.3 SPL. All major operations, including rendering, have runtimes compatible with online use, although rendering-based tracking is the slowest component.
Knowl 10 — Odometry-error correction limitation
limitation
Once observations have been embedded into grid cells, the global RNR-Map is difficult to correct if the past odometry estimates were wrong: the latent codes have already been registered at potentially incorrect positions. The paper does not implement loop closure to resolve this problem. It proposes a future extension in which local RNR-Maps are connected by a pose graph and their poses are optimized jointly so that the rendered observations become geometrically consistent.

Coverage note — No substantial contribution was omitted; detailed network layer specifications and supplementary qualitative or MP3D analyses were left out because they provide implementation detail or corroboration rather than additional load-bearing method or findings.
